LG 14SR1AB El Owner's Manual
Add to my manuals
8 Pages
LG 14SR1AB is a reliable TV offering a range of features to enhance your viewing experience. With its user-friendly interface, you can effortlessly navigate through channels and adjust settings. The remote control provides convenient access to functions like volume adjustment, channel selection, and muting. The TV's ability to memorize channels allows for quick access to your favorite programs. Enjoy a variety of entertainment options, including TV shows, movies, and more, with LG 14SR1AB.
advertisement
▼
Scroll to page 2
of 8

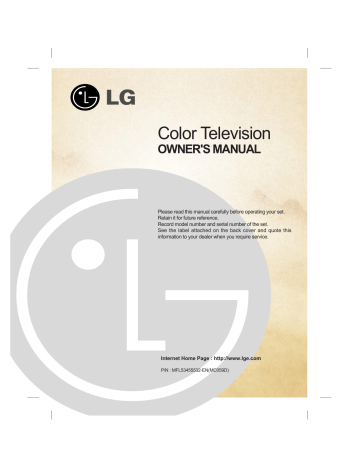

Color Television OWNER'S MANUAL Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the back cover and quote this information to your dealer when you require service. Internet Home Page : http://www.lge.com P/N : MFL53455532-EN(MC059D) Safety Precautions WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK). NO USER-SERVICEABLE PARTS IN SIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Cleaning Unplug this television receiver from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. Do not use attachments not recommended by the television receiver manufacturer as they may cause hazards. bottom are provided for ventilation, and to insure reliable operation of the television receiver, and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the television receiver on a bed, sofa, rug, or other similar surface. This television receiver should not be placed in a builtin installation such as a bookcase unless proper ventilation is provided. It is recommended not to operate this unit near speakers or big metallic furnitures in order to keep their magnetism from disturbing colors purity (uniformity) on the screen. Power Supply This television receiver should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your television dealer or local power company. Press the POWER button on the front panel or side panel to turn off the TV when the TV set is not being used for a long time.It is recommended to remove the plug from the wall outlet (Power point) Wet Location Marking: Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. Disconnecting device from mains Mains plug is the disconnecting device. The plug must remain readily operable. Use Do not allow anything to rest on the power cord. Do not locate this television receiver where the cord will be abused by persons walking on it. Do not overload wall outlets and extension cords as this can result in fire or electric shock. Never push objects of any kind into this television receiver through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television receiver. Installation Do not use this television receiver near water, for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc. Do not place this television receiver on an unstable cart, stand, or table. The television receiver may fall, causing serious injury to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the manufacturer, or sold with the television receiver. Wall or shelf mounting should follow the manufacturer's instructions and should use a mounting kit approved by the manufacturer. Slots and openings in the cabinet and the back or Service Do not attempt to service this television yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified personnel. Date of Purchase Dealer Purchased from Dealer Address Dealer Phone No. Model No. Serial No. Writing Model And Serial Numbers The serial number and model number are found on the back of this unit. The serial number is unique to this unit. You should record requested information here and retain this guide as a permanent record of your purchase. Please retain your purchase receipt as your proof of purchase. 2 Description of controls Fitting Batteries in the Remote Control Unit • Open the battery compartment cover on the back side and insert the batteries with correct polarity. • Apply 1.5V batteries of AAA type. Don’t mix the used batteries with new batteries. 2 1 3 4 Front panel 7 5 7 4 5 3 1 6 ENTER 6 2 1. POWER BUTTON (ON/OFF) Refer to "Turning on/off the TV". 2. REMOTE CONTROL SENSOR Note : Only use the supplied remote control handset. (When you use others, they’ll be not able to function.) 3. POWER/STANDBY INDICATOR illuminates brightly when the set is in standby mode. dims when the set is switched on. 4. TV/VIDEO BUTTON and ENTER BUTTON • To select TV, VIDEO or COMPONENT mode. • To exit from the displayed menu. • To memorize the adjusted menu. 5. MENU BUTTON select a menu. 6. < VOL > (VOLUME UP/DOWN) • To increase or decrease volume level. • To enter or adjust the selected menu when menu is displayed on the screen. 7. < CH > (CHANNEL UP/DOWN) • To select the desired channel. • To select the desired menu item when menu is displayed on the screen. Note:Do not apply force to the VOL and CH button.It can be only adjusted to 10 degree to the right or left.So you can adjust the program and volume by swivelling it again and again. 1. POWER BUTTON Refer to "Turning on/off the TV". 2. MENU BUTTON To display on screen menus. 3. MUTE BUTTON To mute the sound. Again to restore the muted sound. 4. NUMBER BUTTONS (some models) To select the desired channel directly. 5. FCR (Favorite Channel Review) BUTTON To select the favorite channel. Refer to "Favorite channel memory". 6. CHANNEL UP/DOWN (D / E) BUTTONS • To select the desired channel. • To select the desired menu item when menu is displayed on the screen. VOLUME UP/DOWN (F / G) BUTTONS • To increase or decrease volume level. • To enter or adjust the selected menu when menu is displayed on the screen. ENTER BUTTON (A) • To exit from the displayed menu. • To memorize the adjusted menu. • To recall the current TV mode (by remote control only). 7. TV/VIDEO BUTTON To select TV, VIDEO or COMPONENT mode. Connection of external equipment (some models) IN JACKS (some models) :Connect external equipment outputs (VCR, LASER DISC, CAMCORDER) to these inputs. Press the TV/VIDEO button to select VIDEO or VIDEO 1. You can connect additional equipment, such as VCRs, camcorders etc. to your set.Here shown may be somewhat different from your set.These are an example drawing of typical jack layout. Note:This TV is programmed to remember which mode it was last set to, even if you turn the TV off. 3 Antenna Connections Connecting an Outdoor Antenna Connecting a CATV Cable For the best reception, we recommend you use an outdoor antenna. Severely weathered antennas and antenna cables can reduce the signal quality. Before connecting it, necessarily inspect them. Any service center can explain the various outdoor antennas available to you. If you subscribe to a CATV system, change the antenna connection as described below. 1. Remove the 300 to 75 ohm adapter or the cable from the set if attached. 2. Connect the CATV cable (75 ohm coaxial cable) to the antenna jack. On screen menus The dialogue between you and your set takes place on screen with an operator menu .The buttons required for the operating steps are also displayed. select a menu item. 3.Press the G button to display the sub menu or the pull-down menu. 4.Change the setting of an item in the sub or pulldown menu withF / G or D / E.You can move to the higher level menu with ENTER or F button and to move to the lower level menu press the G button. Menu selection 1.Press the MENU button and then D / E button to display each menu. 2.Press the G button and then D / E button to CH. CH. Auto+prog. Manual Favorite++ Clock Off_timer On+_timer Auto+_off+ { { { Move++Next { Exit} + { { { { Move++Next { Exit} ++ + ++ CH. CH. APC Contrast Brightness Color Sharpness Tint ++{ { +{ +{ +{ +{ ++++++ ++++++ Move++Next { Exit} + ++ Language Input Key+lock Caption+ Auto+demo { { { { { Move++Next+{+Exit} TV programme Basic TV operation Before operating your TV, make sure the following instructions have been completed. • Your TV has been connected to an antenna or a cable system. • Your TV has been plugged in a power outlet. • In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just an example to help you with the TV operation. At this time, the set switches to standby mode and the standby indicator lights up in red. To switch the TV on from standby mode, press the < CH >button on the set or POWER, TV/VIDEO, CH D / E or number button on the remote control. A channel number will be displayed on the screen. The on-screen display will disappear after a few seconds. Press the POWER button on the remote control. It reverts to standby mode.To switch the TV off, press the POWER button on the set. Turning on/off the TV Press the POWER (or ON/OFF) button on the set. 4 Basic TV operation number buttons (0 ~ 9) to change as . Selecting the on screen language 1. Press the MENU button and then D / E button until the menu is displayed. 2. Press the G and then D / E button to select Language. 3. Press the G and then use D / E button to select the desired language. From this point on, the on-screen display will be presented in the language of your choice. 4. Repeatedly press the MENU button to exit. Memorizing the Channels by AUTO PROGRAM AUTO PROGRAM searches and memorizes all the active channels in your area then you can select the desired channel with the D / E buttons. Selecting the Channel Press the D / E button to conveniently select the upper or lower channel then the channel being viewed, or NUMBER buttons to directly select the desired channel. Memorizing Channels This is the function to memorize all the active channels in your area before you can use the TV. There are two ways of memorizing channels. You can use either. One is called AUTO PROGRAM and the other is called MANUAL PROGRAM. In AUTO PROGRAM the TV will memorize the channels in ascending order. If there are additional channels you want to add or delete, you can manually add or delete those channels. Adjusting the Volume Press the G button to increase the volume level or F button to decrease the volume level. To mute the sound, Press the MUTE button. The word Mute is displayed. It's convenient when you get the telephone calls. To restore the muted sound, press the MUTE button again or VOL F / G button. Various function Auto demonstration allows you to review all the menus programmed in the TV set. Setting the Clock Before setting the on/off timer, first you should set the current time. Favorite channel memory Favorite channel memory is a convenient feature that lets you quickly scan up to five channels of your choice without having to wait for the TV to scan through all the in-between channels. To select the favorite channel, repeatedly press the FCR (Favorite Channel Review) button. Eight channels programmed appear on the screen one by one. Setting the Off Timer This is the function to automatically switch the TV to standby mode at a preset time. Note: If the same time is set for the on time and off time, only the off time operates. Setting the On Timer This is the function to automatically turn the TV on at a preset time and channel. Notes: •If you don’t press any button within 2 hours after turning on the TV set by ON TIMER function, the set will be automatically switched back to standby mode. •TV must be in standby mode for the On timer to work. Adjusting the Fine This function is to adjust the picture if poor signal received from broadcasters causing horizontal stripe, twisted picture, no color, and/or noise. 1. Press the MENU button and then D / E button the until the menu is displayed as shown right. 2. Press the G and then D / E button to select Manual.. 3. Press the G and then D/ E button to select Fine. 4. Press the G button to enter the Fine mode. 5. Press the F / G button to tune the desired picture condition. 6. Press the ENTER (A) button to memorize. 7. Repeatedly press the MENU button to exit. Notes : • To release the memorized fine tuning, program again the fine-tuned channel by AUTO PROGRAM or MANUAL PROGRAM. •If the finely tuned channel is memorized, the color of the channel number changes to yellow. Auto Off If there is no input signal, the TV is switched to standby mode automatically in 10 minutes. Key Lock The TV can be set so that the remote control is needed to control it. This feature can be used to prevent unauthorized viewing. Notes : • With the key lock on, the display Key lock appears on the screen if any button on the front panel is pressed while viewing the TV. •This programmed to remember which option it was last set to even if you switch the TV from standby mode. Auto Demonstration (some models) 5 Picture control Auto Picture Control 3. Press the G button to enter the APC mode. 4. Press the D / E button to select Clear, Optimum, Soft ,User,Sepia or B-W(BlackWhite). 5. Repeatedly press the MENU button to exit. Using the MENU button 1. Press the MENU button and then D / E button the until the menu is displayed . 2. Press the G and then D/ E button to select APC. CH. APC ++{ APC Contrast { Brightness +{ Color ++++++++{ +{ Sharpness Tint +{ + Adjusting the Picture This is the function to manually adjust the desired picture levels (Contrast, Brightness, Color, Sharpness, Tint) of the screen as you like. If the picture you set is not satisfactory, you can select a factory preset picture. In the broadcasting system PAL-M/N, the picture item Tint is not displayed. Clear Optimum Soft User Sepia B_W ++++++ Move++Next { Back} + + Closed caption function (some models) Closed captioning is a process which converts the audio portion of a television program into written words, which then appear on the television screen in a form similar to subtitles. Closed captions allow viewers to read the dialogue and narration of television programs. Picture may flutter, drift, suffer from black spots or horizontal streaking. Usually caused by interference from automobile ignition systems, neon lamps, electrical drills and other electrical appliances. A GHOSTS: Ghosts are caused when the TV signal splits and follows two paths. One is the direct path and the other is reflected off tall buildings, hills or other objects. Changing the direction or position of the antenna may improve reception. A SNOW: If your receiver is located at the weak, fringe area of a TV signal, your picture may be marred by small dots. It may be necessary to install a special antenna to improve the picture. 2. An old, bad or illegally recorded tape is played. 3. Strong, random signals from a car or airplane interfere with the TV signal. 4. The signal from the antenna is weak. 5. The program wasn't captioned when it was produced, transmitted or taped. Using Closed Captions Captions are the subtitles of the dialogue and narration of television programs. For prerecorded programs, program dialogue can be arranged into captions in advance. It's possible to caption a live program by using a process called “real-time captioning”, which creates captions instantly. Real-time captioning is normally done by professional reporters using a machine shorthand system and computer for translation into English. Captioning is an effective system for the hearingimpaired, and it can also aid in teaching language skills. Caption Tips • Not all TV broadcasts include closed caption signals. • Sometimes TV stations broadcast two different caption signals on the same channel. By selecting MODE 1 or MODE 2, you can choose which signal you view. MODE 1 is usually the signal with the captions, while MODE 2 might show demonstration or programming information. • Your TV might not receive caption signals normally in the following situations. 1. Poor reception conditions are encountered: A IGNITION: Using the Text Function Text services give a wide variety of information on all kind of subjects (ex. captioned program lists, weather forecasts, stock exchange topics, news for hearing-impaired---) through the full TV screen. But not all stations offer text services, even though they might offer captioning. Note: In the event you receive a poor signal, an empty black box may appear and disappear, even when the text mode is selected. This is normal function in such an event. 6 Troubleshooting check list SYMPTOMS No power No picture or sound Poor picture but good sound Poor reception Lines in picture Ghosts (multiple images) Remote control does not work. Cannot tune desired channel. CHECK THESE THINGS Is power cord plugged in? Is television turned on? Check batteries in remote control. Try another channel (station trouble). Check antenna connectings. Check for local interference. Adjust the antenna. Adjust the picture control. Program channel using AUTO PROGRAM. 7 How to Install TV Legs Accessory:Legs 4EA(Front 2EA & Rear 2EA) 4. Lift up the legs of the TV set as shown in the figure. 1. Lay the TV set down on a soft cloth as shown in the figure. 2. Fully insert the two supporting legs marked with "FRONT" into the holes at the bottom of the front cabinet,and secure them as shown in the figure. Note: To avoid any damage caused by the TV set falling over by accident,please affix the supplied suspension loop to a proper position on the wall behind the TV set, and secure the loop with screws(not supplied),as shown in the figure.Then, use the supplied rope to connect the TV set and the suspension loop.The rope length should be properly adjusted to fit the distance between the TV and the wall. Screw hole 3. Fully insert the two supporting legs marked whth "REAR" into the holes at the bottom of the rear cabinet and secure them,as shown in the figure.
