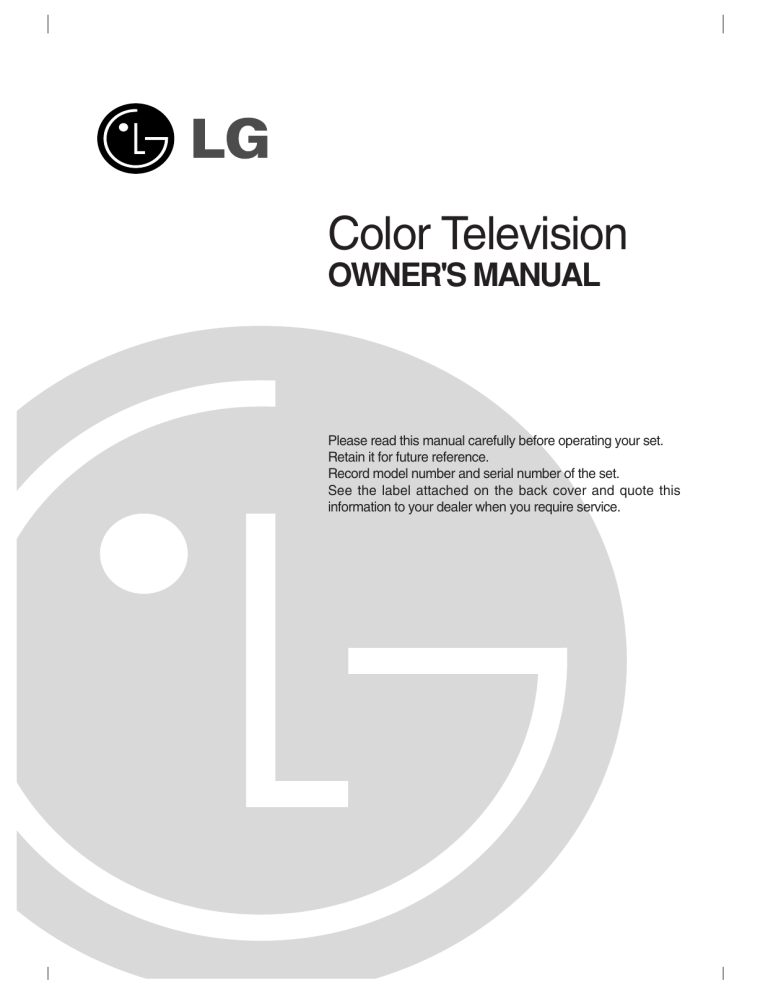

Color Television
OWNER'S MANUAL
Please read this manual carefully before operating your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote this
information to your dealer when you require service.
Safety Precautions
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR
BACK). NO USER-SERVICEABLE PARTS IN SIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
never be blocked by placing the television receiver
on a bed, sofa, rug, or other similar surface. This
television receiver should not be placed in a builtin installation such as a bookcase unless proper
ventilation is provided.
It is recommended not to operate this unit near
speakers or big metallic furnitures in order to keep
their magnetism from disturbing colors purity
(uniformity) on the screen.
Cleaning
Unplug this television receiver from the wall outlet
before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
Do not use attachments not recommended by the
television receiver manufacturer as they may
cause hazards.
Power Supply
This television receiver should be operated only
from the type of power source indicated on the
marking label. If you are not sure of the type of
power supplied to your home, consult your
television dealer or local power company.
Wet Location Marking:
Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such
as vases, shall be placed on the apparatus.
Use
Do not allow anything to rest on the power cord.
Do not locate this television receiver where the
cord will be abused by persons walking on it.
Do not overload wall outlets and extension cords
as this can result in fire or electric shock.
Never push objects of any kind into this television
receiver through cabinet slots as they may touch
dangerous voltage points or short out parts that
could result in a fire or electric shock.
Never spill liquid of any kind on the television
receiver.
Installation
Do not use this television receiver near water, for
example, near a bathtub, washbowl, kitchen sink,
or laundry tub, in a wet basement, or near a swimming pool, etc.
Do not place this television receiver on an
unstable cart, stand, or table. The television
receiver may fall, causing serious injury to a child
or an adult, and serious damage to the appliance.
Use only with a cart or stand recommended by the
manufacturer, or sold with the television receiver.
Wall or shelf mounting should follow the manufacturer's instructions and should use a mounting
kit approved by the manufacturer.
Slots and openings in the cabinet and the back or
bottom are provided for ventilation, and to insure
reliable operation of the television receiver, and to
protect it from overheating. These openings must
not be blocked or covered. The openings should
Service
Do not attempt to service this television yourself
as opening or removing covers may expose you
to dangerous voltage or other hazards. Refer all
servicing to qualified personnel.
Writing Model And Serial Numbers
Date of Purchase
Dealer Purchased from
Dealer Address
Dealer Phone No.
Model No.
Serial No.
The serial number and model number are found
on the back of this unit. The serial number is
unique to this unit. You should record requested
information here and retain this guide as a
permanent record of your purchase. Please retain
your purchase receipt as your proof of purchase.
2
CONTENTS
Description of controls ................................................................................................4 ~ 5
USB Mode.............................................................................................................................6
Select the OSD Language .............................................................................................7
Select the S/W Version ..................................................................................................7
Select the Default ..........................................................................................................7
Select the Effect ............................................................................................................8
Select the Frequency .....................................................................................................8
Select the Music ............................................................................................................8
Select the Play Mode......................................................................................................8
Select the Movie, Music or Photo Media ........................................................................9
Movie File Playing Operation..........................................................................................9
Using the remote control ................................................................................................9
MP3 File Playing Operation..........................................................................................10
Using the remote control ..............................................................................................10
JPEG File Viewing Options ..........................................................................................11
Using the remote control ..............................................................................................11
Slide Show....................................................................................................................11
Basic TV operation ...........................................................................................................12
Turning on/off the TV ...................................................................................................12
Selecting the on screen language ...............................................................................12
Memorizing Channels ..................................................................................................13
Memorizing the Channels by AUTO PROGRAM ........................................................13
Memorizing the Channels by MANUAL PROGRAM ...................................................14
Selecting the Channel .................................................................................................14
Adjusting the Volume ...................................................................................................14
Various function ...............................................................................................................15
Setting the Clock .........................................................................................................15
Setting the OFF TIMER ................................................................................................15
Setting the ON TIMER .................................................................................................15
Setting the Sleep Time ................................................................................................16
Auto Off .......................................................................................................................16
Operating the degauss (some models) ........................................................................16
Key Lock.......................................................................................................................17
Adjusting the Fine.........................................................................................................17
Favorite channel memory .............................................................................................18
Auto Demonstration .....................................................................................................18
Picture control ..................................................................................................................19
Auto Picture Control ....................................................................................................19
Adjusting the Picture.....................................................................................................19
XD (some models)........................................................................................................19
Sound control ...................................................................................................................20
Enjoying the Stereo/SAP Broadcast.............................................................................20
Auto Sound Control ......................................................................................................20
AVL (Auto Volume Leveler) .........................................................................................20
Adjusting the balance ...................................................................................................21
Turbo Sound (some models) ........................................................................................21
Adjusting the equalizer (User mode in Auto Sound Control) .......................................21
Closed caption function....................................................................................................22
Using Closed Captions ................................................................................................22
Operating the Caption and Text ...................................................................................23
Antenna Connections .......................................................................................................24
Connection of external equipment (some models) ................................................25 ~ 26
Connecting DVD player (some models) ..........................................................................27
Troubleshooting check list
3
Description of controls
1
POWER TV/VIDEO
SLEEP
2
3
4
MTS
A.PROG MEMORY/ERASE CAPTION
VOL.-
VOL.+
ZOOM
1
2
3
9
10
11
1. POWER BUTTON (or ON/OFF )
Refer to "Turning on/off the TV".
2. SLEEP BUTTON
To set the desired sleep time.
3. A. PRGO (Auto program) BUTTON
To memorize channels by AUTO PROGRAM.
4. MTS BUTTON (some models)
To listen to the MTS sound.
5. NUMBER BUTTONS
To select the desired channel directly.
USB SELECT BUTTONS
To operate USB function.
/ESC
5
U
S
B
4
7
5
6
8
9
SELECT
6
12
0
FCR
MUTE
CH
7
VOL
ENTER
VOL
CH
8
MENU
USB
13
14
6. MUTE BUTTON
To mute the sound. Again to restore the muted
sound.
7. CH UP/DOWN (D / E) BUTTONS
• To select the desired channel.
• To select the desired menu item when menu
is displayed on the screen.
VOLUME UP/DOWN (F / G) BUTTONS
• To increase or decrease volume level.
• To enter or adjust the selected menu when
menu is displayed on the screen.
ENTER (A) BUTTON
• To exit from the displayed menu.
• To memorize the adjusted menu.
• To recall the current TV mode (by remote control
only).
8. MENU BUTTON
To display on-screen or exit from USB mode.
* Other local key is not available in USB mode.
9. TV/VIDEO BUTTON
To select TV, VIDEO or COMPONENT mode.
10. MEMORY/ERASE BUTTON (some models)
To memorize or erase the desired channel.
11. CAPTION BUTTON (some models)
To select the CAPTION mode.
Refer to "Closed caption function".
12. FCR (Favorite Channel Review) BUTTON
To select the favorite channel.
Refer to "Favorite channel memory".
13. USB BUTTON
Enter into or exit from USB mode.
14.
4
: No function.
This is a simplified representation of front panel.
If your product has a protection film attached, remove the film and then wipe the product with a
polishing cloth.
TV/
VIDEO
9
8
7
CH
1
15
16
15. STAND BY INDICATOR
Illuminates red when the TV is in standby mode. Refer to "Turning on/off the TV".
16. REMOTE CONTROL SENSOR
Fitting Batteries in the Remote Control Unit
The remote control is powered by batteries. This requires AAA type batteries for operation. To ensure
consistent operation, change the batteries about once a year.
Caution : Batteries installed incorrectly may leak and damage the remote control. Do not mix old and
new batteries or different types of batteries (for example, standard and alkaline).
1. Remove the battery compartment cover by sliding it in the arrowhead direction.
2. Insert new batteries as indicated by the polarity markings (+ and -) inside the compartment.
3. Replace the battery compartment cover.
5
USB MODE
• Connecting USB device
USB
1. Connect USB device to USB slot which is on the slide of
the TV set.
2. Press USB key on the remote or select USB in main
menu special mode.
• Removing the USB device from TV
1. Return to main menu and press STOP(A/ESC) twice.
2. Remove the USB device from TV.
- When you plug a USB or press the USB button, the below screens will be displayed.
USB
• Enter into USB mode
1. Press “USB” key on remote control.
2. Select “USB” on the main menu special
mode.
Notes :
• Don’t extract the USB device while operating.
Music files (MP3), image files (JPG) and AVI
files can be played.
• USB HUB connection is not available.
• Recommended USB device and file system.
- Connecting USB device should comply with
USB 2.0 specifications.
- Compatible with : FAT16, FAT32 (Recommend
FAT32 for USB over 2GB)
- Only use USB memory stick recommended.
• Devices which require additional program
installation may cause identification or data
reading problem.
• In case of a USB HDD, make sure to connect an
auxiliary power to the USB HDD for proper
operation. 1 primary partitions of a drive is
supported. If there is an extension partition, it will
not be supported.
• Digital cameras and mobile phones are not
supported.
• Exit from USB mode
1. Press “USB or MENU” key on remote
control in USB mode.
2. Press local key “MENU” in USB mode.
• Unsupported or damaged AVI, JPG or MP3 files
can cause errors. Do not try to change the file
extension of unsupported file types to the file
extension of supported file types.
• This device codec is hardware codec so the
supportable file format and codec can not be
updated by firmware upgrade.
• Entry into USB mode can be activated or deactivated by USB key on the remote controller.
• If you make entry back into USB mode after
switching to RF while playing USB media, music
and movie will be paused. For play, press GII
key to continue to play.
• TIMEOUT function : If there is no IR Input from
remote controller for about 4 hours after entry to
USB mode, all operations being played stop and
will be switched and fixed to USB main menu.
• Customers should note that permission is
required in order to download MP3 or movie files
from internet. Our company has no right to grant
such permission.Permission should always be
sought from the copyright owner.
6
USB MODE-System setup
Select the OSD Language
- The menus can be shown on the screen in the selected language.
First select your language.
1. Press the USB button and then use D / E / F / G button to select the
Setup.
2. Press the ENTER button to enter the Setup menu.
3. Press the D / E button to select the SYSTEM SETUP.
4. Press the G and then use D /E button to select OSD LANGUAGE..
5. Press the G and then use D / E button to select the desired
language.
6. Press the USB button to exit or press the A/ESC button to return
to the USB menu. Press the Menu button to return to the TV menu.
SYSTEM+SETUP
ENGLISH
OSD+LANGUAGE
ESPAÑOL
S/W+VERSION
PORTUGUES
DEFAULT
ENTER
/ESC
SYSTEM+SETUP
OSD+LANGUAGE 450.008.018
S/W+VERSION
DEFAULT
Select the S/W Version
- Show the S/W Version.
ENTER
1. Press the USB button and then use D / E / F / G button to select the
Setup.
2. Press the ENTER button to enter the Setup menu.
3. Press the D / E button to select the SYSTEM SETUP.
4. Press the G and then use D /E button to select S/W VERSION.
5. Press the G.
6. Press the USB button to exit or press the A/ESC button to return
to the USB menu. Press the Menu button to return to the TV menu.
Select the Default
SYSTEM+SETUP
OSD+LANGUAGE
S/W+VERSION
DEFAULT
ENTER
- Use the Default option to initialize the adjusted settings.
1. Press the USB button and then use D / E / F / G button to select the
Setup.
2. Press the ENTER button to enter the Setup menu.
3. Press the D / E button to select the SYSTEM SETUP.
4. Press the G and then use D /E button to select DEFAULT.
5. Press the G.
6. Press the USB button to exit or press the A/ESC button to return
to the USB menu. Press the Menu button to return to the TV menu.
7
/ESC
RESTORE
/ESC
USB MODE-Photo Setup
Select the Effect
?
??
?
??
??
?
??
??
[email protected]@@@@@@@@@@?
[email protected]@@@@@@@@@@??
??
?
??
??
?
??
-The picture display effect for the slide show.
PHOTO+SETUP
1. Press the USB button and then use D / E / F / G button to select the
Setup.
2. Press the ENTER button to enter the Setup menu.
3. Press the D / E button to select the PHOTO SETUP.
4. Press the G and then use D /E button to select EFFECT.
5. Press the G and then use D / E button to select the desired Effect.
6. Press the USB button to exit or press the A/ESC button to return
to the USB menu.
Select the Frequency
ENTER
/ESC
PHOTO+SETUP
??
?
??
??
?
??
??
?
[email protected]@@@@@@@@@@?
[email protected]@@@@@@@@@@?
??
?
??
??
?
??
?
-The picture display interval for the slide show.
1. Press the USB button and then use D / E / F / G button to select the
Setup.
2. Press the ENTER button to enter the Setup menu.
3. Press the D / E button to select the PHOTO SETUP.
4. Press the G and then use D /E button to select FREQUENCY.
5. Press the G and then use D / E button to select the Frequency.
6. Press the USB button to exit or press the A/ESC button to return
to the USB menu.
Select the Music
??
?
??
??
?
??
??
?
[email protected]@@@@@@@@@@?
[email protected]@@@@@@@@@@??
??
??
??
?
??
?
RANDOM
WIPE+BOTTOM
WIPE+LEFT
WIPE+RIGHT
LEFT+TOP
EFFECT
FREQUENCY
MUSIC
PLAY+MODE
3+SECOND
5+SECOND
10+SECOND
1+MINUTE
5+MINUTE
EFFECT
FREQUENCY
MUSIC
PLAY+MODE
ENTER
/ESC
PHOTO+SETUP
You can turn on or off the background music when playing the
photograph mode.
1. Press the USB button and then use D / E / F / G button to select the
Setup.
2. Press the ENTER button to enter the Setup menu.
3. Press the D / E button to select the PHOTO SETUP.
4. Press the G and then use D /E button to select MUSIC.
5. Press the G and then use D / E button to select ON or OFF.
6. Press the USB button to exit or press the A/ESC button to return
to the USB menu.
Select the Play Mode
ON
OFF
EFFECT
FREQUENCY
MUSIC
PLAY+MODE
ENTER
/ESC
PHOTO+SETUP
??
??
??
??
??
??
?
[email protected]@@@@@@@@@@?
[email protected]@@@@@@@@@@??
??
??
??
??
??
-You can select your desired playback mode in the slide shows.
1. Press the USB button and then use D / E / F / G button to select the
Setup.
2. Press the ENTER button to enter the Setup menu.
3. Press the D / E button to select the PHOTO SETUP.
4. Press the G and then use D /E button to select PLAY MODE.
5. Press the G and then use D / E button to select NORMAL or
RANDOM.
6. Press the USB button to exit or press the A/ESC button to return
to the USB menu.
8
EFFECT
FREQUENCY
MUSIC
PLAY+MODE
ENTER
NORMAL
RANDOM
/ESC
USB MODE-Movie
Select the Movie, Music or Photo Media
- When you plug a USB or press the USB button, the below screens
will be displayed.
1. Press F / G button to select Movie, Music or Photo.
2. Press the ENTER button to enter the Movie, Music or Photo media.
3. Press the USB button to exit.
Movie File Playing Operation
[K_OTHERS]
1. Press the USB button and then use D / E / F / G button to select the
Movie.
2. Press the ENTER button.
3. Press the D / E / F / G button to select folder and desired movie file.
4. Press the GII or ENTER button. Then the movie starts.
5. Press the USB button to exit or press the A/ESC button to stop or
return to the USB main menu.
9
K_OTHERS
J_SUBT
I_CONT
H_VIDE_1
OTH_01_1.AVI
OTH_02_1.AVI
ENTER
/ESC
USB MODE-Movie
Using the remote control
VOL.-
VOL.+
1
2
4
6
To increase or decrease volume level for the Movie.
Press the
Press the
4
6
button to jump previous Movie.
button to jump next Movie.
/ESC
5
Stop movie playing or move to the movie file list menu.
8
Still screen is displayed. (When playing movie)
Play movie in sequence (at movie list)
9
7
ENTER
Press the
Press the
7
9
button to rewind.
button to fast forward.
Show the Information of movie. (when playing movie)
Play movie selected by cursor. (at movie list)
SELECT
0
ON/OFF or Select subtitle
Notes:
• Movie (AVI)file compatibility with this player is limited as follows :
-Available resolution of AVI file is under 720x480 (576)pixel.
-If video codec is not supportable, "UNSUPPORTED FORMAT"OSD will be displayed in the file list
menu.
-If sound codec is not supportable, Video may display but "UNSUPPORTED FORMAT" OSD will be
displayed with no sound.
-If sound has no data stream,"NO SOUND"OSD will be displayed on the screen.
-If the number of the screen frame is over 30 per 1 second, this device may not operate normally.
• Supportable Subtitle format: srt, sri, smi, txt, ssa, ass, sub, psb
• Supportable movie file extension: “.DAT”, “.AVI”, “.MP4”, “.MPG”
• Supportable video codecs: MPEG1(VCD 1.0, 1.1, 2.0, SVCD), MPEG4 ASP or Compatible codecs
10
USB MODE-Music
MP3 File Playing Operation
- Purchased MP3/music files may contain copyright restrictions.
1. Press the USB button and then use D / E / F / G button to select the
Music.
2. Press the ENTER button.
3. Press the D / E / F / G button to select folder and desired music file.
4. Press the GII or ENTER button. Then the music starts.
5. Press the USB button to exit or press the A/ESC button to stop or
return to the USB menu.
[G_AUDIO]
AUD_1A.MP3
AUD_1B.MP3
AUD_1C.MP3
AUD_3A.MP3
AUD_3B.MP3
G_AUDIO
D_FILE
ENTER
/ESC
Using the remote control
VOL.-
VOL.+
1
2
4
6
Press the
Press the
4
6
button to jump about 5 seconds forward.
button to jump about 4 seconds backward.
Moved the Folders in menu. (at music list)
Stop playing music. (when playing music)
/ESC
5
9
7
To increase or decrease volume level for the Music.
8
ENTER
To select the previous or next music.
To pause playback.(when playing music)
Play music in sequence (at music list)
Play music selected by cursor.
Notes :
• MP3 compatibility with this player is limited as follows:
- Sampling frequency :within 8 -48 KHz
- Bit rate :32 -384 Kbps, Support all variable bit rates
- TV can not read an MP3 file that has a file extension other than “.mp3’
- File name should have a maximum of 8 letters and must incorporate an .mp3 extension.
- Total number of files on the USB memory device should be less than 1200.
• This TV mp3 player requires mp3 files to meet certain technical standards (ISO/IEC 111723,ISO/IEC 138183.2)in order to achieve optimal playback quality.
• There are many different types of MP3 encoders and these require certain pre-existing conditions above to
ensure compatible playback.
• The navigation key can be shifted only up and down during MP3 file play and cannot switch to other folder.
• In order to play a file in other folder, stop the file being played, and move cursor to another folder.
• In case of VBR (Variable Bit Rate) MP3, estimated playing time may not correct as actual playing.
11
USB MODE-Photo
JPEG File Viewing Options
K_REA_1.JPG+81K+720x576
1.+K_REA_1[81K]
2.+A_NLTM_1[154K]
3.+B_RED[43K]
- When you select Photo in entry menu, you will now see a screen
filled with thumbnail photo media.
4.+K_REA_1[81K]
1. Press the USB button and then use D / E / F / G button to select the
Photo.
2. Press the ENTER button.
3. Press the D / E / F / G button to select photo file.
4. Press the ENTER button for 1 picture display and press 8 for slide
show.
5. Press the USB button to exit or press the A/ESC button to stop slide
show or return to thumbnail file list, USB main menu.
Slide Show
1. Press the D / E / F / G button to select JPEG file and then press the
8 button. Slide show starts.
2. You can choose the slide show effect, frequency and play mode in
the USB Setup.
3. Press the GII button to pause the current image.
4. Press the USB button to exit or press the A/ESC button to stop slide
show return to the USB menu.
Still picture
Press the D / E / F / G button to select JPEG file then press the
ENTER button. Selected still picture display starts.
12
5.+A_NLTM_1[154K]
ENTER
/ESC
6.+B_RED[43K]
USB MODE-Photo
Using the remote control
VOL.-
VOL.+
1
2
4
6
To increase or decrease volume level for the Music.
(When selecting the turn-on of background music when playing the
photograph mode.)
To select the previous or next page. (at thumbnail mode)
To jump to the previous or next photo (at one photo display)
/ESC
Move to main menu from thumbnail mode.
5
These keys (FF&RW) are not available in photo mode.
9
7
ZOOM
To enlarge or reduce the image 2, 3 or 4 times. (at one photo display)
3
1. Zoom mode
To scroll left, right, up and down
CH
VOL
VOL
CH
2. Still picture display mode
VOL+: Rotate 90 (Clockwise)
VOL- : Rotate -90 (Counter - clockwise)
CH+ : Upside down & vice versa
CH- : Mirror image & vice versa
?
?
?
?
@@@6X?hf?
?J(M?I/Xhf?
?7H?eN1hf?
[email protected][email protected]?
[email protected][email protected]?
?3L?eJ5hf?
?N)K?O.Yhf?
@@@0Y?hf?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
@@@6X?hf?
?J(M?I/Xhf?
?7H?eN1hf?
[email protected][email protected]?
[email protected][email protected]?
?3L?eJ5hf?
?N)K?O.Yhf?
@@@0Y?hf?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
Notes :
• JPEG compatibility with this player is limited as follows :
- Depending upon the size and the number of JPEG files,it could take a
long time for TV to read the USB memory's contents. If you don't see
an on screen display after several minutes,some of the files maybe
too large-reduce the resolution of the JPEG files to less than 2M
pixels as 2760x2048 resolution.
- The total number of files and folders on the USB memory device
should be less than 1200.
- File name without ".jpg" extension will not be able to read by this TV
jpeg decoder. Even though the files are shown as JPEG image files
in Windows Explorer.
- Cause of Photo character, Progressive JPEG is always scanned
“WIPETOP” regardless of Photo Effect.
13
Basic TV operation
Before operating your TV, make sure the following instructions have been completed.
• Your TV has been connected to an antenna or a cable system.
• Your TV has been plugged in a power outlet.
• In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just an
example to help you with the TV operation.
Turning on/off the TV
Press the POWER (or ON/OFF) button on the set. At this time, the set
switches to standby mode and the standby indicator lights up in red.
To switch the TV on from standby mode, press the TV/VIDEO, CH
D /E button on the set or POWER, TV/VIDEO, CH D /E or number
button on the remote control.
A channel number will be displayed on the screen. The on-screen
display will disappear after a few seconds.
Press the POWER button on the remote control. It reverts to standby
mode.
To switch the TV off, press the POWER button on the set.
Selecting the on screen language
1. Press the MENU button and then D / E button until the menu is
displayed as shown right.
2. Press the G and then use D /E button to select Language.
3. Press the G and then use D / E button to select the desired
language.
From this point on, the on-screen display will be presented in the
language of your choice.
Special
CH.
Language
Input
Key+lock
Caption+
Degauss
USB
{
{
{
{
{
{
Move++Next+{+Exit}
4. Press the MENU button to exit.
14
Memorizing Channels
This is the function to memorize all the active channels in your area before you can use the TV.
There are two ways of memorizing channels. You can use either.
One is called AUTO PROGRAM and the other is called MANUAL PROGRAM.
In AUTO PROGRAM the TV will memorize the channels in ascending order. If there are additional
channels you want to add or delete, you can manually add or delete those channels.
Memorizing the Channels by AUTO PROGRAM
AUTO PROGRAM searches and memorizes all the active channels in
your area then you can select the desired channel with the D / E
buttons.
Using the A.PROG button
++Auto+program OToOOstart
You can conveniently perform AUTO PROGRAM using the A.PROG
button on the remote control.
1. Press the A.PROG button.
2. Press the G or A.PROG button.
The AUTO PROGRAM starts now.
OAutoOprogramOOOOOOOOTVO19
O5%
If you want to stop auto programming, press the ENTER (A) button.
Only the channels searched up to that time are memorized.
StopÅ
Notes : • If the programmed signal has poor quality, memorize again
in the Auto program.
• AUTO PROGRAM stores all receivable channels regardless
of receiving signal (RF, Cable).
• If channels of general wireless TV and cable TV are
duplicated, press the number buttons (0 ~ 9) to change as .
Channel
CH.
Channels of general wireless TV
Channels of Cable TV
Using the MENU button
1. Press the MENU button and then use D / E button to select the
channel menu.
2. Press the G and then use D / E button to select Auto program.
3. Press the G button to enter the Auto program mode.
4. The AUTO PROGRAM starts now.
15
Auto+program
{
Manual program
{
Favorite+channel++ {
Auto+demo+
++++{
Move++Next { Exit}
+
+
Basic TV operation
Memorizing the Channels by MANUAL
PROGRAM
Using the MEMORY/ERASE button
You can conveniently perform MANUAL PROGRAM using the
MEMORY / ERASE button on the remote control.
1. Press the D / E or NUMBER buttons to select the channel number
you want to memorize or erase.
2. Press the MEMORY/ERASE button to select Memory or Erase.
The on screen display appears as shown right.
Using the MENU
++CATV+++95+++Memory
Channel
CH.
1. Press the MENU button and then use D / E button to select the
channel menu.
2. Press the G and then use D / E button to select Manual
program .
3. Press the G button and then use D / E button to select Channel.
4. Press the G button and then use D / E button to select the channel
number you want to memorize or erase.
5. Press the F button and then use D / E button to select Memory.
6. Press the G button and then use D / E to select Memory or
Erase.
7. Press the F button and then use D / E button to select Ch.name.
You can make a channel name.
8. Press the G button and then use F / G button to select a word
position and then use D / E button to enter alphabet A to Z, number
0 to 9, or blank.
9. Repeat steps 3 to 8 to memorize or erase other channels.
10.Press the MENU button to exit.
Auto+program
{
Manual
Manual program
program {
{
Favorite+channel+{
Auto+demo+
+{
To+set
Move++Next { Back}
+
+
Manual program
+
Channel
Memory
Memory
Fine
Ch.+name
{
{{
{
{
+
++Memory
++Erase
Move++Next { Back}
+
+
Selecting the Channel
Press the D / E button to conveniently select the upper or lower
channel then the channel being viewed, or NUMBER buttons to
directly select the desired channel.
oVolume
Adjusting the Volume
_
Press the G button to increase the volume level or F button to
decrease the volume level.
To mute the sound, Press the MUTE button.
It's convenient when you get the telephone calls.
To restore the muted sound, press the MUTE button again or VOL
F / G button.
16
15
++++++++
Various function
Setting the Clock
Timer
Before setting the on/off timer, first you should set the current time.
CH.
1. Press the MENU button and then use D / E button to select the
Timer menu.
2. Press the G and then D / E button to select Clock .
3. Press the G button and then press the D/ E button to adjust the hour.
4. Press the G button and then press the D / E button to adjust the
minute.
5. Press the MENU button to exit.
Clock
Clock
Off_timer
On+_timer
Auto+_off+
{
{
{
{
{
__
AM
__:__+AM
Move++Next { Back}
+
+
Setting the OFF TIMER
This is the function to automatically switch the TV to standby mode at
a preset time.
1. Press the MENU button and then use D / E button to select the
Timer menu.
2. Press the G and then use D / E button to select Off timer.
3. Press the G button and then press the D / E button to adjust the
hour.
4. Press the G button and then press the D / E button to adjust the
minute.
5. Run/Hold is used to activate or deactivate preset on/off times.
Press the G and then use D / E button to select Hold or Run.
6. Press the MENU button to exit.
Timer
CH.
Clock
Off_timer
Off_timer
On+_timer
Auto+_off+
{
{
{
{
{
__:40+AM
11
PM
0Hold
Move++Next { Back}
+
+
Note: If the same time is set for the on time and off time, only the off
time operates.
Setting the ON TIMER
This is the function to automatically turn the TV on at a preset time and
channel.
1. Press the MENU button and then use D / E button to select the
Timer menu.
2. Press the G and then use D / E button to select On timer.
3. Press the G and then use D / E button to adjust the hour.
4. Press the G and then use D / E button to adjust the minute.
5. Press the G and then use D / E button to select the desired channel
among the memorized channels in auto program.
6. Press the G and then use D / E button to adjust the desired volume
level.
7. Run/Hold is used to activate or deactivate preset on/off times.
Press the G button and then use D / E button to select Hold or
Run.
8. Press the MENU button to exit.
Notes: •If you don’t press any button within 2 hours after turning on the
TV set by ON TIMER function, the set will be automatically
switched back to standby mode.
•TV must be in standby mode for the On timer to work.
17
Timer
CH.
Clock
Off_timer
On+_timer
On_timer
Auto+_off+
{
{
{
{
{
Move++Next { Back}
+
+
11
__:40+AM
PM
TV0000006
Volume030
Hold
Various function
Setting the Sleep Time
You don't have to remember to switch the TV to standby mode before
you go to sleep. The sleep timer automatically turns the TV off after
the preset time elapses.
Press the SLEEP button to select the desired sleep time.
Each time you press this button, the sleep time is displayed one by
one as shown below. The timer begins to count down from the number
of minutes selected.
eSleepeee_ _ _
--- → 10 → 20 → 30 → 60 → 90 → 120 → 180 → 240
Notes: •After a few seconds, the desired sleep time will disappear and
be operated automatically.
• To view the remaining sleep time, press the SLEEP button
once and the remaining sleep time will be displayed.
• To cancel the sleep time, select the Sleep --- mode by using
the SLEEP button.
Auto Off
If there is no input signal, the TV is switched to standby mode
automatically in 10 minutes.
Timer
CH.
1. Press the menu button and then use D / E button to select the
Timer menu.
2. Press the G and then use D / E button to select Auto off.
3. Press the D / E button to select On or Off.
4. Press the MENU button to exit.
+
In this TV set the magnetic field of the earth may influence on the color
purity of picture by neighbor magnetic substance or installation
direction of the TV set. The stripes may appear on the screen or the
color may not be equal in the corner. You can enjoy the program in
high color quality by operating the Degauss.
Notes: •Do not operate this function often because the lifetime of CPT
may be shorten.
• If you cannot adjust the screen condition by degaussing, try it
again after about 4 minutes.
18
{
{
{
{
{
On
Off
Move++Next { Back}
Operating the degauss (some models)
1. Press the menu button and then use D / E button to select the
Special menu.
2. Press the G and then use D / E button to select Degauss.
3. Press the G button and then use D / E button to select On or Off.
After the degaussing function works, On mode switches to Off
mode automatically.
4. Press the MENU button to exit.
Clock
Off_timer
On+_timer
Auto+
_off+
Auto+
_off+
_
+
Special
CH.
Language
Input
Key+lock
Caption+
Degauss
USB
{
{
{
{
{
{
Move++Next { Back}
+
+
On
Off
Key Lock
The TV can be set so that the remote control is needed to control it.
This feature can be used to prevent unauthorized viewing.
Special
CH.
1. Press the menu button and then use D / E button to select the
Special menu.
2. Press the G and then use D / E button to select Key lock.
3. Press the G button and then D / E button to select On or Off.
4. Press the MENU button to exit.
Language
Input
Key+lock
Caption+
Degauss
USB
{
{
{
{
{
{
On
Off
Move++Next+{+Back}
Notes : • With the key lock on, the display Key lock appears on the
screen if any button on the front panel is pressed while
viewing the TV.
• This programmed to remember which option it was last set to
even if you switch the TV from standby mode.
Channel
Adjusting the Fine
CH.
This function is to adjust the picture to stable condition when it is poor,
for example, a horizontal stripe, twisted picture or no color in broadcasting.
1. Press the MENU button and then use D / E button to select the
channel menu.
2. Press the G and then use D / E button to select Manual
program.
3. Press the G and then use D / E button to select Fine.
4. Press the G button to enter the Fine mode.
5. Press the F / G button to tune the desired picture condition.
6. Press the ENTER (A) button to memorize.
7. Repeatedly press the MENU button to exit.
Notes : • To release the memorized fine tuning, program again the finetuned channel by AUTO PROGRAM or MANUAL PROGRAM.
• If the finely tuned channel is memorized, the color of the
channel number changes to yellow.
19
Auto+program
{
Manual
Manual program
program {
{
Favorite+channel+{
Auto+demo+
+{
To+set
Move++Next { Back}
+
+
Manual program
+
Channel
Memory
+Fine
Fine
Ch.+name
{
{
{{
{
Move++Next { Back}
+
+
0
Various function
Favorite channel memory
Favorite channel memory is a convenient feature that lets you quickly
scan up to five channels of your choice without having to wait for the
TV to scan through all the in-between channels.
Channel
CH.
1. Press the MENU button and then use D / E button to select the
Channel menu.
2. Press the G and then use D / E button to select Favorite
Auto+program
{
Manual program {
Favorite++channel
channel++{
{
Favorite
Auto+demo+
+{
channel.
3. Press the G button and then use D / E button to select a favorite
channel position.
4. Use the F / G button to select the desired channel number.
5. Repeat steps 3 to 4.
6. Press the MENU button to exit.
Move++Next { Back}
+
To select the favorite channel, repeatedly press the FCR (Favorite
Channel Review) button. Eight channels programmed appear on the
screen one by one.
Auto demo allows you to review all the menus available on the TV set.
1. Press the MENU button and then use D / E button to select the
Channel menu.
2. Press the G button and then use D / E button to select Auto
demo.
3. Press the G button, and the demonstration starts.
When the demonstration reaches the last display, it starts again
from the beginning.
To stop auto demonstration, press any button.
20
+
Channel
CH.
Auto Demonstration
CATV++95
_____
_____
_____
_____
_____
_____
_____
Auto+program
{
Manual program {
Favorite+channel{
Auto+demo+
+
{ ToOstart
Auto+demo+
+
{
Move++Next { Back}
+
+
Picture control
Auto Picture Control
You can select picture modes programmed at factory as you prefer.
Clear
Using the APC button
1. Press the APC button.
2. Press the APC button to select Clear, Optimum, Soft or User.
3. Press the ENTER(A) button to exit.
CH.
Using the MENU button
APC
APC
XD
Contrast
Brightness
Color
Sharpness
Tint
++{
{
{
+{
{
+{
+{
+
1. Press the MENU button and then use D / E button to select the
Picture menu.
2. Press the G and then use D / E button to select APC.
3. Press the G button to enter the APC mode.
4. Press the D / E button to select Clear, Optimum, Soft or User.
5. Press the MENU button to exit.
++++++
Clear
Optimum
Soft
User
Move++Next { Back}
+
Adjusting the Picture
+
CH.
This is the function to manually adjust the desired picture levels
(Contrast, Brightness, Color, Sharpness, Tint) of the screen as
you like. If the picture you set is not satisfactory, you can select a
factory preset picture. In the broadcasting system PAL-M/N, the
picture item Tint is not displayed.
1. Press the MENU button and then use D / E button to select the
Picture menu.
2. Press the G and then use D / E button to select the desired picture
mode.
3. Press the G button.
4. Press the F / G button to adjust the level.
The level of displayed is adjusted.
5. Press the MENU button to exit.
APC
{
XD
{
Contrast
{
Brightness
+{
Color ++++++++{
Sharpness
+{
Tint
+{
++++++
Move++Next { Back}
+
+
CH.
APC
++{
XD
{
+Contrast
Contrast
{
Brightness
+{
Color ++++++++{
Sharpness
+{
Tint
+{
100
++++++
Move++Next { Back}
+
XD (some models)
XD is LG Electronic’s unique picture improving technology to display a
real HD source through an advanced digital signal processing
algorithm.
+
CH.
APC
++{
XD
{
XD
Contrast
{
Brightness
+{
Color ++++++++{
Sharpness
+{
Tint
+{
+
1. Press the MENU button and then use D / E button to select the
Picture menu.
2. Press the G and then use D / E button to select XD.
3. Press the G button and then use D / E button to select On or Off.
4. Press the MENU button to exit.
Note : When selecting APC options (Clear, Optimum and Soft), XD is
automatically change to On.
21
++++++
Move++Next { Back}
+
+
On
Off
Sound control
Enjoying the Stereo/SAP Broadcast
This TV set can receive MTS stereo programs and any SAP
(Secondary Audio Program) that accompanies the stereo program, as
the system to be transmitted one additional sound signal as well as the
original one. MTS function doesn't operate in the video mode.
Using the MTS Button
1. Press the MTS button to select your desired MTS mode.
Each time you press this button, the MONO, STEREO or SAP mode
appears in turn.
2. Press the ENTER (A) button to exit.
Notes:
• Stereo or SAP can only be received if the TV station transmits those
signals, even though you have selected STEREO or SAP.
• Mono sound is automatically received if the broadcast is only in
Mono; even though STEREO or SAP has been selected.
• Select MONO if you want to listen to mono sound in remote fringe
areas during stereo/SAP broadcasting.
Auto Sound Control
Sound
You can enjoy the best sound without any special adjustment because
this TV set automatically adjusts the sound appropriate to viewing
program character by self-intelligence.
CH.
1. Press the MENU button and then use D / E button to select the
Sound menu.
2. Press the G and then use the D / E button to select DASP.
3. Press the G and then use the D / E button to select Flat, Music,
Movie, Sports or User.
4. Press the MENU button to exit.
DASP
DASP
Turbo+Sound
AVL
Balance
++++{{
{
{
{
Flat
Music
Movie
Sports
User
{
Move++Next { Back}
+
AVL (Auto Volume Leveler)
+
Sound
AVL automatically keeps on an equal volume level even if you change
channels.
Using the MENU Button
1. Press the MENU button and then use D / E button to select the
Sound menu.
2. Press the G and then use D / E button to select AVL.
3. Press the G and then use D / E button to select On or Off.
4. Press the MENU button to exit.
22
CH.
DASP
Turbo+Sound
AVL
Balance
++{
{
{
{
Move++Next { Back}
+
+
On
\Off
Adjusting the balance
Sound
CH.
1. Press the MENU button and then use D / E button to select the
Sound menu.
2. Press the G and then use D / E button to select Balance.
3. Press the G and then use F / G button to adjust the balance
level.
4. Press the MENU button to exit.
DASP
Turbo+Sound
AVL
Balance
++{
{
{
{
50
\
0
Move++Next { Back}
+
Turbo Sound (some models)
+
Sound
CH.
With this function sound will be more emphasized and amplified
than normal sound. You can enjoy the Turbo sound so much
better than normal sound.
Using the MENU Button
DASP
Turbo+Sound
AVL
Balance
++{
{
{
{
On
\Off
Move++Next { Back}
1. Press the MENU button and then use D / E button to select the
Sound menu.
2. Press the G and then use D / E button to select Turbo Sound.
3. Press the G and then use D / E button to select On or Off.
4. Press the MENU button to exit.
+
+
Sound
CH.
Adjusting the equalizer
(User mode in Auto Sound Control)
DASP
AVL
Balance
DBS
Move++Next { Back}
+
+
1. Press the MENU button and then use D / E button to select the
Sound menu.
2. Press the G and then use D / E button to select DASP.
3. Press the G and then use D / E button to select User, then
press G button to enter the User mode.
4. Press the F / G button to select the sound band and then press
the D / E button to adjust the desired level.
5. Press the MENU button to exit.
0.1O0.5O1.5O5.0O10OkHz
Move}{ Adjust+ BackÅ
++
23
Flat
\ Music
Movie
Sports
+User
User++++++{
++{
{
{
{
+++
Closed caption function
Closed captioning is a process which converts the audio portion of a television program into written
words, which then appear on the television screen in a form similar to subtitles. Closed captions allow
viewers to read the dialogue and narration of television programs.
Using Closed Captions
FOLLOW ME
Captions are the subtitles of the dialogue and narration of television
programs. For prerecorded programs, program dialogue can be
arranged into captions in advance. It's possible to caption a live
program by using a process called “real-time captioning”, which
creates captions instantly. Real-time captioning is normally done by
professional reporters using a machine shorthand system and
computer for translation into English.
Captioning is an effective system for the hearing-impaired, and it can
also aid in teaching language skills.
• The picture at left shows a typical caption.
Caption Tips
• Not all TV broadcasts include closed caption signals.
• Sometimes TV stations broadcast two different caption signals on the same channel. By selecting
MODE 1 or MODE 2, you can choose which signal you view. MODE 1 is usually the signal with the
captions, while MODE 2 might show demonstration or programming information.
• Your TV might not receive caption signals normally in the following situations.
1 Poor reception conditions are encountered:
A
IGNITION:
Picture may flutter, drift, suffer from black spots or horizontal
streaking. Usually caused by interference from automobile ignition
systems, neon lamps, electrical drills and other electrical
appliances.
A
GHOSTS:
Ghosts are caused when the TV signal splits and follows two paths.
One is the direct path and the other is reflected off tall buildings,
hills or other objects. Changing the direction or position of the
antenna may improve reception.
A
SNOW:
If your receiver is located at the weak, fringe area of a TV signal,
your picture may be marred by small dots. It may be necessary to
install a special antenna to improve the picture.
2 An old, bad or illegally recorded tape is played.
3 Strong, random signals from a car or airplane interfere with the TV signal.
4 The signal from the antenna is weak.
5 The program wasn't captioned when it was produced, transmitted or taped.
24
Using the Text Function
Text services give a wide variety of information on all kind of subjects
(ex. captioned program lists, weather forecasts, stock exchange
topics, news for hearing-impaired---) through the full TV screen.
But not all stations offer text services, even though they might offer
captioning.
Note: In the event you receive a poor signal, an empty black box may
appear and disappear, even when the text mode is selected.
This is normal function in such an event.
Operating the Caption and Text
Using the CAPTION button
1. Press the CAPTION button.
2. Press the CAPTION button to select OFF, Mode 1, Mode 2, Text 1
or Text 2.
3. Press the ENTER (A) button to exit.
SSOff
Using the MENU button
1. Press the MENU button and then use D / E button to select the
Special menu.
2. Press the G and then use D / E button to select Caption.
3. Press the G button and then use D / E button to select Off, Mode
1, Mode 2, Text 1 or Text 2.
4. Press the MENU button to exit.
Note: This TV is programmed to remember which mode it was last set
to, even if you turn the TV off.
25
Special
CH.
Language
Input
Key+lock
Caption+
Degauss
USB
{
{
{
{ +++Off
{ +++Mode1
{ +++Mode2
+++Text1
+++Text2
Move++Next+{+Back}
Antenna Connections
Combination
VHF/UHF Antennas
300 ohm Flat Wire
300 ohm
Flat Wire
TV rear
75 ohm
Antenna
Jack
300 to 75
ohm Adapter
75 ohm
Coaxial
Cable
300 to 75
ohm Adapter
75 ohm
CATV Cable
Connecting an Outdoor Antenna
For the best reception, we recommend you use an outdoor antenna.
Severely weathered antennas and antenna cables can reduce the signal quality. Before connecting it,
necessarily inspect them. Any service center can explain the various outdoor antennas available to you.
300 Ohm Flat Wire
1. Connect the 300 ohm flat wire to screws on the
300 ohm to 75 ohm adapter.
2. Push the end of 300 ohm to 75 ohm adapter
into 75 ohm antenna jack.
75 Ohm Coaxial Cable
1. Connect the 75 ohm coaxial cable directly to
the 75 ohm antenna jack.
Connecting a CATV Cable
If you subscribe to a CATV system, change the antenna connection as described below.
2.
1.
75 ohm
Antenna Jack
300 to 75 ohm
Adapter
75 ohm CATV Cable
from cable TV source
1. Remove the 300 to 75 ohm adapter or the cable from the set if attached.
2. Connect the CATV cable (75 ohm coaxial cable) to the 75 ohm antenna jack.
26
Connection of external equipment (some models)
You can connect additional equipment, such as VCRs, camcorders etc. to your set.
Here shown may be somewhat different from your set.
These are an example drawing of typical jack layout.
3
COMPONENT
OUT
PB
Y
PR
DVD IN(480i)
VIDEO (L/MONO)AUDIO(R)
1
IN1
VIDEO
2
(L/MONO) AUDIO(R)
IN2
1. IN 1 JACKS : Connect external equipment outputs (VCR, LASER DISC, CAMCORDER) to these
inputs. Press the TV/VIDEO button to select AV1.
2. IN 2 JACKS : Connect external equipment outputs (VCR, LASER DISC, CAMCORDER) to these
inputs. Press the TV/VIDEO button to select AV2.
3. OUT JACKS: Connect external equipment inputs (VCR, Audio amplifier) to these outputs for recording
or monitoring the selected program.
Note:
This TV is programmed to remember which mode it was last set to, even if you turn the
TV off.
Connecting AUDIO/VIDEO IN Jacks
OUT
1. Connect the audio/video output jacks of the VCR to
IN 1 jacks on the side or back of TV.
If you connect the audio jack only, you can't hear the
sound from the TV.
VIDEO (L/MONO)AUDIO(R)
IN1
< TV >
2. Press the TV/VIDEO button to select AV1 or AV2.
3. Press the PLAY button on the VCR.
The video playback is on the TV screen.
< Playback VCR >
Note: In case of MONO VCR, connect the output jack of VCR to the AUDIO L/MONO IN jack of TV so
that the sound can be heard from both speakers. If you connect it to the AUDIO R IN jack of TV
the sound is heard only from right speaker.
27
Connection of external equipment (some models)
Note: In some mono models, when the input jacks on the front panel and back panel are connected to
external equipments at the same time, the input jacks on the front panel have priority over the
input jacks on the back panel of the TV.
VCR Recording
(some models)
1. Connect the audio/video input jacks of the
recording VCR to the OUT (A/V) jacks on the
back.
2. Select the program number on the TV.
3. Set the recording VCR to record.
OUT
< Recording VCR >
VIDEO (L/MONO)AUDIO(R)
IN1
Recording a program from connected other equipment
< TV >
(some models)
< Recording VCR >
1. Connect the output jacks of the playback VCR
to the IN 1 or IN 2 (A/V) jacks on the side or
back of TV.
2. Connect the input jacks of the recording VCR
to the OUT (A/V) jacks on the back of TV.
3. Press the TV/VIDEO button to select AV-1 or
AV-2.
4. Press the PLAY button on the playback VCR
and set the recording VCR to record.
OUT
< TV >
VIDEO (L/MONO)AUDIO(R)
IN1
< Playback VCR >
28
Connecting DVD player
• Connect component video inputs to Y, PB, PR(480i) and audio IN2 to audio(L/R) ports.
• Note: This TV is programmed to remember which mode it was last set to, even if you turn the TV off.
1.How to connect
COMPONENT
Y
PB
PR
DVD IN (480i)
VIDEO
(L/MONO) AUDIO(R)
IN2
< TV connection panel >
Y
Note:
TV INPUT
Y
DV D OUTPUT
Y
Y
Y
Y
PB
PB
PR
(R) AUDIO (L)
< Back panel of DVD >
PR
Cb Cr
B -Y R -Y
Pb Pr
PB PR
2.How to use
• Turn the set on and press the TV/VIDEO button on the remote control or
TV/VIDEO button on the front panel to select COMPONENT.
•Try this after turning on the DVD set.
29
Note
30
Troubleshooting check list
SYMPTOMS
No power
No picture or sound
Poor picture but good sound
Poor reception
Lines in picture
Ghosts (multiple images)
Remote control does not work.
Cannot tune desired channel.
CHECK THESE THINGS
Is power cord plugged in?
Is television turned on?
Check batteries in remote control.
Try another channel (station trouble).
Check antenna connectings.
Check for local interference.
Adjust the antenna.
Adjust the picture control.
Program channel using AUTO
PROGRAM.
31
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
