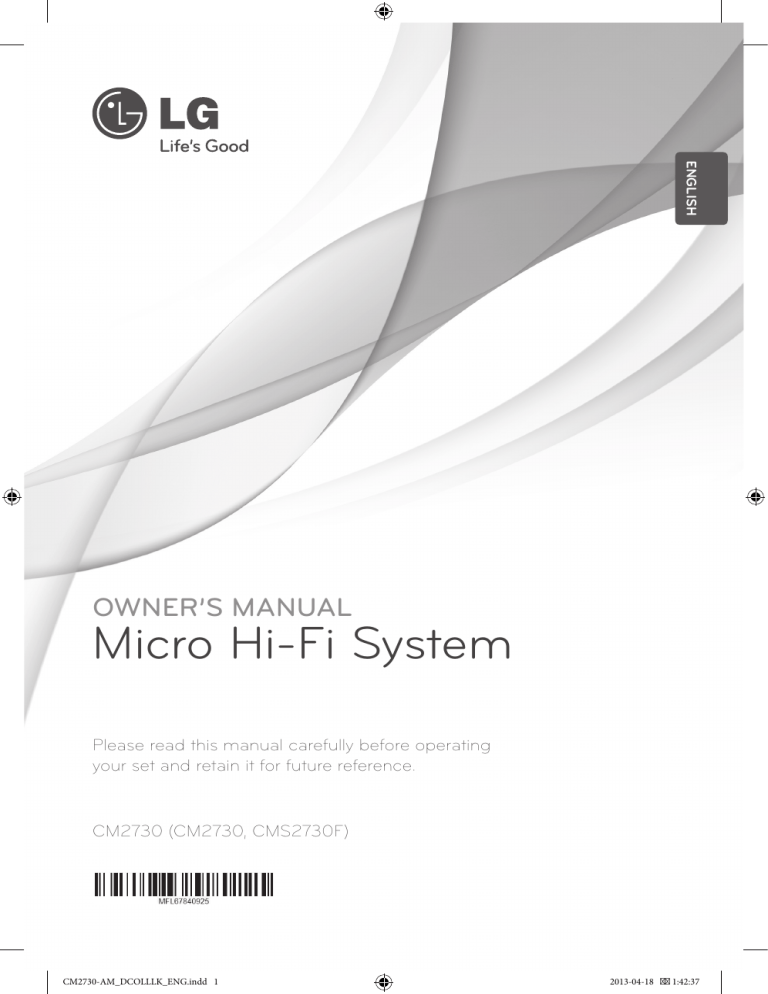

ENGLISH
OWNER’S MANUAL
Micro Hi-Fi System
Please read this manual carefully before operating
your set and retain it for future reference.
CM2730 (CM2730, CMS2730F)
CM2730-AM_DCOLLLK_ENG.indd 1
2013-04-18 �� 1:42:37
1
2
Getting Started
Getting Started
Safety Information
1
CAUTION
Getting Started
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature accompanying the
product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
confined space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CM2730-AM_DCOLLLK_ENG.indd 2
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not
try to open the enclosure.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specification page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.
2013-04-18 �� 1:42:41
Getting Started
3
This device is equipped with a portable battery or
accumulator.
1
Getting Started
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, fire or the like.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects filled
with liquids, such as vases, shall be placed on the
apparatus.
You have to set the disc format option to [Mastered]
in order to make the discs compatible with the LG
players when formatting rewritable discs. When
setting the option to Live File System, you cannot
use it on LG players.
(Mastered/ Live File System : Disc format system for
Windows Vista)
CM2730-AM_DCOLLLK_ENG.indd 3
2013-04-18 �� 1:42:41
4
Table of Contents
Table of Contents
1
Getting Started
3
Operating
2
6
6
6
6
6
7
8
10
Safety Information
Unique Features
Accessories
– MP3/ WMA music file requirement
– Compatible USB Devices
– USB device requirement
Remote control
Front panel
Rear panel
13
13
13
13
13
2
Connecting
11
11
11
11
11
Connecting to speakers
– Attaching the speakers to the unit
Optional Equipment Connection
– PORT. IN Connection
– Listening to music from your external
device
– Antenna Connection
Basic Operations
– CD/ USB Operations
Other Operations
– Programmed Playback
– Displaying file information
(ID3 TAG)
– Turn off the sound temporarily
– DEMO
Using a Bluetooth wireless technology
– Listening to music stored on the
Bluetooth devices
Radio Operations
– Listening to the radio
– Presetting the Radio Stations
– Deleting all the saved stations
– Improving poor FM reception
Sound adjustment
– Setting the surround mode
Setting the Clock
– Using your player as an alarm clock
– Sleep Timer Setting
– Dimmer
– Auto power down
Advanced Operations
– Playing the iPhone/iPod
– Compatible iPhone/iPod
– Recording to USB
– To select recording bit rate and speed
12
CM2730-AM_DCOLLLK_ENG.indd 4
13
14
14
14
15
15
15
16
16
16
16
17
17
18
18
18
18
18
19
20
20
2013-04-18 �� 1:42:41
Table of Contents
4
Troubleshooting
21
Troubleshooting
5
Appendix
22
23
23
23
23
Specifications
Maintenance
– Notes on Discs
– Handling the Unit
Trademarks and Licenses
5
1
2
3
4
5
CM2730-AM_DCOLLLK_ENG.indd 5
2013-04-18 �� 1:42:41
6
Getting Started
Unique Features
1
Bluetooth®
Getting Started
Listen to music stored on your bluetooth device.
USB Direct Recording
Playable file
Requirement
MP3/ WMA music file
requirement
Records music to your USB device.
MP3/ WMA file compatibility with this unit is limited
as follows :
Portable In
yy S ampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
Listens to music from your portable device. (MP3,
Notebook, etc)
it rate : within 32 to 320 kbps (MP3),
yy B
40 to 192 kbps (WMA)
yy Maximum files : Under 999
yy File extensions : “.mp3”/ “.wma”
Accessories
yy CD-ROM file format : ISO9660/ JOLIET
Please check and identify the supplied accessories.
e recommend that you use Easy-CD Creator,
yy W
which creates an ISO 9660 file system.
Compatible USB Devices
yy MP3 Player : Flash type MP3 player.
FM Antenna (1)
Remote Control (1)
SB Flash Drive :
yy U
Devices that support USB2.0 or USB1.1.
yy T he USB function of this unit does not support
all USB devices.
USB device requirement
Battery (1)
AM Antenna (1)
evices which require additional program
yy D
installation when you have connected it to a
computer, are not supported.
yy Do not extract the USB device while in operation.
yy F or a large capacity USB, it may take longer than
a few minute to be searched.
yy To prevent data loss, back up all data.
yy If you use a USB extension cable or USB hub, the
USB device is not recognized.
sing NTFS file system is not supported. (Only
yy U
FAT(16/ 32) file system is supported.)
yy T his unit is not supported when the total
number of files is 1 000 or more.
yy E xternal HDD, Card readers, Locked devices, or
hard type USB devices are not supported.
SB port of the unit cannot be connected to PC.
yy U
The unit cannot be used as a storage device.
CM2730-AM_DCOLLLK_ENG.indd 6
2013-04-18 �� 1:42:43
Getting Started
7
Remote control
• • • • • • •
a • • • • • •
SLEEP: Sets the system to turn
off automatically at a specified
time.
(Dimmer : The display window
will be darkening by half.)
B (OPEN/CLOSE): Ejects or
insert the disc from slot loader.
F (FUNCTION): Selects the
fuction and input source.
SOUND EFFECT: Chooses
sound impressions.
INFO: Checks information about
your music. MP3 files often
come with tags. The tag gives
the Title, Artist, Album or Time
information.
Battery Installation
• • • • • • b • • • • • •
REPEAT /MENU:
- Listens to your tracks
repeatedly
or
randomly.
1
Getting Started
1 (POWER): Switches the unit
ON or OFF.
• • • • • • c • • • • • •
FOLDER · PRESET w/s:
Searches for a folder of MP3/
WMA files. When a CD/ USB
containing MP3/ WMA files in
several folders is being played,
press
FOLDER · PRESET w/s Choose
a ‘preset number’ for a radio
station.
PROGRAM/MEMO.:
-For storing radio stations if you
have saved radio stations using
PROGRAM/MEMO. , you can
scroll through them and select
one.
-Listens to your tracks in any
order.
@ (MUTE): Mutes the sound.
VOLUME +/-: Adjusts speaker
volume.
• • • • • • d • • • • • •
X REC: USB direct recording.
- Move to the previous
menu(iPod).
Remove the battery cover on
the rear of the Remote Control,
and insert one (size AAA)
battery with 4 and 5 matched
correctly
TUNING -/+: Selects the radio
station.
C/V (Skip/Search):
-Skips Fast backward or Forward.
-Searches for a section within a
track.
d/M (Play/Pause):
-Starts or pauses playback.
-Selects stereo/mono in FM
mode.
Z ENTER: Stops playback or
recording.
CM2730-AM_DCOLLLK_ENG.indd 7
2013-04-18 �� 1:42:45
8
Getting Started
Front panel
1
Getting Started
CM2730-AM_DCOLLLK_ENG.indd 8
2013-04-18 �� 1:42:46
Getting Started
a Disc Slot
Insert a disc in the disc slot with the label side
left.
b iPod dock
d Display window
Shows the current status of the unit.
e FUNC. (FUNCTION)
Changes the input source or function.
f USB Port
Connects an USB device.
g EQ
You can choose fixed sound impression.
h B (OPEN/CLOSE)
Ejects or insert the disc from slot loader.
i C/V (Skip/Search):
Goes to next or previous file/track.
Searches backward or forward (Press and hold)
Tunes in the desired radio station.
d/M (PLAY / PAUSE)
Starts playback.
Pauses playback temporarily, press again to exit
pause mode.
Selects stereo/mono in FM mode.
j -/+ (VOLUME)
Adjusts speaker volume.
Z (STOP)
Stops playback.
SET/DEMO
Confirms the setting. / Show DEMO.
k USB REC.
Recoding to USB.
TIMER
With the TIMER function you can turn USB, CD
play and TUNER reception on or off at a desired
time.
l PORT. IN
Connects to a portable player with audio
outputs.
CLOCK
For setting the clock and checking the time.
CM2730-AM_DCOLLLK_ENG.indd 9
1
Getting Started
c 1/! (POWER)
Switches the unit ON or OFF.
9
PHONES
Headphone jack
2013-04-18 �� 1:42:46
10
Getting Started
Rear panel
1
Getting Started
a ANTENNA (FM, AM)
c Cooling fan
b Speaker terminal
d Power cord
CM2730-AM_DCOLLLK_ENG.indd 10
2013-04-18 �� 1:42:47
Connecting
Connecting to
speakers
Optional Equipment
Connection
Attaching the speakers to the
unit
PORT. IN Connection
Connect an output of portable device (MP3 or PMP
etc) to the AUDIO (PORT. IN) input connector.
2
Connecting
To connect the cable to the unit, press each plastic
finger pad to open the connection terminals on the
unit. Insert the wire and release the finger pad.
11
Connect the black stripe of each wire to the
terminals marked - (minus) and the other end to
the terminals marked + (plus).
MP3 player, etc...
>>Caution
Listening to music from your
external device
yy The speakers contain magnet parts, so color
irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.
The unit can be used to play the music from many
types of external device.
(Refer to the page 11)
yy Make sure to install the speaker with other
people in order to prevent it from falling
and causing injuries to the installer.
2. Turn the power on by pressing 1/! (Power).
1. Connect the external device to the PORT. IN
connector of the unit.
3. Select the PORTABLE function by pressing
FUNC. on the unit or F (FUNCTION) on the
remote control.
4. Turn the external device and start it playing.
CM2730-AM_DCOLLLK_ENG.indd 11
2013-04-18 �� 1:42:48
12
Connecting
USB Connection
Antenna Connection
Connect the USB port of USB Memory (or MP3
player, etc.) to the USB port on the front of the unit.
Connect the supplied FM/ AM antenna for listening
to the radio.
Connect the AM loop antenna to the AM antenna
connector. (A)
Connect the FM wire antenna to the FM antenna
connector. (F)
2
Connecting
,,Note
yy Removing the USB Device from the unit
1. Choose a different function/ mode or
press Z ENTER twice in a row.
2. Remove the USB device from the unit
can only recharge your iPod through
yy You
USB port. To listen to music on iPod, refer to
the page 18.
,,Note
yy To prevent noise pickup, keep the AM Loop
antenna away from the unit and other
components.
yy Be sure to fully extend the FM wire antenna.
After connecting the FM wire antenna, keep
it horizontal.
CM2730-AM_DCOLLLK_ENG.indd 12
2013-04-18 �� 1:42:49
3
Operating
Operating
Basic Operations
Other Operations
CD/ USB Operations
Programmed Playback
1. Insert the disc by pressing B (OPEN/CLOSE) or
connect the USB device to the USB port.
The program function enables you to store your
favorite files from any disc or USB device.
2. Select the CD or USB function by pressing
F (FUNCTION) on the remote control or FUNC.
on the unit.
A program can contain 20 tracks.
3. Select a file (or track) you want to play by
pressing C/V.
Do this
Press Z ENTER.
Press d/M.
During playback, Press d/M.
During playback, press C/V
Skipping to to go to the next track/ file or to
the next/ return to the beginning of the
previous current track/ file.
track/ file Press C twice briefly to step
back to the previous track/ file.
Searching Press and hold C/V during
for a section playback and release it at the point
within a track you want to listen to.
Searching
Press FOLDER · PRESET w/s and
for a section
then d/M.
within a folder
Press REPEAT/MENU on the
remote control repeatedly, the
Playing
display change in the following
repeatedly or
order,
randomly
RPT1 -> RPT DIR (only MP3/ WMA)
-> RPT ALL -> RANDOM -> OFF
,,Note
The DTS is not supported. In case of DTS audio
format, audio is not output.
1. Insert a CD or USB and wait for it to be order.
2. Press PROGRAM/MEMO. on the remote control
in stop status.
3. Press C/V on the unit or on the remote
control in stop satus.
4. Press PROGRAM/MEMO. again to save and
select a next track.
3
5. Press d/M to play the programmed music files.
Operating
To
Stop
Playback
Pause
13
6. To clear your selection, press Z ENTER,
PROGRAM/MEMO. and then Z ENTER.
,,Note
The programs are also cleared when the disc
or USB device is removed, the unit is powered
off or the function is switched to others.
Displaying file information
(ID3 TAG)
While playing an MP3 file containing file
information, you can display the information by
pressing INFO.
Turn off the sound temporarily
Press @ (MUTE) on the remote control to mute
your sound.
You can mute your unit, for example, to answer
the telephone, the “q” is displayed in the display
window.
To cancel it, press [email protected] again on the remote
control or change the volume level.
CM2730-AM_DCOLLLK_ENG.indd 13
2013-04-18 �� 1:42:50
14
Operating
DEMO
In the power off state, it demonstrates the function
on display window by pressing DEMO. To cancel
the DEMO, press it again.
,,Note
yy While DEMO, this unit will keep DEMO
status even if you unplug the power cord
connection.
yy You can enjoy other functions during
the DEMO. Then the DEMO will pause to
temporary.
-Without input key in 10 sec, the DEMO
will play back automatically.
3
Operating
Using a Bluetooth
wireless technology
About Bluetooth
Bluetooth® is wireless communication technology
for short range connection.
The available range is within 10 meters.
(The sound may be interrupted when the
connection interfered by the other electronic wave
or you connect the bluetooth in the other rooms.)
Connecting individual devices under Bluetooth®
wireless technology does not incur any charges. A
mobile phone with Bluetooth® wireless technology
can be operated via the Cascade if the connection
was made via Bluetooth® wireless technology.
Available Devices : Mobile phone, MP3, Laptop,
PDA.
Bluetooth Profiles
In order to use Bluetooth wireless technology,
devices must be able to interpret certain profiles.
This unit is compatible with following profile.
A2DP (Advanced Audio Distribution Profile)
Listening to music stored on
the Bluetooth devices
Before you start the pairing procedure, make
sure the Bluetooth feature is turned on in to your
Bluetooth device. Refer to your Bluetooth device’s
user guide. Once a pairing operation is performed,
it does not need to be performed again.
1. Select the Bluetooth function by using
FUNCTION. “BT READY” appears on the display
window.
2. Operate the Bluetooth device and perform the
pairing operation. When searching for this unit
with the Bluetooth device, a list of the devices
found may appear in the Bluetooth device
display depending on the type of Bluetooth
device.
Your unit appears as “LG MICRO(xx:xx)”.
,,Note
XX:XX means the last four digits of BT address.
For example, if your unit has a BT address
such as 9C:02:98:4A:F7:08, you will see “LG
MICRO(F7:08)” on your Bluetooth device.
3. Enter the PIN code.
PIN code : 0000
,,Note
Depending on the Bluetooth device type,
some devices do not require a PIN code.
4. When this unit is successfully connected with
your Bluetooth device, “BT CONNECT”and“BT
PAIR” will appear on the display window.
,,Note
Depending on the Bluetooth device type,
some device have a different pairing way.
5. Listen to music.
To play a music stored on your Bluetooth device,
refer to your Bluetooth device’s user guide.
,,Note
yy Sound from the main set can be distorted
if you raise the volume of Bluetooth device
up to two-thirds or more.
yy When you use the bluetooth function,
adjust the volume of a bluetooth device to
a proper level to listen to.
CM2730-AM_DCOLLLK_ENG.indd 14
2013-04-18 �� 1:42:50
Operating
,,Note
yy The sound may be interrupted when
the connection interfered by the other
electronic wave.
yy You cannot control the Bluetooth device
with this unit.
yy Pairing is limited one Bluetooth device per
one unit and multi-pairing is not supported.
yy Although the distance between your
Bluetooth and the set is less than 10m, there
are obstacles between both, your Bluetooth
device cannot be connected.
yy Depending on the type of the device,
you may not be able to use the Bluetooth
function.
yy The electrical malfunction due to devices
using same frequency such as Medical
equipment, Microwaves or wireless
LAN devices, the connection will be
disconnected.
yy When someone stands and interrupts
communication between Bluetooth device
and the player, the connection will be
disconnected.
yy If the gotten away of the distance between
Bluetooth and the unit, the sound quality
is lower and lower. The connection will
disconnect when the space between the
Bluetooth and the unit gets out of the
operating range of Bluetooth.
yy The device with Bluetooth wireless
technology is disconnected, if you turn off
the main unit or put the device away from
the main unit more than 10 m.
yy If the Bluetooth device is disconnected, you
should connect the Bluetooth device to
your unit.
CM2730-AM_DCOLLLK_ENG.indd 15
Radio Operations
Be sure that both FM and AM aerials are connected.
(Refer to the page 12)
Listening to the radio
1. Press F (FUNCTION) until FM or AM appears in
the display window.
The last received station is tuned in.
2. Press and hold TUNING -/+ for about two
seconds until the frequency indication starts to
change, then release. Scanning stops when the
unit tunes in a station.
3
Or
Press TUNING -/+ repeatedly.
3. Adjust the volume by pressing VOLUME on
the unit or by pressing VOL +/- on the remote
control repeatedly.
Operating
yy When not connected the Bluetooth,
“BLUETOOTH” and “BT READY” appears on
the control panel.
15
Presetting the Radio Stations
You can preset 50 stations for FM and AM.
Before tuning, make sure to turn down the volume.
1. Press F (FUNCTION) until FM or AM appears in
the display window.
2. Select the desired frequency by pressing
TUNING -/+.
3. Press PROGRAM/MEMO. a preset number will
flash in the display window.
4. Press FOLDER · PRESET w/s to select the
preset number you want.
5. Press PROGRAM/MEMO. The station is stored.
6. Repeat steps 2 to 5 to store other stations.
7. To listen a preset station, press
FOLDER · PRESET w/s.
2013-04-18 �� 1:42:51
16
Operating
Deleting all the saved stations
1. Press and hold PROGRAM/MEMO. for two
seconds. “ERASE ALL” will flash up on the unit
display.
2. Press PROGRAM/MEMO. to erase all saved
radio stations.
Improving poor FM reception
Press d/M on the unit or d/M on the remote
control. This will change the tuner from stereo to
mono and usually improve the reception.
3
Operating
CM2730-AM_DCOLLLK_ENG.indd 16
Sound adjustment
Setting the surround mode
This system has a number of pre-set surround
sound fields. You can select a desired sound mode
by using SOUND EFFECT on the remote control or
EQ on the unit.
The displayed items for the Equalizer may be
different depending on sound sources and effects.
On Display
Description
NATURAL
You can enjoy comfortable and
natural sound.
Local
Specialization
equalizer
Regionally optimized sound
effect. (FORRO/ FUNK/
SERTANEJO/ DANGDUT/
ARABIC/ PERSIAN/ INDIA/
REGUETON/ MERENGUE/ SALSA/
SAMBA/ CUMBIA/ AFRO)
AUTO EQ
Realizes the sound equalizer that
is the most similar to the genre
of which is included in the MP3
ID3 tag of song files.
POP
CLASSIC
JAZZ
ROCK
This program lends an
enthusiastic atmosphere to the
sound, giving you the feeling
you are at an actual rock pop,
jazz or classic concert.
MP3 -- OPT
This function is optimized
for compressible MP3 file. It
improves the treble sound.
BASS BLAST
Reinforces the treble, bass and
surround sound effect.
LOUDNESS
Improves the bass and treble
sound.
VIRTUAL
You can enjoy more virtual
surround sound.
BYPASS
You can enjoy the sound
without equalizer effect.
2013-04-18 �� 1:42:51
Operating
,,Note
yy On some speakers, sound may not be heard
or heard in low sound depending on the
sound mode.
yy Maybe you need reset the surround mode,
after switching the input, sometimes even
after the sound track changed.
Setting the Clock
1. Turn the unit on.
2. Press CLOCK for at least 2 seconds.
3. Choose time mode by pressing C/V.
4. Press SET to confirm your selection.
5. Select the hours by pressing C/V.
6. Press SET.
7. Select the minutes by pressing C/V.
8. Press SET.
Using your player as an alarm
clock
1. Turn the unit on.
2. Press TIMER. Each functions flashes.
3. Press SET when the function you want to be
woken by is showing.
4. “ON TIME” will be displayed. This is your desired
time to unit turns on. Press C/V to
change the hours and minutes and press SET to
save.
5. The “OFF TIME” will be displayed. This is your
desired time to unit turns off.
6. Press C/V to change the hours and
minutes and press SET to save.
7. Press C/V to change the volume and
press SET to save. The clock icon "(“ shows
that the alarm is set.
8. Press TIMER button 2 times. You can check the
setting status.
3
Operating
- AM 12:00 (for an AM and PM display) or 0:00
(for a 24 hour display)
17
,,Note
yy If you set the clock time, you can check the
time by pressing CLOCK even when the
player is turned off.
yy If you set the clock time and alarm, you
can check the alarm icon “(“ by pressing
CLOCK even when the player is turned off.
yy If you set the clock time and alarm, you
can check the alarm icon “(“ and setting
informaiton by pressing TIMER even when
the unit is turned off. Then this function will
working in everyday.
CM2730-AM_DCOLLLK_ENG.indd 17
2013-04-18 �� 1:42:51
18
Operating
Sleep Timer Setting
Press SLEEP repeatedly to select delay time
between 10 and 180 minutes. After the delay time,
unit will turn off.
To cancel the sleep function, press SLEEP
repeatedly until “SLEEP 10” appears, and then press
SLEEP once again while “SLEEP 10” is displayed.
,,Note
yy You can check the remaining time before
the unit turns off.
Advanced Operations
Playing the iPhone/iPod
You can enjoy the sound with your iPhone/iPod.
For details about iPhone/iPod, refer to the iPhone/
iPod User Guide.
1. Connect the iPhone/iPod firmly.
yy Press SLEEP. The remaining time appears in
the display window.
yy Sleep function will working after dimmer.
3
Operating
Dimmer
Press SLEEP once. The display window will be
darkening by half. To cancel it, press SLEEP
repeatedly until dim off. If touch the buttons in
Sleep Timer mode, the buttons will be lightening
for 5 seconds and darkening again.
Auto power down
This unit will turn off itself to save electric
consumption in the case were main unit is not
connected to external device and is not used for 25
minutes.So does this unit after six hours since Main
unit has been connected to other device using
analogue input.
CM2730-AM_DCOLLLK_ENG.indd 18
If you turn this unit on, your iPhone/iPod is
automatically turned on and recharging starts.
2. Press FUNC. on the unit or F (FUNCTION) on
the remote control to select iPod function. You
can operate your iPhone/iPod through an iPod’s
display by using the supplied remote control
and also control on your iPhone/iPod.
2013-04-18 �� 1:42:52
Operating
To
19
,,Note
Do this
yy If this unit displays an error message, follow
the message. An error message “ERROR”.
ON UNIT
ON REMOTE
Pauses or
restart
d/M
d/M
Skip
C/V
C/V
Search
Press and hold
C/V
Press and hold
C/V
Move to the
previous
menu
-
REPEAT
/MENU
Move to the
desired item
-
FOLDER
PRESET
W/S
Chooses a
item
yy Depending on your iPod’s software version,
it may not be possible to control your
iPhone/iPod from this unit. We recommed
installing the latest software version.
I
Z ENTER
Compatible iPhone/iPod
yy If you use an application, make a call, or
send and receive SMS text message, etc. on
iPod touch or iPhone, disconnect it from
iPod dock of this unit and then use it.
We recommend installing the latest software
version.
yy If you have a problem with your iPhone/
iPod, please visit www.apple.com/support.
- Your iPhone/iPod is not connected firmly.
- This unit recognizes your iPhone/iPod as
an unknown device.
- Your iPhone/iPod is exceptionally low in
power.
- The battery needs to be charged.
- If you charge the battery while iPhone/
iPod is extremely low in power, it may
take longer to be charged.
yy iPhone/iPod does not support recording
function when connected.
3
Operating
The unit supports the models as follows:
iPhone 4, iPhone 3GS, iPhone 3G,
iPod touch (2rd through 4th generation),
iPod nano (4th through 6th generation)
iPod classic
iPhone, iPod nano, and iPod touch are trademarks
of Apple Inc., registered in the U.S. and other
countries. Lightning is a trademark of Apple Inc.
Depending on your iPod’s software version, you
may not control your iPhone/iPod from the player.
CM2730-AM_DCOLLLK_ENG.indd 19
2013-04-18 �� 1:42:52
20 Operating
Recording to USB
1. Connect the USB device to the unit.
2. Select a function by pressing FUNC. on the unit
or F (FUNCTION) on the remote control.
,,Note
yy You can check the recording percentage
rate for the USB record on the display
window during the recording. (MP3/ WMA
CD Only)
One track recording - You can record to USB
after playing a file you want.
yy During recording MP3/ WMA, there is no
sound.
All tracks recording - You can recording to USB
after stop.
yy When you stop recording during playback,
the file that has been recorded at that time
will be stored. (AUDIO CD Only)
Program list recording - After showing the
programmed list, you can record it to USB.
3. Start the recording by pressing USB REC. on the
unit or X REC on the remote control.
yy Do not remove the USB device or turn
off the unit during USB recording. If not,
an incomplete file may be made and not
deleted on PC.
3
4. To stop recording, press Z on the unit or
Z ENTER on the remote control.
Operating
yy If USB recording does not work, the
message like “NO USB”, “ERROR”, “FULL” or “NO
REC” is displayed on the display window.
Pausing recording
yy Multi card reader device or External HDD
can not be used for USB recording.
During recording, press USB REC. on the unit or
X REC on the remote control to pause recording.
Press it again to restart recording. (Only Radio/
Portable)
To select recording bit rate
and speed
1. Press USB REC. on the unit or X REC on the
remote control for longer than 3 seconds.
yy A file is recorded by about 512 Mbyte when
you record for a long term.
yy When you stop recording during playback,
the file will not be stored.
yy You may not store more than 999 files.
yy It’ll be stored as follows.
AUDIO CD
MP3/ WMA
2. Use C/V on the unit or remote control to
select the bit rate.
3. Press USB REC. on the unit or X REC on the
remote control again to select the recording
speed.
4. Press C/V on the unit or on the remote
control to select a desired recording speed;
(Only AUDIO CD)
X1 SPEED
- You can listen to music while recording it.
X2 SPEED
- You can just record the music file.
5. Press USB REC. on the unit or X REC on the
remote control to finish the setting.
CM2730-AM_DCOLLLK_ENG.indd 20
The other
source*
* : TUNER, Portable and the like.
The making of unauthorized copies of copyprotected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offense.
This equipment should not be used for such
purposes.
Be responsible
Respect copyrights
2013-04-18 �� 1:42:53
4
Troubleshooting
Troubleshooting
21
Troubleshooting
General
Problem
Cause & Correction
yy The power cord is not plugged in. Plug in the power cord.
No Power.
No sound.
yy Check whether electricity failed. Check the condition by operating other
electronic devices.
yy Check whether you select right function. Press F (FUNCTION) and check the
selected function.
yy If not, connect speaker cables correctly. Speaker cables connected correctly.
yy An unplayable disc is inserted. Insert a playable disc.
The unit does not start
playback.
yy No disc is inserted. Insert a disc.
yy The disc is dirty. Clean the disc. (Refer to the 23 page)
yy The antenna is positioned or connected poorly. Connect the antenna securely.
yy The signal strength of the radio station is too weak. Tune to the station
manually.
Radio stations cannot be
tuned in properly.
yy No stations have been preset or preset stations have been cleared (when
tuning by scanning preset channels). Preset some radio stations, see page 15
for details.
4
Troubleshooting
yy The disc is inserted upside down. Place the disc with the label or printed side
facing upwards.
yy The remote control is too far from the unit. Operate the remote control within
about 16 ft (5m).
The remote control does yy There is an obstacle in the path of the remote control and the unit. Remove
the obstacle.
not work properly.
yy The batteries in the remote control are exhausted. Replace the batteries with
new ones.
iPod does not work.
CM2730-AM_DCOLLLK_ENG.indd 21
yy Check whether the player is connected to the unit correctly. Connect it to the
unit correctly.
2013-04-18 �� 1:42:54
5
Appendix
22 Appendix
Specifications
General
Power requirements
Refer to the main label
Power consumption
Refer to the main label
Dimensions (W x H x D)
135.5 mm x 290.5 mm x 312 mm
Net Weight (Approx.)
3.7 kg
Operating temperature
5 °C to 35 °C (41 °F to 95 °F)
Operating humidity
5 % to 90 %
Bus Power Supply
USB DC 5 V 0 500 mA
iPod DC 5 V 0 1 A
Inputs
PORT. IN
0.5 Vrms (3.5 mm stereo jack)
Tuner
5
FM Tuning Range
87.5 to 108.0 MHz or 87.50 to 108.00 MHz
AM Tuning Range
522 to 1 620 kHz, 520 to 1 710 kHz or 522 to 1 710 kHz
Amplifier
Appendix
Stereo mode
80 W + 80 W (4 Ω at 1 kHz)
CD
Frequency Response
40 to 20 000 Hz
Signal-to-noise ratio
75 dB
Dynamic range
80 dB
Front Speaker
Type
3 Way 4 speaker
Impedance
4Ω
Rated Input Power
80 W
Max. Input power
160 W
Net Dimensions (W x H x D)
126 mm x 295 mm x 315 mm
Net Weight
3.5 kg
Design and specifications ae subject to change without notice.
CM2730-AM_DCOLLLK_ENG.indd 22
2013-04-18 �� 1:42:54
Appendix 23
Maintenance
Notes on Discs
Handling Discs
Never stick paper or tape on the disc.
Storing Discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.
Cleaning Discs
Do not use strong solvents such as alcohol,
benzine, thinner, commercially available cleaners,
or anti-static spray intended for older vinyl records.
Handling the Unit
When shipping the unit
Keeping the exterior surfaces clean
The unit is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty
or worn, the picture quality could be diminished.
For details, please contact your nearest authorized
service center.
Trademarks and
Licenses
Bluetooth® wireless technology is a system which
allows radio contact between electronic devices
within a max. range of 10 meters.
Connecting individual devices under Bluetooth®
wireless technology does not incur any charges.
A mobile phone with Bluetooth® wireless
technology can be operated via the Cascade if
the connection was made via Bluetooth® wireless
technology.
The Bluetooth® word mark and logos are owned
by the Bluetooth® SIG, Inc. and any use of such
marks by LG Electronics is under license.
Other trademarks and trade names are those of
their respective owners.
5
Appendix
Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.
Maintaining the Unit
Do not use volatile liquids such as insecticide spray
near the unit.
Wiping with strong pressure may damage the
surface.
Do not leave rubber or plastic products in contact
with the unit for a long period of time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
unit.
CM2730-AM_DCOLLLK_ENG.indd 23
2013-04-18 �� 1:42:55
CM2730-AM_DCOLLLK_ENG.indd 24
2013-04-18 �� 1:42:55
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
