ENGLISH

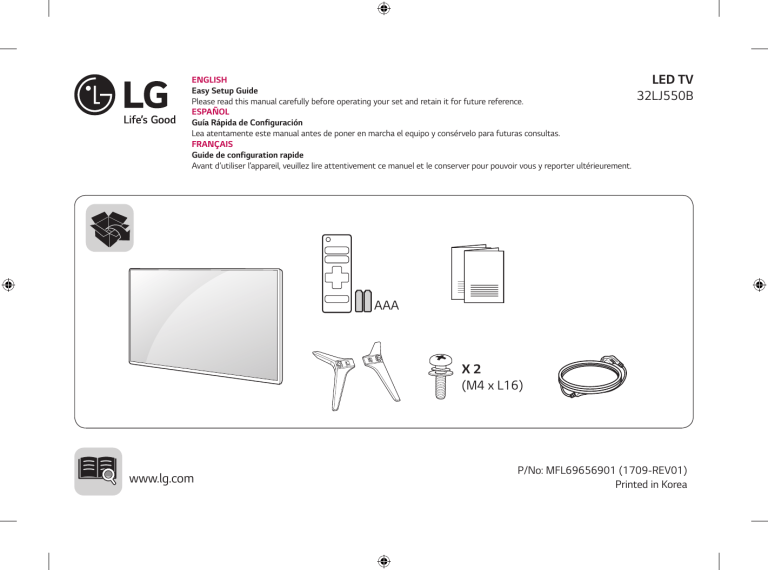

Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
FRANÇAIS
Guide de configuration rapide
Avant d’utiliser l’appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y reporter ultérieurement.
LED TV
32LJ550B
AAA
X2
(M4 x L16)
www.lg.com
P/No: MFL69656901 (1709-REV01)
Printed in Korea
ENGLISH
Read Safety & Reference.
ESPAÑOL
Leer Seguridad y Consultas.
FRANÇAIS Lisez Sécurité et références.
1
2
3
1
2
3
4
0
1
2
,
32LJ550B-UA
728
728
475
475 181.1 181,1 436
436
(28.6) (28,6) (18.7) (18,7) (7.1) (7,1) (17.1) (17,1)
77.8
(3.0)
77,8
(3,0)
,
,
5.0
5,0
4.9
4,9
(11.0) (11,0) (10.8) (10,8)
,
: mm (inches / pulgadas / po)
,
: kg (lbs / libras / lb)
0.8 A / 48 W
AC 100 - 240 V ~ 50 / 60 Hz
0,8 A / 48 W
*MFL69656901*
OWNER’S MANUAL
Safety and Reference
LED TV*
* LG LED TVs are LCD TVs with LED backlighting.
Please read this manual carefully before operating
your TV and retain it for future reference.
32LJ550B
32LJ550M
www.lg.com
*MFL69734001*
P/NO : MFL69734001 (1709-REV03)
Printed in Korea
Copyright © 2017 LG Electronics Inc. All Rights Reserved.
Warning! Important Safety
instructions
Read these instructions. Keep these instructions.
Heed all warnings. Follow all instructions.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ENGLISH
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER
TO QUALIFIED SERVICE PERSONNEL.
The symbol is intended to alert the user
to the presence of uninsulated dangerous
voltage within the product’s enclosure that
may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The symbol is intended to alert the user
to the presence of important operating
and maintenance (servicing) instructions in
the literature accompanying the device.
WARNING : TO REDUCE THE RISK OF FIRE
AND ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
••Do not use this apparatus near water.
••Clean only with dry cloth.
••Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
••Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
••Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade or
the third prong are provided for your safety. If
the provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
••Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
••Only use attachments/accessories specified by
the manufacturer.
WARNING: This product contains chemicals
known to the State of California to cause cancer
and birth defects or other reproductive harm.
Wash hands after handling.
2
••Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
••Unplug this apparatus during lightning storms
or when unused for long periods of time.
••Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
••Do not press strongly upon the panel with a
hand or a sharp object such as a nail, pencil, or
pen, or make a scratch on it.
••Do not stick metal objects or any other
conductive material into the power cord. Do
not touch the end of the power cord while it is
plugged in.
••Keep the packing anti-moisture material or
vinyl packing out of the reach of children.
Anti-moisture material is harmful if swallowed.
If swallowed, induce vomiting and go to the
nearest hospital. Additionally, vinyl packing can
cause suffocation. Keep it out of the reach of
children.
••Concerning the Power Cord (Can differ by
country): Check the specification page of this
owner’s manual to be certain concerning
current requirements. Do not connect too
many devices to the same AC power outlet as
this could result in fire or electric shock. Do not
overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked
wire insulation are dangerous. Any of these
conditions could result in electric shock or fire.
Periodically examine the cord of your device,
and if its appearance indicates damage or
deterioration, unplug it, discontinue use of
the device, and have the cord replaced with
an exact replacement part by an authorized
servicer. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the device. Do not
move the TV with the power cord plugged in. Do
not use a damaged or loose power cord. Be sure
do grasp the plug when unplugging the power
cord. Do not pull on the power cord to unplug
the TV.
••Moving Make sure the product is turned off,
unplugged, and all cables have been removed.
It may take 2 or more people to carry larger TVs.
Do not press or put stress on the front panel of
the TV.
••Ventilation Install your TV where there is proper
ventilation. Do not install in a confined space
such as a bookcase. Do not cover the product
with cloth or other materials while plugged. Do
not install in excessively dusty places.
••Take care not to touch the ventilation openings.
When watching the TV for a long period, the
ventilation openings may become hot. This does
not affect the performance of the product or
cause defects in the product.
••If you smell smoke or other odors coming from
the TV, unplug the power cord and contact an
authorized service center.
••If water or another substance enters the
product (like an AC adapter, power cord, or TV),
disconnect the power cord and contact the
service center immediately. Otherwise, this may
result in fire or electric shock.
••Do not install this product on a wall if it could be
exposed to oil or oil mist. This may damage the
product and cause it to fall.
••Use only an authorized AC adapter and power
cord approved by LG Electronics.
Otherwise, this may result in fire, electric shock,
malfunction, or product deformation.
••Never disassemble the AC adapter or power
cord. This may result in fire or electric shock.
••Handle the adapter carefully to avoid dropping
or striking it. An impact could damage the
adapter.
••Keep the product away from direct sunlight.
••Never touch this apparatus or antenna during a
lightning storm.
••When mounting a TV on the wall, make sure not
to install the TV by hanging the power and signal
cables on the back of the TV.
••Do not allow an impact shock, any objects to fall
into the product, and do not drop anything onto
the screen.
ENGLISH
••To reduce the risk of fire or electrical shock,
do not expose this product to rain, moisture
or other liquids. Do not touch the TV with
wet hands. Do not install this product near
flammable objects such as gasoline or candles,
or expose the TV to direct air conditioning.
••Do not use high voltage electrical equipment
near the TV (e.g., a bug zapper).
This may result in product malfunction.
••Do not expose to dripping or splashing and
do not place objects filled with liquids, such as
vases, cups, etc. on or over the apparatus (e.g.,
on shelves above the unit).
••Grounding (Except for devices which are not
grounded.) Ensure that you connect the earth
ground wire to prevent possible electric shock
(i.e., a TV with a three-prong grounded AC plug
must be connected to a three-prong grounded
AC outlet). If grounding methods are not
possible, have a qualified electrician install a
separate circuit breaker. Do not try to ground
the unit by connecting it to telephone wires,
lightning rods, or gas pipes.
••As long as this unit is connected to the AC wall
outlet, it is not disconnected from the AC power
source even if the unit is turned off.
••Do not attempt to modify this product in any
way without written authorization from LG
Electronics. Unauthorized modification could
void the user’s authority to operate this product.
••Outdoor Antenna Grounding (Can differ by
country): If an outdoor antenna is installed,
follow the precautions below. An outdoor
antenna system should not be located in the
vicinity of overhead power lines or other electric
light or power circuits, or where it can come in
contact with such power lines or circuits as death
or serious injury can occur. Be sure the antenna
system is grounded to provide some protection
against voltage surges and built-up static
charges. Section 810 of the National Electrical
Code (NEC) in the U.S.A. provides information
with respect to proper grounding of the mast
and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size
of grounding conductors, location of antenna
discharge unit, connection to grounding
electrodes and requirements for the grounding
electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
3
••DISCONNECTING THE DEVICE FROM THE MAIN
POWER The power plug is the disconnecting
device. In case of an emergency, the power plug
must remain readily accessible.
••Make sure the power cord is connected securely
to the power plug on the TV.
••Batteries Store the accessories (battery, etc.) in a
safe location out of the reach of children.
••This apparatus uses batteries. In your community
there might be regulations that require you
to dispose of these batteries properly due to
environmental considerations. Please contact
your local authorities for disposal or recycling
information.
••Do not dispose of batteries in a fire.
••Do not short circuit, disassemble, or allow the
batteries to overheat.
••Cleaning When cleaning, unplug the power
cord and wipe gently with a soft cloth to prevent
scratching. Do not spray water or other liquids
directly on the TV as electric shock may occur. Do
not clean your TV with chemicals including glass
cleaner, any type of air freshener, insecticide,
lubricants, wax (car, industrial), abrasive, thinner,
benzene, alcohol etc., which can damage the
product and/ or its panel.
ENGLISH
Preparing
••When the TV is turned on for the first time after
being shipped from the factory, initialization of
the TV may take approximately one minute.
••Image shown may differ from your TV.
••Your TV’s OSD (On Screen Display) may differ
slightly from that shown in this manual.
••The available menus and options may differ from
the input source or product model that you are
using.
••New features may be added to this TV in the
future.
••The items supplied with your product may vary
depending upon the model.
••Product specifications or contents of this manual
may be changed without prior notice due to
upgrade of product functions.
••For an optimal connection, HDMI cables and
USB devices should have bezels less than 10 mm
(0.39 inches) thick and 18 mm (0.7 inches) width.
••Use an extension cable that supports USB 2.0 if
the USB cable or USB flash drive does not fit into
your TV’s USB port.
••Use a certified cable with the HDMI logo
attached. If you do not use a certified HDMI
cable, the screen may not display or a
connection error may occur.
4
••Recommended HDMI cable types (3 m or less)
-- High-Speed HDMI®/™ cable
-- High-Speed HDMI®/™ cable with Ethernet
B
B
A
A
*A 10 mm (0.39 inches)
*B 18 mm (0.7 inches)
••Do not use any unapproved items to ensure the
safety and lifespan of the product.
••Any damages or injuries by using unapproved
items are not covered by the warranty.
••Some models appear to have a thin film on the
screen. It is actually part of the screen; do not
remove it.
••When attaching the stand to the TV set, place
the screen facing down on a cushioned table or
flat surface to protect the screen from scratches.
••Make sure that the screws are fastened tightly.
(If they are not fastened securely enough, the TV
may tilt forward after being installed.)
••Do not fasten the screws with excessive force
otherwise they may be worn out and become
loose.
Lifting and Moving the TV
Using the Button
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for safe transportation regardless of
its type and size.
••It is recommended to move the TV in the box or
packing material that the TV originally came in.
••Before moving or lifting the TV, disconnect the
power cord and all cables.
You can operate the TV functions, using the
button.
••When holding the TV, the screen
should face away from you to
avoid damage.
••Hold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part,
speaker, or speaker grille area.
Basic Functions
••When transporting the TV, do not expose the TV
to jolts or excessive vibration.
••When transporting the TV, keep the TV upright;
never turn the TV on its side or tilt towards the
left or right.
••When handling the TV, be careful not to damage
the protruding buttons.
••Avoid touching the screen at all times, as
this may result in damage to the screen.
••Do not place the product on the floor with
its front facing down without padding.
Failure to do so may result in damage to the
screen.
••Do not move the TV by holding the cable
holders, as the cable holders may break,
and injuries and damage to the TV may
occur. (Depending upon model)
ENGLISH
••Use at least two people to move
a large TV.
••When transporting the TV by
hand, hold the TV as shown in the
following illustration.
Power On (Press)
Power Off 1 (Press and Hold)
Menu control (Press 2)
Menu selection (Press and Hold 3)
1 All running apps will close.
2 You can access and adjust the menu by pressing
the button when TV is on.
3 You can use the function when you access menu
control.
Adjusting the Menu
When the TV is turned on, press the button one
time. You can adjust the Menu items using the
button.
Turns the power off.
Changes the input source.
Scrolls through the saved channels.
Adjusts the volume level.
5
Mounting on a Table
1 Lift and tilt the TV into its upright position on a
table.
-- Leave a 10 cm (4 inches) (minimum) space from
the wall for proper ventilation.
••Make sure that children do not climb on or
hang on the TV.
••Use a platform or cabinet that is strong and
large enough to support the TV securely.
••Brackets, bolts, and ropes are optional. You
can obtain additional accessories from your
local dealer.
Mounting on a Wall
10 cm
(4 inches)
10 cm
10 cm
m
10 c
2 Connect the power cord to a wall outlet.
••Do not apply foreign substances (oils,
lubricants, etc.) to the screw parts when
assembling the product. (Doing so may
damage the product.)
ENGLISH
Securing the TV to a Wall (optional)
(Depending upon model)
An optional wall mount can be used with your
LG Television. Consult with your local dealer for
a wall mount that supports the VESA standard
used by your TV model. Carefully attach the wall
mount bracket at the rear of the TV. Install the wall
mount bracket on a solid wall perpendicular to the
floor. If you are attaching the TV to other building
materials, please contact qualified personnel to
install the wall mount. Detailed instructions will
be included with the wall mount. We recommend
that you use an LG brand wall mount. The LG wall
mount is easy to adjust or to connect the cables.
When you do not use LG’s wall mount bracket,
use a wall mount bracket where the device is
adequately secured to the wall with enough space
to allow connectivity to external devices. If you are
using a non-adjustable mount, attach the mount
to the wall. Attach the cables to the TV first, then
attach the TV to the mount.
10 cm
(4 inches)
10 cm
10 cm
10 cm
1 Insert and tighten the eye-bolts or TV brackets
and bolts on the back of the TV.
-- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall. Match the location of the wall bracket and
the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope or cable. Make sure to keep
the rope parallel to the flat surface.
6
Make sure to use screws and wall mounts that
meet the VESA standard. Standard dimensions for
the wall mount kits are described in the following
table.
32LJ550B
Model
32LJ550M
VESA (A x B)
100 x 100
Standard screw
M4
Number of screws
4
Wall mount bracket (optional) LSW140B
A
B
••Remove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
Connections (Notifications)
Connect an antenna, cable, or cable box to watch
TV while referring to the following. The illustrations
may differ from the actual items and an RF cable is
optional.
••Make sure not to bend the copper wire of the RF
cable.
Copper wire
••Complete all connections between devices, and
then connect the power cord to the power outlet
to prevent damage to your TV.
••Use a signal splitter to use 2 TVs or more.
••DTV Audio Supported Codec: MPEG, Dolby
Digital.
Other Connections
Connect your TV to external devices. For the best
picture and audio quality, connect the external
device and the TV with the HDMI cable.
••HDMI Audio Supported Format:
DTS (44.1 kHz / 48 kHz), Dolby Digital / Dolby
Digital Plus (32 kHz / 44.1 kHz / 48 kHz), PCM
(32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz)
(Depending on model)
ENGLISH
You can connect various external devices to the TV.
Supported external devices are: HD receivers, DVD
players, VCRs, audio systems, USB storage devices,
PC, gaming devices, and other external devices. For
more information on external device’s connection,
refer to the manual provided with each device.
••If you record a TV program on a DVD recorder or
VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR.
For more information about recording, refer to
the manual provided with the connected device.
••The external device connections shown may
differ slightly from illustrations in a manual.
••Connect external devices to the TV regardless
about the order of the TV port.
••If you connect a gaming device to the TV, use the
cable supplied with the gaming device.
••Refer to the external equipment’s manual for
operating instructions.
••In PC mode, there may be noise associated
with the resolution, vertical pattern, contrast
or brightness. If noise is present, change the PC
output to another resolution, change the refresh
rate to another rate or adjust the brightness and
contrast on the Picture menu until the picture
is clear.
••When connecting via a wired LAN, it is
recommended to use a CAT 7 cable.
••The TV may be capable of operating without
a set-top-box from a multichannel video
programming distributor (MVPD).
Connecting to an Antenna or Cable
Remote Control
(Some buttons and services may not be provided
depending upon models or regions.)
The descriptions in this manual are based on
the buttons on the remote control. Please read
this manual carefully and use the TV correctly. To
install batteries, open the battery cover, replace
batteries (1.5 V AAA) matching the and ends
to the label inside the compartment, and close
the battery cover. Failure to match the correct
polarities of the battery may cause the battery
to burst or leak, resulting in fire, personal injury,
or ambient pollution. To remove the batteries,
perform the installation actions in reverse. This
remote uses infrared light. When in use, it should
be pointed in the direction of the TV’s remote
sensor.
7
B
A
A
ENGLISH
(Power) Turns the TV on or off.
(Input) Changes the input source.
Activates or deactivates the subtitles.
(User Guide) Sees user-guide.
(Search) Shows the search mode.
Returns to the last TV channel.
Number button Enters numbers.
(Dash) Inserts a dash between numbers such
as 2-1 and 2-2.
Accesses the saved channel list.
Alternates between the two last channels
selected (pressing repeatedly).
* You can access the application or Live
TV channel by using the number buttons as
registered.
Adjusts the volume level.
Accesses your favorite channel list.
Shows information on the current program.
(Mute) Mutes all sounds.
••Pressing and holding the (Mute) button
displays the Accessibility menu.
Scrolls through the saved channels.
Moves to the previous or next
screen.
8
B
Streaming Service buttons Connects to the
Video Streaming Service.
(Home) Accesses the Home menu.
••Pressing and holding the
(Home) button
displays the previous history.
(Q.Settings) Accesses the Quick Settings.
By zooming in on the selected area, you can
view it in full screen. (Depending upon model)
Navigation button (up / down / left / right)
Scrolls through menus or options.
Selects menus or options and confirms your
input.
Returns to the previous screen.
Clears all on-screen displays and returns to
TV viewing.
Enables SAP (Secondary Audio Program)
Feature.
Sets the length of time until the TV to turns
off.
, , , , Control buttons for media contents
* Provides content related to the program
you are currently watching.
, , , These access special functions in
some menus.
* : To use the button, press and hold for more than
3 seconds.
Troubleshooting
Supported licenses may differ by model.
For more information about licenses,
visit www.lg.com.
••Cannot control the TV with the remote control.
-- Check if anything such as tape has been placed
over the receiver.
-- Check if there is any obstacle between the
product and the remote control.
-- Replace the batteries with new fresh ones.
••No image display and no sound is produced.
-- Check if the product is turned on.
-- Check if the power cord is connected to a wall
outlet.
-- Check if there is a problem in the wall outlet by
connecting other products.
••The TV turns off suddenly.
-- Check the power control settings.
The power supply may be interrupted.
-- Check if the Timer Power Off / Sleep Timer
feature is activated in the Timers settings.
-- If there is no signal while the TV is on, the TV
will turn off automatically after 15 minutes of
inactivity.
••Abnormal Display
-- If the TV feels cold to the touch, there may
be a small flicker when it is turned on. This is
normal; there is nothing wrong with TV. Some
minute dot defects may be visible on the
screen, appearing as tiny red, green, or blue
spots. However, they have no adverse effect on
the TV’s performance. Avoid touching the LCD
screen or holding your finger(s) against it for
long periods of time. Doing so may produce
some temporary distortion effects on the
screen.
-- This panel is an advanced product that contains
millions of pixels. In a very few cases, you could
see fine dots on the screen while you’re viewing
the TV. Those dots are deactivated pixels and
do not affect the performance and reliability
of the TV.
-- Displaying a still image for a prolonged period
of time may cause an image sticking. Avoid
displaying a fixed image on the TV screen for a
extended length of time.
••Generated Sound
-- Cracking noise A cracking noise that occurs
when watching or turning off the TV is
generated by plastic thermal contraction
due to temperature and humidity. This noise
is common for products where thermal
deformation is required.
-- Electrical circuit humming/panel buzzing
A low level noise is generated from a highspeed switching circuit, which supplies a
large amount of current to operate a product.
It varies depending upon the product.
This generated sound does not affect the
performance and reliability of the product.
Open Source Software Notice
Information
To obtain the source code under GPL, LGPL, MPL,
and other open source licenses, that is contained
in this product,
please visit http://opensource.lge.com.
In addition to the source code, all referred license
terms, warranty disclaimers and copyright notices
are available for download.
LG Electronics will also provide open source code
to you on CD-ROM for a charge covering the cost
of performing such distribution (such as the cost of
media, shipping, and handling) upon email request
to [email protected] This offer is valid for three
(3) years from the date on which you purchased
the product.
External Control Device Setup
To obtain the external control device setup
information, please visit www.lg.com.
ENGLISH
Licenses
9
Specifications
Product specifications may be changed without
prior notice due to upgrade of product functions.
Estimated yearly energy consumption indicated on
the FTC label is measured in accordance with the
Test Procedures for Television Sets (USA only).
The actual energy consumption depends on the
usage environment (The content watched, TV
settings, etc.).
Television System ATSC, NTSC-M, 64 & 256 QAM
Program Coverage
VHF 2-13, UHF 14-69, DTV 2-69, CATV 1-135,
CADTV 1-135
External Antenna Impedance
75 Ω
Environment condition
ENGLISH
••Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
••Operating Humidity
Less than 80 %
••Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
••Storage Humidity
Less than 85 %
10
Wireless Module (LGSWFAC71)
Specifications
Wireless LAN (IEEE 802.11a/b/g/n/ac)
Frequency Range
Output Power (Max.)
2400 to 2483.5 MHz
15 dBm
5150 to 5725 MHz
14.5 dBm
5725 to 5850 MHz
14.5 dBm
••As band channels can vary per country, the
user cannot change or adjust the operating
frequency. This product is configured for the
regional frequency table.
••For consideration of the user, this device should
be installed and operated with a minimum
distance of 20 cm (7.8 inches) between the
device and the body.
••FCC ID: BEJLGSWFAC71 / IC: 2703H-LGSWFAC71
Regulatory
FCC NOTICE
High power radars are allocated as primary users
of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands.
These radar stations can cause interference with
and/or damage this device. This device cannot be
co-located with any other transmitter.
FCC RF Radiation Exposure Statement
[For having wireless function (WLAN, Bluetooth,...)]
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This transmitter must not be
colocated or operating in conjunction with any
other antenna or transmitter. This equipment
should be installed and operated with minimum
distance 20 cm (7.8 inches) between the radiator
and your body. Users must follow the specific
operating instructions for satisfying RF exposure
compliance.
Industry Canada Statement
(For Canada)
[For having wireless function (WLAN, Bluetooth,...)]
This device complies with Industry Canada’s
applicable licence-exempt RSSs. Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference,
including interference that may cause undesired
operation of the device.
ENGLISH
(For USA)
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the
equipment and the receiver.
-- Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference and (2) this device must accept any
interference received, including interference that
may cause undesired operation of the device. Any
changes or modifications in construction of this
device which are not expressly approved by the
party responsible for compliance could void the
user’s authority to operate the equipment.
FCC Radio Frequency Interference
Requirements (for UNII devices)
IC Radiation Exposure Statement
(For Canada)
[For having wireless function (WLAN, Bluetooth,...)]
This equipment complies with IC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated with minimum distance 20 cm (7.8
inches) between the antenna & your body.
11
ENGLISH
NOTE : THE MANUFACTURER IS NOT RESPONSIBLE
FOR ANY RADIO OR TV INTERFERENCE CAUSED
BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD
VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
(For Canada)
[For product having the wireless function using 5
GHz frequency bands]
••The device for operation in the band 5150–5250
MHz is only for indoor use to reduce the
potential for harmful interference to co-channel
mobile satellite systems;
••For devices with detachable antenna(s), the
maximum antenna gain permitted for devices in
the bands 5250-5350 MHz and 5470-5725 MHz
shall be such that the equipment still complies
with the e.i.r.p. limit;
••For devices with detachable antenna(s), the
maximum antenna gain permitted for devices in
the band 5725-5850 MHz shall be such that the
equipment still complies with the e.i.r.p. limits
specified for point-to-point and non-point-topoint operation as appropriate; and
••The worst-case tilt angle(s) necessary to remain
compliant with the e.i.r.p. elevation mask
requirement set forth in Section 6.2.2(3) shall be
clearly indicated.(devices operating in the band
5250-5350 MHz with a maximum e.i.r.p. greater
than 200 mW)
••High-power radars are allocated as primary users
(i.e. priority users) of the bands 5250–5350 MHz
and 5650–5850 MHz and that these radars could
cause interference and/or damage to LE-LAN
devices.
NOTE TO CABLE/TV INSTALLER
(For USA and Canada)
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the
National Electric Code (U.S.A.). The code provides
guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected
to the grounding system of the building, as close
to the point of the cable entry as practical.
12
WARNING!
Never place a television set in an unstable
location. A television set may fall, causing serious
personal injury or death. Many injuries, particularly
to children, can be avoided by taking simple
precautions such as:
••Using cabinets or stands recommended by the
manufacturer of the television set.
••Only using furniture that can safely support the
television set.
••Ensuring the television set is not overhanging
the edge of the supporting furniture.
••Not placing the television set on tall furniture
(for example, cupboards or bookcases) without
anchoring both the furniture and the television
set to a suitable support.
••Not placing the television set on cloth or other
materials that may be located between the
television set and supporting furniture.
••Educating children about the dangers of
climbing on furniture to reach the television set
or its controls.
If your existing television set is being retained
and relocated, the same considerations as above
should be applied.
Symbols
Refers to alternating current(AC).
Refers to direct current(DC).
Refers to class II equipment.
Refers to stand-by.
Refers to “ON” (power).
Refers to dangerous voltage.
CHILD SAFETY:
PROPER TELEVISION PLACEMENT MATTERS
THE CONSUMER ELECTRONICS INDUSTRY CARES
• Manufacturers, retailers and the rest of the consumer electronics industry are committed to
making home entertainment safe and enjoyable.
• As you enjoy your television, please note that all televisions – new and old- must be supported on
proper stands or installed according to the manufacturer’s recommendations. Televisions that
are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc.,
may fall over, resulting in injury.
TUNE IN TO SAFETY
• ALWAYS follow the manufacturer’s recommendations for the safe installation of your television.
• ALWAYS read and follow all instructions for proper use of your television.
• NEVER allow children to climb on or play on the television or the furniture on which the television
is placed.
• NEVER place the television on furniture that can easily be used as steps, such as a chest of
drawers.
• ALWAYS install the television where it cannot be pushed, pulled over or knocked down.
• ALWAYS route cords and cables connected to the television so that they cannot be tripped
over, pulled or grabbed.
WALL OR CEILING MOUNT YOUR TELEVISION
• ALWAYS contact your retailer about professional installation if you have any doubts about your
ability to safely mount your television.
• ALWAYS use a mount that has been recommended by the television manufacturer and has a
safety certification by an independent laboratory (such as UL, CSA, ETL).
• ALWAYS follow all instructions supplied by the television and mount manufacturers.
• ALWAYS make sure that the wall or ceiling where you are mounting the television is appropriate.
Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder
block construction. If you are unsure, contact a professional installer.
• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount
installation.
MOVING AN OLDER TELEVISION TO A NEW PLACE IN
YOUR HOME
• Many new television buyers move their older CRT televisions into a secondary room after the
purchase of a flat-panel television. Special care should be made in the placement of older CRT
televisions.
• ALWAYS place your older CRT television on furniture that is sturdy and appropriate for its size
and weight.
• NEVER place your older CRT television on a dresser where children may be tempted to use the
drawers to climb.
• ALWAYS make sure your older CRT television does not hang over the edge of your furniture.
CE.org/safety
Declaration of Conformity
Trade Name
LG
Model
32LJ550B-UA, 32LJ550M-UB
Responsible Party LG Electronics Inc.
Address
1000 Sylvan Ave. Englewood
Cliffs NJ 07632 U.S.A
TEL
201-266-2534
LG Customer Information Center
For inquires or comments, visit www.lg.com or call;
1-800-243-0000
1-888-865-3026
1-888-542-2623
USA, Consumer User
USA, Commercial User
CANADA
Register your product Online!
www.lg.com
The model and serial numbers of the TV are located
on the back and on one side of the TV. Record them
below should you ever need service.
MODEL
SERIAL
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
