LG 32LK500BPSA, 43LK5000PSA Owner's manual

LG 32LK500BPSA, 43LK5000PSA Owner's manual
www.lg.com
32LK500BPSA
32LK500BPDA
ENGLISH

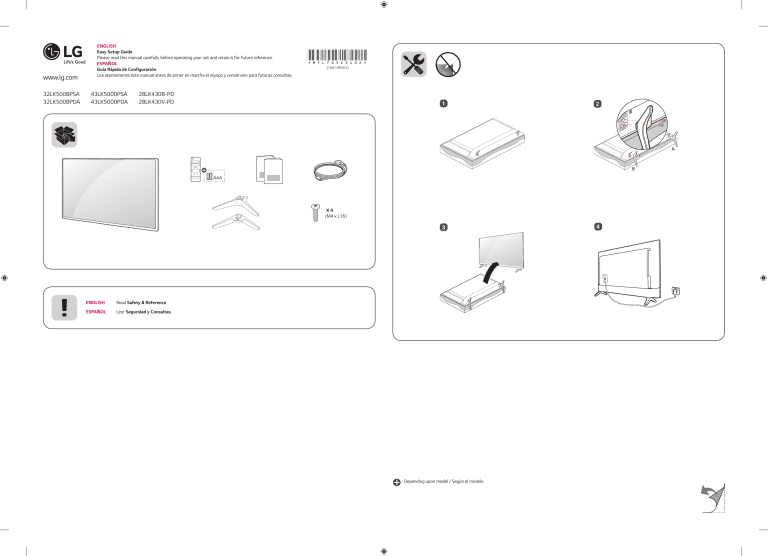

Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
43LK5000PSA
43LK5000PDA
*MFL70363402*
(1801-REV01)
28LK430B-PD
28LK430V-PD
1
2
A
B
AAA
X4
(M4 x L16)
3
ENGLISH
Read Safety & Reference.
ESPAÑOL
Leer Seguridad y Consultas.
: Depending upon model / Según el modelo
4
0
1
2
A
E
D
B
G
F
A
32LK500BPSA
32LK500BPDA
43LK5000PSA
43LK5000PDA
28LK430B-PD
28LK430V-PD
B
C
D
C
F G
F
E
728
728
475
475
182.4 182,4
436
436
77.8
77,8
5.0
5,0
4.9
4,9
0.87 A / 53 W 0,87 A / 53 W
970
970
624
624
219.5 219,5
569
569
77.8
77,8
8.4
8,4
8.3
8,3
1.06 A / 67 W 1,06 A / 67 W
635
635
427
427
182.4 182,4
387
387
77.8
77,8
4.0
4,0
3.9
3,9
0.64 A / 39 W 0,64 A / 39 W
AC 100 - 240 V ~ 50 / 60 Hz
OWNER’S MANUAL
Safety and Reference
LED TV*
* LG LED TVs are LCD TVs with LED backlighting.
Please read this manual carefully before operating your TV and retain
it for future reference.
32LK500BPSA
32LK500BPDA
43LK5000PSA
43LK5000PDA
*MFL70406102*
(1801-REV00)
28LK430B-PD
28LK430V-PD
www.lg.com
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
Important Safety Instruction
ENGLISH
•• Read these instructions.
•• Keep these instructions.
•• Heed all warnings.
•• Follow all instructions.
•• Do not use this apparatus near water.
•• Clean only with dry cloth.
•• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
•• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
•• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
•• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the
apparatus.
•• Only use attachments/accessories specified by the manufacturer.
•• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
•• Unplug this apparatus during lightning storms or when unused for long periods of time.
•• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
2
Warning! Safety instructions
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a risk
of electric shock to persons.
This symbol is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING : TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
•• TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER ITEMS
WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.
•• Do not place the TV and/or remote control in the following
environments:
-- Keep the product away from direct sunlight.
-- An area with high humidity such as a bathroom
-- Near any heat source such as stoves and other devices that
produce heat.
-- Near kitchen counters or humidifiers where they can easily be
exposed to steam or oil.
-- An area exposed to rain or wind.
-- Do not expose to dripping or splashing and do not place objects
filled with liquids, such as vases, cups, etc. on or over the
apparatus (e.g., on shelves above the unit).
-- Near flammable objects such as gasoline or candles, or expose
the TV to direct air conditioning.
-- Do not install in excessively dusty places.
Otherwise, this may result in fire, electric shock, combustion/
explosion, malfunction or product deformation.
ENGLISH
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
•• Ventilation
-- Install your TV where there is proper ventilation. Do not install in
a confined space such as a bookcase.
-- Do not install the product on a carpet or cushion.
-- Do not block or cover the product with cloth or other materials
while unit is plugged in.
•• Take care not to touch the ventilation openings. When watching
the TV for a long period, the ventilation openings may become hot.
•• Protect the power cord from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a door, or walked upon.
Pay particular attention to plugs, wall outlets, and the point where
the cord exits the device.
•• Do not move the TV whilst the Power cord is plugged in.
•• Do not use a damaged or loosely fitting power cord.
•• Be sure do grasp the plug when unplugging the power cord. Do not
pull on the power cord to unplug the TV.
•• Do not connect too many devices to the same AC power outlet as
this could result in fire or electric shock.
•• Disconnecting the Device from the Main Power
-- The power plug is the disconnecting device. In case of an
emergency, the power plug must remain readily accessible.
•• Do not let your children climb or cling onto the TV. Otherwise, the
TV may fall over, which may cause serious injury.
•• Outdoor Antenna Grounding (Can differ by country):
-- If an outdoor antenna is installed, follow the precautions below.
An outdoor antenna system should not be located in the vicinity
of overhead power lines or other electric light or power circuits,
or where it can come in contact with such power lines or circuits
as death or serious injury can occur.
Be sure the antenna system is grounded to provide some
protection against voltage surges and built-up static charges.
Section 810 of the National Electrical Code (NEC) in the U.S.A.
provides information with respect to proper grounding of the
mast and supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding conductors,
location of antenna discharge unit, connection to grounding
electrodes and requirements for the grounding electrode.
Antenna grounding according to the National Electrical Code,
ANSI/NFPA 70
3
ENGLISH
•• Grounding (Except for devices which are not grounded.)
-- TV with a three-prong grounded AC plug must be connected to
a three-prong grounded AC outlet. Ensure that you connect the
earth ground wire to prevent possible electric shock.
•• Never touch this apparatus or antenna during a lightning storm.
You may be electrocuted.
•• Make sure the power cord is connected securely to the TV and wall
socket if not secured damage to the Plug and socket may occur and
in extreme cases a fire may break out.
•• Do not insert metallic or inflammable objects into the product. If a
foreign object is dropped into the product, unplug the power cord
and contact the customer service.
•• Do not touch the end of the power cord while it is plugged in. You
may be electrocuted.
•• If any of the following occur, unplug the product
immediately and contact your local customer service.
-- The product has been damaged.
-- If water or another substance enters the product (like an AC
adapter, power cord, or TV).
-- If you smell smoke or other odors coming from the TV
-- When lightning storms or when unused for long periods of time.
Even the TV is turned off by remote control or button, AC power
source is connected to the unit if not unplugged in.
•• Do not use high voltage electrical equipment near the TV (e.g., a
bug zapper). This may result in product malfunction.
•• Do not attempt to modify this product in any way without written
authorization from LG Electronics. Accidental fire or electric shock
can occur. Contact your local customer service for service or repair.
Unauthorized modification could void the user’s authority to
operate this product.
•• Use only an authorized attachments / accessories approved by
LG Electronics. Otherwise, this may result in fire, electric shock,
malfunction, or product damage.
•• Never disassemble the AC adapter or power cord. This may result in
fire or electric shock.
4
•• Handle the adapter carefully to avoid dropping or striking it. An
impact could damage the adapter.
•• To reduce the risk of fire or electrical shock, do not touch the TV
with wet hands. If the power cord prongs are wet or covered with
dust, dry the power plug completely or wipe dust off.
•• Batteries
-- Store the accessories (battery, etc.) in a safe location out of the
reach of children.
-- Do not short circuit, disassemble, or allow the batteries to
overheat. Do not dispose of batteries in a fire. Batteries should
not be exposed to excessive heat.
•• Moving
-- When moving, make sure the product is turned off, unplugged,
and all cables have been removed. It may take 2 or more people
to carry larger TVs. Do not press or put stress on the front panel
of the TV. Otherwise, this may result in product damage, fire
hazard or injury.
•• Keep the packing anti-moisture material or vinyl packing out of the
reach of children.
•• Do not allow an impact shock, any objects to fall into the product,
and do not drop anything onto the screen.
•• Do not press strongly upon the panel with a hand or a sharp
object such as a nail, pencil, or pen, or make a scratch on it. It may
cause damage to screen.
•• Cleaning
-- When cleaning, unplug the power cord and wipe gently with a
soft/dry cloth. Do not spray water or other liquids directly on the
TV. Do not clean your TV with chemicals including glass cleaner,
any type of air freshener, insecticide, lubricants, wax (car,
industrial), abrasive, thinner, benzene, alcohol etc., which can
damage the product and/or its panel. Otherwise, this may result
in electric shock or product damage.
Preparing
Optional Extras
B
B
A
A
* A<
= 10 mm
* B<
= 18 mm
•• Use a certified cable with the HDMI logo attached. If you do not use
a certified HDMI cable, the screen may not display or a connection
error may occur.
•• Recommended HDMI cable types (3 m or less)
-- High-Speed HDMI®/TM Cable
-- High-Speed HDMI®/TM Cable with Ethernet
Optional extras can be changed or modified for quality improvement
without any notification. Contact your dealer for buying these items.
These devices work only with certain models.
The model name or design may be changed due to the manufacturer’s
circumstances or policies.
ENGLISH
•• When the TV is turned on for the first time after being shipped
from the factory, initialization of the TV may take approximately
one minute.
•• Image shown may differ from your TV.
•• Your TV’s OSD (On Screen Display) may differ slightly from that
shown in this manual.
•• The available menus and options may differ from the input source
or product model that you are using.
•• New features may be added to this TV in the future.
•• The device must be easily accessed to a location outlet near the
access. Some devices are not made by turning on / off button,
turning off the device and unplugging the power cord.
•• The items supplied with your product may vary depending upon
the model.
•• Product specifications or contents of this manual may be changed
without prior notice due to upgrade of product functions.
•• For an optimal connection, HDMI cables and USB devices should
have bezels less than 10 mm thick and 18 mm width.
•• Use an extension cable that supports
if the USB cable or
USB flash drive does not fit into your TV’s USB port.
Wall Mounting Bracket
(Depending upon model)
Make sure to use screws and wall mounts that meet the VESA standard.
Standard dimensions for the wall mount kits are described in the
following table.
A
B
Model
VESA (A x B) (mm)
Standard screw
Number of screws
32LK50*
100 x 100
M4
4
Wall mount bracket
(optional)
LSW140B
43LK50*
200 x 200
M6
4
LSW240B
MSW240
28LK43*
100 x 100
M4
4
RW120
5
Lifting and moving the TV
ENGLISH
When moving or lifting the TV, read the following to prevent the TV
from being scratched or damaged and for safe transportation regardless
of its type and size.
•• It is recommended to move the TV in the box or packing material
that the TV originally came in.
•• Before moving or lifting the TV, disconnect the power cord and all
cables.
•• When holding the TV, the screen should face away from you to
avoid damage.
•• Avoid touching the screen at all times, as this may result in
damage to the screen.
•• Do not place the product on the floor with its front facing
down without padding. Failure to do so may result in
damage to the screen.
•• Do not move the TV by holding the cable holders, as the
cable holders may break, and injuries and damage to the
TV may occur. (Depending upon model)
•• When attaching the stand to the TV set, place the screen
facing down on a cushioned table or flat surface to protect
the screen from scratches.
Mounting on the Table
•• Hold the top and bottom of the TV frame firmly. Make sure not to
hold the transparent part, speaker, or speaker grille area.
1 Lift and tilt the TV into its upright position on a table.
• Leave a 10 cm (minimum) space from the wall for proper
ventilation.
10 cm
10 cm
10 cm
10 cm
10 cm
•• Use at least two people to move a large TV.
•• When transporting the TV by hand, hold the TV as shown in the
following illustration.
(Depending upon model)
2 Connect the power cord to a wall outlet.
•• When transporting the TV, do not expose the TV to jolts or excessive
vibration.
•• When transporting the TV, keep the TV upright; never turn the TV
on its side or tilt towards the left or right.
•• When handling the TV, be careful not to damage the protruding
buttons.
6
Mounting to the Wall
An optional wall mount can be used with your LG Television. Consult
with your local dealer for a wall mount that supports the VESA
standard used by your TV model. Carefully attach the wall mount
bracket at the rear of the TV. Install the wall mount bracket on a solid
wall perpendicular to the floor. If you are attaching the TV to other
building materials, please contact qualified personnel to install the
wall mount. Detailed instructions will be included with the wall mount.
We recommend that you use an LG brand wall mount. The LG wall
mount is easy to adjust or to connect the cables. When you do not use
LG’s wall mount bracket, use a wall mount bracket where the device is
adequately secured to the wall with enough space to allow connectivity
to external devices. If you are using a non-adjustable mount, attach the
mount to the wall. Attach the cables to the TV first, then attach the TV
to the mount.
ENGLISH
•• Do not apply foreign substances (oils, lubricants, etc.) to
the screw parts when assembling the product. (Doing so
may damage the product.)
•• If you install the TV on a stand, you need to take actions
to prevent the product from overturning. Otherwise, the
product may fall over, which may cause injury.
•• Do not use any unapproved items to ensure the safety and
lifespan of the product.
•• Any damages or injuries by using unapproved items are not
covered by the warranty.
•• Make sure that the screws are fastened tightly. (If they are
not fastened securely enough, the TV may tilt forward after
being installed.)
•• Do not fasten the screws with excessive force otherwise
they may be worn out and become loose.
Securing TV to the Wall
10 cm
10 cm
m
10 c
10 cm
10 cm
(Depending upon model)
(Depending upon model)
1 Insert and tighten the eye-bolts or TV brackets and bolts on the back
of the TV.
• If there are bolts inserted at the eye-bolts position, remove the
bolts first.
2 Mount the wall brackets with the bolts to the wall. Match the
location of the wall bracket and the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a sturdy rope or
cable. Make sure to keep the rope parallel to the flat surface.
•• Use a platform or cabinet that is strong and large enough to
support the TV securely.
•• Brackets, bolts, and ropes are optional. You can obtain additional
accessories from your local dealer.
7
ENGLISH
•• Remove the stand before installing the TV on a wall mount
by performing the stand attachment in reverse.
•• For more information of screws and wall mount bracket,
refer to the Separate Purchase.
•• If you intend to mount the product to a wall, attach VESA
standard mounting interface (optional parts) to the back
of the product. When you install the set to use the wall
mounting bracket (optional parts), fix it carefully so as
not to drop.
•• When mounting a TV on the wall, make sure not to install
the TV by hanging the power and signal cables on the back
of the TV.
•• Do not install this product on a wall if it could be exposed
to oil or oil mist. This may damage the product and cause
it to fall.
•• Screw length from outer surface of back cover should be
under 8 mm. (For 28LK43*)
Wall mount Pad
Back Cover
Wall mount Pad
Back Cover
Standard screw
: M4 x L10
Max. 8 mm
8
Connections
You can connect various external devices to the TV. For more
information on external device’s connection, refer to the manual
provided with each device.
Antenna/Cable
Connect an antenna, cable, or cable box to watch TV while referring to
the following. The illustrations may differ from the actual items and an
RF cable is optional.
•• Make sure not to bend the copper wire of the RF cable.
Copper wire
•• Complete all connections between devices, and then connect the
power cord to the power outlet to prevent damage to your TV.
•• To improve the picture quality in a poor signal area, purchase a
signal amplifier.
•• Use a signal splitter to use 2 TVs or more.
•• If the antenna is not installed properly, contact your dealer for
assistance.
Other connections
Using Button
Connect your TV to external devices. For the best picture and audio
quality, connect the external device and the TV with the HDMI cable.
You can operate the TV functions, using the button.
ENGLISH
HDMI
•• HDMI Audio Supported Format (Depending upon model):
AC3 (Max bit rate: 640 Kbps),
Dolby Digital / Dolby Digital Plus (32 kHz, 44.1 kHz, 48 kHz),
PCM (32 kHz, 44.1 kHz, 48 kHz)
External Devices
Supported external devices are: Blu-ray player, HD receivers, DVD
players, VCRs, audio systems, USB storage devices, PC, gaming devices,
and other external devices.
•• The external device connections shown may differ slightly from
illustrations in a manual.
•• Connect external devices to the TV regardless about the order of
the TV port.
•• If you record a TV program on a Blu-ray/DVD recorder or VCR, make
sure to connect the TV signal input cable to the TV through a DVD
recorder or VCR. For more information about recording, refer to the
manual provided with the connected device.
•• Refer to the external equipment’s manual for operating
instructions.
•• If you connect a gaming device to the TV, use the cable supplied
with the gaming device.
•• In PC mode, there may be noise associated with the resolution,
vertical pattern, contrast or brightness. If noise is present, change
the PC output to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the PICTURE
menu until the picture is clear.
Basic functions
Power On / Off (Press)
•• Do not drop the product or let it fall over when connecting
external devices. Otherwise, this may result in injury or
damage to the product.
•• When connecting external devices such as video game
consoles, make sure the connecting cables are long
enough. Otherwise, the product may fall over, which may
cause injury or damage the product.
9
Using Remote Control
ENGLISH
(Depending upon model)
The descriptions in this manual are based on the buttons on the remote
control. Please read this manual carefully and use the TV correctly.
To install batteries, open the battery cover, replace batteries (1.5 V AAA)
matching the and ends to the label inside the compartment,
and close the battery cover. To remove the batteries, perform the
installation actions in reverse. This remote uses infrared light. When in
use, it should be pointed in the direction of the TV’s remote sensor.
Make sure to point the remote control toward the remote control sensor
on the TV.
(POWER) Turns the TV on or off.
Returns to the last TV channel.
Recalls your preferred subtitle in digital mode.
Resizes an image.
Shows information on the current program.
(INPUT) Changes the input source.
Number buttons Enters numbers.
(DASH) Inserts a dash between numbers such as 2-1 and 2-2.
Accesses the saved channel list.
Alternates between the two last channels selected (pressing
repeatedly).
Adjusts the volume level.
Accesses your favorite channel.
Displays the program event according to time scheduler.
(Depending upon model)
(MUTE) Mutes all sounds.
Scrolls through the saved channels.
Moves to the previous or next screen.
Changes the picture mode.
(HOME) Accesses the Home menu.
Changes the sound mode.
(Settings) Accesses the Settings menu.
Accesses the quick menu.
Navigation buttons (up/down/left/right) Scrolls through menus
or options.
Selects menus or options and confirms your input.
Returns to the previous screen.
Clears all on-screen displays and returns to TV viewing.
Enables SAP (Secondary Audio Program) Feature.
(Depending upon model)
Starts to record and displays record menu. (Only Time
MachineReady supported model) (Depending upon model)
Control buttons (
) Controls media contents.
, , , These access special functions in some menus.
•• Do not mix new batteries with old batteries. This may
cause the batteries to overheat and leak.
•• Failure to match the correct polarities of the battery may
cause the battery to burst or leak, resulting in fire, personal
injury, or ambient pollution.
(Some buttons and services may not be provided depending upon
models or regions.)
10
•• This apparatus uses batteries. In your community there
might be regulations that require you to dispose of these
batteries properly due to environmental considerations.
Please contact your local authorities for disposal or
recycling information.
•• Batteries inside or inside the product shall not be exposed
to excessive heat such as sunshine, fire or the like.
Settings
(Depending upon country)
(Settings) PICTURE
Energy Saving
Saves electric power by adjusting screen brightness.
•• Off Turns off the Energy Saving.
•• Minimum / Medium / Maximum Applies the pre-set Energy
Saving.
•• Screen Off Screen is turned off and only sound is played. Press
any button except Power button on the remote control to turn the
screen back on.
To select Picture Mode
(Settings) PICTURE Picture Mode
Select the picture mode optimized for the viewing environment or the
program.
•• Vivid Heightens contrast, brightness and sharpness to display
vivid images.
•• Standard Displays images in standard levels of contrast,
brightness and sharpness.
•• Eco The Energy Saver feature changes settings on the TV to reduce
power consumption.
•• Cinema / Game Displays the optimum picture for a movie or a
game.
•• Soccer Optimized picture mode for football matches. The pitch and
kits are presented in vibrant colors, with crystal-clear images even
for fast movements.
•• Depending upon input signal, the available range of picture modes
may differ.
(Settings) PICTURE Picture Mode Advanced Control
For each picture mode, the screen can be calibrated; or for a special
screen, picture settings can be adjusted. Select the desired Picture
Mode.
ENGLISH
To use Energy Saving feature
To set advanced control
•• Dynamic Contrast Adjusts the contrast to the optimal level
according to the image’s brightness.
•• Dynamic Color Adjusts colors to make the image appear in more
natural colors.
•• Gamma Sets the gradation curve according to the output of
picture signal in relation to the input signal.
•• Depending upon input signal or other picture settings, the range of
detailed items for adjustment may differ.
Setting the Picture Mode
(Settings) PICTURE Picture Mode
This feature allows you to adjust the selected picture mode in detail.
•• Backlight Controls the level of screen brightness by adjusting the
backlight. The closer to 100, the brighter the screen. Decrease the
Backlight to reduce energy consumption.
•• Contrast Adjusts the contrast of the bright and dark areas of the
picture. The closer to 100, the higher the contrast.
•• Brightness Adjusts the overall screen brightness. The closer to
100, the brighter the screen.
•• Sharpness Adjusts the sharpness of the image. The closer to 50,
the sharper and clearer the image.
•• Color Tones down or up the colors displayed on the screen. The
closer to 100, the deeper the color.
•• Tint Adjusts the color balance between red and green displayed on
the screen. The closer to Red 50, the more red the color will be. The
closer to Green 50, the more green the color will be.
•• Color Temp. Adjusts the overall tone of the screen as desired. In
Expert mode, detailed fine-tuning can be set via Gamma method,
etc.
•• Depending upon input signal or other picture settings, the range of
detailed items for adjustment may differ.
11
To set additional picture options
Selecting Sound Mode
(Settings) PICTURE Picture Mode
Adjusts detailed setting for images.
(Settings) AUDIO Sound Mode
Adjusts TV audio to an optimal level based on a selected sound mode.
Picture Option
ENGLISH
•• Noise Reduction Eliminates noise in the picture.
•• MPEG Noise Reduction Eliminates noise generated while
creating digital picture signals.
•• Black Level Adjusts the brightness and contrast of the screen
to suit the black level of the input picture by using the blackness
(black level) of the screen.
•• Real Cinema Optimizes the screen for movie viewing.
•• Depending upon input signal or other picture settings, the range of
detailed items for adjustment may differ.
Initializing picture settings
(Settings) PICTURE Picture Mode Picture Reset
Initializes picture settings that the user customizes.
Each picture mode is reset. Select the desired picture mode to reset.
Setting the Screen Size
(Settings) PICTURE Aspect Ratio
Selects the screen aspect ratio.
•• 16:9 Displays an aspect ratio of 16:9.
•• Just Scan Displays video images in the original size without
removing parts of the edge of the image. (This function works in
DTV/Component/HDMI (720p / 1080i / 1080p) Mode.)
-- If you select Just Scan, you may see image noises at the edge of
the original signal.
•• Set By Program Depending upon the input signal, screen aspect
ratio changes to 4:3 or 16:9.
•• 4:3 Displays an aspect ratio of 4:3.
•• Zoom Resizes the image to fit the screen width. The top and
bottom parts of the image may be cut off.
•• Viewing content from an external device or, for an extended period
of time, having fixed text such as the program name or using an
aspect ratio of 4:3 may result in image sticking.
•• Available picture size may differ depending upon the input signal.
12
•• Standard Optimizes the sound for all types of content.
•• News Optimizes the sound for news.
•• Music Optimizes the sound for music.
•• Cinema Optimizes the sound for cinemas.
•• Soccer Optimizes the sound for sports.
•• Game Optimizes the sound for gameplay.
Using the Sound Effect function
(Settings) AUDIO Sound Effect
The user can select various sound effects.
•• Treble Controls the dominant sounds in the output. When you turn
up the treble, it will increase the output to the higher frequency
range.
•• Bass Controls the softer sounds in the output. When you turn up
the bass, it will increase the output to the lower frequency range.
•• Balance Adjust the volume of the left and right speakers.
•• Reset Reset the sound effect settings.
To set Auto Volume
(Settings) AUDIO Auto Volume
Sets Auto Volume to On and volume output from channel to channel
is automatically adjusted for convenient TV watching when clicking
through different channels.
To set up the channels automatically
(Settings) CHANNEL Auto Tuning
Memorizes automatically the channels being broadcast.
•• The channels will not be memorized properly if the antenna/cable
is not installed correctly.
•• Auto Tuning memorizes the channels that are currently being
broadcast.
•• If Lock is turned on, a pop-up window will appear asking for
password.
•• DTV Audio Supported Codec (Depending upon model): MPEG,
Dolby Digital / Dolby Digital Plus (32 kHz, 44.1 kHz, 48 kHz)
To set up the channels at manually
Editing the channels
(Settings) CHANNEL
Edits the saved channels.
Channel Edit
To set the system color
(Depending upon country)
(Settings) CHANNEL System Color
Adjusts ATV or CATV system color setting.
To set current time
(Settings) TIME Clock
Checks or changes the time while watching TV.
To turn on/off the TV
(Settings) TIME Off Time / On Time
You can set the Power On/Off time for the TV.
•• Select Off if you are not going to set On Time / Off Time.
•• To set On Time / Off Time, set the current time correctly.
•• When the TV is turned on using the On Time function, it will be
turned off automatically if no buttons are touched within 120
minutes.
(Depending upon country)
(Settings) TIME Time Zone
TV time is set Peru GMT -5 when time is set automatically by a digital
signal.
To set the password
(Settings) LOCK Set Password
Set or change the TV password.
•• The initial password is set to 0000.
To set Lock System
(Depending upon country)
(Settings) LOCK Lock
Permits only specific programs by blocking channels or external input.
At first, set Lock to On.
•• Block Channel Blocks the channels that contain inappropriate
contents for children by pressing the Green button. The Lock icon
appears in back of the blocked channels. The channels can be
selected but the screen is blank and the audio is muted.
•• Parental Guidance This function operates according to
information from the broadcaster. Therefore if the signal has
incorrect information, this function does not operate. This prevents
children from watching certain adult TV channels according to the
ratings limit set. Enter a password to watch a blocked channel.
Ratings differ by country.
•• Input Block Blocks the selected input.
To set Language
To use Sleep Timer
(Depending upon country)
(Settings) TIME Sleep Timer
Turns off the TV after a prescribed number of minutes.
(Settings) OPTION Language
You can select the language of the menu displayed on the screen and
the digital sound broadcasting.
•• To deactivate the Sleep Timer, select Off.
ENGLISH
(Settings) CHANNEL Manual Tuning
Adjusts channels manually and saves the results. For digital
broadcasting, signal strength, etc. can be checked.
To set Time Zone
•• Menu Language Selects a language for the display text.
•• Audio Language [In Digital mode Only] Selects the desired
language when watching digital broadcasting containing several
voice languages.
•• Subtitle Language [In Digital mode Only] Use the Subtitle
function when two or more subtitle languages are broadcast.
-- If subtitle data in a selected language is not broadcast, the
default language subtitle will be displayed.
13
To set the caption
(Depending upon country)
ENGLISH
(Settings) OPTION Caption
View captions when the TV station provides captioned programming.
Program captions work only on digital/analog broadcasts or external
input.
Change Caption to On and select caption settings.
•• Mode
CC 1-4 (Closed Captioning) /
Text 1-4 Displays the audio portion of a TV program as text on the
TV screen. CC1 is the most common mode in use.
Digital This is only available for the digital broadcasting system.
To select the country
(Depending upon country)
(Settings) OPTION Country
Sets the country that the TV uses.
•• TV settings are changed according to the broadcast environment of
the selected country.
•• If the country setting is changed, the Auto Tuning information
screen may appear.
To update the software
(Settings) OPTION System Info.
Selects USB Software Update or FW Version. The firmware will
download and install. Upon completion of the update, your LG TV will
restart.
•• USB Software Update Updates software via USB device.
•• FW Version Checks the software version and Product/Service
information.
To specify Factory Reset
(Settings) OPTION Factory Reset
Returns to initial default mode by deleting all optional setup. Once
initialization is completed, the TV will turn off and on by itself.
•• When Lock is in place, a pop-up window appears and asks for
password.
•• Do not turn off the power during initialization.
14
To change the TV Mode
(Settings) OPTION Mode Setting
Selects Home Mode or Store Mode.
•• When in use in home, please select Home Mode.
•• Store Mode is for store display.
To select external input
Selects external input.
Press the
(Input) button or
(HOME)
INPUT
To remove the USB device
USB Device
Once the message that the USB device was removed is displayed,
remove the device from the TV.
•• After selecting to remove USB device, the USB storage device
cannot be read. Remove the USB storage device and then reconnect
it.
Warning when using USB storage devices
•• USB storage devices with a built-in auto recognition program or its
own driver may not work.
•• Some USB storage devices may not work or may work improperly.
•• Use only those USB storage devices formatted with FAT32 or NTFS
File System provided by Windows.
•• For external USB HDD, use devices with less than 5V-rated voltages
and 500 mA-rated current.
•• It is recommended to use USB flash drive with 32 GB or less and
USB HDD with 1 TB or less.
•• If a USB HDD with power-saving function does not work properly,
turn the power off and on. For more information, refer to the user
manual of USB HDD.
•• Data in the USB storage device can be damaged so back up
important files in other devices. Data maintenance is the user’s
responsibility. The manufacturer is not responsible for data loss.
My Media Supported Files
Supported Audio Formats
File
Format
*.mp3
Supported Video Formats
•• Maximum: 1920 x 1080 @ 30p (Only Motion JPEG 640 x 480 @ 30p)
•• H.264 BP LV 4.0 (Not support for FMO, ASO & redundant slice)
Extension
*.asf, *.wmv
*.wma
Video
Audio
Video
*.avi
Audio
*.ts
*.mpg, *.mpeg
*.mp4
*.mkv
Video
Audio
Video
Audio
Video
Audio
Video
Audio
Codec
MPEG2, MPEG4, XviD, H.264, VC1, WMV3
Window Media Audio standard
MPEG2, MPEG4, XviD, H.264, VC1,
WMV3, MJPG
HE-AAC, AAC, E-AC3, AC3, LPCM, ADPCM,
MP3
MPEG2, H.264
HE-AAC, AAC, E-AC3, AC3, MP3
MPEG1, MPEG2
AC3, MP3
MPEG4, XviD, H.264, MJPG
AAC, MP3
H.264, MPEG1, MPEG2, MPEG4, XviD,
VC1, WMV3
HE-AAC, AC3, MP3, LPCM
*.m4a, *.aac
*.wma
Item
Bit rate
Sample freq.
Support
Bit rate
Sample freq.
Support
Bit rate
Sample freq.
Support
Info
32 Kbps ~ 320 Kbps
32 kHz ~ 48 kHz
MPEG1 Layer2, MPEG1 Layer3
24 Kbps ~ 384 Kbps
8 kHz ~ 48 kHz
AAC, HEAAC
128 Kbps ~ 320 Kbps
8 kHz ~ 48 kHz
WMA
ENGLISH
•• Supported subtitle formats: .srt (SubRip), .ssa/.ass
(SubStation Alpha), .smi (SAMI), .sub (SubViewer1, MicroDVD,
DVDSubtitleSystem, Subldx (VobSub)), .txt (TMPlayer)
1: SubViewer1.0 & 2.0 only
Supported Photo Formats
File Format
Format
Resolution
Available
Baseline, Progressive
File Type
Color depth 24-bit
Minimum: 64 (W) x 64 (H)
Maximum (Normal Type):
Picture Size 15360 (W) x 8640 (H)
Maximum (Progressive Type):
1024 (W) x 768 (H)
15
Troubleshooting
Cannot control the TV with the remote control.
ENGLISH
•• Check if anything such as tape has been placed over the receiver.
•• Check if there is any obstacle between the product and the remote
control.
•• Replace the batteries with new fresh ones.
No image display and no sound is produced.
•• Check if the product is turned on.
•• Check if the power cord is connected to a wall outlet.
•• Check if there is a problem in the wall outlet by connecting other
products.
The TV turns off suddenly.
•• Check the power control settings. The power supply may be
interrupted.
•• Check if the auto-off function is activated on the settings related
time.
•• If there is no signal while the TV is on, the TV will turn off
automatically after 15 minutes of inactivity.
16
Abnormal Display
•• If the TV feels cold to the touch, there may be a small flicker when
it is turned on. This is normal; there is nothing wrong with TV.
Some minute dot defects may be visible on the screen, appearing
as tiny red, green, or blue spots. However, they have no adverse
effect on the TV’s performance. Avoid touching the LCD screen or
holding your finger(s) against it for long periods of time. Doing so
may produce some temporary distortion effects on the screen.
•• This panel is an advanced product that contains millions of pixels.
In a very few cases, you could see fine dots on the screen while
you’re viewing the TV. Those dots are deactivated pixels and do not
affect the performance and reliability of the TV.
•• Displaying a still image for a prolonged period of time may cause
an image sticking. Avoid displaying a fixed image on the TV screen
for a extended length of time.
Generated Sound
•• Cracking noise A cracking noise that occurs when watching or
turning off the TV is generated by plastic thermal contraction due
to temperature and humidity. This noise is common for products
where thermal deformation is required.
•• Electrical circuit humming/panel buzzing A low level noise is
generated from a high-speed switching circuit, which supplies a
large amount of current to operate a product. It varies depending
upon the product. This generated sound does not affect the
performance and reliability of the product.
Specifications
Product specifications may be changed without prior notice due to upgrade of product functions.
ENGLISH
(Depending upon country)
Broadcasting specifications
Model
32LK500BPSA, 43LK5000PSA, 28LK430B-PD
32LK500BPDA, 43LK5000PDA, 28LK430V-PD
NTSC-M, PAL-M/N, ISDB-T
NTSC-M, PAL-M/N, DVB-T2
Television system
Program coverage
ATV
VHF 2-13, UHF 14-69, CATV 1-135
DTV
VHF 2-13, UHF 14-69
External antenna impedance
75 Ω
Environment condition
Operating Temperature
0 °C to 40 °C
Operating Humidity
Less than 80 %
Storage Temperature
-20 °C to 60 °C
Storage Humidity
Less than 85 %
•• The energy information provided on the product is shown in accordance with the applicable regulations of each respective country (Depending
upon the country).
-- The Energy consumption was measured in accordance with IEC 62087.
•• The actual energy consumption depends on the usage environment (The content watched, TV settings, etc.).
17
HDMI-DTV supported mode
Resolution
ENGLISH
640 x 480p
720 (1440) x 480i
720 x 480p
720 (1440) x 576i
720 x 576p
1280 x 720p
1920 x 1080i
1920 x 1080p
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
31.47
31.50
15.73
15.75
31.47
31.50
15.63
31.25
37.50
44.96
45.00
28.13
33.72
33.75
26.97
27.00
33.72
33.75
56.25
67.43
67.50
59.94
60.00
59.94
60.00
59.94
60.00
50.00
50.00
50.00
59.94
60.00
50.00
59.94
60.00
23.976
24.00
29.97
30.00
50.00
59.94
60.00
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
720 x 400
31.469
70.08
640 x 480
31.469
59.94
800 x 600
37.879
60.31
1024 x 768
48.363
60.00
1280 x 720
45.00
60.00
1360 x 768
47.712
60.015
1366 x 7681
47.712
59.79
1280 x 10242
63.981
60.02
1920 x 1080
67.50
60.00
1 For 32LK50*, 28LK43*
2 For 43LK50*
18
Component ports on the TV
Y
Video output ports on DVD player
PB
PR
Y
PB
PR
Y
B-Y
R-Y
Y
Cb
Cr
Y
Pb
Pr
Component supported mode
Resolution
720 (1440) x 480i
720 x 480p
720 (1440) x 576i
720 x 576p
1280 x 720p
1920 x 1080i
HDMI-PC supported mode
2
Component port connecting
information
1920 x 1080p
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
15.73
15.75
31.47
31.50
15.63
31.25
37.50
44.96
45.00
28.13
33.72
33.75
56.25
67.43
67.50
59.94
60.00
59.94
60.00
50.00
50.00
50.00
59.94
60.00
50.00
59.94
60.00
50.00
59.94
60.00
Licenses
Regulatory
Supported licenses may differ by model.
The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of HDMI
Licensing Administrator, Inc. in the United States and other countries.
Manufactured under license from Dolby Laboratories. Dolby, Dolby
Vision, Dolby Audio, Dolby Atmos, and the double-D symbol are
trademarks of Dolby Laboratories.
ENGLISH
WARNING!
Never place a television set in an unstable location. A television set may
fall, causing serious personal injury or death. Many injuries, particularly
to children, can be avoided by taking simple precautions such as:
•• Using cabinets or stands recommended by the manufacturer of the
television set.
•• Only using furniture that can safely support the television set.
•• Ensuring the television set is not overhanging the edge of the
supporting furniture.
•• Not placing the television set on tall furniture (for example,
cupboards or bookcases) without anchoring both the furniture and
the television set to a suitable support.
•• Not placing the television set on cloth or other materials that may
be located between the television set and supporting furniture.
•• Educating children about the dangers of climbing on furniture to
reach the television set or its controls.
If your existing television set is being retained and relocated, the same
considerations as above should be applied.
Symbols
Refers to alternating current (AC).
Refers to direct current (DC).
Refers to class II equipment.
Refers to stand-by.
Refer to “ON” (power).
Refers to dangerous voltage.
19
The model and serial numbers of the TV are located on
the back and on one side of the TV. Record them below
should you ever need service.
Model
Serial No.
Was this manual useful for you? yes no
Thank you for your participation!
