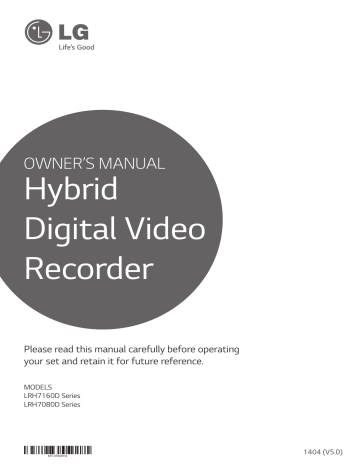

OWNER’S MANUAL

Hybrid

Digital Video

Recorder

Please read this manual carefully before operating your set and retain it for future reference.

MODELS

LRH7160D Series

LRH7080D Series

1404 (V5.0)

2 Safety Information

1

1

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

FCC WARNING:

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

REGULATORY INFORMATION: FCC Part 15

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

• A suitable conduit entries, knock-outs or glands shall be provided in the cable entries of this product in the end user.

• Caution: Danger of explosion if battery is incorrectly replaced.

Replaced only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

• Holes in metal, through which insulated wires pass, shall have smooth well rounded surfaces or shall be provided with brushings.

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme

NMB-003 du Canada.

Warning:

Do not install this equipment in a confined space such as a bookcase or similar unit.

Warning:

Wiring methods shall be in accordance with the National

Electric Code, ANSI/NFPA 70.

Warning:

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Warning:

To reduce a risk of fire or electric shock, do not expose this product to rain or moisture.

Caution:

This installation should be made by a qualified service person and should conform to all local codes.

Caution:

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Caution:

The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

Caution:

This product employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Should the unit require maintenance, contact an authorized service center. Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure.

To disconnect power from mains, pull out the mains cord plug.

When installing the product, ensure that the plug is easily accessible.

LG Electronics hereby declares that this/these product(s) is/are in compliance with the essential requirements and other relevant provisions of

Directive 2004/108/EC, 2006/95/EC, and 2011/65/

EU.

Contact office for compliance of this product :

LG Electronics Inc.

EU Representative, Krijgsman 1,

1186 DM Amstelveen, The Netherlands

• Please note that this is NOT a Customer Service contact point.

For Customer Service Information, see Warranty Card or contact the dealer that you purchased this product.

Safety Information 3

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

EEE Compliance with Directive. (for Turkey only)

Safety way to remove the battery or the battery from the equipment:

Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fire or the lile.

Disposal of waste batteries/accumulators

1. When this crossed-out wheeled bin symbol is attached to batteries/accumulators of Your product it means they are covered by European

Directive 2006/66/EC.

2. This symbol may be combined with chemical symbols for mercury(Hg), cadmium(Cd) or lead(Pb) if the battery Contains more that 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead.

3. All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

4. The correct disposal of Your old batteries/ accumulators will help to prevent potential negative consequences for the environment, animal and human health.

5. For more detailed information about disposal of

Your old batteries/accumulators, please contact

Your city office, waste disposal service or the shop where You purchased the product.

IMPORTANT SAFETY

INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

1

4 Safety Information

Safety warnings and Cautions

1

The following are warnings and cautions for the safety of the users and for the prevention of any property damage. Please read the following carefully.

WARNING

• Turn off the system before installation. Do not plug in several electric devices to the same outlet.

-

This may cause heating, fire, or electric shock.

• Do not place any liquid container on the system, such as water, coffee, or other beverage.

-

If liquid is poured onto the system, it can cause a system breakdown or fire.

• Prevent the power cable from being severely bent or having pressure exerted on it by a heavy object.

-

This may cause fire.

• Clean the dust around the system on a regular basis. When cleaning the system, always use a dry cloth. Do not use a wet cloth or other organic solvents.

-

This may damage the surface of the system and can cause a system breakdown or electric shock.

• Avoid any place with moisture, dust, or soot.

-

This can cause fire or electric shock.

• When pulling the power cable from the plug, do so gently. Do not touch the plug with wet hands and avoid using the plug if the holes in the outlet are too loose.

-

This may cause fire or electric shock.

• Do not attempt to disassemble, repair, or modify the system on your own. It is extremely dangerous due to the high voltage running through the system.

This may cause fire, electric shock, or serious injury.

• Check for any danger signs such as a moist floor, a loosened or damaged power cable, or an unstable surface. If you encounter any problems, ask your dealer for assistance.

This may cause fire or electric shock.

• Keep a distance of at least 15 cm between the back of the system and the wall for the cables connected to the system otherwise, they may be bent, damaged, or cut.

This may cause fire, electric shock, or injury.

• Install the system in a cool place without direct sunlight and always maintain room temperature. Avoid candlelight and heat generating devices such as heaters. Keep the system away from places where many people pass.

This may cause fire.

• Install the system on a plain surface with sufficient air ventilation. Do not place the system on an elevated surface.

This may cause system breakdown or serious injury.

• The power outlet must be placed on the ground, and the voltage range must be within 10 % of the voltage rate. Do not use the same outlet with a hair dryer, iron, refrigerator, or any heating appliances.

This may cause fire, over heating or electric shock.

• When the system’s battery is depleted, replace it with the same or equivalent type of battery specified by the manufacturer. Depleted batteries should be discarded according to the manufacturer’s instructions.

This may cause an explosion.

• If the system’s HDD exceeds its life span, you may not be able to recover any data stored inside the HDD. If the video on the system screen appears ‘damaged’ while playing a recording stored inside the system’s HDD, it must be replaced with a new one. Ask for an engineer’s assistance for HDD replacement from your dealer.

LG Electronics is not responsible for deleted data caused by user mishandling.

• PLEASE DO NOT MOUNT OR UN-MOUNT HDDs WHILE SYSTEM IS POWERED ON.

This may cause system breakdown.

Safety Information 5

CAUTION

Please beware of the following precautions before installing the DVR.

• Avoid positioning the product in any place where the unit may come into contact with moisture, dust, or soot.

• Avoid placing in direct sunlight or near heating appliances.

• Keep the product away from electric sparks or magnetic substances.

• Do not place any conductive material through the ventilation grills.

• Keep the system turned off before installation.

• Ensure enough space is left for cable connections.

• Place the system on a solid surface with sufficient air ventilation. Avoid any surface that vibrates.

• Placing the system near electronic devices such as a radio or a TV may cause the product to breakdown.

• Do not disassemble the product without seeking assistance from LG Electronics.

• Do not place any heavy object on the system.

• Prevent any substances from being inserted into the system.

This may cause system breakdown.

• Install the system in a place with sufficient air ventilation.

Keep at least 15 cm distance between the back of the system and the wall, and at least 5 cm distance between the side of the system and the wall.

• Do not install the system in a place with high magnetic, electric wave, or wireless devices such as a radio or a TV.

Do not install the system in a place with magnetic objects, electric frequencies, or vibration.

• Do not place any heavy object on the system.

This may cause system breakdown.

• Install the system on a stable, level surface.

The system may not operate properly.

• Install the system in a place with appropriate moisture and temperature levels.

Avoid installing the system in a place with high (over 40 °C) or low (under 0 °C) temperature.

• The system can be damaged from a strong impact or vibration. Avoid throwing objects within the vicinity of the system.

• Avoid direct sunlight or any heating appliances.

Recommended operating temperature is over 0 °C (32 °F).

• Ventilate the air inside the system operation room, and tighten the system cover firmly.

System breakdown may be caused by an inappropriate environment. It is recommended to use AVR (Automatic Voltage Regulator) for a stable power supply. It is recommended to coil the core-ferrite around the connector of the system to avoid electromagnetic interference.

• The outlet must be placed on the ground.

• If there is strange sound or smell, unplug the power cable immediately and contact the service center.

This may cause fire or electric shock.

• In order to maintain stable system performance, have your system checked regularly by the service center.

LG Electronics is not held responsible for system breakdown caused by user mishandling.

There is a risk of explosion if a battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

• Do not overturn the product during use.

1

6 Contents

Contents

1

Safety Information

3 IMPORTANT SAFETY INSTRUCTIONS

2

Preparation

8 Introduction

8 Features

8 Accessories

9 Front Panel

11 Rear Panel

12 Remote Control

3

Installation

15

15

16

16

14

14

14

15

17

17

13 Connections

13 Precautions

13 Basic Connection Overview

Connecting Camera

Connecting the video distributor

Connecting Display device

Connecting Audio device

Connecting USB device

Connecting E-SATA device

Connecting ATM/POS

Connecting Network

Connecting RS-485 device

Connecting Alarm Input and Alarm Output

19 HDD INSTALLATION

19

19

Note for Hard Disk Drive

Installing the Hard Disk Drive

19

19

Replacing the Hard Disk Drive

Recommended HDD

20 System Operation

20 System Shutdown

20 General Explanation of the Live

22

22

24

24

20

21

21

22

25

26

Screen on the Main Monitor

Main Monitor Screen

Moving the Channel's Position

Selecting the Main Monitor screen mode

Selecting the Spot Monitor screen mode

Grouping channel

PTZ Camera Control

Using the Digital Zoom function

Export the recorded data

Viewing the System Log List

Viewing System Information

26 Configuration menu

27 System settings

27 Properties

28 TCP/IP v4

28 TCP/IP v6

28 Network

29 Network Streaming

29 Date/Time

29 NTP

30 Controller

30 Update

30 Backup

32 Device settings

32 Camera

32 PTZ

33 IP Device

34 ATM/POS

35 Storage

35 Display settings

35 OSD

35 Sequence

36 Video Adjustment

36 Record settings

36 Normal Schedule Recording

36

37

To Set a Recording Schedule for a Typical Day of the Week (Normal Schedule)

To Set a Recording Schedule for a Special Day

38

(Special Schedule)

Copying the Recording Schedule

38 Normal

38 Sensor

39 Motion

39 Text

39 Instant/Panic

40 Event settings

40 Sensor

40 Motion

41 ATM/POS Data Format

41 Event Popup

41 Notification

42 Mail

42 Emergency

42 SNMP

43 Output

43 Buzzer

44 User settings

44 Group Authority

44 User

45 Setup Wizard settings

45 Step 1

45

46

46

46

Step 2

Step 3

Step 4

Step 5

4

Operation

47 Instant Recording

47 Panic Recording

48 Instant Playback

48 Search and Playback

48 Date and Time Search

48

49

49

50

50

Event Search

Bookmark/Protect Search

ATM/POS Search

Export Search

Smart Search

51 Functions Available During Playback

52 Using the playback control menu

52 Using the Protect function

5

Troubleshooting

6

Appendix

56 Recommended Devices

56 Recommended USB Memory list

56

56

57

Recommended External Device list

Recommended CD/DVD Media list

Supported function list for device

Contents 7

57

57

Supported PTZ Camera list

Supported IP Camera Audio/Video Codec

58 Time zones

59 Factory Default Configuration Settings

66 Recording Time Table (250GB HDD)

69 IP Live/Playback Specifications

69 Specifications

1

2

3

4

5

6

8 Preparation

2

Preparation

2

Introduction

Model LRH7160D (16 Channel) is used for the description, operation and details provided in this operating guide.

Features

• Stable embedded Linux operating system.

• Journal filing system for HDD file recovery following power recovery.

• Small file sizes with H.264 compression.

• Internal storage expandable to 12 TB. (Expandable if new high capacity HDD is launched)

• NTSC and PAL selectable video format.

• Full real-time recording.

NTSC

PAL

Up to 480 IPS @ 704x480, LRH7160D Series

Up to 240 IPS @ 704x480, LRH7080D Series

Up to 400 IPS @ 704x576, LRH7160D Series

Up to 200 IPS @ 704x576, LRH7080D Series

• Various recording resolutions and quality levels.

NTSC

PAL

D1(704x480), Half D1(704x240), CIF(352x240)

D1(704x576), Half D1(704x288), CIF(352x288)

-

5 step quality level (Highest, High, Standard, Low, Lowest).

• Easy operation using various user interface & user friendly GUI.

Optical mouse, Full function IR remote controller

• Powerful multiplex function.

Simultaneous live display, recording, playback, network transmission, back-up.

• Various search function.

Date/time search (calendar search), Event search, Bookmark/

Protect search, ATM/POS search, Export search, Smart search.

• Pre-alarm recording (Up to 1 minute).

• Motion event recording and preview test function of motion sensitivity.

• Recording image rate & quality adjustment per individual camera.

• Powerful record scheduling.

• Instant playback in live mode.

• Perfect audio/video synchronization.

• Automatic backup by schedule.

• Image authentication (Watermark).

• Three USB 2.0 ports for backup interface.

• Setup configuration export/import with USB memory stick.

• Easy system S/W update with USB memory stick or network.

• Clients S/W can manage max 300 DVR servers.

• Max five clients can access one DVR server simultaneously.

• Network bandwidth throttle.

Automatically adjust a bandwidth according to network speed status of unit.

• Remote alarm notification via client software or E-mail.

• Time and date sync from NTP server.

• Daylight saving mode.

• Covert camera protection.

• Support Gigabit Ethernet.

• E-SATA storage interface.

• Two-way audio.

• Text Input for ATM and POS device.

• User management (User level control).

• PTZ Control.

-

Dome camera telemetry control (Dome OSD control).

Accessories

CD (Software and Owner's

Manual)

Screws

Mouse

Remote

Control

AAA type batteries

Rack Mount

Bracket

Power Plug

Simple

Manual

Preparation 9

Front Panel

Front of the LRH7160D series

a b c

NET

ALARM

BACK UP

NET

HDD

ALARM

BACK UP

OSD

1

INFO

5

LOG

9

COPY

13

1

INFO

5

LOG

9

COPY

13

PTZ FOCUS+

2

ALM.OFF

6

3 e

FOCUS -

7

TEXT OFF

10/0

MARK

14

2

ALM.OFF

6

TEXT OFF

10/0

MARK

14

SET

11

MOVE

15

3

FOCUS -

7

SET

11

MOVE

15

IRIS+

4

IRIS -

8

CLEAR

12

TOUR

16

4

IRIS -

8

CLEAR

12

TOUR

16 f g

SHIFT

SHIFT h c i

LOG-IN

SEARCH SETUP

VIEW CAM BACK h

REC

LOG-IN

SEARCH SETUP

VIEW CAM BACK

REC

Front of the LRH7080D series

a b c j k l m n o p q r s d e f g h c i h

NET

HDD

ALARM

BACK UP

NET

HDD

ALARM

BACK UP

COPY

OSD

1

INFO

5

LOG

9

COPY

OSD

1

INFO

5

LOG

9

PTZ

2

ALM.OFF

6

TEXT OFF

0

MARK

PTZ

2

ALM.OFF

6

TEXT OFF

0

MARK

FOCUS+

3

FOCUS -

7

SET

MOVE

FOCUS+

3

FOCUS -

7

SET

MOVE

IRIS+

4

IRIS -

8

CLEAR

TOUR

IRIS+

4

IRIS -

8

CLEAR

TOUR

SHIFT

SHIFT

LOG-IN

SEARCH SETUP

VIEW CAM BACK

REC j k

REC

SEARCH SETUP

LOG-IN VIEW CAM BACK l m n o p q r s a 1

(Power): Turns DVR on or off. Press and hold for more than 2 seconds to turn on or off.

b Playback Control Buttons

• M : Pauses playback.

• c

,

C/aM : Searches the recorded images in reverse or skips the recorded images.

• ad : Playback or reverse playback of recorded images.

• v

,

V/Md : Forward searches the recorded images or skips the recorded images.

• Z : Stops playback.

c

Front panel release button : Press these buttons to separate the front panel for HDD installation.

d

Indicator

• NET: Blinks when the network is connected.

• HDD: Lights when the HDD is accessed.

• ALARM: Lights when the alarm out is in progress.

• BACK UP: Lights when the data back up is in progress.

2

10 Preparation

2 e

Channel Buttons: You can input a number with channel buttons. You can also use the channel buttons for sub-function with SHIFT button (11 to 16 buttons of 8 channel DVR are used for sub-function without SHIFT button.).

You should press the OK button after input the channel number when you select the applicable channel.

• The LED in the button indicates the status as follows:

Off: The current status is for live mode.

Red: Recording mode.

Blinks when an event occurs.

• Sub-functions

Button number

1

2

3/7

4/8

5

6

9

10

11

12

13

14

15

16

Function

OSD

PTZ

Description

Accesses or minimizes the System Control Bar (OSD).

Switches this unit to PTZ mode to control the connected PTZ camera.

FOCUS -

/ FOCUS +

Adjusts focus position.

IRIS - / IRIS + Adjust iris position.

INFO

ALM.OFF

LOG

Displays the system information.

Cancels alarm activation and returns the system to the condition before the alarm was activated.

Displays the System Log List.

TEXT OFF

SET

CLEAR

COPY

MARK

MOVE

TOUR

Displays or disappears the text information if the recording data includes text data.

Registers the PTZ camera’s preset position.

Deletes a memorized preset position.

Displays the export menu.

Sets the mark point for recording search.

Moves the camera to the preset position.

Tours all registered preset positions in the camera.

f

Remote Sensor: Point the remote control here.

g SHIFT button: If you use the Sub-function of the channel button, the button is activated.

h

ZOOM + / -: Zooms in/out on playback window.

i Arrow and OK Buttons

• wsad : Select or move between the menu options.

• OK: Confirms menu selections.

j

Disc Tray: Insert a disc here.

k

OPEN: Opens or closes the disc tray.

l

LOG-IN: Displays the User Log-In dialog box or logs out.

m

SEARCH: Displays the search menu.

n SETUP: Displays the setup menu.

o

VIEW: Displays the split mode menu for MAIN Monitor and SPOT Monitor. p CAM: Displays the Monitor menu to set the first camera channel.

q

USB Port: Connects an external USB device for backup or playback. r BACK: Exits the menu or returns to the previous screen.

s

REC: Starts or stops instant recording.

Rear Panel

Rear of the LRH7160D series

a b c d

e f g

Rear of the LRH7080D series

a h i j f b k l m n o c d

e f g h i j k l m n o a

VIDEO INPUT: Connect the camera’s video output to these BNC connectors.

b

LOOP OUT: The signal from VIDEO INPUT connector is looped out to this connector.

c

RELAY-OUT Terminals: Output terminals for alarm (relay) signal.

d

Power Cord Inlet (AC IN): Connect the power plug.

e

AUDIO OUT 1 / 2: Connect to an active speaker with a built-in amplifier.

f AUDIO IN: Connect the audio output of an external device.

g

ALARM-IN Terminals: Input terminals for alarm (relay) signal.

h ATM/POS: Used to connect to a ATM/POS device. i

VGA: Connect a VGA monitor.

j SPOT-OUT (BNC Type Connector): Connect to spot monitor or display device.

k

HDMI: Connect to monitor or display device with HDMI inputs. (Interface for digital audio and video) l

LAN Ports: Connect the ethernet 10/100/1000 Mbps network cable for controlling this unit via a PC network.

m

E-SATA: Connect the external SATA device.

n

USB Port: Connect an optional extension USB device. o

RS-485 Terminals: Connect RS-485 compatible cameras.

Preparation 11

2

12 Preparation

2

Remote Control

Button

POWER ( 1 )

LOGIN

ID

VIEW

CAM

ALM.OFF

Description

Turns DVR on or off.

Displays the User Log-In dialog box or logs out.

Set the appropriate DVR system ID to operate via the IR Remote Controller when using the multiple DVR. Press the ID button then press the number button within

2 seconds to select the system ID of the DVR. If you set the system ID to “0”, you can control multiple DVR at the same time.

Displays the split mode menu for MAIN Monitor and SPOT Monitor.

Displays the Monitor menu to set the first camera channel.

Cancels alarm activation and returns the system to the condition before the alarm was activated.

Accesses or minimizes the system control bar.

Displays the setup menu.

Selects or moves between the menu options.

OSD

SETUP wsad

OK

COPY

SEARCH

MARK

Confirms menu selections.

Copies the recording data to an external device.

Displays the search menu.

Sets the mark point for recording search. You can set the mark point during the single or multi channel playback of recorded data.

PAUSE ( M )

STOP ( Z )

Pauses playback.

Stops playback.

REC ( X ) Starts or stops recording. c , C/aM Searches the recorded images in reverse or skips the recorded images.

ad Playback or reverse playback of recorded images.

v , V/Md

Forward searches the recorded images or skips the recorded images.

Number Buttons

Selects the PTZ preset number, ID or channel.

INFO

Displays the system information window.

LOG

Displays the System Log List window.

PTZ

Switches this unit to PTZ mode to control the connected PTZ camera.

TOUR

ZOOM + / -

FOCUS + / -

IRIS + / -

SET

CLEAR

MOVE

Tours all registered preset positions in the camera.

Zooms in/out on the playback window.

If you press ZOOM(+) button during viewing a live channel in full screen mode or playing back a channel in full screen mode, the digital zoom function is activated.

Adjusts the focus of a camera.

Adjusts the iris of a camera.

Registers the PTZ camera’s preset positions.

Deletes a memorized preset position.

Moves the camera to the preset position.

BACK Exits the menu or returns to the previous screen.

Installation 13

3

Installation

Connections

Precautions

• Depending on the camera and other equipment there are various ways to connect the unit. Please refer to the camera manual or manuals for other devices as necessary for additional connection information.

• Be sure to switch off the camera before installation and connection.

Basic Connection Overview

3

Connect the coaxial-type cameras

Connect the Monitor, DVR, VCR, or others.

Connect ATM/

POS unit.

Connect the alarm (relay).

Connect power cord.

Connect audio

(line input).

Connect audio amplifier.

Connect alarm sensors.

Connect PTZ cameras,

DVRs or keypads (optional).

Connect the external SATA device.

Connect an external USB device for backup or playback.

Connect a mouse device.

Connect network cable for client control or IP camera input.

Connect HDMI type monitor (MAIN or SPOT).

Connect BNC type monitor (SPOT).

Connect VGA monitor.

14 Installation

Connecting Camera

Connect the video output of your camera to the unit, using a standard 75 Ω video coaxial cable with BNC connector.

LOOF OUT connector passes the video signal from VIDEO INPUT connector to connect to other device.

Camera connection

Connecting Display device

This unit can be output simultaneously from the HDMI, VGA and

SPOT OUT jack. The video signal connection between the DVR and the monitor.

VGA Monitor connection

Connect the VGA jacks on the rear of the unit to the corresponding input jacks on the TV or monitor using the VGA cable.

VGA Monitor connection

3

NOTE

If the distance between the camera and DVR is too long, the noise may be generated. In this case, we recommend you to ground

DVR’s power and not to ground camera’s power.

Connecting the video distributor

Connect the video signal of the camera to the input connector of the video distributor using a 75 Ω video coaxial cable with BNC connector. Connect the video output of the video distributer to the

VIDEO INPUT connector of DVR using a using a 75 Ω video coaxial cable with BNC connector. Connect your monitor to the video output connector of the video distributor.

Connecting the video distributor

DVR

Video distributor

SPOT Monitor connection

Connect the unit to the SPOT monitor using 75 Ω video coaxial cables with BNC connector.

SPOT Monitor connection

Monitor Monitor

NOTE

• If the cable’s length is too long, DVR’s parts may be damaged due to an external static electricity. Before connecting the video cable, touch the end of the cable to DVR’s case to avoid the risk of static buildup.

• Please check the images via a monitor after installation of the video distributor.

Installation 15

HDMI Monitor connection

Connect the unit to the HDMI monitor using a HDMI cable (Type A,

High Speed HDMI

TM

Cable).

HDMI Monitor connection

MAIN SPOT

Connecting Audio device

Connect the AUDIO OUT jacks on the unit to the mono audio in jacks on your audio device.

Microphone and Speaker connection

USB Memory device

Insert the memory device into the USB port. The system automatically recognizes the device. The system software can be easily upgraded using a USB memory device.

USB External device

Connect the external device to the USB port.

(Example: External HDD or other external storage.)

Mouse

Connect the USB mouse to operate the functions of the DVR.

Connecting E-SATA device

You can use E-SATA storage for data back-up or recording.

E-SATA device connection

3

Connecting USB device

USB device connection

16 Installation

Connecting ATM/POS

Connect the ATM/POS unit to the ATM/POS port.

ATM/POS device connection

Connecting Network

You can control and monitor the system via network. With the remote control (monitoring), you can change the system configuration or monitor the image via network. After the installation, check the network settings for the remote control and monitoring work.

Network connection

3

Broadband

Service

NOTE

• The following device has been tested and compatibility is ensured. When you use the multiple ATM/POS device, use the recommended device.

- AVE Products

› VSI-PRO: Video serial interface

› Regcom: RS-485 networker

› Hydra: RS-485 to RS-232 converter

• The installation and connection work should be done by qualified service personnel or system installers and should be conformed to all local codes.

LAN connection

Connect the LAN port to an available 10/100/1000 base-T port with a straight ethernet cable (not supplied). The NET indicator on the front panel will be lit.

IP Camera connection

Connect the IP camera. After the installation, check the IP camera settings on the setup menu.

Automatic network configuration

The DVR can automatically obtain and configure the network interface via DHCP.

Manually configure network

The DVR may be manually configured by assigning an IP address, subnet mask, gateway and DNS.

NOTE

This unit can be supported IPv4 and IPv6 network.

Installation 17

Connecting RS-485 device

This DVR has two data terminals. Use this port to connect PTZ cameras, DVRs or keypads (optional).

RS-485 Terminal Description

D - (DATA -)

D + (DATA +)

GND

Data Transmission/Reception

Data Transmission/Reception

Shield

Connecting the PTZ device

Connecting the PTZ serial communication lines to the

RS-485 terminal.

PTZ device connection

Connecting LKD1000 controller

Connect the LKD1000 controller to control the DVR. (Refer to the manuals of the LKD1000 controller for more details.) The LKD1000 controller has to be connected to the 2 (DATA 2) port as shown illustration. If you connect the LKD1000 controller to the 1 (DATA 1) port, the LKD1000 controller will not be activated.

LKD1000 controller connection

3

TXTX+

LKD1000 Controller

NOTE

Do not connect a PTZ camera and LKD1000 controller to the D1 or

D2 port at the same time. It may cause a malfunction.

PTZ units

(RS-485 type)

PTZ units

(RS-485 type)

NOTE

• When connecting lines, connect the “D -” of the DVR to “RX -” of the PTZ unit and “D +” of the DVR to “RX +” of the PTZ unit correctly.

• Recommended initial data are 9600 Baud Rate, 8 Data bits,

1 Stop bit and No parity.

• When connecting PTZ cameras to DVRs it is necessary to set the setup menu for this unit according to the RS-485 settings of the camera and DVRs.

Connecting Alarm Input and Alarm

Output

Alarm terminals are used to connect the alarm devices such as sensors, door switches, etc.

Alarm Input

You can connect up to 16 alarm sensors (LRH7080D: 8 alarm sensors). Each alarm sensor should be connected with G (GND).

The signal state is adjustable to N/O (Normal Open) or N/C (Normal

Close) through the setup menu.

18 Installation

Sensor input connection

Alarm Output

Connect the alarm device to the alarm output. Alarm signal outputs when an event occur.

Alarm output connection

3

Alarm sensor

12

G

13

9

10

11

14

15

16

G

Terminal No.

1

2

3

4

7

8

G

G

5

6

Description

Sensor Input 1

Sensor Input 2

Sensor Input 3

Sensor Input 4

Ground

Sensor Input 5

Sensor Input 6

Sensor Input 7

Sensor Input 8

Ground

Sensor Input 9

Sensor Input 10

Sensor Input 11

Sensor Input 12

Ground

Sensor Input 13

Sensor Input 14

Sensor Input 15

Sensor Input 16

Ground

Alarm sensor

Alarm device

Alarm device

Terminal No.

G

1

2

3

4

Description

Ground

Alarm Output 1

Alarm Output 2

Alarm Output 3

Alarm Output 4

NOTE

The internal switching relays are rated for 0.3 A at 125 V AC or 1 A at 30 V DC. If the electric current is higher than that the unit can be damaged.

Installation 19

HDD INSTALLATION

Note for Hard Disk Drive

The internal hard disk drive (HDD) is a fragile piece of equipment.

Please follow the guidelines below when using the DVR to protect against possible HDD failure. We recommend that you back up your important recordings onto an external backup device in order to prevent accidental loss.

Make sure that the power is turned OFF when attaching or removing the HDD.

• Do not move the DVR while the power is on.

• Do not use the DVR in excessively hot or humid places, or in places that may be subject to sudden changes in temperature.

Sudden changes in temperature can cause condensation to form inside the DVR. This can be a cause of HDD failure.

• While the DVR is switched on, do not unplug from the wall socket or switch the electricity off from the breaker switch.

• If there’s a power failure while the DVR is on, some data on the

HDD may be lost.

• Do not drop the HDD. Also do not put the metallic object such as coins or screwdrivers into the HDD tray.

• When a power failure occurs during recording, avoid adding, replacing or transporting the HDD as the recorded data may be erased. In this case, turn the power back on to boot up the unit normally with the HDD that was being used at the time of the power failure attached. Then add, replace, or transport the HDD.

• The HDD is very delicate. Handle the HDD with care and follow the precautions below because even a tiny shock may damage the internal components of the HDD.

Do not place the HDD on the desk or table directly. Put a thick cushion under the HDD because even a small shock may damage the internal components of the HDD.

-

Do not use an electric screwdriver. Vibrations and shocks caused by an electric screwdriver may damage the internal components of the HDD.

-

When replacing the HDD, do not knock the HDD with other components such as another HDD and the HDD tray.

Do not knock the HDD with tools such as a driver when replacing the HDD.

• Protect the hard disk drives from static electricity.

Installing the Hard Disk Drive

You can install up to 6 HDDs.

Improper installation or setup may disturb HDD recognition or normal product operation. So you should consult with an expert from the store where the product was purchased.

1. Disassemble the front panel by pressing the release button on the front panel.

2. Loosen the screws and detach the hard disk mounting brackets from the units.

3. Attach the HDD onto the hard disk mounting brackets with four screws.

4. Attach the hard disk mounting brackets with the screws.

5. Close the front panel by hanging the bottom hook after push the Front panel release button.

6. When you turn the power of the unit on, the new HDD is detected and formatted automatically.

CAUTION

You should install the hard disk drive from 1 to 6 in order.

Replacing the Hard Disk Drive

Turn the power of the unit off and detach the power plug from the outlet.

1. Disassemble the front panel by pressing the release button on the front panel.

2. Loosen the screws and detach the hard disk mounting brackets from the units.

3. Replace the new HDD.

4. Close the front panel by hanging the bottom hook after push the Front panel release button.

5. After replacing the hard disk drive, insert the power plug into the outlet and turn the power of the unit on. The new HDD is detected and formatted.

NOTE

Do not use an electric screwdriver to fix them.

Recommended HDD

For the latest recommended HDD list, please visit http://www.lgecommercial.com

NOTE

If you do not use the recommended HDD, the system may not be operated normally.

3

20 Installation

3

System Operation General Explanation of the Live

Screen on the Main Monitor

1. Turn on the unit. System booting will commence. The LG logo image will be displayed on the main monitor during the system booting.

2. When the booting is completed the live window will be displayed. Click the icon on the system control bar or press the LOGIN button on the remote control to display the log-in window.

3. Select a user name by using the mouse or arrow and the OK button on the remote control or front panel. For the first time, you can select the ADMINISTRATOR user name only. You can register a new user with various access rights using the user setup menu.

4. Enter the password by using the virtual keyboard. (Note that the default administrator password is “000000”.)

5. Click the [OK] icon.

You can see the live screen and operate the system.

NOTE

• This DVR is based on a VGA monitor using OSD. We recommend you to using the VGA monitor with this unit. If you use a composite monitor, the OSD quality may be low to read it.

• If the DVR is turned off accidently and then turned on again, the DVR may take a long time to be rebooted.

System Shutdown

1. First, you must stop playback and exit the setup menu. In playback, press STOP.

2. Press and hold

1

(POWER) button until the beep sounds and the logout window will be displayed.

3. Enter the password by using the virtual keyboard.

4. Click the [OK] icon. The system will shutdown.

Main Monitor Screen

a b cde f g h a

Channel Number

Displays the channel number.

b

Channel Name

Displays the edited channel name.

c

Selected Channel

Displays the selected channel with red box.

d

Channel FPS

Displays the channel FPS value. e

Camera Status Icon

Displays the PTZ camera status.

Displays the input audio status.

Displays the IP camera status.

Gold “C” indicates continuous recording.

Gold “I” indicates Instant recording.

Red “S” indicates sensor triggered recording.

Green “M” indicates motion detection recording.

Gray “N” indicates the channel is not being recorded.

Violet “T” indicates text event recording.

f

Quick Buttons

The Quick Buttons will appear when the mouse is moved to the camera's live screen. You can use the following functions by clicking it for the selected channel.

You can use the playback function.

You can use the digital zoom function.

Installation 21

You can control the PTZ Camera. (optional)

You can use the video adjustment (Brightness,

Contrast, Color) function. (Analog Channel Only) g

Live Screen

Displays the current surveillance live screen.

h

System Control Bar

Displays the CPU usage and Data traffic level of IP cameras.

Displays date and time.

( )

Login (Logout) : Display the User Log-In dialog box or logs out.

Search: Displays the search menu.

Alarm Off: Turns the alarm off.

Camera: Displays the Monitor menu to set the first camera channel.

Split mode: Displays the menu for selecting the screen division.

Video Export: Displays the export menu.

System Log: Displays the system log list window.

System Information: Displays the system information window.

Setup: Displays the setup menu.

Minimizes the System Control Bar.

Moving the Channel's Position

You can change the camera channel's position in a split screen of the Main Monitor.

1. Select a desired channel by clicking the left button of the mouse.

2. Drag and drop it to a desired location and the channel's position will be changed.

Selecting the Main Monitor screen mode

You can select the live screen mode to display a full, 4-split, 6-split,

8-split, 9-split, 16-split, 17-split or 25-split screens on the main monitor.

1. Press VIEW or click icon in the system control bar.

2. Select [Main Monitor].

3. Select a screen mode.

NOTE

To display / minimize the system control bar

To display or minimize System Control Bar, press OSD after pressing the SHIFT button on the front panel or click or in the System Control Bar.

• You can also use the system control's options by clicking the right button of the mouse on the Main Monitor screen.

• When data signal color of IP camera is changed yellow or red, reduce bit rate, frame rate, resolution and connections of IP camera.

• While the main monitor is performing the sequence mode, the mark is displayed on the system control bar.

Screen split mode

Sequence mode

• Full Screen Mode: You can view the live window in full screen mode.

• 4, 9, 16, 25, 1+5, 1+7 and 1+16 Split Mode: Displays selected split screens on the main monitor.

• Sequence: You can view all the channels in sequence. You cannot use sequence mode with the 25 split (LRH7080D series: 16 split).

4. Select [OK] and press OK to confirm your selection.

3

NOTE

To display the screen you want to watch in full screen mode, double click the desired channel.

22 Installation

Selecting the Spot Monitor screen mode

You can select the live screen mode to full, 4-split, 9-split, 16-split or

25-split screens on the spot monitor.

1. Press VIEW or click the icon in the system control bar.

2. Select [Spot Monitor].

3. Select a screen mode.

Grouping channel

You can group channels you want.

1. Press CAM or click the icon in the system control bar.

2. Select [Main Monitor] or [Spot Monitor] on the menu.

3. Select a camera number for including group.

- [Restore to Default] : Reset channels to ascending sort and change the [Split Mode] to 25 split. (LRH7080D series: 16 split)

3

Screen split mode

Sequence mode

• Full Screen Mode: You can view the live window in full screen mode.

• 4, 9, 16 and 25 Split Mode: Displays selected split screens on the spot monitor.

• Sequence: You can view all the channels in sequence. You cannot use sequence mode with the 25 split (LRH7080D series: 16 split).

4. Select [OK] and press OK to confirm your selection.

NOTE

The image of IP Camera’s on Spot Channel may not be operated smoothly during playback.

4. Select group number on the drop-down list.

5. Click [Load] or [Save] button to configure your group.

6. Select [OK] and press OK to confirm your selection.

NOTE

The [Split Mode] changes according to a number of selected cameras.

PTZ Camera Control

You can control the cameras connected via the data port of RS-485 terminal or Network. You must set the configuration between the

PTZ camera and the DVR.

1. Select the PTZ camera channel on the main monitor you want to control.

2. Press PTZ or click the icon that appears when the mouse is moved to PTZ camera's screen.

Virtual PTZ remote control is displayed on the main monitor.

3. Use each item to control the PTZ camera.

Button Function

Displays the PTZ control guide.

Displays the setup menu of the PTZ camera.

Minimizes PTZ virtual remote control.

Removes the PTZ virtual remote control.

Use to pan/tilt the camera.

You can select the Pan/Tilt/Zoom speed.

You can adjust the camera zoom.

Installation 23 y r t u

You can adjust the focus of a camera manually.

You can adjust the iris of a camera manually.

Displays or disappear the preset control options in the virtual PTZ remote control

Displays the Selected Preset number.

To input the preset number.

To register preset positions.

To delete a memorized preset position.

To move the camera to the preset position.

To start a preset tour.

Confirm the preset position.

NOTE

You can use some options by clicking the right button of the mouse in PTZ camera control .

• PTZ Control Guide: Shows the guide for using the mouse.

• Exit: Exits from the PTZ camera control mode.

The IP camera which is connected by Onvif driver is not supported

Focus and Iris function on the PTZ operation.

Preset Settings

Preset position is the function to register camera monitoring positions (preset positions) associated with position numbers.

By entering the position numbers, you can move cameras to the preset positions.

NOTE

• To activate this function, you need to register the preset positions of the PTZ cameras.

• ONVIF preset may not be operated properly with this unit.

To Register Preset Positions

1. Move the camera to a point you wish by using the

, , , buttons.

2. Press SET or click the y

icon.

3. Select the preset number you wish to register.

4. Press OK or click the icon.

The position and its number are memorized.

5. Repeat steps 1 to 4 to add additional positions.

NOTE

Preset numbers from 0 to 255 are available on this unit but the actual preset range differs depending on PTZ cameras.

Changing to a Picture in a Preset Position

The following function is available only with cameras provided with the preset function. The preset function makes the combination camera move to the programmed preset position. It is necessary to program preset positions for the combination camera beforehand.

1. Press the MOVE button or click the t

icon.

2. Use number buttons to enter the memorized preset position’s index number then press OK or click the icon.

The camera moves to the preset position and the picture of the camera in that position appears on the monitor.

To Clear the Preset Position

You can clear a memorized preset position.

1. Press the CLEAR button or Click the r

icon.

2. Use number buttons to enter the memorized preset index number then press OK or Click the clear the preset positions.

icon to

NOTE

This function may not be available depending on PTZ cameras.

3

24 Installation

3

To Tour The Preset Positions

You can tour all preset positions.

1. Press the TOUR button or Click the u

icon.

All registered preset positions in the camera will be selected and the camera position image will be switched on the active monitor.

2. You can stop the tour by pressing the TOUR button or clicking the u

icon.

Setup for PTZ Cameras

You can adapt the camera to your requirements by setting up the respective items in menus.

1. Click the icon.

The setup menu appears in the selected window of the main monitor.

2. Use , , , buttons to set the options.

, , , , and

NOTE

• Refer to the manuals of the PTZ camera for more details.

• Some PTZ cameras may not be operated properly with this unit.

• You cannot control the other functions when the PTZ virtual remote control is displayed.

Using the Digital Zoom function

You can enlarge the current screen 2 times using the digital zoom function on one live channel with full screen mode or one channel playback with full screen mode.

1. Press ZOOM(+) button during viewing a live channel in full screen mode or playing back a channel in full screen mode.

2. You can use the zoom screen as following.

• You can move the position of the zoom screen by using the w/s/a/d buttons.

• You can move the zoom screen by using the mouse. Drag & drop a point to the specific point to move the zoom screen.

3. Press BACK button to exit.

NOTE

The zoom function is deactivated when below case.

• When double click the left mouse button.

• Press the specific channel or function button which front panel of the unit.

• Press the STOP button during the playback.

You can use some options by clicking the right button of the mouse in the digital zoom mode.

• Digital Zoom Control Guide: Shows the guide for using the mouse.

• Exit: Exits from the digital zoom mode.

Export the recorded data

This unit can manually copy recorded images and audio from builtin HDD to the external recording devices.

1. Press COPY or click the icon in the system control bar.

The [Video Export] menu appears.

2. Set the [Start Date/Time] and [End Date/Time] to search.

• a/d/w/s

: Moves to the options.

• w/s : Sets the selected option.

• OK: Selects option or confirms the setting.

3. Select the channel number and press OK. Repeat this step to select multi channels.

4. Select the one of file format on the drop-down list of the [File

Format].

• Native: The Native file is saved with the extention of “*.exp”.

The saved native file can playback using the Export Viewer program.

• AVI LG: To playing AVI LG file, you have to install the LG DVR

Codec. If you install the LG Network Client, do not need to install the LG DVR Codec.

• AVI: If you select AVI file format, it can play on any media player.

5. Select [Export to] then press OK.

6. Use w/s to select a target device to export.

7. Press OK to confirm it.

8. You can set the password in case of the native file. To register the password, click the checkbox of [Password]. The password window is displayed. And then, enter the password by using alphabetic letter and numeric digit 4-12 characters.

9. Click the [Export] icon to start exporting. The exported data will be authorized by the unit before saving and it can only be played back with the exclusive player.

Installation 25

NOTE

• Check the export device before you proceed.

• You can also use the COPY button on the front panel for export function.

• You can export the recorded data only in the live mode.

• If you use the external device, the external device has to be formatted on this unit.

1. Connect the external device to the USB port on the front or the rear of the DVR.

2. Select the [Format] icon then press OK.

Confirm window is displayed after format is completed.

3. Select [OK] and press OK to close the window.

• Check the size of the selected data and free space of the external device. If the device does not have enough space, create space on the device or erase the previously stored data.

• Export can not be executed while the backup is in progress.

• You can search the exported data with the supplied viewer software.

• When you export the recorded data, the video data, audio data, the system log and event log data will also be exported.

• When you export the recorded data the export viewer program will also be exported in the [ExportViewer] folder of the device. The exported data file name is made automatically as the [Channel name_export date_export time.exp] type.

• Do not remove the USB device while the export is in progress, it may cause a malfunction.

• The warning message appears for the conditions listed below.

When the start date/time and end date/time are the same value.

When the start date/time is later than the end date/time.

The export media does not have enough space.

When you set the time for data that does not exist.

• An external media has to be formatted on this unit to prevent a malfunction.

• DVD+RW and DVD-RW discs have to be initialized before using.

Viewing the System Log List

To view the system log list:

1. Press the LOG button or click the icon in the system control bar. The system log list window is displayed on the main monitor.

2. Set the [Start Date/Time] and [End Date/Time] to search.

• a/d/w/s : Moves to the options.

• w/s : Sets the selected option.

• OK: Selects option or confirms the setting.

3. Use a/d to see the previous or next log list.

4. Press the BACK button or click the [Close] button to exit the window.

NOTE

Refer to the following system log list.

18

19

20

21

22

12

13

14

15

16

17

8

9

10

11

6

7

No.

1

2

3

4

5

Log Message

Power On

Power Off

Login (Remote)

Logout (Remote)

Login (Local)

Logout (Local)

Configuration Changed

Configuration Imported

Factory Default Set

Power Recovery

Backup Started

Backup Finished

Backup Failed

Export Started

Export Finished

Export Failed

S/W Updated

HDD Damaged

HDD Added

HDD Deleted

HDD Formatted

HDD Changed

3

26 Installation

3

Viewing System Information

To view system information:

1. Press the INFO button or click the icon in the system control bar. The system information window is displayed on the main monitor.

Configuration menu

The features and options of the DVR are configured through the menu. The operations of this unit can be set via a menu displayed on the main monitor. You can select and set the operational conditions by using the buttons on the front panel and the remote control or using a Mouse connected to the unit.

First level

Second level

Third level

• Ethernet 0 / 1: Displays the detail information of the

Network.

• Camera Information: Displays the detail information of the camera framerate.

• HDD Information: Displays the detail information of the

HDD.

• Refresh: Updates the system information.

2. Press the BACK button or click the [Close] button to exit the window.

Informations

Using a mouse to set a menu

Use the left or right mouse buttons to set the menu.

Button Function

Left button

• Use to select a required item or decrease the options value.

• If you double click the button, you can see the selected channel on the full screen.

Right button Use to increase the options value.

1. Click the icon on the System control bar with the left mouse button to display a setup menu.

2. Click the desired option with the left mouse button to display the second or third level menu options.

3. Click the desired option with the left mouse button.

4. Set the selected options value.

5. Click the icon or click icon repeatedly to exit setup menu.

If the save message appears, click [OK] with the left mouse button to save the settings.

Installation 27

NET

HDD

ALARM

BACK UP

NET

OSD

1

HDD

ALARM

INFO

5 BACK UP

LOG

9

NET

HDD

COPY

13

ALARM

BACK UP

OSD

1

PTZ

5

2

LOG

13

INFO

9

COPY

13

PTZ

2

ALM.OFF

MARK 7

14

2

11

ALM.OFF

10/0

MARK

14

FOCUS+

3

IRIS+

4

FOCUS -

7

IRIS+

4

SET

11

IRIS -

IRIS -

8

CLEAR

12

MOVE 8

15

FOCUS+ CLEAR

3

12

FOCUS -

7

TOUR

SET

16

TOUR

16

IRIS+

4

IRIS -

8

CLEAR

11 12

MOVE

15

TOUR

16

SHIFT

SHIFT

SHIFT

NET

HDD

ALARM

BACK UP

NET

HDD

ALARM

BACK UP

OSD

1

INFO

5

LOG

9

COPY

NET

HDD

ALARM

BACK UP

PTZ

2

ALM.OFF

6

TEXT OFF

0

MARK

OSD

1

INFO

5

LOG

9

COPY

OSD

1

INFO

5

LOG

9

COPY

PTZ

2

ALM.OFF

6

TEXT OFF

0

MARK

FOCUS+

3

FOCUS -

7

SET

MOVE

IRIS+

4

IRIS -

8

CLEAR

TOUR

PTZ

2

ALM.OFF

6

TEXT OFF

0

MARK

FOCUS+

3

FOCUS -

7

SET

FOCUS+

3

FOCUS -

7

SET

MOVE

IRIS+

4

IRIS -

8

CLEAR

IRIS+

4

IRIS -

8

CLEAR

TOUR

MOVE TOUR

SHIFT

SHIFT

SHIFT

Setting the Menu Using the Front Panel Buttons or

Remote Control Buttons

Front Panel

Remote

Control

Description

Use these buttons to select the menu options or adjust the options value.

SEARCH SETUP

REC

LOG-IN VIEW

LOG-IN

SEARCH

LOG-IN

SEARCH

SETUP

SETUP

VIEW

CAM BACK

VIEW

CAM BACK

BACK

Select the option or confirm the setting.

Return to the previous menu or level.

1. Press SETUP to display the setup menu.

2. Use w/s

to select the desired menu item, then press OK to display the submenu.

3. Use w/s to select the desired submenu item, then press OK to display the setting options.

4. Use w/s to select the desired option then press OK to set the value.

5. Use a/d to select the desired setting then press OK to confirm your selection.

6. Press BACK repeatedly to exit the Setup menu.

If the save message appears, select [OK] and press OK to save the settings.

LOG-IN

LOG-IN

LOG-IN

SEARCH

SEARCH

NOTE

REC

SETUP

VIEW CAM BACK

• When you operate the function menu by using the remote control and front panel buttons, both buttons are operated in the same way to control the function menu.

SETUP

REC

• To use other functions of number buttons on the front panel, follow the below steps.

1. Press SHIFT. The button indicator turns red.

2. Select the function button you want.

• All the operation explanations are based on using the remote

SEARCH control.

SETUP

REC

VIEW CAM BACK

System settings

Properties

• System Name: Enter the System name by using alphabetic letter, numeric digit and symbols up to 21 characters.

• Language: Select a language for the setup menu and information display.

• Button Beep: Marks up to activate the button beep. The button beep is activated when using the buttons.

• Video Format: Selects the video format to NTSC or PAL according to your video system format. If you change the video format, the

HDD is formatted with selected video format. After the HDD has been formatted, the confirmation message is displayed. Select

[OK] and press OK. The system will reboot.

NOTE

All cameras must be disconnected before you change the video format to prevent malfunction.

• Resolution: Sets the output resolution of the HDMI video signal.

• Configuration Import: Import the DVRs configuration data from the USB memory stick.

• Configuration Export: Export the configuration data from this

DVR to the USB memory stick.

• Factory Default: You can reset the DVR to its original factory settings. Some options cannot be reset. (date, time, daylight saving, time zone and user password settings)

• Convert (LRH7160, LRN8240): Press the button to switch between model LRH7160 and LRN8240.

3

28 Installation

TCP/IP v4 Network

3

• Interface: Select a LAN port you want to use (Ethernet 0 or

Ethernet 1).

• DHCP: Select this option when a DHCP server is installed on the network to allow IP address assignment. With this setting, the IP address is assigned automatically.

• IP Address: Enter the IP address.

• Subnet Mask: Enter the subnet mask address.

• Gateway: Enter the gateway address.

• Primary DNS: Enter the Primary domain name server that translates the hostnames into IP address.

• Secondary DNS : Enter the Secondary DNS server address that backups the Primary DNS.

TCP/IP v6

• Interface: Select a LAN port you want to use (Ethernet 0 or

Ethernet 1).

• Auto: Select this option to assign the IP address automatically.

• IP Address: Enter the IP address.

• Subnet Prefix Length: Enter the Subnet Prefix length.

An IPv6 prefix indicates the portion of the address used for routing or identifying an address range.

• Gateway: Enter the gateway address.

• Primary DNS: Enter the Primary domain name server that translates the hostnames into IP address.

• Secondary DNS : Enter the Secondary DNS server address that backups the Primary DNS.

• TCP/IP Port No.: Enter the TCP/IP Port number. You can watch the live surveillance image over the network with the PC Client program. The factory default port for transmission of video and audio data is 9001. However in some cases it is better to change this port number for added flexibility or security. You can edit this port between 1025 and 65535.

• Web Server Port No.: Enter the Web Sever Port number. You can watch the live surveillance image over the network with a web browser. Typically the TCP port used by HTTP is 80. However in some cases it is better to change this port number for added flexibility or security. You can edit this port to 80 or between

1025 and 65535.

• Audio Port No.: Enter the Audio Port number. You can edit this port between 1025 and 65535.

• Bandwidth Throttle: Select [All] or [Per User] to set the bandwidth value.

All: Set same bandwidth to all of users.

Per User: You can set the bandwidth value per each user.

Select [User ID] from the left drop-down list. And then, set the bandwidth from right drop-down list

• RTSP Port : Enter the RTSP Port number. You can edit this port between 1 and 65535. Default Port number is 554.

• DDNS Service: Marks up to activate the DDNS function.

This free service is very useful when combined with the LG

DDNS Server. It allows the user to connect the IP device using the URL, rather than an IP Address. This also solves the problem of having a dynamic IP address.

• Host Name: Enter the host name you want to use.

You can not use the “www”, “mail”, “http”, “ftp”, “com”, “lg”, “lge”,

“lgddns”, “lgeddns”, “ddns” for host name.

• Registered Host: The registered host name appears.

• Update: Register the host name you typed in [Host Name] to LG

DDNS server.

How to register DDNS host name

With the DDNS function, you can easily use LG DVR.

When you use the DDNS function for the first time after you purchased LG DVR

1. Displays the DVR setup menu.

2. Select [System] > [Network] option.

3. Marks up for the [DDNS Service] option.

4. Enter the host name in the [Host Name] option.

5. Press the [Update] button. If host registration is properly completed, the host name will be displayed in the [Registered

Host] option. If the host name is not registered after updating,

Installation 29 please check network connection.

When you want to change DDNS host name

If you want to change the registered host name to new one, follow as shown below.

1. Enter a new host name in the [Host Name] option.

2. Press the [Update] button. The confirmation window will be displayed to change your host name.

3. Click the [OK] button. When host name is properly changed, the changed host name will be displayed in the [Registered Host] option. If host name is not changed after updating, please check network connection.

Network Streaming

Date/Time

• Date: Select the current year, month and day.

• Time: Select the current time.

• Date Format: Select the date display format.

• Time Format: Select the time display format.

• Time Zone: Select the time zone in the area where the DVR is installed.

• Daylight Saving: Mark up if you want to use the daylight saving function.

• Daylight Saving Start: Select the Daylight Saving start time.

• Daylight Saving End: Select the Daylight Saving end time.

NTP

• CH: Displays the channel number.

• Resolution : Selects the recording resolution.

• Quality: Selects the recording picture quality.

• Frame Rate: Selects the frame rate. The frame rate is the number of transportable frames per second. According to resolution, the frame rate is set automatically. If you wish to set manually, refer to the below.

NTSC

Resolution

352*240

704*240

704*480

PAL

352*288

704*288

704*576

Frame Rate

1, 3, 5, 7.5, 10, 15, 30

1, 3, 5, 7.5, 10, 15

1, 3, 5, 7.5

1, 3, 5, 6, 7.5, 12.5, 25

1, 3, 5, 6, 7.5, 12.5

1, 3, 5, 6

• Profile: Selects the profile of stream. The [Profile] option is activated in case of IP Camera only.

NOTE

If you need to adjust the image size to send to the client, set the stream option of the [IP Device-Profile1 or Profile2]. And then select the proper Profile from the [Network Streaming-

Profile]. You can control the bandwidth value forward to client.

• NTP: Marks up, if you want to synchronize the DVR’s date and time with those of the time server called NTP. (Network Time

Protocol) Specify the NTP server’s name.

• Time Server: For most cases select public. The DVR will obtain the average time among 5 public servers (time.nist.gov, time-a.

nist.gov, time-b.nist.gov, ntp.nasa.gov, clock.isc.org).

• Private Time Server: Enter the private time server’s IP address or host name using the virtual keyboard.

• Sync. Interval: You can set synchronized intervals with the NTP time server to 1 day, 1 week, 1 month and 1 hour.

• NTP Test: Select [NTP Test] to test the NTP server.

NOTE

If the NTP option is not set to this system, there can be a gap between the system time and actual time. Using NTP is recommended.

3

30 Installation

Controller

8. To confirm the latest version, click the [Check now for update] button to visit http://www.lgecommercial.com

NOTE

• Do not turn the power off during the update process to prevent the malfunction.

• Do not remove the external device or CD/DVD disc for update while the update is in progress. It may cause a malfunction.

Backup

3

• IR Remote ID: Select the IR Remote ID for this unit. If you use multi systems set the IR Remote ID for each DVR unit.

• Remote Controller ID: Select the Remote Controller ID for this unit. If you use multi systems, set the Remote Controller ID for each DVR unit. You can control the DVR by using the LKD1000 controller. (For more details refer to the LKD1000 owner’s manual.)

Update

The update feature allows you to upgrade DVR software and add/ upgrade PTZ protocols. In this case, the current DVR settings are not deleted or replaced during the update process.

1. Selects the update method.

2. Selects the device included update file or enter the FTP server name.

NOTE

If you select the update method to [LOCAL], the [FTP Server] option will be disabled and the [Device] option is activated.

And if you select update method to [NETWORK], the [Device] option will be disabled and [FTP Server] option is activated.

3. Select the [Search] button and press OK. The update file is displayed in the list.

4. Choose the update file from the list.

5. Select the [Update] button and press OK. The confirmation window is displayed.

6. Select [OK] to begin the update process or click [Cancel] to stop and exit. After the update process is completed, the [Restart the system] message appears.

7. Click [OK] to restart the DVR.

• Schedule: You can set the backup schedule.

OFF: All options are disabled.

WEEKLY or DAILY: The backup data will be automatically saved according to the setting.

INSTANT: The backup data is saved manually.

• Device: Select a backup device.

• Schedule Start: Set the schedule start date (A day of the week and time).

• Time Range Date: Enter the backup time range. Enter the date you want to backup.

• Time Range Start: Enter the start day of the week or time.

• Time Range End: Enter the end day of the week or time.

• Overwrite: Sets whether you use Overwriting function for schedule backup.

• Estimate Size: Displays the size of backup data and the free space of external devices.

• Start Backup: To start backup.

• Erase Media: To erase the media.

Instant Backup

1. Connect the backup USB device or insert a recordable disk to the disc driver for backup.

2. Select the partition you want to backup.

3. Select INSTANT from the schedule options.

4. Select the backup device.

5. Select the Time Range Date, Time Range Start time, and Time

Range End time for backup.

6. Select the [Estimate Size] icon and press OK.

7. Check the size of the selected data and free space. If the device does not have enough space, create space on the device or erase the previously stored data.

Installation 31

8. Select the [Start Backup] icon and press OK to start backup.

9. Exit the setup menu. You can check the backup status on the system control bar in backup progress.

Daily/Weekly backup

1. Connect the USB device for backup. You cannot use the CD or

DVD writer for daily or weekly backup.

2. Select WEEKLY or DAILY on the schedule options.

3. Select the backup device.

4. Enter the date and/or time to start backup on the schedule start option.

5. Enter the day of week and/or time on the Time Range Start option.

6. Enter the day of week and/or time on the Time Range End option.

7. Select On or Off in the [Overwrite] option.

8. Select the [Estimation Size] icon and press OK.

9. Check the size of selected data and free space of USB device. If the USB device does not have enough space, change the USB device to a USB which has enough space or erase data of the connected USB device.

NOTE

• The backup function is not supported on the external USB

CD-ROM driver.

• Available external device for backup.

Device

USB HDD Up to 2 TB.

Capacity

E-SATA HDD Up to 2 TB.

• Use the recommended external USB devices for preventing

malfunction (See the page 56).

• For the latest recommended HDD list, please visit http://www.lgecommercial.com

• The CD-R, DVD-R or DVD+R discs cannot be formatted.

• DVD+RW and DVD-RW discs have to be initialized before using.

• An external media has to be formatted on this unit to prevent malfunction.

• You cannot use the [Estimate size], [Start Backup] and [Erase

Media] options in backup progressing.

• Do not remove the external device while the backup is in progress, it may cause a malfunction.

• If you format the external media by using a PC with FAT32, the media may not be used on this unit.

• Check the size of the selected data and free space of the external device. If the device does not have enough space, create space on the device or erase the previously stored data.

1. Select the [Estimate Size] icon and press OK.

The size of the selected data and free space is displayed.

2. Select [OK] and press OK to close the window.

NOTE

• You cannot stop the backup when the backup is in progress.

• The warning message will appear for the conditions listed below.

-

When the start time and end time are the same value.

When the start time is later than the end time.

-

When you set the time for data that does not exist.

When the start time and end time setting are wrong.

-

A media does not have enough space.

When the selected USB device is disconnected.

• The disc burning is carried out by a multi session mode.

• If you use the CD/DVD writer device for backup, it makes ISO image before writing the backup data on the CD/DVD.

• You can see the backup progress status on the system control bar.

• The estimated size of backup data is only the approximate size.

So you must prepare sufficient space on the media to prevent lack of space.

• At the scheduled recording time, you can check the backup status on the system control bar.

• While export is in progress or searching the backup data from the external USB device, the scheduled backup will not be started. After the export or backup search is finished, scheduled backup will be restarted.

• When you set the schedule backup, the backup data size is estimated from the recording settings of the Setup menu. If the real recorded data size is over the estimated recording data size, the schedule backup may not be activated.

• If you use the overwrite function in the [Backup] option, the oldest backup data is deleted.

• Although all of backup data is deleted, backup is not implemented if the device does not have enough space.

3

32 Installation

Device settings

Camera

PTZ

Settings for the PTZ cameras connected via the data port of the

RS-485 terminal.

3

• Ch: Displays the channel number.

• Name : Set the channel name by using alphabetic letter, numeric digit and symbols up to 21 characters.

NOTE

If the [IP Enable] is set to [ON], you cannot set the [Device-

PTZ], [Record-Normal], [Record-Sensor], [Record-Motion],

[Record-Text], [Record-Instant/Panic] and [Event-Motion] options because they are deactivated.

• Audio: Select the input audio channel. You can hear from the selected input audio channel. If you set to ON for the IP channel, you can hear the input audio of the IP camera.

• IP Enable :

On : Uses the camera as a IP camera.

Off : Uses the camera as a Analog camera.

• Channel: Selects the desired channel to set the connected PTZ camera.

• Port: Selects the connected data port of the RS-485 terminal on the rear panel. The DATA 2 port is used to control the PTZ camera connected to DVR or to control by using the LKD1000 controller. If you want to use the PTZ camera via DATA 2 port, you should set the [Remote Controller ID] to [NONE]. If you use the LKD1000 controller to control the DVR via DATA 2 port, you should set the [Remote Controller ID] number between 1 and

16. When you select [COAXIAL COMMUNICATION], [Protocol] option is set to [PELCO_C] automatically and [Control ID], [Baud

Rate] options are deactivated.

• Control ID: Selects the PTZ camera ID. Make the same settings as the PTZ camera.

• Protocol: Selects the protocol supported by PTZ camera.

• Baud Rate: Selects the communication speed.

• PTZ Test: After the PTZ setting, you can test the pan/tilt function for the selected PTZ camera. You can see the test screen from the preview windows on the right side of the PTZ test option.

a/d

: Tests the pan direction.

w/s : Tests the tilt direction.

NOTE

The supported PTZ camera list is on page 57 for reference.

Installation 33

IP Device

• CH: Displays the channel number which you selected to [On] on the [Camera-IP Enable].

• Name: Enter the channel name.

• Model Name: Displays the model name of IP device.

• MAC: Displays the Mac address of IP device.

• IP: Displays the IP address of IP device.

• HTTP Port: Enter the HTTP port number. HTTPS is not supported.

• / : You can see other options (Driver, Profile1, Profile2,

RTSP Port, RTP Mode, Audio Recording) to click button. To return previous options, click button.

• Driver: Selects the IP camera driver from the drop-down list.

• Profile1: Select the camera stream on the drop-down box for recording.

• Profile2: Select the camera stream on the drop-down box for streaming. For smooth live playback, the resolution of [Profile2] set lower than resolution of [Profile1].

NOTE

• When you select full screen mode on the [split mode],

[Profile1] operate for streaming automatically.

• When CPU usage occupies more than 90% and then 1 minute goes by, connection of [Profile2] is limited for the stability of system.

• RTSP Port: Enter the RTSP port number.

• RTP Mode: Select the RTP mode from drop-down list.

• Audio Recording: Check the audio recording option.

• Setup: Click the check box of the desired channel and then press the [Setup] button. The setup window will be displayed.

NOTE

• In case of same driver and same model, even if you select several channels, the [Setup] button is activated.

• The setting of the smallest channel number among the selected channels is displayed. And, you can configure the same settings.

• In case of the Axis or Onvif driver, batch setup may not work according to the camera model and the firmware.

• In case of the LGE models, [Profile1] and [Profile2] are displayed as [Master] and [Slave].

Audio/Sensor setting

You can configure this option when you select to [LGE] on the

[Driver] option. Select [Audio/Sensor] tab of the [Setup] window.

Audio In: Click the check box if you want to send the audio from the microphone input connector.

Audio Type: Select the codec when you send the audio from the microphone input connector.

Audio Out: Click the check box to output the audio from the speaker.

Sensor: Select the sensor number on the drop-down list.

-

In Use: Marks up when you want to activate the sensor.

Sensor Type: Select the sensor type.

Relay Output: Select the relay output number on the drop-down list.

Relay Type: Select the relay type.

-

Control Duration: Enter the relay time.

Motion Setting

You can configure this option when you select to [LGE] on the

[Driver] option. Select [Motion] tab of the [Setup] window.

1. Click the [Add] button. The motion detect window is displayed. You can add the five windows maximum for motion detection area.

2. Set the [Sensitivity] option.

3. Click the edge or corner of the window box to adjust the window size for motion detection.

4. Click the [Save] button to save the settings.

Stream Setting

If you select to [LGE] on the [Driver] option, select the [Stream] tab. When you select [ONVIF] on the [Driver] option, you can configure the stream setting only. In case of [AXIS], the [Bitrate] and the [Compression] options are activated only.

Stream (LGE only): Select the video stream.

-

In Use (LGE only): Click to activate the stream function.

Video Codec: Select the video mode (Codec) from the dropdown list.

-

Resolution: Select the output image size of the camera.

Frame Rate: Set the frame rate of the image.

-

GOP: It means “Group of Pictures”. The higher the GOP, the better is the video quality of the camera. Edit the value of

GOP from 1 to 30. This setting is valid for H.264 video format only.

NOTE

It recommended that you set the [GOP] value same as

[Frame Rate].

GOV (ONVIF only): It means “Group of VOPs”. The VOP is an image frame in the MPEG-4 video stream. Edit the value of

GOV from 1 to 30.

Quality: Select the Quality.

Stream Quality (LGE only): If the [Quality] option set to VBR, this option is displayed. Select the stream quality from the drop down box, the camera supports five types. (Highest,

High, Medium, Low and Lowest)

-

Bitrate: If the [Quality] option set to CBR, this option is displayed. Edit the bit rate value from 256 kbps to 10 240 kbps.

3

34 Installation

3

Compession (AXIS only): Enter the compression ratio of video. The lower value you set up, the higher definition picture you get.

• Delete: Click the check box of the desired channel and then press the [Delete] button. Registered channel of IP Camera will be deleted.

To register the IP device automatically

1. Click the [AUTO] button.

2. The search window will be displayed and start to search the IP device automatically. By stopping or restarting the search, click

[Stop] or [Refresh] button.

3. Click the check box of desired device.

4. Enter the [User Name] and the [Password] and then click the

[Add] button. When you select several channels, channels are assigned same ID and password.

5. Confirm the result of authentication on the [Verify] option.

• O: The verification is valid.

• X: The verification is invalid. Check the ID and password again.

• XX: Connection failed.

6. Click the check box of confirmed cameras. Selected cameras are registered channel in order.

7. Click the [CLOSE] button to exit the window.

To register the IP device manually

6. Click the check box of confirmed cameras. Selected cameras are registered channel in order.

7. Click the [CLOSE] button to exit the window.

NOTE

• The Supported IP camera specifications.

Driver

Specification Description

LGE, AXIS, ONVIF

Recording mode

Video Codec

Audio recording and playback

Resolution

Continuous, Instant, Motion,

Sensor

H.264, MPEG4, MJPEG

Support

Stream

PTZ

Sensor/Motion input

CIF, Half D1(2CIF), D1(4CIF), UXGA,

720p, 1080p (Up to 2048 x 1536)

LGE (Master-0, Slave-0)

ONVIF (The stream that is supported from camera)

AXIS (H.264, MPEG4, MJPEG)

Support

Support

• It takes time to search IP devices and the necessary time depends on the network environment.

ATM/POS

1. Click the [MANUAL] button.

2. Enter the IP address.

3. Click the check box of desired device.

4. Enter the [User Name] and the [Password] and then click the

[Add] button. When you select several channels, channels are assigned same ID and password.

5. Confirm the result of authentication on the [Verify] option.

• Interface Device: Select the interface device from the dropdown list.

NONE: Selects when the ATM/POS device is connected with the DVR directly.

-

AVE Hydra: Selects when the ATM/POS device is connected via the AVE Hydra device to the DVR. If you set to AVE Hydra, the [Camera], [Baud Rate], [Data Bits], [Stop Bits] and [Parity] options are dimmed and these options cannot be set.

• Camera: Select the camera number for mapping with ATM/POS device.

• Baud Rate: Select the desired parameter to set the communication speed between DVR and ATM/POS device.

• Data Bits: Select the number of the data bits for RS-485 communication.

• Stop Bits: Select the desired parameter. The stop bit is added to the last of data, in asynchronous communication.

Installation 35

• Parity: Select the desired parameter. The parity bit is added to the data, to perform parity check.

Storage

Display settings

OSD

• Overwrite: Sets whether you use Overwrighting function.

• Full Warning: When the HDD has overflowed a warning message is displayed.

• Auto Delete: Sets the auto delete date. If you set the auto delete date, the recorded data will be deleted except the data within the selected date period of time. The Auto Delete function is activated every 35 minutes.

• Storage Saving : Saves the storage space by reducing the quality of the recorded data.

• Format: Initializes the HDD (Hard Disk Drive). All data on the

HDD will be erased.

• E-SATA : Selects the E-SATA device.

• Insert: Uses the selected E-SATA storage for recording data.

• Eject: Uses the selected E-SATA storage for data back-up.

• Channel Name: Mark up to display or remove the channel name in the channel window.

• Channel Status: Mark up to display or remove the channel status in the channel window.

• Channel FPS: Mark up to displays or removes the channel FPS

(Frame Per Seconds) in the channel window.

• Font Size: Selects the font size of characters such as the channel name and playback time which displayed on the channel window.

• Position: Selects the position of characters such as the channel name and playback time which displayed on the channel window.

• Channel Name (Spot): Mark up to display or remove the channel name on the spot monitor.

Sequence

3

You can view all the channels in sequence in the selected screen division mode. You cannot use sequence mode with the 16 split

(LRH7080D series: 8 split). While the sequence mode condition, if you change the screen division mode, the sequence function will be canceled.

• Main Dwell Time: Selects the channel sequence time for main monitor.

• Spot Dwell Time: Selects the channel sequence time for spot monitor.

36 Installation

3

Video Adjustment

Adjust the brightness, contrast and color settings of each camera channel. You can see the settings screen from the preview windows.

Record settings

• Channel: Selects the desired channel to adjust.

• Brightness: Adjust the brightness value from 0 to 100 for the selected channel.

• Contrast: Adjust the contrast value from 0 to 100 for the selected channel.

• Color: Adjust the color value from 0 to 100 for the selected channel.

• Restore to Default: Sets to default setting value.

Normal Schedule Recording

A Normal schedule recoding can be activated at preset times, in a repeating pattern on selected weekdays. The DVR can record according to a schedule set by the user. It can also record manually regardless of date and time. The recording can be made either continuously or triggered by events (Sensor and motion detection).

The recording schedule screen displays one day of the week showing the schedule of all channels over a 24-hour period. For each 1-hour cell block the recording method can be specified. The recording method for each block is shown in color for easy viewing.

Channel numbers

Time Line

Day of the Week

Recording mode

To Set a Recording Schedule for a Typical

Day of the Week (Normal Schedule)

1. Select a day of the week.

Installation 37

2. Select a recording mode.

NOTE

In case you set the motion recording setting on the channel of IP camera, the recording starts when Video content analysis event as well as Motion event is occurred.

3. Drag and drop with left button of the mouse to set the channel and time you want to record. The color of the time block is changed depending on the selected mode.

• Gray (No recording): No schedule recording.

• Gold (Continuous recording): Recording starts automatically from the preset time.

• Red (Sensor event recording): Recording starts automatically when the sensor occurs within a designated time.

• Green (Motion event recording): Recording starts automatically when motion is detected within a designated time.

• Violet (Text event recording): Recording starts automatically when text input is detected within a designated time.

• Yellow (Sensor+Motion recording): Recording starts automatically when the sensor signal has input or motion has been detected.

• Gold+Red (Continuous+Sensor event recording): Recording starts automatically from the preset time. When the sensor occurs within a designated time, changes the continuous recording mode to sensor event recording mode and recording starts automatically.

• Gold+Green (Continuous+Motion event recording):

Recording starts automatically from the preset time. When the motion is detected within a designated time, changes the continuous recording mode to motion event recording mode and recording starts automatically.

• Gold+Violet (Continuous+Text event recording): Recording starts automatically from the preset time. When the text input occurs within a designated time, changes the continuous recording mode to text event recording mode and recording starts automatically.

• Gold+Yellow (Continuous+Sensor+Motion event recording): Recording starts automatically from the preset time. When the sensor signal has been input or motion has been detected, changes the continuous recording mode to motion event recording mode and recording starts automatically.

• Yellow+Violet (Sensor+Motion+Text event recording):

When the sensor signal has been input, motion has been detected or the text input occurs and then recording starts automatically.

• Sky blue (Continuous+Sensor+Motion+Text event recording): Recording starts automatically from the preset time. When the sensor signal has been input, motion has been detected or the text input occurs within a designated time, changes the continuous recording mode to occurred event recording mode and recording starts automatically.

4. Press BACK to move to the previous menu.

If the save message appears, select [OK] and press OK to save the settings.

5. Press BACK repeatedly to exit the Setup menu.

To Set a Recording Schedule for a Special

Day (Special Schedule)

In addition to the weekly schedule, up to 15 specific date/time periods can be defined. To configure the specific recording schedule select Specific Dates.

1. Select an Item number.

3

38 Installation

Normal

Settings concerning normal recording.

3

2. Enter the name of the special day. Use w/s/a/d

to select the [Name] column and press OK. The virtual keyboard menu appears.

3. Use w/s/a/d to enter the necessary information for year, month and date. You can use the calendar icon to select the date.

4. Select the time cell block on the desired channel.

NOTE

If the special day recording schedule is duplicated with the other recordings, only the special day recording is possible.

• CH: Displays the channel number.

• Resolution: Selects the recording resolution.

• Quality: Selects the recording picture quality.

• Frame Rate: Selects the frame rate. The frame rate is the number of recorded frames per second. According to resolution, the frame rate is set automatically.

Sensor

Settings concerning sensor recording.

Copying the Recording Schedule

Copying from the Scheduled Data of the Channel

You can copy the schedule data of the channel to the other channel(s) within the selected day of the week. You cannot copy the schedule data of the IP channel.

1. Select the day of the week and press OK on the [Normal

Schedule] or [Special Schedule] menu.

2. Select [Channel Copy] then press OK then the channel selection menu appears.

3. Use w/s/a/d

to select a channel then press OK to select the target channel(s).

You can cancel the selected channel by pressing OK.

4. Select [OK] then press OK to confirm your selection.

Copying from the Scheduled Data of the Day

You can copy the scheduled day of the week to another day of the week, weekday and weekend.

1. Select the day of week that you want to copy.

2. Select [Day Copy] then press OK then the channel selection menu appears.

3. Use w/s/a/d

to day of the week then press OK to select the target date(s). You can cancel the selected channel by pressing OK.

4. Select [OK] then press OK to confirm your selection.

• CH: Displays the channel number.

• Resolution: Selects the recording resolution.

• Quality: Selects the recording picture quality.

• Frame Rate: Selects the frame rate. The frame rate is the number of recorded frames per second. According to resolution, the frame rate is set automatically.

• Prealarm: Specify the pre-event recording time. When the Event signal is detected, the DVR recordes the data before the event during the setting time.

• Postalarm: Specify the post-event recording time. When the

Event signal is detected, the DVR recordes the data after the event during the setting time.

Motion

Settings concerning motion recording.

Instant/Panic

Settings concerning instant/panic recording.

Installation 39

• CH: Displays the channel number.

• Resolution: Selects the recording resolution.

• Quality: Selects the recording picture quality.

• Frame Rate: Selects the frame rate. The frame rate is the number of recorded frames per second. According to resolution, the frame rate is set automatically.

• Prealarm: Specify the pre-event recording time. When the Event signal is detected, the DVR recordes the data before the event during the setting time.

• Postalarm: Specify the post-event recording time. When the

Event signal is detected, the DVR recordes the data after the event during the setting time.

Text

Settings concerning text recording.

• CH: Displays the channel number.

• Resolution: Selects the recording resolution.

• Quality: Selects the recording picture quality

• Frame Rate: Selects the frame rate. The frame rate is the number of recorded frames per second. According to resolution, the frame rate is set automatically.

NOTE

Instant is single-channel setting and Panic is multi-channel setting.

3

• CH: Displays the channel number.

• Resolution: Selects the recording resolution.

• Quality: Selects the recording picture quality.

• Frame Rate: Selects the frame rate. The frame rate is the number of recorded frames per second. According to resolution, the frame rate is set automatically.

• Prealarm: Specify the pre-event recording time. When the Event signal is detected, the DVR recordes the data before the event during the setting time.

• Postalarm: Specify the post-event recording time. When the

Event signal is detected, the DVR recordes the data after the event during the setting time.

40 Installation

Event settings

Sensor

Motion

3

• In: Displays the number of the ALARM-IN terminal.

• Sensor Type: The sensor state can be set to either N.O. (Normally

Open) or N.C. (Normally Closed).

• Camera: Select the camera channel connected to the ALARM-IN terminal.

• Relay Output: Select the alarm (relay) output number for the

RELAY-OUT terminal for the output alarm (relay) signal.

• Preset: Select the preset number. When the input is activated, the camera moves to the selected preset position and the picture of the camera in that position appears on the monitor.

• Channel: Select the channel to set motion detection.

• Sensitivity: Set the level of sensitivity for the created motion detection area. Sensitivity can be set from level 1 to 10 or OFF.

• Relay Output: Select the number of the RELAY-OUT terminal for the output alarm (relay) signal when motion is detected.

• Area: Select the desired motion detection area on the preview window screen.

w/s/a/d

: Moves the yellow cell box to another cell zone.

OK: Selects or cancels the motion detection area at the current cell position.

Press BACK to exit the settings.

NOTE

• You can select the motion detection area by using the mouse.

To select the area: Drag & drop a cell to the right to select the motion detection area.

To cancel area: Drag & drop a cell point of a selected cell area to the left to cancel the motion detection area.

• In the condition that illumination is low and the outline of object is not clear enough to see, regardless of sensitivity,

Motion Event may not happen. You must check Motion Event before setting.

Installation 41

ATM/POS Data Format

The DVR can be set to react to text input from devices such as

ATMs (Automated Teller Machines) and POS (Point of Sale; i.e., cash registers). This screen allows you to configure the DVR for your input device.

Event Popup

• Input Channel: Select the mapping camera channel.

• Transaction Start: Enter a Transaction Start string. Refer to the device manufacturer’s documentation for the text string that the device first sends when a transaction starts.

• Transaction End: Enter a Transaction End string. Refer to the device manufacturer’s documentation for the text string that the device sends when a transaction ends.

• Delimiter: Enter the character(s) that the device uses to indicate the end of a line. Refer to the device manufacturer’s documentation for Line Delimiter character(s).

• Ignore String: Enter the any strings of text that you want the DVR to ignore. Refer to the device manufacturer’s documentation for text strings that the device sends during transactions, so you will know which ones you do not want recorded.

• Time Out: Select the Recording end time.

• Relay Output:

01 to 04: Outputs the alarm (relay) signal via the RELAY-OUT terminal. When the DVR detects text input, it triggers output signals on all the associated RELAY-OUT connectors.

-

NONE: Not used.

NOTE

ATM/POS Recording Information.

Option setting

When the Transaction

Start and Transaction End options are set.

When the Transaction

Start and Transaction End option is not set.

ATM/POS Recording Action

Recording is started automatically when the Transaction start data is detected. When the Transaction end data is detected, the recording is stopped after post-alarm time.

Recording is started automatically when the transaction data is detected. When the transaction data is not detected, the recording is stopped after post-alarm time and the time you set in the Time

Out option.

• Spot Channel: Select the event type for the spot monitor display when the event is activated.

Notification

Marks up when you want to activate the selected option. If the selected notification option is activated, the device will notify the user about the information of selected option by E-mail.

• Sensor On: Sends an e-mail when a sensor has occurred.

• Motion Detection: Sends an e-mail when a motion detection has occurred.

• Text In: Sends an e-mail when a text input is detected.

• Admin Password Changed: Sends an e-mail when the administrator password has been changed.

• Video Loss: Sends an e-mail when a video signal from the camera has stopped because of a cable disconnection or malfunction of a camera.

• Power On/Off: Sends an e-mail when power is on or off.

• Disk Full: Sends an e-mail when the HDD has fully recorded.

3

42 Installation

Mail Emergency

3

• Notification: Mark up to be notified the unit's operating information according to notification settings by e-mail.

• SMTP Server: Enter the SMTP Server address.

If notification option is not mark up and the SMTP server option is empty, the SMTP Port, User Name, Password and TLS options cannot be set.

• SMTP Port: Enter the SMTP Port Number. Typically the port used for SMTP is 25. However in some cases it is better to change this port number for added flexibility or security. You can edit this port between 1 and 65535.

• User Name: Enter the user name.

• Password: Enter the password.

• TLS: Mark up if you use the TLS (Transport Layer Security) function.

• Mail Address (1 to 3): Enter the mail address.

You can input up to 3 e-mail addresses.

• Sender: Enter the sender.

• JPEG Attachment: Click the check box to send a mail which want to attach a JPEG file.

• E-mail Test: Select [E-mail Test] to test sending an e-mail.

NOTE

• The SMTP server, SMTP port no., user name or password settings are optional. The DVR can send e-mail directly without the use of an SMTP server or MTA (message transfer agent).

In certain cases all e-mail should be forwarded to a specific

SMTP server. Specify the server host name or IP address in such a case. For more detail on SMTP setup, ask your network administrator and/or mail service provider.

• [JPEG Attachment] option is operated when event of [Sensor

On], [Motion Detection] and [Text In] is occurred.

• In case of an IP Camera, ONVIF JPEG Snapshot feature must be supported to attach a JPEG file.

• Notification: Mark up to be notified the emergency agent about the unit's operating information according to your notification settings.

• Host Name/Port: Enter the Host Name and port number of the emergency agent program. The factory default port for this function is 9002. However in some cases it is better to change this port number for added flexibility or security. You can edit this port between 1025 and 65535.

You can set up to 9 Host Name and port numbers.

SNMP

The Simple Network Management Protocol (SNMP) is an application protocol to exchange the management information of network devices.

• SNMP Version: Selects a SNMP version if SNMP is allowed to access to this device.

• Port: Enter the number for SNMP port.

• Community String (V2 only): Specifies the SNMP management community in which you want to enable this system (e.g. lgecommunity or public).

• User (V3 only): Enter the security name for the SNMP.

• Authentication (V3 only): Select a mode for the SNMP

Authentication. (MD5 or SHA)

• Password (V3 only): Enter the password for the SNMP

Authentication.

• Privacy (V3 only): Select a privacy mode for the SNMP

Authentication. (DES or AES)

• Password (V3 only): Enter the password for the privacy mode.

• Trap IP Address: Specifies the IP address of the computer you intend to use as your network management station and to which SNMP traps will be sent.

Installation 43

• Trap Community String: Specifies the SNMP trap community in which you want to enable this system (e.g. lgecommunity or public).

Output

Buzzer

Marks up when you want to activate the selected option.

• Relay Off

ALARM ACKNOWLEDGE: Use the ALM.OFF button to stop alarm.

POST-ALARM TIME: The alarm is stopped after post-alarm time.

• System Alarm Out: Outputs the alarm (relay) signal via the selected alarm out terminal number when the system has some problem. If you do not use this function, select [NONE] option.

• HDD Fail Alarm Out: Outputs the alarm (relay) signal via the selected alarm out terminal number when the HDD is failed. If you do not use this function, select [NONE] option.

• Video Loss Alarm Out: Outputs the alarm (relay) signal via the selected alarm out terminal number when a video signal from the camera has stopped because of a cable disconnection or malfunction of a camera. If you do not use this function, select

[NONE] option.

• Sensor: Makes a sound when a sensor occurs.

• Motion : Makes a sound when a motion is detected.

• Text: Makes a sound when the DVR detects text input.

• System: Makes a sound when a cooling fan is not activated or the HDD has bad sector.

NOTE

• Data cannot be saved in HDD which is occurred bad sector.

But if HDD is installed more than 2 on this unit, data is saved in other normal HDD.

• When HDD has bad hold, can not operate normally. Replace the HDD immediately .

3

44 Installation

User settings

Group Authority

You can register a new user group with various access rights.

User

You can set the user name for the selected User ID.

3

• Group ID: Select the group ID to assign authority.

GUEST: The GUEST group has the limited authority of the system. Users in this group are available to see the live image and to set the covert function of the Main or Spot channel.

ADMINISTRATOR: The ADMINISTRATOR group has the unlimited authority of the system. Users in this group are available to use all of the functions.

[Group 01] to [Group 08]: Users in this group are available to set the authority of the function manually.

NOTE

The GUEST and ADMINISTRATOR group are set initially for the authority. You cannot change the initial settings and group name

(GUEST and ADMINISTRATOR).

• Group Name: If you select one of the group numbers from the

Group ID option, you can register the group name. Enter the group name.

Setup, Search/Play, Export, PTZ, Power Off, Instant Record:

Set the authority for the selected group. Mark up the option to activate it.

• Main Channel/Spot Channel: Selects the channel to allow the operation for the group user. The LG logo is displayed on the covert channel(s).

1. Select [User ID] from the drop-down list.

2. Enter the user name of the selected user ID.

3. Select the user group from the drop-down list.

4. Enter the Password.

5. Select the auto user logout time from the drop-down list.

6. Press BACK button to display the confirmation window.

7. Select [OK] to save the setting or [Cancel] to cancel the

NOTE

.

• It is strongly recommended that you change the password of the administrator for the protection of the security of personal information. Do not leave 000000 as the default password.

Make sure that you keep your password and write it down in a ing tt se safe place so that you do not forget it.

• If you set the user ID to [ADMINISTRATOR], you cannot change the [User Name] and [Group] option but you can change the password.

• The user name and password are case-sensitive.

• The password must be entered more than 4 characters.

Installation 45

Setup Wizard settings

The Setup Wizard appears on the screen when you turn on the unit for the first time or select [Setup Wizard] on the Setup menu. You can set the System name, display language, date, time, network settings, recording schedule and recording mode on the initial setup wizard.

NOTE

If you run the Setup Wizard when DVR Setup has already been completed, the data previously configured could be deleted.

Step 2

Set date and time.

• Date: Select the current year, month and day.

• Time: Select the current time.

• Date Format: Select the date display format.

• Time Format: Select the time display format.

• Time Zone: Select the time zone in the area where the DVR is installed.

• Daylight Saving: Mark up when you use the daylight saving function.

• Daylight Saving Start: Select the Daylight Saving start time.

• Daylight Saving End: Select the Daylight Saving end time.

3

Step 1

Set system name and display language.

• System Name: Enter the System name by using alphabetic letter, numeric digit and symbols up to 21 characters.

• Language: Select a language for the setup menu and information display.

46 Installation

Step 3

Set network address for LAN ports.

Step 5

Set recording mode for the Continuous and Event recording.

3

• Interface: Select a LAN port you want to use (Ethernet 0 or

Ethernet 1).

• DHCP: Select this option when a DHCP server is installed on the network to allow IP address assignment. With this setting, the IP address is assigned automatically.

• IP Address: Enter the IP address.

• Subnet Mask: Enter the subnet mask address.

• Gateway: Enter the gateway address.

• Primary DNS: Enter the Primary domain name server that translates the hostnames into IP address.

• Secondary DNS : Enter the Secondary DNS server address that backups the Primary DNS.

Step 4

Set recording schedule.

• Resolution: Selects the recording resolution.

• Quality: Selects the recording picture quality.

• Frame Rate: Selects the frame rate. The frame rate is the number of recorded frames per second. According to resolution, the frame rate is set automatically.

• Weekday: Sets the recording mode to weekday (Mon-Fri).

• Weekend: Sets the recording mode to weekend (Sat-Sun).

Operation 47

4

Operation

Instant Recording

Images from a camera will be recorded on the built-in hard disk.

Ensure all the cameras are connected and that time and date have been set correctly.

Before you start recording, first check the repeat recording settings in the recording menu of the system setup, and then make the recording settings.

1. Press the REC button and then press the channel button you want to record. The recording type indicator turns gold on the selected channel screen of the main monitor.

FOCUS+

3

FOCUS -

7

SET

11

MOVE

15

IRIS+

4

IRIS -

8

CLEAR

12

TOUR

16

SHIFT

LOG-IN

SEARCH SETUP

VIEW CAM BACK

REC

2. Press the REC button and then press the channel button you want to stop recording. If you stop instant recording, the recording mode will be changed into the scheduled recording mode (Continuous/ Sensor / Motion records). If the schedule is not set, the button indicator turns off and the recording type indicator turns gray on the selected channel screen of the main monitor.

NOTE

• External recording devices can be used as copy areas for images recorded on the hard disk. It is impossible to record images on the external recording devices directly.

• You can record instantly with the left mouse button.

1. Move the cursor to the desired channel screen on the main monitor.

2. Click the recording type indicator with the left mouse button and recording starts. Click it once again and the instant record stops and the recording type indicator will be changed into the scheduled recording mode

(Continuous / Sensor / Motion record). If the schedule is not set, the recording type indicator turns gray.

• You can use the instant recording also for the channels scheduled such as sensor, motion or continuous.

• Once you stop instant recording, the recording type indicator will be changed to the scheduled recording mode.

• You can not record the Instant and Continuous recording in following conditions.

A HDD is not attached.

A HDD is not formatted.

The channel has no video input for display.

-

Overwrite is set to “OFF”.

The schedule (Sensor/Motion) record is not set.

• Priority of record.

Instant record > Sensor record > Motion record > Continuous record.

• The Warning message is displayed when the HDD problem occurs during the recording.

4

Panic Recording

You can record the all channels at the same time.

This function is activated for a live channel only.

1. Press and hold the REC button until the Recording Type indicator turns gold on the all live channel screens.

The DVR will start recording.

2. Press and hold the REC button until the Recording Type indicator turns gray on the all live channel screens. The DVR will stop recording.

48 Operation

Instant Playback

It is possible to play a recorded image without stopping recording.

1. Select a channel you want to playback.

2. Press ad (Play) button to play a recorded image of the previous 1 or 2 minutes of recording. The playback image will be displayed on the full screen window.

3. Press Z (STOP) button to stop the playback.

Search and Playback

4

The various search functions of this unit can be used to go to the beginning of the desired picture.

Press SEARCH to display the search menu.

Date and Time Search

Use to search recorded pictures by specifying date, hour and minute.

7. Press ad (Play) button or click button to start playback.

The picture(s) is (are) displayed on the main monitor.

8. Press STOP ( Z ) to stop playback and return to the search menu.

9. Press BACK repeatedly to exit the [Date/Time] menu.

Using the calendar icon to select a date

1. Select the icon then press OK.

2. Press BACK to move to the [ w ] or [ s ] option selecting a year and a month.

3. Press OK repeatedly to select a desired year and month.

4. Use w/s/a/d to select a date then press OK.

5. Select [OK] button and press OK to confirm the settings.

NOTE

• While the backup is in progress, you can not search the data on the backup device.

• Do not remove the external USB device from the USB device whilst the backup search is in progress. It may cause a malfunction.

• Recorded data shown on the time graph will be displayed in different colors depending on the recording type.

Gold: Continuous recording.

-

Red: Sensor recording.

Green: Motion-detection recording.

Gray: No recording.

Violet: ATM/POS recording.

• Use intervals.

button to view the detailed time by 6 hour

• If you do not select the channels in the Date/Time search, playback is implemented as current main monitor screen mode.

Event Search

Search a recorded picture by date and type of event.

1. Press SEARCH or click the icon on the System Control Bar and [Search] menu appears.

2. Use w/s button to select the [Date/Time] icon then press OK.

3. Select the desired source device.

• INTERNAL HDD: Plays back or searches recorded contents of the internal HDD device.

• Source Device: Plays back or searches backup contents of the source device.

4. Set the year, month, date and time.

• a/d : Moves to the previous or next column.

• w/s : Changes the value at the current position.

• OK: Selects the column or confirms the setting.

5. Select the [Search] icon then press OK.

The search result is displayed.

6. Use w/s button to select the channel and press OK. Repeat this step to select the other channels.

1. Press SEARCH or click icon on the System Control Bar and

[Search] menu appears.

2. Use w/s button to select the [Event] icon then press OK.

3. Select the desired source device.

4. Set the year, month, date and time.

• a/d : Moves to the previous or next column.

• w/s

: Changes the value at the current position.

Operation 49

• OK: Selects the column or confirms the setting.

5. Use w/s/a/d button to select the channel and press OK button to confirm the selection. If you want to select the all channels, marks up the [Select All] option.

6. Select the [Event Type] from the drop-down list.

7. Select the [Search] button then press OK.

The event list menu appears.

You can see the images through preview screen if you select a data in Event list.

8. Select a recording data on the event list then press ad (Play) button or click button to play back the selected data.

The picture is displayed on the main monitor.

9. Press STOP ( Z ) to stop playback and return to the event list menu.

10. Press BACK repeatedly to exit the event search menu.

Bookmark/Protect Search

Searches the recorded data included a bookmark or the protected section.

ATM/POS Search

Search the recorded text information by ATM/POS device.

This function is available with backup data of the internal or external

HDD only.

1. Press SEARCH or click icon on the System Control Bar and

[Search] menu appears.

2. Select the [Bookmark] or [Protect] from drop-down list.

3. Select the [Search] icon then press OK. The Bookmark (or

Protect) list appears.

4. Use w/s button to select a bookmark (or protect) then press

OK.

5. Press ad

(Play) or click button to play back the selected data.

NOTE

• Backup data cannot be played back by a Bookmark/Protect

Search.

• You can register a bookmark only in the single channel playback.

• If you want to delete the bookmark/protect on the list, select the recording data and select button and press OK.

1. Press SEARCH or click icon on the System Control Bar and

[Search] menu appears.

2. Use w/s button to select the [ATM/POS] icon then press OK.

3. Select the desired source device.

4. Set the year, month, date and time.

• a/d : Moves to the previous or next column.

• w/s : Changes the value at the current position.

• OK: Selects the column or confirms the setting.

5. Use w/s/a/d

button to select the channel and press OK button to confirm the selection. If you want to select the all channels, mark up the [Select All] option.

6. Set the detail search options.

• Number: Displays the preset number.

• Option Item: Enter the text to search what you want.

• AND /OR : Select the Boolean operator when you use the

Text search and Number search function simultaneously.

• Value: Enter the number to search what you want.

• >, <, <=, =, >= (compare symbols): Select the compare symbol for number search.

>

<

To find the lower value than the input value.

To find the higher value than the input value.

<= To find the higher or even value than the input value.

= To find the even value than the input value.

>= To find the lower or even value than the input value.

7. Select the [Search] icon then press OK.

8. Select a text data on the list then press ad (Play) button or click button to play back the selected data.

The picture is displayed on the main monitor.

9. Press STOP (

Z

) to stop playback and return to the ATM/POS search list menu.

4

50 Operation

Export Search

Searches an exported data in the external device or internal

DVD-ROM device.

If you want to use this function, you have to connect the external device or insert the CD/DVD disc with exported data otherwise the warning message will be displayed.

Check the export device before you proceed.

Smart Search

You can be searched the recorded data by specifying the motion detection conditions.

4

1. Press SEARCH or click icon on the System Control Bar and

[Search] menu appears.

2. Use w/s

button to select the [Export] icon then press OK.

3. Select the desired source device.

4. Select the [Search] icon then press OK.

The exported file list menu appears.

5. Select the exported file on the exported file list then press ad

(Play) button or click to start playback.

The picture is displayed on the main monitor.

6. Press STOP ( Z ) to stop playback and return to the exported file list menu.

NOTE

The exported data with password cannot preview the image.

When you play the exported data with password, logon screen appears. To unlock the data, enter the password.

1. Press SEARCH or click icon on the System Control Bar and

[Search] menu appears.

2. Use w/s to select the [Smart] icon then press OK.

The smart search menu is displayed.

3. Select the desired source device.

4. Specify the Start Date/Time, End Date/Time, Channel and

Sensitivity options.

• wsad

: Moves to the options.

• w/s : Changes the value at the current position.

• OK: Selects option or confirms the setting.

5. Set the motion mask setting.

The area switches between active and inactive each time you press OK. Click the one point and drag & drop the end point to select the motion using the mouse. The active areas are indicated in red.

6. Select a motion direction button.

7. Press BACK repeatedly to exit the mask setting.

8. Select [Search] then press OK.

The search result is displayed on the list.

9. Select the recording data on the list then press ad

(Play) button or click button to play back the selected data. The picture is displayed on the main monitor.

10. Press STOP( Z ) to stop playback and return to the smart list menu.

11. Press BACK repeatedly to exit the Smart Search menu.

Operation 51

Functions Available During Playback

NET

HDD

ALARM

BACK UP

NET

HDD

ALARM

BACK UP

OSD

1

INFO

5

LOG

9

COPY

OSD

1

INFO

5

LOG

9

COPY

13

Button

Playback

Control Menu

Remote Control Front panel

NET

HDD

BACK UP

Pauses playback.

OSD

1

INFO

5

LOG

9

COPY

13

Function

2

ALM.OFF

6

TEXT OFF

10/0

MARK

14

NET

5

NET

ALARM

FOCUS+

3

IRIS+

HDD

9

FOCUS -

7

4

BACK UP

IRIS -

8 ALARM

13

Press to play reverse or normal playback.

OSD

1

INFO

5

LOG

9

SET

11

CLEAR

12 COPY

MOVE TOUR

16

FOCUS+

3

FOCUS -

SET

MOVE

15

1

6

PTZ

2

ALM.OFF

6

TEXT OFF

10/0

MARK

14

IRIS+

4

IRIS -

1

12

5

16

9

PTZ

2

FOCUS+

3

FOCUS -

7

SET

11

MOVE

15

PTZ

2

SHIFT

ALM.OFF

6

10/0

3

FOCUS+

3

FOCUS -

7

SET

IRIS+

11

4

MOVE

IRIS -

15

8

HDD

HDD INFO

5

2

LOG

9

BACK UP

ALM.OFF

6

COPY

PTZ date. (press the button for more than 2 seconds.)

9 10/0

1

2

INFO ALM.OFF

3

13

6

FOCUS+

TEXT OFF

10/0

FOCUS -

7

MARK

14

11

2

3

FOCUS -

Press repeatedly to select the required scan speed. (

6 dd , ddd , dddd , ddddd or aa , aaa , aaaa , aaaaa )

9

HDD

1

INFO

5

13

2

2

9

3

IRIS+

14

7

4

SET

11

IRIS -

8

12

IRIS+

15

3

4

16

IRIS -

8

2

ALM.OFF

6

3

4

10/0

6

7

13

7

8

14

12

IRIS+

TOUR

16

SHIFT

4

IRIS -

7

IRIS+

4

IRIS -

8

CLEAR

12

TOUR

16

4

11

8

15

TOUR

16

SHIFT

IRIS+

4

IRIS -

8

CLEAR

12

TOUR

IRIS+

4

8

12

TOUR

16

SHIFT

LOG-IN

SHIFT

SETUP

SEARCH

SHIFT

SEARCH

LOG-IN

SEARCH

LOG-IN

VIEW

LOG-IN

SETUP

LOG-IN

CAM

SEARCH

VIEW

LOG-IN

SETUP

VIEW

SEARCH

SETUP

VIEW

BACK

SEARCH

SETUP

CAM

REC

SETUP

VIEW

BACK

SETUP

PTZ

2

ALM.OFF

6

TEXT OFF

10/0

MARK

14

FOCUS+

3

FOCUS -

7

SET

11

MOVE

15

NET

HDD

IRIS+

4

IRIS -

ALARM

8

CLEAR

TOUR

16

OSD

1

INFO

5

LOG

9

13

PTZ

2

ALM.OFF

6

+

TEXT OFF

10/0

MARK

14

SEARCH

NOTE

SEARCH

REC

SEARCH SETUP

LOG-IN

• You can play the backup or export data in normal speed only.

VIEW CAM BACK

• If you use the reverse frame skip function, a frame may be skipped.

NET OSD PTZ FOCUS+ IRIS+

• Multi channel play works only in the date/time search function.

1 2 3

SET

4

• If you double-click the channel during the multiple channel playback, the selected channel will be played on the full screen. And if you double-click the channel during playing in full screen mode, it will return to the previous playback condition.

ALARM

5

LOG

6

TEXT OFF

9 0

BACK UP COPY MARK

HDD

MOVE

INFO

SETUP

PTZ

2

SHIFT

ALM.OFF

6

VIEW

NET

HDD

ALARM

NET

ALARM

NET

1

LOG

PTZ

9

2

0

3

HDD

5

OSD

1

INFO

5

ALARM

LOG

OSD

9

1

PTZ

2

0

1

2

LOG

9

BACK UP

ALM.OFF

6

COPY

PTZ

INFO ALM.OFF

5 6

6

FOCUS+

3

TEXT OFF

0

FOCUS -

7

MARK

IRIS+

4

IRIS -

8

7

SET

MOVE

IRIS+

2

3

3

4

FOCUS -

7

IRIS -

8

1 2

9 0

5

ALM.OFF

6

IRIS+

SHIFT

4

IRIS -

CAM

FOCUS+

3

FOCUS -

7

SET

IRIS+

4

MOVE

IRIS -

8

TOUR

SHIFT

FOCUS -

7

1

PTZ

2

ALM.OFF

6

TEXT OFF

0

MARK

FOCUS+

3

FOCUS -

7

SET

MOVE

NET

HDD

IRIS+

4

IRIS -

ALARM

8

CLEAR

BACK UP

TOUR

OSD

1

INFO

5

LOG

9

PTZ

2

ALM.OFF

6

TEXT OFF

0

MARK

FOCUS+

3

FOCUS -

7

SET

MOVE

HDD

NET

IRIS+

ALARM

4

BACK UP

IRIS -

HDD

8 ALARM

CLEAR

TOUR

5

9

OSD

1

INFO

5

LOG

9

COPY

2

2

9

3

6

9

0

PTZ

2

ALM.OFF

7

TEXT OFF

FOCUS+

3

0

FOCUS -

6 7

SET TEXT OFF

0

MARK MOVE

3

0

4

8

IRIS+

4

IRIS -

8

CLEAR

CLEAR

SHIFT

TOUR

TOUR

IRIS -

SHIFT

BACK

IRIS+

4

IRIS -

8

CLEAR

TOUR

SEARCH

IRIS+

4

8

TOUR

SHIFT

LOG-IN

SHIFT

SETUP

SEARCH

SHIFT

SEARCH

LOG-IN

SEARCH

LOG-IN

VIEW

LOG-IN

SETUP

SETUP

LOG-IN

CAM

SEARCH

VIEW

LOG-IN

SETUP

VIEW

VIEW

BACK

SEARCH

SETUP

CAM

SEARCH

SETUP

VIEW

CAM

REC

SETUP

VIEW

BACK

SETUP

VIEW

CAM

REC

VIEW CAM

REC

BACK

REC

BACK

BACK

VIEW

CAM

REC

CAM

REC

BACK

REC

BACK

BACK

REC

CAM

BACK

REC

REC

BACK

REC

BACK

REC

VIEW CAM

REC

BACK

REC

BACK

REC

SEARCH SETUP

VIEW CAM BACK

LOG-IN

SEARCH SETUP

VIEW CAM

LOG-IN

BACK

SEARCH

REC

SETUP

VIEW CAM BACK

REC

REC

REC

REC

52 Operation

Using the playback control menu

You can use various playback function using playback control menu.

1. Play a data recorded.

Playback control menu appears at the bottom of the screen.

Using the Protect function

This function allows you to protect the recorded data against being automatically overwritten.

How to select Protect section.

1. Click icon on the Playback control menu.

The [Protect] menu appears.

4

Selects the camera you want to play.

Enlarge the current screen using the digital zoom function

Displays or disappears the text information if the recording data includes text data.

Displays the date of the data recorded.

You can choose the date you want to see.

Displays the time of the data recorded.

You can choose the time you want to see.

Displays the record mode.

Increases or decreases the time interval of the Time Line.

Registers a bookmark.

Displays the [Export] menu.

Displays the [Protect] menu.

Minimizes the Playback control menu.

Displays the current position, recording mode and recording section.

Playback control buttons

NOTE

The exported data with password cannot preview the image.

When you play the exported data with password, logon screen appears. To unlock the data, enter the password.

2. If you want to change the time period, select starting and ending point of a part that you want to protect.

3. Click the [OK] icon and the part is protected.

The protected data is shown shaded in the timeline area.

NOTE

• Protect function dose not work when two or more protected parts overlap or when no data does not exist in the selected part.

• The protected section can be released when the time is set in the past or by Auto delete function.

How to release the Protect section.

1. Select any position in the protected section on the Playback control menu.

2. Click the icon.

The confirm message appears.

3. Click the [OK] icon.

The protected data is released.

Troubleshooting 53

5

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

The system power does not turn on.

Symptoms Cause & Solution

Check the power cable is connected correctly.

Check the input voltage is correct.

If the system power does not turn on even if the power cable is connected correctly, please contact the service center.

Check the monitor power cable is connected properly.

The system power is turned on but no video data is displayed on the monitor.

Make sure the monitor is turned on.

Check the video output cable of the LG DVR is properly connected to the monitor.

Unplug the power cable and plug it in again.

Check the camera video output is connected to the DVR system correctly.

The camera numbers are displayed on the screen but the camera images are not displayed.

Check the power cable on the camera is connected correctly.

Check there is no problem with the video cable connection between the camera and the LG DVR system.

Turn off the DVR system and turn it on again.

Check the recording mode in the record setting menu.

The camera video is shown on the screen but the system does not record the video.

Check the HDD detection status in the System Information window.

If the HDD detection status is abnormal, check the HDD formatting and the connection of the HDD.

Check the recordable disk space in the HDD.

Check the overwrite option in the setup menu for overwrite recording.

Check if there is recorded video data at the time that you are trying to search on the table.

It is impossible to search through the recorded video.

If there is no recorded video data, check the recording mode in the record setting menu.

Check the HDD detection status in the system information window.

If the HDD detection status is abnormal, check the HDD formatting and the connection of the HDD.

Check the user type. The search function is not available for an unauthorized user.

5

54 Troubleshooting

5

Symptoms

Audio data recorded with video data is not playing.

The colors of some camera videos are strange or videos are displayed abnormally.

There is a lot of (screen) noise accompanying the image.

The connected sensor is not operating.

The connected PTZ camera is not operating.

Cause & Solution

Check the audio recording option is correctly set for the camera you wish to record audio.

Check the speaker and audio (line input) on the rear of system are connected correctly.

Check the connected speaker is working properly.

If the camera connected to the system has a problem, make sure whether the camera is damaged by trying to connect another camera to the video input jack.

Check the video format setting of the unit is the same as the connected camera’s video format.

Depending on your region, the camera’s video format can support either PAL or NTSC. Depending on the camera’s video format, the video process can differ greatly, therefore it can be difficult to recognize the video data if the video format setting is different from the camera’s video format.

Check if the video signal output from the camera has a problem. Ensure the camera is not damaged by trying another camera with a working video output.

Check if the video cable connection between the camera and the DVR is cut, crosswired or shorted.

Check if there is a high voltage wire around the video cable connection between camera and DVR system. It can cause interference and affect video quality.

Check the video cable connection between the camera and the DVR system is the correct video cable.

When a normal power-supplying cable is used instead of the video cable, screen noise can be generated.

When the video is connected to various system and the video is being output from video distributor, the noise can be generated beause the video signal may be weak. In this case, connect the video signal of that camera to DVR directly to confirm and solve this problem.

If the distance between the camera and DVR is long, the noise may be generated on some camera channel. In this case, connect that video signal to the other video input connector of DVR to confirm this problem. If the noise is generated equally, please check the camera's ground connection and cable.

Check the type of sensor in the camera setting is the same as with the connected sensor.

Check the system is set to use the sensor in the recording schedule window in the recording setting menu.

Check the sensor is properly connected to the ALARM-IN.

Check the system is set to use the PTZ camera in the camera setting menu.

Check the power cable of the PTZ camera is properly connected.

Check the signal cable of the PTZ camera is properly connected.

Check the selected channel to control the PTZ camera.

Check the user type. The PTZ camera control is not available for a normal user.

Troubleshooting 55

Symptoms

An E-mail sent from this product was not received.

The remote control does not work properly.

Cause & Solution

E-mail reception failed without SMTP server setting.

• Make sure the network is correctly set.

• Make sure the mail address is input correctly.

• Check the spam mail setting of the input mail address.

(If you set the spam mail, some mails are deleted automatically or classified in the spam mail box)

• Some of SMTP mail services do not support an E-mails from private SMTP servers. In this case use the public SMTP server.

E-mail reception failed even if the SMTP server was set.

• When the [Please check the SMTP information or internet cable] message is displayed.

-

Check the SMTP server address.

Check the SMTP port number. (Default setting is 25)

-

Check the network settings.

• When the [Please check the authentication information] message is displayed.

-

Check the user name.

Check the password.

• The mail reception failed without error message.

Check the receiver’s mail address.

Check your E-mail is not classified as a spam mail on the receiver's mail setting.

Check the batteries in the remote control.

Check the ID setting for the remote control (See the page 30).

NOTE

If you observe any of the following symptoms:

• Some of the front panel LEDs do not light.

• The DVR does not operate normally.

You can reboot the DVR as follows:

1. Turn off the DVR and turn it on again after a few seconds.

2. When the recorder does not work normally after rebooting, contact the service center.

5

56 Appendix

6

Appendix

Recommended Devices

6

Recommended USB Memory list

8

9

6

7

No.

1

2

3

4

5

Maker

LG Electronics

LG Electronics

Lexar

Memorive

TRANSCEND

SKYDRV

SANDISK

Samsung Electronics

Samsung Electronics

Model Name

XTICK SPIN

XTICK UF1

Jump Drive

SLC

JF x2

Cruzer

SUM-LSB8

SUM-PSB

Capacity

2 G

32 G

1 G

2 G

16 G

2 G

16 G

8 G

32 G

NOTE

• Some USB memory devices other than the ones on the above table may not work properly, even if this DVR reads them.

• For the latest recommended USB list, please visit http://www.lgecommercial.com

Recommended External Device list

Device Capacity

USB HDD

E-SATA HDD

Up to 2 TB.

Up to 2 TB.

File system

FAT 32 (This file system is compatible with Windows and Linux system.)

XFS (Linux file system)

This file system is not compatible with Windows system.

Backup search function for the client program

Yes

No

NOTE

The E-SATA device with the FireLynx Series of Malgn Technology is supported only for data storage. Other device or manufacture may cause a malfunction.

Recommended CD/DVD Media list

Maker

Imation

Memorex

MITSUBISHI

PHILIPS

SONY

Verbatim

CD-R

O

O

O

O

O

O

CD-RW

O

O

O

O

O

O

DVD-R

O

O

O

O

O

O

NOTE

8 cm (1.4 GB) Mini CD/DVD and the Dual Layer type media (DVD) are not supported.

DVD-RW

O

O

O

O

O

O

DVD+R

O

O

O

O

O

O

DVD+RW

O

O

O

O

O

O

Appendix 57

Supported function list for device

Device

CD/DVD

USB memory

USB HDD

E-SATA HDD

Instant backup

O

O

O

O

Schedule backup

X

O

O

O

Export

O

O

O

O

Configuration Import/Export

X

O

O

O

NOTE

If you use a USB memory stick or USB HDD for configuration import/export you must disconnect the other external USB devices.

Supported PTZ Camera list

Protocol Name Maker

LG_MULTIX

LG_MULTIX EXTENTION

LG_SD168

LG_LS903

LG_ZOOM

LPT_A100L

PELCO_C

PELCO_D

PELCO_P

GANZ_DSCP

GANZ_P360V1

GE KALATEL_CYBERDOM

PANASONIC_CS850

BOSCH_AUTODOME

SAMSUNG_SCC

SAMSUNG_E

PELCO

CBC

CBC

KALATEL

PANASONIC

BOSCH

SAMSUNG

SAMSUNG

LG

LG

PELCO

PELCO

LG

LG

LG

LG

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

NO

NO

YES

NO

YES

YES

NO

NO

Pan/Tilt Zoom

Speed control

YES

YES

NO

NO

YES

NO

YES

NO

YES

NO

YES

NO

YES

NO

YES

YES

NO

NO

NO

YES

NO

NO

NO

NO

YES

NO

YES

YES

YES

NO

YES

YES

YES

NO

YES

NO

Supported IP Camera Audio/Video Codec

Item

Video

Audio

YES

YES

YES

YES

YES

NO

YES

YES

Focus

YES

YES

YES

NO

YES

YES

YES

YES

Codec

H.264 Base Profile

G.711, G.726, AAC, PCMU 8 Khz, PCMA 8 Khz

YES

YES

YES

YES

YES

NO

YES

YES

Iris

YES

YES

YES

NO

YES

YES

YES

YES

YES

YES

YES

YES

NO

NO

YES

YES

Preset

YES

NO

YES

NO

YES

YES

YES

YES

YES

YES

YES

YES

NO

NO

YES

YES

Tour

YES

NO

YES

NO

YES

YES

YES

YES

YES

YES

NO

NO

YES

NO

YES

YES

Setup

YES

YES

YES

YES

YES

NO

YES

YES

6

58 Appendix

Time zones

6

Timezone name

Eniwetok, Kwajalein

Midway Island, Samoa

Hawaii

Alaska

Pacific Time (US and Canada); Tajuana

Mountain Time (US and Canada), Chihuahua, La Paz,

Mazatlan, Arizona

Central Time (US and Canada), Saskatchewan, Guadalajara, Mexico City, Monterrey,

Central America

Eastern Time (US and Canada), Indiana (East), Bogota, Lima, Quito

Atlantic Time (Canada), Caracas, La Paz, Santiago

Newfoundland

Brasilia, Buenos Aires, Georgetown, Greenland

Mid-Atlantic

Azores, Cape Verde Islands

Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London, Casablanca, Monrovia

Amsterdam, Belgrade, Bratislava, Budapest, Ljubljana, Prague, Sarajevo, Skopje, Warsaw,

Zagreb, Brussels, Copenhagen, Madrid, Paris, Berlin, Bern, Rome, Stockholm, Vienna, West

Central Africa

Athens, Istanbul, Minsk

Bucharest, Cairo, Pretoria, Jerusalem, Harare, Pretoria

Helsinki, Riga, Israel, Kyiv, Sofia, Tallinn, Vilnius

Baghdad, Kuwait, Riyadh, Nairobi

Moscow, St.Petersburg, Volgograd

Tehran

Abu Dhabi, Muscat, Baku, Tbilisi, Yerevan

Kabul

Ekaterinburg, Islamabad, Karachi, Tashkent

Bombay, Calcutta, Madras, New Delhi, Chennai, Kolkata

Almaty, Dhaka, Colombo, Astana, Sri Jayawardenepura, Novosibirsk

Yangon

Bangkok, Hanoi, Jakarta, Krasnoyarsk

Beijing, Changqing, Hong Kong, Uramqi

Perth, Singapore, Taipei, Beijing, Chongqing, Hong Kong SAR, Urumqi, Kuala Lumpur,

Irkutsk, Ulaan Bataar

Osaka, Sapporo, Tokyo

Seoul, Yakutks

Adlaide, Darwin

Brisbane, Guam, Port Moresby

Canberra, Melbourne, Sydney

Hobart, Vladivostok

Magadan, Solomon Islands, New Caledonia

Auckland, Wellington

Fiji Islands, Kamchatka, Marshall Islands

Timezone

Abbreviation

EK

MIS

HAW

ALA

PST

MST

AMS

CST

EST

AST

NWF

BBA

MAT

AZO

GMT

EIK

BCD

ADC

MMT

BHJ

BHU

MSV

THE

ABT

KAB

AIM

BCP

HRI

BKR

SST

OST

SYA

ADA

BGP

CMS

HVL

MSN

AWE

FKM

+01:00

+05:00

+05:30

+06:00

+06:30

+07:00

+08:00

+02:00

+02:00

+02:00

+03:00

+03:00

+03:30

+04:00

+04:30

+08:00

+09:00

+09:00

+09:30

+10:00

+10:00

+10:00

+11:00

+12:00

+12:00

Timezone

-12:00

-11:00

-10:00

-09:00

-08:00

-07:00

-06:00

-05:00

-04:00

-03:30

-03:00

-02:00

-01:00

0

DST

+01:00

+02:00

+03:00

+03:00

+03:00

+04:00

+04:00

+04:30

+12:00

-08:00

-07:00

-06:00

-05:00

-04:00

-02:30

Appendix 59

Factory Default Configuration Settings

1st level

System

2nd level

Properties

TCP/IP4

TCP/IP6

Network

3rd level

System Name

Language

Button Beep

Video Format

Resolution

Configuration Import

Configuration Export

Factory Default

Convert (LRH7160, LRN8240)

Interface

DHCP

IP Address

Subnet Mask

Gateway

Primary DNS

Secondary DNS

Interface

Auto

IP Address

Subnet Prefix Length

Gateway

Primary DNS

Secondary DNS

TCP/IP Port No.

Web Server Port No.

Audio Port No.

Bandwidth Throttle

RTSP Port

DDNS Service

Host Name

Registerd Host

Update

Default Value

NULL

The option depends on the model.

Factory Default setting

YES

YES

OFF

NTSC or PAL

1024*768

-

-

-

-

Ethernet0

ON

NULL

NULL

NULL

NULL

NULL

Ethernet0

ON

NULL

64

NULL

NULL

NULL

9001

80

9003

ALL / 100 Mbps

554

OFF

NULL

NULL

-

YES

YES

YES

YES

YES

YES

-

YES

NO

NO

-

YES

YES

YES

YES

YES

YES

-

-

-

-

YES

YES

YES

-

YES

YES

YES

YES

YES

6

60 Appendix

6

System

Network Streaming

Date/Time

NTP

Controller

Update

Backup

CH

Resolution

Quality

Frame Rate

Profile

Date

Time

Date Format

Time Format

Time Zone

Daylight Saving

Daylight Saving Start

Daylight Saving End

NTP

Time Server

Private Time Server

Sync. Interval

NTP Test

IR Remote ID

Remote Controller ID

Method

Device

FTP Server

Search

No.

File Name

Update

Check now for update

Schedule

Device

Schedule Start

Time Range Date

Time Range Start

Time Range End

Overwrite

Estimate Size

YES

YES

-

-

-

YES

YES

YES

-

YES

YES

-

-

YES

YES

YES

YES

NO

NO

NO

NO

YES

YES

YES

YES

YES

-

YES

NO

NO

YES

YES

-

YES

YES

YES

-

352x240 (NTSC) / 352x288 (PAL)

STANDARD

7.5 (NTSC) / 6 (PAL)

Profile1

Current Date

Current Time

YYYY/MM/DD

12 HR

The option depends on the model.

OFF

JAN, 1st, SUN, 00

JAN, 1st, SUN, 00

OFF

PUBLIC SERVER

NULL

1 DAY

-

-

-

-

-

1

NONE

LOCAL

NULL

-

-

OFF

-

SUN, 12:00:00 AM

Current Date

SUN, 00:00

SUN, 00:00

ON

-

System

Device

Backup

Camera

PTZ

IP Device

ATM/POS

Start Backup

Erase Media

Ch

Name

Audio

IP Enable

Channel

Port

Control ID

Protocol

Baud Rate

PTZ Test

CH

Name

Model Name

MAC

IP

HTTP Port

Driver

Profile 1

Profile 2

RTSP Port

RTP Mode

Audio Recording

Setup

Delete

MANUAL

AUTO

Interface Device

Camera

Baud Rate

Data Bits

Stop Bits

Parity

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

-

-

YES

YES

YES

-

YES

YES

-

YES

YES

-

-

YES

YES

YES

-

YES

YES

YES

YES

-

-

Appendix 61

6

-

-

-

CH 01 to CH 24

01 to 16, OFF

ON, OFF

CH 01

NONE

0

554

UDP

OFF

-

80

LGE

NULL

NULL

LG_MULTIX

9600

-

9 to 24

CH 09 to CH 24

NULL

NULL

NULL

-

-

-

NONE

CH 01

9600

8

1

NONE

62 Appendix

6

Device

Display

Record

Storage

OSD

Sequence

Video Adjustment

Normal Schedule

Special Schedule

Normal

Overwrite

Full Warning

Auto Delete

Storage Saving

Format

E-SATA

Insert

Eject

Channel Name

Channel Status

Channel FPS

Channel Name (Spot)

Font Size

Position

Main Dwell Time

Spot Dwell Time

Channel

Brightness

Contrast

Color

Restore to Default

Day

Mode

Channel Copy

Day Copy

List

Name

Date

Mode

Delete

Channel Copy

CH

Resolution

Quality

Frame Rate

NO

NO

-

-

YES

YES

YES

-

YES

YES

YES

-

YES

YES

YES

YES

-

-

YES

-

-

YES

YES

YES

NO

YES

YES

YES

NO

-

-

-

YES

YES

YES

TOP

2 SEC

2 SEC

CH 01

ON

ON

ON

12

50

50

50

-

Current day of the week

Analog (S+M), IP (C)

-

-

-

-

ON

-

-

ON

OFF

OFF

OFF

Item 1

NULL

Current Date

S+M

-

-

-

704x480 (NTSC) / 704x576 (PAL)

STANDARD

7.5 (NTSC) / 6 (PAL)

Record

Motion

Text

Event

Sensor

Instant/Panic

Sensor

Motion

Postalarm

CH

Resolution

Quality

Frame Rate

In

Sensor Type

Camera

Frame Rate

Prealarm

Postalarm

CH

Resolution

Quality

Frame Rate

Prealarm

Relay Output

Preset

Channel

Sensitivity

Relay Output

Area

CH

Resolution

Quality

Frame Rate

Prealarm

Postalarm

CH

Resolution

Quality

YES

YES

YES

YES

YES

-

YES

YES

YES

YES

-

YES

YES

-

YES

YES

YES

YES

YES

YES

YES

-

YES

YES

-

YES

YES

-

YES

YES

YES

-

704x480 (NTSC) / 704x576 (PAL)

STANDARD

15 (NTSC) / 12.5 (PAL)

10 SEC

10 SEC

-

704x480 (NTSC) / 704x576 (PAL)

STANDARD

15 (NTSC) / 12.5 (PAL)

10 SEC

10 SEC

-

704x480 (NTSC) / 704x576 (PAL)

STANDARD

15 (NTSC) / 12.5 (PAL)

10 SEC

10 SEC

-

704x480 (NTSC) / 704x576 (PAL)

HIGHEST

30 (NTSC) / 25 (PAL)

-

N.O

01 to 16

NONE

NONE

CH 01

5

NONE

All selected

Appendix 63

6

64 Appendix

6

Event

ATM/POS Data Format

Event Popup

Notification

Mail

Emergency

Input Channel

Transaction Start

Transaction End

Delimiter

Ignore String

Time Out

Relay Output

Spot Channel

Sensor On

Motion Detection

Text In

Admin Password Changed

Video Loss

Power On/Off

Disk Full

Notification

SMTP Server

SMTP Port

User Name

Password

TLS

Mail Address 1

Mail Address 2

Mail Address 3

Sender

JPEG Attachment

E-mail Test

Notification

Host Name

Port

YES

YES

YES

YES

YES

YES

YES

YES

YES

-

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

-

YES

YES

YES

NULL

NULL

NULL

NULL

25

NULL

NULL

OFF

OFF

-

OFF

NULL

9002

OFF

OFF

OFF

NULL

OFF

OFF

OFF

OFF

01

NULL

NULL

CARRIAGE RETURN

NULL

10 MIN

NONE

OFF

OFF

Event

User

SNMP

Output

Buzzer

Group Authority

User

SNMP Version

Port

Community String

User

Authentication

Password

Privacy

Password

Trap IP Address

Trap Community String

Relay Off

System Alarm Out

HDD Fail Alarm Out

Video Loss Alarm Out

Sensor

Motion

Text

System

Group ID

Group Name

Setup

Search/Play

Export

PTZ

Power Off

Instant Record

Main Channel

Spot Channel

User ID

User Name

Group

Password

Auto User Logout

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

NONE

161 public

NULL

NONE

NULL

NONE

NULL

NULL

NULL

ALARM ACKNOWLEDGE

NONE

NONE

NONE

OFF

OFF

OFF

OFF

GUEST

GUEST

OFF

OFF

OFF

OFF

OFF

OFF

All Enable

All Enable

ADMINISTRATOR

ADMINISTRATOR

ADMINISTRATOR

"000000"

OFF

Appendix 65

6

66 Appendix

Recording Time Table (250GB HDD)

6

Resolution

(NTSC/PAL)

352x240

/352x288

Quality

Lowest

Low

Normal

High

Highest

1.0

30.0

15.0

10.0

10.0

7.5

5.0

3.0

7.5

5.0

3.0

1.0

3.0

1.0

30.0

15.0

15.0

10.0

7.5

5.0

5.0

3.0

1.0

30.0

30.0

15.0

10.0

7.5

30.0

15.0

10.0

7.5

5.0

3.0

1.0

NTSC

FPS

Video (NTSC/PAL)

Recording Time (Hr)

Video + Audio (NTSC/PAL)

PAL

(8 CH, Video)

NTSC/PAL

(16 CH,Video)

NTSC/PAL

(8 CH, Video+Audio)

NTSC/PAL

25.0 699.75 711.50 349.88 355.75

12.5 1119.60 1166.25 559.80 583.13

8.0 1393.23 1390.32 696.61 695.16

538.15

756.24

871.91

6.0 1643.86 1414.80 821.93 707.40 963.88

5.0 1856.71 1464.36 928.35 732.18 1033.33

3.0 2150.10 1506.01 1075.05 753.00 1118.26

1.0 2412.81 1613.97 1206.40 806.98 1185.38

25.0 371.19 362.32 185.60 181.16

12.5 566.43 583.56 283.22 291.78

8.0

6.0

708.80 722.31 354.40 361.15

833.24 827.62 416.62 413.81

320.19

455.67

543.48

613.77

5.0 945.30 888.53 472.65 444.26

3.0 1103.30 1041.18 551.65 520.59

672.49

748.77

1.0 2298.56 1613.41 1149.28 806.71 1157.13

25.0 186.94 185.67 93.47 92.84 173.05

1.0

25.0

12.5

8.0

8.0

6.0

5.0

3.0

6.0

5.0

3.0

1.0

12.5 283.99 292.00 142.00 146.00

8.0 355.07 362.73 177.54 181.36

6.0

5.0

418.32 413.04 209.16 206.52

474.46 443.84 237.23 221.92

3.0 547.66 518.94 273.83 259.47

1.0 1362.27 1314.44 681.14 657.22

25.0 88.92 88.92 44.46

12.5 142.09 145.70 71.05

44.46

72.85

177.94

209.23

236.99

274.73

708.20

59.24

94.87

181.45

206.71

222.32

259.08

738.68

59.34

97.11

88.97

104.61

118.49

137.36

354.10

29.62

47.43

118.54 121.10 59.27

139.46 137.97 69.73

158.12 148.19 79.06

90.72

103.36

111.16

129.54

369.34

29.67

48.56

60.55

68.99

74.10

183.98 174.52 91.99 87.26

474.29 493.68 237.14 246.84

165.32

191.99

215.11

245.75

543.13

57.77

91.16

112.80

253.14

308.12

354.65

394.19

443.44

859.68

85.65

133.93

131.58

148.08

170.52

394.08

168.34

189.87

202.95

233.16

560.88

57.87

93.23

115.12

259.48

313.87

350.85

372.83

424.42

840.38

85.65

137.13

130.26

139.33

162.36

407.37

313.56

466.69

551.39

610.71

643.25

719.63

953.33

171.97

545.07

777.24

870.77

880.31

899.25

914.78

953.52

(16 CH, Video+Audio)

NTSC/PAL

82.66

95.99

107.55

122.88

271.57

28.88

45.58

56.40

126.57

154.06

177.33

197.10

221.72

429.84

42.83

66.96

65.79

74.04

85.26

197.04

160.09

227.83

271.74

306.88

336.24

374.38

578.56

86.53

269.07

378.12

435.95

481.94

516.67

559.13

592.69

84.17

94.93

101.48

116.58

280.44

28.93

46.61

57.56

129.74

156.93

175.42

186.41

212.21

420.19

42.82

68.56

65.13

69.67

81.18

203.69

156.78

233.34

275.69

305.36

321.62

359.82

476.66

85.98

272.53

388.62

435.38

440.15

449.62

457.39

476.76

Appendix 67

Resolution

(NTSC/PAL)

704x240

/704x288

Quality

Lowest

Low

Normal

High

Highest

1.0

30.0

15.0

10.0

10.0

7.5

5.0

3.0

7.5

5.0

3.0

1.0

3.0

1.0

30.0

15.0

15.0

10.0

7.5

5.0

5.0

3.0

1.0

30.0

30.0

15.0

10.0

7.5

15.0

10.0

7.5

5.0

3.0

1.0

NTSC

30.0

FPS

Recording Time (Hr)

PAL

Video (NTSC/PAL)

(8 CH, Video)

NTSC/PAL

(16 CH,Video)

NTSC/PAL

25.0 357.94 356.09 178.97 178.05 310.28

Video + Audio (NTSC/PAL)

(8 CH, Video+Audio)

NTSC/PAL

308.89

(16 CH, Video+Audio)

NTSC/PAL

155.14 154.44

12.5 564.38 583.56 282.19 291.78

8.0

6.0

5.0

705.04

834.81

945.30

725.91

826.30

888.95

352.52

417.41

472.65

362.95

413.15

444.48

3.0 1089.37 1034.94 544.69 517.47

1.0 1544.69 1127.59 772.35 563.80

454.33

541.27

614.62

672.49

742.33

928.91

466.69

553.48

609.99

643.47

716.64

759.88

227.17

270.64

307.31

336.24

371.16

464.45

233.34

276.74

305.00

321.74

358.32

379.94

25.0 186.60 185.39 93.30

12.5 285.04 291.23 142.52 145.62

8.0

6.0

5.0

3.0

355.34 362.05 177.67 181.03

418.19 412.16 209.10 206.08

474.33

542.03

443.10

522.78

237.17

271.01

92.70

221.55

261.39

1.0 1259.21 1097.45 629.61 548.73

25.0 88.97 89.13 44.49 44.56

172.77

253.97

308.33

354.56

394.11

439.74

817.46

85.70

171.73

258.88

313.36

350.22

372.31

426.99

746.07

85.85

86.38

126.98

154.16

177.28

197.05

219.87

408.73

42.85

85.87

129.44

156.68

175.11

186.15

213.49

373.04

42.92

1.0

25.0

12.5

8.0

8.0

6.0

5.0

3.0

3.0

1.0

25.0

12.5

12.5 142.19 146.06 71.10

8.0 177.81 181.45 88.90

6.0

5.0

73.03

90.72

209.26 206.74 104.63 103.37

237.05 222.26 118.52 111.13

6.0

5.0

3.0

1.0

274.51

714.45

59.25

94.78

118.40

139.50

158.23

182.60

488.71

44.47

71.17

89.00

261.13

719.80

59.24

97.13

120.95

137.68

148.02

175.31

499.10

44.48

72.90

90.65

137.25

357.22

29.62

47.39

59.20

69.75

79.12

91.30

244.35

22.24

35.58

44.50

104.64 103.47 52.32

118.61 111.19 59.31

130.56

359.90

29.62

48.56

60.47

68.84

74.01

87.66

249.55

22.24

36.45

45.33

51.73

55.59

136.27 131.59 68.13 65.80

377.19 379.99 188.59 189.99

134.01

165.20

192.02

215.16

245.58

546.80

57.78

91.08

112.68

131.62

148.17

169.33

403.98

43.64

69.06

85.72

100.14

112.87

128.74

324.64

137.44

168.34

189.89

202.91

234.81

549.92

57.78

93.24

114.98

130.00

139.18

163.05

411.06

43.65

70.69

87.26

99.07

106.12

124.56

326.71

56.34

65.81

74.09

84.66

201.99

21.82

34.53

42.86

67.01

82.60

96.01

107.58

122.79

273.40

28.89

45.54

50.07

56.43

64.37

162.32

57.49

65.00

69.59

81.52

205.53

21.83

35.35

43.63

68.72

84.17

94.95

101.46

117.41

274.96

28.89

46.62

49.53

53.06

62.28

163.35

6

68 Appendix

6

Resolution

(NTSC/PAL)

704x480

/704x576

Quality

Lowest

Low

Normal

High

Highest

5.0

3.0

1.0

30.0

30.0

15.0

10.0

7.5

7.5

5.0

3.0

1.0

1.0

30.0

15.0

10.0

15.0

10.0

7.5

5.0

3.0

1.0

10.0

7.5

5.0

3.0

3.0

1.0

30.0

15.0

30.0

15.0

10.0

7.5

5.0

NTSC

FPS

Video (NTSC/PAL)

Recording Time (Hr)

Video + Audio (NTSC/PAL)

PAL

(8 CH, Video)

NTSC/PAL

(16 CH,Video)

NTSC/PAL

5.0

3.0

1.0

25.0

25.0

12.5

8.0

6.0

6.0

5.0

3.0

1.0

1.0

25.0

12.5

8.0

12.5

8.0

6.0

5.0

3.0

1.0

25.0 240.47 237.62 120.24 118.81

12.5 379.82 388.56 189.91 194.28

8.0

6.0

5.0

474.58 483.24 237.29 241.62

557.12 550.67 278.56 275.34

632.77 592.35 316.38 296.18

8.0

6.0

5.0

3.0

3.0 731.21 674.24 365.60 337.12

1.0 1029.45 746.13 514.73 373.07

25.0 103.43 104.35 51.71

12.5 162.75 166.54 81.37

52.17

83.27

203.20

239.18

272.02

311.62

207.09

236.34

254.18

298.45

101.60

119.59

136.01

155.81

103.54

118.17

127.09

149.23

784.77 691.91 392.38 345.95

59.27

94.78

59.94

98.58

29.63

47.39

118.54 121.58 59.27

139.56 137.75 69.78

158.42 148.04 79.21

118.54 111.27 59.27

136.54 130.73 68.27

29.97

49.29

60.79

68.88

74.02

183.02 174.31 91.51 87.15

493.00 491.99 246.50 245.99

44.44

71.03

44.43

72.84

22.22

35.52

88.87 90.68 44.43

104.61 103.34 52.30

22.22

36.42

45.34

51.67

55.63

65.37

377.62 379.92 188.81 189.96

35.54 35.55 17.77 17.78

56.89

71.11

83.76

94.81

58.26

72.66

82.69

88.88

28.45

35.55

41.88

47.41

29.13

36.33

41.34

44.44

109.26 104.60 54.63 52.30

302.82 304.11 151.41 152.06

(8 CH, Video+Audio)

NTSC/PAL

43.61

68.93

85.61

100.11

112.80

128.98

324.95

35.01

587.06

57.80

91.08

112.80

131.67

148.34

169.69

406.91

55.54

69.00

80.85

91.11

104.36

267.99

217.98

326.58

394.28

449.62

497.63

556.56

714.01

99.03

152.12

186.90

216.92

243.58

274.87

43.60

70.63

87.29

98.95

106.19

123.79

326.66

35.02

533.49

58.44

94.58

115.55

130.06

139.20

162.18

406.22

56.84

70.47

79.85

85.62

100.11

269.00

215.63

333.02

400.24

445.41

472.29

522.93

565.16

99.87

155.43

190.19

214.57

229.18

264.57

(16 CH, Video+Audio)

NTSC/PAL

21.80

34.46

42.80

50.06

56.40

64.49

162.48

17.50

293.53

28.90

45.54

56.40

65.84

74.17

84.84

203.45

27.77

34.50

40.43

45.55

52.18

133.99

108.99

163.29

197.14

224.81

248.82

278.28

357.00

49.51

76.06

93.45

108.46

121.79

137.43

21.80

35.32

43.64

49.47

53.10

61.89

163.33

17.51

266.75

29.22

47.29

57.77

65.03

69.60

81.09

203.11

28.42

35.23

39.93

42.81

50.05

134.50

107.82

166.51

200.12

222.71

236.15

261.46

282.58

49.94

77.71

95.09

107.29

114.59

132.28

NOTE

This recording time table is for reference only.

The recording time can be different depending on your surveillance environment.

Appendix 69

IP Live/Playback Specifications

Calculation formula: Total Available FPS for new resolution = (704 * 480) * (30 * IP Channels) / (Width * Height)

IP Camera Live/Playback Display. (Codec: H.264)

Model LRH7000 (Analogue 16CH)

IP Live/Playback IP Cameras

FPS (up to)

Total FPS

(up to)

D1

720P(1M Pixel)

720P(1M Pixel)

1.3M Pixel

1080P(2M Pixel)

3M Pixel

3M Pixel

Over channel & resolution

30fps x 8ch

30fps x 2ch

20fps x 4ch

15fps x 4ch

30fps x 1ch

20fps x 1ch

1

240

60

80

60

30

20

8(I-Frame Only)

IP Cameras

FPS(up to)

30fps x 16ch

30fps x 5ch

20fps x 8ch

30fps x 4ch

30fps x 2ch

30fps x 1ch

20fps x 2ch

1

LRH7000 (Analogue 8CH)

Total FPS

(up to)

480

150

160

120

60

30

40

16(I-Frame Only)

Specifications

Video

Audio

Alarm

Model

Input

Analog

IP

Output

Loop Through

(Main) VGA

(Main) HDMI

(Spot) Composite

(Spot) HDMI

Input

Output

Input

Notification

Output

Buzzer e-mail

Remote S/W

(Client S/W, VMS)

Emergency S/W

LRH7160D Series

16

LRH7080D Series

8

Analog-IP Switch condition

- Basic : Analog 16ch + IP 8ch/4CIF or Analog 8ch + IP 16ch/4CIF

* Max. Resolution: Up-to 3Mega-pixel

Analog-IP Switch condition

- Basic : Analog 8ch + IP 8ch/4CIF or

Analog 4ch + IP 12ch/4 CIF

* Max. Resolution: Up-to 3Mega-pixel

16

1

8

1

16

2

16

1

1

1

4

Support

Support

1

1

1

8

2

8

2

Support

Support

Support

Support

Support

Support

6

70 Appendix

6

NTSC

Recording

(Analog)

Frame Rate

(/Second)

PAL

Search

Display

Storage

Backup

Serial I/F

Network

FF/ Reverse

Playback Speed

Frame Advance

Screen Division

Search Mode

Frame Rate

(/Second)

NTSC

PAL

IP Display

Division Mode

Internal HDD Max Capacity

External HDD Interface Type

Backup Interface

PTZ Control Interface

Network Connection

Network Transmission

Bandwidth Control

Power

Power Consumption

Dimension (W x D x H)

Net Weight (without HDD)

Net Weight (with 6 HDD)

Operating Temp. / Humidity

NOTE

Design and specifications are subject to change without notice.

Up to 480 IPS @ 352x240

Up to 480 IPS @ 704x240

Up to 480 IPS @ 704x480

Up to 240 IPS @ 352x240

Up to 240 IPS @ 704x240

Up to 240 IPS @ 704x480

Up to 400 IPS @ 352x288

Up to 400 IPS @ 704x288

Up to 400 IPS @ 704x576

4 Steps (1x - 16x)

Up to 200 IPS @ 352x288

Up to 200 IPS @ 704x288

Up to 200 IPS @ 704x576

Forward / Backward

Full, 4, 9, 16, 25 Full, 4, 9, 16

Date/Time, Event, Export, Protect, Bookmark, ATM/POS, Smart

480 IPS (Real time per channel)

400 IPS (Real time per channel)

16 Analog + 8 IP

240 IPS (Real time per channel)

200 IPS (Real time per channel)

8 Analog + 8 IP

Full, 4, 9, 16, 1+5, 1+7, 1+16, 25 Full, 4, 9, 16, 1+5, 1+7

12 TB (Up to 6 HDDs)

E-SATA

USB 2.0 (x3), Network, Internal ODD (SATA), e-SATA

RS-485 (x2)

Ethernet 10/100/1000 Mbps (x2)

Up to 240 IPS

Yes

AC Free 100~240V, 50/60 Hz

Maximum 80 W (with 6 HDD)

440 mm x 452 mm x 115 mm

9.68 kg 9.59 kg

13.38 kg 13.29 kg

0 ºC to 40 ºC / 0 % RH to 80 % RH

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI

Licensing LLC in the United States and other countries.

AB28

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
