ENGLISH

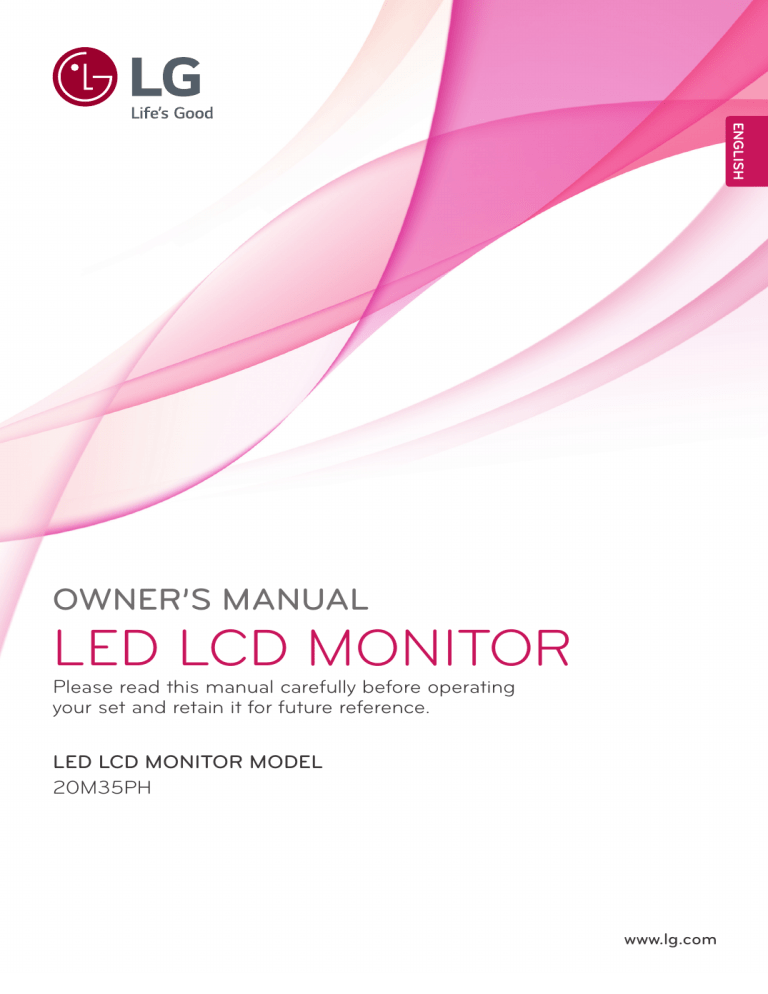

OWNER’S MANUAL
LED LCD MONITOR
Please read this manual carefully before operating
your set and retain it for future reference.
LED LCD MONITOR MODEL
20M35PH
www.lg.com
2
TABLE OF CONTENTS
CONTENTS
ENGLISH
ENG
3
LICENSE
19
TROUBLESHOOTING
4
ASSEMBLING AND PREPARING
21
SPECIFICATIONS
4
Unpacking
21
20M35PH
5
Parts and buttons
22
Preset Modes (Resolution)
6
Setting up the Monitor set
22
Indicator
6
- Attaching the Stand Base
6
- Detaching the stand base
7
- Detaching the stand body
8
- Mounting on a table
8
- Adjusting the angle
9
- Adjusting the stand height
9
- Using the Kensington locking device
10
- Using the Pivot function
11
- Mounting on a wall
12
USING THE MONITOR SET
12
Connecting to a PC
12
- D-SUB connection
12
- HDMI connection
13
Connecting to AV Devices
13
- HDMI connection
14
CUSTOMIZING SETTINGS
15
Customizing Settings
15
- Menu Settings
16
- Picture
16
- Color
17
- Display
17
- Others
18
READER Setting
18
SMART ENERGY SAVING
LICENSE
3
LICENSE
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
The following content is only applied to the monitor which is sold in Europe market and which needs to
meet the ErP Directive:
* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no
adjustment to display.
* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.
ENG
ENGLISH
Each model has different licenses. Visit www.lg.com for more information on the license.
4
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
ENGLISH
ENG
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
CD(Owner's Manual) /
Card
Power Cord
D-SUB Cable
(This cable is not included in all
countries.)
HDMI Cable
(This cable is not included in all
countries.)
Stand Base
CAUTION
Do not use any unapproved accessories to ensure the safety and product life span.
yy
Any damages or injuries by using unapproved accessories are not covered by the warranty.
yy
NOTE
The accessories supplied with your product may vary depending on the model.
yy
Product specifications or contents in this manual may be changed without prior notice due to upgrade
yy
of product functions.
ASSEMBLING AND PREPARING
5
Parts and buttons
ENG
ENGLISH
Power Indicator
yyLED On : Power is on
yyLED Off: Power is off
(Power Button)
Front Side Buttons
Input Connectors (���������
See p.��)
6
ASSEMBLING AND PREPARING
ENGLISH
ENG
Setting up the Monitor set
Detaching the stand base
Attaching the Stand Base
1 Place the monitor's screen face down.
1 Place the Monitor set with the screen side
To protect the screen from scratches, cover the
surface with a soft cloth.
down on a flat and cushioned surface.
CAUTION
To protect the screen from scratches, cover
yy
the surface with a soft cloth.
2 Using a coin, turn the screw in the stand base
counterclockwise. Detach the stand base from
the stand body.
2 Check the position (at the front and rear) of
the stand body, then mount the stand base on
the stand body as shown in the figure.
Stand Body
Stand Body
Stand Base
Stand Base
3 Using a coin, turn the screw clockwise to secure the stand base.
Stand Base
CAUTION
The components appearing in the illustrayy
tions may look different from the actual product.
Do not carry the monitor upside-down as this
yy
may cause it to fall off its stand, resulting in
damage or injury.
To avoid damaging the screen when lifting
yy
or moving the monitor, only hold the stand or
the plastic cover. This avoids putting unnecessary pressure on the screen.
Only remove the tape and the locking pin
yy
when the monitor is mounted on the stand
base and is in an upright position. Otherwise,
the stand body may protrude, which may
lead to injury.
ASSEMBLING AND PREPARING
7
Detaching the stand body
protect the screen from scratches, cover the
surface with a soft cloth.
2 Using a screwdriver, remove the four screws
and detach the stand from the monitor.
ENG
ENGLISH
1 Place the monitor's screen face down. To
8
ASSEMBLING AND PREPARING
ENGLISH
ENG
Mounting on a table
Adjusting the angle
1 Lift the monitor and place it on the table in an
1 Place the monitor mounted on the stand base
upright position.
Install at least 100 mm away from the wall to
ensure sufficient ventilation.
in an upright position.
2 Adjust the angle of the screen. The angle of
the screen can be adjusted up to 5° forwards
and 20° backwards for a comfortable viewing
experience.
100 mm
100 mm
100 mm
100 mm
Rear Side
2 Connect the Power cord to the monitor, then
plug the power cord into the wall outlet.
3 Press the
(Power) button on the front of the
monitor to turn on the monitor.
CAUTION
Unplug the power cord prior to moving or
yy
installing the monitor. There is risk of electric
shock.
Front Side
WARNING
To avoid injury to the fingers when adjusting
yy
the screen, do not hold the lower part of the
monitor's frame as illustrated below.
Be careful not to touch or press the screen
yy
area when adjusting the angle of the monitor.
ASSEMBLING AND PREPARING
Adjusting the stand height
in an upright position.
2 Remove the tape attached at the bottom rear
of the stand body, then pull out the locking
pin.
Stand Body
‌‌
Tape
Using the Kensington locking
device
The connector for the Kensington lock is located
on the rear of the monitor.
For more information on installation and usage,
refer to the Kensington lock user manual or visit
the website at http://www.kensington.com.
Connect the monitor to the table with the Kensington lock cable.
Locking Pin
3 The height can be adjusted up to 110 mm.
110.0mm
CAUTION
Once the pin is removed, it is not necessary
yy
to re-insert it to adjust the height.
WARNING
Do not put your finger beyy
tween the screen and the
base (chassis) when adjusting the screen's height.
NOTE
Using the Kensington lock is optional. The
yy
accessories can be purchased at your local
electronics store.
ENG
ENGLISH
1 Place the monitor mounted on the stand base
9
10
ASSEMBLING AND PREPARING
Using the Pivot function
ENGLISH
ENG
The pivot function allows you to rotate the screen
90 degrees clockwise.
1 Lift the monitor to its highest height to utilize
the Pivot function.
2 Landscape & Portrait : You can rotate the panel
90° clockwise. Please be cautious and avoid
contact between the monitor head and the
Stand Base when rotating the screen to access
the Pivot function. If the monitor head touches
the Stand Base, then the Stand Base could
crack.
Head
section
Stand
section
3 Be careful with the cables when rotating the
screen.
ASSEMBLING AND PREPARING
Mounting on a wall
Model
20M35PH
VESA (A x B)
100 x 100
Standard screw
M4
Number of screws 4
CAUTION
100 mm
100 mm
100 mm
100 mm
If you intend to mount the Monitor set to a wall,
attach Wall mounting interface (optional parts) to
the back of the set.
When you install the Monitor set using a wall
mounting interface (optional parts), attach it
carefully so it will not drop.
1 Please, Use the screw and wall mount interface
in accordance with VESA Standards.
2 If you use screw longer than standard, the
monitor might be damaged internally.
3 If you use improper screw, the product might be
damaged and drop from mounted position. In
this case, LG Electronics is not responsible for
it.
4 VESA compatible.
5 Please use VESA standard as below.
784.8 mm (30.9 inch) and under
yy
* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x
Length 10 mm
787.4 mm (31.0 inch) and above
yy
* Please use VESA standard wall mount pad
and screws.
Disconnect the power cord first, and then
yy
move or install the Monitor set. Otherwise
electric shock may occur.
If you install the Monitor set on a ceiling or
yy
slanted wall, it may fall and result in severe
injury.
Use only an authorized LG wall mount
yy
and contact the local dealer or qualified
personnel.
Do not over tighten the screws as this may
yy
cause damage to the Monitor set and void
your warranty.
Use only screws and wall mounts that
yy
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
NOTE
Use the screws that are listed on the VESA
yy
standard screw specifications.
The wall mount kit will include an installation
yy
manual and necessary parts.
The wall mount bracket is optional. You can
yy
obtain additional accessories from your local
dealer.
The length of screws may differ depending
yy
on the wall mount. Be sure to use the proper
length.
For more information, refer to the
yy
instructions supplied with the wall mount.
ENG
ENGLISH
For proper ventilation, allow a clearance of 100
mm on each side and from the wall. Detailed
instructions are available from your dealer, see the
optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
11
12
USING THE MONITOR SET
USING THE MONITOR SET
ENGLISH
ENG
Connecting to a PC
Your Monitor set supports Plug & Play*.
yy
*Plug & Play: A PC recognizes a connected
device that users connect to a PC and turn
on, without device configuration or user
intervention.
HDMI connection
Transmits the digital video and audio signals from
your PC to the Monitor set. Connect the PC and
the Monitor set with the HDMI cable as shown in
the following illustrations.
D-SUB connection
Transmits analog video from your PC to the
Monitor set. Connect the PC and the Monitor set
with the supplied D-sub 15 pin signal cable as
shown in the following illustrations.
NOTE
NOTE
When using a D-Sub signal input cable
yy
connector for Macintosh
If you use HDMI PC, it can cause compatibility
yy
problem.
When you want to use two PC in our Monitor,
yy
please connect the signal cable(D-SUB/
HDMI) respectively in Monitor set.
If you turn the Monitor set on while it is cold,
yy
the screen may flicker. This is normal.
Some red, green, or blue spots may appear
yy
on the screen. This is normal.
CAUTION
Mac adapter
yy
For Apple Macintosh use, a separate plug
adapter is needed to change the 15 pin
high density (3 row) D-SUB VGA connector
on the supplied cable to a 15 pin 2 row
connector.
Connect the signal
yy
input cable and tighten
it by turning the screws
clockwise.
Do not press the screen
yy
with your finger for a long time as this may
result in temporary distortion on the screen.
Avoid displaying a fixed image on the
yy
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
USING THE MONITOR SET
Connecting to AV Devices
Transmits the digital video and audio signals from
your AV devices to the monitor. Connect your AV
device to the monitor with the HDMI cable as illustrated below.
Self Image Setting Function
Press the power button on the bottom panel to
turn the power on. When monitor power is turned
on, the "Self Image Setting" Function is executed
automatically. (Only supported in Analog Mode)
NOTE
NOTE
Using a DVI to HDMI cable may cause comyy
patibility issues.
"Self Image Setting" Function.
yy
This function provides the user with optimal
display settings.When the user connects
the monitor for the first time, this function
automatically adjusts the display to optimal
settings for individual input signals.(Only
supported in Analog Mode)
‘AUTO’ Function.
yy
When you encounter problems such as
blurry screen, blurred letters, screen flicker
or tilted screen while using the device or
after changing screen resolution, press the
AUTO function button to improve resolution.
(Only supported in Analog Mode)
ENG
ENGLISH
HDMI connection
13
14
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
ENGLISH
ENG
1 Press the desired button on the bottom of the Monitor set.
2 Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.
To return to the upper menu or set other menu items, use the up arrow (
) button.
3 Select EXIT to leave the OSD menu.
Monitor set Buttons
Button
Description
Accesses the main menus.(See p.15)
OSD Locked/OSD
Unlocked
This function allow you to lock the current control settings, so
that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds. Then
OSD of “OSD Lock” will appear. After that, user can select
lock or unlock by pressing left/right button.
If user selects the “Lock” icon by pressing the “OK” button,
the message “OSD Locked” will appear. Otherwise, “OSD
Unlocked” will appear. After selecting the “Lock”, If you want
to change to Unlock, you can push the “MENU” button for
several seconds. The message “OSD Unlocked” will appear.
Use this button to enter Reader Mode menu. Its function works to display screen as
paper-like picture for Eye comfort.If you want to more information.(See p.18)
Use this button to enter SMART ENERGY SAVING menu.(See p.18)
When adjusting your display settings, always press the AUTO button on the MONITOR
SETUP OSD. (Only supported in Analog Mode)
The best display mode 1600 x 900
You can choose the input signal.
• When two input signals are connected, you can select the input signal (D-SUB/HDMI)
you want.
• When only one signal is connected, it is automatically detected. The default setting is
D-SUB.
EXIT
Exit the OSD(On Screen Display).
(Power Button)
Turns the power on or off.
Power Indicator
The power indicator stays white if the display is running
properly (On Mode). If the display is in Sleep Mode, the power
indicator blinks white.
CUSTOMIZING SETTINGS
15
Customizing Settings
1 Press MENU button on the bottom of the Monitor set to display the Menu OSD.
2 Set the options by pressing the ◄ or ► or ▼ buttons.
3 Select the "Next Menu" button to enter the more option settings.
4 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items, use the up arrow (
) button.
Each option is explained below.
Analog
HDMI
Brightness
Menu
●
●
To adjust the brightness of the screen
Contrast
●
●
To adjust the contrast of the screen.
Wide/Original
Description
Wide
Switch to full screen mode according to input image signal.
●
●
Original
Change the input image signal ratio to original.
* This function works only if input resolution is lower than Monitor set ratio (16:9).
Reset
●
Menu > Next Menu
Color
Restore all factory default settings. Press the◄ , ►buttons to reset immediately.
Analog
HDMI
●
●
To adjust the clearness of the screen
Black Level
●
To set offset level
Overscan
●
To improve the clarity and stability of the screen
●
To customize the color of the screen
Sharpness
Gamma
Color Temp
Display Horizontal
Vertical
Clock
Phase
Others
●
Language
Power Indicator
Automatic
Standby
●
Description
●
To adjust the position of the screen
●
To improve the clarity and stability of the screen
●
●
●
●
Analog: D-SUB(Analog signal) input.
yy
HDMI: HDMI(Digital signal) input.
yy
To customize the screen status for a user's operating
environment
ENG
ENGLISH
Menu Settings
16
CUSTOMIZING SETTINGS
ENGLISH
ENG
1 Press MENU button on the bottom of the Monitor set to display the Menu OSD.
2 Select the "Next Menu" button to enter the more option settings.
3 Enter to Picture by pressing the ▼ button.
4 Set the options by pressing the ◄ or ► buttons.
5 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items, use the up arrow (
) button.
Each option is explained below.
Menu > Next Menu > Picture
Description
Sharpness
To adjust the clearness of the screen.
Black Level
You can set the offset level. If you select 'High', the screen will be bright and if
you select ‘Low’, the screen will be dark.(only for HDMI input)
* Offset?As the criteria for video signal, it is the darkest screen the monitor can
show.
Overscan
To select the range of output image for DTV timing in HDMI input.(only for HDMI
input)Recommend overscan function to turn on when connect AV equipment.
Color
1 Press MENU button on the bottom of the Monitor set to display the Menu OSD.
2 Select the "Next Menu" button to enter the more option settings.
3 Select Color by pressing the ► button.
4 Enter to Color by pressing the ▼ button.
5 Set the options by pressing the ◄ or ► or ▼ buttons.
6 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items, use the up arrow (
) button.
Each option is explained below.
Menu > Next Menu > Color
Description
Gamma
Set your own gamma value. : Gamma 0, Gamma 1, Gamma 2 on the
monitor, high gamma values display whitish images and low gamma values
display blackish images.
Color Temp
Custom
• Red:Set your own red color levels.
• Green: Set your own green color levels.
• Blue:Set your own blue color levels.
Select the screen color.
Warm: Set the screen to warm color temperature (more red).
Medium: Set the screen to medium color temperature.
Cool: Set the screen to cool color temperature (more blue).
CUSTOMIZING SETTINGS
17
Display
2 Select the "Next Menu" button to enter the more option settings.
3 Select Display by pressing the ► button.
4 Enter to Display by pressing the ▼ button.
5 Set the options by pressing the ◄ or ► or ▼ buttons.
6 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items, use the up arrow (
) button.
Each option is explained below.
Menu > Next Menu > Display
Description
Horizontal
To move image left and right.
Vertical
To move image up and down.
Clock
To minimize any vertical bars or stripes visible on the screen background.The
horizontal screen size will also change.
Phase
To adjust the focus of the display. This item allows you to remove any horizontal
noise and clear or sharpen the image of characters.
Others
1 Press MENU button on the bottom of the Monitor set to display the Menu OSD.
2 Select the "Next Menu" button to enter the more option settings.
3 Select Others by pressing the ► button.
4 Enter to Others by pressing the ▼ button.
5 Set the options by pressing the ◄ or ► or ▼ buttons.
6 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items, use the up arrow (
Each option is explained below.
Menu > Next Menu > Others
) button.
Description
Language
To choose the language in which the control names are displayed.
Power Indicator
Use this function to set the power indicator on the bottom side of the monitor to
On or Off.If you set Off, it will go off.
If you set On at any time, the power indicator will automatically be turned on.
Automatic Standby
If you do not press any button on the monitor set for a certain period, the monitor
set will automatically switch to standby mode.
ENG
ENGLISH
1 Press MENU button on the bottom of the Monitor set to display the Menu OSD.
18
CUSTOMIZING SETTINGS
READER Setting
ENGLISH
ENG
1 Press READER button on the bottom of the Monitor set to display the Reader Mode OSD.
2 Set the options by pressing the ◄ buttons.
Each option is explained below.
Reader Mode
Description
Reader 1
It is a mode that the screen is adjusted to the best for the newspaper. If you
want screen more bright, you can control brightness in Menu OSD.
Reader 2
It is a mode that the screen is adjusted to the best for the cartoon. If you want
screen more bright, you can control brightness in Menu OSD.
Reader Off
It is a mode that reader mode is off.
NOTE
If option of Reader Mode is Reader 1 or Reader 2, SMART ENERGY SAVING will automatically be Off.
SMART ENERGY SAVING
1 Press
button on the bottom of the Monitor set to display the SMART ENERGY SAVING OSD.
2 Set the options by pressing the ► buttons.
Each option is explained below.
SMART ENERGY SAVING
Description
High
Enables SMART ENERGY SAVING you can save energy with this energy- high efficient function.
Low
Enables SMART ENERGY SAVING you can save energy with this energy- low efficient function.
Off
Disables SMART ENERGY SAVING.
* SMART ENERGY SAVING: Conserve energy by using luminance compensation algorithm.
NOTE
Saving Data depends on the Panel. So,those values should be different from each panel and panel
yy
vendor.If option of SMART ENERGY SAVING is High or Low, monitor luminance become higher or
lower depend on source.
If option of SMART ENERGY SAVING is High or Low, Reader Mode will automatically be Reader Off.
yy
TROUBLESHOOTING
19
Check the following before calling for service.
No image appears
Is the power cord of the display
connected?
Is the power indicator light on?
Is the power on and the power
indicator White?
Is the power indicator flickering?
Do you see an "OUT OF RANGE"
message on the screen?
Do you see a "NO SIGNAL"
message on the screen?
yy Check and see if the power cord is connected properly to the power
outlet.
yy Press the Power button.
yy Adjust the brightness and the contrast.
yy If the display is in power saving mode, try moving the mouse or
pressing any key on the keyboard to bring up the screen.
yy Try to turn on the PC.
yy This message appears when the signal from the PC (video card) is
out of horizontal or vertical frequency range of the display. See the
'Specifications' section of this manual and configure your display
again.
yy When the monitor is on "No-Signal" in 5 minutes, the monitor goes to
DPM mode.
Do you see a "OSD LOCKED" message on the screen?
Do you see “OSD LOCKED” when
you push MENU button?
yy You can secure the current control settings, so that they cannot be
inadvertently changed. You can unlock the OSD controls at any time
by pushing the MENU button for several seconds: the message “OSD
UNLOCKED” will appear.
Display image is incorrect
Display Position is incorrect.
On the screen background, vertical
bars or stripes are visible.
Any horizontal noise appearing in
any image or characters are not
clearly portrayed.
yy Press the AUTO button to automatically adjust your display image to
the ideal setting.
yy Press the AUTO button to automatically adjust your display image to
the ideal setting.
yy Press the AUTO button to automatically adjust your display image to
the ideal setting.
yy Check Control Panel ► Display ► Settings and adjust the display
to the recommended resolution or adjust the display image to the ideal
setting. Set the color setting higher than 24 bits (true color).
ENG
ENGLISH
TROUBLESHOOTING
20
TROUBLESHOOTING
CAUTION
ENGLISH
ENG
Check Control Panel ► Display ► Settings and see if the frequency or the resolution were
yy
changed. If yes, readjust the video card to the recommend resolution.
If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the
yy
screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
The setting method can differ by computer and O/S (Operation System), and resolution mentioned
yy
above may not be supported by the video card performance. In this case, please ask to the computer
or the video card manufacturer.
Display image is incorrect
The screen color is mono or
abnormal.
yy Check if the signal cable is properly connected and use a screwdriver
to fasten if necessary.
yy Make sure the video card is properly inserted in the slot.
yy Set the color setting higher than 24 bits (true color) at Control Panel
► Settings.
The screen blinks.
yy Check if the screen is set to interlace mode and if yes, change it to the
recommend resolution.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display
driver?
yy Be sure to install the display driver from the display driver CD (or
diskette) that comes with your display. Or, you can also download the
driver from our web site: http://www.lg.com.
yy Make sure to check if the video card supports Plug&Play function.
The screen is flickering.
Did you select the recommended
resolution?
yy If the selected resolution is HDMI 1080i 60/50 Hz, the screen may
be flickering. Change the resolution to the recommended resolution
1080P.
SPECIFICATIONS
21
20M35PH
Display
Sync Input
Video Input
Resolution
Screen Type
49.4 cm (19.5 inch) Flat Panel Active matrix-TFT LCDAntiGlare coating
Visible diagonal size: 49.4 cm
Pixel Pitch
0.2712 mm x 0.2626 mm (Pixel Pitch)
Horizontal Frequency
30 kHz to 83 kHz (Automatic)
Vertical Frequency
Input Form
56 Hz to 75 Hz (D-SUB)
56 Hz to 61 Hz (HDMI)
Separate Sync.
Signal Input
15 pin D-SUB Connector/HDMI Connector
Input Form
RGB Analog (0.7 Vp-p/ 75 ohm),Digital
Max
D-SUB(Analog) : 1600 x 900 @ 60 Hz
Recommend
VESA 1600 x 900 @ 60 Hz
Plug & Play
DDC 2B(Analog,Digital)
Power
Consumption
On Mode : 13 W Typ. (ENERGY STAR® standard ) *
14.3 W Typ. ( Outgoing condition ) **
Sleep Mode ≤ 0.3 W
Off Mode ≤ 0.3 W
AC 100-240 V~ 50/60 Hz 1.0 A
Power Input
Dimensions
(Width x Height x
Depth)
With Stand
463 mm X 438 mm X 224 mm
Without Stand
463 mm X 283 mm X 60 mm
Weight
3.3 kg
Tilt Range
-5° to 20°
Environmental
conditions
Operating Temperature 10°C to 35 °C
Operating Humidity
10 % to 80 %
Storage Temperature
Storage Humidity
Stand Base
Attached (
Power cord
Wall-outlet type
-20°C to 60 °C
5 % to 90 % non-Condensing
), Detached (O)
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR® test standard.
** The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum
resolution)
ENG
ENGLISH
SPECIFICATIONS
22
SPECIFICATIONS
Preset Modes (Resolution)
ENGLISH
ENG
20M35PH
Display Modes (Resolution)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
Polarity(H/V)
720 x 400
31.468
70
-/+
640 x 480
31.469
60
-/-
640 x 480
37.500
75
-/-
800 x 600
37.879
60
+/+
800 x 600
46.875
75
+/+
1024 x 768
48.363
60
-/-
1024 x 768
60.023
75
+/+
1152 x 864
67.500
75
+/+
1600 x 900
60.000
60
+/+
Recommend Mode
HDMI Timing
Factory support mode
(Preset Mode)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
480P
31.50
60
O
576P
31.25
50
O
720P
37.50
50
O
720P
45.00
60
O
Indicator
Mode
LED Color
On Mode
White
Sleep Mode
Blinking White
Off Mode
Off
HDMI
Make sure to read the Safety Precautions before
using the product.
Keep the Owner’s Manual (CD) in an accessible
place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
ENERGY STAR® is a set of power-saving
guidelines issued by the U.S.Environmental
Protection Agency (EPA).
As an ENERGY STAR® Partner LGE U. S.
A., Inc. has determined that this product
meets the ENERGY STAR® guidelines for
energy efficiency.
Refer to ENERGYSTAR.gov for more information on the
ENERGY STAR® program.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
