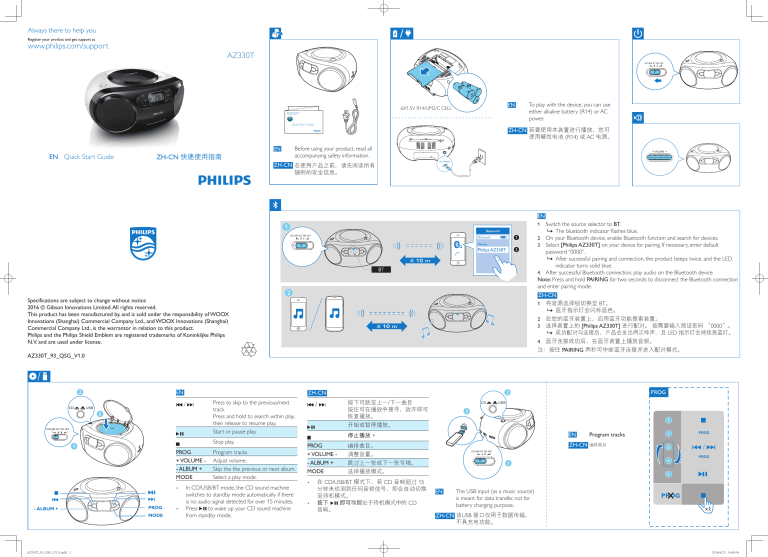

Philips AZ330T/93 Quick start guide

Philips AZ330T/93 Quick start guide
www.philips.com/support
AZ330T
Question?
Contact
Philips
CD/USB BT FM OFF
EN To play with the device, you can use
either alkaline battery (R14) or AC
power.
6X1.5V R14/UM2/C CELL
Always there to help you
Register your product and get support at
www.philips.com/support
Question?
Contact
Philips
Quick Start Guide
EN Quick Start Guide
ZH-CN 快速使用指南
ZH-CN 若要使用本装置进行播放,您可
使用碱性电池 (R14) 或 AC 电源。
EN Before using your product, read all
accompanying safety information.
ZH-CN 在使用产品之前,请先阅读所有
随附的安全信息。
AC~MAINS
EN
Switch the source selector to BT.
» The bluetooth indicator flashes blue.
2 On your Bluetooth device, enable Bluetooth function and search for devices.
3 Select [Philips AZ330T] on your device for pairing. If necessary, enter default
password “0000”.
» After successful pairing and connection, the product beeps twice, and the LED
indicator turns solid blue.
4 After successful Bluetooth connection, play audio on the Bluetooth device.
Note: Press and hold PAIRING for two seconds to disconnect the Bluetooth connection
and enter pairing mode.
1
CD/USB BT FM OFF
Philips AZ330T
ZH-CN
1 将音源选择钮切换至 BT。
» 蓝牙指示灯会闪烁蓝色。
2 在您的蓝牙装置上,启用蓝牙功能搜索装置。
3 选择装置上的 [Philips AZ330T] 进行配对。 按需要输入预设密码 “0000”。
» 成功配对与连接后,产品会发出两次哔声,且 LED 指示灯会持续亮蓝灯。
4 蓝牙连接成功后,在蓝牙装置上播放音频。
注:按住 PAIRING 两秒可中断蓝牙连接并进入配对模式。
Specifications are subject to change without notice
2016 © Gibson Innovations Limited. All rights reserved.
This product has been manufactured by, and is sold under the responsibility of WOOX
Innovations (Shanghai) Commercial Company Ltd., and WOOX Innovations (Shanghai)
Commercial Company Ltd., is the warrantor in relation to this product.
Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips
N.V. and are used under license.
AZ330T_93_QSG_V1.0
EN CD
ZH-CN
Press to skip to the previous/next
track
Press and hold to search within play,
then release to resume play.
Start or pause play.
/
USB
CD/USB BT FM OFF
Stop play.
PROG
+ VOLUME - ALBUM +
MODE
•
- ALBUM +
PROG
MODE
AZ330T_93_QSG_V1.0.indd 1
•
Program tracks.
Adjust volume.
Skip the the previous or next album.
Select a play mode.
In CD/USB/BT mode, the CD sound machine
switches to standby mode automatically if there
is no audio signal detected for over 15 minutes.
Press
to wake up your CD sound machine
from standby mode.
/
按下可跳至上一/下一曲目
按住可在播放中搜寻,放开即可
恢复播放。
开始或暂停播放。
CD
USB
停止播放。
PROG
+ VOLUME - ALBUM +
MODE
•
•
编排曲目。
调整音量。
跳过上一张或下一张专辑。
选择播放模式。
在 CD/USB/BT 模式下,若 CD 音响超过 15
分钟未侦测到任何音频信号,即会自动切换
至待机模式。
按下
即可唤醒处于待机模式中的 CD
音响。
EN
Program tracks
ZH-CN
编排曲目
PROG
CD/USB BT FM OFF
PROG
The USB input (as a music source)
EN is meant for data transfer, not for
battery charging purpose.
ZH-CN 该USB 接口仅用于数据传输,
不具充电功能。
2016/6/23 14:40:04
AZ330T_93_QSG_V1.0.indd 2
环保使用期限 Environmental Protection Use Period
O
O
O
O
O
O
O
O
This logo refers to the period ( 10 years ) during which the hazardous substances in electronic and
electrical products will not leak or mutate so that the use of these [substances] will not result in
any severe environmental pollution, any bodily injury or damage to any assets.
不按此处说明的操作流程来使用控件或进
行调整可能导致危险的激光辐射或其它不
安全的操作。
这标志表示的期间(10年)是电子电气产品中有害物质在正常使用的条件下不会发生外泄或突变,
电子电气产品用户使用该电子电气产品不会对环境造成严重污染或对其人身、财产造成严重损害的
期限。
Any changes or modifications made to this
device that are not expressly approved by
•
used for this part is above the limit requirement in GB/T 26572.
Notice
注意
X: Indicates that this hazardous substance contained in at least one of the homogeneous materials
Use of controls or adjustments or performance
of procedures other than herein may result in
hazardous radiation exposure or other unsafe
operation.
•
切勿拆下本产品的外壳。
切勿将本装置放在其它电器设备上面。
切勿直视本装置内部的激光束。
×:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。
••
Rated output power (Amplifier): 2 X 2W
RMS≤10% THD
Acoustic frequency response: 125 Hz - 16K Hz
Speaker driver: 2 x 3”, 4Ω
Support disc type: CD-DA, CD-R, CDRW,
MP3-CD (8/12 cm)
Bluetooth version: V3.0 +EDR
Bluetooth supported profiles: HFP V1.6, A2DP
V1.2, AVRCP V1.4
•
part is below the limit requirement in GB/T 26572.
Caution
•
○:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。
O: Indicates that this hazardous substance contained in all of the homogeneous materials for this
警告
Specifications
EN To download the
full user manual, visit
www.philips.com/support.
ZH-CN 若要下载完整的使用手册,
请访问
www.philips.com/support。
•
The type plate is located on the bottom of the
apparatus.
本表格依据SJ/T 11364的规定编制。
The table is compiled according to SJ/T 11364.
••
•
O
Note
•
O
This symbol indicates that the apparatus has a
double insulation system.
附件
(电源线,连接线)
••
•
O
User Manual
Never remove the casing of this apparatus.
Never place this apparatus on other electrical
equipment.
Never look into the laser beam inside this
apparatus.
Class II equipment symbol
X
••
•
Accessories
(Cables)
••
This apparatus includes these labels:
O
Question?
Contact
Philips
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Gibson
Innovations is under license.
本装置具有以下标签:
O
www.philips.com/welcome
•
X
www.philips.com/support.
Register your product and get support at
•
PWBs
电路板组件
Warning
Always there to help you
PDF
•
O
•
The USB-IF Logos are trademarks of Universal
Serial Bus Implementers Forum, Inc.
Bluetooth®文字标记及标志为 Bluetooth SIG,
Inc. 的注册商标,Gibson Innovations 对这些
标记的使用均已获得授权。
O
•
•
额定输出功率(功放):2 X 2W RMS≤10% THD
声频响应:125 Hz - 16K Hz
扬声器驱动:2 x 3”, 4Ω
支持碟片类型:CD-DA, CD-R, CDRW,
MP3-CD (8/12 cm)
蓝牙版本:V3.0 +EDR
支持蓝牙规范:HFP V1.6, A2DP V1.2,
AVRCP V1.4
蓝牙频段 / 输出功率:2.400GHz ~
2.483GHz ISM 波段 / ≤ 4dBm (2 级)
USB(用于播放):A 型, USB Direct 2.0, 5V
/ 500mA, MSC 文件格式, FAT 16/32
MP3, 32-320 Kbps 及多种比特率
调谐器频率范围:FM 87.5-108MHz
AUX 输入电平:650mV RMS
电池:2 号电池 x 6
电源:交流电输入:220V~ 50 Hz
运行功耗:15W
电池模式下播放时间:使用碱性电池 CD
模式下大约 8 小时(CD 模式下播放音乐
@ 76dBA SPL)
ECO 待机功耗:< 0.5W
产品尺寸(宽 x 高 x 深):
主机 290 x 130 x 240 毫米
产品重量:主机 1.26 公斤
USB-IF 标志为 Universal Serial Bus
Implementers Forum, Inc. 的商标。
O
•
•
Loudspeakers
喇叭单元
•
•
O
•
•
O
AUDIO IN
阅读这些说明。
遵循所有说明。
不要堵塞任何通风口。 按照制造商的
说明进行安装。
不要在任何热源附近安装,如散热器、
蓄热器、炉具或其它发热设备(包括功
放器)。
防止电源线被踩踏或挤夹,特别是在插
头、电源插座和装置电源线出口位置。
仅使用制造商指定的附件/配件。
在雷电天气期间或长期不用的情况下,
请拔下本装置的电源插头。
所有维修均应由合格的维修人员来执
行。 本装置有任何损坏时,如电源线
或插头损坏,液体泼溅到或物体跌落到
装置上,装置淋雨或受潮,无法正常运
行,或者跌落,均需要进行维修。
电池使用注意事项 – 为防止电池泄漏
而造成人身伤害、财产损失或装置损
坏,请:
• 按照装置上标明的 + 极和 - 极,正
确安装所有电池。
• 请勿混合使用电池(旧电池与新电
池或碳电池与碱性电池,等等)。
• 若打算长期不用本装置,应取出电
池。
不可将电池(电池组或安装的电池)置
于高温环境,如阳光直射处、明火或类
似环境。
切勿将装置暴露在漏水或溅水环境下。
不要将任何危险源放在本装置上(例如
装有液体的物体、点燃的蜡烛)。
将电源插头或产品耦合器用作断开设备
时,该断开设备应可以随时使用。
•
O
CD/USB BT FM OFF
Trademark notice
安全事项
O
•
CD/USB
BT
FM
OFF
ZH-CN
O
•
型号铭牌位于本设备的底部。
规格
环境信息
为使包装尽量简化,已省去所有不必要
的包装材料。 包装材料分为三类:纸板
(盒)、纸浆(缓冲物)和聚乙烯(袋、
保护膜)。
本系统的所有材料均可回收和再利用(如
果由专业公司拆卸)。请遵守当地有关包
装材料、废电池和旧设备的处理的规定。
O
•
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
paper pulp (buffer) and polyethylene (bags,
protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
本产品采用可回收利用的高性能材料和组
件制造而成。
弃置产品时,请不要将其与一般生活垃圾
一同丢弃,应将其交给政府指定的回收中
心或回收。这样做有利于环保。
Housing
外壳
•
•
多溴二苯醚
(PBDE)
CD/USB BT FM OFF
注
多溴联苯
(PBB)
•
弃置旧产品
六价铬(Chromium
(VI))
•
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Do not throw away the product with the
normal household waste at the end of its life,
but hand it in at an official collection point or
recycling. By doing this, you help to preserve
the environment.
此符号表示本装置具有双层绝缘系统。
保护环境
镉 (Cd,
cadmium)
•
汞 (Hg,
Mercury)
•
Disposal of your old product
93_version
Read these instructions.
Follow all instructions.
Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.
Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the unit.
Only use attachments/accessories specified
by the manufacturer.
Unplug this unit during lightning storms or
when unused for long periods of time.
Refer all servicing to qualified service
personnel. Servicing is required when the
unit has been damaged in any way, such
as power-supply cord or plug is damaged,
liquid has been spilled or objects have
fallen into the apparatus, the unit has been
exposed to rain or moisture, does not
operate normally, or has been dropped.
Battery usage CAUTION – To prevent
battery leakage which may result in bodily
injury, property damage, or damage to the
unit:
• Install all batteries correctly, + and - as
marked on the unit.
• Do not mix batteries (old and new or
carbon and alkaline, etc.).
• Remove batteries when the unit is not
used for a long time.
Batteries (battery pack or batteries
installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
CAUTION: Danger of explosion if battery
is incorrectly replaced. Replace only with
the same or equivalent type.
The unit shall not be exposed to dripping
or splashing.
Do not place any sources of danger on
the unit (e.g. liquid filled objects, lighted
candles).
Where the MAINS plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
•
如果用户未经 Gibson Innovations 的明确许
可而擅自对此设备进行更改或修改,则可
能导致其无权操作此设备。
铅 (Pb,
Lead)
Care of the environment
II 类设备符号
注意
部件名称
Name of the Parts
Safety
Bluetooth frequency band / Output power:
2.400GHz ~ 2.483GHz ISM Band / ≤ 4dBm
(Class 2)
USB (for playback): Type A, USB Direct 2.0, 5V /
500mA, MSC file format, FAT 16/32
MP3, 32-320 Kbps and Variable bit rate
Tuner frequency range: FM 87.5-108MHz
AUX input level: 650mV RMS
Battery: C size Cell x 6
Power: AC Input: 220V~ 50 Hz
Operation power consumption: 15W
Play time in battery mode: Approx. 8 hours,
CD-mode, Akaline batteries (when playing
music in CD mode @ 76dBA SPL)
ECO standby power consumption: < 0.5W
Product dimensions (W x H x D): Main unit
290 x 130 x 240 mm
Product weight: Main unit 1.26kg
有害物质
Hazardous Substances
Gibson Innovations may void the user’s
authority to operate the equipment.
产品中有害物质的名称及含量
Names and Contents of Hazardous Substances
EN
2016/6/23 14:40:07
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
