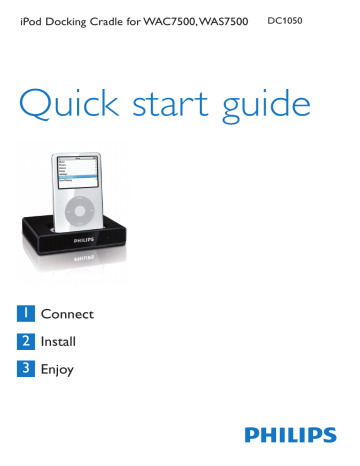

iPod Docking Cradle for WAC7500, WAS7500
DC1050
Quick start guide
1 Connect
2 Install
3 Enjoy
What’s in the box
iPod Docking Cradle for WAC7500, WAS7500
'&
Quick start guide
1 Install
2 Connect
3 Enjoy
Docking cradle with
fixed cable
RCA extension cable
8x iPod dock adapter
Quick start guide
Important! For indoor use only!
What else you’ll need.
or
WAC7500
WAS7500
iPod
Important!
Only connect one of the following supported devices:
Apple iPod (iPod video, iPod nano, iPod Photo, iPod mini)
1 Connect
Connect the cable of the iPod docking cradle with the Music Center or Music Station (RCA
red & white plugs to red & white Audio IN jacks, DC 9-pins DIN plug to 9-pins DIN jack):
en
2 Install
1 Insert a dock adapter that fits your iPod 2 Plug your portable player into the
portable player.
cradle.
Uninstall
1 Dismount the iPod.
2 Pop up the dock adapter.
3 Enjoy
When the connection is established and the iPod is connected, turn on the Music Center or
Station.
Press HOME and select [Portable] > [iPod].
Use the remote control of the Center or Station to control the following iPod functions:
Navigation, Volume, Skip/Search, Play/Pause, Repeat, Shuffle.
Play
Press 2; to play.
During play, press 2; to toggle between play and pause.
Adjust volume
Press Volume +/- to increase/decrease the volume.
Skip to previous/next track
Press J( to skip to the previous track.
Press )K to skip to the next track.
You can also use the navigation control 1 234 to navigate the iPod menu and select a track.
Charge
When the iPod is connected to the docking cradle and the Music Center or Station is turned
on, the battery of the iPod charges automatically.
Troubleshooting
No sound
Check if the cable is well connected.
No response from the remote Point the remote control directly towards the Music Center or
control
Station.
Check that the batteries inside the remote control are correctly
inserted and fresh.
Only the buttons Volume +/-, Skip/Search, and Play/Pause are
effective.
Sound adjustment impossible Check if the cable is well connected.
Specifications
RCA red/white audio OUT plus 9-pins DIN: 3.5 mm (fixed cable)
Specifications are subject to change without notice.
Trademarks are the property of
Koninklijke Philips Electronics N.V. or their respective owners
© 2008 Koninklijke Philips Electronics N.V.
All rights reserved.
Printed in China
wk8221
