Hoover BHBF 172 UKT User manual

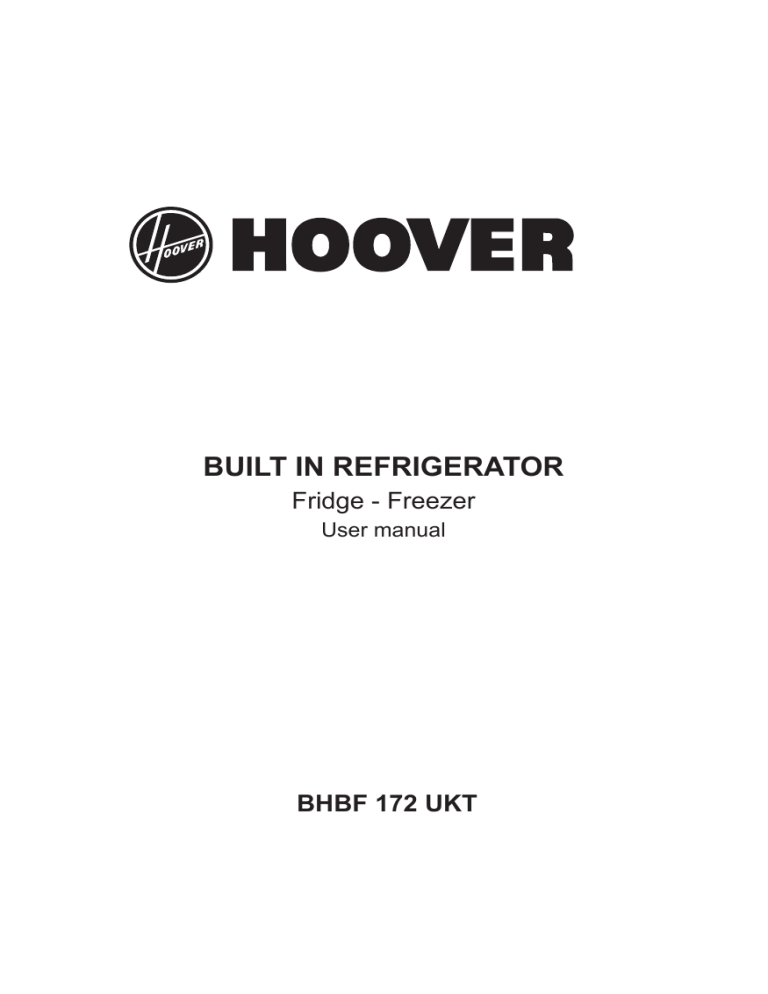

BUILT IN REFRIGERATOR
Fridge - Freezer
User manual
BHBF 172 UKT
Thank you for choosing this product.
This user manual contains important information on safety and instructions intended to
assist you in the operation and maintenance of your appliance.
Please take the time to read this user manual before using your appliance and keep this
book for future reference.
Icon
Type
Meaning
WARNING
Serious injury or death risk
RISK OF ELECTRIC SHOCK
Dangerous voltage risk
FIRE
Fire risk
CAUTION
Injury or property damage risk
IMPORTANT
Operating the system correctly
CONTENTS
1. SAFETY INSTRUCTIONS............................................................................... 2
1.1. General Safety Warnings...............................................................................................2
1.2. Installation Warnings......................................................................................................5
1.3. During Usage.................................................................................................................6
2. DESCRIPTION OF THE APPLIANCE............................................................ 7
3. USING THE APPLIANCE................................................................................ 7
3.1. Information about The New Generation Cooling Technology.........................................7
3.2. Control panel..................................................................................................................8
3.2.1. Fridge partition temperature setting button.................................................................8
3.2.2. Alarm light....................................................................................................................8
3.2.3. Super Cooling Mode....................................................................................................8
3.2.4. Temperature Settings..................................................................................................8
3.3. Warnings for Temperature Settings................................................................................8
3.4. Accessories....................................................................................................................9
3.4.1. Ice Tray........................................................................................................................9
3.4.2. Bottle holder (In some models)...................................................................................9
3.4.3. Fresh dial ....................................................................................................................9
3.4.4. Adjustable Door Shelf..................................................................................................9
4. FOOD STORAGE GUIDANCE...................................................................... 10
4.1. Refrigerator Compartment............................................................................................10
4.2. Freezer Compartment..................................................................................................10
5. CLEANING AND MAINTENANCE................................................................ 13
5.1. Defrosting.....................................................................................................................13
5.2. Replacing LED Lighting................................................................................................13
6. SHIPMENT AND REPOSITIONING.............................................................. 13
6.1. Transportation and Changing of Installation Position...................................................13
7. TROUBLESHOOTING................................................................................... 14
8. ENERGY SAVING.......................................................................................... 15
8.1. Scrappıng Old Applıances............................................................................................15
EN - 1
1. SAFETY INSTRUCTIONS
Thank you for purchasing this product.
Before using your refrigerator, please carefully read this instruction manual in order
to maximize its performance. Store all documentation for subsequent use or for other
owners.
This appliance must be used only for purposes of storage of food, any other use is
considered dangerous and the manufacturer will not be responsible for any omissions.
Also, it is recommended that you take note of the warranty conditions.
1.1. General Safety Warnings
Read this user manual carefully.
WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of
the type recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: To avoid a hazard due to the instability of
the appliance, it must be fixed in accordance with the
instructions.
If your appliance uses R600a as a refrigerant – you can
learn this information from the label on the cooler- you should
be careful during shipment and installation to prevent your
appliance’s cooler elements from being damaged. Although
R600a is an environmentally friendly and natural gas. As
it is explosive, in the event of a leak due to damage to the
cooler elements, move your fridge freezer from open flame or
heat sources and ventilate the room where the appliance is
located for a few minutes.
• While carrying and positioning the fridge freezer, do not
damage the cooler gas circuit.
EN - 2
• Do not store explosive substances such as aerosol cans with
a flammable propellant in this appliance.
• This appliance is intended to be used in household and
similar applications such as;
––staff kitchen areas in shops, offices and other working
environments
––farm houses and by clients in hotels, motels and other
residential type environments
––bed and breakfast type environments
––catering and similar non-retail applications
• If the socket does not match the fridge freezer plug, it must
be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power
cable of your fridge freezer. This plug should be used with
a specially grounded socket of 16 amperes. If there is no
such socket in your house, please have it installed by an
authorized electrician.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazard involved. Children shall not play with the appliance.
Cleaning and user maintenance, shall not be made by
children without supervision.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similar qualified persons in
order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding
2000 m.
• The refrigerator contains a refrigerant gas (R600a: isobutane)
EN - 3
and insulating gas (cyclo/isopentane), with high compatibility
with the environment, that are, however, infl ammable.
• We recommend that you follow the following regulations so
as to avoid situations dangerous to you:
• Before performing any operation, unplug the power cord from
the power socket.
• The refrigeration system positioned behind and inside the
Wine Coolers contains refrigerant. Therefore, avoid damaging
the tubes.
• If in the refrigeration system a leak is noted, do not touch the
wall outlet and do not use open flames. Open the window
and let air into the room. Then call a service centre to ask for
repair.
• Do not scrape with a knife or sharp object to remove frost
or ice that occurs. With these, the refrigerant circuit can be
damaged, the spill from which can cause a fire or damage
your eyes.
• Do not install the appliance in humid, oily or dusty places, nor
expose it to direct sunlight and to water.
• Do not install the appliance near heaters or inflammable
materials.
• Do not use extension cords or adapters.
• Do not excessively pull or fold the power cord or touch the
plug with wet hands.
• Do not damage the plug and/or the power cord; this could
cause electrical shocks or fires.
• It is recommended to keep the plug clean, any excessive dust
residues on the plug can be the cause fire.
• Absolutely avoid the use of open flame or electrical
equipment, such as heaters, steam cleaners, candles, oil
lamps and the like in order to speed up the defrosting phase.
• Do not store medicine or research materials in the Wine
EN - 4
Coolers. When the material that requires a strict control of
storage temperatures is to be stored, it is possible that it will
deteriorate or an uncontrolled reaction may occur that can
cause risks.
• Maintain the ventilation openings in the appliance enclosure
or in the built-in structure, free of obstruction.
• Do not place objects and/or containers filled with water on the
top of the appliance.
• Do not perform repairs on this Wine Coolers. All interventions
must be performed solely by qualified personnel.
1.2. Installation Warnings
Before using your fridge freezer, you should
pay attention to the following points:
• The operating voltage for your fridge
freezer is 220-240 V at 50Hz.
• Use the adjustable front legs to make
sure your appliance is level and stable.
You can adjust the legs by turning them
in either direction. This should be done
before placing food in the fridge freezer.
• We do not accept responsibility for any
damages that occur due to ungrounded
usage.
• Before using your fridge freezer, wipe all
parts with a solution of warm water and
a teaspoon of sodium bicarbonate, then
rinse with clean water and dry.
• Place your fridge freezer where it will not
be exposed to direct sunlight.
• Place all parts in the fridge freezer after
cleaning.
• Your appliance should be at least 50 cm
away from stoves, gas ovens and heater
cores, and at least 5 cm away from
electrical ovens.
• Install the plastic distance guide (the part
with black vanes at the rear) by turning it
90° (as shown in the figure) to prevent the
condenser from touching the wall.
• Your fridge freezer should never be used
outdoors or exposed to rain.
• The refrigerator should be placed against
a wall with a free space not exceeding 75
mm.
• When your fridge freezer is placed next
to a deep freezer, there should be at least
2 cm between them to prevent humidity
forming on the outer surface.
• Do not place anything on your fridge
freezer, and install your fridge freezer in
a suitable place so that at least 15 cm of
free space is available above it.
• The installation procedure into the kitchen
unit is given in the installation manual.
This product is intended to be used in
proper kitchen units only.
• Do not place heavy items on the
appliance.
• When using your fridge freezer for the first
time, or after transportation, keep it in an
upright position for at least 3 hours before
plugging into the mains. This allows
efficient operation and prevents damage
to the compressor.
• Your fridge freezer may have a smell
when it is operated for the
first time. This is normal
and the smell will fade
away when your fridge
freezer starts to cool.
EN - 5
1.3. During Usage
environment when you are discarding
your old fridges.
• Do not connect your fridge freezer to
the mains electricity supply using an
extension lead.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by
adults, do not allow hildren to play with
the appliance or let them hang off the
door.
• Never touch the power cord/plug with wet
hands as this could cause a short circuit
or electric shock.
• Do not place glass bottles or beverage
cans in the ice-making compartment as
they can burst as the contents freeze.
• Do not place explosive or flammable
material in your fridge freezer. Place
drinks with high alcohol content vertically
in the fridge compartment and make sure
that their tops are tightly closed.
• When removing ice from the ice-making
compartment, do not touch it. Ice may
cause frost burns and/or cuts.
• Do not touch frozen goods with wet
hands. Do not eat ice-cream or ice cubes
immediately after you have taken them
out of the ice-making compartment.
• Do not re-freeze frozen goods after they
have melted. This may cause health
issues such as food poisoning.
• Please ask your municipal authority about
the disposal of the WEEE reuse, recycle
and recovery purposes.
CE Declaration of conformity
• We declare that our products
meet the applicable European
Directives, Decisions
and Regulations and the
requirements listed in the
standards referenced.
Disposal of your old appliance
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it shall be handed over to the applicable
collection point for the recycling of electrical
and electronic equipment. By ensuring
this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local city offi ce, your
household waste disposal service or the
shop where you purchased the product.
Notes:
• Please read the instruction manual
carefully before installing and using your
appliance. We are not responsible for the
damage occurred due to misuse.
• Do not cover the body or top of fridge
freezer with lace. This affects the
performance of your fridge freezer.
• Follow all instructions on your appliance
and instruction manual, and keep this
manual in a safe place to resolve the
problems that may occur in the future.
• Secure any accessories in the fridge
freezer during transportation to prevent
damage to the accessories.
Old and out-of-order fridges or freezers
• If your old fridge has a lock, break or
remove the lock before discarding it,
because children may get trapped inside it
and may cause an accident.
• Old fridges and freezers may contain
isolation material and refrigerant with CFC
or HFC. Therefore, take care not to harm
• This appliance is produced to be used
in homes and it can only be used in
domestic environments and for the
specified purposes. It is not suitable for
commercial or common use. Such use will
cause the guarantee of the appliance to
be cancelled and our company will not be
responsible for losses incurred.
• This appliance is produced to be used
EN - 6
in houses and it is only suitable for
cooling / storing food. It is not suitable for
commercial or common use and/or for
storing substances except for food. Our
company is not responsible for losses to
be incurred in the contrary case.
2. DESCRIPTION OF THE
APPLIANCE
3. USING THE APPLIANCE
3.1. Information about The New
Generation Cooling Technology
1
2
13
The New Generation
Cooling Technology
refrigerators are different
from the other static
refrigerators in terms of
their operational system.
12
3
11
4
10
5
6
B
9
7
8
This presentation is only for information
about the parts of the appliance. Parts may
vary according to the appliance model.
A) Refrigerator compartment
B) Freezer compartment
1) Control panel
2) Turbo Fan
3) Refrigerator shelves
4) Crisper cover
5) Crisper
6) Freezer room cover
7) Freezer drawers
8) Ice tray
9) Freezer glass shelves
10) Bottle shelf
11) Door shelf / Adjustable door shelf *
12) Door shelvef
13) Egg holder
In normal fridge freezers,
the humidity entering
the fridge freezer
due to opening the
door and the humidity
inherent in the food
causes freezing in the
freezer compartment.
To defrost the frost
and ice in the freezer
compartment, you are
periodically required
to turn off the fridge
freezer, place the food
that needs to be kept
frozen in a separately cooled container
and remove the ice gathered in the freezer
compartment.
The situation is completely different in nofrost refrigerators. Dry and cold air is blown
into the fridge and freezer compartments
homogeneously and evenly from several
points via a blower fan. Cold air dispersed
homogeneously and evenly between the
shelves cools all of your food equally and
uniformly, thus preventing humidity and
freezing.
Therefore your New Generation Cooling
Technology fridge freezer allows you ease
of use, in addition to its huge capacity and
stylish appearance.
EN - 7
3.2. Control panel
3.2.4. Temperature Settings
• The initial temperature of the Setting
Display is middle temperature indicator.
3.2.1. Fridge partition temperature
setting button
Temperature
set button
Alarm
indicator led
• Press temperature set button once.
Temperature indicator
• If you press temperature set button until
super cooling symbol is displayed on your
fridge settings display and you do not
press any button within the following 3
seconds, Super cooling will blink.
Symbol of
Super Cooling Mode
This button allows setting temperature of
the fridge. In order to set values for fridge
partition, press this button. Use this button
also to activate Super Cooling mode.
• If you keep on pressing, it will restart from
last value.
3.2.2. Alarm light
In case of a problem within the fridge, the
alarm led will release red light
3.2.3. Super Cooling Mode
When would it be used?
• To cooling huge quantities of food.
• To cooling fast food.
It ensures that the temperature settings
in the cooling and freezing compartments
of your refrigerator are performed
automatically. It may be set to any value
ranging from MIN to MAX. As you press
temperature set button from MIN to MAX,
the temperature decreases. To save energy
in winter months, operate your refrigerator
in a lower position.
3.3. Warnings for Temperature Settings
• To cooling food quickly.
• Your temperature adjustments will not
be deleted when an energy breakdown
occurs.
• To store seasonal food for a long
time.
How to use?
• Press temperature set button until
super cooling light comes on.
• Super cooling led will light during
this mode.
• For optimal appliance
performance in maximum cooling
capacity, set the appliance to
active Super Cooling mode 5
hours before you put the fresh
food into the fridge.
During this mode:
If you press temperature set
button, the mode will be cancelled
and the setting will be restored
from MAX.
Note: “Super cooling” mode will be
automatically cancelled after 5 hours.
• Every time you press the button, the
setting temperature will decrease.
• Do not pass to another adjustment before
completing an adjustment.
• Temperature adjustments should be
made according to the frequency of door
openings, the quantity of food kept inside
the fridge and ambient temperature of the
place of your fridge.
• Your fridge should be operated up to
24 hours according to the ambient
temperature without interruption after
being plugged in to be completely cooled.
• Do not open doors of your fridge
frequently and do not place much food
inside it in this period.
• A 5 minute delaying function is applied
to prevent damage to the compressor of
your fridge, when you take the plug off
and then plug it on again to operate it or
when an energy breakdown occurs. Your
EN - 8
fridge will start to operate normally after 5
minutes.
• Your fridge is designed to operate in the
ambient temperature intervals stated in
the standards, according to the climate
class stated in the information label. We
do not recommend operating your fridge
out of stated temperatures value limits in
terms of cooling effectiveness.
3.4.3. Fresh dial
• This appliance is designed for use at an
ambient temperature within the 16°C 43°C range.
Climate class
T
Ambient temperature oC
Between 16 - 43 C
o
ST
Between 16 - 38 oC
N
Between 16 - 32 oC
SN
Between 10 - 32 oC
This will also help to prevent the noise
made by bottles when opening or closing
the door.
When the humidity controler in the closed
position, it allows fresh fruit and vegetables
to be stored longer.
In case of the crisper is totally full, the fresh
dial is located in front of crisper, should
be opened. By means of this the air in the
crisper and humidity rate will be controlled
and endurance life will be increased.
3.4. Accessories
If you see any condensation on glass shelf,
humidity control should be taken into the
open positions.
3.4.1. Ice Tray
3.4.4. Adjustable Door Shelf
Six different height
adjustments can be
made to provide storage
areas that you need by
adjustable door shelf.
To change the position of
adjustable door shelf ;
• Fill the ice tray with water and place in
freezer compartment.
• After the water completely turned into ice,
you can twist the tray as shown below to
get the ice cube.
3.4.2. Bottle holder (In some models)
In order to prevent bottles from slipping or
falling over, you can use the bottle holder.
Fig. 1
Hold the bottom of the shelf and pull
the buttons on the side of the door shelf
direction of arrow (Fig.1).
Position door shelf the
height you need by
moving up and down.
After you get the position
Fig. 2
that you want the door
shelf, release the buttons on the side of the
door shelf (Fig.2) Before releasing the door
shelf, move up down and make sure the
door shelf is fixed.
Note: Before moving door shelf is loaded,
you must hold the shelf by supporting the
bottom. Otherwise, door shelf could fall off
the rails due to the weight. So damage may
EN - 9
occur on the door shelf or rails.
for a long time and producing ice.
All written and visual descriptions in the
accessories may vary according to the
appliance model.
4. FOOD STORAGE GUIDANCE
4.1. Refrigerator Compartment
• Always make sure food is wrapped or
stored in closed containers.
• Hot food and drinks should be cooled to
room temperature before being placed in
the refrigerator.
• Please do not store packaged food and
cups against the lamp and cover of the
cooling compartment.
• Store fruit and vegetable items loose in
the crisper containers.
Maximum
Storing time
Where to place in
the
fridge compartment
Vegetables
and fruits
1 week
Vegetable bin
Meat and
fish
2 - 3 Days
Wrapped in plastic
foil or bags or in a
meat container
(on the glass shelf)
Fresh
cheese
3 - 4 Days
In special door shelf
Butter and
margarine
1 week
In special door shelf
Bottled
products
milk and
yoghurt
Until the
expiry date
recommended
by the
producer
In special door shelf
Eggs
1 month
In the egg shelf
Cooked
food
• You should freeze food (meat, minced
meat, fish, etc.) by dividing it into portions
in such a way that they can be consumed
in one sitting.
• Please do not refreeze frozen food once
it has thawed. It may pose a danger for
your health since it might cause food
poisoning.
• Do not place hot meals in the deep freeze
before they have cooled. You may cause
the other food frozen food in the deep
freeze to become putrefied.
Some recommendations have been
specified below for the placement and
storage of your food in the cooling
compartment.
Food
• Please place the food you would like to
freeze initially in the upper basket of the
deep freeze in such a way that it does not
exceed the declared freezing capacity of
your refrigerator. Please do not place the
food to be frozen near the already frozen
food. You may place your food next to the
other frozen food after it has frozen (for at
least 24 hours).
• When you buy frozen food, make sure
they were frozen under appropriate
conditions and that the package is not
torn.
• When storing frozen food, the storage
conditions on the package should be
observed. If there are no instructions, the
food has to be consumed in the shortest
possible period of time.
• Frozen food has to be transported before
it perishes and should be placed in the
fast freezing shelf as soon as possible.
Please do not use the door shelves for
freezing purposes.
• If a frozen food package has been
humidified and has a foul smell, the food
might have previously been stored under
suitable conditions and gone rotten.
Please do not buy such food!
All shelves
4.2. Freezer Compartment
• Please use the deep freeze compartment
of your refrigerator for storing frozen food
• The storage duration of frozen food
changes depending on the environmental
temperature, the frequent opening and
closing of the doors, thermostat settings,
food type and the length of time that
has elapsed from the time the food was
bought to the time it entered the freezer.
EN - 10
Always abide by the instructions on the
packaging and never exceed the storage
duration.
• During long lasting power cuts,
please do not open the door of the
deep freeze compartment. Your
refrigerator will preserve your frozen food
in an ambient temperature of 25°C for
about 13 hours. This value falls in higher
ambient temperatures. During longer
lasting power cuts, do not refreeze your
food and consume it as soon as possible.
Some recommendations have been
specified below for the placement and
storage of your food in the cooling
compartment.
Maximum Storing time
(month)
Meat and fish
Preparation
Steak
Wrapping in a foil
6-8
Lamb meat
Wrapping in a foil
6-8
Veal roast
Wrapping in a foil
6-8
Veal cubes
In small pieces
6-8
Lamb cubes
In pieces
4-8
Minced meat
In packages without using spices
1-3
Giblets (pieces)
In pieces
1-3
Bologna Sausage /Salami
Should be packaged even if it has
membrane
Chicken and turkey
Wrapping in a foil
4-6
Goose and Duck
Wrapping in a foil
4-6
Deer, Rabbit, Wild Boar
In 2.5 kg portions and as fillets
6-8
Freshwater fishes (Salmon, Carp, Crane,
Siluroidea)
Lean fish; bass, turbot, flounder
Fatty fishes (Tunny, Mackarel, bluefish,
anchovy)
After cleaning the bowels and scales of the
fish, wash and dry it; and if necessary, cut
the tail and head.
2
4
2-4
Shellfish
Cleaned and in bags
4-6
Caviar
In its package, aluminium or plastic
container
2-3
Snail
In salty water, aluminum or plastic
container
3
NOTE: Frozen meat should be cooked as fresh meat after being thawed. If the meat
is not cooked after being thawed, it should never be frozen again.
EN - 11
Vegetables and Fruits
Maximum Storing time
(months)
Preparation
String beans and beans
Wash and cut to small pieces and boil in
water
Beans
Hull and wash and boil in water
Cabbage
Cleaned and boil in water
Carrot
Clean and cut to slices and boil in water
Pepper
Cut the stem, cut into two pieces and
remove the core and boil in water
8 - 10
Spinach
Washed and boil in water
6-9
Cauliflower
Take the leaves apart, cut the heart into
pieces, and leave it in water with a little
lemon juice for a while
10 - 12
Eggplant
Cut to pieces of 2cm after washing
10 - 12
Corn
Clean and pack with its stem or as sweet
corn
Apple and pear
Peel and slice
Apricot and Peach
Cut into two pieces and remove the stone
4-6
Strawberry and Blackberry
Wash and hull
8 - 12
Cooked fruits
Adding 10 % of sugar in the container
Plum, cherry, sourberry
Wash and hull the stems
10 - 13
12
6-8
12
12
8 - 10
12
8 - 12
Maximum Storing time
(months)
Thawing time in room
temperature (hours)
Bread
4-6
2-3
4-5 (220-225 °C)
Biscuits
3-6
1 - 1,5
5-8 (190-200 °C)
Pastry
1-3
2-3
5-10 (200-225 °C)
1 - 1,5
3-4
5-8 (190-200 °C)
Phyllo dough
2-3
1 - 1,5
5-8 (190-200 °C)
Pizza
2-3
2-4
Preparation
Maximum Storing time
(months)
Packet
(Homogenize) Milk
In its own packet
2-3
Pure Milk – In its own packet
Cheese-excluding
white cheese
In slices
6-8
Original package may be used for
short storing period. It should be
wrapped in foil for longer periods.
Butter, margarine
In its package
6
Pie
Dairy Products
EN - 12
Thawing time in oven (minutes)
15-20 (200 °C)
Storing Conditions
5. CLEANING AND
MAINTENANCE
5.2. Replacing LED Lighting
1 or 2 led strips in fridge is used to
illumianate your appliance. Please call the
service man.
• Disconnect the unit from the power
supply before cleaning.
Note: Numbers and location of led strips
may be changed according to the model.
• Do not clean the appliance by
pouring water.
!!! Some versions may be without
illumination.
• Make sure that no water enters the lamp
housing and other electrical components.
• The appliance should be cleaned
periodically using a solution of
bicarbonate of soda and lukewarm water.
• Clean the accessories separately
with soap and water Do not clean
them in the dishwasher.
• Do not use abrasive products, detergents
or soaps. After washing, rinse with clean
water and dry carefully. When you have
finished cleaning, reconnect the plugto the
mains supply with dry hands.
• Clean the condenser with a broom at least
twice a year. This will help you to save on
energy costs and increase productivity.
THE POWER SUPPLY MUST BE
DISCONNECTED.
5.1. Defrosting
• You refrigerator has fully automatic
defrosting. The water formed as a result of
defrosting passes through
the water collection
spout, flows into the
vaporisation container
Evaporation
below the condenser and container
evaporates there.
Upper side LED strip
6. SHIPMENT AND
REPOSITIONING
6.1. Transportation and Changing of
Installation Position
• The original packages and foamed
polystyrene (PS) can be retained if
required.
• During transportation, the appliance
should be secured with a wide string or
a strong rope. The instructions written on
the corrugated box must be followed while
transporting.
• Before transporting or changing the
installation position, all the moving objects
(ie,shelves,crisper…) should be taken out
or fixed with bands in order to prevent
them from getting damaged.
Carry your freezer fridge in the upright
position.
EN - 13
7. TROUBLESHOOTING
Alarm indicator led is
turning on
ERROR TYPE
WHY
WHAT TO DO
"Failure
Warning"
There is/are some part(s)
Out of order or there is a
failure in cooling process
Check the door is open or not.
If the door is not open, call
service for assistance as soon as
possible.
If your fridge freezer is not working
properly, it may be a minor problem,
therefore check the following, before calling
an electrician to save time and money.
Compressor may cause more noise for a
short time when it is activated.
Bubbling noise and splash: This noise
is caused by the flow of the refrigerant in
the tubes of the system.
What to do if your appliance does not
operate;
Water flow noise: Normal flow noise
of water flowing to the evaporation
container during defrosting. This noise
can be heard during defrosting.
Check that;
• There is no power,
• The general switch in your home is
disconnected ,
• The socket is not sufficient. To check
this, plug in another appliance that you
know which is working into the same
socket.
If the edges of fridge cabinet that the
door joint contact are warm;
Especially in summer (hot weather),
the surfaces that the joint contact may
get warmer during the operation of the
compressor, this is normal.
What to do if your appliance performs
poorly;
Check that;
• You have not overloaded the appliance ,
If humidity builds up inside the fridge
freezer;
• The fridge temperature set to MAX.
• The door is closed perfectly ,
• Are all food packed properly? Are the
containers dried before placing them in
the fridge?
• There is no dust on the condenser ,
• There is enough place at the rear and
side walls.
• Are the fridge freezeer's doors opened
frequently? Humidity of the room gets
in the fridge when the door is opened.
Humidity build up will be faster when you
open the door more frequently, especially
if the humidity of the room is high.
If your fridge is operating too loudly;
Normal Noises
Cracking (Ice cracking) Noise:
• During automatic defrosting.
• When the appliance is cooled or
warmed (due to expansion of appliance
material).
Short cracking: Heard when the
thermostat switches the compressor on/
off.
Compressor noise: Normal motor
noise. This noise means that the
compressor operates normally
Air Blow Noise: Normal fan noise. This
noise can be heard in fridges during
normal operation of the system due to
the circulation of air.
If the doors are not opened and closed
properly;
• Do the food packages prevent closing of
the door?
• Are the door compartments, shelves and
drawers placed properly?
• Are door joints broken or torn?
• Is your fridge freezer on a level surface?
EN - 14
Recommendations
• To stop the appliance completely, unplug
from main socket (for cleaning and when
the door is left open)
8. ENERGY SAVING
• For better energy saving we suggest :
• Installing tge appliance away from heat
sources and not exposed to direct sunlight
and in a well ventilated roo.
• Avoid putting hot food into the
refrigerator to avoid increasing the
internal temperature and therefore
causing continuos functionaliting of the
compressor.
• Do not excessively stuff foods so as to
ensure proper air circulation.
treatments, in order to remove and dispose
properly all pollutants, and recover and
recycle all materials.
Individuals can play an important role in
ensuring that WEEE does not become an
environmental issue; it is essential to follow
some basic rules:
- WEEE should not be treated as
household waste;
- WEEE should be handed over to the
relevant collection points managed by the
municipality or by registered companies.
In many countries, for large WEEE, home
collection could be present.
• In case of absence of electrical energy, it
is advisable to keep the refrigerator door
closed.
In many countries, when you buy a new
appliance, the old one may be returned
to the retailer who has to collect it free of
charge on a one-to-one basis, as long as
the equipment is of equivalent type and
has the same functions as the supplied
equipment.
• Open or keep the doors of the appliance
open as little as possible
Conformity
• Defrost the appliance in case there is ice
to facilitate the transfer of cold.
• Avoid adjusting the setting to
temperatures too cold.
• Remeve dust present on the rear of the
appliance
8.1. Scrappıng Old Applıances
By placing the
mark on this
product, we are confirming compliance to
all relevant European safety, health and
environmental requirements which are
applicable in legislation for this product.
This appliance is marked according to
the European directive 2012/19/EU on
Waste Electrical and Electronic Equipment
(WEEE).
WEEE contains both polluting substances
(which can cause negative consequences
for the environment) and basic components
(which can be re-used). It is important
to have WEEE subjected to specific
EN - 15
ELECTRICAL CONNECTION (FOR UK TYPE PLUG)
For your safety please read the following information
Warning: This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in
the plug.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed
for any other reason, please follow the instructions below on how to wire a 13 amp 3 pin
plug..
GREEN/YELLOW
Earth
How to wire a 13 amp plug.
BROWN
Live
Important
The wires in the mains lead on this appliance are
coloured in accordance with the following code:
BLUE
Neutral
FUSE
13 Amps
Green and Yellow - Earth
Blue – Neutral
Cord Clamp
Brown – Live
As the colours may not correspond with the markings identifying the terminals in your plug
proceed as follows.
The green and yellow wire must be connected to the terminal in the plug which is marked
with the letter E or with the earth symbol
or coloured green and yellow.
The blue wire must be connected to the terminal marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the lead is firmly secured under the cord clamp.
EN - 16
EN - 17
52237144
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertising
