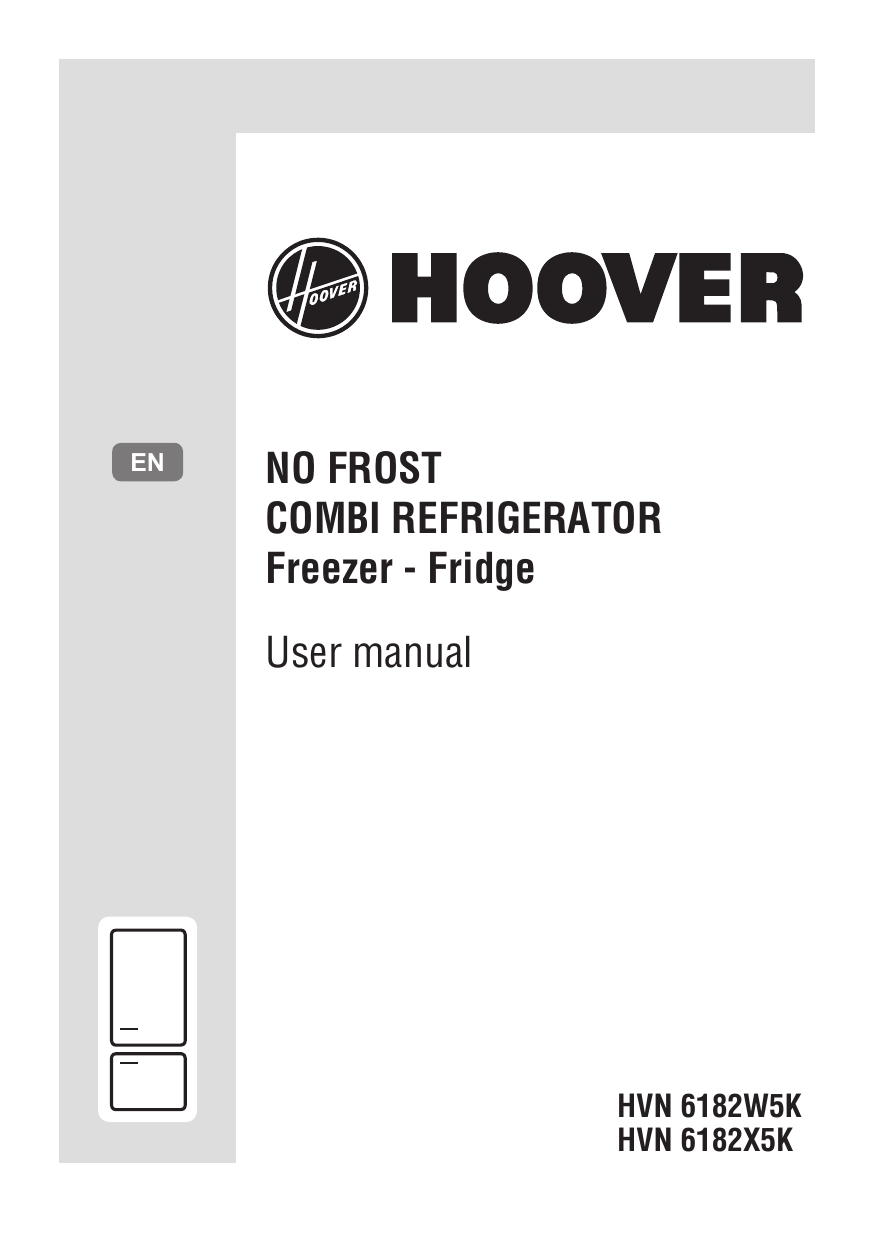

Hoover HVN 6182W5K User manual

EN
NO FROST
COMBI REFRIGERATOR
Freezer - Fridge
User manual
HVN 6182W5K
HVN 6182X5K
EN
2
Index
BEFORE USING THE APPLIANCE.................................. 3
General warnings...................................................................... 3
Safety warnings......................................................................... 7
Installing and operating your fridge........................................... 8
Before Using your Fridge........................................................... 9
Information about New Generation Cooling Technology.......... 10
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS........................................................... 11
THE VARIOUS FUNCTION AND POSSIBILITIES.......... 13
Display and control panel......................................................... 13
Operating your fridge................................................................ 13
Cooler temperature settings ................................................ 13
Super cool mode .................................................................. 14
Economy mode .................................................................... 14
Warnings about Temperature Adjustments............................... 14
Accessories.............................................................................. 15
Freezer box........................................................................... 15
Chiller Shelf.......................................................................... 16
Humidity Controler................................................................ 16
Adjustable Door Shelf........................................................... 17
Adjustable Glass Shelf.......................................................... 17
CLEANING AND MAINTENANCE................................... 18
Defrosting................................................................................. 19
ARRANGING FOOD IN THE APPLIANCE...................... 20
Refrigerator compartment......................................................... 20
Freezer compartment............................................................... 21
TRANSPORTATION AND CHANGING OF
INSTALLATION POSITION.............................................. 26
Repositioning the door.............................................................. 26
BEFORE CALLING YOUR AFTER SALES SERVICE.... 27
ENERGY SAVING............................................................ 30
BEFORE USING THE APPLIANCE
Thank you for purchasing this product.
Before using your refrigerator, please carefully read this instruction
manual in order to maximize its performance. Store all documentation
for subsequent use or for other owners.
This appliance must be used only for purposes of storage of food, any
other use is considered dangerous and the manufacturer will not be
responsible for any omissions. Also, it is recommended that you take
note of the warranty conditions.
General warnings
WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING: Do not use electrical appliances inside the
food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: In order to avoid any hazards resulting
from the instability of the appliance, it must be fixed in
accordance with the following instructions:
• If your appliance uses R600a as a refrigerant (this
information will be provided on the label of the
cooler) you should take care during transportation
and installation to prevent the cooler elements
from being damaged. R600a is an environmentally
friendly and natural gas, but it is explosive. In
the event of a leak due to damage of the cooler
elements, move your fridge away from open flames
or heat sources and ventilate the room where the
appliance is located for a few minutes.
EN
3
EN
4
BEFORE USING THE APPLIANCE
• While carrying and positioning the fridge, do not
damage the cooler gas circuit.
• Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household
and domestic applications such as:
-- staff kitchen areas in shops, offices and other
working environments.
-- farm houses and by clients in hotels, motels and
other residential type environments.
-- bed and breakfast type environments;
-- catering and similar non-retail applications.
• If the socket does not match the refrigerator plug,
it must be replaced by the manufacturer, a service
agent or similarly qualified persons in order to avoid
a hazard.
• A specially grounded plug has been connected
to the power cable of your refrigerator. This plug
should be used with a specially grounded socket
of 16 amperes. If there is no such socket in your
house, please have one installed by an authorised
electrician.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision.
BEFORE USING THE APPLIANCE
• If the supply cord is damaged, it must be replaced
by the manufacturer, an authorised service agent or
similar qualified persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes
exceeding 2000 m.
• The refrigerator contains a refrigerant gas (R600a:
isobutane) and insulating gas (cyclo/isopentane),
with high compatibility with the environment, that
are, however, infl ammable.
• We recommend that you follow the following
regulations so as to avoid situations dangerous to
you:
• Before performing any operation, unplug the power
cord from the power socket.
• The refrigeration system positioned behind and
inside the Wine Coolers contains refrigerant.
Therefore, avoid damaging the tubes.
• If in the refrigeration system a leak is noted, do not
touch the wall outlet and do not use open flames.
Open the window and let air into the room. Then call
a service centre to ask for repair.
• Do not scrape with a knife or sharp object to remove
frost or ice that occurs. With these, the refrigerant
circuit can be damaged, the spill from which can
cause a fire or damage your eyes.
• Do not install the appliance in humid, oily or dusty
places, nor expose it to direct sunlight and to water.
• Do not install the appliance near heaters or
inflammable materials.
• Do not use extension cords or adapters.
EN
5
EN
6
BEFORE USING THE APPLIANCE
• Do not excessively pull or fold the power cord or
touch the plug with wet hands.
• Do not damage the plug and/or the power cord; this
could cause electrical shocks or fires.
• It is recommended to keep the plug clean, any
excessive dust residues on the plug can be the
cause fire.
• Absolutely avoid the use of open flame or electrical
equipment, such as heaters, steam cleaners,
candles, oil lamps and the like in order to speed up
the defrosting phase.
• Do not store medicine or research materials in the
Wine Coolers. When the material that requires a
strict control of storage temperatures is to be stored,
it is possible that it will deteriorate or an uncontrolled
reaction may occur that can cause risks.
• Maintain the ventilation openings in the appliance
enclosure or in the built-in structure, free of
obstruction.
• Do not place objects and/or containers filled with
water on the top of the appliance.
• Do not perform repairs on this Wine Coolers. All
interventions must be performed solely by qualified
personnel.
BEFORE USING THE APPLIANCE
Notes:
• Please read the instruction manual carefully before
installing and using your appliance. We are not
responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction
manual, and keep this manual in a safe place to resolve
the problems that may occur in the future.
• This appliance is produced to be used in homes and it
can only be used in domestic environments and for the
specified purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the
appliance to be cancelled and our company will not be
responsible for losses incurred.
• This appliance is produced to be used in houses and it is
only suitable for cooling / storing food. It is not suitable for
commercial or common use and/or for storing substances
except for food. Our company is not responsible for losses
to be incurred in the contrary case.
Safety warnings
• Do not connect your Fridge Freezer to the mains
electricity supply using an extension lead.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow
children to play with the appliance or let them hang off the
door.
• Never touch the power cord/plug with wet hands as this
could cause a short circuit or electric shock.
• Do not place glass bottles or beverage cans in the icemaking compartment as they can burst as the contents
freeze.
• Do not place explosive or flammable material in your
fridge. Place drinks with high alcohol content vertically in
EN
7
EN
8
BEFORE USING THE APPLIANCE
•
•
•
•
•
the fridge compartment and make sure that their tops are
tightly closed.
When removing ice from the ice-making compartment,
do not touch it. Ice may cause frost burns and/or cuts.
Do not touch frozen goods with wet hands. Do not eat
ice-cream or ice cubes immediately after you have taken
them out of the ice-making compartment.
Do not re-freeze frozen goods after they have melted.
This may cause health issues such as food poisoning.
Do not cover the body or top of fridge with lace. This
affects the performance of your fridge.
Secure any accessories in the fridge during transportation
to prevent damage to the accessories.
Installing and operating your fridge
Before using your fridge, you should pay attention to the
following points:
• The operating voltage for your fridge is 220-240 V at
50Hz.
• We do not accept responsibility for any damages that
occur due to ungrounded usage.
• Place your fridge where it will not be exposed to direct
sunlight.
• Your appliance should be at least 50 cm away from
stoves, gas ovens and heater cores, and at least 5 cm
away from electrical ovens.
• Your fridge should never be used outdoors or exposed
to rain.
• When your fridge is placed next to a deep freezer, there
should be at least 2 cm between them to prevent humidity
forming on the outer surface.
• Do not place anything on your fridge, and install your
fridge in a suitable place so that at least 15 cm of free
space is available above it.
• Use the adjustable front legs to make sure your appliance
is level and stable. You can adjust the legs by turning
them in either direction. This should be done before
placing food in the fridge.
BEFORE USING THE APPLIANCE
• Before using your fridge, wipe all parts with a solution of
warm water and a teaspoon of sodium bicarbonate, then
rinse with clean water and dry. Place all parts in the fridge
after cleaning.
• Install the plastic distance guide (the part with black vanes
at the rear) by turning it 90° (as shown in the figure) to
prevent the condenser from touching the wall.
• The refrigerator should be placed against a wall with a
free space not exceeding 75 mm.
Before Using your Fridge
• When using your fridge for the first time, or after
transportation, keep it in an upright position for at least 3
hours before plugging into the mains. This allows efficient
operation and prevents damage to the compressor.
• Your fridge may have a smell when it is operated for the
first time. This is normal and the smell will fade away
when your fridge starts to cool.
EN
9
EN
10
BEFORE USING THE APPLIANCE
Information about New Generation Cooling
Technology
Fridges with new generation cooling technology have a
different working system than static fridges. In normal
fridges, humid air that enters into fridge and the water vapor
that comes out from the foods, accumulates frost formation
in freezer compartment. In order to melt this frost, in other
words defrost, the fridge has to be stopped. During the
stopping period, to keep the foods cold, user has to extract
the food to outside of fridge and user has to clear the ice
during this period.
In the fridges with new generation cooling technology,
situation in the freezer compartment is completely different.
With the aid of fan, cold and dry air is blown out through
many points into the freezer compartment. As a result of the
homogenously blown cold air, even in the spaces between
shelves, foods are frozen equally and correctly. On the other
hand there will be no frost formation.
In the refrigerator compartment, there will be nearly same
configuration with freezer compartment. Air, that is emitted
with the fan, located at the top of refrigerator compartment, is
cooled while passing through the gap behind the air duct. At
the same time, air is blown out through the holes on the air
duct so that cooling process is successfully completed in the
refrigerator compartment. Holes on the air duct are designed
such that the air distribution becomes homogenous in this
compartment.
As there is no air passage between freezer and refrigerator
compartment, there will be no odor mixing.
As a result of these, your fridge with new generation cooling
technology, gives you, ease of use beside the huge volume
and esthetic appearance.
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
A
1
2
3
4
5
6
7
EN
11
14
13
12
11
B
10
8
9
This presentation is only for information about the parts of the
appliance. Parts may vary according to the appliance model.
EN
12
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
A) Fridge compartment
B) Freezer compartment
1) Wine rack *
2) Fridge shelves
3) Interior display / In room control
4) Chiller *
5) Crisper cover
6) Crisper
7) Freezer baskets
8) Leveling feet
9) Ice trays
10) Freezer glass shelves *
10) Bottle shelf
11) Adjustable door shelf * / Door shelf
12) Door shelf
13) Egg holder
* In some models
This presentation is only for information about the parts of the
appliance. Parts may vary according to the appliance model.
THE VARIOUS FUNCTION AND POSSIBILITIES
Display and control panel
Thermostat set level
indicator
8 6 5 4 2
C
o
It is Economy mode
indicator.
Set button
It is Super cool mode
indicator.
Button LED
Operating your fridge
Cooler temperature settings
• Initial temperature value for Cooler Setting Indicator is 6 oC.
• Press set button once, the set value will start to blink.
• If you keep pressing set button, lower temperatures will be selected.
(8, 6, 5, 4, 2, super and eco)
• If no button is pressed for 1 second, your choice will be set, it will
blink 3 times. Buzzer will sound beep beep.
• The temperature value selected before Super Cool Mode or
Economy Mode is activated will remain the same when the mode
is over or cancelled. The appliance continues to operate with this
temperature value.
EN
13
EN
14
THE VARIOUS FUNCTION AND POSSIBILITIES
Super cool mode
How would it be used?
Press set button until super cool symbol will be seen on the screen.
Buzzer will sound beep beep. Mode will be set.
During this mode:
• Economy mode can not be selected.
• Super cool mode can be cancelled by the same operation of
selecting.
Economy mode
How would it be used?
Press set button until eco symbol will be seen on the screen. Buzzer
will sound beep beep. Mode will be set.
During this mode:
• Super cool can be selected. Economy mode is automatically
cancelled and the selected mode is activated.
• Eco mode can be cancelled by the same operation of selecting.
Warnings about Temperature Adjustments
• Temperature adjustments should be made according to the
frequency of door openings and the quantity of food kept inside the
fridge.
• Do not pass to another adjustment before completing an adjustment.
• Your fridge should be operated up to 24 hours according to the
ambient temperature without interruption after being plugged in to
be completely cooled. Do not open doors of your fridge frequently
and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the
compressor of your fridge, when you take the plug off and then plug
it on again to operate it or when an energy breakdown occurs. Your
fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature
intervals stated in the standards, according to the climate class
stated in the information label. We do not recommend operating
your fridge out of stated temperatures value limits in terms of cooling
effectiveness.
THE VARIOUS FUNCTION AND POSSIBILITIES
• This appliance is
designed for use at an
ambient temperature
within the 10°C - 43°C
range.
Climate Class Ambient Temperature oC
T
Between 16 and 43 (°C)
ST
Between 16 and 38 (°C)
N
Between 16 and 32 (°C)
SN
Between 10 and 32 (°C)
Accessories
Freezer box
The freezer box allows foods are maintained more regularly.
Removing The freezer box;
• Pull the box out as far as possible
• Pull the front of box up and out.
!! Make the inverse of the same operation for the resetting the sliding
compartment.
Note: Always Keep the handle of box while removing the box.
Freezer boxes
EN
15
EN
16
THE VARIOUS FUNCTION AND POSSIBILITIES
Chiller Shelf
(In some models)
Keeping food in the Chiller compartment instead
of the freezer or refrigerator compartment allows
food retain freshness and flavour longer, while
preserving its fresh appearance. When chiller
tray becomes dirty, remove it and wash it with
water.
(Water freezes at 0°C, but foods containing salt
or sugar freeze at temperature lower than that)
Normally people use the chiller compartment for
raw fish, lightly pickled, rice, etc...
Do not put foods you want to freeze or ice trays in order to make
ice.
Removing the Chiller shelf (In some models)
• Pull the chiller shelf out toward you by sliding on rails.
• Pull the chiller shelf up from rail to remove.
Humidity Controler
When the humidity controler in the closed
position, it allows fresh fruit and vegetables
to be stored longer.
In case of the crisper is totally full, the fresh
dial is located in front of crisper, should
be opened. By means of this the air in the
crisper and humidity rate will be controlled
and endurance life will be increased.
If you see any condensation on glass shelf, humidity control should be
taken into the open positions.
EN
17
THE VARIOUS FUNCTION AND POSSIBILITIES
Adjustable Door Shelf (In some models)
Six different height adjustments can be made to provide
storage areas that you need by adjustable door shelf.
To change the position of adjustable door shelf ;
Hold the bottom of the shelf and pull the buttons on the side
of the door shelf direction of arrow (Fig.1).
Position door shelf the height you need by moving up and
down. After you get the position that you want the door shelf,
release the buttons on the side of the door shelf (Fig.2)
Before releasing the door shelf, move up down and make
sure the door shelf is fixed.
Note: Before moving door shelf is loaded, you must hold the
shelf by supporting the bottom. Otherwise, door shelf could
fall off the rails due to the weight. So damage may occur on
the door shelf or rails.
Figure -1
Figure -2
Adjustable Glass Shelf (In some models)
Adjustable glass shelf mechanism provides higher storage
spaces with a simple movement. To cover the glass shelf,
push it.
You can load your food as you want in the resulting extra
space. To bring the shelf in its original position, pull it toward
you.
Figure -1
Figure -2
Visual and text descriptions on the accessories section may
vary according to the model of your appliance.
EN
18
CLEANING AND MAINTENANCE
• Disconnect the unit from the power supply before
cleaning.
• Do not clean the appliance by pouring water.
• Make sure that no water enters the lamp housing and
other electrical components.
• The refrigerator should be cleaned periodically using a
solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap
and water Do not clean them in the dishwasher.
• Do not use abrasive products, detergents or soaps. After
washing, rinse with clean water and dry carefully. When
you have finished cleaning, reconnect the plugto the
mains supply with dry hands.
• Clean the condenser with a broom at least twice a year.
This will help you to save on energy costs and increase
productivity.
THE POWER SUPPLY MUST BE DISCONNECTED.
EN
19
CLEANING AND MAINTENANCE
Defrosting
Your refrigerator has fully automatic defrosting. The water
formed as a result of defrosting passes through the water
collection spout, flows into the vaporisation container below
the condenser and evaporates there.
• Make sure you have disconnected the plug of your
refrigerator before cleaning the vaporization container.
• Remove the vaporization container from its position by
unscrewing the screws as indicated. Clean it with soapy
water at specific time intervals. Thus, the odor formation
will have been prevented.
Replacing LED Lighting
If your refrigerator has LED lighting contact the help desk as
this should be changed by authorized personnel only.
Evaporating
tray
EN
20
ARRANGING FOOD IN THE APPLIANCE
Refrigerator compartment
• For normal operating conditions, adjusting the temperature value of
the cooler partition of the fridge to 4°C will be enough.
• To reduce humidity and consequent increase of frost never place
liquids in unsealed containers in the refrigerator. Frost tends to
concentrate in the coldest parts of the evaporator and in time will
require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be
allowed to cool at room temperature and should be arranged to
ensure adequate air circulation in the refrigerator compartment.
• Nothing should touch on the back wall as it will cause frost and the
packages can stick on the back wall. Do not open the refrigerator
door too frequently.
• Arrange the meat and cleaned fish(wrapped in packages or sheets
of plastic) which you will use in 1-2 days,in the bottom section of
the refrigerator compartment(that is above the crisper) as this is the
coldest section and will ensure the best storing conditions.
• You can put the fruits and vegetables into crisper without packing.
Some recommendations have been specified below for the placement
and storage of your food in the cooling compartment.
Maximum Storing
time
Where to place in the
fridge compartment
1 week
Vegetable bin
Meat and fish
2 - 3 Days
Wrapped in plastic foil or
bags or in a meat container
(on the glass shelf)
Fresh cheese
3 - 4 Days
In special door shelf
1 week
In special door shelf
Until the expiry date
recommended by
the producer
In special door shelf
1 month
In the egg shelf
Food
Vegetables and
fruits
Butter and
margarine
Bottled products
milk and yoghurt
Eggs
Cooked food
All shelves
NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.
ARRANGING FOOD IN THE APPLIANCE
Freezer compartment
• Please use the deep freeze compartment of your refrigerator for
storing the frozen food for a long time and for producing ice.
• To get maximum capacity for freezer compartment, please just use
glass shelves for upper and middle section. For bottom section,
please use lower basket.
• For optimum appliance performance to reach maximum freezing
capacity, Set the refrigerator at 4 oC for 24 hours before placing
fresh food into the freezer.
• After placing fresh food into the freezer, change the setting to 2 oC
for 24 hours is generally sufficient. After 24 hours, you can reduce
the setting if required.
• Please do not place the food you shall newly freeze nearby the
already frozen food.
• You should freeze the food to be frozen (meat, minced meat, fish,
etc.) by dividing them into portions in such a way that they can be
consumed once.
• Please do not refreeze the frozen food once they are thawed. It may
pose a danger for your health since it might cause problems such
as food poisoning.
• Do not place the hot meals in your deep freeze before they become
cold. You would cause the other food frozen beforehand in the deep
freeze to become putrefied.
• When you buy frozen food, makes sure that they were frozen under
appropriate conditions and the package is not torn.
• While storing the frozen food, the storage conditions on the package
should certainly be observed. If there is not any explanation, the
food must be consumed within the shortest time possible.
• If there had been humidification in the frozen food package and it
has a foul smell, the food might have been stored under unsuitable
conditions previously and gone rotten. Do not purchase this type of
foods!
• The storage durations of frozen food change depending on the
ambient temperature, the frequent opening and closing of the
doors, thermostat settings, food type and the time elapsed from the
purchase time of the food to the time it is placed into the freezer.
Always abide by the instructions on the package and never exceed
the indicated storage duration.
EN
21
EN
22
ARRANGING FOOD IN THE APPLIANCE
• During long lasting power failures, please do not open the door of
the deep freeze compartment. During longer power failures, do not
refreeze your food and consume them as soon as possible.
Not that; if you want to open again immediately after closing the
freezer door, it will not be opened easily. It’s quite normal! After reaching
equilibrium condition, the door will be opened easily.
Important note:
• Frozen foods, when thawed, should be cooked just like fresh foods.
If they are not cooked after being thawed they must NEVER be refrozen.
• The taste of some spices found in cooked dishes (anise, basilica,
watercress, vinegar, assorted spices, ginger, garlic, onion, mustard,
thyme, marjoram, black pepper, etc.) changes and they assume a
strong taste when they are stored for a long period. Therefore, the
frozen food should be added little amount of spices or the desired
spice should be added after the food has been thawed.
• The storage period of food is dependent on the oil used. The suitable
oils are margarine, calf fat, olive oil and butter and the unsuitable
oils are peanut oil and pig fat.
• The food in liquid form should be frozen in plastic cups and the other
food should be frozen in plastic folios or bags.
Some recommendations have been specified on pages 23, 24 and 25 for
the placement and storage of your food in the deep freeze compartment.
EN
23
ARRANGING FOOD IN THE APPLIANCE
Meat and fish
Preparation
Maximum
Storing time
(month)
Steak
Wrapping in a foil
6-8
Lamb meat
Wrapping in a foil
6-8
Veal roast
Wrapping in a foil
6-8
Veal cubes
In small pieces
6-8
Lamb cubes
In pieces
4-8
Minced meat
In packages without using
spices
1-3
Giblets (pieces)
In pieces
1-3
Bologna sausage/
salami
Should be packaged even if
it has membrane
Chicken and turkey
Wrapping in a foil
4-6
Goose and Duck
Wrapping in a foil
4-6
Deer, Rabbit, Wild Boar
In 2.5 kg portions and as
fillets
6-8
Fresshwater fishes
(Salmon, Carp, Crane,
Siluroidea)
Lean fish; bass, turbot,
flounder
Fatty fishes (Tunny,
Mackarel, bluefish,
anchovy)
2
After cleaning the bowels
and scales of the fish, wash
and dry it; and if necessary,
cut off the tail and head.
4
2-4
Shellfish
Cleaned and in bags
4-6
Caviar
In its package, aluminium or
plastic container
2-3
Snails
In salty water, aluminum or
plastic container
3
Note: Frozen meat should be cooked as fresh meat after being thawed.
If the meat is not cooked after being thawed, it must not be re-frozen.
EN
24
ARRANGING FOOD IN THE APPLIANCE
Preparation
Maximum
Storing
time
(months)
Wash and cut into small pieces and
boil in water
10 - 13
Hull and wash and boil in water
12
Cleaned and boil in water
6-8
Carrot
Clean and cut to slices and boil in
water
12
Pepper
Cut the stem, cut into two pieces,
remove the core and boil in water
8 - 10
Spinach
Washed and boil in water
6-9
Cauliflower
Take the leaves apart, cut the heart
into pieces, and leave it in water
with a little lemon juice for a while
10 - 12
Eggplant
Cut to pieces of 2cm after washing
10 - 12
Corn
Clean and pack with its stem or as
sweet corn
12
Vegetables and
Fruits
String beans and
beans
Beans
Cabbage
Apple and pear
Peel and slice
8 - 10
Cut into two pieces and remove the
stone
4-6
Wash and hull
8 - 12
Cooked fruits
Adding 10 % of sugar in the
container
12
Plum, cherry,
sourberry
Wash and hull the stems
8 - 12
Apricot and Peach
Strawberry and
Blackberry
EN
25
ARRANGING FOOD IN THE APPLIANCE
Dairy
Products
Packet
(Homogenize)
Milk
Preparation
In its own
packet
Cheeseexcluding
white cheese
In slices
Butter,
margarine
In its package
Maximum
Storing time
(months)
Storing Conditions
2-3
Pure Milk – In its
own packet
6-8
Original package
may be used for
short storing period.
It should be wrapped
in foil for longer
periods.
6
Maximum
Storing time
(months)
Thawing
time in room
temperature
(hours)
Bread
4-6
2-3
4-5 (220-225 °C)
Biscuits
3-6
1 - 1,5
5-8 (190-200 °C)
Pastry
1-3
2-3
5-10 (200-225 °C)
1 - 1,5
3-4
5-8 (190-200 °C)
Phyllo
dough
2-3
1 - 1,5
5-8 (190-200 °C)
Pizza
2-3
2-4
Pie
Thawing time in
oven (minutes)
15-20 (200 °C)
EN
26
TRANSPORTATION AND CHANGING OF
INSTALLATION POSITION
Transportation and Changing of Installation Position
• The original packages and foamed polystyrene (PS) can
be retained if required.
• During transportation, the appliance should be secured
with a wide string or a strong rope. The instructions
written on the corrugated box must be followed while
transporting.
• Before transporting or changing the installation position,
all the moving objects (ie,shelves,crisper…) should be
taken out or fixed with bands in order to prevent them
from getting damaged.
Repositioning the door
• It is not possible to change the opening direction of your
refrigerator door, if the door handle on your refrigerator is
installed from the front surface of the door.
• It is possible to change the opening direction of the door
on models without any handles.
• If the door opening direction of your refrigerator may
be changed, you should contact the nearest Authorised
Service Agent to have the opening direction changed.
BEFORE CALLING YOUR AFTER SALES SERVICE
EN
27
Check Warnings;
Your fridge warns you if there is/are some part(s) out of order. In this case, LED
around the button will blink and buzzer will sound beep.
ERROR TYPE
MEANING
WHY
SR
"Failure
Warning"
There is/are some
part(s) Out of order
WHAT TO DO
Call Service for
assistance as soon as
possible.
If your fridge-freezer is not operating;
• Is there a power failure?
• Is the plug connected to the socket correctly?
• Is the fuse of the socket to which the plug is connected or the main
fuse blown?
• Is there any failure at the socket? To check this, plug your refrigerator
to a socket this is surely operating.
If your fridge-freezer is not cooling enough;
• Is the temperature adjustment right?
• Are the doors of your fridge-freezer opened frequently and left open
for a long while?
• Are the doors of fridge-freezer closed properly?
• Did you put a dish or food on your fridge-freezer so that it contacts
the rear wall of your fridge-freezer so as to prevent the air circulation?
• Is your fridge-freezer filled excessively?
• Is there adequate distance between your fridge-freezer and the rear
and side walls?
• Is the ambient temperature within the range of values specified in
the operating manual?
If the food in your refrigerator compartment is over cooled
• Is the temperature adjustment right?
• Are there many food recently put inside the freezer compartment?
If so, your fridge-freezer may over cool the food inside the fridge
compartment as it will operate longer to cool these food.
If your fridge-freezer is operating too loudly;
To maintain the set cooling level, compressor may be activated from
time to time. Noises from your fridge-freezer at this time are normal and
EN
28
BEFORE CALLING YOUR AFTER SALES SERVICE
due to its function. When the required cooling level is reached, noises will
be decreased automatically. If the noises persist;
• Is your appliance stable? Are the legs adjusted?
• Is there anything behind your fridge-freezer?
• Are the shelves or dishes on the shelves vibrating? Re-place the
shelves and/or dishes if this is the case.
• Are the items placed on your fridge-freezer vibrating?
Normal Noises;
Cracking (Ice cracking) Noise:
• During automatic defrosting.
• When the appliance is cooled or warmed (due to expansion of
appliance material).
Short cracking: Heard when the thermostat switches the compressor
on/off.
Compressor noise (Normal motor noise): This noise means that the
compressor operates normally Compressor may cause more noise for
a short time when it is activated.
Bubbling noise and splash: This noise is caused by the flow of the
refrigerant in the tubes of the system.
Water flow noise: Normal flow noise of water flowing to the evaporation
container during defrosting. This noise can be heard during defrosting.
Air Blowing Noise (Normal fan noise): This noise can be heard in
No-Frost refrigerator during normal operation of the system due to the
circulation of air.
If humidity builds up inside the fridge-freezer;
• Are all food packed properly? Are the containers dried before placing
them in the fridge-freezer?
• Are the fridge-freezer doors opened frequently? Humidity of the room
gets in the fridge-freezer when the doors are opened. Humidity build
up will be faster when you open the doors more frequently, especially
if the humidity of the room is high.
If the doors are not opened and closed properly;
• Do the food packages prevent closing of the door?
• Are the door compartments, shelves and drawers placed properly?
• Are door gaskets broken or torn?
• Is your fridge-freezer on a level surface?
BEFORE CALLING YOUR AFTER SALES SERVICE
If the edges of fridge cabinet that the door joint contact are warm;
Especially in summer (hot weather), the surfaces that the joint contact
may get warmer during the operation of the compressor, this is normal.
IMPORTANT NOTES:
• Compressor protection function will be activated after sudden power
breakdowns or after unplugging the appliance, because the gas in
the cooling system is not stabilized yet. Your fridge-freezer will start
after 5 minutes, there is nothing to worry about.
• If you will not use your fridge-freezer for a long time (e.g. in summer
holidays) unplug it. Clean your fridge-freezer according to Part 4 and
leave the door open to prevent humidity and smell.
• If the problem persists after you have followed all the instructions
above, please consult to the nearest authorized service.
• The appliance you bought is designed for home type use and can
be used only at home and for the stated purposes. It is not suitable
for commercial or common use. If the consumer use the appliance in
a way that does not comply with these features, we emphasize that
the producer and the dealer shall not be responsible for any repair
and failure within the guarantee period.
EN
29
EN
30
ENERGY SAVING
• For better energy saving we suggest :
• Installing tge appliance away from heat sources and not exposed to
direct sunlight and in a well ventilated roo.
• Avoid putting hot food into the refrigerator to avoid increasing the
internal temperature and therefore causing continuos functionaliting
of the compressor.
• Do not excessively stuff foods so as to ensure proper air circulation.
• Defrost the appliance in case there is ice to facilitate the transfer of
cold.
• In case of absence of electrical energy, it is advisable to keep the
refrigerator door closed.
• Open or keep the doors of the appliance open as little as possible
• Avoid adjusting the setting to temperatures too cold.
• Remeve dust present on the rear of the appliance
SCRAPPING OLD APPLIANCES
This appliance is marked according to the European directive
2012/19/EU on Waste Electrical and Electronic Equipment
(WEEE).
WEEE contains both polluting substances (which can cause
negative consequences for the environment) and basic
components (which can be re-used). It is important to have
WEEE subjected to specific treatments, in order to remove
and dispose properly all pollutants, and recover and recycle
all materials.
Individuals can play an important role in ensuring that WEEE
does not become an environmental issue; it is essential to
follow some basic rules:
- WEEE should not be treated as household waste;
- WEEE should be handed over to the relevant collection
points managed by the municipality or by registered
companies. In many countries, for large WEEE, home
collection could be present.
In many countries, when you buy a new appliance, the old
one may be returned to the retailer who has to collect it free
of charge on a one-to-one basis, as long as the equipment
is of equivalent type and has the same functions as the
supplied equipment.
Conformity
By placing the
mark on this product, we are confirming
compliance to all relevant European safety, health and environmental
requirements which are applicable in legislation for this product.
EN
31
52235975

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
