EN

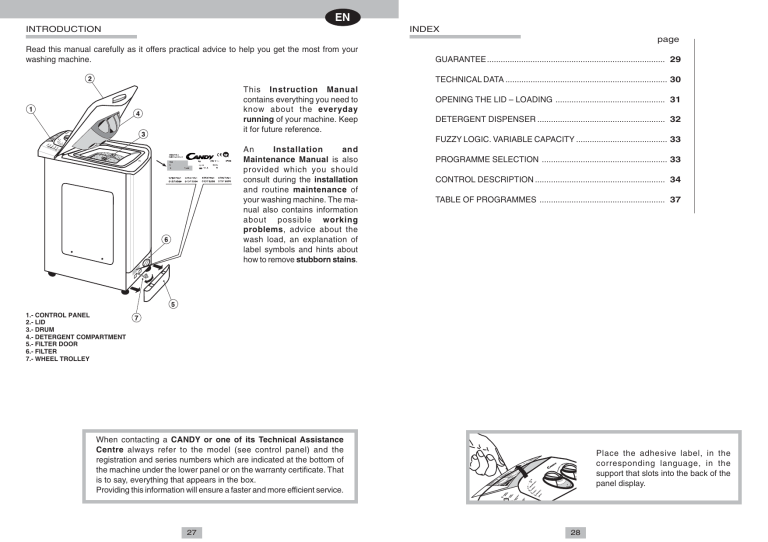

INTRODUCTION
INDEX
page
Read this manual carefully as it offers practical advice to help you get the most from your
washing machine.
GUARANTEE .............................................................................. 29
TECHNICAL DATA ....................................................................... 30
This Instruction Manual
contains everything you need to
know about the everyday
running of your machine. Keep
it for future reference.
OPENING THE LID – LOADING ................................................ 31
DETERGENT DISPENSER ........................................................ 32
FUZZY LOGIC. VARIABLE CAPACITY ........................................ 33
An
Installation
and
Maintenance Manual is also
provided which you should
consult during the installation
and routine maintenance of
your washing machine. The manual also contains information
about possible working
problems, advice about the
wash load, an explanation of
label symbols and hints about
how to remove stubborn stains.
PROGRAMME SELECTION ....................................................... 33
CONTROL DESCRIPTION ......................................................... 34
TABLE OF PROGRAMMES ....................................................... 37
1.- CONTROL PANEL
2.- LID
3.- DRUM
4.- DETERGENT COMPARTMENT
5.- FILTER DOOR
6.- FILTER
7.- WHEEL TROLLEY
When contacting a CANDY or one of its Technical Assistance
Centre always refer to the model (see control panel) and the
registration and series numbers which are indicated at the bottom of
the machine under the lower panel or on the warranty certificate. That
is to say, everything that appears in the box.
Providing this information will ensure a faster and more efficient service.
27
Place the adhesive label, in the
corresponding language, in the
support that slots into the back of the
panel display.
28
GUARANTEE
TECHNICAL DATA
1.
The appliance comes with a guarantee certificate.
2.
Complete part B and keep it in a safe place. It should
be presented to the Technical Assistance Centre in
the event of a repair being necessary along with the
legal receipt issued by the dealer on purchase.
CTL 85 TV
Load capacity .................................................................... kg.
4,5
4,5
Voltage ................................................................................. V.
230
230
Wash motor power rating .................................................... W.
175
175
Spin motor power rating ...................................................... W.
300
340
Electropump power rating ................................................... W.
30
30
Heating element power rating ............................................. W.
1.935
1.935
Max. power input ................................................................. W.
2.200
2.200
Fuse .................................................................................... A.
10
10
Water pressure ................................................................ MPa
0,05 min.
0,05 min.
0,8 max.
0,8 max.
Spin speed .......................................................... r.p.m./min
850
1000
Water consumption (60º C programme) .............................. lit.
59
54
Energy consumption (60º C programme) / 4,5 kg ........... kWh
0,85
0,85
Energy efficiency rating ............................................................
A
A
3.
Do not forget to send part A of the Guarantee
Certificate to be validated within 15 days of purchase.
29
CTL 105 TV
30
OPENING THE DRUM
A
FR
W ON
A
MA SH T OF
CH ING TH
IN
E
E
1.
Lift the lid (A) and open completely. Next open the drum
door following these instructions:
2.
Press catch (B) and kept it pressed down.
Press the first shutter (C) to unlock the two shutters (C)
and (D).
3.
Open the second shutter (D). Open the first shutter (C).
Place the washing in the drum.
C
D
NG LI
HI NE
AS I
W ACH
M
DETERGENT DISPENSER
B
The detergent dispenser is divided into 4 compartments:
• Compartment I, is for prewash powder detergent. The recommended quantity is 60
gm of detergent (for 4,5 kg of laundry).
• Compartment II, is for wash powder detergent. The recommended quantity is 120
gm of detergent (for 4,5 kg of laundry).
• The
compartment is for bleach. The recommended quantity is 7 cl.
• The
compartment is for fabric conditioners, scenting agents and special
additives. The recommended quantity is 5 cl.
D
The detergent compartment has two guidance lines:
FR
W ON
M AS T
AC HI OF
HI NG T
HE
NE
4.
Close the first shutter (C).
Close the second shutter (D) so that the catch on the first
shutter fits correctly into the slot. Release.
• RECOMMENDED (lower line). This indicates the recommended level for the prewash
and wash compartments.
• MAX. This indicates the maximum level which should never be exceeded.
C
5.
Ensure that both shutters are perfectly aligned and properly
closed.
D
FR
W ON
M AS T
AC HI OF
HI NG T
HE
NE
IMPORTANT: IT IS IMPORTANT TO MAKE SURE THAT
THE DRUM IS CAREFULLY CLOSED BEFORE
OPERATING THE MACHINE, OTHERWISE THE MACHINE
OR LAUNDRY COULD GET DAMAGED.
C
MAXIMUM
(wash)
2 min.
D
E
TH
F
O
NT G
O HIN E
FR AS HIN
W AC
M
C
IMPORTANT: A SPECIAL
SAFETY DEVICE PREVENTS
THE LID FROM BEING
OPENED
IMMEDIATELY
AFTER THE WASH HAS
FINISHED. ONCE THE SPIN
CYCLE HAS FINISHED, WAIT
FOR 2 MINUTES BEFORE
TRYING TO OPEN THE LID.
MAXIMUM
(prewash)
MAXIMUM
(bleach and scenting agent)
RECOMMENDED
D
31
32
VARIABLE CAPACITY
DESCRIPTION OF CONTROLS
CTL 85 TV
CTL 105 TV
This washing machine automatically adapts the water level to the type and quantity of clothes
to be washed. So it is possible to obtain a «customised» wash, even in terms of energy. This
system reduces water and energy consumption and provides an appreciable reduction in
wash time.
PROGRAMME SELECTION
To select a programme:
• Programmes are selected by means of the corresponding control knob (A). See the
table of programmes.
• Select the spin speed by means of the corresponding control knob.
• Select the different options available by pressing the corresponding buttons.
• Hold down the On/Pause button until one of the lamps on the programme phase
display lights up.
• Due to the design of the electronic washing machine, the programme may take up to
one minute to start up after one of the programme phase lamps lights up.
33
Programme/temperature selector ...............................................
A
Temperature display ........................................................
T
Programme phase display ...............................................
t
Spin selector control ...................................................................
C
Super-fast button ........................................................................
D
Easy-Iron button .........................................................................
E
Super rinse button ......................................................................
F
Door secure indicator lamp .........................................................
G
On/Pause button .........................................................................
H
Programme/temperature table ....................................................
P
Guide mark .................................................................................
p
34
USING THE SELECTORS
USING THE SELECTORS
A. PROGRAMME/TEMPERATURE SELECTOR
C. SPIN SELECTOR
To select the desired washing temperature/programme, turn
this selector until the number or symbol for the programme
desired is opposite the guide mark (p). Temperature selection
depends on the programme selected.
To select the spin speed, turn the selector until the mark for
the desired rpm is opposite the guide mark (p).
The final spin for resistant fabrics (indicated as COTTON)
will be at the selected speed.
In programmes for synthetic fabrics (SYNTHETICS)
intermediate spins are at 400 rpm, and the final spin is at 800
rpm.
In the DELICATES programme there are no intermediate
spins, and the final spin is at 400 rpm.
In the WOOL programmes (30º and Cold Wash) there are no
intermediate spins, and the final spin is at 800 rpm.
For programme selection, see the table of programmes/
temperatures (P) on the panel.
To modify settings or change programmes once the
programme has started, proceed as follows:
- Press the start/pause button until the pilot light showing the end of the program phase
cicle lights up.
- Release the button. After a few seconds the lamp on the display will go out.
- Select the desired programme.
- Hold down On/Pause again until one of the lamps on the programme phase display
lights up.
- The machine will then run through the new programme selected.
To add more clothes during a programme, proceed as follows:
- Hold down On/Pause until one of the lamps on the programme phase display flashes.
- Wait until the Door Secure indicator goes out, open the door and add more clothes to
the wash.
- Close the drum door and the outer cover tight.
- Press On/Pause.
For specific programmes:
The 32’ programme runs one intermediate spin at 400 rpm and a final spin at 800 rpm.
In the program HAND WASH
there is no spin-dry during the washing phases and the
final spin-dry is done at 800 rpm.
To cut out spinning altogether, match the No Spin symbol
to the guide mark.
THIS CONTROL CAN BE TURNED BOTH WAYS
D. SUPER FAST BUTTON
Press this button to cut machine programme times to a maximum of 50 minutes
(depending on the programme and wash temperature selected). This button
can be used with washes between 1 and 4.5 kg.
E. EASY-IRON BUTTON
This button works in all programmes except the 32-minute cycle.
It can be used to minimise wrinkling of fabrics during wash programmes.
The results obtained differ with each programme:
In programmes for COTTON, pressing this button will cause the machine to
stop on the last rinse, leaving clothes soaking in water.
To complete the programme and spin the clothes, press the button again to
release it.
In programmes for SYNTHETICS, pressing this button will cut out the
intermediate spins and perform only one final spin at low sped, thus minimising
the stress suffered by fabrics.
In programmes for DELICATES, WOOL and HAND WASHES, pressing button
will cause the machine to stop on the last rinse, leaving clothes soaking in
water.
To complete the programme and spin the clothes, press the button again to
release it.
T. TEMPERATURE DISPLAY
This displays the temperature for the programme selected.
t. PROGRAMME PHASE DISPLAY
This displays the current phase throughout the programme
selected.
Do not press this button if the “energetic spin” (cotton) programme is
selected.
F. SUPER RINSE BUTTON
Press this button to eliminate every last trace of soap powder from fabrics by
rinsing with more water.
G.
H.
35
DOOR SECURE INDICATOR LAMP
ON/PAUSE BUTTON
36
REMARKS
TABLE OF PROGRAMMES
1. For heavily soiled clothes, it is advisable to cut maximum load to 3 kg.
T °C
PROGRAMME
P
WHITE
4,5
60º
FAST COLOURS WITH PRE-WASH
4,5
FAST COLOURS
4,5
50º
FAST COLOURS
3,5
40º
DELICATE COLOURS
3,5
DELICATE COLOURS
3,5
ENERGETIC SPIN
—
60º
FAST COLOURS WITH PRE-WASH
2
60º
FAST COLOURS
2
50º
FAST COLOURS
2
40º
DELICATE COLOURS
2
30º
DELICATE COLOURS
2
DELICATE COLOURS
2
NORMAL SPIN
—
40º
DELICATES
1,5
30º
WOOL
1
WOOL
1
DELICATE SPIN
—
50º
32 MINUTE CYCLE
2
30º
HAND WASH
2
RINSE
—
WATER DISCHARGE
—
—
Programme
MAX.
LOAD
KG
90º
60º
P
PROGRAMME FOR
*
DETERGENT
I
•
•
2. Automatic bleaching is available on the COTTON (90º WHITE and 60º FAST COLOURS)
programmes: add bleach in the compartment marked
.
II
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
3. The machine is designed to release fabric softener automatically in the last rinse of all
washing cycles.
4. Programme times are approximate, and may vary up or down according to temperature
selected, quantity and type of load, conditions of installation (water temperature, ambient
temperature, mains water pressure, etc.).
32 MINUTE FAST WASH
This fast wash programme runs through a complete
washing cycle for up to 2 kg of clothes at a temperature
of 50º in just 32 minutes.
The soap powder must be put into the pre-wash
compartment (compartment II).
This programme can also be used as a pre-wash for
particularly heavily soiled clothes, before the desired main
programme is selected.
* , as per EN standard 60456.
There are four programme groups (COTTON, SYNTHETICS,
DELICATES and SPECIALS). The first programmes in each group
are longer and therefore ensure a more thorough wash. The
remaining programmes should be used with lightly soiled or
particularly delicate clothes.
37
38
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
