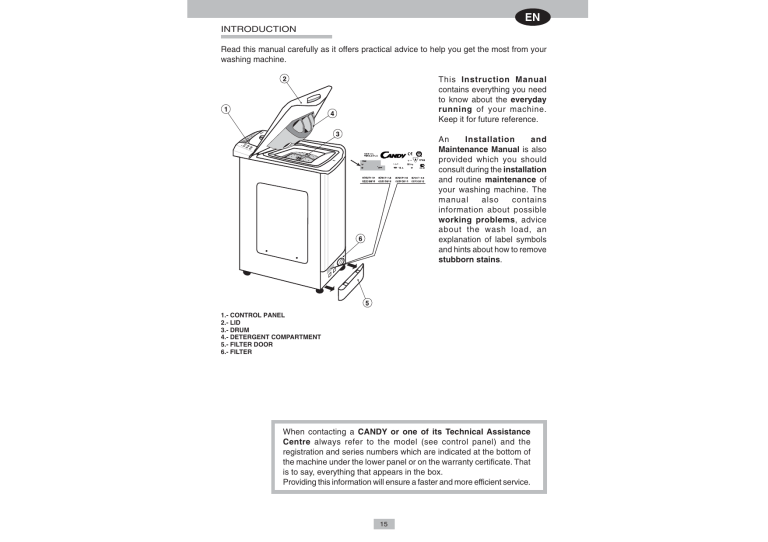

INTRODUCTION
Read this manual carefully as it offers practical advice to help you get the most from your
washing machine.
This Instruction Manual
contains everything you need
to know about the everyday
running of your machine.
Keep it for future reference.
An
Installation
and
Maintenance Manual is also
provided which you should
consult during the installation
and routine maintenance of
your washing machine. The
manual
also
contains
information about possible
working problems, advice
about the wash load, an
explanation of label symbols
and hints about how to remove
stubborn stains.
1.- CONTROL PANEL
2.- LID
3.- DRUM
4.- DETERGENT COMPARTMENT
5.- FILTER DOOR
6.- FILTER
When contacting a CANDY or one of its Technical Assistance
Centre always refer to the model (see control panel) and the
registration and series numbers which are indicated at the bottom of
the machine under the lower panel or on the warranty certificate. That
is to say, everything that appears in the box.
Providing this information will ensure a faster and more efficient service.
15
INDEX
page
GUARANTEE ............................................................................. 17
TECHNICAL DATA ....................................................................... 18
OPENING THE LID – LOADING ................................................ 19
DETERGENT DISPENSER ........................................................ 20
VARIABLE CAPACITY ................................................................ 21
PROGRAMME SELECTION ....................................................... 21
CONTROL DESCRIPTION ......................................................... 22
TABLE OF PROGRAMMES ....................................................... 24
Place the adhesive label, in the
corresponding language, in the
support that slots into the back of the
panel display.
16
GUARANTEE
1.
The appliance comes with a guarantee certificate.
B
A
2.
Complete part B and keep it in a safe place. It should
be presented to the Technical Assistance Centre in
the event of a repair being necessary along with the
legal receipt issued by the dealer on purchase.
3.
Do not forget to send part A of the Guarantee
Certificate to be validated within 15 days of purchase.
17
TECHNICAL DATA
CTS 83 T
Load capacity ............................................................................. kg.
4,5
Voltage ......................................................................................... V.
230
Wash motor power rating ............................................................ W.
175
Spin motor power rating .............................................................. W.
300
Electropump power rating ........................................................... W.
30
Heating element power rating ..................................................... W.
1.950
Max. power input ........................................................................ W.
2.200
Fuse ............................................................................................. A.
10
Water pressure ....................................................................... MPa
0,05 min.
0,8 max.
Spin speed ................................................................... r.p.m./min
800
Water consumption (60º C programme) ..................................... lit.
69
Energy consumption (60º C programme)/4,5 kg .................... kWh
1,03
Energy efficiency rating ...................................................................
B
18
OPENING THE DRUM
A
FR
W ON
A
MA SH T OF
CH ING TH
IN
E
E
2.
Press catch (B) and kept it pressed down.
Press the first shutter (C) to unlock the two shutters (C)
and (D).
3.
Open the second shutter (D). Open the first shutter (C).
Place the washing in the drum.
C
D
NG LI
HI NE
AS I
W ACH
M
1.
Lift the lid (A) and open completely. Next open the drum
door following these instructions:
B
D
FR
W ON
M AS T
AC HI OF
HI NG T
HE
NE
C
4.
Close the first shutter (C).
Close the second shutter (D) so that the catch on the
first shutter fits correctly into the slot. Release.
5.
Ensure that both shutters are perfectly aligned and properly
closed.
D
FR
W ON
M AS T
AC HI OF
HI NG T
HE
NE
IMPORTANT: IT IS IMPORTANT TO MAKE SURE THAT
THE DRUM IS CAREFULLY CLOSED BEFORE
OPERATING THE MACHINE, OTHERWISE THE
MACHINE OR LAUNDRY COULD GET DAMAGED.
C
2 min.
D
E
TH
F
O
NT G
O HIN E
FR AS HIN
W AC
M
C
D
19
IMPORTANT: A SPECIAL
SAFETY
DEVICE
PREVENTS THE LID FROM
BEING
OPENED
IMMEDIATELY AFTER THE
WASH HAS FINISHED.
ONCE THE SPIN CYCLE
HAS FINISHED, WAIT FOR
2 MINUTES BEFORE
TRYING TO OPEN THE LID.
DETERGENT DISPENSER
The detergent dispenser is divided into 4 compartments:
• Compartment I, is for prewash powder detergent. The recommended quantity is
60 gm of detergent (for 4,5 kg of laundry).
• Compartment II, is for wash powder detergent. The recommended quantity is 120
gm of detergent (for 4,5 kg of laundry).
• The
compartment is for bleach. The recommended quantity is 7 cl.
• The
compartment is for fabric conditioners, scenting agents and special
additives. The recommended quantity is 5 cl.
The detergent compartment has two guidance lines:
• RECOMMENDED (lower line). This indicates the recommended level for the prewash
and wash compartments.
• MAX. This indicates the maximum level which should never be exceeded.
MAXIMUM
(wash)
MAXIMUM
(prewash)
MAXIMUM
(bleach and scenting agent)
RECOMMENDED
20
VARIABLE CAPACITY
This washing machine automatically adapts the water level to the type and quantity of clothes
to be washed. So it is possible to obtain a «customised» wash, even in terms of energy. This
system reduces water and energy consumption and provides an appreciable reduction in
wash time.
PROGRAMME SELECTION
WHEN SELECTING A PROGRAMME, ENSURE THAT THE START/STOP BUTTON IS
NOT ACTIVATED.
To select a programme:
• Programmes are selected by means of the corresponding control knob (A). See the
table of programmes.
• Select the wash temperature by means of the corresponding control knob.
• Select the different options available by pressing the corresponding buttons.
21
CONTROL DESCRIPTION
CTS 83 T
Programme selector knob ...........................................................
A
Temperature selector knob .........................................................
B
Spin variation button 800/400 .....................................................
D
Super-rinse button ......................................................................
E
ON/OFF pilot light .......................................................................
G
ON/OFF button ...........................................................................
H
22
USE OF THE SELECTION CONTROLS
A. PROGRAMME SELECTOR KNOB
This control allows you to select the washing programmes.
ALWAYS ROTATE the control in a clockwise direction,
never in an anticlockwise direction. Do not press the “on”
button (H) before selecting the programme.
If you wish to modify the position of the control or select
another programme once a cycle has commenced, press
the Start/Stop key. Press again to recommence once the
modification has been completed.
B.
TEMPERATURE SELECTOR KNOB
This control allows you to select the temperature of your
wash.
If you wish to carry out a cold wash, turn the knob until the
cold symbol
coincides with the selector mark.
THE KNOB CAN BE TURNED IN BOTH DIRECTIONS.
Do not exceed the maximum temperature recommended
for each cycle in the table of programmes.
˙
D. SPIN VARIATION BUTTON 800/400
When this button is pressed, the spin after the last rinse will be at 400 r.p.m.
instead of 800 r.p.m.
N.B.: The spin in programmes for mixed, synthetic and delicate fabrics is
always at 400 r.p.m.
E.
SUPER-RINSE BUTTON
Pressing this button removes the last vestiges of soap powder from the
fabrics, as the rinses are done with more water.
G.
ON/OFF PILOT LIGHT
H.
ON/OFF BUTTON
23
TABLE OF PROGRAMMES
MAX.
SEL.
LOAD
PROG.
IN KG
PROGRAMME
TYPE OF
FABRIC
RAPID PROGRAMME
Rapid 32 minute super cycle
INTENSIVE WITH PREWASH
NORMAL SOILING
T
Cº
I
2
32´
From cold
to…50º
•
4,5
1
From cold
to…90º
From cold
to…90º
•
4,5
2
COLOURS FAST
4,5
COLOURS DELICATES
3,5
3
*
4
BLEACH
Organic stains
—
—
ENERGETIC RINSES
—
—
ENERGETIC RINSE
—
—
ENERGETIC SPIN
—
—
NORMAL SOILING
2
5
2
2
COLOURS FAST
COLOURS DELICATES
From cold
to…60º
From cold
to…40º
II
•
•
•
•
•
•
•
•
•
•
•
•
•
•
From cold
to…60º
•
•
6
From cold
to…50º
•
•
7
From cold
to…40º
•
•
•
•
—
DELICATE RINSES
—
DELICATE RINSE
—
—
—
—
DELICATE SPIN
DELICATES
1,5
8
From cold
to…40º
WOLL
«Machine washable»
1
9
From cold
to…40º
•
•
•
•
1,5
10
From cold
to…30º
•
DELICATE RINSES
—
—
•
•
DELICATE RINSE
—
—
•
DELICATE SPIN
—
—
WATER DISCHARGE
—
HAND WASH
Programme
DETERGENT
SEL.
Z
—
*, according to EN 60456 Regulations
The first program in each group is the longest and thus ensures the most effective wash at a given temperature. The
other programs should be selected for clothes which are only lightly solied or are particularly delicate.
24
NOTE:
1. If the wash load is very dirty it is best to reduce the load weight to 3 kg.
2. Programmes 1, 2 have an automatic bleaching option. Simply place the bleaching agent
in the
compartment.
3. The washing machine is designed to incorporate fabric softener automatically in the last
rinse of each washing cycle.
RAPID 32 MINUTE PROGRAMME
The rapid 32 minute programme enables a complete
washing cycle for a maximum 2 kg wash at a temperature
of 50°C to be carried out in 30 minutes. The temperature of
the wash can be reduced via the temperature selector knob.
The soap powder must be loaded into the pre-wash
dispenser (compartment I).
The maximum amount of soap powder which can be used
for this programme is indicated by the 32 minute mark in
the dispenser.
The rapid 32 minute programme can also be used as a prewash cycle in the case of a heavily soiled wash, following
with the main programme as desired.
25
