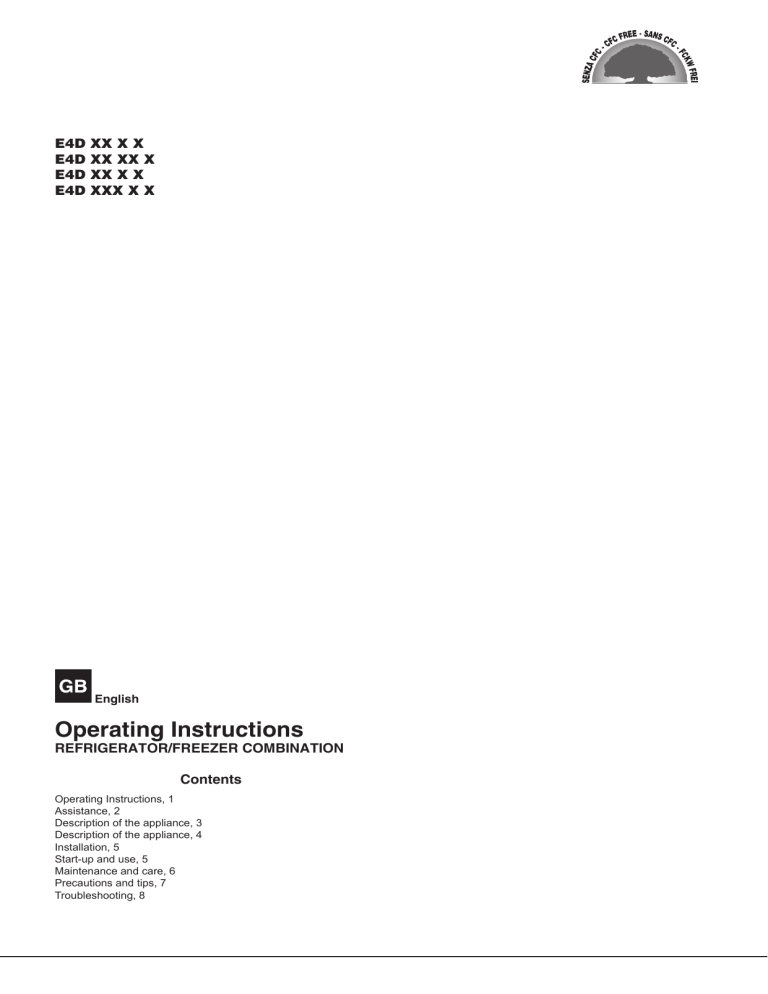

English
Operating Instructions
REFRIGERATOR/FREEZER COMBINATION
Contents
Operating Instructions, 1
Assistance, 2
Description of the appliance, 3
Description of the appliance, 4
Installation, 5
Start-up and use, 5
Maintenance and care, 6
Precautions and tips, 7
Troubleshooting, 8
Assistance
Before calling for Assistance:
• Check if the malfunction can be solved on your own (see
Troubleshooting).
• If after all the checks, the appliance still does not operate or
the problem persists, call the nearest Service Centre
Communicating:
• type of malfunction
• appliance model (Mod.)
• serial number (S/N)
This information can be found on the data plate located on the
bottom left side of the refrigerator compartment.
Never call on unauthorized technicians and always refuse
spare parts which are not originals.
- model
2
- serial number
Description of the appliance
Control panel
1. FREEZER OPERATION
Button to regulate the temperature the freezer compartment.
Button is used with SUPER FREEZE Button to switch on/switch
off the product by pressing both 3 seconds
2. SUPER FREEZE
Button (rapid freezing) to freeze fresh food.
Press button for 3 seconds to switch on the product while it
is switched off
3. SUPER FREEZE
Blue light illuminates when SUPER FREEZE button is pressed.
4. FREEZER TEMPERATURE
Yellow light The temperature of the Freezer is consisted with
4 levels as indicated on serigraphy.
5. FRIDGE TEMPERATURE
Yellow light The temperature of the Fridge is consisted with 4
levels as indicated on serigraphy.
6. SUPER COOL
Blue light illuminates when SUPER COOL button is pressed.
7. SUPER COOL
Button (quick cool) to lower the temperature of the refrigerator
compartment rapidly.
8. REFRIGERATOR OPERATION
Button to regulate the temperature of the refrigerator
compartment.
!The indicator lights are also used to indicate an unusual
temperature increase in the freezer compartment (see
Troubleshooting).
3
SUPER
FREEZE
°C
1
2
4
26 22 20 18
6
5
2
4
6
8
°C
SUPER
COOL
7
8
3
Description of the appliance
Overall view
The instructions contained in this manual are applicable to different
model refrigerators. The diagrams may not directly represent the
appliance purchased. For more complex features, consult the
following pages.
1.
2.
3.
4.
5.
6.
7.
8.
Levelling FEET
FREEZER and STORAGE compartment
BOTTLE shelf*
Food Care Zone / Food Care Zone 0°C / Safe Defrost*
FRUIT and VEGETABLE bin*
Removable multipurpose SHELVES*
Control panel.
WINE RACK*
*
Varies by number and/or position, available only on certain
models.
7
8
6
6
5
3
3
4
2
461eps
1
4
Installation
! Before placing your new appliance into operation please read
these operating instructions carefully. They contain important
information for safe use, for installation and for care of the
appliance.
! Please keep these operating instructions for future reference.
Pass them on to possible new owners of the appliance.
Positioning and connection
Positioning
1. Place the appliance in a well-ventilated humidity-free room.
2. Do not obstruct the rear fan grills. The compressor and
condenser give off heat and require good ventilation to operate
correctly and save energy.
3. Leave a space of at least 10 cm between the top part of the
appliance and any furniture above it, and at least 5 cm between
the sides and any furniture/side walls.
4. Ensure the appliance is away from any sources of heat (direct
sunlight, electric stove, etc.).
5. In order to maintain the correct distance between the appliance
and the wall behind it, fit the spacers supplied in the installation
kit, following the instructions provided.
Levelling
1. Install the appliance on a level and rigid floor.
2. If the floor is not perfectly horizontal, adjust the refrigerator by
tightening or loosening the front feet.
Electrical connections
After the appliance has been transported, carefully place it
vertically and wait at least 3 hours before connecting it to the
electricity mains. Before inserting the plug into the electrical
socket ensure the following:
• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance,
which is indicated on the data plate located on the bottom left
side of the fridge (e.g. 150 W).
• The voltage must be in the range between the values indicated
on the data plate located on the bottom left side (e.g. 220- 240V).
• The socket is compatible with the plug of the appliance. If
the socket is incompatible with the plug, ask an authorised
technician to replace it (see Assistance). Do not use extension
cords or multiple sockets.
! Once the appliance has been installed, the power supply cable
and the electrical socket must be easily accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by authorised
technicians only (see Assistance).
! The manufacturer declines any liability should these safety
measures not be observed.
1. Insert the plug into the socket and switch on the product using
the appropriate button, ensure that yellow refrigerator and
freezer temperature lights illuminates.
2. After a few hours you will be able to put food in the refrigerator.
3. Press the SUPER FREEZE button (rapid freezing): the SUPER
FREEZE indicator light will illuminate. Once the refrigerator has
reached the optimal temperature, the indicator light goes out
and you can begin food storage.
Chiller system
No Frost
The No Frost system circulates cold air continuously to collect
humidity and prevent ice and frost formation. The system
maintains an optimal humidity level in the compartment,
preserving the original quality of the food, preventing the food
from sticking together and making defrosting a thing of the past.
Do not block the aeration cells by placing food or containers
near the refrigerating back panel.
! Close bottles and wrap food tightly.
Using the refrigerator to its full potential
• Use the REFRIGERATOR OPERATION button to adjust the
temperature (see Description).
• Press the SUPER COOL button (rapid cooling) to lower the
temperature quickly. For example, when you place a large
number of new food items inside a fridge the internal temperature
will rise slightly. The function quickly cools the groceries by
temporarily reducing the temperature until it reaches the ideal
level.
• Place only cold or lukewarm foods in the compartment, not hot
foods (see Precautions and tips).
• Remember that cooked foods do not last longer than raw foods.
• Do not store liquids in open containers. They will increase
humidity in the refrigerator and cause condensation to form.
! To close the refrigerator door to pay attention to the vertical
bracket position (see figure)
Start-up and use
Starting the appliance
! Before starting the appliance, follow the installation
instructions (see Installation).
! Before connecting the appliance, clean the compartments and
accessories well with lukewarm water and bicarbonate.
! The appliance comes with a motor protection control system
which makes the compressor start approximately 8 minutes
after being switched on. The compressor also starts each time
the power supply is cut off whether voluntarily or involuntarily
(blackout).
SHELVES:
Due to the special guides the shelves are removable and the
height is adjustable, allowing easy storage of large containers
and food.
FRUIT and VEGETABLE bin*
The salad crispers fitted inside the fridge have been specially
designed for the purpose of keeping fruit and vegetables fresh
and crisp. Open the humidity regulator (position B) if you want to
store food in a less humid environment like fruit, or close it (position
A) to store food in a more humid environment like vegetables.
5
GB
GB
A
B
A
B
TEMPERATURE
Indicator light*: to identify the coldest area in the refrigerator.
1. Check that OK appears clearly on the indicator light (see
diagram).
ICE DEVICE*
After pouring water in the special ice cups, place them in their
places in the ice device. After about 2 hours, the ice cubes will
be ready. In order to get the ice cubes, it will be sufficient to turn
the two buttons to the right. The ice cubes will fall in to the tray
below, ready to be used.
2. If the word “OK” does not appear it means that the temperature
is too high: set a lower temperature and wait approximately 10
hours until the temperature has been stabilised.
3. Check the indicator light again: if necessary, readjust it following
the initial process. If large quantities of food have been added
or if the refrigerator door has been opened frequently, it is
normal for the indicator not to show OK. Wait at least 10 hours
before adjusting the REFRIGERATOR OPERATION knob to a
higher setting.
Using the freezer to its full potential
• Use the FREEZER OPERATION button to adjust the temperature
(see Description).
• Do not re-freeze food that is defrosting or that has already been
defrosted. These foods must be cooked and eaten (within 24
hours).
• Fresh food that needs to be frozen must not come into contact
with food that has already been defrosted.
• Do not place glass bottles which contain liquids, and which
are corked or hermetically sealed in the freezer because they
could break.
• The maximum quantity of food that may be frozen daily is
indicated on the plate containing the technical properties
located on the bottom left side of the refrigerator compartment
(for example: Kg/24h: 4).
• To freeze (if the freezer is already operating): press the
rapid freezing SUPER FREEZE button (corresponding blue
indicator light illuminates), insert the food and close the door.
The function is disabled automatically after 24 hours or when
optimal temperatures have been reached (indicator light goes
out)
! Do not store food too large in the upper freezer drawer if is
present the ‘Ice Device”.
! Do not open the door during freezing.
! If there is a power cut or malfunction, do not open the freezer
door. This will help maintain the temperature inside the freezer,
ensuring that foods are conserved for at least 9 -14 hours.
Hidden Shelf*
There is wireshelf inside the freezer compartment located between
the upper and lower freezer baskets. To Access wire shelf, remove
the basket of the upper freezer door. Wire shelf may be removed
out of the freezer by holding up from the front edge.
It is recommended to use the wire shelf only for long term storage.
* Varies by number and/or position, available only on certain models.
6
If you need more storage space, the ICE DEVICE may be taken
out by pushing the nail on the top of the ice device.
Food Care Zone *
Area dedicated to the storage of fresh food, such as meat and
fish. Thanks to the low temperature inside the compartment, the
Food Care Zone extends the period of time for which the food
can be stored, keeping it fresh for up to a week.
Food Care Zone 0°C / Safe Defrost* : A compartment designed
to keep delicate food such as meat and fish fresh. The low
temperature in the compartment makes it possible to store the food
for up to one week - tests performed on meat products - without
changing its nutrients, appearance and flavour.
The compartment is also very suitable for healthy food defrosting,
as low-temperature defrosting prevents any proliferation of
microorganisms, while protecting its taste and organoleptic
properties.
It is not suitable for fruit, vegetables and green salad. But it can
be used for fresh or very fresh dairy products and milk, stuffed
fresh pasta and even cooked food or leftovers.
Maintenance and care
Switching the appliance off
During cleaning and maintenance it is necessary to disconnect
the appliance from the electricity supply:
1. press the FREEZER OPERATION Button and SUPER FREEZE
Button for 3 seconds to switch off the product
2. pull the plug out of the socket
! If this procedure is not followed, the alarm may sound. This
alarm does not indicate a malfunction. To restore normal operation
insert the plug into the socket, press the FREEZER OPERATION
and SUPER FREEZE button and set the FREEZER OPERATION
button on the desired value.To disconnect the appliance, follow
point 1 and 2.
Precautions and tips
GB
! The appliance was designed and manufactured in compliance
with international safety standards. The following warnings are
provided for safety reasons and must be read carefully.
Cleaning the appliance
• The external and internal parts, as well as the rubber seals may
be cleaned using a sponge that has been soaked in lukewarm
water and bicarbonate of soda or neutral soap. Do not use
solvents, abrasive products, bleach or ammonia.
• The removable accessories may be soaked in warm water and
soap or dishwashing liquid. Rinse and dry them carefully.
• The back of the appliance may collect dust which can be
removed by delicately using the hose of a vacuum cleaner set
on medium power. The appliance must be switched off and the
plug must be pulled out before cleaning the appliance.
• During the cleaning of the slide rails for the drawers in the freezer
compartment, it may happen that the automatic drawer closure
mechanism is deactivated. To reactivate it, simply close the
drawer a little more forcefully than is usually necessary.
This appliance complies with the following Community Directives:
- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent
amendments;
-89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and
subsequent amendments;
- 2002/96/CE.
General safety
The I Care function can be enabled to optimise energy
consumption. Press and hold down the SUPERCOOL and
REFRIGERATOR OPERATION buttons simultaneously for at least
6 seconds to enable this function.
On enabling the function, 4 indicator lights will go on for 2 seconds:
SUPER COOL light, SUPER FREEZE light and two temperature
lights - one for the refrigerator and one for the freezer.
After 5 seconds the interface will enter the energy saving mode
and the indicator lights will go off. The interface stays off even
when the door is opened. Just press any button to switch it on
again. Press the adjustment buttons to change the temperature.
Consumption will be optimised 48h after the function was
enabled. To disable the I Care function, switch off the product
(see description). The product can be switched on again for
normal operation.
In humid environments, when the I Care function is enabled, slight
condensation may form on the doors; normal operating conditions
are restored when the function is disabled.
• The appliance was designed for domestic use inside the home
and is not intended for commercial or industrial use.
• The appliance must be used to store and freeze food products
by adults only and according to the instructions in this manual.
• The appliance must not be installed outdoors, even in covered
areas. It is extremely dangerous to leave the appliance exposed
to rain and storms.
• Do not touch the appliance with bare feet or with wet or moist
hands and feet.
• Do not touch the internal cooling elements: this could cause skin
abrasions or frost/freezer burns.
• When unplugging the appliance always pull the plug from the
mains socket, do not pull on the cable.
• Is not sufficient to switch-off of the product to eliminate all the
electrical connections.
• In the case of a malfunction, under no circumstances should
you attempt to repair the appliance yourself. Repairs carried
out by inexperienced persons may cause injury or further
malfunctioning of the appliance.
• Do not use any sharp or pointed utensils or electrical equipment
- other than the type recommended by the manufacturer - inside
the frozen food storage compartments.
• Do not put ice cubes taken directly from the freezer into your
mouth.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or lack of experience
and knowledge unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
• Keep packaging material out of the reach of children! It can
become a choking or suffocation hazard.
Replacing the light bulb
Disposal
Avoiding mould and unpleasant odours
• The appliance is manufactured with hygienic materials which are
odour free. In order to maintain an odour free refrigerator and
to prevent the formation of stains, food must always be covered
or sealed properly.
• If you want to switch the appliance off for an extended period of
time, clean the inside and leave the doors open.
I Care function
Thanks to the powerful light it emits, the new LED lighting system
offers a clear view of all foods, with no shadowy areas. If the LED
needs to be replaced, please contact the Technical Assistance
Service.
• Observe local environmental standards when disposing
packaging material for recycling purposes.
• The European Directive 2012/19/EU on Waste Electrical and
Electronic Equipment (WEEE), requires that old household
electrical appliances must not be disposed of in the normal
unsorted municipal waste stream. Old appliances must be
collected separately in order to optimise the recovery and
recycling of the materials they contain and reduce the impact on
human health and the environment. The crossed out “wheeled
bin” symbol on the product reminds you of your obligation,
that when you dispose of the appliance it must be separately
collected. Consumers should contact their local authority or
retailer for information concerning the correct disposal of their
old appliance.
7
GB
Respecting and conserving the
environment
• Install the appliance in a fresh and well-ventilated room. Ensure
that it is protected from direct sunlight and do not place it near
heat sources.
• Try to avoid keeping the door open for long periods or opening.
• Do not fill the appliance with too much food: cold air must
circulate freely for food to be preserved properly. If circulation
is impeded, the compressor will work continuously.
• Do not place hot food directly into the refrigerator. The internal
temperature will increase and force the compressor to work
harder and will consume more energy.
Troubleshooting
If the appliance does not work, before calling for Assistance (see
Assistance), check for a solution from the following list.
Any indicator lights do not illuminate.
• If the function I Care is not active (see section), the plug has
not been inserted into the electrical socket, or not far enough to
make contact, or there is no power in the house.
The motor does not start.
• The appliance comes with a motor protection control (see Startup and use).
The indicator lights are on but the light is dim.
• Pull out and reverse the plug before putting it back in the socket.
a) The alarm sounds.
• The refrigerator door has remained open for more than two
minutes (the buzzer will stop sounding when you shut the door)
or the correct switching-off procedure was not followed (see
Maintenance).
b) The alarm sounds and the two blue indicator lights flash.
• The temperature in the freezer is too high. Check the quality of
the food products and dispose if necessary.
+ buzzer = Heating is excessive
c) The alarm sounds and the two blue indicator and green
one lights flash.
• The temperature in the freezer has reached a dangerous level.
The food must be disposed immediately.
-26
+8
+ buzzer = Heating danger
b/c) In both these cases the freezer will maintain a temperature
of about 0°C so that the food does not re-freeze.
To turn off the acoustic signal, open and close the refrigerator
door.
To restore normal operation, product should be switched
off and switched on by buttons from control panel (See the
description)
The refrigerator and the freezer do not cool well.
• The doors do not close properly or the seals are damaged.
• The doors are opened too frequently.
• The refrigerator or the freezer have been over-filled.
8
The food inside the refrigerator is beginning to freeze.
• The temperature is not adjusted properly (see description)
• The food is near the back inside wall of the refrigerator.
The motor runs continuously.
• The SUPER FREEZE button has been pressed (rapid freezing):
the blue SUPER FREEZE light is on (see Description).
• The door is not closed properly or is continuously opened.
• The outside ambient temperature is very high.
The appliance makes a lot of noise.
• The appliance has not been installed on a level surface (see
Installation).
• The appliance has been installed between cabinets that vibrate
and make noise.
• The internal refrigerant makes a slight noise even when the
compressor is off. This is not a defect, it is normal.
400011360420
05/2019
GB
9
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
