BIE-7202-000
ENGLISH
Network Camera
/
Installing the Camera
3
5
1
/
e
a
/
d

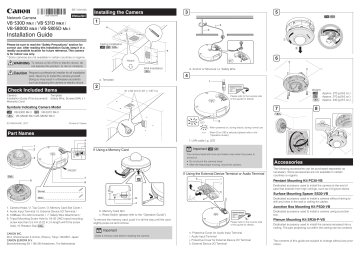

Installation Guide
Ceiling Installation
Please be sure to read the “Safety Precautions” section for
correct use. After reading this Installation Guide, keep it in a
readily accessible location for future reference. This camera
is for indoor use only.
* Some cameras are not available in certain countries or regions.
WARNING
Caution
a
Wall Installation
Request a professional installer for all installation
work. Never try to install the camera yourself.
Doing so may result in unforeseen accidents
such as dropping the camera or electric shock.
Check Included Items
Camera
Installation Guide (This document)
Warranty Card
6
FRONT
To reduce a risk of fire or electric shock, do
not expose this product to rain or moisture.
d. Anchor or Structure / e. Safety Wire
4
a. Template
f
2
Weight:
41 x 50 mm (1.61 x 1.97 in.)
Template
Safety Wire, Screws (M4) x 1
Symbols Indicating Camera Model
7
: VB-S30D Mk II
: VB-S31D Mk II
: VB-S800D Mk II/VB-S805D Mk II
© CANON INC. 2017
Approx. 270 g (9.6 oz.)
Approx. 270 g (9.6 oz.)
Approx. 240 g (8.5 oz.)
Please refer to the reverse side
of this guide for details.
g
LED
Printed in Taiwan
8
: When powered on, during reboot, during normal use
Part Names
: When [Turn Off] is selected (please refer to the
“Operation Guide”)
4
5
6
1
2
f. LAN cable / g. LED
Important
If Using a Memory Card
The camera head will move and make noise when the power is
turned on.
3
• Do not touch the camera head.
• After the head stops moving, mount the camera.
FRONT
If Using the External Device Terminal or Audio Terminal
7
9
h
8
Serial_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
i
j
Dedicated accessory used to install the camera to the end of
pipe that extends from high ceilings, such as in big-box stores.
Surface Mounting Spacer SS30-VB
b
Dedicated accessory used to install a camera without having to
drill any holes in the wall or ceiling for cables.
c
1. Camera Head / 2. Top Cover / 3. Memory Card Slot Cover /
4. Audio Input Terminal / 5. External Device I/O Terminal /
6. 100Base-TX LAN Connector / 7. Safety Wire Attachment /
8. Tripod Mounting Screw Hole (a 1/4-20 UNC tripod mounting
screw less than 5.5 mm (0.22 in.) in length will fit the screw
hole) / 9. Rotation Dial
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
CANON EUROPA N.V.
Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands
Junction Box Mounting Kit PS30-VB
b. Memory Card Slot
c. Reset Switch (please refer to the “Operation Guide”)
To remove the memory card, push it in all the way until the card
slightly pops out and remove.
Important
Insert a memory card before installing the camera.
The following accessories can be purchased separately as
necessary. Some accessories are not available in certain
countries or regions.
Pendant Mounting Kit PC30-VB
k
MAC_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Accessories
Dedicated accessory used to install a camera using a junction
box.
Please refer to the reverse side
of this guide for details.
h. Protective Cover for Audio Input Terminal
i. Audio Input Terminal
j. Protective Cover for External Device I/O Terminal
k. External Device I/O Terminal
Plenum Mounting Kit SR30-P-VB
Dedicated accessory used to install the camera recessed into a
ceiling. The part projecting out within the ceiling can be covered.
The contents of this guide are subject to change without any prior
notice.
External Dimensions
54 (2.13)
R0
.91
)
R2
3(
12
0(
43.2 (1.70)
3- 4.4 ( 0.17)
(mounting screw holes)
21.0 (0.83) 54.5 (2.15)
4.7
2)
• The External Device I/O Terminal consists of three terminals (IN, OUT,
and GND). The GND terminal serves as both the external device input
GND and the external device output GND.
• The GND terminal is connected to the camera interior GND.
• When using the external device input and output at the same time, couple
the GND wire from the input cable with the GND wire from the output
cable, conforming to the rating range, and connect it to the GND terminal.
• Do not push the external device I/O terminal button with too much force.
Doing so may cause the button to remain pushed-in.
Internal Connection Diagram
11.0 (0.43)
0.1 µF
Input terminal
GND
OUT
Output terminal
Unit : mm (in.)
GND
Connecting the Camera
Power Supply
Please refer to the “Specifications” > “Other” > “Power Supply”.
Note
• Power supply should conform to all local codes.
• The power supply should also comply with IEC/UL60950-1
(SELV/LPS) standards.
Important
• Check with your dealer for more information about PoE devices.
• Some PoE devices allow power limits for each port, but applying
limits may interfere with performance. If using this type of PoE
device, do not limit the operating power.
• Some PoE devices have total consumption power limits for ports,
which can interfere with performance when multiple ports are in use.
For more information, check the instruction guide for your PoE device.
External Device I/O Terminals
 External Device Input Terminals (IN)
The external device input terminal consists of an IN terminal and
a GND terminal. Connecting cables to the IN and GND terminals
and opening or closing the circuit notifies the Viewer.
Important
When connecting sensors and switches, use those that have terminals
which are isolated from internal power and GND.
 External Device Output Terminals (OUT)
The external device output terminal consists of an OUT terminal and a GND
terminal. Controls from the viewer can be used to open and close the circuit
between the terminals. A MOSFET device is used for the output terminal.
Rating range for load connected to output terminals.
Rating between output terminals:
Maximum voltage 50 V DC
Continuous load current at or below 100 mA
On resistance: Below 1 Ω
Adaptive wiring for external device cables
Rating Range: (same for contact input and output)
Solid wire/Stranded wire AWG: No. 26 – 20
Stripped cable length should be approximately 11 mm (0.51 in.)
Audio Input Terminals Common LINE IN/MIC IN
Camera has single audio input system supporting two types of
microphone input: LINE IN and MIC IN. Before use, change [Audio
Input Mode] on the Setting Page (please refer to the “Operation
Guide”). LINE IN is selected by default.
• Dynamic MIC IN
Input impedence: 20 kΩ – 40 kΩ
• Condenser MIC IN
Input impedence (microphone bias resistance): 2.2 kΩ ±20%
Microphone power supply: plug-in power (voltage: 2.3 V)
* Supported microphones: Condenser microphones with plug-in power support
• LINE IN
Input level: up to 1 Vp-p
* Use a microphone with an amplifier.
Specifications
Please refer to the “Specifications” for specifications not listed below.
Camera
Lens
3.5x optical zoom (4x digital zoom) lens with
auto focus
Fixed focal length lens (4x digital zoom)
Viewing Angle
For 16:9 aspect ratios
Horizontal: 77.7° (W) – 20.7° (T)
Vertical: 40.4° (W) – 11.6° (T)
For 4:3 aspect ratios
Horizontal: 55.3° (W) – 15.5° (T)
Vertical: 40.4° (W) – 11.6° (T)
For 16:9 aspect ratios
Horizontal: 95.0°, Vertical: 60.0°
For 4:3 aspect ratios
Horizontal: 76.0°, Vertical: 60.0°
Pan Angle Range
350° (±175°)
Tilt Angle Range
90° (ceiling-mounted position: -90° – 0°)
When the horizontal direction of the camera is 0°
Rotation Angle Range
180° (±90°)
Interface
Network Terminal*
LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex))
* LAN cables are category 5 or higher, with length 100 m
(328 ft.) or shorter.
Audio Input Terminal
3.5 mm ( 0.14 in.) mini-jack connector (monaural)
(common for LINE IN & MIC IN) LINE IN x 1 or MIC IN x 1
External Device I/O Terminal Input x 1, Output x 1
Memory Card
microSD Memory Card, microSDHC Memory Card,
microSDXC Memory Card compatible.
Others
Max. 7.8 W
– Class 0 power sourcing equipment (requests 15.4 W)
Max. 7.6 W
– Class 0 power sourcing equipment (requests 15.4 W)
Max. 4.1 W
– Class 2 power sourcing equipment (requests 7.0 W)
Safety Precautions
Installation Precautions
Warning Failure to follow the instructions may result
in death or serious injury.
10 kΩ
IN
9.5 (0.37)
1 kΩ
10 kΩ
Internal controller
53.5 (2.11) 50.0 (1.97)
Power Consumption
Note
Operating Environment Temperature: -10°C – +50°C (+14°F – +122°F)
Humidity: 5% – 85% (without condensation)
Storage Environment
Temperature: -30°C – +60°C (-22°F – +140°F)
Humidity: 5% – 90% (without condensation)
Ceiling mount
Installation
– Canon will not guarantee proper operation if the
cameras are installed on surfaces where the angle is
more than ±5° from horizontal or on walls, because this
will put a heavy load onto sliding mechanical parts and
may affect durability.
Ceiling mount/Surface mount
PoE: PoE power supply via LAN connector
Power Supply
(IEEE802.3at Type1 compliant)
Do not install in the following places:
• Places in direct sunlight, near heat-generating objects, or
locations subject to high temperatures
• Places near fire sources or flammable solvents (alcohol,
thinner, fuel, etc.)
• Humid or dusty places
• Places subject to oily smoke or steam
• Places subject to sea air
• Confined or enclosed places
Failure to do so may result in fire or electric shock.
Precautions for the LAN (power) cable:
• Do not set any heavy objects on the LAN cable.
• Do not pull, forcibly bend, scratch, or modify the LAN cable.
Failure to do so may result in fire or electric shock.
Caution
Failure to follow the instructions may result
in injury.
For installation or inspection of this camera, consult the
dealer where you purchased the product.
• This installation should be made by a qualified service
person and should conform to all local codes.
• When installing, make sure the surface is capable of
withstanding the total weight of the camera and
accessories, and sufficiently reinforce if necessary.
• Be sure to use installation screws designed for the type of
surface the camera is to be installed.
• Periodically check the parts and screws for rust and
loosening, in order to prevent injuries and equipment
damage due to falling items.
• Do not install in unstable places, places subject to
significant vibration or impact, or places subject to salt
damage or corrosive gas.
• Be sure to attach the safety wire when installing the
camera.
Failure to do so may result in the camera falling or other accidents.
• Do not touch the edges of metal parts with bare hands.
• Be careful not to get your fingers caught when installing.
Failure to do so may result in injuries.
Caution
•
•
Failure to follow the instructions may result in
property damage.
Do not turn the camera rotator by hand.
Do not install on an unstable surface. Also, make
sure the camera is installed ±5° or less horizontal.
• After turning off the power, do not turn the power on again
for at least five seconds.
• Take measures to remove static electricity before
performing any procedures.
• If there is condensation, please wait to power on, until the
condensation dissipates.
• The network camera is only intended for a connection to
an Ethernet or PoE network without routing to the outside
plant.
Failure to do so may result in malfunction.
• Take care not to damage wiring or piping.
Failure to do so may result in damage to peripheral items.
Important
• We recommend the installation of a lightning arrester (a surge protection
device) as a measure against failures caused by lightning strikes. Please
refer to our website for details.
Precautions for Use
Warning Failure to
follow the instructions may
result in death or serious injury.
• If you discover defective conditions such as smoke,
strange sounds, heat or strange odors, immediately stop
using the camera and contact your nearest dealer.
Fire or electric shock may result from continued use of the
product.
• If thunder starts, stop installation or inspection etc. and do
not touch the camera or continue connecting the cable.
• Do not disassemble or modify the camera.
• Do not damage the connecting cable.
• Do not spray the camera with water, or otherwise make
it wet.
• Do not insert foreign objects such as water or metal into
the camera.
• Do not use flammable sprays near the camera.
• Do not leave LAN cables connected when the camera is
not in use for long periods.
• Do not use flammable solvents such as alcohol, paint
thinner or benzine when cleaning the camera.
Failure to do so may result in fire or electric shock.
• This camera should not be used with medical devices or
other life-support systems.
• Depending on the computer and network environment,
high-precision video transmission cannot be guaranteed
due to video lag or loss.
Canon will assume no liability for any accident or damage
resulting from use of the camera under the conditions above.
Only for European Union and EEA (Norway,
Iceland and Liechtenstein)
These symbols indicate that this
product is not to be disposed of with
your household waste, according to the
WEEE Directive (2012/19/EU), the Battery
Directive (2006/66/EC) and/or national
legislation implementing those Directives.
If a chemical symbol is printed beneath the symbol shown
above, in accordance with the Battery Directive, this
indicates that a heavy metal (Hg = Mercury, Cd = Cadmium,
Pb = Lead) is present in this battery or accumulator at a
concentration above an applicable threshold specified in the
Battery Directive.
This product should be handed over to a designated
collection point, e.g., on an authorized one-for-one basis
when you buy a new similar product or to an authorized
collection site for recycling waste electrical and electronic
equipment (EEE) and batteries and accumulators. Improper
handling of this type of waste could have a possible impact
on the environment and human health due to potentially
hazardous substances that are generally associated with EEE.
Your cooperation in the correct disposal of this product will
contribute to the effective usage of natural resources.
For more information about the recycling of this product,
please contact your local city office, waste authority, approved
scheme or your household waste disposal service or visit
www.canon-europe.com/weee, or www.canon-europe.com/
battery.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
