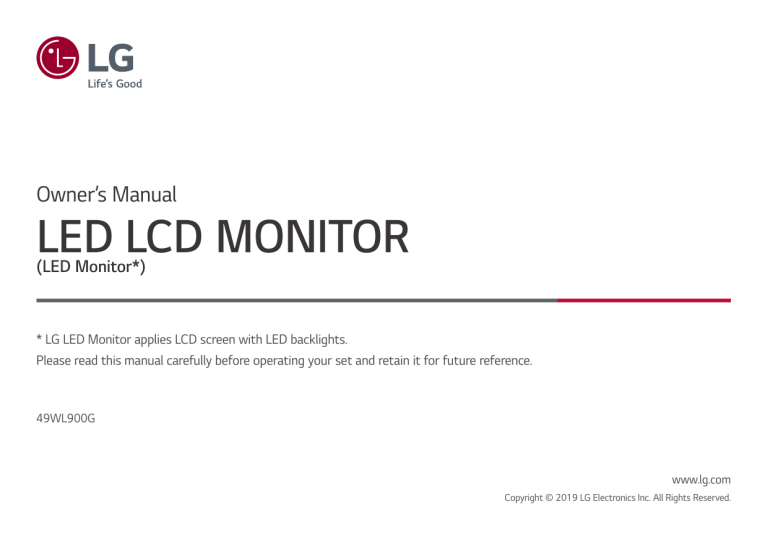

Owner’s Manual
LED LCD MONITOR
(LED Monitor*)
* LG LED Monitor applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it for future reference.
49WL900G
www.lg.com
Copyright © 2019 LG Electronics Inc. All Rights Reserved.
TABLE OF CONTENTS
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
ENGLISH
LICENSE....................................................... 2
OPEN SOURCE SOFTWARE NOTICE
INFORMATION............................................. 3
The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc. in the United States and other
countries.
ASSEMBLING AND PREPARING................... 3
USING THE MONITOR................................... 7
The SuperSpeed USB Trident logo is a registered trademark of USB
Implementers Forum, Inc.
USER SETTINGS......................................... 10
TROUBLESHOOTING.................................. 16
PRODUCT SPECIFICATION.......................... 18
VESA, VESA logo, DisplayPort compliance logo and DisplayPort
compliance logo for dual-mode source devices are all registered
trademarks of the Video Electronics Standards Association.
* USB Type-CTM and USB-CTM are trademarks of USB Implementers Forum.
2
OPEN SOURCE SOFTWARE NOTICE
INFORMATION
ASSEMBLING AND PREPARING
•• Without prior notice, all product information and specifications contained in this manual are subject to
change to improve the performance of the product.
•• To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer
from which you purchased the product.
•• The power cord provided may differ depending upon the region.
ENGLISH
To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product,
please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available
for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing
such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in
receipt of this information.
NOTE
•• The components may look different from those illustrated here.
Supported Drivers and Software
You can download and install the latest version from the LGE website (www.lg.com).
•• Drivers and Software: Monitor Driver / OnScreen Control / Dual Controller
-- Monitor Driver: Recommended
-- OnScreen Control: Recommended
-- Dual Controller: Optional
CAUTION
•• Always use genuine LG components to ensure safety and product performance.
•• The product warranty will not cover damage or injury caused by the use of unauthorized components.
•• It is recommended that use the supplied components.
•• Illustrations in this document represent typical procedures, so they may look different from the actual product.
•• Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing
so may damage the product.)
•• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this
way will not be covered by the product warranty.
•• When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen
may cause damage to it.
3
Product and Button Description
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or
damaged and to ensure safe transportation, regardless of its shape or size.
ENGLISH
•• Place the monitor in the original box or packing material before attempting to move it.
•• Before moving or lifting the monitor, disconnect the power cord and all other cables.
•• Hold the bottom and side of the monitor frame firmly. Do not hold the panel itself.
•• When holding the monitor, the screen should face away from you to prevent it from being scratched.
•• When transporting the monitor, do not expose the monitor to shock or excessive vibration.
•• When moving the monitor, keep it upright and never turn the monitor on its side or tilt it sideways.
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/
down with your finger.
Basic Functions
A
B
C
A
Power on: Press the joystick button once with your finger to turn on the monitor.
B
Power off: Press and hold the joystick button once more than 5 seconds with your finger to turn off the
monitor.
C
Volume control: You can control the volume by moving the joystick button left/right.
NOTE
•• The joystick button is located at the back of the monitor.
4
CAUTION
•• Avoid touching the monitor screen as much as possible.
-- This may result in damage to the screen or some of the pixels used to create images.
Installing the Wall Mount Plate
This monitor meets the specifications for the wall mount plate or other compatible devices.
NOTE
•• For more information on installation, refer to the wall mount plate’s installation guide.
•• Be careful not to apply too much force while mounting the wall mount plate as it may cause damage to the
screen.
NOTE
•• A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not
liable for any accidents relating to the use of non-standard screws.
Installing on the Wall
•• The wall mount kit includes the installation guide and all necessary parts.
Install the monitor at least 100 mm away from the wall and leave about 100 mm of space at each side of the
monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail
store. Alternatively, please refer to the manual for how to install and set up a tilting wall mounting bracket.
•• The wall mounting bracket is optional. You can obtain optional accessories from your local dealer.
ENGLISH
•• The wall mount plate is sold separately.
To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.
-- Wall Mount (mm): 100 x 100
-- Standard screw: M4 x L10
-- Number of screws: 4
•• The length of the screw may differ for each wall mounting bracket. If you use screws longer than the
standard length, it may damage the inside of the product.
•• For more information, please refer to the user manual for the wall mounting bracket.
A
A
A
A
A
A: 100 mm
5
CAUTION
A
•• Unplug the power cord before moving or installing the monitor to avoid electric shock.
ENGLISH
•• Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could
lead to injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.
B
•• To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation
instructions.
•• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this
way will not be covered by the product warranty.
A
•• Use the wall mounting bracket and screws that conform to VESA standards. Damage caused by the use or
misuse of inappropriate components will not be covered by the product warranty.
B
•• When measured from the back of the monitor, the length of each installed screw must be 8 mm or less.
C
D
A: Wall Mount Plate
B: Back of the Monitor
C: Standard screw
D: Max. 8 mm
6
USING THE MONITOR
CAUTION
•• If you use generic cables not certified by LG, the screen may not display or there may be image noises.
Transmits digital video and audio signals from your PC to the monitor.
NOTE
•• There may be no video or audio output depending on the DP (DisplayPort) version of the PC.
•• If you are using a Mini DisplayPort output graphics card, use a Mini DP to DP (Mini DisplayPort to
DisplayPort) cable or gender that supports DisplayPort1.4. (sold separately)
•• Do not press the screen for a prolonged time. This may cause image distortion.
USB-C connection
•• Do not display a still image on the screen for a prolonged time. This may cause image retention. Use a PC
screensaver if possible.
Transmits digital video and audio signals from your PC to the monitor.
•• When connecting the power cord to the outlet, use a grounded (3-hole) power strip or a grounded power
outlet.
•• PD (Power Delivery), DP Alternate Mode (DP over USB-C) and USB Data are supported via USB-C Port.
•• The monitor may flicker when turned on in an area where the temperature is low. This is normal.
•• Features may not work properly depending on the connected device’s specifications and the environment.
•• Sometimes red, green, or blue spots may appear on the screen. This is normal.
•• USB-C port is not for the Monitor Power source but for a PC power source.
Connect Adapter to supply power to the Monitor.
ENGLISH
•• Illustrations in this manual may differ from the actual product.
Press the joystick button, go to [Settings]
[Input], and then select the input option.
DisplayPort Connection
NOTE
Connecting to a PC
•• This monitor supports the *Plug and Play feature.
* Plug and Play: A feature that allows you to add a device to your computer without having to reconfigure
anything or install any manual drivers.
HDMI Connection
Transmits digital video and audio signals from your PC to the monitor.
CAUTION
•• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
•• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not
display or a connection error may occur.
•• Recommended HDMI cable types
-- High-Speed HDMI®/TM cable
-- High-Speed HDMI®/TM cable with Ethernet
7
ENGLISH
Connecting AV Devices
Connecting Peripherals
HDMI Connection
USB Device connection
HDMI transmits digital video and audio signals from your AV device to the monitor.
The USB port on the product functions as a USB hub.
NOTE
•• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
NOTE
•• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may
not display or a connection error may occur.
•• It is recommended you install all Windows Updates to keep your Windows up-to-date before connecting to the
product for use.
•• Recommended HDMI cable types
-- High-Speed HDMI®/TM cable
-- High-Speed HDMI®/TM cable with Ethernet
•• Peripheral devices are sold separately.
•• A keyboard, mouse, or USB device can be connected to the USB port.
•• The charging speed may vary depending on the device.
•• To use USB Downstream port on the monitor, the user must connect Upstream port of the monitor to the Host
PC using a "USB C-C cable" or a "USB C-C cable + USB C-A gender".
•• When the "USB C-C cable" is connected between Upstream port of monitor and the Host PC, the Downstream
port of monitor supports USB 2.0 device.
•• When the "USB C-C cable + USB C-A gender" is connected between the Upstream port of monitor and the
Host PC, the Downstream port of monitor supports USB 3.0 device. However, the Host PC must support USB 3.0
function.
•• When the "USB C-C cable + USB C-A gender" is connected between the Upstream port of monitor and the Host
PC, it is recommended to connect to a USB port for non-fast charging purposes.
8
CAUTION
Cautions When Using a USB Device
•• A USB device with an automatic recognition program installed, or that uses its own driver, may not be
recognized.
•• It is recommended to use a USB hub or hard disk drive with power supplied. (If the power supply is not
adequate, the USB device may not be recognized properly.)
•• If a USB device longer than 40 mm is connected to the USB port on the side, the monitor might be damaged
when handled. Please connect it to the USB port on the rear side.
Connect peripherals to the monitor via the headphones port.
NOTE
•• Peripheral devices are sold separately.
•• Depending on the audio settings of the PC and external device, headphones and speaker functions may be
limited.
ENGLISH
•• Some USB devices may not be supported or may not work properly.
Headphones Connection
•• If you use angled earphones, it may cause a problem with connecting another external device to the monitor.
Therefore, it is recommended to use straight earphones.
A
Angled
Straight
(Recommend)
A: 40 mm 9
USER SETTINGS
NOTE
ENGLISH
•• Your monitor’s OSD (On Screen Display) may differ slightly from that shown in this manual.
Activating the Main Menu
1 Press the joystick button located at the back of the monitor.
2 Move the joystick up/down and left/right to set the options.
3 Press the joystick button once more to exit the main menu.
Joystick Button
A
B
C
A
•• Main menu disabled: Enables the main menu.
•• Main menu enabled: Exits the main menu. (Holding down the button more than 5 seconds to turn off the monitor. You can turn off the monitor this way at any time, including when the OSD is on.)
B
•• Main menu disabled: Adjusts the monitor volume level. ( ,
)
•• Main menu enabled: Enters the [Input] features. ( ) / Enters the [Settings] feature. ( )
C
•• Main menu disabled: Displays the information on the current input. ( , )
•• Main menu enabled: Turns off the monitor. ( ) / Enters the [Picture Mode] feature. ( )
10
Main Menu Features
B
E
C
Description
A: [Power Off]
Turns off the monitor.
B: [Input]
Sets input mode.
C: [Settings]
Configures the screen settings.
D: [Picture Mode]
Sets the picture mode.
E: [Exit]
Exits the main menu.
ENGLISH
A
Main Menu
D
Menu Settings
1
2
3
4
To view the OSD menu, press the joystick button at the back of the monitor and then enter the [Settings].
Move the joystick up/down and left/right to set the options.
To return to the upper menu or set other menu items, move the joystick to or by pressing ( ).
If you want to exit the OSD menu, move the joystick to until you exit.
[Quick Settings]
[Input]
[Picture]
[General]
NOTE
••
: On
••
: Off
11
[Quick Settings]
[Settings]
[PBP / PIP]
•• [Input List]: Displays the screens of main input and sub input
[Quick Settings]
•• [Brightness]: Adjusts the brightness of the screen.
ENGLISH
•• [Auto Brightness]: Optimizes the brightness automatically for surrounding illuminance.
Sub Screen
HDMI 1
HDMI 2
DP
USB-C
•• [Contrast]: Adjusts the contrast of the screen.
HDMI 1
-
O
O
O
•• [Volume]: Adjusts the volume level.
-- You can adjust [Mute] / [Unmute] by moving the joystick button to
HDMI 2
O
-
O
O
DP
O
O
-
O
USB-C
O
O
O
-
in the [Volume] menu.
•• [Color Temp]: Set your own color temperature.
-- [Custom]: The user can customize the red, green and blue color.
-- [Warm]: Sets the screen color to a reddish tone.
-- [Medium]: Sets the screen color to between a red and blue tone.
-- [Cool]: Sets the screen color to a bluish tone.
[Settings]
Main Screen
•• [Aspect Ratio]: Adjusts the aspect ratio of the screen.
-- [Full Wide]: Displays the video to fit the PBP / PIP screen, regardless of the video signal input.
-- [Original]: Displays the video in the aspect ratio of the video signal input on the PBP / PIP screen.
•• [PBP / PIP]: You can select the various PBP or PIP combination.
[Input]
•• [PIP Size]: Sets the size of the PIP Sub window. ([Small] / [Medium] / [Large])
[Input]
•• [Input List]: Selects the input mode.
•• [Aspect Ratio]: Adjusts the aspect ratio of the screen. The display may look the same for [Full Wide] and
[Original] options at the recommended resolution.
-- [Full Wide]: Displays the video in widescreen, regardless of the video signal input.
-- [Original]: Displays video according to the aspect ratio of the video signal input.
-- [Just Scan]: The aspect ratio is not adjusted from the original.
-- [Cinema 1]: Enlarges the screen with an aspect ratio of 32:9.
-- [Cinema 2]: Enlarges the screen with an aspect ratio of 32:9, including the black box at the bottom for
subtitles.
•• [PBP / PIP]: You can select the various PBP or PIP combination.
12
PBP / PIP Connection
•• [Main/Sub Screen Change]: Toggles between the main screen and sub screen in [PBP / PIP] mode.
•• [Sound Out]: Select the audio output in [PBP / PIP] mode.
NOTE
-- If not using the [PBP / PIP] feature, [PIP Size], [Main/Sub Screen Change] and [Sound Out] are deactivated.
[Picture]
[Settings]
[Settings]
[Picture]
[Picture Mode]
[Picture Mode] on SDR (Non HDR) signal
•• [Custom]: Allows the user to adjust each element. The color mode of the main menu can be adjusted.
•• [Vivid]: Optimizes the screen for the retail environment by enhancing the contrast, brightness, and sharpness.
•• [HDR Effect]: Optimizes the screen for high dynamic range.
•• [Reader]: Optimizes the screen for reading documents. You can brighten the screen in the OSD menu.
•• [Cinema]: Optimizes the screen to improve the visual effects of a video.
•• [Color Weakness]: This mode is for users who cannot distinguish between red and green. It enables users with
color weakness to easily distinguish between the two colors.
NOTE
-- If the [Picture Mode] is changed in the DP (DisplayPort) input, the screen may flicker or the resolution of
your PC screen may be affected.
[Picture Mode] on HDR signal
[Picture Adjust]
•• [Auto Brightness]: Optimizes the brightness automatically for surrounding illuminance.
•• [Contrast]: Adjusts the contrast of the screen.
•• [Sharpness]: Adjusts the sharpness of the screen.
•• [SUPER RESOLUTION+]: Because this is a function to increase the sharpness of low resolution pictures,
it is not recommended to use the function for normal text or for desktop icons. Doing so may result in
unnecessarily high sharpness.
-- [High]: Optimizes the screen for crystal clear images. Best for high-definition video or games.
-- [Middle]: Optimizes the screen for comfortable viewing, with images at the middle level between the low
and high modes. Best for UCC or SD videos.
-- [Low]: Optimizes the screen for smooth and natural images. Best for still images or images with less
movement.
-- [Off]: Displays in the most common setting. Disables [SUPER RESOLUTION+].
ENGLISH
NOTE
-- The [Picture Mode] that can be set depends on the Input signal.
[Picture]
•• [Brightness]: Adjusts the brightness of the screen.
•• [Black Level]: Sets the offset level (for HDMI only).
Offset: as a reference for a video signal, this is the darkest color the monitor can display.
-- [High]: Keeps the current contrast ratio of the screen.
-- [Low]: Lowers the black levels and raises the white levels from the current contrast ratio of the screen
•• [DFC]: Adjusts the brightness automatically according to the screen.
•• [Custom]: Allows the user to adjust each element.
•• [Vivid]: Optimized the screen for HDR vivid colors.
•• [Standard]: Optimized the screen for HDR standard.
•• [Cinema]: Optimized the screen for HDR video.
NOTE
-- HDR content may not display correctly depending on Windows 10 OS settings, please check HDR On/Off
settings in Windows.
-- When the HDR function is turned on, the characters or picture quality may be poor according to Graphic
card performance.
-- While the HDR function is on, screen flickering or cracking may occur when changing the monitor input or
power on/off according to Graphic card performance
13
[Settings]
[Picture]
[Color Adjust]
ENGLISH
•• [Gamma]:
-- [Mode 1], [Mode 2], [Mode 3]: The higher the gamma value, the darker the image becomes. Likewise, the
lower the gamma value, the lighter the image becomes.
-- [Mode 4]: If you do not need to adjust the gamma settings, select [Mode 4].
•• [Color Temp]: Set your own color temperature.
-- [Custom]: The user can customize the red, green and blue color.
-- [Warm]: Sets the screen color to a reddish tone.
-- [Medium]: Sets the screen color to between a red and blue tone.
-- [Cool]: Sets the screen color to a bluish tone.
•• [Red], [Green], [Blue]: You can customize the picture color using [Red], [Green], and [Blue] colors.
•• [Six Color]: Meets the user requirements for colors by adjusting the hue and saturation of the six colors (red,
green, blue, cyan, magenta, and yellow) and then saving the settings.
-- Hue: Adjusts the tone of the screen colors.
-- Saturation: Adjusts the saturation of the screen colors. The lower the value, the less saturated and brighter
the colors become. The higher the value, the more saturated and darker the colors become.
[Settings]
[Picture]
[Response Time]
•• [Response Time]: Sets a response time for displayed pictures based on the speed of the screen. For a normal
environment, it is recommended that you use [Fast].
For a fast-moving picture, it is recommended that you use [Faster]. Setting to [Faster] may cause image
sticking.
-- [Faster]: Sets the response time to [Faster].
-- [Fast]: Sets the response time to [Fast].
-- [Normal]: Sets the response time to [Normal].
-- [Off]: Disables the feature.
14
[Settings]
[Picture]
[Picture Reset]
•• [Do you want to reset your picture settings?]:
-- [Yes]: Returns to the default settings.
-- [No]: Cancel the select.
[General]
[Settings]
[General]
•• [Language]: Sets the menu screen to the desired language.
•• [SMART ENERGY SAVING]: Conserve energy by using luminance compensation algorithm.
-- [High]: Saves energy using the high-efficiency [SMART ENERGY SAVING] feature.
-- [Low]: Saves energy using the low-efficiency [SMART ENERGY SAVING] feature.
-- [Off]: Disables the feature.
-- The value of energy saving data may differ depending on panel and panel suppliers.
-- If you select the option of [SMART ENERGY SAVING] is [High] or [Low], monitor luminance become higher
or lower depend on source.
•• [Automatic Standby]: Feature that automatically turns off the monitor when there is no movement on the
screen for a period of time. You can set a timer for the auto-off function. ([Off], [4H], [6H], and [8H])
•• [DisplayPort Version]:
-- [DisplayPort] / [USB-C]: Set DisplayPort Version to the same version as the connected external device.
([1.4], [1.2], and [1.1]) To use the HDR function, set to [1.4].
[Settings]
[General]
[Reset to Initial Settings]
•• [Do you want to reset your settings?]
-- [Yes]: Returns to the default settings.
-- [No]: Cancel the reset.
ENGLISH
•• [HDMI ULTRA HD Deep Color]: Provides sharper images when connected to a device supporting ULTRA HD
Deep Color.
-- To use [HDMI ULTRA HD Deep Color], turn this function on.
-- If the connected device does not support Deep Color, the screen or sound may not work properly. In this
case, set this function to off.
4K @ 60 Hz Support Format
Resolution: 3840 x 2160
Frame rate (Hz): 59.94/60.00
Color Depth / Chroma Sampling:
8 bit, 10 bit
YCbCr 4:2:0 / YCbCr 4:2:2
8 bit
YCbCr 4:4:4 / RGB 4:4:4
•• [Buzzer]: This feature lets you set the sound generated from [Buzzer] when your monitor powers on or off.
•• [OSD Lock]: This feature disables the configuration and adjustment of menus.
•• [Deep Sleep Mode]: When [Deep Sleep Mode] is enabled, power consumption is minimized while the
monitor is in standby mode.
-- USB Charging and Hub functions will not work in standby mode while [Deep Sleep Mode] is enabled in
standby mode.
•• [Information]: The following display information will be shown; [Serial Number], [Total Power On Time],
[Resolution].
15
TROUBLESHOOTING
ENGLISH
Nothing is displayed on the screen.
•• Is the monitor's power cord plugged in?
-- Check if the power cord is correctly plugged into the power outlet.
•• Is the [No Signal] message being displayed?
-- This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it.
•• Is the [Out of Range] message being displayed?
-- This occurs when signals transferred from the PC (graphics card) are out of the horizontal or vertical frequency range of the monitor. Please see the Product Specification section of this manual to set the appropriate frequency.
Screen display is unstable and shaky. / Images displayed on the monitor leave shadow trails.
•• Did you select the appropriate resolution?
-- If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the screen may be flickering. Change the resolution to 1080p or the recommended resolution.
-- Not setting the graphics card to the recommended (optimal) resolution may result in blurred text, a dimmed screen, a truncated display area or misalignment of the display.
-- The setting methods may be different depending on the computer or operating system, and some resolutions may not be available depending on the performance of the graphics card. If this is the case, contact the
manufacturer of the computer or graphics card for assistance.
•• Does image sticking occur even when the monitor is turned off?
-- Displaying a still image for a prolonged time may cause damage to the screen, resulting in the retention of the image.
-- To extend the lifetime of the monitor, use a screensaver.
•• Are there spots on the screen?
-- When using the monitor, pixilated spots (red, green, blue, white, or black) may appear on the screen. This is normal for an LCD screen. It is not an error, nor is it related to the monitor's performance.
16
Some features are disabled.
•• Are some functions not available when you press the Menu button?
-- The OSD is locked. Disable [OSD Lock] in [General].
•• Have you installed the display driver?
-- Be sure to install the display driver from our web site: http://www.lg.com.
-- Make sure to check if the graphics card supports Plug and Play function.
ENGLISH
Do you see an "Unrecognized monitor, Plug and Play (VESA DDC) monitor found" message?
No sound from the headphone port.
•• Are images displayed without sound?
-- Make sure that the headphone port connections are made properly.
-- Try increasing the volume with the joystick.
-- Set the audio output of the PC to the monitor you are using. (The settings may differ depending on the operating system (OS) you use.)
4K/5K resolution is unavailable.
•• Did you check the cable connection?
-- Check if the cable is properly connected.
-- It is recommended to use the accessories supplied with the product.
•• Is the resolution and refresh rate set properly?
-- Set the proper resolution and refresh rate in the PC screen resolution settings or the player's option menu.
•• Does the connected external device support 4K/5K resolution?
-- It is available only on external devices that support 4K/5K resolution.
-- Check if the connected external device supports 4K/5K resolution.
•• Is the [HDMI ULTRA HD Deep Color] function enabled? (In case of 4K)
-- Go to [Settings] > [General] > [HDMI ULTRA HD Deep Color] function to enable the function.
•• Did you set the [DisplayPort Version] to [1.4]? (In case of 5K)
-- Go to [Settings] > [General] > [DisplayPort Version] to set the version to [1.4].
17
PRODUCT SPECIFICATION
Specifications are subject to change without notice.
ENGLISH
Color Depth: 8-bit / 10-bit color is supported.
Resolution:
•• HDMI
-- Max Resolution: 3840 x 2160 @ 60 Hz
-- Recommended Resolution: 3840 x 1080 @ 60 Hz
•• DP / USB-C
-- Max Resolution: 5120 x 1440 @ 60 Hz
-- Recommended Resolution: 5120 x 1440 @ 60 Hz
Environmental Conditions:
•• Operating Conditions
-- Temperature: 0 °C to 40 °C
-- Humidity: Less than 80 %
•• Storing Conditions
-- Temperature: -20 °C to 60 °C
-- Humidity: Less than 85 %
Dimensions: Monitor Size (Width x Height x Depth)
•• 1215.1 x 365.7 x 114.2 (mm)
Weight: 12.6 kg
18
Power Sources:
•• Power Rating: AC 100 - 240 V, 50/60 Hz, 2.5 A
•• Power Consumption:
-- Operating Mode: 80 W (Typical)*
-- Sleep Mode: ≤ 1.0 W (HDMI / DP input Condition)**
-- Off Mode: ≤ 0.3 W
* The Operating Mode of Power Consumption is measured with LGE test standard. (Full White pattern,
Maximum resolution)
* The Power Consumption level can be different by operating condition and monitor setting.
** In case of USB-C input, the power consumption of Sleep Mode may vary depending on the connected device.
** The monitor goes to the sleep mode in a couple of minutes.(Max 5 minutes)
Factory Support Mode (Preset Mode, PC)
DisplayPort/USB-C
Horizontal Frequency (kHz)
Vertical Frequency (Hz)
Polarity (H/V)
640 x 480
31.469
59.94
-/-
Remarks
800 x 600
37.879
60.317
+/+
1024 x 768
48.363
60
-/-
1152 x 864
54.347
60.05
+/+
1280 x 720
45
60
+/+
1280 x 800
49.702
59.81
-/+
1280 x 1024
63.981
60.02
+/+
1280 x 1440
91.79
60
+/-
1600 x 900
60
60
+/+
1680 x 1440
67.5
60
+/-
1920 x 1080
67.5
60
+/+
2560 x 1080
70.2
60
+/-
2560 x 1440
91.79
60
+/-
2PBP-A
3440 x 1440
91.79
60
+/-
2PBP-B1
3840 x 1080
70.2
60
+/+
3840 x 2160
66.66
30
+/-
3840 x 2160
133.31
60
+/-
5120 x 1440
43.83
30
+/-
5120 x 1440
88.86
60
+/-
ENGLISH
Preset Mode
3PBP
2PBP-B2
DP/ USB-C Preferred timing /
SINGLE
19
HDMI
ENGLISH
20
Preset Mode
Horizontal Frequency (kHz)
Vertical Frequency (Hz)
Polarity (H/V)
640 x 480
31.469
59.94
-/-
800 x 600
37.879
60.317
+/+
1024 x 768
48.363
60
-/-
1152 x 864
54.347
60.05
+/+
1280 x 720
45
60
+/+
1280 x 800
49.702
59.81
-/+
1280 x 1024
63.981
60.02
+/+
1280 x 1440
91.97
60
+/+
1600 x 900
60
60
+/+
1680 x 1440
91.79
60
+/-
1920 x 1080
67.5
60
+/+
2560 x 1080
70.2
60
+/+
2560 x 1440
44.43
30
+/-
2560 x 1440
88.79
60
+/-
3440 x 1440
74.04
49.99
+/-
3440 x 1440
88.85
59.99
+/-
3840 x 1080
35.1
30
+/+
3840 x 1080
58.5
50
+/+
3840 x 1080
70.2
60
+/+
Remarks
3PBP
2PBP-B2
2PBP-A
2PBP-B1
HDMI Preferred timing /
SINGLE
Remarks
3PBP
2PBP-A
2PBP-A
3PBP
2PBP-A
2PBP-B1
ENGLISH
SINGLE
2PBP-B2
HDMI Timing (Video)
Preset Mode
Horizontal Frequency (kHz)
Vertical Frequency (Hz)
480P
31.5
60
720P
45
60
1080P
67.5
60
2160p
135
60
21
The model and serial number of the product are located on the back and on one side of the product.
Record them below in case you ever need service.
Model
Serial No.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
