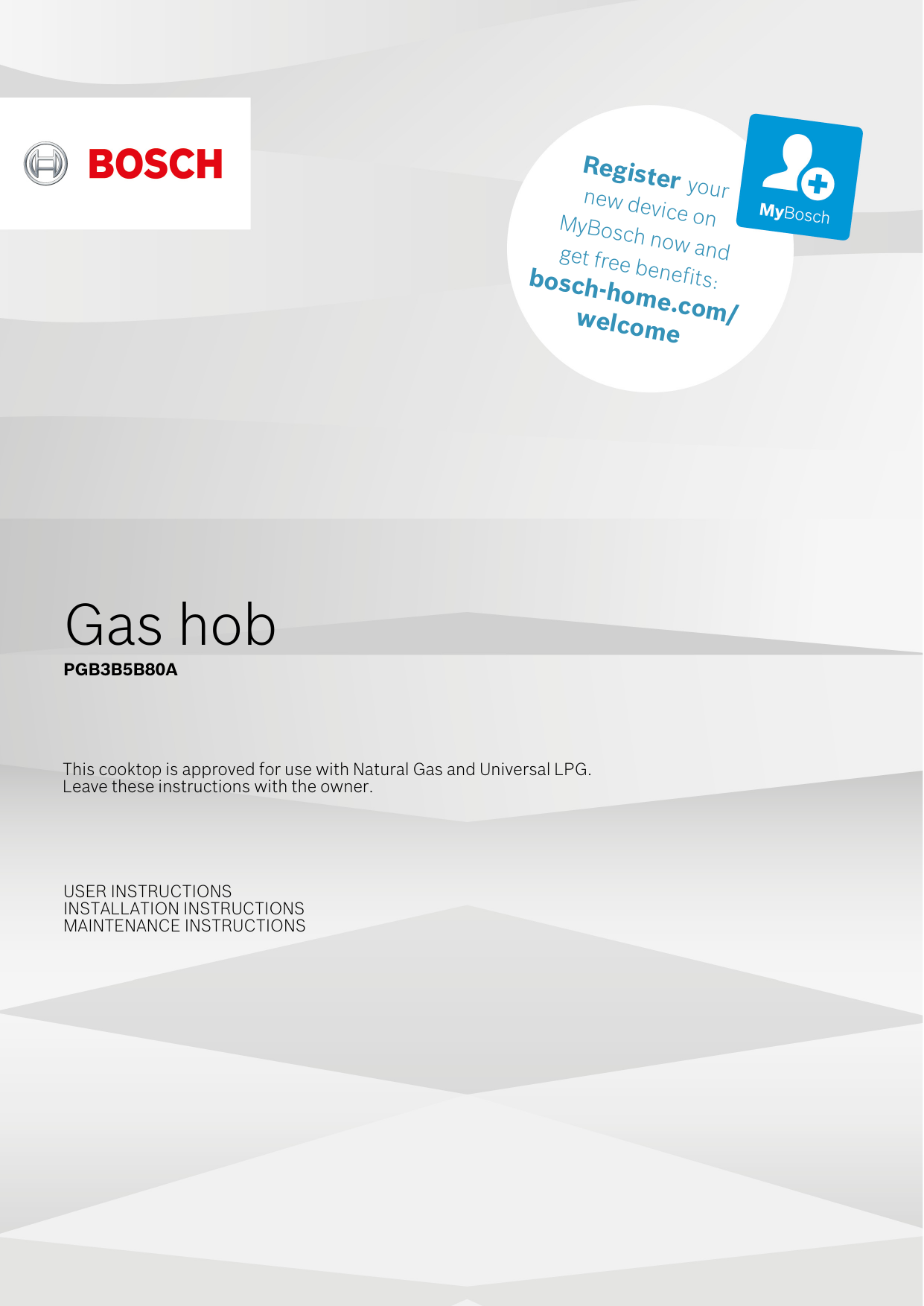

Gas hob
PGB3B5B80A
This cooktop is approved for use with Natural Gas and Universal LPG.
Leave these instructions with the owner.
USER INSTRUCTIONS
INSTALLATION INSTRUCTIONS
MAINTENANCE INSTRUCTIONS
en
Table of contents
[en]I nst r uct i on manual Gas hob
8 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
( Important safety information . . . . . . . . . . . . . . . 5
What to do if you smell gas . . . . . . . . . . . . . . . . . . . . . 5
5 Installation and connection. . . . . . . . . . . . . . . . . 6
Statutory requirements . . . . . . . . . . . . . . . . . .
Preparing to install . . . . . . . . . . . . . . . . . . . . .
Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation of cooktop into the kitchen bench
Electrical connection . . . . . . . . . . . . . . . . . . .
Gas connection . . . . . . . . . . . . . . . . . . . . . . .
Converting the cooktop from Nat. Gas to
Universal LPG . . . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.6
.6
.7
.8
.8
.9
. . . . . . 10
* Getting to know your appliance . . . . . . . . . . . . 11
Burner locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Controls and burners . . . . . . . . . . . . . . . . . . . . . . . . . 11
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Ä Gas burners . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching on manually .
Automatic ignition. . . . .
Safety system . . . . . . . .
Switching off a burner .
Warnings . . . . . . . . . . .
Cooking guidelines . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. 12
. 12
. 12
. 12
. 12
. 12
Å Cooking pans . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Suitable pans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Instructions for use. . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2 Cleaning and maintenance . . . . . . . . . . . . . . . . 13
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3 Trouble shooting . . . . . . . . . . . . . . . . . . . . . . . . 14
4 Customer service . . . . . . . . . . . . . . . . . . . . . . . . 15
Warranty conditions . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Produktinfo
Additional information on products, accessories,
replacement parts and services can be found at
www.bosch-home.com and in the online shop
www.bosch-eshop.com
3
en
Intended use
8Intended use
Read these instructions carefully. You will only
be able to use your appliance safely and
effectively when you have read them. These
operating and installation instructions should
be retained, and passed onto the buyer if the
appliance is sold.
The manufacturer is exempt from all
responsibility if the requirements of this
manual are not complied with.
The images shown in these instructions are for
guidance only.
Do not remove the appliance from its
protective packaging until it is installed in the
unit. Do not switch on the appliance if it is
damaged in any way. Contact our Technical
Assistance Service.
Before installing your new hob, ensure that it is
being installed according to the installation
instructions.
This appliance is not suitable for use in a
marine craft, caravan or mobile home.
This appliance must only be used in well
ventilated places. It must not be connected to
a combustion product removal device.
This appliance is not intended for operation
with an external clock timer or a remote
control.
This appliance has been designed for home
use only, not for commercial or professional
use. This appliance is only intended for
cooking purposes, not as a heating system.
The warranty will only be valid if the appliance
is used for the purpose for which it was
designed.
This appliance is intended for use up to a
maximum height of 2000 metres above sea
level.
Do not use lids or hob guards for children
which are not recommended by the hob
manufacturer. They may cause accidents such
as those due to the overheating, ignition or
detachment of fragments of materials.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance by
a person responsible for their safety. Children
I nt ended us e
4
should be supervised to ensure that they do
not play with the appliance.
All operations relating to installation,
connection, regulation and conversion to
other gas types must be performed by an
authorised technician, respecting all
applicable regulations, standards and the
specifications of the local gas and electricity
suppliers. Special attention shall be paid to
ventilation regulations.
This appliance leaves the factory set to the
gas type that is indicated on the specifications
plate. If this needs to be changed, please
consult the assembly instructions. It is
recommended you contact the Technical
Assistance Service to change to another gas
type.
Before installing, you need to check that local
distribution conditions are compatible with the
appliance's adjustment indicated on the
specifications plate (gas type and pressure,
power, voltage).
Before you begin, turn off the appliance's
electricity and gas supply.
The supply cable must be attached to the unit
to prevent it from touching hot parts of the
oven or hob.
Appliances with electrical supply must be
earthed.
Cabinets installed above the gas cooktop
must have a minimum clearance of 650 mm
(24”).
The gas pressure regulator supplied with the
appliance must be installed in line with the gas
pipe. (N.G. only).
For pressure testing in excess of 3.5 kPa (1/
2 psig) the appliance and its individual shutoff
valve must be disconnected from the gas
supply piping system.
Important. When using a very large pot, leave
a gap of at least 50 mm (2”) to avoid
damaging any parts in bench top wood,
plastic or other non-heat resistant materials.
Never leave oil or hot fat unattended.
Important safety information
(Important safety
information
en
: Warning – Risk of fire!
DO NOT MODIFY THIS APPLIANCE.
DO NOT USE OR STORE FLAMMABLE
MATERIALS IN THE APPLIANCE STORAGE
DRAWER OR NEAR THE APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY
OF THIS APPLIANCE WHILE IT IS IN
OPERATION.
DO NOT USE THIS APPLAINCE AS A SPACE
HEATER.
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or death.
The cooking process must be supervised. A
short cooking process must be supervised
without interruption.
Risk
of fire!
■
The
hotplates get very hot. Do not rest
inflammable objects on the hob. Do not
store objects on the hob.
Risk
fire!store or use corrosive chemicals,
■
Doofnot
products which produce fumes,
inflammable materials or non-food products
below or near this domestic appliance.
Risk
ofor
fire!
■
Fat
oil which is overheated can catch fire
easily. Never leave fat or oil to heat up
unattended. If oil or fats do catch fire, never
use water to put the fire out. Put the fire out
by covering the pan with a lid and switch off
the hotplate.
: Warning – Risk of deflagration!
: Warning – Risk of injuries!
I mpor t ant saf et y i nf or mat i on
Accumulation of unburned gas in an enclosed
area carries a risk of deflagration. Do not
subject the appliance to draughts. These
might blow out the burners. Carefully read the
instructions and warnings on the operation of
gas burners.
: Warning – Risk of poisoning!
The kitchen will become hot and humid and
combustion products produced when this gas
appliance is used. Make sure the kitchen is
well ventilated, particularly when the hob is in
operation: either keep the natural ventilation
apertures open, or install a ventilation system
(extractor hood). Intense prolonged use of the
appliance may require additional or more
effective ventilation: open a window or
increase the power of the ventilation system.
: Warning – Risk of burns!
The hotplates and their immediate vicinity
get very hot. Never touch the hot surfaces.
Keep children under 8 years old well away
from this appliance.
Risk
of burns!
■
If the
liquefied gas bottle is not upright,
liquefied propane/butane can enter the
appliance. Intense darting flames may
therefore escape from the burners.
Components may become damaged and
start to leak over time so that gas escapes
uncontrollably. Both can cause burns.
Always use liquefied gas bottles in an
upright position.
■
■
Pans which are damaged, are not the right
size, hang over the edge of the hob or are
not positioned correctly can cause serious
injuries. Follow the advice and warnings
provided relating to the cooking pans.
Risk
of injury!repairs are dangerous. Repairs
■
Incorrect
may only be carried out, and damaged
power and gas lines replaced, by an aftersales engineer trained by us. If the
appliance is faulty, unplug the mains plug or
switch off the fuse in the fuse box. Shut off
the gas supply. Contact the after-sales
service.
Risk
ofcontrol
injury! knob is too stiff to turn or it is
■
If a
loose, it must not be used. Contact our
after-sales service immediately to have the
control knob repaired or replaced.
■
: Warning – Risk of electric shock!
Do not clean the appliance using steam
cleaners.
What to do if you smell gas
■
■
■
■
Do not try to light the appliance.
Do not touch any electrical switch; do not
use any phone in your building.
Immediately call your gas supplier from a
neighbour’s phone. Follow the gas
supplier’s instructions.
If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed by
an authorised person.
5
en
Installation and connection
5Installation and connection
I n s t a l a t i o n a nd c o n e c t i o n
Statutory requirements
This installation must conform with the following:
■
Manufacturer’s Installation instructions
■
Local Gas Fitting Regulations
■
Municipal Building Codes
■
Refer to AS/NZS 5601.1 for Gas Installations
■
S.A.A. Wiring Code
■
Local Electrical Regulations
■
Any other statutory regulations
Preparing to install
Refer to AS/NZS 5601.1 for piping size details. These
built-in cooktops are intended to be inserted in a
benchtop cutout.
Do not stick the cooktop onto the worktop with silicone.
Only an officially authorised technician should connect
the appliance.
Before you begin, turn off the gas and electricity supply.
Before connecting the unit, check whether the local
connection conditions (type of gas) are compatible with
the unit’s setting. Observe any special conditions
imposed by local suppliers (utilities). The specifications
of this cooktop are stated on the data label located on
the bottom of the cooktop base.
A duplicate data label is supplied for adhesion to an
accessible location near the hotplate if the data label on
the base of the hotplate cannot be accessed when the
hotplate is installed.
PP
PP
PP
PP
PP
PP
PP
PLQPP
PLQPP
PLQPP
PLQPP
PP
PLQPP
6
PLQ
PP
PP
PLQPP
PP
PLQPP
PP
Installation and connection
en
PP
PP
PP
PP
PLQPP
PP
PLQPP
PP
PLQPP
PLQPP
PLQPP
PP
PLQPP
PP
PP
PLQPP
PP
PLQPP
Clearances
A range hood fitted above the top must be installed
according to the installation instructions for the range
hood. A minimum distance of 650 mm is required for a
range hood and 750 mm for an exhaust fan.
Any adjoining wall surface situated within 200 mm from
the edge of any hob burner must be a suitable noncombustible material for a height of 150 mm for the
entire length of the hob. Any combustible construction
above the hotplate must be at least 650 mm above the
top of the burner and no construction shall be within
450 mm above the top of the burner.
If the base of the hotplate can be touched, a protecting
shield must be fitted.
■
■
■
■
The shield must be at least 10 mm from the lowest
part of the hotplate and must be capable of
withstanding the appliance temperatures. Minimum
thickness of benchtop is 30 mm.
The shield material must be mdf or similar with
minimum thickness of 12 mm.
The shield overall dimensions must be 560 mm wide
x 480 mm deep.
Provide cut-out in right hand rear of shield of 80 mm
wide x 80 mm deep to provide for gas regulator / LP
connection fitting.
After installation of the shield the clearance around the
top and sides of shield will allow adequate ventilation.
Ensure the side and top clearances are not obstructed.
PLQ
PLQ
PLQ
PLQPP
PLQ
PP
PD[PP
PLQ
PP
PLQPP
A minimum depth of 50 mm from the top of the worktop
surface must be provided for the appliance.
7
en
Installation and connection
PLQPP
PLQ
PP
PLQ
PP
PLQPP
Depending on the model, the adhesive seal may be
factory-fitted. If this is the case, it should not be
removed under any circumstances: the adhesive seal
prevents leaks. If the seal has not been factory-fitted,
apply it to the underside of the hob, protruding around
3 mm.
Fitting the appliance onto the kitchen unit:
1. Remove the clips from the accessory bag and place
them in the lateral orifices.
2. Insert and centre the hob.
3. Press the sides of the hob until it is supported
around its entire perimeter.
PP
PLQ
PP
PLQPP
Electrical connection
If an oven is positioned below the cooktop the barrier
does not need to be fitted, but a space of 35 mm must
be maintained between the underside of the cooktop
and the top of the oven.
Installation of cooktop into the kitchen
bench
Side clearances: If the distance measured from the
periphery of the nearest burner to any vertical surface is
less than 200 mm, the surface shall be protected in
accordance with clauses 6.10.1.2 of AS/NZS 5601.1.
Modular hobs may be installed with the joint
accessories available from our technical assistance
service.
An electrical 10 amp socket needs to be within 1 m of
the hotplate to allow electrical connection. The socket
must remain accessible after installation of the
appliance.
Important notes:
■
This appliance is connected to the mains (240 VAC)
by means of the connecting lead which must be
fixed to the kitchen unit to prevent it from coming
into contact with hot parts of the cooktop (or an oven
installed underneath) and remain accessible after
installation of the cooktop.
When making this connection make sure that the
lead cannot come into contact with hot parts of the
cooktop.
■
This appliance must be earthed. When connecting
the cooktop ensure that the earth wire is connected
first and that all wires are connected to the correct
terminals.
NEZ34VLA coupling profile
NEZ34VLB profile for coupling with glass ceramic hob
Make an appropriate size cut in the work surface.
Seal all work surfaces made of wood with special
sealer/glue to protect it against moisture damage.
Note: Wear protective gloves to fit the hob.
99 a
/
1
8
9
9
Installation and connection
Wiring diagram
en
Position of the inlet connection:
a
Use pipe compound or thread sealant, properly
threaded pipes and careful assembly procedure so that
there is no cross threading, etc., which might cause
damage or leakage.
Make sure that all connections performed are free of
leakage. The manufacturer does not accept any liability
for leakage on connections performed by the installer or
if the L-tube is moved or twisted.
There are two ways to carry out the connection to the
main gas line:
A
B
C
D
E
Switch
Blue wire
Brown wire
Terminal
Ignition module
Gas connection
During the planning stage, consider the position of
supply connections.
The cooktop must be connected to the gas supply with
upstream connection of an isolation valve in
accordance with the respectively valid regulations. We
recommend that the isolation valve be fitted prior to the
cooktop to enable isolation of cooktop from gas supply.
The valve must be easily accessible at all times.
To find out the factory set gas type, see bottom of
cooktop next to gas connection.
Remove plastic cap from gas supply line prior to
installation.
Fit regulator (N.G.) or a test point (Universal LPG)
directly to the R 1/2’’ connection.
Direction of gas flow is indicated on the rear of the
regulator.
■
■
The hotplate can be connected with rigid pipe as
specified in AS/NZS 5601.1
Flexible Hose: If installing with a hose assembly, it
must comply with AS/NZS 1869, 10 mm ID, class B
or D, no more than 1.2 m long and installed in
accordance with AS/NZS 5601.1.
Ensure that the hose does not contact the hot
surfaces of the hotplate, oven, dishwasher or any
other appliance that may be installed underneath or
next to the hotplate. The hose should not be
subjected to abrasion, kinking or permanent
deformation and should be able to be inspected
along its entire length with the cooktop in the
installed position. Unions compatible with the hose
fittings must be used and all connections tested for
gas leaks.
The supply connection point shall be accessible with
the appliance installed.
WARNING: Ensure that the hose assembly is restrained
from accidental contact with the flue outlet of an
underbench oven.
Before Leaving
Check all connections for gas leaks with soap and water.
DO NOT use a naked flame for detecting leaks. Ignite all
burners both individually and concurrently to ensure
correct operation of gas valves, burners and ignition.
Turn gas taps to low flame position and observe stability
of the flame for each burner individually and all together.
Adhere the duplicate data plate to an accessible location
near the hotplate. When satisfied with the hotplate,
please instruct the user on the correct method of
operation. In case the appliance fails to operate correctly
after all checks have been carried out, refer to the
authorised service provider in your area.
It should be expressly noted that we cannot accept any
liability for direct or indirect damage caused by wrong
connection, leakage or improper installation. When
being repaired, the appliance must always be
disconnected from the mains supply; if required, notify
our customer service.
9
en
Installation and connection
Converting the cooktop from Nat. Gas to
Universal LPG
All work involved in installation, setting and adaptation
to a different gas type must be carried out by
authorised personnel from our Service Centre and must
comply with current regulations and the conditions laid
down by the local gas company.
Before conversion the cooktop must be disconnected
from the electricity and gas valves must be turned to the
OFF position.
Important: After finishing, stick the sticker, indicating
the new gas type, close to the specifications plate.
Adjusting the gas valves
1. Turn the control knobs to the lowest setting.
2. Remove the control knobs from the gas valves. A
flexible rubber sealing ring will be visible. Push down
with the tip of a screwdriver on the gas valve's
setting screw.
Never remove the sealing ring. Sealing rings
prevent liquids and dirt from finding their way into
the appliance and impairing its ability to function
properly.
Replacing the injectors
Request change-over injectors from our customer
service deparment (refer injector chart below for sizes).
Economy
burner
High- output burner
Natural Gas
Hourly Gas
Consumption
(MJ)
3.80
11.25
90
Universal LPG
Hourly Gas
Injector
Consumption mark
(MJ)
3.50
50
155
10.00
Injector
mark
85
1. Remove all pan supports, burner caps and
distributors.
2. To replace the injectors, use the key that is available
from our technical service with code 340847 (for
double-flame burners 340808). See table. It is
important to make sure that the injector does not
become detached during removal or fastening. They
must be properly tightened to ensure that there are
no leaks.
With these burners, there is no need to adjust the
primary air.
3. Fasten the distributors and burner caps to the
corresponding burners. In addition to this, put the
pan supports in place on the corresponding burners.
3. Adjust the minimum ring setting by turning the by-
pass screw using a flat head screwdriver.
To adjust the minimum flame for N.G. replace the
control knob onto the spindle, light the gas and turn
the control knob to the small flame position. Screw
the adjustment screw anti-clockwise to estabilish a
minimum stable flame position. The flame should
remain alight and not burn back to the injector
when the valve is turned quickly from ‘Full On’ to
the “Minimum flame” position and back a few
times. To adjust the minimum flame position for
ULPG the screw must be fully tightened down
clockwise.
If the by-pass screw cannot be accessed, disassemble
the grease drip tray, which is fixed to the rest of the hob
using a clip and screw mounting system. The following
steps must be taken to remove it:
1. Remove all pan supports, burner caps, diffusers and
control knobs.
2. Loosen the screws on the burners.
3. To assemble the grease splash tray again, proceed
in the reverse order to removal.
It is important that all the seals are refitted to form a
seal.
Never remove the gas tap axle. In the event of damage,
the gas valve must be completely replaced.
10
Getting to know your appliance
*Getting to know your
appliance
Get i ng t o know your ap l i ance
en
It is essential to ensure that all the burner parts and pan
supports are correctly installed for the appliance to
work correctly. Do not swap the burner caps around.
Burner locations
3*%%%$
1
2
! Pan supports
Elements
1
Ignition plug
2
Thermocouple
3
Burner cup
4
Burner cap
" Control knobs
# Economy burner with an output of up to 1 kW
$ High-output burner with an output of up to 3 kW
Controls and burners
Accessories
The following accessories can be purchased from the
Technical Assistance Service:
Additional espresso maker
grid
Only suitable for use on the
smallest burner. Use cookware
with a diameter of less than
12 cm.
Each control knob is marked with the burner it controls.
You can use the control knobs to set the output
required in each case to various positions between the
maximum and the minimum settings.
--------
Code
HEZ298114 Additional espresso maker grid
NEZ34VLA Coupling profile
Indicators
Burner controlled by control knob
’
Û
—
˜
The manufacturer accepts no liability if these
accessories are not used or are used incorrectly.
Switched-off burner
Highest power setting and electric ignition
Lowest power setting
11
en
Gas burners
ÄGas burners
Gas bur ner s
Switching on manually
1. Press the control knob for the selected burner and
turn it anticlockwise to the highest power setting.
2. Hold an igniter or a naked flame (such as a lighter or
a match) against the burner.
An orange-coloured flame is normal. This is caused by
the presence of dust in the atmosphere, spilt liquids, etc.
If the burner flames are accidentally blown out, switch
off the burner operating control knob and do not try to
relight it for at least 1 minute.
Cooking guidelines
Burner
High-output
burner
Economy
burner
Automatic ignition
If your appliance has automatic ignition (ignition plugs):
1. Press the control knob for the selected burner and
turn it anticlockwise to the highest power setting.
Sparks are produced on all burners while you are
pressing and holding the control knob. The burner
ignites.
2. Release the control knob.
3. Turn the control knob to the required position.
If the burner does not ignite, switch it off and repeat the
steps described above. This time, hold the control knob
down for longer (up to 10 seconds).
If the burner does not switch on after 15 seconds,
switch off the control knob and open the door or
window in the room. Wait at least a minute before
igniting the burner again.
Note: It is important to keep the appliance clean. If the
ignition plugs are dirty, this may cause ignition faults.
Clean the ignition plugs regularly with a small nonmetallic brush. Take care to prevent the ignition plugs
from suffering any heavy knocks.
Safety system
Your hob is equipped with a safety system
(thermocouple) that cuts off the gas when the burners
are accidentally switched off.
To ensure that this device is active:
1. Switch on the burner as usual.
2. Without releasing the control knob, press and hold it
down firmly for 4 seconds after lighting the flame.
Switching off a burner
Turn the corresponding control knob clockwise to the 0
setting.
A few seconds after the burner is switched off, a sound
(thud) will be produced. This is not a fault - this means
that the safety device is no longer operating.
Warnings
It is normal to hear a soft whistling noise while the
burner is operating.
When first used, it is normal for the burner to give off
odours. This does not pose any risk and does not
indicate a malfunction. They will disappear in time.
12
Medium
Rice, white
sauce, ragout
Defrosting and
slow cooking:
vegetables,
fruit and frozen products
Low
Steaming: fish,
vegetables
Melting: butter, chocolate,
jelly
ÅCooking pans
Co ki ng pans
: Warning – Risk of deflagration!
Very high - High
Escalopes, steaks,
omelettes, frying
Cooking: casseroles, rice pudding,
caramel
Suitable pans
Burner
High-output burner
Economy burner
Minimum diameter
of the cookware
base
20 cm
12 cm
Maximum diameter
of the cookware
base
26 cm
16 cm
The cookware must not overhang the edge of the hob.
Instructions for use
Note: When using certain pots or pans, a slight and
temporary deformation of the steel cooking surface may
occur. This is normal and does not affect the
functionality of the appliance.
The following recommendations can help you save
energy and avoid damaging your cookware:
Use pans which are the
right size for each burner.
Do not use small pans on
large burners. The flame
must not touch the sides of
the pan.
Do not use damaged pans,
which do not sit evenly on
the hob. Pans may tip over.
Only use pans with a thick,
flat base.
Do not cook without using a
lid and make sure the lid is
properly fitted. This wastes
energy.
Cleaning and maintenance
Always centre the pan over
the burner, not to one side.
Otherwise it could tip over.
Do not place large pans on
the burners near the control
knobs. These may be
damaged by the very high
temperatures.
Place the pans on the pan
supports, never directly on
the burner.
Make sure that the pan
supports and burner caps
are correctly positioned
before using the appliance.
Pans should be placed on
the hob carefully.
Do not strike the hob and
do not place excessive
weight on it.
Do not place anything, eg.
flame tamer, asbestos mat,
between pan and pan
support as serious damage
to the appliance may result.
Do not remove the pan
support and enclose the
burner with a wok stand as
this will concentrate and
deflect heat onto the
hotplate.
Do not use large pots or
heavy weights which can
bend the pan support or
deflect flame onto the
hotplate.
en
2Cleaning and maintenance
Cl eani ng and mai nt enance
Cleaning
Once the appliance is cool, use a sponge to clean it
with soap and water.
After each use, clean the surface of the respective
burner parts once they have cooled down. If any
residue is left (baked-on food, drops of grease etc.),
however little, it will become stuck to the surface and
more difficult to remove later. The holes and grooves
must be clean for the flame to ignite properly.
The movement of some pans may leave metal residue
on the pan supports.
Clean the burners and pan supports using soapy water
and scrub with a non-wire brush.
If the pan supports are fitted with rubber rests, ensure
that these are also cleaned. The rests may come loose
and the pan support may scratch the hob.
Always dry the burners and pan supports completely.
Water droplets or damp patches on the hob at the start
of cooking may damage the enamel.
After cleaning and drying the burners, make sure the
burner caps are correctly positioned on the diffuser.
Caution!
■
Do not remove the control elements when cleaning
the appliance. The appliance may be damaged if
moisture finds its way inside.
■
Do not use steam cleaners. This could damage the
hob.
■
If your hob is fitted with a glass or aluminium panel,
never use a knife, scraper or similar implement to
clean the point where it joins the metal.
Maintenance
Always clean off any liquid as soon as it is spilt. This will
prevent food remains from sticking to the hob surface
and you will save yourself any unnecessary effort.
Due to the high temperatures endured, the wok burner
and the stainless steel zones (grease drip tray, burner
outline, etc.) can change colour. This is normal. After
each use, clean these areas with a product that is
suitable for stainless steel.
It is recommended that the cleaning product available
from our Technical Assistance Service (code 464524)
is used regularly.
Caution!
The stainless steel cleaner must not be used in the area
around the controls. The (printed) symbols may be
wiped off.
Do not leave acidic liquids (e.g. lemon juice, vinegar,
etc.) on the hob.
13
en
Trouble shooting
3Trouble shooting
Tr oubl e sho t i ng
DO NOT MODIFY THIS APPLIANCE.
Fault
The general electrical system
is malfunctioning.
The automatic switching on
function does not work.
The burner flame is not uniform.
The gas flow is not normal or
there is no gas.
The kitchen smells of gas.
Only authorized personnel from the Service Centre are
qualified to work on the appliance.
Sometimes certain faults detected can be easily
resolved. Before calling the Technical Assistance
Service, bear in mind the following advice:
Possible cause
Defective fuse.
The automatic safety switch or circuit breaker has
tripped.
There may be food or cleaning products stuck between
the ignition sparkers and the burners.
The burners are wet.
The burner caps are not correctly positioned.
The appliance is not earthed, is poorly connected or the
earthing is faulty.
The burner components are not correctly positioned.
The grooves on the burner are dirty.
The gas supply is blocked by gas taps.
If the gas is supplied from a gas cylinder, check that it is
not empty.
A gas tap has been left on.
Incorrect coupling of gas cylinder.
Possible gas leak.
The burner immediately
The control knob was not held down for long enough.
switches off after releasing the
control knob.
The grooves on the burner are dirty.
Any of the following are considered to be abnormal
operation and may require servicing:
■
Yellow tipping of the cooktop burner flame.
■
Sooting up of cooking utensils.
■
Burners not lighting properly.
Gas valves, which are difficult to turn in case the
appliance fails to operate correctly, contact the
authorised service provider in your area.
14
Solution
Check the fuse in the main fuse box and change it if it is
damaged.
Check the main control panel to see if the automatic safety
switch or circuit breaker has tripped.
The space between the ignition sparker and the burner
must be clean.
Dry the burner caps carefully.
Check that the burner caps are correctly positioned.
Contact the installation technician.
Correctly place the parts on the appropriate burner.
Clean the grooves on the burner.
Open all gas taps.
Change the gas cylinder.
Turn off the taps.
Check that the coupling is sound.
Shut off the gas supply, ventilate the premises and immediately notify an authorised installation technician to check
and certify the installation. Do not use the appliance until
ensuring that there is no gas leak in the installation or
appliance itself.
Once the burner is on, hold the control knob down a few
seconds longer.
Clean the grooves on the burner.
Customer service
en
4Customer service
When contacting our Technical Assistance Service,
please provide the product number (E-Nr.) and
production number (FD) of the appliance. This
information is given on the specifications plate located
on the lower section of the hob and on the label in the
user manual.
After-sales contact details for all countries can be found
in the attached after-sales service directory.
Cust omer ser vi ce
Warranty conditions
In the unlikely event that the appliance is damaged or
does not meet your expectations in terms of quality,
please inform us as soon as possible. For the warranty
to be valid, the appliance must not have been tampered
with, or used inappropriately.
The applicable warranty conditions are those set out by
the company's representative office in the country of
purchase. Detailed information is available from retail
outlets. Proof of purchase must be presented to obtain
the benefits of the warranty.
We reserve the right to introduce changes.
15
5IBOLZPVGPSCVZJOHB
#PTDI)PNF"QQMJBODF
5HJLVWHU\RXUQHZGHYLFHRQ0\%RVFKQRZDQGSURILWGLUHFWO\IURP
t&YQFSUUJQTUSJDLTGPSZPVSBQQMJBODF
t8BSSBOUZFYUFOTJPOPQUJPOT
t%JTDPVOUTGPSBDDFTTPSJFTTQBSFQBSUT
t%JHJUBMNBOVBMBOEBMMBQQMJBODFEBUBBUIBOE
t&BTZBDDFTTUP#PTDI)PNF"QQMJBODFT4FSWJDF
)UHHDQGHDV\UHJLVWUDWLRQ²DOVRRQPRELOHSKRQHV
XXXCPTDIIPNFDPNXFMDPNF
-PPLJOHGPSIFMQ
:PV}MMGJOEJUIFSF
([SHUWDGYLFHIRU\RXU%RVFKKRPHDSSOLDQFHVQHHGKHOSZLWKSUREOHPV
RUDUHSDLUIURP%RVFKH[SHUWV
)LQGRXWHYHU\WKLQJDERXWWKHPDQ\ZD\V%RVFKFDQVXSSRUW\RX
XXXCPTDIIPNFDPNTFSWJDF
$POUBDUEBUBPGBMMDPVOUSJFTBSFMJTUFEJOUIFBUUBDIFETFSWJDFEJSFDUPSZ
3PCFSU#PTDI)BVTHFSÉUF(NC)
&DUO:HU\6WUD‰H
0QFKHQ
*HUPDQ\
XXXCPTDIIPNFDPN
*9001379426*
9001379426
980426(A)

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
