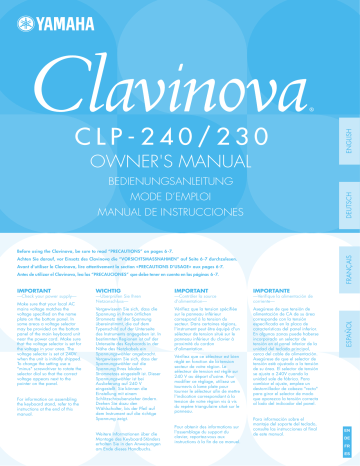

Yamaha CLP-240/230 Owner's Manual

ENGLISH
CLP-240/230
OWNER'S MANUAL
BEDIENUNGSANLEITUNG
DEUTSCH
MODE D’EMPLOI
MANUAL DE INSTRUCCIONES
Achten Sie darauf, vor Einsatz des Clavinova die “VORSICHTSMASSNAHMEN” auf Seite 6 -7 durchzulesen.
Avant d'utiliser le Clavinova, lire attentivement la section «PRECAUTIONS D'USAGE» aux pages 6 -7.
Antes de utilizar el Clavinova, lea las “PRECAUCIONES” que debe tener en cuenta en las páginas 6 - 7.
IMPORTANT
WICHTIG
IMPORTANT
IMPORTANTE
—Check your power supply—
—Überprüfen Sie Ihren
Netzanschluss—
—Contrôler la source
d'alimentation—
—Verifique la alimentación de
corriente—
Vergewissern Sie sich, dass die
Spannung in Ihrem örtlichen
Stromnetz mit der Spannung
übereinstimmt, die auf dem
Typenschild auf der Unterseite
des Instruments angegeben ist. In
bestimmten Regionen ist auf der
Unterseite des Keyboards in der
Nähe des Netzkabels ein
Spannungswähler angebracht.
Vergewissern Sie sich, dass der
Spannungswähler auf die
Spannung Ihres lokalen
Stromnetzes eingestellt ist. Dieser
Spannungswähler ist bei
Auslieferung auf 240 V
eingestellt. Sie können die
Einstellung mit einem
Schlitzschraubenzieher ändern.
Drehen Sie dazu den
Wählschalter, bis der Pfeil auf
dem Instrument auf die richtige
Spannung zeigt.
Vérifiez que la tension spécifiée
sur le panneau inférieur
correspond à la tension du
secteur. Dans certaines régions,
l'instrument peut être équipé d'un
sélecteur de tension situé sur le
panneau inférieur du clavier à
proximité du cordon
d'alimentation.
Asegúrese de que tensión de
alimentación de CA de su área
corresponde con la tensión
especificada en la placa de
características del panel inferior.
En algunas zonas puede haberse
incorporado un selector de
tensión en el panel inferior de la
unidad del teclado principal,
cerca del cable de alimentación.
Asegúrese de que el selector de
tensión esté ajustado a la tensión
de su área. El selector de tensión
se ajusta a 240V cuando la
unidad sale de fábrica. Para
cambiar el ajuste, emplee un
destornillador de cabeza "recta"
para girar el selector de modo
que aparezca la tensión correcta
al lado del indicador del panel.
Make sure that your local AC
mains voltage matches the
voltage specified on the name
plate on the bottom panel. In
some areas a voltage selector
may be provided on the bottom
panel of the main keyboard unit
near the power cord. Make sure
that the voltage selector is set for
the voltage in your area. The
voltage selector is set at 240V
when the unit is initially shipped.
To change the setting use a
"minus" screwdriver to rotate the
selector dial so that the correct
voltage appears next to the
pointer on the panel.
For information on assembling
the keyboard stand, refer to the
instructions at the end of this
manual.
Weitere Informationen über die
Montage des Keyboard-Ständers
erhalten Sie in den Anweisungen
am Ende dieses Handbuchs.
Vérifiez que ce sélecteur est bien
réglé en fonction de la tension
secteur de votre région. Le
sélecteur de tension est réglé sur
240 V au départ d'usine. Pour
modifier ce réglage, utilisez un
tournevis à lame plate pour
tourner le sélecteur afin de mettre
l'indication correspondant à la
tension de votre région vis à vis
du repère triangulaire situé sur le
panneau.
Pour obtenir des informations sur
l'assemblage du support du
clavier, reportez-vous aux
instructions à la fin de ce manuel.
Para información sobre el
montaje del soporte del teclado,
consulte las instrucciones al final
de este manual.
ESPAÑOL
FRANÇAIS
Before using the Clavinova, be sure to read “PRECAUTIONS” on pages 6 -7.
EN
DE
FR
ES
Introduction
SPECIAL MESSAGE SECTION
PRODUCT SAFETY MARKINGS: Yamaha electronic
products may have either labels similar to the graphics
shown below or molded/stamped facsimiles of these
graphics on the enclosure. The explanation of these
graphics appears on this page. Please observe all cautions
indicated on this page and those indicated in the safety
instruction section.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
See bottom of Keyboard enclosure for graphic symbol markings.
The exclamation point within the
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the product.
The lightning flash with arrowhead
symbol, within the equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical
shock.
IMPORTANT NOTICE: All Yamaha electronic products
are tested and approved by an independent safety testing
laboratory in order that you may be sure that when it is
properly installed and used in its normal and customary
manner, all foreseeable risks have been eliminated. DO
NOT modify this unit or commission others to do so
unless specifically authorized by Yamaha. Product performance and/or safety standards may be diminished.
Claims filed under the expressed warranty may be denied
if the unit is/has been modified. Implied warranties may
also be affected.
SPECIFICATIONS SUBJECT TO CHANGE: The
information contained in this manual is believed to be
correct at the time of printing. However, Yamaha reserves
the right to change or modify any of the specifications
without notice or obligation to update existing units.
ENVIRONMENTAL ISSUES: Yamaha strives to produce products that are both user safe and environmentally
friendly. We sincerely believe that our products and the
production methods used to produce them, meet these
goals. In keeping with both the letter and the spirit of the
law, we want you to be aware of the following:
92-469 1 (bottom)
Battery Notice: This product MAY contain a small non-
rechargable battery which (if applicable) is soldered in
place. The average life span of this type of battery is
approximately five years. When replacement becomes
necessary, contact a qualified service representative to
perform the replacement.
Warning: Do not attempt to recharge, disassemble, or
incinerate this type of battery. Keep all batteries away
from children. Dispose of used batteries promptly and as
regulated by applicable laws. Note: In some areas, the
servicer is required by law to return the defective parts.
However, you do have the option of having the servicer
dispose of these parts for you.
Disposal Notice: Should this product become damaged
beyond repair, or for some reason its useful life is considered to be at an end, please observe all local, state, and
federal regulations that relate to the disposal of products
that contain lead, batteries, plastics, etc.
NOTICE: Service charges incurred due to lack of knowl-
edge relating to how a function or effect works (when the
unit is operating as designed) are not covered by the manufacturer’s warranty, and are therefore the owners responsibility. Please study this manual carefully and consult
your dealer before requesting service.
NAME PLATE LOCATION: The graphic below indicates the location of the name plate. The model number,
serial number, power requirements, etc., are located on
this plate. You should record the model number, serial
number, and the date of purchase in the spaces provided
below and retain this manual as a permanent record of
your purchase.
CLP-240/230
Model
Serial No.
Purchase Date
Thank you for purchasing the Yamaha Clavinova! We recommend that you read this manual carefully so that you can
fully take advantage of the advanced and convenient functions of the Clavinova.
We also recommend that you keep this manual in a safe and handy place for future reference.
About this Owner’s Manual
This manual consists of three main sections: “Introduction,” “Reference” and “Appendix.”
Introduction (page 2):
Please read this section first.
ENGLISH
Reference (page 13):
This section explains how to make detailed settings for the Clavinova’s various functions.
Appendix (page 77):
This section introduces reference material.
* The models CLP-240/230 will be referred to as the CLP/Clavinova in this owner’s manual.
* The illustrations and LED displays shown in this owner’s manual are for instructional purposes only and may appear somewhat different from those on your instrument.
* The panel illustrations shown in this owner’s manual are taken from the CLP-240.
* Copying of commercially available software or music data for purposes other than your personal use is strictly prohibited.
COPYRIGHT NOTICE
This product incorporates and bundles computer programs and contents in which Yamaha owns copyrights or with respect to
which it has license to use others’ copyrights. Such copyrighted materials include, without limitation, all computer software and
MIDI files, etc. Any unauthorized use of such programs and contents outside of personal use is not permitted under relevant laws.
Any violation of copyright has legal consequences. DON’T MAKE, DISTRIBUTE OR USE ILLEGAL COPIES.
Trademarks:
•
•
•
•
Apple and Macintosh are trademarks of Apple Computer, Inc.
Windows is a registered trademark of Microsoft® Corporation.
SmartMedia is a trademark of Toshiba Corporation.
All other trademarks are the property of their respective holders.
Accessories
• “50 Greats for the Piano” (Music Book)
• Owner’s Manual
This manual contains complete instructions for operating your Clavinova.
• Accessory CD-ROM for Windows
• Accessory CD-ROM for Windows Installation Guide
• Bench
A bench may be included or optional, depending on your locale.
Tuning
Unlike an acoustic piano, the Clavinova does not need to be tuned. It always stays perfectly in tune.
Transporting
If you move to another location, you can transport the Clavinova along with your other belongings. You can move the
unit as it is (assembled) or you can disassemble the unit.
Transport the keyboard horizontally. Do not lean it up against a wall or stand it up on its side. Do not subject the
instrument to excessive vibration or shock.
CLP-240/230 Owner’s Manual
3
Table of Contents
ENGLISH
Introduction
About this Owner’s Manual ............................... 3
Accessories ......................................................... 3
Application Index ............................................... 5
Panel Controls and Terminals............................ 8
Before Using the Clavinova ............................. 10
Key Cover....................................................................10
Music Rest...................................................................10
Music Braces (CLP-240) ............................................10
Turning the Power On ...............................................11
Setting the Volume .....................................................12
Using Headphones .....................................................12
Using the Speaker Switch ...........................................12
Reference
Listening to the Demonstration Tunes............ 14
Listening to 50 Piano Preset Songs ................. 15
Practicing a One-Hand Part Using 50 Preset Songs
(Part Cancel Function)...............................................17
A-B Repeat for 50 Preset Songs .................................18
Selecting & Playing Voices............................... 19
Selecting Voices ..........................................................19
Using the Pedals..........................................................20
Adding Variations to the Sound – [VARIATION]
(CLP-240)/[BRILLIANCE]/[REVERB]/[EFFECT]/
[DDE] (CLP-240).......................................................21
Touch Sensitivity – [TOUCH] ..................................23
Transposition – [TRANSPOSE] ................................24
Combining Two Voices (Dual mode).......................25
Splitting the Keyboard Range and Playing
Two Different Voices (Split mode) (CLP-240).........26
Using the Metronome ................................................28
Recording Your Performance .......................... 29
Recording a performance quickly..............................29
Re-recording a previously recorded song..................31
Recording to RIGHT/LEFT .......................................32
Changing the Initial Settings
(Data recorded at the beginning of a song) ..............34
Handling Songs with a USB Storage Device
(CLP-240).......................................................... 35
About Save and Export...............................................35
Saving Songs ...............................................................36
Exporting a Song in SMF format...............................37
Deleting Song Files .....................................................38
Formatting the USB Storage Device ..........................39
4
CLP-240/230 Owner’s Manual
Playing Back Songs .......................................... 40
Playing Back User/External Songs on the Instrument
..................................................................................... 41
Playing Back User Files from a USB Storage Device
(CLP-240) ................................................................... 42
Playing Back SMF/External songs from a USB storage
device (CLP-240)........................................................ 43
Useful Playback Functions......................................... 43
Detailed Settings – [FUNCTION]...................... 44
Basic Procedure in Function Mode........................... 45
About Each Function ................................................. 47
F1. Fine Tuning of the Pitch............................... 47
F2. Selecting a Scale............................................. 48
F3. Dual Mode Functions ................................... 49
F4. (CLP-240) Split Mode Functions ................. 50
F5. (CLP-240) / F4. (CLP-230)
Other Functions ........................................... 51
F6. (CLP-240) / F5. (CLP-230)
Metronome Volume .................................... 52
F7. (CLP-240) / F6. (CLP-230)
Song Part Cancel Volume............................ 52
F8. (CLP-240) / F7. (CLP-230)
MIDI Functions ........................................... 52
F9. (CLP-240) / F8. (CLP-230)
Backup Functions......................................... 55
F9.5 (CLP-240)/ F8.5 (CLP-230)
Character Code ............................................ 55
Connections ..................................................... 56
Connectors ................................................................. 56
Connection to a USB storage device (CLP-240) ...... 58
Connecting a Personal Computer ............................. 60
Data Backup ..................................................... 62
Message List ..................................................... 63
Troubleshooting............................................... 64
Options............................................................. 64
CLP-240/230: Keyboard Stand Assembly ........ 65
Handling the Floppy Disk Drive (FDD)
and Floppy Disks (CLP-240) ............................. 69
Installing the Floppy Disk Drive (Optional)..... 70
Preset Voice List ............................................... 71
Demo Song List ................................................ 74
Index................................................................. 75
Appendix
Factory Setting List .......................................... 78
MIDI Data Format ............................................ 80
MIDI Implementation Chart ............................ 84
Specifications ................................................... 85
Application Index
Use this index to find reference pages that may be helpful for your particular application and situation.
Listening
Listening to demo songs with different voices.................................................. “Listening to the Demonstration Tunes” on page 14
Listening to songs from “50 Greats for the Piano”................................................. “Listening to 50 Piano Preset Songs” on page 15
Listening to my recorded performance............................................................................................ “Playing Back Songs” on page 40
Listening to songs in the USB storage device ........................................................................ ..........“Playing Back Songs” on page 40
Using the three performance control pedals ........................................................................................ “Using the Pedals” on page 20
Simulating the natural sustain created by the damper pedal on a real grand piano ....................... “[DDE]” (CLP-240) on page 22
Playing an accompaniment that matches pitch...........................................................“Transposition – [TRANSPOSE]” on page 24
Selecting a touch sensitivity type.................................................................................... “Touch Sensitivity – [TOUCH]” on page 23
Fine tuning the pitch of the entire instrument when you play the Clavinova along with other instruments or CD music
..................................................................................................................................................... “Fine tuning of the pitch” on page 47
ENGLISH
Playing
Changing voices
Viewing the list of voices ........................................................................................................................“Preset Voice List” on page 71
Combining two voices ......................................................................................... “Combining Two Voices (Dual mode)” on page 25
Playing different sounds with left and right hands
........................................... “Splitting the Keyboard Range and Playing Two Different Voices (Split mode) (CLP-240)” on page 26
Making the sound more brilliant or mellower ...................................................................................... “[BRILLIANCE]” on page 21
Simulating a concert hall ................................................................................................................................ “[REVERB]” on page 21
Adding spread or swell to the sound............................................................................................................... “[EFFECT]” on page 22
Enhancing the sound with effects ......................................................................................... “[VARIATION]” (CLP-240) on page 21
Practicing
Muting the right- or left-hand part....... “Practicing a One-Hand Part Using 50 Preset Songs (Part Cancel Function)” on page 17
Practicing a specified phrase repeatedly ........................................................................“A-B Repeat for 50 Preset Songs” on page 18
Practicing with an accurate and steady tempo ............................................................................“Using the Metronome” on page 28
Practicing using your recorded song................................................................................ “Recording Your Performance” on page 29
Recording
Recording your performance............................................................................................ “Recording Your Performance” on page 29
Settings
Adjusting the Clavinova settings .............................................................................. “Detailed Settings – [FUNCTION]” on page 44
Connecting the Clavinova to other devices
What is MIDI? ...............................................................................................................................................“About MIDI” on page 57
Making detailed settings for MIDI ....................................................................................................... “MIDI Functions” on page 52
Recording your performance.........................................................................“AUX OUT [L] [R] (LEVEL FIXED) jacks” on page 56
Raising the volume.........................................................................................“AUX OUT [L] [R] (LEVEL FIXED) jacks” on page 56
Outputting other instruments’ sound from the Clavinova .................................................“AUX IN [L/L+R] [R] jacks” on page 57
Connecting to a USB storage device .................................................. “Connection to a USB storage device (CLP-240)” on page 58
Connecting a computer .............................................................................................“Connecting a Personal Computer” on page 60
Assembling
Assembling and disassembling the Clavinova .............................................. “CLP-240/230: Keyboard Stand Assembly” on page 65
CLP-240/230 Owner’s Manual
5
PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
* Please keep this manual in a safe place for future reference.
WARNING
Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical
shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:
ENGLISH
Power supply/Power cord
Water warning
• Only use the voltage specified as correct for the instrument. The required
voltage is printed on the name plate of the instrument.
• Check the electric plug periodically and remove any dirt or dust which may have
accumulated on it.
• Do not expose the instrument to rain, use it near water or in damp or wet
conditions, or place containers on it containing liquids which might spill into
any openings.
• Never insert or remove an electric plug with wet hands.
• Use only the supplied power cord/plug.
• Do not place the power cord near heat sources such as heaters or radiators, and
do not excessively bend or otherwise damage the cord, place heavy objects on
it, or place it in a position where anyone could walk on, trip over, or roll anything
over it.
Fire warning
• Do not put burning items, such as candles, on the unit.
A burning item may fall over and cause a fire.
If you notice any abnormality
Do not open
• Do not open the instrument or attempt to disassemble the internal parts or
modify them in any way. The instrument contains no user-serviceable parts. If it
should appear to be malfunctioning, discontinue use immediately and have it
inspected by qualified Yamaha service personnel.
• If the power cord or plug becomes frayed or damaged, or if there is a sudden
loss of sound during use of the instrument, or if any unusual smells or smoke
should appear to be caused by it, immediately turn off the power switch,
disconnect the electric plug from the outlet, and have the instrument inspected
by qualified Yamaha service personnel.
CAUTION
Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage
to the instrument or other property. These precautions include, but are not limited to, the following:
Power supply/Power cord
Location
• When removing the electric plug from the instrument or an outlet, always hold
the plug itself and not the cord. Pulling by the cord can damage it.
• Remove the electric plug from the outlet when the instrument is not to be used
for extended periods of time, or during electrical storms.
• Do not expose the instrument to excessive dust or vibrations, or extreme cold or
heat (such as in direct sunlight, near a heater, or in a car during the day) to
prevent the possibility of panel disfiguration or damage to the internal
components.
• Do not connect the instrument to an electrical outlet using a multiple-connector.
Doing so can result in lower sound quality, or possibly cause overheating in the
outlet.
• Do not use the instrument in the vicinity of a TV, radio, stereo equipment,
mobile phone, or other electric devices. Otherwise, the instrument, TV, or radio
may generate noise.
• Do not place the instrument in an unstable position where it might accidentally
fall over.
Assembly
• Read carefully the attached documentation explaining the assembly process.
Failure to assemble the instrument in the proper sequence might result in
damage to the instrument or even injury.
• Before moving the instrument, remove all connected cables.
• When setting up the product, make sure that the AC outlet you are using is
easily accessible. If some trouble or malfunction occurs, immediately turn off
the power switch and disconnect the plug from the outlet. Even when the power
switch is turned off, electricity is still flowing to the product at the minimum
level. When you are not using the product for a long time, make sure to unplug
the power cord from the wall AC outlet.
(1)B-11 1/2
6
CLP-240/230 Owner’s Manual
Using the bench (If included)
Maintenance
• In the case of a model with a polished finish, gently remove dust and dirt with a
soft cloth. Do not wipe too hard since small particles of dirt can scratch the
instrument's finish.
• When cleaning the instrument, use a soft, dry or slightly damp cloth. Do not use
paint thinners, solvents, cleaning fluids, or chemical-impregnated wiping
cloths.
Handling caution
• Take care that the key cover does not pinch your fingers, and do not insert a
finger or hand in any gaps on the key cover or instrument.
• Do not place the bench in an unstable position where it might accidentally fall
over.
• Do not play carelessly with or stand on the bench. Using it as a tool or stepladder or for any other purpose might result in accident or injury.
• Only one person should sit on the bench at a time, in order to prevent the
possibility of accident or injury.
• If the bench screws become loose due to extensive long-term use, tighten them
periodically using the included tool.
Saving data
Saving and backing up your data
• The panel settings and certain other types of data will be lost if the power is
turned off before they have been saved. Be sure to save (back up) data you want
to keep to the internal Flash Memory before turning off the power (page 55).
Keep in mind that this data is for temporary backup purposes and may be
inadvertently lost due to malfunction or incorrect operation. Make sure to save
all your important data to computer for permanent safekeeping (page 62).
• Never insert or drop paper, metallic, or other objects into the gaps on the key
cover, panel or keyboard. If this happens, turn off the power immediately and
unplug the power cord from the AC outlet. Then have the instrument inspected
by qualified Yamaha service personnel.
ENGLISH
Connections
• Before connecting the instrument to other electronic components, turn off the
power for all components. Before turning the power on or off for all
components, set all volume levels to minimum. Also, be sure to set the volumes
of all components at their minimum levels and gradually raise the volume
controls while playing the instrument to set the desired listening level.
• Do not place vinyl, plastic or rubber objects on the instrument, since this might
discolor the panel or keyboard.
• In the case of a model with a polished finish, bumping the surface of the
instrument with metal, porcelain, or other hard objects can cause the finish to
crack or peel. Use caution.
• Do not rest your weight on, or place heavy objects on the instrument, and do not
use excessive force on the buttons, switches or connectors.
• Do not use the instrument/device or headphones for a long period of time at a
high or uncomfortable volume level, since this can cause permanent hearing
loss. If you experience any hearing loss or ringing in the ears, consult a
physician.
Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument, or data that is lost or destroyed.
Always turn the power off when the instrument is not in use.
(1)B-11 2/2
CLP-240/230 Owner’s Manual
7
Panel Controls and Terminals
ENGLISH
Panel Controls and Terminals
The Yamaha Clavinova CLP-240/230 digital piano provides natural, expressive grand piano sound and playability, and
features Yamaha’s original “AWM Dynamic Stereo Sampling (CLP-240)/AWM Stereo Sampling (CLP-230)” tone-generation technology for rich, musical voices.
The CLP-240/230 Grand Piano 1 and 2 voices feature samples painstakingly recorded from a full concert grand piano.
The CLP-240 Grand Piano 1 voice features three velocity-switched samples (Dynamic Sampling), special “Sustain Sampling” (page 51) that samples the unique resonance of an acoustic grand piano’s soundboard and strings when the
damper pedal is pressed, and “Keyoff Samples” that add the subtle sound produced when the keys are released.
The CLP-240/230 also utilizes a “GH3 (Graded Hammer 3)” Keyboard that varies the key weight according to the key
range. Moreover, this specially crafted keyboard lets you use techniques only possible on grand pianos, such as playing the
same note successively and having the sounds blend smoothly even without use of the damper pedal, or playing the same
key quickly and having perfect articulation without the sound cutting off unnaturally. With these features, the CLP-240/
230 comes much closer to the sound of a true acoustic piano.
(The panel illustration is taken from the CLP-240)
2
3
4
6
LEFT
REC
STOP
TEMPO/OTHER VALUE
ON/OFF
RIGHT
USB
USER
PRESET
PLAY/PAUSE
ON
MAX
MIN
!
SAVE/EXP.
LOAD
FORMAT/DEL.
TEMPO
FUNCTION #
METRONOME
SYNC START
MASTER VOLUME
DEMO
5
8
7
+ / YES
– / NO
TEMPO / FUNCTION #
SONG SELECT FILE
SONG
TRANSPOSE
GRAND
PIANO 1
GRAND
PIANO 2
CHURCH
ORGAN
JAZZ
ORGAN
9
E.PIANO
1
STRINGS
E.PIANO
2
CHOIR
)
HARPSICHORD
E.CLAVICHORD
GUITAR
WOOD
BASS
@
VIBRAPHONE
E.BASS
VARIATION
SPLIT
VOICE
#
*
BRIGHT
NORMAL
MELLOW
ROOM
HALL 1
HALL 2
STAGE
BRILLIANCE REVERB
$
%
CHORUS
PHASER
TREMOLO
ROTARY SP
EFFECT
^
(
1
SELECT
USB TO DEVICE
OFF
ON
NORMAL
HP. SW
SPEAKER
¢
∞
PHONES
º
¡
CLP-240
(LEVEL FIXED)
R
L/L+R
R
L
AUX IN
AUX OUT
USB
TO DEVICE
(
OUT
IN
TO HOST
THRU
MIDI
£
™
CLP-230
MIDI
(LEVEL FIXED)
L
R
8
CLP-240/230 Owner’s Manual
THRU
OUT
USB
L/L+R
R
AUX OUT
AUX IN
º
¡
TO HOST
IN
£
™
HARD
MEDIUM
SOFT
TOUCH
&
ON
DDE
CLP-240
Panel Controls and Terminals
1 [POWER] switch ........................... page 11
% [SPLIT] button (CLP-240).............page 26
2 [MASTER VOLUME] slider ........... page 12
For playing different voices on the left- and righthand sections of the keyboard.
3 [DEMO] button............................ page 14
Demonstration playback is available for each voice.
4 [TRANSPOSE] button................... page 24
You can shift the pitch of the entire keyboard up or
down so that the pitch will match that of another
instrument or singer, while you play the same,
unshifted keys.
5 [REC] button ................................ page 29
For recording your keyboard performance.
6 [RIGHT], [LEFT] buttons .......pages 17, 32
For turning the left- and right-hand parts on or off as
required so you can practice the corresponding part
(the part that is turned off) on the keyboard.
7 [PLAY/PAUSE], [STOP] buttons
..............................................pages 15, 41
For playing back the preset songs, your recorded
material or commercially available music data, etc.
8 [SONG SELECT] button ........pages 15, 41
For selecting a song to play back or edit.
9 [FILE] button (CLP-240)........pages 35, 42
For saving recorded songs and managing song files.
Also lets you format a USB storage device.
) [TEMPO/FUNCTION#] button
..............................................pages 28, 45
For changing the song tempo (speed) and selecting
other useful functions (pages 44-55).
! [METRONOME] button.........pages 28, 52
For using the metronome.
@ Display ......................................... page 11
CAUTION
Do not turn off the power to the instrument while
flashing dashes appear in the display (indicating the
operation is in process). Doing so may damage the
data.
# [–/NO], [+/YES] buttons
For setting values or performing file operations.
Pressing both buttons simultaneously for certain
value settings (Transpose, Tempo, etc.) restores the
default value.
$ Voice group buttons.................... page 19
For selecting voices from 14 internal sounds including Grand Piano 1 and 2. You can also combine two
voices and use them together. (Only the CLP-240 has
the [VARIATION] button.)
^ [BRILLIANCE], [REVERB], [EFFECT]
buttons.........................................page 21
For adjusting the brightness of the sound and adding
reverb and chorus effects to the sound.
& [TOUCH] button ..........................page 23
For fine-tuning the touch response.
* [DDE] button (CLP-240) ..............page 22
For turning the DDE (Dynamic Damper Effect)
function on or off. When DDE is on, the Clavinova
simulates the sustain sound that occur when you
press the damper pedal of a grand piano, as you press
the damper pedal and play the keyboard.
ENGLISH
Adjust the volume level using this slider.
( USB [TO DEVICE] terminals (CLP-240)
.....................................................page 57
For connecting the instrument to a USB storage
device, allowing saving/loading of data to and from
the connected device. The instrument has two TO
DEVICE terminals, A and B, which can be specified
using the [SELECT] switch.
º AUX OUT [L] [R] (LEVEL FIXED) jacks
.....................................................page 56
For outputting the sound of the Clavinova to an
external audio system, or connecting it to another
device (cassette tape recorder, etc.) to record your
performance.
¡ AUX IN [L/L+R] [R] jacks ..............page 57
For connecting an external tone generator, allowing
you to play the sound of that device via the Clavinova’s internal sound system and speakers.
™ USB [TO HOST] terminal .............page 57
For connecting the instrument to your computer,
allowing you to transfer MIDI data between the
Clavinova and the computer.
£ MIDI [IN] [OUT] [THRU] terminals
.....................................................page 57
For connecting external MIDI devices, allowing the
use of various MIDI functions.
¢ [PHONES] jacks, [SPEAKER] switch
.....................................................page 12
For connecting a set of standard stereo headphones,
allowing private practice. The [SPEAKER] switch
turns the internal speakers on or off.
∞ PEDALS.........................................page 20
For producing a range of expressive effects similar to
those produced by the pedals on an acoustic piano.
The left pedal can also be assigned to a variety of
functions.
CLP-240/230 Owner’s Manual
9
Before Using the Clavinova
Before Using the Clavinova
Key Cover
To open the key cover:
Lift the cover slightly, then push and slide it open.
To close the key cover:
Slide the cover toward you and gently lower the cover over
the keys.
ENGLISH
Be careful to avoid catching your fingers
when opening or closing the cover.
CAUTION
Hold the cover with both hands when opening or closing it. Do not release it until it is fully opened or closed. Be careful to avoid catching fingers (yours or others, especially children’s) between the cover and main unit.
CAUTION
Do not place objects such as a piece of metal or paper on top of the key cover. Small objects placed on the key cover
may fall inside the unit when the cover is opened and may be nearly impossible to remove. This could cause electric
shock, short circuit, fire or other serious damage to the instrument.
CAUTION
Disconnect the optional USB storage device connected to the [USB TO DEVICE] A terminal before closing the key
cover. Closing the cover with the device still connected may damage the device.
Music Rest
To raise the music rest:
1. Pull the music rest up and toward yourself as far as it will go.
2. Flip down the two metal supports at the left and right on the rear
of the music rest.
3. Lower the music rest so that it rests on the metal supports.
To lower the music rest:
1. Pull the music rest toward yourself as far as it will go.
2. Raise the two metal supports (at the rear of the music rest).
3. Gently lower the music rest backward until it is all the way down.
CAUTION
Do not try to use the music rest in a half-raised position. When lowering the music rest, do not release your hands from the music rest
until it is all the way down.
Music Braces (CLP-240)
These braces are for holding the pages of music books in place.
To open
10
CLP-240/230 Owner’s Manual
To close
Before Using the Clavinova
Turning the Power On
1.Connect the power cord.
Insert the plugs at the ends of the cord, one into the AC INLET on the Clavinova, and the other into a standard AC
outlet.
In some areas, a plug adaptor may be provided to match the pin configuration of the AC wall outlets in your area.
1-1
1-2
(The shape of plug differs
depending on locale.)
CAUTION
Make sure your CLP-240/230 is rated for the AC voltage supplied in the area in which it is to be used (voltage rating appears
on the name plate on the bottom panel). In some areas, a voltage selector may be provided on the bottom panel of the main
keyboard unit near the power cord. Make sure that the voltage selector is set for the voltage in your area. Connecting the unit
to the wrong AC supply can cause serious damage to the internal circuitry and may even pose a shock hazard!
Use only the AC power cord supplied with the CLP-240/230. If the supplied cord is lost or damaged and needs to be
replaced, contact your Yamaha dealer. The use of an inappropriate replacement can pose a fire and shock hazard!
The type of AC power cord provided with the CLP-240/230 may be different depending on the country in which it is purchased. (In some areas a plug adaptor may be provided to match the pin configuration of the AC wall outlets in your area.)
Do NOT modify the plug provided with the CLP-240/230. If the plug will not fit the outlet, have a proper outlet installed by a
qualified electrician.
ENGLISH
(bottom surface)
2.Turn the power on.
Press the [POWER] switch.
• The display located in the center of the front panel and the power indicator located below the left end of the keyboard lights up.
[POWER] switch
Power indicator
Display
Normally indicates tempo.
When you’re ready to turn off the power, press the [POWER] switch again.
• The display and the power indicator turn off.
NOTE
Power indicator
If you close the key cover without turning the power off, the power indicator remains lit, indicating that the power is
still on.
CLP-240/230 Owner’s Manual
11
Before Using the Clavinova
Setting the Volume
Initially set the [MASTER VOLUME] slider about halfway between the “MIN” and “MAX” settings. Then, when you start
playing, re-adjust the [MASTER VOLUME] slider to the most comfortable listening level.
MIN
MAX
MASTER VOLUME
The level decreases.
The level increases.
CAUTION
Do not use the Clavinova at a high volume level for a long period of time, or your hearing may be damaged.
TERMINOLOGY
MASTER VOLUME:
ENGLISH
The volume level of the entire keyboard sound
NOTE
You can also adjust the [PHONES] output level and the AUX IN input level using the [MASTER VOLUME] slider.
Using Headphones
Connect a pair of headphones to one of the [PHONES]
jacks.
Two [PHONES] jacks are provided.
You can connect two sets of standard stereo headphones. (If you are using only one pair of headphones,
you can plug them into either jack.)
bottom surface
OFF
ON
NORMAL
HP. SW
SPEAKER
PHONES
standard
stereo
phone plug
Using the Headphone Hanger
A headphone hanger is included in the CLP-240/230
package so that you can hang the headphones on the
Clavinova. Install the headphone hanger using included
two screws (4 × 10mm) as shown in the figure.
CAUTION
Do not hang anything other than the headphones on
the hanger. Otherwise, the Clavinova or the hanger
may be damaged.
Using the Speaker Switch
This switch turns the internal speakers on or off.
NORMAL (HP. SW) ......... The speakers produce sound as long as a pair of
headphones is not connected.
ON ....................................... The speakers always produce sound.
OFF ...................................... The speakers produce no sound.
12
CLP-240/230 Owner’s Manual
OFF
ON
NORMAL
HP. SW
SPEAKER
PHONES
Listening to the Demonstration Tunes ............................ 14
Listening to 50 Piano Preset Songs................................... 15
Practicing a One-Hand Part Using 50 Preset Songs (Part
Cancel Function)................................................................... 17
A-B Repeat for 50 Preset Songs ............................................ 18
Selecting & Playing Voices ................................................ 19
Selecting Voices ..................................................................... 19
Using the Pedals .................................................................... 20
Adding Variations to the Sound – [VARIATION] (CLP-240)/
[BRILLIANCE]/[REVERB]/[EFFECT]/[DDE] (CLP-240) 21
Touch Sensitivity – [TOUCH].............................................. 23
Transposition – [TRANSPOSE] ........................................... 24
Combining Two Voices (Dual mode)................................... 25
Splitting the Keyboard Range and Playing Two Different
Voices (Split mode) (CLP-240) ............................................ 26
Using the Metronome ........................................................... 28
Recording Your Performance ........................................... 29
Recording a performance quickly ........................................ 29
Re-recording a previously recorded song ............................ 31
Recording to RIGHT/LEFT .................................................. 32
Changing the Initial Settings (Data recorded at the beginning
of a song) ............................................................................... 34
Handling Songs with a USB Storage Device (CLP-240) . 35
About Save and Export ......................................................... 35
Saving Songs.......................................................................... 36
Exporting a Song in SMF format ......................................... 37
Deleting Song Files................................................................ 38
Formatting the USB Storage Device .................................... 39
ENGLISH
Reference
This section explains how to make detailed settings for the
Clavinova’s various functions.
F2. Selecting a Scale ...............................................................48
F3. Dual Mode Functions......................................................49
F4. (CLP-240) Split Mode Functions....................................50
F5. (CLP-240)/F4. (CLP-230) Other Functions ...................51
F6. (CLP-240)/F5. (CLP-230) Metronome Volume .............52
F7. (CLP-240)/F6. (CLP-230) Song Part Cancel Volume ....52
F8. (CLP-240)/F7. (CLP-230) MIDI Functions ...................52
F9. (CLP-240)/F8. (CLP-230) Backup Functions ................55
F9.5 (CLP-240)/F8.5 (CLP-230) Character Code ................55
Connections ...................................................................... 56
Connectors.............................................................................56
Connecting a Personal Computer.........................................60
Data Backup ...................................................................... 62
Message List....................................................................... 63
Troubleshooting ................................................................ 64
Options .............................................................................. 64
CLP-240/230: Keyboard Stand Assembly......................... 65
Handling the Floppy Disk Drive (FDD) and Floppy Disks
(CLP-240) .......................................................................... 69
Installing the Floppy Disk Drive (Optional) ................... 70
Preset Voice List................................................................. 71
Demo Song List ................................................................. 74
Index .................................................................................. 75
Playing Back Songs ........................................................... 40
Playing Back User/External Songs on the Instrument ........ 41
Playing Back User Files from a USB Storage Device (CLP240) ........................................................................................ 42
Playing Back SMF/External songs from a USB storage device
(CLP-240) .............................................................................. 43
Useful Playback Functions.................................................... 43
Detailed Settings – [FUNCTION] ................................... 44
Basic Procedure in Function Mode ...................................... 45
About Each Function ............................................................ 47
F1. Fine Tuning of the Pitch ................................................. 47
CLP-240/230 Owner’s Manual
13
Listening to the Demonstration Tunes
Listening to the Demonstration Tunes
Demonstration tunes are provided that effectively demonstrate each of the CLP-240/230’s voices.
1 2 4
4
REC
MIN
3
ON/OFF
LEFT
RIGHT
STOP
PLAY/PAUSE
ON
MAX
USB
USER
PRESET
SAVE/EXP.
LOAD
FORMAT/DEL.
TEMPO
FUNCTION #
TEMPO/OTHER VALUE
METRONOME
– / NO
+ / YES
GRAND
PIANO 1
GRAND
PIANO 2
E.PIANO
1
E.PIANO
2
HARPSICHORD
E.CLAVICHORD
VIBRAPHONE
VARIATION
CHURCH
ORGAN
JAZZ
ORGAN
STRINGS
CHOIR
GUITAR
WOOD
BASS
E.BASS
SPLIT
BRIGHT
NORMAL
MELLOW
ROOM
HALL 1
HALL 2
STAGE
CHORUS
PHASER
TREMOLO
ROTARY SP
HARD
MEDIUM
SOFT
ON
SYNC START
MASTER VOLUME
DEMO
TRANSPOSE
SONG
SONG SELECT FILE
TEMPO / FUNCTION #
VOICE
BRILLIANCE REVERB
EFFECT
TOUCH
DDE
CLP-240
ENGLISH
Procedure
1. Turn the power on.
(In case the power is not turned ON) Press the [POWER] switch.
When the power is turned ON, one of the voice button LEDs will light.
Initially set the [MASTER VOLUME] slider about half way between the “MIN”
and “MAX” settings. Then, when you start playing, re-adjust the [MASTER
VOLUME] slider to the most comfortable listening level.
2. Engage Demo mode.
Press the [DEMO] button to engage Demo mode. The voice button indicators
will flash in sequence.
3. Play a Voice demo.
Press one of the voice buttons to start playback of all songs starting from the
corresponding voice demo tune — featuring the voice normally selected by that
voice button. (If you press the SONG [PLAY/PAUSE] button instead of a voice
button, the GRAND PIANO 1 demo tune will begin playback.)
4. Stop the Voice demo and exit from Demo mode.
Press the [DEMO] or SONG [STOP] button.
NOTE
For a list of the demo songs, see
page 74.
NOTE
MIDI reception is not possible in
Demo Song mode.
Demo song data is not transmitted via the MIDI terminals.
NOTE
Demo mode cannot be engaged
during User song recording
(page 29) or file operations
(page 35).
TERMINOLOGY
Mode:
A mode is a status under which
you can execute a certain function. In Demo mode, you can play
back demonstration tunes.
NOTE
You cannot adjust the tempo of
demo songs.
You cannot use the part cancel
function (page 17) or the song
A-B repeat function (page 18) in
Demo mode.
NOTE
On the CLP-240, you can demo
the piano voices with various
effects by pressing the [VARIATION] button, then pressing the
desired voice button. Refer to the
“Piano Voice Demo Description”
on page 74 for the complete list of
demo sounds for the piano voices
with various effects.
14
CLP-240/230 Owner’s Manual
Listening to 50 Piano Preset Songs
Listening to 50 Piano Preset Songs
The Clavinova provides performance data of 50 piano songs. You can simply listen to these songs
(page 15) or use them for practice (page 17). You can also refer to the included “50 Greats for the
Piano” that contains scores for 50 piano preset songs.
3 2 -2 1
REC
MIN
TEMPO/OTHER VALUE
ON/OFF
LEFT
RIGHT
STOP
PLAY/PAUSE
ON
MAX
2 -1
4
USB
USER
PRESET
SAVE/EXP.
LOAD
FORMAT/DEL.
TEMPO
FUNCTION #
METRONOME
– / NO
+ / YES
GRAND
PIANO 1
GRAND
PIANO 2
E.PIANO
1
E.PIANO
2
HARPSICHORD
E.CLAVICHORD
VIBRAPHONE
VARIATION
CHURCH
ORGAN
JAZZ
ORGAN
STRINGS
CHOIR
GUITAR
WOOD
BASS
E.BASS
SPLIT
BRIGHT
NORMAL
MELLOW
ROOM
HALL 1
HALL 2
STAGE
CHORUS
PHASER
TREMOLO
ROTARY SP
HARD
MEDIUM
SOFT
ON
SYNC START
DEMO
TRANSPOSE
SONG
SONG SELECT FILE
TEMPO / FUNCTION #
VOICE
BRILLIANCE REVERB
EFFECT
TOUCH
DDE
CLP-240
ENGLISH
MASTER VOLUME
Procedure
1. Engage Preset Song mode.
Press the [SONG SELECT] button a few times until the “PRESET” indicator
lights.
2. Play any of the 50 preset songs.
2-1
2-2
Press the [–/NO], [+/YES] buttons to select the number
of the tune you want to play (the number will appear
on the LED display).
1 – 50: Select a preset song number and play only
the song.
ALL:
Play all preset songs in sequence.
rnd:
Play all preset songs continuously in random order.
TERMINOLOGY
song number
Press the SONG [PLAY/PAUSE] button to start playback.
Adjust the Volume
Use the [MASTER VOLUME] control to adjust the volume.
Adjust the tempo
You can use the [TEMPO/FUNCTION# ▼
▲] buttons to adjust the playback tempo
as required. The default tempo can be
recalled by simultaneously pressing the
[▼] and [▲] buttons.
3. Stop playback.
NOTE
Preset Song mode cannot be
engaged while the unit is in Demo
Song mode (page 14) or during
song playback (page 41), User
song recording (page 29), or file
operations (page 35).
Song:
On the CLP-240/230, performance data is called a “Song.”
This includes demonstration
tunes and piano preset tunes.
NOTE
You can play the keyboard along
with the preset song. You can
change the voice playing on the
keyboard.
NOTE
This produces a relative tempo variation, with a range from “–50”
through “0” to “50” at maximum; the
range will differ depending on the
selected song.
Playback will stop automatically when the selected preset song has finished. To
stop the song during playback (or continuous playback), press the SONG
[STOP] button. You can also pause playback by pressing the SONG [PLAY/
PAUSE] button.
• To play back another song continuously, see procedure 2 above.
You can adjust the Brilliance control (page 21) and Reverb type
(page 21) that is applied to the
voice you play on the keyboard
and for the preset song playback.
You can change the Effect type
(page 22) and Touch sensitivity
(page 23) for the keyboard voice.
NOTE
The default tempo “0” is automatically selected whenever a new
preset song is selected, or when
playback of a new preset song
begins during “ALL” or “rnd”
playback.
NOTE
When you select a different song
(or a different song is selected
during chained playback), appropriate reverb and effect types will
be selected accordingly.
CLP-240/230 Owner’s Manual
15
Listening to 50 Piano Preset Songs
4. Exit from Preset Song mode.
Press the [SONG SELECT] button to exit Preset Song mode. The indicator turns
off, and the unit returns to normal play mode.
ENGLISH
How to use the practice functions
You can turn the left- and right-hand parts on or off as required so you can practice the
corresponding part (part cancel function) and continuously repeat a specified phrase
within a song (song A-B repeat function). For more information, see pages 17–18.
16
CLP-240/230 Owner’s Manual
Listening to 50 Piano Preset Songs
Practicing a One-Hand Part Using 50 Preset Songs
(Part Cancel Function)
The 50 preset songs have separate left- and right-hand parts on individual parts. You can turn the
left- and right-hand parts on or off as required so you can practice the corresponding part (the part
that is turned off) on the keyboard. The right-hand part is played by [RIGHT] and the left-hand part
is played by [LEFT].
REC
MIN
ON/OFF
LEFT
RIGHT
STOP
PLAY/PAUSE
ON
MAX
USB
USER
PRESET
SAVE/EXP.
LOAD
FORMAT/DEL.
TEMPO
FUNCTION #
TEMPO/OTHER VALUE
METRONOME
– / NO
+ / YES
GRAND
PIANO 1
GRAND
PIANO 2
E.PIANO
1
E.PIANO
2
HARPSICHORD
E.CLAVICHORD
VIBRAPHONE
VARIATION
CHURCH
ORGAN
JAZZ
ORGAN
STRINGS
CHOIR
GUITAR
WOOD
BASS
E.BASS
SPLIT
BRIGHT
NORMAL
MELLOW
ROOM
HALL 1
HALL 2
STAGE
CHORUS
PHASER
TREMOLO
ROTARY SP
HARD
MEDIUM
SOFT
ON
SYNC START
MASTER VOLUME
DEMO
TRANSPOSE
SONG
SONG SELECT FILE
TEMPO / FUNCTION #
Procedure
1. Turn off the playback part you wish to practice.
After you select a song to practice, press the [RIGHT] or [LEFT] button to turn
off the corresponding part.
When you first select a song, both [RIGHT] and [LEFT] indicators light up, indicating that you can play back both parts. When you press one of the buttons to
turn off playback, the corresponding button indicator turns off and the corresponding part playback is muted.
• Pressing the buttons repeatedly toggles playback between on and off.
2. Start playback and playing.
Press the SONG [PLAY/PAUSE] button to start playback. Play the part you just
turned off.
VOICE
BRILLIANCE REVERB
EFFECT
TOUCH
DDE
CLP-240
NOTE
Appropriate channels in the song
will automatically be assigned to
[RIGHT] and [LEFT]. Therefore,
[RIGHT] may be assigned to a
part other than channel 1, or
[LEFT] to a part other than channel 2.
ENGLISH
3 1 2
NOTE
The Preset Song Part Cancel
function cannot be used during
“ALL” or “rnd” (page 15) playback.
NOTE
The parts can be turned on or off
even during playback.
NOTE
The “Song Part Cancel Volume”
function described on page 52
can be used to set the canceled
part so that it plays at a volume
from “0” (no sound) to “20”. The
normal setting is “5”.
Starting playback automatically as you start playing the keyboard
(Sync Start)
When the Sync Start function is engaged, playback of the selected preset song
will begin automatically as soon as you start playing on the keyboard.
To engage the Sync Start function, simultaneously hold down the SONG [STOP]
and press the [PLAY/PAUSE] button.
(Repeat the previous operation to disengage the Sync Start function.)
Playback will then start as soon as you begin playing on the keyboard.
Left Pedal Play/Pause
The left pedal can be assigned to play and pause preset song playback via the
“Left Pedal Mode” function described on page 51.
3. Stop playback.
When playback is complete, it automatically stops and the Clavinova locates the
top of the song. If you wish to stop playback in the middle of a song, press the
SONG [STOP] button. You can also pause playback by pressing the SONG
[PLAY/PAUSE] button.
NOTE
Both parts are automatically
turned ON whenever a new song
is selected.
CLP-240/230 Owner’s Manual
17
Listening to 50 Piano Preset Songs
A-B Repeat for 50 Preset Songs
The A-B Repeat function can be used to continuously repeat a specified phrase within a preset song.
Combined with the Part Cancel function described below, this provides an excellent way to practice
difficult phrases.
1
2
REC
MIN
ON/OFF
LEFT
RIGHT
STOP
PLAY/PAUSE
ON
MAX
USB
USER
PRESET
SAVE/EXP.
LOAD
FORMAT/DEL.
TEMPO
FUNCTION #
TEMPO/OTHER VALUE
METRONOME
– / NO
+ / YES
GRAND
PIANO 1
GRAND
PIANO 2
E.PIANO
1
E.PIANO
2
HARPSICHORD
E.CLAVICHORD
VIBRAPHONE
VARIATION
CHURCH
ORGAN
JAZZ
ORGAN
STRINGS
CHOIR
GUITAR
WOOD
BASS
E.BASS
SPLIT
BRIGHT
NORMAL
MELLOW
ROOM
HALL 1
HALL 2
STAGE
CHORUS
PHASER
TREMOLO
ROTARY SP
HARD
MEDIUM
SOFT
ON
SYNC START
ENGLISH
MASTER VOLUME
DEMO
TRANSPOSE
SONG
SONG SELECT FILE
TEMPO / FUNCTION #
VOICE
BRILLIANCE REVERB
EFFECT
TOUCH
DDE
CLP-240
Procedure
1. Specify the beginning (A) and the end (B) of the
phrase, and start practicing.
Select and play a preset song, then press the [TEMPO/
FUNCTION#] button at the beginning of the phrase
you want to repeat.
This sets the “A” point (
play).
will appear on the dis-
To specify the end (B) of the phrase, press the [TEMPO/
FUNCTION#] button a second time at the end of the
phrase.
This sets the “B” point (
will appear on the display).
At this point, repeat playback will begin between the
specified A and B points.
NOTE
The A-B Repeat function cannot
be used during “ALL” or “rnd”
(page 15) playback.
NOTE
• To set the “A” point at the very
beginning of the song, press
the [TEMPO/FUNCTION#] button before starting playback.
• You can have the B point automatically be set to the song’s
end, by setting the A point and
letting the song play to the end.
NOTE
An automatic lead-in (to help
guide you into the phrase) starts
at the A point of the song.
2. Stop playback.
Press the SONG [STOP] button to stop playback while retaining the specified A
and B points. A-B repeat playback will resume if you press the SONG [PLAY/
PAUSE] button.
To cancel the A and B points, press the [TEMPO/FUNCTION#] button once.
NOTE
The A and B points are automatically canceled when a new song
is selected.
18
CLP-240/230 Owner’s Manual
Selecting & Playing Voices
Selecting & Playing Voices
Selecting Voices
Voice buttons
REC
MIN
RIGHT
PLAY/PAUSE
ON
MAX
ON/OFF
LEFT
STOP
USB
USER
PRESET
SAVE/EXP.
LOAD
FORMAT/DEL.
TEMPO
FUNCTION #
TEMPO/OTHER VALUE
METRONOME
– / NO
+ / YES
GRAND
PIANO 1
GRAND
PIANO 2
E.PIANO
1
E.PIANO
2
HARPSICHORD
E.CLAVICHORD
VIBRAPHONE
VARIATION
CHURCH
ORGAN
JAZZ
ORGAN
STRINGS
CHOIR
GUITAR
WOOD
BASS
E.BASS
SPLIT
BRIGHT
NORMAL
MELLOW
ROOM
HALL 1
HALL 2
STAGE
CHORUS
PHASER
TREMOLO
ROTARY SP
HARD
MEDIUM
SOFT
ON
SYNC START
DEMO
TRANSPOSE
SONG
SONG SELECT FILE
TEMPO / FUNCTION #
VOICE
BRILLIANCE REVERB
EFFECT
TOUCH
DDE
CLP-240
Procedure
Select the desired voice by pressing one of the Voice buttons.
Then, when you start playing, re-adjust the [MASTER VOLUME] slider for the most
comfortable listening level.
NOTE
To learn characteristics of the
voices, listen to demo songs for
each voice (page 14). Refer to
“Preset Voice List” on page 71 for
more information on the characteristics of each preset voice.
ENGLISH
MASTER VOLUME
TERMINOLOGY
Voice:
On the Clavinova, a voice means
a “tone” or “tonal color.”
NOTE
You can control the loudness of a
voice by adjusting the force with
which you strike the keys,
although different playing styles
(touch sensitivities) have little or
no effect with certain musical
instruments.
Refer to “Preset Voice List” on
page 71.
CLP-240/230 Owner’s Manual
19
Selecting & Playing Voices
Using the Pedals
ENGLISH
The Clavinova has three foot pedals that produce a range
of expressive effects similar to those produced by the
pedals on an acoustic piano.
Damper (Right) Pedal
The damper pedal functions in the same way as a
damper pedal on an acoustic piano. When the damper
pedal is pressed, notes sustain longer. Releasing the pedal
immediately stops (damps) any sustained notes.
When you select the GRAND PIANO 1 voice on the CLP240, pressing the damper pedal activates the instrument’s
special “Sustain Samples” to accurately recreate the
unique resonance of an acoustic grand piano’s soundboard and strings. A “half-pedal” effect lets you use the
damper pedal to create partial sustain effects, depending
on how far down you press the pedal.
Sostenuto (Center) Pedal
If you play a note or chord on the keyboard and press the
sostenuto pedal while the note(s) are held, those notes
will sustain as long as you hold the pedal (as if the
damper pedal had been pressed) but all subsequently
played notes will not be sustained. This makes it possible
to sustain a chord, for example, while other notes are
played “staccato.”
NOTE
If the damper pedal doesn’t work,
make sure that the pedal cord is
properly plugged into the main
unit (page 67).
When you press the damper
pedal here, the notes you
play before you release the
pedal have a longer sustain.
CLP-240/230 Owner’s Manual
NOTE
When the DDE effect is on, you
can hear a simulation of the sustain sound of the damper pedal
on a grand piano, as you press
the damper pedal and play the
keyboard (page 22).
NOTE
Organ, string and choir voices will
continue to sound for as long as
the sostenuto pedal is depressed.
When you press the sostenuto pedal here while holding
the note, the note will sustain
as long as you hold the pedal.
Soft (Left) Pedal
The soft pedal reduces the volume and slightly changes the timbre of notes played while
the pedal is pressed. The soft pedal will not affect notes that are already playing when it
is pressed.
20
NOTE
The depth of the effect produced
by the “Sustain Samples” can be
adjusted via the “Pedal Functions” (page 51) in Function
mode.
NOTE
The left pedal can be assigned to
song play/pause operation or
variation function (CLP-240) via
the “Left Pedal Mode” described
on page 51.
Selecting & Playing Voices
Adding Variations to the Sound – [VARIATION] (CLP240)/[BRILLIANCE]/[REVERB]/[EFFECT]/[DDE]
(CLP-240)
[–/NO] [+/YES]
buttons
REC
MIN
MAX
ON/OFF
LEFT
RIGHT
STOP
PLAY/PAUSE
ON
USB
USER
PRESET
SAVE/EXP.
LOAD
FORMAT/DEL.
TEMPO
FUNCTION #
TEMPO/OTHER VALUE
METRONOME
– / NO
+ / YES
[VARIATION]
button
GRAND
PIANO 1
GRAND
PIANO 2
E.PIANO
1
E.PIANO
2
HARPSICHORD
E.CLAVICHORD
VIBRAPHONE
VARIATION
CHURCH
ORGAN
JAZZ
ORGAN
STRINGS
CHOIR
GUITAR
WOOD
BASS
E.BASS
SPLIT
[REVERB]
button
BRIGHT
NORMAL
MELLOW
ROOM
HALL 1
HALL 2
STAGE
CHORUS
PHASER
TREMOLO
ROTARY SP
HARD
MEDIUM
SOFT
ON
SYNC START
DEMO
TRANSPOSE
SONG
SONG SELECT FILE
TEMPO / FUNCTION #
VOICE
BRILLIANCE REVERB
[BRILLIANCE]
button
EFFECT
TOUCH
DDE
CLP-240
[EFFECT]
button
[VARIATION] (CLP-240)
Lets you alter another aspect of the effect, depending on the selected type.
Refer to “Preset Voice List” on page 71 for more information on the characteristics of
each variation.
Procedure
Pressing the [VARIATION] or selected voice button toggles the variation on and off.
The indicator lights (ON) each time the [VARIATION] button is pressed.
[BRILLIANCE]
This control can be used to change the tonality or “timbre” of the sound output.
BRIGHT:
NORMAL:
MELLOW:
Bright tone
Standard tone
Soft and mellow tone
NOTE
ENGLISH
MASTER VOLUME
Normal setting = OFF
TERMINOLOGY
Normal setting:
The “Normal setting” refers to the
default setting (factory setting)
obtained when you first turn on
the power to the Clavinova.
NOTE
The left pedal can be assigned to
ON or OFF the variation via the
“Left Pedal Mode” function
described on page 51 (CLP-240).
NOTE
Normal setting = NORMAL
Procedure
To select a brilliance type, press the [BRILLIANCE] button a few times until the indicator corresponding to the desired type lights (the indicator lights in sequence each time
you press the [BRILLIANCE] button). Brilliance can be selected among five types. When
two adjacent indicators are lit, the type that is between the two indicated types is
selected. For example, when both NORMAL and MELLOW are lit, the brilliance setting between NORMAL and MELLOW is selected. This parameter affects the entire
sound of the instrument.
NOTE
When the BRILLIANCE is set to
BRIGHT, the overall sound will be
slightly louder. If the MASTER
VOLUME is set at a high level the
sound may become distorted. If
so, lower the MASTER VOLUME
level.
[REVERB]
This control enables you to select various digital reverb effects that would add extra
depth and expression to the sound to create a realistic acoustic ambience.
OFF:
When no reverb effect is selected, no REVERB indicator is lit.
ROOM: This setting adds a continuous reverb effect to the sound, similar to the
acoustic reverberation you would hear in a room.
HALL 1: For a “bigger” reverb sound, use the HALL 1 setting. This effect simulates
the natural reverberation of a small-size concert hall.
HALL 2: For a truly spacious reverb sound, use the HALL 2 setting. This effect simulates the natural reverberation of a large concert hall.
STAGE: Simulates the reverb of a stage environment.
NOTE
The default reverb type (including
OFF) and depth settings are different for each voice.
CLP-240/230 Owner’s Manual
21
Selecting & Playing Voices
Procedure
Pressing the [REVERB] button repeatedly toggles the reverb on and off.
The indicators light in sequence each time the [REVERB] button is pressed. No effect is
produced when all indicators are off.
Adjusting Reverb Depth
Adjust the reverb depth for the selected voice by using the [–/NO] [+/YES] buttons
while holding the [REVERB] button. The depth range is from 0 through 20. The current
depth setting appears on the LED display while the [REVERB] button is held.
NOTE
Releasing the [REVERB] button
changes the reverb type.
If you are changing the reverb
depth by holding the [REVERB]
button, pressing the [REVERB]
button will not change the reverb
type.
NOTE
ENGLISH
Depth 0: no effect
Depth 20: maximum reverb depth
[EFFECT]
NOTE
The [EFFECT] button allows you to select an effect to give your sound greater depth and
animation.
Default depth settings are different for each voice.
OFF:
When no effect is selected, no EFFECT indicator is lit.
CHORUS: A shimmering, broadening effect
PHASER:
Adds a sweeping effect to the sound.
TREMOLO: Tremolo effect
ROTARY SP: Adds the vibrato effect of a rotary speaker.
The default effect type (including
OFF) and depth settings are different for each voice.
NOTE
Procedure
To select an effect type, press the [EFFECT] button a few times until the indicator corresponding to the desired type lights (the indicators light in sequence each time you press
the [EFFECT] button). No effect is produced when all indicators are off.
Adjusting Effect Depth
You can adjust the effect depth for the selected voice by using the [–/NO] and [+/YES]
buttons while holding the [EFFECT] button.
The depth range is from 0 through 20. The current depth setting appears on the LED
display while the [EFFECT] button is held.
NOTE
Releasing the [EFFECT] button
changes the effect type.
If you are changing the depth settings by holding the [EFFECT]
button, pressing the [EFFECT]
button will not change the effect
type.
NOTE
Depth 0: no effect
Depth 20: maximum effect depth
[DDE] (CLP-240)
The DDE (Dynamic Damper Effect) lets you hear a simulation of the sustain sound of
the damper pedal on a grand piano, as you press the damper pedal and play the keyboard. This effect is applied to the entire sound of the instrument.
Procedure
Pressing the [DDE] button repeatedly toggles the DDE on and off.
Adjusting DDE Depth
You can adjust the DDE depth by using the [–/NO] and [+/YES] buttons while holding
the [DDE] button.
The depth range is from 0 through 20. The current depth setting appears on the LED
display while the [DDE] button is held.
22
CLP-240/230 Owner’s Manual
NOTE
Default depth settings are different for each voice.
NOTE
Normal setting = ON
NOTE
Depth 0: no effect
Depth 20: maximum DDE depth
Selecting & Playing Voices
Touch Sensitivity – [TOUCH]
You can select four different types of keyboard touch sensitivity — HARD, MEDIUM, SOFT or FIXED
— to match different playing styles and preferences.
NOTE
HARD:
Requires that the keys be played quite hard to produce maximum loudness.
MEDIUM: Produces a fairly “standard” keyboard response.
SOFT:
Allows maximum loudness to be produced with relatively light key pressure.
FIXED:
All notes are produced at the same volume no matter how hard the keyboard is played. (No indicators are lit.) The fixed volume can be changed.
This setting does not change the
weight of the keyboard.
NOTE
Normal setting = MEDIUM
[TOUCH] button
[–/NO] [+/YES] buttons
REC
MIN
ON/OFF
LEFT
RIGHT
STOP
PLAY/PAUSE
ON
MAX
USB
USER
PRESET
SAVE/EXP.
LOAD
FORMAT/DEL.
TEMPO
FUNCTION #
TEMPO/OTHER VALUE
METRONOME
– / NO
+ / YES
ENGLISH
NOTE
The touch sensitivity type will
become the common setting for
all voices. However, the touch
sensitivity settings may have little
or no effect with certain voices
that are not normally responsive
to keyboard dynamics. (Refer to
the “Preset Voice List” on
page 71.)
GRAND
PIANO 1
GRAND
PIANO 2
E.PIANO
1
E.PIANO
2
HARPSICHORD
E.CLAVICHORD
VIBRAPHONE
VARIATION
CHURCH
ORGAN
JAZZ
ORGAN
STRINGS
CHOIR
GUITAR
WOOD
BASS
E.BASS
SPLIT
BRIGHT
NORMAL
MELLOW
ROOM
HALL 1
HALL 2
STAGE
CHORUS
PHASER
TREMOLO
ROTARY SP
HARD
MEDIUM
SOFT
ON
SYNC START
MASTER VOLUME
DEMO
TRANSPOSE
SONG
SONG SELECT FILE
TEMPO / FUNCTION #
VOICE
BRILLIANCE REVERB
EFFECT
TOUCH
DDE
CLP-240
Procedure
To select a touch sensitivity type press the [TOUCH] button a few times until the indicator corresponding to the desired type lights (the indicators light in sequence each time
the [TOUCH] button is pressed). No indicator is lit when “FIXED” is selected.
Changing the volume when FIXED is selected
When you select FIXED, you can set the volume for notes
played in FIXED mode by using the [–/NO] and [+/YES] buttons while you hold the [TOUCH] button. The current volume level appears on the display. The volume range is from 1
through 127. The default setting is 64.
NOTE
1: minimum volume
127: maximum volume
volume range
NOTE
The touch volume set in FIXED
mode will become the common
setting for all voices.
NOTE
Releasing the [TOUCH] button
changes the touch type.
If you are changing the volume by
holding the [TOUCH] button,
pressing the [TOUCH] button will
not change the touch sensitivity
type. (FIXED mode will remain
selected.)
CLP-240/230 Owner’s Manual
23
Selecting & Playing Voices
Transposition – [TRANSPOSE]
The Clavinova’s Transpose function makes it possible to shift the pitch of the entire keyboard up or
down in semitone intervals to facilitate playing in difficult key signatures, and to let you easily
match the pitch of the keyboard to the range of a singer or other instruments. For example, if you
set the transposition amount to “5,” playing key C produces pitch F. In this way, you can play a
song as though it were in C major, and the Clavinova will transpose it to the key of F.
