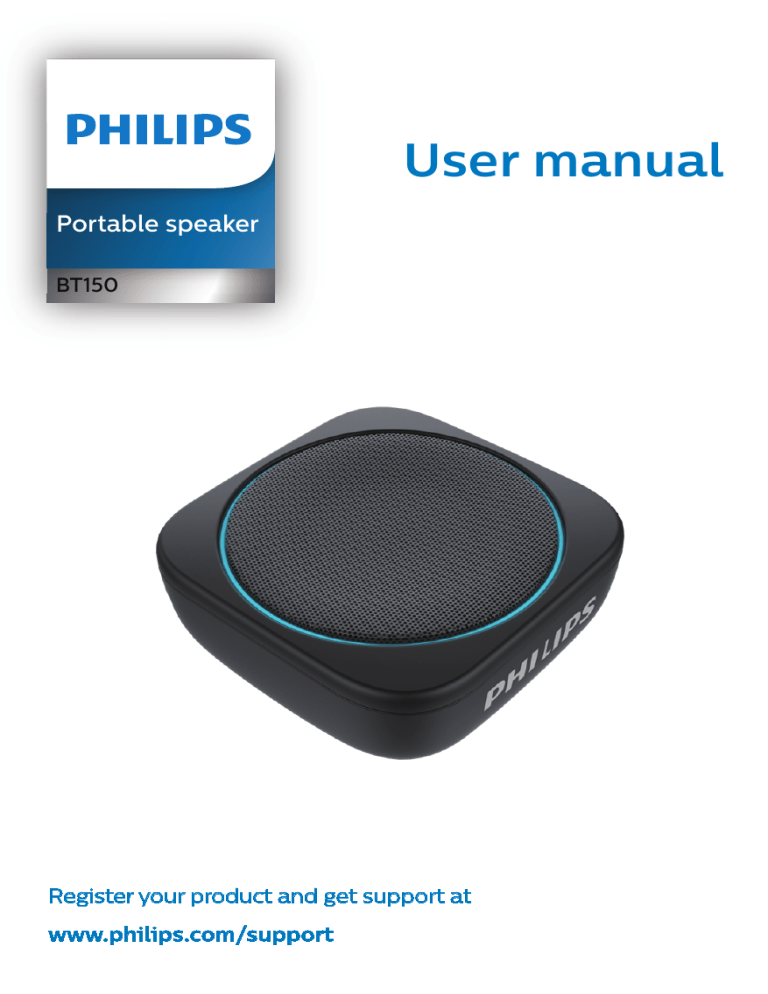

User manual
Portable speaker
BT150
Register your product and get support at
www.philips.com/support
Contents
1
Important
Safety
Notice
1
1
1
2Your Bluetooth speaker
Introduction
What's in the box
Overview of the speaker
2
2
3
3
3
4
4
6
Get started
Charge the built-in battery
Turn on/off
4Play from Bluetooth devices
Connect a Bluetooth device
Play from a connected Bluetooth device
Disconnect a device
Reconnect a device
Clear pairing information
Control your phone call
6
6
7
7
7
7
8
5Other features
Listen to an external device
Turn on / off the light
Adjust volume
8
8
9
9
6Specifications
10
7Trouble-shooting
General
About Bluetooth device
10
10
11
1
Important
Safety
Warning
• N
ever remove the casing of this speaker.
• Never place this speaker on other electrical
equipment.
• Keep this speaker away from direct sunlight, naked
flames or heat
•
•
•
•
•
Only use attachments or accessories
specified by the manufacturer.
The battery shall not be exposed to
excessive heat such as sunshine, fire or like
Do not place any sources of danger on the
speaker (e.g. lighted candles).
The speaker can meet IPX7 waterproof
standard only when the USB/AUDIO IN
socket cover is covered seamlessly.
The operation temperature of the speaker
is from -10 °C to 40 °C.
Compliance
Hereby, Philips declares that this product is in
compliance with the essential requirements and
other relevant provisions of Directive 2014/53/
EU.You can find the declaration of conformity on
www.philips.com/support.
Care of the environment
Disposal of your old product and battery
Your product is designed and manufactured with
high quality materials and components, which can
be recycled and reused.
This symbol on a product means that the
product is covered by European Directive
2012/19/EU.
Note
• The type plate is located on the bottom of the
speaker.
Notice
Any changes or modifications made to this
device that are not expressly approved by Philips
may void the user’s authority to operate the
equipment.
EN
1
This symbol means that the product contains
a built-in rechargeable battery covered by
European Directive 2013/56/EU which cannot
be disposed of with normal household waste.We
strongly advise you to take your product to an
official collection point or a Philips service centre
to have a professional remove the rechargeable
battery.
Inform yourself about the local separate
collection system for electrical and electronic
products and rechargeable batteries. Follow
local rules and never dispose of the product and
rechargeable batteries with normal household
waste. Correct disposal of old products and
rechargeable batteries helps prevent negative
consequences for the environment and human
health.
Caution
• T
he type plate is located on the bottom of the
2Your
Bluetooth
speaker
Congratulations on your purchase, and welcome
to Philips! To fully benefit from the support that
Philips offers, register your product at
www.philips.com/welcome.
speaker.
Always bring your product to a professional to
remove the built-in battery.
Introduction
Environmental information
With this speaker, you can
• enjoy audio from Bluetooth-enabled devices
or other external devices, and
• enjoy flashing light during music playback.
All unnecessary packaging has been omitted.We
have tried to make the packaging easy to separate
into three materials: cardboard (box), polystyrene
foam (buffer) and polyethylene(bags, protective
foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by a
specialized company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old equipment.
Trademark notice
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by MMD Hong
Kong Holding Limited is under license. Other
trademarks and trade names are those of their
respective owners.
EN
2
What's in the box
Overview of the speaker
Check and identify the contents of your package:
5
Portable speaker
4
2
3
1
Quick Start
Guide
BT150
Register your product and get support at
www.philips.com/support
•
•
•
.
Speaker
USB cable for charging
Printed materials
7
6
1
•
Turn the speaker on or off.
2
+
• Adjust volume.
• In Bluetooth mode, press twice to play
the next track.
3
•
•
Adjust volume.
In Bluetooth mode, press twice to play
the previons track.
4
•
•
EN
3
In Bluetooth mode, press to pause or
resume play.
After Bluetooth connection, respond to
an incoming call.
5
•
•
•
Enter Bluetooth pairing mode.
Clear Bluetooth pairing information.
Turn the light on/off
•
Charge the built-in battery.
6
7
AUDIO IN
• Connect an external audio device.
3 Get started
Always follow the instructions in this chapter in
sequence.
Charge the built-in
battery
The speaker is powered by a built-in rechargeable
battery.
Note
•
•
•
efore use, fully charge the built-in battery.
B
The micro USB socket is for charging only.
Rechargeable battery has a limited number
of charge cycles. Battery life and number of
charge cycles vary by use and setting
1
2
•
•
EN
4
Flip open the cover on the side of the
speaker.
Connect the USB cable between
socket on the speaker, and
a USB socket on a computer.
Charge the built-in
battery
Note
• It takes you approximately 3 hours to fully charge the
battery.
he micro USB socket is for charging only.
• T
• Rechargeable battery has a limited number of charge
cycles. Battery life and number of charge cycles vary
by use and settings.
When the battery level is low, LED flashes red.
To charge the built-in battery:
•
EN
Connect the speaker to AC power by using
the adaptor (not supplied).
5
System
status
Battery status
System behavior
On
Fully charged
Solid blue
Off
Fully charged
Led turn off
4Play from
Bluetooth
devices
Turn on/off
2 sec.
•
•
To turn the speaker on, press and hold
for over two seconds until the LEDs light up.
To turn the speaker off, press and hold
for two seconds again.
Note
• The speaker turns off automatically when being idle
With this speaker, you can listen to audio from
Bluetooth-enabled devices and control the
incoming call through Bluetooth.
Connect a Bluetooth
device
Note
• Make sure that Bluetooth function is enabled on your
device, and your device is set as visible to all other
Bluetooth devices.
for 15 minutes.
• Any obstacle between this speaker and a Bluetooth
device can reduce the operational range.
• Keep away from any other electronic device that may
cause interference.
• The operational range between this speaker and a
Bluetooth device is approximately 10 meters.
1
EN
6
Make sure that the speaker is in Bluetooth
pairing mode.
» The LEDs flash blue/red quickly.
» If LEDs flash blue/red slowly. press and
hold for two seconds to enter pairing
mode.
2
On your Bluetooth device, enable Bluetooth
and search for Bluetooth devices that can be
paired (see the user manual of the device).
3
Select [Philips BT150] displayed on your
device for pairing. If necessary, input “0000”
as the pairing password.
» After successful connection, the speaker
beeps twice, and the blue LED light
stops flashing.
After successful Bluetooth connection, play audio
on the connected device.
» Audio streams from your Bluetooth device
to the speaker.
• To pause or resume play, press
.
• To play the next track, press + twice,
and press - twice for previous track.
Tip
• Music play pauses when there is an incoming call, and
resumes when your phone call ends.
Disconnect a device
LED behavior
Description
Flashing blue/red
quickly
Ready for pairing
Flashing blue/red slowly Reconnecting the last
connected device;
Waiting for connection
from the paired device
Solid blue
•
•
•
•
Reconnect a device
•
Connected
•
Play from a connected
Bluetooth device
Note
• Music play pauses when there is an incoming call, and
resumes when your phone call ends.
EN
7
Press and hold for two seconds;
Turn off the speaker;
Disable Bluetooth on your device; or
Move the device beyond the communication
range.
When you turn on the speaker, it tries
to reconnect the last connected device
automatically;
If not successful, select [Philips BT150] on
your Bluetooth menu to start reconnection.
Clear pairing
information
•
Press and hold
for 10 seconds.
Control your phone call
After Bluetooth connection, you can control an
incoming call with this speaker.
Button
5Other
features
Function
Press to answer an
incoming call.
Press and hold for two
seconds to reject an
incoming call.
During a call, press to
end the current call.
During a call, press and
hold for two seconds to
transfer the call to your
mobile device.
Listen to an external
device
With this speaker, you can also listen to an
external audio device such as an MP3 player.
Note
ake sure that music playback through Bluetooth is
• M
stopped.
• Bluetooth will disconnect automatically when connect
an audio input cable.
ADUIO IN
EN
8
1
Open the protective cover on the side of
the speaker.
2
Connect an audio input cable (not supplied)
with a 3.5 mm connector on both ends to
• the AUDIO IN socket on this speaker,
and
• the headphone socket on the external
device.
3
Play audio on the external device (refer to
its user manual).
Turn on / off the light
Adjust volume
During music playback, you can enjoy the flashing
light effect.
During music playback, press -/+ to increase or
decrease volume.
Press
to turn on / off the light
Tip
Note
• If bluetooth is connected, the light keeps on.
• If bluetooth is connected, when no signal output, the
light turn off.
• If connect an audio cable, the light will keep on.
EN
9
• You can press and hold -/+ to increase or decrease
volume continuously.
• When the volume reaches the maximum, the speaker
beeps twice.
• During Bluetooth playback, the volume control will
be synchronized between the speaker and your
Bluetooth device as long as your device supports this
function.
6Specifications
Note
7Troubleshooting
• Product information is subject to change without
prior notice.
Warning
• Never remove the casing of this device.
Rated output
power
(Amplifier)
1x4W RMS ≤ 1% THD
Acoustic
frequency
response
80-16000 Hz
Speaker driver
1x1.5" full range, 4 Ω
Bass
enhancement
1 pcs of passive radiator
Bluetooth version V4.2 + EDR
Bluetooth
supported
profiles
HFP V1.7, A2DP V1.3, AVRCP
V1.6
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this device,
check the following points before requesting
service. If the problem remains unsolved, go to
the Philips Web page (www.philips.com/support).
When you contact Philips, make sure that the
device is nearby and the model number and
serial number are available.
General
Bluetooth
2.402GHz ~ 2.480GHz ISM
frequency band / Band / ≤ 4dBm (Class 2)
Output power
No power
AUX input level
No sound
700mV±100mV
Water resistance IPX7
Built-in battery
Li-ion battery
(3.7 V, 800 mAh)
Play time in
battery mode
Approx. 8 hours
Charging time
Approx. 3 hours
USB charging
5V, 1A / Micro-USB socket
Dimensions Main unit
(W x H x D)
95x 95 x 39.5 mm
Weight - Main
unit
0.3 kg
EN
10
•
•
•
•
Recharge the speaker.
Adjust volume on this product.
Adjust volume on the connected device.
Make sure that your Bluetooth device is
within the effective operational range.
About Bluetooth device
The audio quality is poor after connection with
a Bluetooth-enabled device.
•
The Bluetooth reception is poor. Move the
device closer to this product or remove any
obstacle between them.
Fail to find [Philips BT150] on your device for
pairing.
•
Press and hold for two seconds to enter
pairing mode, and then try again.
Cannot connect with the device.
•
•
The Bluetooth function of the device is not
enabled. Refer to the user manual of the
device for how to enable the function.
This product is already connected with
another Bluetooth-enabled device.
Disconnect that device and then try again.
The paired device connects and disconnects
constantly.
•
•
EN
The Bluetooth reception is poor. Move the
device closer to this product or remove any
obstacle between them.
For some devices, Bluetooth connection
may be deactivated automatically as a
power-saving feature.This does not indicate
any malfunction of this product.
11
Philips and the Philips Shield Emblem are registered
trademarks of Koninklijke Philips N.V. and are used
under license.
This product has been manufactured by and is sold
under the responsibility of MMD Hong Kong Holding
Limited or one of its affiliates, and MMD Hong Kong
Holding Limited is the warrantor in relation to this
product.
BT150_00 _UM_V 1.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
