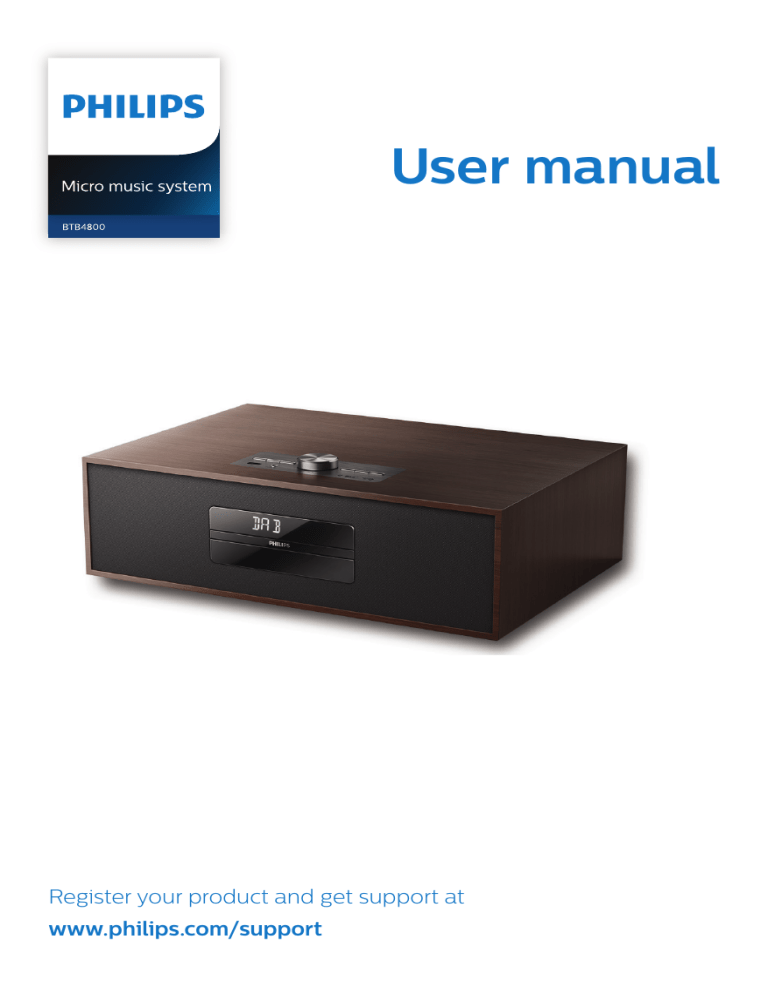

User manual
Register your product and get support at
www.philips.com/support
Contents
1
Important
Safety
Notice
Declaration of conformity
2 Your Micro Music System
Introduction
What's in the box
Overview of the main unit
Overview of the remote control
3 Get started
Connect FM/DAB+ antenna
Connect power
Prepare the remote control
Power on
Set the clock
4 Play
Play from disc
Play from USB
Control play
Skip tracks
Program tracks
Play from Bluetooth-enabled
devices
5 Listen to the radio
Listen to DAB+ radio
Listen to FM radio
6 Adjust sound
Adjust volume level
Mute sound
2
2
2
2
7 Other features
4
4
4
5
6
8 Product information
14
14
14
14
Set the alarm timer
Set the sleep timer
Listen to an external device
15
16
16
USB playability information
Supported MP3 disc formats
9 Trouble­shooting
17
7
7
7
8
8
8
9
9
9
9
10
10
10
11
11
12
13
13
13
EN
1
1
Important
Safety
•
•
•
This ‘bolt of lightning’ indicates
uninsulated material within the device
may cause an electrical shock. For the
safety of everyone in your household,
please do not remove the covering.
The ‘exclamation mark’ calls attention to
features for which you should read the
enclosed literature closely to prevent
operating and maintenance problems.
WARNING: To reduce the risk of fire or
electric shock, the device should not be
exposed to rain or moisture and objects
filled with liquids, such as vases, should
not be placed on the device.
CAUTION: To prevent electric shock,
fully insert the plug. (For regions with
polarized plugs: To prevent electric
shock, match wide blade to wide slot.)
Warning
•• Never remove the casing of this apparatus.
•• Never lubricate any part of this apparatus.
•• Never look into the laser beam inside this
•
•
Do no place any source of danger
on the device (e.g. liquid filled
objects. lit candles).
Where the MAINS plug or an
appliance coupler is used as the
disconnect device, the disconnect
device shall remain readily
operable.
Make sure that there is enough
free space around the product for
ventilation.
Battery usage CAUTION - To
prevent battery leakage which may
result in bodily injury, property
damage, or damage to the unit:
• Install all batteries correctly, +
and - as marked on the unit.
• Batteries (packed or installed)
shall not be exposed to
excessive heat such as sunshine,
fire or the like.
• Remove batteries when the unit
is not used for a long time.
Only use attachments/accessories
specified by the manufacturer.
Notice
Any changes or modifications made
to this device that are not expressly
approved by Gibson Innovations may
void the user’s authority to operate the
equipment.
apparatus.
•• Never place this apparatus on other
electrical equipment.
•• Keep this apparatus away from direct
sunlight, naked flames or heat.
•• Ensure that you always have easy access
to the power cord, plug or adaptor to
disconnect the apparatus from the power.
•
The device shall not be exposed to
dripping or splashing.
2
EN
Declaration of
conformity
Hereby, Gibson Innovations declares
that this product is in compliance
with the essential requirements
and other relevant provisions of
Directive 2014/53/EU. You can find
the Declaration of Conformity on
www.philips.com/support.
Disposal of your old product and
battery
Your product is designed and
manufactured with high quality
materials and components, which can
be recycled and reused.
This symbol on a product means that
the product is covered by European
Directive 2012/19/EU.
This symbol means that the product
contains batteries covered by European
Directive 2013/56/EU which cannot be
disposed of with normal household
waste.
Inform yourself about the local separate
collection system for electrical and
electronic products and batteries.
Follow local rules and never dispose of
the product and batteries with normal
household waste. Correct disposal
of old products and batteries helps
prevent negative consequences for the
environment and human health.
if disassembled by a specialized
company. Please observe the local
regulations regarding the disposal
of packaging materials, exhausted
batteries and old equipment.
The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such
marks by Gibson Innovations Limited
is under license. Other trademarks
and trade names are those of their
respective owners.
This apparatus includes this label:
Note
•• The type plate is located on the back of
the device.
Removing the disposable batteries
To remove the disposable batteries, see
battery installation section.
Environmental information
All unnecessary packaging has been
omitted. We have tried to make the
packaging easy to separate into three
materials: cardboard (box), polystyrene
foam (buffer) and polyethylene (bags,
protective foam sheet.)
Your system consists of materials
which can be recycled and reused
EN
3
2
Your Micro Music
System
Congratulations on your purchase,
and welcome to Philips! To fully
benefit from the support that Philips
offers, register your product at
www.philips.com/support.
Introduction
With this unit, you can:
• enjoy audio from discs, USB
devices, Bluetooth devices, and
other external devices;
• listen to FM and Digital Audio
Broadcasting+ (DAB+) radio
The unit supports these media formats:
What's in the box
Check and identify the contents of your
package:
• Main unit
• 1 x AC power cord
• 1 x FM/DAB+ antenna
• Remote control (with one AAA
battery)
• Printed materials
4
EN
Overview of the main unit
13
12
1
2
3
4
5
10
6
8
11
9
7
a
b
•
•
•
c
d
e
•
Open or close the disc
compartment.
Press to select a source: DISC,
USB, FM, DAB+, AUDIO IN, BT.
In Bluetooth mode, press and
hold for 2 seconds to disconnect
the currently connected device
and enter pairing mode.
Switch this product on or to
standby.
•
Connect USB storage devices.
•
Connect external audio devices.
h Display panel
• Show current status.
i
j
•
Start or pause play.
•
•
•
•
/
Skip to previous/next track.
Search within a track/disc.
Tune to a radio station.
Adjust time.
k Volume knob
• Adjust volume
l
m
•
Connect to the supplied FM/
DAB+ antenna.
f IR sensor
g Disc compartment
EN
5
Overview of the remote
control
e
•
•
•
Tune to an FM station.
Adjust time.
Select a DAB+ station.
•
Select shuffle mode to play
tracks randomly.
Select repeat mode to play a
track or all tracks repeatedly.
•
1
2
18
3
f
17
16
g
4
•
•
•
Display playback information, or
radio service information.
•
•
Set sleep timer.
Set alarm timer.
•
•
•
Set the clock.
View clock information.
In standby, press and hold to
toggle clock display on or off.
•
•
•
Program tracks.
Program radio stations.
Auto store radio stations.
•
Mute or restore volume.
•
Select a preset sound effect.
•
(volume)
Adjust volume.
•
Adjust display brightness.
•
•
Stop play or erase a program.
Enter or exit DAB+ menu.
•
Press to start, pause, or resume
play.
Confirm or select a DAB+ item.
15
5
14
h
13
12
i
6
11
7
10
8
9
j
k
l
a
b
c
d
6
m
•
•
Switch this product on or to
standby.
Select CD source.
•
Select FM or DAB+ source.
•
•
/
Skip to the previous/next track.
Search within a track/disc/USB.
EN
n
o
p
/
Select a preset radio station.
Skip to previous/next album.
•
q
r
•
•
Select USB source.
Select AUDIO IN source.
•
•
Select Bluetooth source
In Bluetooth mode, press and
hold for more than 2 seconds to
enter pairing mode
3
Get started
Caution
•• Use of controls or adjustments or
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
Always follow the instructions in this
chapter in sequence.
Connect FM/DAB+
antenna
Connect the supplied antenna to this
product before listening to radio.
Connect power
Caution
•• Risk of product damage! Ensure that the
power supply voltage corresponds to
the voltage printed on the back or the
underside of the unit.
•• Risk of electric shock! Before you plug the
AC power cord, make sure that the plug is
fixed securely. When you unplug the AC
power cord, always pull the plug, never pull
the cord.
•• Before you connect the AC power cord,
make sure that you have completed all the
other connections.
EN
7
Switch to standby mode
Press again to switch the product to
standby with no clock display (ECO
standby), or to standby with clock
display.
»» The red standby indicator lights up.
•
In standby, you may press and hold
to toggle clock display on
or off.
Connect the power cord to the wall
socket.
Note
Prepare the remote
control
•• The product switches to standby mode
after 15 minutes of inactivity.
•• To achieve the efficient energy saving
performance, unplug any external
electronic device from the USB port when
the device is not in use.
Caution
•• Risk of product damage! When the remote
control is not used for long periods, remove
the batteries.
To insert the remote control battery:
1
2
3
Open the battery compartment.
Insert the supplied AAA batterry
with correct polarities (+/-) as
indicated.
Close the battery compartment.
Set the clock
1
2
3
4
Power on
Press .
»» The product switches to the last
selected source.
8
EN
a
In power on mode, press and hold
for more than 2 seconds to
enter the clock setting mode.
»»
or
is displayed.
Press
to select 24H or 12H
hour format, and then press
»» The hour digits begin to blink.
Press
to set the hour, and
then press
.
»» The minute digits begin to blink.
Press
to set the minute, and
then press
.
»» The clock is set.
Tip
•• To view clock, press
briefly.
.
4
Play
Play from disc
1
2
3
4
5
Press
to select CD source.
Press to open the disc
compartment.
Insert a disc with the label side up.
Press to close the disc
compartment.
Play starts automatically. If not,
press
.
BTB4800
Control play
/
/
BTB4800
+/-
Play from USB
Start, pause, or resume play.
Stop play.
Select an album or a folder.
Press to skip to the previous
or next track.
Press and hold to search
backward/forward within a
track.
Play a track or all tracks
repeatedly.
Play tracks randomly.
Increase or decrease the
volume.
Mute or unmute sound.
Select a preset sound effect.
Adjust display brightness.
Show playback information.
Note
•• Make sure that the USB device contains
playable audio content.
1
2
Insert a USB device into the
socket.
Press
/
repeatedly to
select the USB source.
»» Play starts automatically. If not,
press
.
Skip tracks
For CD:
Press
/
to select tracks.
For MP3 disc and USB:
1
Press /
folder.
to select an album or a
EN
9
2
Press
file.
/
to select a track or a
Program tracks
BTB4800
This function allows you to program
20 tracks in the desired sequence.
1
2
3
4
5
In stop mode, press
activate the program mode.
»»
is displayed.
For MP3 tracks, press
an album.
Press
/
then press
/
to
to select
to select a track, and
to confirm.
Repeat steps 2 to 3 to program
more tracks.
Press
tracks.
Philips BTB4800
to play the programmed
To erase the program
Press twice.
Play from Bluetoothenabled devices
Note
1
2
3
•• Compatibility with all Bluetooth devices is
not guaranteed.
•• Any obstacle between the unit and the
device can reduce the operational range.
•• The effective operation range between this
unit and your Bluetooth enabled device is
approximately 25 meters (82 feet).
•• The unit can memorize up to 8 previously
connected Bluetooth devices.
4
Press to select the Bluetooth
source.
»»
(Bluetooth) is displayed.
On your device that supports
Advanced Audio Distribution Profile
(A2DP), enable Bluetooth and
search for Bluetooth devices that
can be paired (refer to the user
manual of the device).
Select '
BTB4800' on your
Bluetooth enabled device and
if necessary input '0000' as the
paring password.
»» After successful pairing and
connection, the unit beeps.
Play audio on the connected
device.
»» Audio streams from your
Bluetooth enabled device to this
product.
•
10
EN
If you fail to search for ‘
BTB4800’ or cannot pair with
this product, press and hold
for 2 seconds to enter
pairing mode.
To disconnect the Bluetooth-enabled
device:
• Deactivate Bluetooth on your
device.
• Press and hold
for
2 seconds to enter pairing mode.
5
Listen to the
radio
With this product, you can listen to
DAB + radio and FM radio.
Note
•• Position the antenna as far as possible
from TV, or other radiation source.
•• For optimal reception, fully extend and
adjust the position of the antenna.
Listen to DAB+ radio
Digital Audio Broadcasting+ (DAB+) is
a way of broadcasting radio digitally
through a network of transmitters. It
provides you with more choice, better
sound quality and more information.
Store DAB+ radio stations
automatically
Note
•• New stations and services are added in
DAB+ broadcast from time to time. To make
new DAB+ stations and services available,
perform scan regularly.
1
2
Press
repeatedly to select
DAB+ source.
• If you enter DAB+ source for the
first time or no DAB+ service is
stored,
is
prompted, then press
to trigger scan, and skip step
2 below.
Press and hold
more than 2 seconds.
for
EN
11
4
»» The product scans and
stores all DAB+ radio stations
automatically.
»» After scan, the first available
station is broadcast.
Display DAB+ information
Select a DAB+ radio station
After DAB+ radio stations are scanned
and stored, press
/
to select a
DAB+ station.
Store DAB+ radio stations
manually
1
2
3
4
Press
/
station.
to select a DAB+ radio
Press / to allocate a number
from 1–20 to this radio station, and
then press
to confirm.
Repeat steps 1-3 to program more
stations.
Use DAB+ menu
2
3
12
EN
1
3
Press
FM source.
repeatedly to select
Press and hold
/
for more
than two seconds.
»» The radio tunes to a station with
strong reception automatically.
Repeat step 2 to tune to more
stations.
To tune to a weak station:
Press
/
repeatedly until you find
optimal reception.
Store FM radio stations
automatically
Note
to
•• You can store a maximum of 20 FM radio
Press
/
to scroll through the
menu options.
•
: Scan and store all
available DAB+ radio stations.
•
: Tune to a DAB+
station manually.
•
: Remove invalid
stations from the station list.
•
: Adjust system
settings.
To select an option, press
Listen to FM radio
2
Press
to activate
program mode.
»»
is displayed.
In DAB+ mode, press
access DAB+ menu.
While listening to DAB+ radio, press
repeatedly to scroll through
various information (if available), such
as frequency, signal strength, time, etc.
Tune to an FM radio station
To select a preset DAB+ radio station:
In DAB+ mode, press
/ .
1
If sub-option is available, repeat
steps 2-3.
.
stations.
1
2
Press
FM source.
repeatedly to select
Press and hold
for
more than two seconds.
»» All available stations are
programmed in the order of
waveband reception strength.
»» The first programmed
radio station is broadcast
automatically.
Store FM radio stations
manually
1
2
3
4
Tune to an FM radio station.
Press
to activate
program mode.
»»
is displayed.
Press / to allocate a number
from 1–20 to this radio station, and
then press
to confirm.
Repeat steps 1-3 to program more
stations.
Note
6
Adjust sound
The following operations are applicable
to all supported media.
Adjust volume level
•
•
On the remote control, press
repeatedly.
On the main unit, rotate the volume
knob.
Mute sound
•
Press to mute or unmute the
sound.
•• To overwrite a programmed station, store
another station in its place.
Select a preset FM radio station
In FM mode, press / to select a
preset number.
• While listening to FM radio, you
may press OK to toggle stereo and
mono sound.
Display RDS information
RDS (Radio Data System) is a service
that allows FM stations to show
additional information.
1
2
Tune to an FM radio station.
Press
repeatedly to scroll
through various RDS information
(if available), such as station name,
program type, time, etc.
EN
13
7
Other features
Set the alarm timer
This product can be used as an alarm
clock. You can select the disc, FM, or
.mp3 files on a USB storage device as
alarm source.
Note
•• Alarm timer is not available in AUDIO IN
mode.
•• If CD/USB source is selected, but no disc is
placed or no USB device is connected, the
radio source is selected automatically.
1
2
3
4
5
6
14
Make sure that you have set the
clock correctly.
In standby, press and hold
for 2 seconds.
»» The hour digits blink.
Press
/
repeatedly to set the
hour, and then press
to confirm.
»» The minute digits blink.
Press
/
to set the minute,
and then press
to
confirm.
»» The last selected alarm source
blinks.
Press
/
to select an
alarm source (disc, USB, FM or
DAB+ radio), and then press
to confirm.
»» XX blinks (XX indicates the
volume level of alarm).
Press
/
to set the alarm
volume, and then press
to confirm.
EN
Activate/deactivate alarm timer
In standby mode, press
repeatedly to activate or deactivate
timer.
»» If timer is activated,
is
displayed.
Set the sleep timer
This music system can switch to
standby automatically after a set period
of time.
• When the music system is turned
on, press
repeatedly
to select a set period of time (in
minutes).
»» When sleep timer is activated,
is displayed.
To deactivate sleep timer
• Press
repeatedly
until
(sleep off) is displayed.
»» When sleep timer is deactivated,
disappears.
Listen to an external
device
You can listen to an external device
through this unit with a 3.5mm stereo
audio cable.
1
2
3
Connect a 3.5mm stereo audio
cable (not supplied) between:
•
jack (3.5 mm) on the
product,
• and the headphone jack on an
external device.
Press
repeatedly to select
AUDIO IN source.
Start to play the device (see the
device user manual).
8
Product
information
Note
AUDIO IN
•• Product information is subject to change
without prior notice.
•
BTB4800
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Rated output power (Amplifier):
2 x 15W RMS ≤ 0.3% THD
Acoustic frequency response:
60 - 15KHz
Driver: 2 x 3” full range, 6Ω
Bass enhancement: 2 x bass port
Support disc type: CD-DA, CD-R,
CDRW, MP3-CD (8/12 cm)
Bluetooth version: V2.1 +EDR
Bluetooth supported profiles: HFP
V1.5, A2DP V1.2, AVRCP V1.0
Bluetooth frequency band / Output
power: 2.402GHz~ 2.480GHz ISM
Band / ≤ 4dBm (Class 2)
USB (for playback): Type A, USB
Direct 2.0, 5V / 1A, MSC file format,
FAT 16/32
Max. support USB memory size:
32G (Max)
Tuner frequency range: FM 87.5108MHz; DAB 170MHz - 240MHz
Preset stations: 20
AUDIO IN input level: 600mV
±100mV RMS
Power: 100-240V~50-60 Hz, 30W
(AC Input)
Operation power consumption:
25W
ECO standby power consumption:
< 0.5W (clock display off)
Product dimensions (W x H x D):
405 x 275 x 132 mm
Product weight: 4.6kg
EN
15
USB playability
information
Supported MP3 disc
formats
Compatible USB devices:
• USB flash memory (USB2.0 or
USB1.1)
• USB flash players (USB2.0 or USB1.1)
• memory cards (requires an
additional card reader to work with
this unit)
•
•
Supported USB formats:
• USB or memory file format: FAT12,
FAT16, FAT32 (sector size: 512 bytes)
• MP3 bit rate (data rate): 32320 Kbps and variable bit rate
• Directory nesting up to a maximum
of 8 levels
• Number of albums/ folders:
maximum 99
• Number of tracks/titles: maximum
999
• File name in Unicode UTF8
(maximum length: 32 bytes)
Unsupported USB formats:
• Empty albums: an empty album
is an album that does not contain
MP3/WMA files, and will not be
shown in the display.
• Unsupported file formats are
skipped. For example, word
documents (.doc) or MP3 files with
extension .dlf are ignored and not
played.
• WMA, AAC, WAV, PCM audio files
• DRM protected WMA files (.wav,
.m4a, .m4p, .mp4, .aac)
• WMA files in Lossless format
16
EN
•
•
•
ISO9660, Joliet
Maximum title number: 128
(depending on file name length)
Maximum album number: 99
Supported sampling frequencies:
32 kHz, 44.1 kHz, 48 kHz
Supported Bit-rates: 32~256 (kbps),
variable bit rates
9 Trouble­shooting
••
Warning
•• Never remove the casing of this device.
To keep the warranty valid, never try to
repair the system yourself.
If you encounter problems when using
this device, check the following points
before requesting service. If the problem
remains unsolved, go to the Philips Web
page (www.philips.com/support). When
you contact Philips, make sure that the
device is nearby and the model number
and serial number are available.
No power
•• Make sure that the AC power cord
of the device is connected properly.
•• Make sure that there is power at the
AC outlet.
•• As a power-saving feature, the
system switches off automatically
15 minutes after track play reaches
the end and no control is operated.
No sound or poor sound
•• Adjust the volume.
No response from the unit
•• Disconnect and reconnect the AC
power plug, then turn on the unit
again.
•• As a power-saving feature, the
system switches off automatically
15 minutes after track play reaches
the end and no control is operated.
•• The unit is in demo mode. To exit
this mode: adjust the volume level
to 03, then press and hold
on
the main unit for 10 seconds.
Remote control does not work
•• Before you press any function
button, first select the correct
••
••
••
source with the remote control
instead of the main unit.
Reduce the distance between the
remote control and the unit.
Insert the batteries with polarities
(+/– signs) aligned as indicated.
Replace the battery.
Aim the remote control directly at
the sensor on the front of the unit.
No disc detected
•• Insert a disc.
•• Check if the disc is inserted upside
down.
•• Wait until the moisture
condensation at the lens has
cleared.
•• Replace or clean the disc.
•• Use a finalized CD or correct format
disc.
Cannot display some files in USB
device
•• The number of folders or files in the
USB device has exceeded a certain
limit. This phenomenon is not a
malfunction.
•• The formats of these files are not
supported.
USB device not supported
•• The USB device is incompatible
with the unit. Try another one.
Poor radio reception
•• Increase the distance between the
unit and your TV or other radiation
sources.
•• When the DAB radio signal is too
weak, ‘
’ (off air) would be
displayed. Adjust the antenna
position for better signal reception.
•• Fully extend the FM/DAB+ antenna.
•• Connect an outdoor FM/DAB+
antenna.
•• You may purchase a replacement
antenna cable with a L-shape plug
on one end, as shown below.
EN
17
•
Connect the L-shape plug to this
product, and fit the plug on the
other end into your wall socket.
••
not indicate any malfunction of this
unit.
For some devices, the Bluetooth
connection may be deactivated
automatically as a power-saving
feature. This does not indicate any
malfunction of this unit.
Timer does not work
•• Set the clock correctly.
•• Switch on the timer.
Music playback is unavailable on this
unit even after successful Bluetooth
connection.
•• The device cannot be used to play
music through this unit wirelessly.
The audio quality is poor after
connection with a Bluetooth-enabled
device.
•• The Bluetooth reception is poor.
Move the device closer to this unit
or remove any obstacle between
them.
Bluetooth cannot be connected with
this unit.
•• The device does not support the
profiles required for this unit.
•• The Bluetooth function of the
device is not enabled. Refer to the
user manual of the device to find
out how to enable the function.
•• This unit is not in pairing mode.
•• This unit is already connected with
another Bluetooth-enabled device.
Disconnect that device and then try
again.
The paired mobile device connects and
disconnects constantly.
•• The Bluetooth reception is poor.
Move the device closer to this unit
or remove any obstacle between
them.
•• Some mobile phones may connect
and disconnect constantly when
you make or end calls. This does
18
EN
Clock/timer setting erased
•• Power has been interrupted or the
power cord has been disconnected.
•• Reset the clock/timer.
How to keep showing clock in standby
mode?
•• Hold
on the remote control
for 2 seconds in standby mode.
Copyright © 2017 Gibson Innovations Limited.
This product has been manufactured by, and is sold under the responsibility of Gibson
Innovations Ltd., and Gibson Innovations Ltd. is the warrantor in relation to this product.
The Philips trademark and the Philips Shield Emblem are registered trademarks of
Koninklijke Philips N.V. used under license.
BTB4800_12_UM_V1.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
