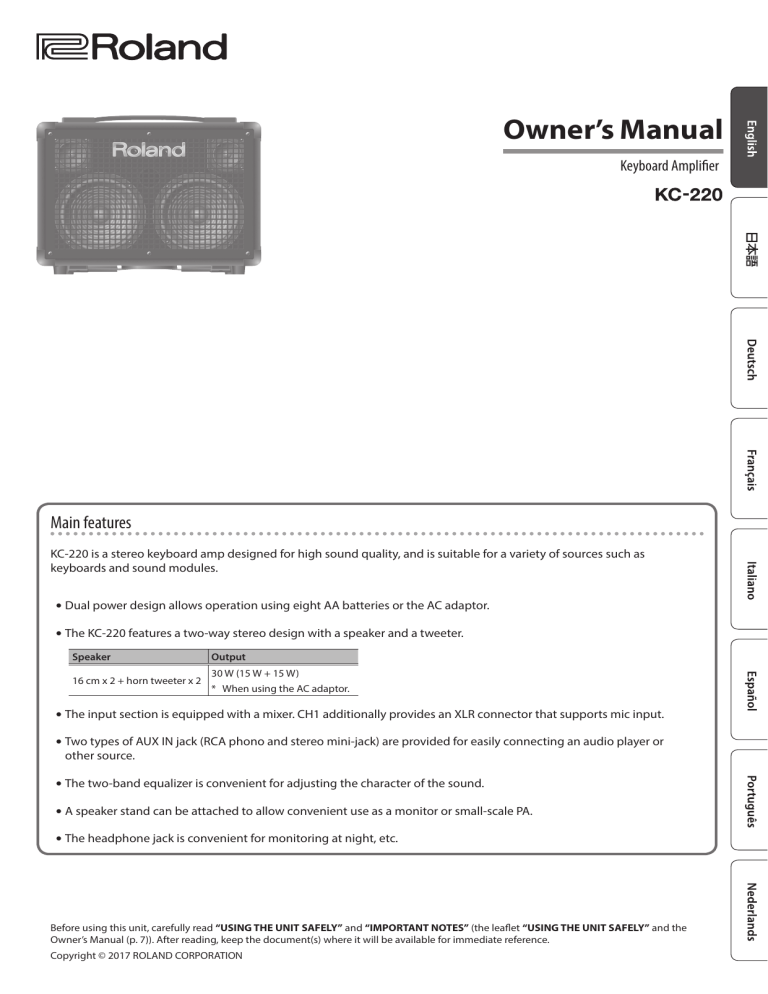

Main features
KC-220 is a stereo keyboard amp designed for high sound quality, and is suitable for a variety of sources such as
keyboards and sound modules.
55Dual power design allows operation using eight AA batteries or the AC adaptor.
55The KC-220 features a two-way stereo design with a speaker and a tweeter.
Speaker
16 cm x 2 + horn tweeter x 2
Output
30 W (15 W + 15 W)
* When using the AC adaptor.
55The input section is equipped with a mixer. CH1 additionally provides an XLR connector that supports mic input.
55Two types of AUX IN jack (RCA phono and stereo mini-jack) are provided for easily connecting an audio player or
other source.
55The two-band equalizer is convenient for adjusting the character of the sound.
55A speaker stand can be attached to allow convenient use as a monitor or small-scale PA.
55The headphone jack is convenient for monitoring at night, etc.
Before using this unit, carefully read “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (the leaflet “USING THE UNIT SAFELY” and the
Owner’s Manual (p. 7)). After reading, keep the document(s) where it will be available for immediate reference.
Copyright © 2017 ROLAND CORPORATION
Panel Descriptions
Top Panel
1
2
3
4
5
6
Rear Panel
11
10
9
8
7
12
Top Panel
1 [CH1]–[CH3] knobs
Adjust the volume of the devices connected to CH1–CH3.
2 [EFFECT] knob
The internal effect can be applied to the devices that are
connected to CH1–CH3.
Depending on the position of the knob, it switches between two
types of effects and adjusts the depth of the effect.
Effect
Explanation
REVERB
This effect adds reverberation to the sound.
An effect that adds a slightly modulated sound to
CHORUS the direct signal, creating beautiful spaciousness and
depth.
WIDE
This is a stereo chorus that processes the three
frequency bands independently, creating a spacious,
embracing effect.
The low range remains firmly localized in the center,
and the sound will become more spacious as you go
from the mid to the high range.
* The effect is not applied to the sound that’s being input from
AUX IN jack.
2
3 EQUALIZER
[LOW] knob
Adjusts the sound level of the low-frequency range.
[HIGH] knob
Adjusts the sound level of the high-frequency range.
4 [MASTER] knob
Adjusts the overall volume.
* The [MASTER] knob does not adjust the signal that is output
from the LINE OUT jack.
5 PHONES jack
You can connect headphones here.
* If a plug is inserted in this jack, no sound will be output from
the unit’s own speaker. This is convenient if you don’t want loud
sound to be produced from the speaker, such as when you’re
practicing at night.
6 [POWER] switch
Turns the power on/off. When the power is on, the indicator at the
left of this switch is lit.
* When operating on battery power only, the unit’s indicator will
become dim when battery power gets too low. Replace the
battery as soon as possible.
Panel Descriptions
Rear Panel
12 Battery case
Installing batteries
7 CH1–CH3 input jacks
CH1: BALANCED jack, MIC/LINE jack
1. Remove the screws from these two
CH1 is equipped with a phone-type MIC/LINE jack and a balanced
XLR-type BALANCED jack that is convenient for connecting a mic.
This channel supports levels ranging from mic input level
(-50 dBu) through line input level (-20 dBu) for sources such as a
sound module.
* Pin assignment of CH1 BALANCED jack
2 HOT
CH2, CH3: LINE jacks
1 GND
3 COLD
Use these for connecting keyboards, sound modules, and other
devices.
They accept line level input (-20 dBu).
8 AUX IN (STEREO, R/L) jacks
Here you can connect an audio player, electronic musical
instrument, or similar audio source, and listen to it while you
perform.
[LEVEL] knob
Adjusts the level of the input from AUX IN jacks.
9 LINE OUT jack
Connect this to your mixer or recorder.
The EQUALIZER knobs and the [MASTER] knob do not affect the
volume or tone of the output from the LINE OUT jack.
10 FOOT SW jack
If a momentary-type footswitch (sold separately: FS-5U) is
connected here, you can use your foot to turn the internal effect
on/off.
FS-5U
locations.
2. Remove the battery compartment
cover.
3. Insert batteries, taking care to
observe the correct polarity.
* We recommend that you keep batteries
installed in the unit even though you’ll be powering it with the
AC adaptor. That way, you’ll be able to continue a performance
even if the cord of the AC adaptor gets accidentally
disconnected from the unit.
* To prevent malfunction and speaker damage, make sure to
switch off the KC-220’s power before you insert or replace its
batteries, and before connecting it to other devices.
* If you handle batteries improperly, you risk explosion and
fluid leakage. Make sure that you carefully observe all of the
items related to batteries that are listed in “USING THE UNIT
SAFELY” and “IMPORTANT NOTES” (leaflet “USING THE UNIT
SAFELY” and Owner’s manual (p. 7)).
Removing the battery case
Although it is possible to replace the
batteries without removing the battery case,
battery replacement will be easier if you
remove the battery case.
1. Remove the screws from these
two locations.
2. Remove the battery case.
* Take care that no metal object touches the contacts of the
battery case. This can short-circuit the batteries, causing the
case to overheat or burn.
11 DC IN jack
Connect the included AC adaptor.
* Use only the AC adaptor that was included with
the unit.
* To prevent the inadvertent disruption of power
to your unit (should the plug be pulled out
accidentally), and to avoid applying undue
stress to the jack, anchor the power cord using
the cord hook, as shown in the illustration.
3
Panel Descriptions
Example connections
Audio player
Footswitches
Keyboard, Sound module etc.
Mic
Mixer
* To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any connections.
Turning the Power On/Off
* Once everything is properly connected, be sure to follow
the procedure below to turn on their power. If you turn on
equipment in the wrong order, you risk causing malfunction or
equipment failure.
1. Make sure that this unit’s [MASTER] knob and the
volume of the devices connected to this unit are set
to minimum.
2. Turn on all the devices connected to the unit’s input
jacks (CH1–CH3, AUX IN).
3. Turn on the unit.
4. Turn on all the devices connected to the unit’s
output jacks (LINE OUT, PHONES).
5. Adjust the volume levels for the devices.
Before switching off the power, lower the volume on each of the
devices in your system and then turn off the devices in the reverse
order to which they were switched on.
* Before turning the unit on/off, always be sure to turn the
volume down. Even with the volume turned down, you might
hear some sound when switching the unit on/off. However, this
is normal and does not indicate a malfunction.
4
Setting the Volume of Each Device
In order to get optimum sound from this unit when performing,
set the volume as described below.
1. Use the [CH1]–[CH3] knobs to adjust the volume
balance of the devices connected to CH1–CH3.
2. Use the [LOW] knob and [HIGH] knob to adjust the
tone to your taste.
3. Use the [MASTER] knob to adjust the overall
volume.
If the sound is distorted, adjust the [CH1]–[CH3] knobs and
[MASTER] knob, or adjust the volume knob of the devices
connected to the inputs (CH1–CH3, AUX IN).
Using a Speaker Stand
By using this unit with the ST-A95 speaker stand (sold separately),
it can be positioned at the ideal height for monitoring or use as a
simple PA system.
Attaching the ST-A95 stand
* You must obtain the assistance of at least one other person
when attaching the unit to the speaker stand, or when
adjusting the height of the speaker stand with the unit
attached.
* When setting up, take care not to pinch your fingers.
Upper tube
Stopper
Height adjustment knob
Tripod
Tripod knob
WARNING
55 The KC-220 is designed to
be used only in combination
with a Roland-manufactured
speaker stand (ST-A95). Do
not use it with any other
stand.
55 As shown in the illustration on
the right, adjust the speaker
stand to a height of no more
than 140 cm, and open the
tripod to a spread of 98 cm or
more.
140 cm or
less (55-1/8”)
55 Adjusting the speaker stand
to a height greater than 140
cm or the tripod to a spread of
98 cm or more (38-5/8”)
less than 98 cm may allow the
system to fall over, resulting in damage or personal injury.
55 If you use the unit with a speaker stand, do not place it on an
unstable or tilted location. You must place the system on a
stable, horizontal location.
55 Cables connected to the unit should have enough slack, so that
they will not cause an accident if someone trips over them.
1. Loosen the tripod knob, and open the tripod.
After you’ve opened the tripod sufficiently, tighten the tripod
knob.
* As shown in the illustration below, open the tripod so that its
feet are more than 98 cm (38-5/8”) apart. The tripod will be
unstable if it is not opened wide enough.
55 To prevent accidents caused by falling objects, do not place
anything on top of a unit that is mounted on a speaker stand.
Using the KC-220’s Arm Stand
When using the KC-220 at a low position such as on the floor,
extending the arm stand will make the sound from the speakers
easier to hear.
Diameter:
112 cm
or more
(44-1/8”)
Leg spread: 98 cm or
more (38-5/8”)
2. Loosen the height adjustment knob, and extend
the upper pipe.
3. Insert the stopper into the upper tube to obtain the
desired height, up to a maximum height of 140 cm
(55-1/8”) for the stand.
NOTE
55 If you use the arm stand, you must place the KC-220 on a
horizontal surface.
55 Fold the arm stand if you’re not using it.
Arm stand
Stopper
NOTE
55 Do not lift or carry the KC-220 by grasping its arm stand.
* The stopper must be inserted when using the system.
4. Tighten the height adjustment knob.
5. Insert the unit onto the upper tube.
55 When using the arm stand, do not place objects on the KC-220,
or sit or stand on the KC-220.
55 Take care not to pinch your fingers when folding the arm stand.
5
Block Diagram
HPF
TWEETER L
L
EFFECT
CH1
CH 1
WOOFER L
HIGH
LOW
CH1
BALANCED
HPF
MUTE
EQUALIZER
TWEETER R
MASTER
WOOFER R
R
CH2
L/R
POWER AMP
CH 2
PHONES
(STEREO)
CH 3
LINE OUT
L/R
LEVEL
FOOT SW
ON/OFF
CH3
L/R
AUX IN
AUX
L/R
AUX
(STEREO)
Main Specifications
Roland KC-220: BATTERY POWERED STEREO KEYBOARD AMPLIFIER
Rated Power Output
30 W (15 W + 15 W) (when using the AC
adaptor)
Dimensions
20 W (10 W + 10 W) (when using the Alkaline
batteries)
Weight (excluding
batteries)
CH1 (BALANCED, MIC/LINE): -50– -20 dBu
Nominal Input Level CH2 (LINE): -20 dBu
(1 kHz)
CH3 (LINE): -20 dBu
AUX IN (L, R, STEREO): -10 dBu
Nominal Output
Level (1 kHz)
Speakers
Indicator
LINE OUT: +4 dBu
16 lbs 2 oz
Owner’s Manual
Accessory
AC Adaptor
AC Cord
Options
(sold separately)
Speaker stand: ST-A95
Footswitch (BOSS FS-5U)
Tweeter x 2
* This document explains the specifications of the product at the
time that the document was issued. For the latest information, refer
to the Roland website.
Power
CH2 (L/MONO, R) jack: 1/4-inch phone type
CH3 (L/MONO, R) jack: 1/4-inch phone type
AUX IN (L, R) jacks: RCA phono type
AUX IN (STEREO) jack: Stereo miniature
phone type
LINE OUT (L/MONO, R) jack: 1/4-inch phone
type
PHONES jack: Stereo 1/4-inch phone type
FOOT SW jack: 1/4-inch phone type
DC IN jack
Alkaline battery: Approximately 7 hours
Expected battery life Rechargeable Ni-MH battery: Approximately
under continuous
8 hours
use
* This can vary depending on the capacity of
the batteries and the conditions of use.
6
7.3 kg
* 0 dBu = 0.775 Vrms
CH1 (MIC/LINE) jack: 1/4-inch phone type
Current draw
16-9/16 (W) x 9-5/8 (D) x 12-5/8 (H) inches
16 cm (6.5 inches) x 2
CH1 (BALANCED) jack: XLR type
Connectors
420 (W) x 244 (D) x 320 (H) mm
550 mA
USING THE UNIT SAFELY
WARNING
Make sure that the power cord is grounded
Connect mains plug of this model to a mains socket outlet with a
protective earthing connection.
Use only the supplied AC adaptor and the correct voltage
Be sure to use only the AC adaptor supplied with the unit. Also, make sure
the line voltage at the installation matches the input voltage specified on
the AC adaptor’s body. Other AC adaptors may use a different polarity, or
be designed for a different voltage, so their use could result in damage,
malfunction, or electric shock.
Use only the supplied power cord
Use only the attached power cord. Also, the supplied power cord must
not be used with any other device.
CAUTION
Do not remove the speaker grille and speaker
Do not remove the speaker grille and speaker by any means. Speaker is
not user replaceable. Shock hazardous voltages and currents are present
inside the enclosure.
IMPORTANT NOTES
Power Supply: Use of Batteries
• If the batteries run extremely low, the sound may distort or interruptions in the
sound may occur at high volume levels, but this does not indicate a malfunction. If
this occurs, please replace the batteries or use the included AC adaptor.
Placement
• Depending on the material and temperature of the surface on which you place the
unit, its rubber feet may discolor or mar the surface.
Additional Precautions
• Do not use connection cables that contain a built-in resistor.
Intellectual Property Right
• Roland and BOSS are either registered trademarks or trademarks of Roland
Corporation in the United States and/or other countries.
• Company names and product names appearing in this document are registered
trademarks or trademarks of their respective owners.
7
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
