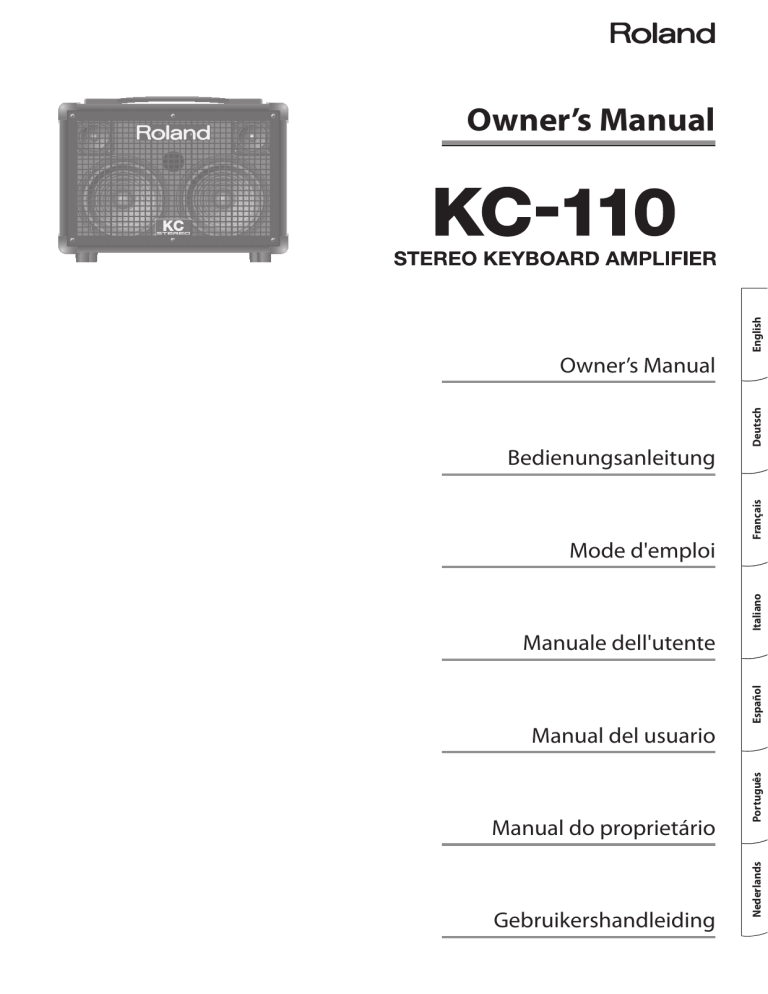

Roland KC-110 Owner's manual

Roland KC-110 Owner's manual
Manual del usuario
Manual do proprietário
Gebruikershandleiding
Deutsch
Français
Italiano
Manuale dell'utente
Español
Mode d'emploi
Português
Bedienungsanleitung
Nederlands
Owner’s Manual
English
Owner’s Manual
For the U.K.
THIS APPARATUS MUST BE EARTHED
THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.
GREEN-AND-YELLOW: EARTH, BLUE: NEUTRAL, BROWN: LIVE
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or
by the safety earth symbol or coloured GREEN or GREEN-AND-YELLOW.
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.
WARNING:
IMPORTANT:
For EU Countries
This product complies with the requirements of EMC Directive 2004/108/EC.
For the USA
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Unauthorized changes or modification to this system can void the users authority to operate this equipment.
This equipment requires shielded interface cables in order to meet FCC class B Limit.
For Canada
NOTICE
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
AVIS
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
For C.A. US (Proposition 65)
WARNING
This product contains chemicals known to cause cancer, birth defects and other reproductive harm, including lead.
2
Owner’s Manual
• Delivers wide-range stereo sound using two 6.5 inch (16 cm) speakers and two tweeters.
Dual power design allows operation using eight AA batteries or the AC adaptor (p. 4)
• Dual power design lets you use the unit anywhere.
When used with a battery-powered musical instrument, you can perform outdoors.
• Rechargeable (nickel-metal hydride) batteries are supported.
Running time is approximately 7 hours when using alkaline batteries, or approximately 8 hours when using nickel-metal hydride batteries.
A full complement of input/output jacks supports stereo devices, microphones, portable audio players, and
more (p. 7)
Deutsch
• Built-in high-efficiency stereo 30 W power amp (15 W + 15 W) (when using the AC adaptor).
Français
• The ideal compact size for use at home.
English
A compact, high-efficiency 30 W stereo keyboard amp that provides stereo playback in a single unit
• In addition to one microphone/instrument input and two stereo inputs, there are AUX IN jacks for connecting your CD/portable audio player, as
well as LINE OUT jacks.
• A convenient headphone jack is provided for night-time practice or sound checks (p. 6).
Use in a variety of situations with a speaker stand or the KC-110’s own arm stand (p. 9)
Italiano
This is an ideal amp for a keyboardist/singer, or for use as a small mixing monitor or PA system.
• You can use the KC-110 with a separately sold speaker stand (ST-A95) as a simple PA or monitor.
High-quality stereo digital effects (p. 5)
Español
• An “arm stand” is built into the KC-110, allowing it to be placed on the floor at a convenient angle for monitoring.
• A foot switch (sold separately) can be connected, allowing you to turn the effect on/off with your foot (p. 7).
Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (p. 2; p. 3). These sections provide
important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp
of every feature provided by your new unit, Owner’s manual should be read in its entirety. The manual should be saved and kept on hand as a
convenient reference.
Copyright © 2009 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
Nederlands
The chorus effect combines the chorused signals in the air, and also provides a “WIDE” mode, which delivers an effect with an enveloping sense
of spaciousness made possible thanks to the stereo specifications.
Português
• Stereo reverb and stereo chorus are built in (p. 6).
USING THE UNIT SAFELY
About
WARNING and
CAUTION Notices
About the Symbols
Used for instructions intended to alert the
user to the risk of death or severe injury
should the unit be used improperly.
Used for instructions intended to alert the
user to the risk of injury or material
damage should the unit be used
improperly.
* Material damage refers to damage or
other adverse effects caused with
respect to the home and all its
furnishings, as well to domestic animals
or pets.
The symbol alerts the user to important instructions or
warnings.The specific meaning of the symbol is
determined by the design contained within the triangle. In
the case of the symbol at left, it is used for general
cautions, warnings, or alerts to danger.
The symbol alerts the user to items that must never be
carried out (are forbidden). The specific thing that must
not be done is indicated by the design contained within
the circle. In the case of the symbol at left, it means that
the unit must never be disassembled.
The symbol alerts the user to things that must be
carried out. The specific thing that must be done is
indicated by the design contained within the circle. In the
case of the symbol at left, it means that the power-cord
plug must be unplugged from the outlet.
ALWAYS OBSERVE THE FOLLOWING
WARNING
Connect mains plug of this model to a mains
socket outlet with a protective earthing
connection.
WARNING
Do not allow any objects (e.g., flammable material,
coins, pins); or liquids of any kind (water, soft
drinks, etc.) to penetrate the unit.
Do not open (or modify in any way) the unit or its
AC adaptor.
Do not attempt to repair the unit, or replace
parts within it (except when this manual provides
specific instructions directing you to do so). Refer
all servicing to your retailer, the nearest Roland
Service Center, or an authorized Roland distributor,
as listed on the “Information” page.
Never install the unit in any of the following
locations.
• Subject to temperature extremes (e.g., direct
sunlight in an enclosed vehicle, near a heating
duct, on top of heat-generating equipment);
or are
• Damp (e.g., baths, washrooms, on wet floors);
or are
• Exposed to steam or smoke; or are
• Subject to salt exposure; or are
• Humid; or are
• Exposed to rain; or are
• Dusty or sandy; or are
• Subject to high levels of vibration and shakiness.
This unit should be used only with a rack or stand
that is recommended by Roland.
When using the unit with a rack or stand
recommended by Roland, the rack or stand must
be carefully placed so it is level and sure to remain
stable. If not using a rack or stand, you still need to
make sure that any location you choose for placing
the unit provides a level surface that will properly
support the unit, and keep it from wobbling.
Be sure to use only the AC adaptor supplied with
the unit. Also, make sure the line voltage at the
installation matches the input voltage specified on
the AC adaptor’s body. Other AC adaptors may use
a different polarity, or be designed for a different
voltage, so their use could result in damage,
malfunction, or electric shock.
Use only the attached power-supply cord. Also, the
supplied power cord must not be used with any
other device.
Do not excessively twist or bend the power
cord, nor place heavy objects on it. Doing so can
damage the cord, producing severed elements and
short circuits. Damaged cords are fire and shock
hazards!
This unit, either alone or in combination with an
amplifier and headphones or speakers, may be
capable of producing sound levels that could
cause permanent hearing loss. Do not operate for
a long period of time at a high volume level, or at
a level that is uncomfortable. If you experience
any hearing loss or ringing in the ears, you should
immediately stop using the unit, and consult an
audiologist.
2
Immediately turn the power off, remove the AC
adaptor from the outlet, and request servicing by
your retailer, the nearest Roland Service Center, or
an authorized Roland distributor, as listed on the
“Information” page when:
• The AC adaptor, the power-supply cord, or the
plug has been damaged; or
• If smoke or unusual odor occurs
• Objects have fallen into, or liquid has been
spilled onto the unit; or
• The unit has been exposed to rain (or otherwise
has become wet); or
• The unit does not appear to operate normally or
exhibits a marked change in performance.
In households with small children, an adult should
provide supervision until the child is capable
of following all the rules essential for the safe
operation of the unit.
Protect the unit from strong impact.
(Do not drop it!)
Do not force the unit’s power-supply cord to share
an outlet with an unreasonable number of other
devices. Be especially careful when using extension
cords—the total power used by all devices you
have connected to the extension cord’s outlet must
never exceed the power rating (watts/amperes) for
the extension cord. Excessive loads can cause the
insulation on the cord to heat up and eventually
melt through.
Before using the unit in a foreign country, consult
with your retailer, the nearest Roland Service
Center, or an authorized Roland distributor, as
listed on the “Information” page.
Batteries must never be recharged, heated, taken
apart, or thrown into fire or water.
Never expose Battery to excessive heat such as
sunshine, fire or the like.
CAUTION
The unit and the AC adaptor should be located so
their location or position does not interfere with
their proper ventilation.
This (KC-110) for use only with Roland stand
ST-A95. Use with other stands (or carts) is capable
of resulting in instability causing possible injury.
Always grasp only the plug on the AC adaptor cord
when plugging into, or unplugging from, an outlet
or this unit.
CAUTION
At regular intervals, you should unplug the AC
adaptor and clean it by using a dry cloth to wipe
all dust and other accumulations away from its
prongs. Also, disconnect the power plug from
the power outlet whenever the unit is to remain
unused for an extended period of time. Any
accumulation of dust between the power plug and
the power outlet can result in poor insulation and
lead to fire.
Try to prevent cords and cables from becoming
entangled. Also, all cords and cables should be
placed so they are out of the reach of children.
Never climb on top of, nor place heavy objects on
the unit.
Never handle the AC adaptor or its plugs with wet
hands when plugging into, or unplugging from, an
outlet or this unit.
Before moving the unit, disconnect the AC adaptor
and all cords coming from external devices.
Before cleaning the unit, turn off the power and
unplug the AC adaptor from the outlet (p. 4).
Whenever you suspect the possibility of lightning
in your area, disconnect the AC adaptor from the
outlet.
If used improperly, batteries may explode or
leak and cause damage or injury. In the interest
of safety, please read and observe the following
precautions (p. 4).
• Carefully follow the installation instructions
for batteries, and make sure you observe the
correct polarity.
• Avoid using new batteries together with used
ones. In addition, avoid mixing different types
of batteries.
• Remove the batteries whenever the unit is to
remain unused for an extended period of time.
• If a battery has leaked, use a soft piece of cloth
or paper towel to wipe all remnants of the
discharge from the battery compartment. Then
install new batteries. To avoid inflammation of
the skin, make sure that none of the battery
discharge gets onto your hands or skin.
Exercise the utmost caution so that none of
the discharge gets near your eyes. Immediately
rinse the affected area with running water if any
of the discharge has entered the eyes.
• Never keep batteries together with metallic
objects such as ballpoint pens, necklaces,
hairpins, etc.
Used batteries must be disposed of in compliance
with whatever regulations for their safe disposal
that may be observed in the region in which you
live.
Do not remove the speaker grille and speaker by
any means. Speaker not user replaceable. Shock
hazardous voltages and currents are present inside
the enclosure.
IMPORTANT NOTES
• When installing or replacing batteries, always turn off the power on
this unit and disconnect any other devices you may have connected.
This way, you can prevent malfunction and/or damage to speakers or
other devices.
• Before connecting this unit to other devices, turn off the power to all
units. This will help prevent malfunctions and/or damage to speakers
or other devices.
Placement
• Using the unit near power amplifiers (or other equipment containing
large power transformers) may induce hum. To alleviate the problem,
change the orientation of this unit; or move it farther away from the
source of interference.
• This device may interfere with radio and television reception. Do not
use this device in the vicinity of such receivers.
• Noise may be produced if wireless communications devices, such as
cell phones, are operated in the vicinity of this unit. Such noise could
occur when receiving or initiating a call, or while conversing. Should
you experience such problems, you should relocate such wireless
devices so they are at a greater distance from this unit, or switch them
off.
• For everyday cleaning wipe the unit with a soft, dry cloth or one that
has been slightly dampened with water. To remove stubborn dirt, use a
cloth impregnated with a mild, non-abrasive detergent. Afterwards, be
sure to wipe the unit thoroughly with a soft, dry cloth.
• Never use benzine, thinners, alcohol or solvents of any kind, to avoid
the possibility of discoloration and/or deformation.
• For routine care of the carpeted surfaces, use a brush with stiff bristles.
Additional Precautions
• Use a reasonable amount of care when using the unit’s buttons, sliders,
or other controls; and when using its jacks and connectors. Rough
handling can lead to malfunctions.
• When connecting / disconnecting all cables, grasp the connector
itself—never pull on the cable. This way you will avoid causing shorts,
or damage to the cable’s internal elements.
• To avoid disturbing your neighbors, try to keep the unit’s volume at
reasonable levels. You may prefer to use headphones, so you do not
need to be concerned about those around you (especially when it is
late at night).
English
• The AC adaptor will begin to generate heat after long hours of
consecutive use. This is normal, and is not a cause for concern.
Maintenance
• When you need to transport the unit, package it in the box (including
padding) that it came in, if possible. Otherwise, you will need to use
equivalent packaging materials.
• Some connection cables contain resistors. Do not use cables that
incorporate resistors for connecting to this unit. The use of such cables
can cause the sound level to be extremely low, or impossible to hear.
For information on cable specifications, contact the manufacturer of
the cable.
Deutsch
• Do not connect this unit to same electrical outlet that is being used
by an electrical appliance that is controlled by an inverter (such as a
refrigerator, washing machine, microwave oven, or air conditioner), or
that contains a motor. Depending on the way in which the electrical
appliance is used, power supply noise may cause this unit to malfunction or may produce audible noise. If it is not practical to use a separate
electrical outlet, connect a power supply noise filter between this unit
and the electrical outlet.
Français
Power Supply: Use of Batteries
• Do not expose the unit to direct sunlight, place it near devices that
radiate heat, leave it inside an enclosed vehicle, or otherwise subject
it to temperature extremes. Also, do not allow lighting devices that
normally are used while their light source is very close to the unit (such
as a piano light), or powerful spotlights to shine upon the same area
of the unit for extended periods of time. Excessive heat can deform or
discolor the unit.
Italiano
• When moved from one location to another where the temperature
and/or humidity is very different, water droplets (condensation) may
form inside the unit. Damage or malfunction may result if you attempt
to use the unit in this condition. Therefore, before using the unit, you
must allow it to stand for several hours, until the condensation has
completely evaporated.
Español
• Do not allow rubber, vinyl, or similar materials to remain on the unit for
long periods of time. Such objects can discolor or otherwise harmfully
affect the finish.
• Do not paste stickers, decals, or the like to this instrument. Peeling
such matter off the instrument may damage the exterior finish.
Nederlands
Português
• Depending on the material and temperature of the surface on which
you place the unit, its rubber feet may discolor or mar the surface.
You can place a piece of felt or cloth under the rubber feet to prevent
this from happening. If you do so, please make sure that the unit will
not slip or move accidentally.
3
Connecting the Power
The KC-110 can be operated using either an AC adaptor or batteries. Use the type of power that’s appropriate for your situation.
Connecting the AC adaptor
Installing batteries
* Use only the AC adaptor that is supplied with the KC-110.
1.
Make sure that the [POWER] switch
is off.
2.
Connect the included power cord to
the included AC adaptor.
1
3
3.
Connect the AC adaptor to the
DC IN jack.
4.
Plug the power cord into an AC outlet.
Connect the electrical ground as well.
2
4
+
+
-
+
+
-
-
+
+
-
1.
Remove the screws from
these two locations.
2.
Remove the battery compartment cover.
3.
Insert batteries, taking care to
observe the correct polarity.
+
-
+
-
Removing the battery case
Although it is possible to replace the batteries without removing the
battery case, battery replacement will be easier if you remove the
battery case.
1.
Remove the screws from these
two locations.
2.
Remove the battery case.
* We recommend that you keep batteries installed in the unit even
though you’ll be powering it with the AC adaptor. That way, you’ll be
able to continue a performance even if the cord of the AC adaptor
gets accidently disconnected from the unit.
* To prevent malfunction and speaker damage, make sure to switch
off the KC-110’s power before you insert or replace its batteries, and
before connecting it to other devices.
* Take care that no metal object touches the contacts of the battery
case. This can short-circuit the batteries, causing the case to
overheat or burn.
About batteries
Batteries that can be used
The KC-110 uses eight AA alkaline or nickel-metal hydride batteries.
* Nickel-metal hydride batteries cannot be recharged by the KC-110
itself. You’ll need to use a commercially available battery manufacturer.
* When using nickel-metal hydride batteries, please be aware that the
battery life will normally shorten each time they are recharged.
Caution regarding batteries
• Insert the batteries as directed, taking care to observe the correct polarity (+/- orientation).
• Do not mix new and used batteries, or batteries of different types.
• Carefully read and observe the cautions and handling instructions that accompany the batteries.
When using nickel-metal hydride batteries, you must use the charger that is specified by the battery manufacturer.
• Remove the batteries if you won’t be using the unit for several months.
• If any electrolyte leaks from a battery, use a dry cloth to carefully wipe off any electrolyte that might be on the battery case, and then install new
batteries. Battery electrolyte that contacts your skin may cause a rash. Battery electrolyte is hazardous to your eyes; if any electrolyte gets into
your eyes, flush them immediately with water.
• Do not carry or store batteries together with metallic objects such as pens, necklaces, or hairpins.
4
Producing Sound
Once the connections have been completed, turn on power to your
various devices in the order specified. By turning on devices in the
wrong order, you risk causing malfunction and/or damage to speakers
and other devices.
1.
Make sure that the power to all equipment is turned off.
2.
Connect your external equipment.
3.
Set each of the KC-110’s level knobs and the [VOLUME] knob
to 0.
Adjusting the volume and tone
1.
Set the level knob of each channel to 5 (center).
Lower the knobs of any channels you’re not using.
2.
If you’re using a microphone, turn the CH 1 level knob to the
MIC range.
Switch on the power to any external equipment connected
to CH 1–3 or AUX IN jacks.
5.
Switch on the KC-110’s power.
3.
While you produce sound on the connected device, turn the
[VOLUME] knob to adjust the overall volume.
6.
Power up the equipment connected to the LINE OUT jack.
4.
Use the level knobs of each channel to adjust the volume
balance of the connected devices.
5.
Use the [VOLUME] knob to adjust the overall volume, and
use the [LOW] (low range) knob and [HIGH] (high range)
knob to adjust the tone.
Deutsch
4.
English
Turning the power on/off
Français
To turn the power off, reverse these steps.
NOTE
• Always make sure to have the volume level turned down before
switching on power. Even with the volume all the way down, you
may still hear some sound when the power is switched on, but this is
normal, and does not indicate a malfunction.
• Expected battery life under continuous use:
• Alkaline batteries
Applying an effect
1.
Español
• If the batteries are extremely low, the sound will be more likely to
distort, and you may hear distortion at high volume levels. This is not
a malfunction. Either replace the batteries, or use the included AC
adaptor.
Use the [EFFECT] knob to select an effect and adjust its depth.
REVERB
CHORUS
Português
• If you’re operating the KC-110 only on batteries, the POWER indicator
will become dim as the batteries run low.
When the batteries run even lower, the POWER indicator will blink.
Replace the batteries as soon as possible.
approximately 7 hours
• Nickel-metal hydride batteries
approximately 8 hours
• Howling could be produced depending on the location of microphones relative to speakers. This can be remedied by:
1. Changing the orientation of the microphone(s).
2. Relocating microphone(s) at a greater distance from speakers.
3. Lowering volume levels.
WIDE
The left half of the knob’s range produces reverb (p. 6) and the right
half produces chorus (p. 6). Turning the knob all the way to the right
produces a wide chorus effect (p. 6).
Within each range, turning the knob toward the right will increase the
effect.
* The effect is not applied to the sound that’s being input from AUX
IN jack.
5
Nederlands
• This unit is equipped with a protection circuit. A brief interval (a
few seconds) after power up is required before the unit will operate
normally.
Italiano
• To prevent malfunction and/or damage to speakers or other devices,
always turn down the volume, and turn off the power on all devices
before making any connections.
Names of Things and What They Do
Control panel
1
2
3
4
5
6
7
8
9
Headphone
CHANNEL CONTROL
1
2
3
5
Turning the knob toward the right will increase the volume.
Normally, you should place these knobs at 0.
* These knobs do not affect the output from LINE OUT jack.
[LOW] Knob
This adjusts the tonal character of the low-frequency range.
A microphone can be connected to CH 1.
If you connect a microphone, turn the knob to the range indicated as
MIC.
* If you’re not using a channel, leave its level knob set to 0.
MASTER CONTROL
4
[HIGH] Knob
This adjusts the tonal character of the high-frequency range.
7
REVERB:
This effect produces the reverberation of a concert hall.
This adjusts the overall volume that is output by the KC-110’s speakers.
If headphones are connected, this adjusts the headphone volume.
* The [VOLUME] knob does not affect the output from LINE OUT.
8
This is also ideal for a microphone connected to CH 1.
CHORUS:
This effect adds depth and spaciousness to the sound.
The position of the knob adjusts the depth of the effect.
This is particularly suitable for sounds such as strings.
WIDE:
This is a stereo chorus that processes the three frequency bands
independently, creating a spacious, embracing effect.
The low range remains firmly localized in the center, and the sound will
become more spacious as you go from the mid to the high range.
* The effect is not applied to the sound that’s being input from AUX
IN jack.
6
PHONES
PHONES Jack
It is a stereo reverb with a spacious feeling.
The position of the knob adjusts the volume of the reverb.
VOLUME
[VOLUME] Knob
[EFFECT] Knob
The position of this knob lets you switch between three effects, and
adjust the effect depth.
Equalizer
This adjusts the tone of the speaker output and headphone output.
Level Knobs 1–3
These knobs adjust the volume of the devices connected to the
channels.
6
You can connect stereo headphones to this jack.
* If headphones are connected, sound will not be output from the
speakers.
* You must set the [VOLUME] knob to 0 before connecting headphones.
9
POWER
[POWER] Switch
This turns the KC-110’s power on/off (p. 5).
POWER Indicator
POWER Indicator
This will light when the power is on.
* The POWER indicator will become dim
when the batteries run low. If the batteries
become even lower, the POWER indicator
will blink.
Please replace the spent batteries with
fresh ones.
Jack panel
9
7
6
5
4
3
2
1
English
8
Foot switch
Mic
Portable audio
player
Deutsch
AC adaptor
Rhythm machine
Mixer
CD player
CH 1 BALANCED (XLR) Input Connector
CH 1 Input Jacks
5
6
2: HOT
1: GND
3: COLD
LINE OUT Jacks
You can connect these jacks to your mixer or recorder.
These provide both a 1/4” phone jack and an XLR connector for
conveniently connecting a microphone.
This input supports a range from microphone input level (-50 dBu) to
the line input level (-20 dBu) typical of a keyboard.
AUX IN [LEVEL] Knob
This adjusts the level of the input from AUX IN jack.
Français
CH 1–CH 3 Inputs
Use L/MONO jack if you’re outputting in mono.
The equalizer knobs and [VOLUME] knob do not affect LINE OUT.
7
This instrument is equipped with
balanced (XLR) type jacks. Wiring
diagrams for these jacks are
shown below. Make connections
after first checking the wiring
diagrams of other equipment you
intend to connect..
Italiano
3
FOOT SW Jack
If you connect a foot switch here, you’ll be able to turn the internal
effect on/off with your foot. You’ll need a separately sold momentary
type foot switch (BOSS FS-5U; sold separately) and a connection cable.
Set the polarity switch toward the jack.
Español
2
Here you can connect up to three devices, such as a keyboard or other
electronic musical instrument, a CD player, or a microphone (CH 1 only).
* This jack does not supply phantom power.
Polarity Switch
CH 2, 3 Input Jacks
8
If your device uses a monaural output, connect it to L/MONO.
4
AUX IN Jacks
Here you can connect a device such as a CD or portable audio player
(-10 dBu).
Two types of jacks are provided (RCA phono jacks and a stereo mini
jack), and the signals are mixed internally.
You may use the two types of jacks simultaneously, but this may cause
the volume to be lower than if they are used separately.
DC IN Jack
Connect the included AC adaptor here.
Português
Here you can connect a keyboard or other electronic musical instrument, or you can connect audio devices such as a CD player (-20 dBu).
You must use only the AC adaptor that is supplied with the KC-110.
9
Security Slot (
)
http://www.kensington.com/
* When connection cables with resistors are used, the volume level of
equipment connected to the inputs (CH 1–CH 3, AUX IN) may be low.
If this happens, use connection cables that do not contain resistors.
* The effect is not applied to the sound that’s input from AUX IN jack.
7
Nederlands
1
Keyboard
Various Ways to Use the KC-110
Keyboardist/singer
You can connect your keyboard in stereo, and sing/narrate while you perform.
Attach the ST-A95 to the KC110 (for a simple PA system).
Connect your mic to CH 1.
Connect your
keyboard to CH 2.
Use the KC-110’s arm
stand (for on-stage
monitoring).
With various instruments
Multiple instruments such as keyboard or electronic drums (up to four) can be connected to the KC-110 and mixed.
Connect your
V-Accordion to CH 3.
Connect your electronic
drums to CH 2.
Connect your keyboard
to CH 1.
Connect your portable
audio player to AUX IN.
8
Convenient Ways to Use the KC-110
Attaching the ST-A95 stand
* You must obtain the assistance of at least one other person when
attaching the KC-110 to the speaker stand, or when adjusting the
height of the speaker stand with the KC-110 attached.
* When setting up, take care not to pinch your fingers.
Upper tube
Stopper
Height adjustment Knob
• The KC-110 is designed to be used only in
combination with a Roland-manufactured
speaker stand (ST-A95).
Do not use it with any other stand.
• As shown in the illustration below, adjust
the speaker stand to a height of no more
than 140 cm, and open the tripod to a
spread of 98 cm or more.
• Adjusting the speaker stand to a height
greater than 140 cm or the tripod to a
spread of less than 98 cm may allow the
system to fall over, resulting in damage or
personal injury.
140 cm or less
(55-1/8”)
98 cm or more (38-5/8”)
• If you use the KC-110 with a speaker stand, do not place it on an
unstable or tilted location.
You must place the system on a stable, horizontal location.
• Cables connected to the KC-110 should have enough slack, so that
they will not cause an accident if someone trips over them.
English
By using the KC-110 with the ST-A95 speaker stand (sold separately), it
can be positioned at the ideal height for monitoring or use as a simple
PA system.
WARNING
• To prevent accidents caused by falling objects, do not place anything
on top of a KC-110 that is mounted on a speaker stand.
Tripod knob
Tripod
Using the KC-110’s arm stand
When using the KC-110 at a low position such as on the floor,
extending the arm stand will make the sound from the speakers easier
to hear.
1.
Deutsch
Using a separately available
speaker stand (ST-A95)
Loosen the tripod knob, and open the tripod.
After you’ve opened the tripod sufficiently, tighten the tripod knob.
Diameter:
112 cm or more
(44-1/8”)
Français
* As shown in the illustration below, open the tripod so that its feet
are 98 cm apart. The tripod will be unstable if it is not opened wide
enough.
Italiano
NOTE
• If you use the arm stand, you must place the KC-110
