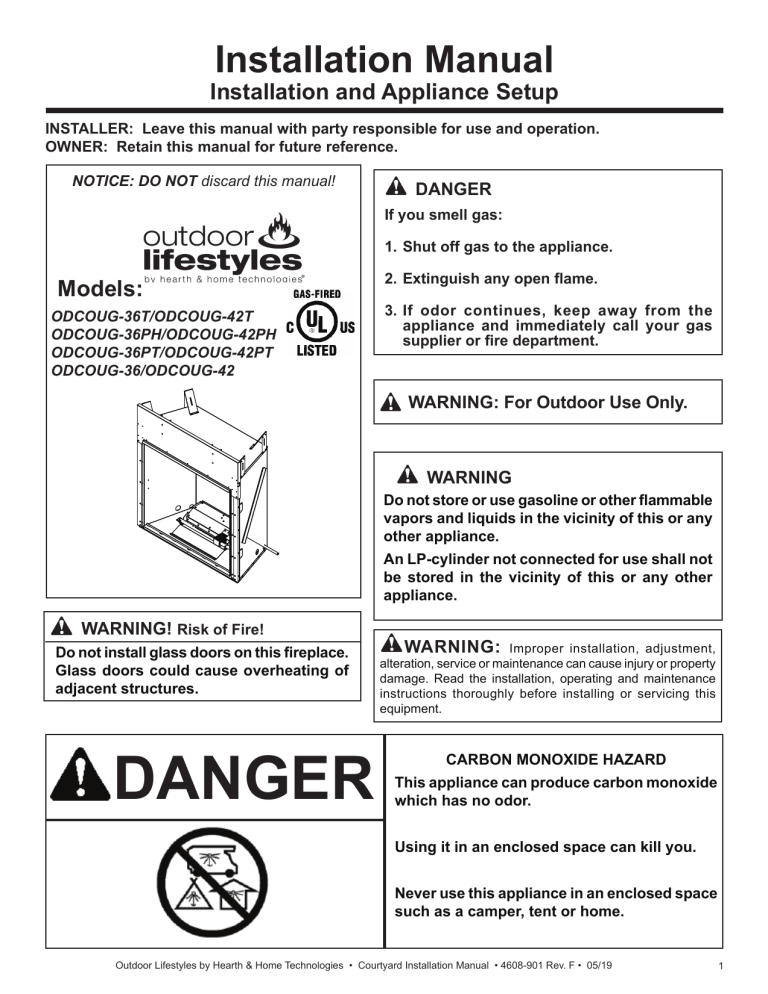

Installation Manual
Installation and Appliance Setup
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT discard this manual!
DANGER
If you smell gas:
1. Shut off gas to the appliance.
Models:
ODCOUG-36T/ODCOUG-42T
ODCOUG-36PH/ODCOUG-42PH
ODCOUG-36PT/ODCOUG-42PT
ODCOUG-36/ODCOUG-42
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
WARNING: For Outdoor Use Only.
WARNING
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
An LP-cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
WARNING! Risk of Fire!
Do not install glass doors on this fireplace.
Glass doors could cause overheating of
adjacent structures.
DANGER
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury or property
damage. Read the installation, operating and maintenance
instructions thoroughly before installing or servicing this
equipment.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent or home.
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
1
Safety Alert Key:
•
•
•
•
DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE: Used to address practices not related to personal injury.
Table of Contents
Installation Standard Work Checklist. . . . . . . . . . . . . . . . . . . . . 3
7 Finishing
1 Product Specific and Important Safety Information
A. Facing Material. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
B. Mantel and Wall Projections. . . . . . . . . . . . . . . . . . . . . . . . 23
A.
B.
C.
D.
E.
F.
G.
H.
I.
8 Appliance Setup
Appliance Certification. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BTU Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High Altitude Installations. . . . . . . . . . . . . . . . . . . . . . . . . . .
Non-Combustible Materials Specification. . . . . . . . . . . . . .
Combustible Materials Specification . . . . . . . . . . . . . . . . . .
Electrical Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
California. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Requirements for the Commonwealth of Massachusetts. . .
4
4
4
4
4
4
4
4
5
A.
B.
C.
D.
E.
F.
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
A. Design and Installation Considerations . . . . . . . . . . . . . . . . 6
B. Tools and Supplies Needed. . . . . . . . . . . . . . . . . . . . . . . . . 6
C. Inspect Appliance and Components. . . . . . . . . . . . . . . . . . . 7
3 Framing and Clearances
►
A.
B.
C.
D.
E.
F.
G.
Appliance/Decorative Front Dimension Diagrams. . . . . . . . 8
Clearances to Combustibles . . . . . . . . . . . . . . . . . . . . . . . 10
Vent Termination Minimum Clearances. . . . . . . . . . . . . . . 13
Hearth Extension/Floor Protection. . . . . . . . . . . . . . . . . . . 14
Wall Switch Control Assembly. . . . . . . . . . . . . . . . . . . . . . 14
Built-in Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Moisture Resistance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4 Appliance Preparation
A. Securing and Leveling Appliance. . . . . . . . . . . . . . . . . . . . 17
B. Flashing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5 Electrical Information
A. Wiring Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
B. Intellifire Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
C. Installing the Electrical. . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6 Gas Information
A.
B.
C.
D.
E.
2
Fuel Conversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gas Pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gas Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Valve Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High Altitude Installations. . . . . . . . . . . . . . . . . . . . . . . . . .
21
21
22
22
22
26
26
26
26
26
26
9 Reference Materials
► A.
2 Getting Started
Remove the Shipping Materials. . . . . . . . . . . . . . . . . . . . .
Clean the Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Optional Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Verify Pilot Shield. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Install Lava Rock Media/Glass Media . . . . . . . . . . . . . . . .
Install Gas/Electrical Covers . . . . . . . . . . . . . . . . . . . . . . .
 = Contains updated information.
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
Installation Standard Work Checklist
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this
installation manual.
Customer:
Date Installed:
Lot/Address:
Location of Fireplace:
Installer:
Dealer/Distributor Phone #
Model (circle one):
ODCOUG-36T/ODCOUG-42T
Serial #:
ODCOUG-36PH/ODCOUG-42PH
ODCOUG-36PT/ODCOUG-42PT
ODCOUG-36/ODCOUG-42
WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions could
lead to a fire or explosion.
Appliance Install Section 3 & 4 (Pg. 8-17)
Verified that the enclosure is sealed.
Required non-combustible board is installed.
Verified clearances to combustibles.
Fireplace is leveled and secured.
YES
IF NO, WHY?
___________________________
___________________________
___________________________
___________________________
Electrical Section 5 (Pg. 18-20)
Unswitched power (110-120 VAC) provided to the appliance.
Switch wires properly installed.
___________________________
___________________________
Gas Section 6 (Pg.21-22)
Proper appliance for fuel type.
Was a conversion performed?
Leak check performed and inlet pressure verified.
___________________________
___________________________
___________________________
Finishing Section 7 (Pg. 23-25)
Combustible materials not installed in non-combustible areas.
Verified all clearances meet installation manual requirements.
Mantels and wall projections comply with installation manual requirements.
___________________________
___________________________
___________________________
Appliance Setup Section 8 (Pg. 26)
All packaging and protective materials removed (inside & outside of appliance).
Media installed correctly.
Mesh, doors, or decorative front properly installed.
Manual bag and all of its contents are removed from inside/under
the appliance and given to party responsible for use and operation.
Started appliance and verified no gas leaks exist.
___________________________
___________________________
___________________________
___________________________
___________________________
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your file.
• That this checklist remain visible at all times on the appliance until the installation is complete.
Comments: Further description of the issues, who is responsible (Installer/ Builder/ Other Trades, etc) and corrective
action needed _____________________________________________________________________________________
_________________________________________________________________________________________________
_________________________________________________________________________________________________
Comments Communicated to party responsible ____________________ by ______________________on ___________
(Builder / Gen. Contractor/) (Installer)
(Date)
4608-902B 03/19
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
3
1
Product Specific and Important Safety Information
A. Appliance Certification
D. Noncombustible Materials Specification
MODEL: ODCOUG-36/ODCOUG-42
LABORATORY: Underwriters Laboratories, Inc. (UL)
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in
a Vertical Tube Furnace at 750 ºC shall be considered
non-combustible materials.
TYPE: Outdoor Decorative Gas Appliances
STANDARD: ANSI Z21.97-2014, CSA 2.41-2014
This product is listed to ANSI standards for “Outdoor Decorative Gas Appliances” and “Gas Fired Appliances for
Use at High Altitudes.”
NOTICE: This installation must conform with local codes.
In the absence of local codes you must comply with the
National Fuel Gas Code, ANSI Z223.1-latest edition in
the U.S.A. and the CAN/CGA B149 Installation Codes in
Canada.
B. BTU Specifications
Model
ODCOUG36/42
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Gas
Type
Max Input
BTU
Natural Orifice Size
Burner Air
Shutter
Natural
55,000
#27
(.144 in.)
1/16” Open
Propane
53,000
#45
(.082 in.)
Fully Open
C. High Altitude Installations
NOTICE: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
E. Combustible Materials Specification
Materials made of or surfaced with wood, compressed paper, plant fibers, plastics, or other material that can ignite
and burn, whether flame proofed or not, or plastered or
unplastered shall be considered combustible materials.
F. Electrical Codes
NOTICE: This appliance must be electrically wired
and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.
• A 110-120 VAC circuit for this product must be protected with ground-fault circuit-interrupter protection,
in compliance with the applicable electrical codes.
G. Fuel
This appliance must not be used to burn solid fuel.
When an appliance is connected to a fixed piping system, the installation must conform with local codes, or in
the absence of local codes with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, or International Fuel Gas
Code.
When installing above 2000 feet elevation:
• In the USA: Reduce input rate 4% for each 1000 feet
above 2000 feet.
• In CANADA: Input ratings are certified without a
reduction of input rate for elevations up to 4500 feet
(1370 m)above sea level. Please consult provincial and/
or local authorities having jurisdiction for installations at
elevations above 4500 feet (1370 m).
Check with your local gas utility to determine proper
orifice size.
4
H. California
WARNING: This product and the
fuels used to operate this product (liquid
propane or natural gas), and the products
of combustion of such fuels, can expose
you to chemicals including benzene, which
is known to the State of California to cause
cancer and reproductive harm. For more
information go to: www.P65Warnings.
ca.gov.
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
Note: The following requirements reference various
Massachusetts and national codes not contained in this
document.
I. Requirements for the Commonwealth of
Massachusetts
For all side wall horizontally vented gas fueled equipment
installed in every dwelling, building or structure used in
whole or in part for residential purposes, including those
owned or operated by the Commonwealth and where the
side wall exhaust vent termination is less than seven (7)
feet above finished grade in the area of the venting, including but not limited to decks and porches, the following
requirements shall be satisfied:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented
gas fueled equipment, the installing plumber or gas fitter
shall observe that a hard wired carbon monoxide detector
with an alarm and battery back-up is installed on the floor
level where the gas equipment is to be installed. In addition, the installing plumber or gas fitter shall observe that
a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of
the dwelling, building or structure served by the side wall
horizontal vented gas fueled equipment. It shall be the
responsibility of the property owner to secure the services
of qualified licensed professionals for the installation of
hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic,
the hard wired carbon monoxide detector with alarm and
battery back-up may be installed on the next adjacent
floor level.
In the event that the requirements of this subdivision can
not be met at the time of completion of installation, the
owner shall have a period of thirty (30) days to comply
with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA
720 and be ANSI/UL 2034 listed and IAS certified.
Signage
A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum
height of eight (8) feet above grade directly in line with the
exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read,
in print size no less than one-half (1/2) in. in size, “GAS
VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the
installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed
in accordance with the provisions of 248 CMR 5.08(2)(a)1
through 4.
Exemptions
The following equipment is exempt from 248 CMR 5.08(2)
(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment
Not Required To Be Vented” in the most current edition
of NFPA 54 as adopted by the Board; and
• Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate
from the dwelling, building or structure used in whole or
in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall
horizontally vented gas equipment provides a venting
system design or venting system components with the
equipment, the instructions provided by the manufacturer
for installation of the equipment and the venting system
shall include:
• Detailed instructions for the installation of the venting
system design or the venting system components; and
• A complete parts list for the venting system design or
venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall
horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
“special venting systems”, the following requirements
shall be satisfied by the manufacturer:
• The referenced “special venting system” instructions
shall be included with the appliance or equipment installation instructions; and
• The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation
instructions.
A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting
instructions, and/or all venting design instructions shall
remain with the appliance or equipment at the completion
of the installation.
See Gas Connection section for additional Commonwealth of Massachusetts requirements.
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
5
2
Getting Started
A. Design and Installation Considerations
The Courtyard series gas appliance is designed for outdoor
use and may be installed as a stand alone unit or built into
a wall.
Outdoor spaces - For the purpose of these instructions, an
appliance is considered to be outdoors if installed with shelter
no more inclusive than:
1.
2.
3.
With walls on all sides, but no overhead cover
Within a partial enclosure which includes an overhead
cover and no more than two side walls. These side walls
may be parallel, as in a breezeway, or at right angles to
each other; or
Within a partial enclosure which includes an overhead
cover and three sidewalls, as long as 30% or more of the
horizontal periphery of the enclosure is permanently open.
Note: Screen may be used on the open sides of the shelter,
14x18 and 16x18 screen mesh is approved for use. DO NOT
use solar screen or no-see-um screen.
The appliance may be installed on a wood or noncombustible deck.
Refer to Section 3 for clearances.
Installation MUST comply with local, regional, state and
national codes and regulations. Consult the authorities
having jurisdiction over restrictions, installation inspection and permits.
Before installing, determine the following:
• Where the appliance is to be installed.
-
Clearance to side walls
Location of indoor appliance terminations, air inlets,
gas meters, etc.
- Doors
- Location of the fireplace to a door that swings open
to ensure it does not interfere with the fireplace when
opened.
- Windows
- Walkways
- Wires
- Possibility of flooding or running water.
• Gas supply piping requirements.
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualified
service technician, service agency or your dealer.
B. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure
Framing material
Pliers
Hammer
Phillips screwdriver Manometer
Gloves
Framing square
Voltmeter
Electric drill and bits (1/4 in.)
Plumb line
Safety glasses
Level
Reciprocating saw
3/4 in. wrench
Crescent wrench
7/8 in. wrench
1/4 in. nut driver
7/16 in. wrench
Pipe sealant
Flat blade screwdriver
Non-corrosive leak check solution
1/2 - 3/4 in. length, #6 or #8 Self-drilling screws
Caulking material (300ºF minimum continuous exposure
rating)
• Electrical wiring requirements.
• Framing and finishing details.
• Prevailing Wind.
6
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
C. Inspect Appliance and Components
• Carefully remove the appliance and components from
the packaging.
• Inspect the 6 foot electrical cord for breaks and cuts.
• Remove wall control which is packaged separately.
• Remove protective coating from stainless steel..
• Report any damage in shipment to your dealer.
• Read all of the instructions before starting the installation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
WARNING! Risk of Fire or Explosion! Damaged parts
could impair safe operation. DO NOT install damaged,
incomplete or substitute components.
Hearth & Home Technologies disclaims any responsibility
for, and the warranty will be voided by, the following actions:
• Installation and use of any damaged appliance.
• Modification of the appliance.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the media.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
Any such action may cause a fire hazard.
WARNING! Risk of Fire, Explosion or Electric Shock!
DO NOT use this appliance if any part has been under
water. Call a qualified service technician to inspect the
appliance and to replace any part of the control system
and/or gas control which has been under water.
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
7
3
Framing and Clearances
A. Appliance Dimension Diagrams
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Figure 3.3
and Figure 3.4.
ODCOUG-36
30-1/4 in.
(769 mm)
18-1/8 in.
(462 mm)
41-7/8 in.
(1063 mm)
RAIN SHIELD
44 in.
(1117 mm)
30-3/4 in.
(782 mm)
GAS
(on both sides)
ELECTRIC
(on both sides)
4-1/8 in. 3-5/8 in.
(106 mm) (92 mm)
2 in.
(50 mm)
36-1/4 in.
(921 mm)
6-1/8 in.
(156 mm)
18-5/8 in.
(474 mm)
Figure 3.1 ODCOUG-36 Appliance Dimensions
8
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
2-1/8 in
(54 mm)
ODCOUG-42
36-1/4 in.
(921 mm)
18-1/8 in.
(462 mm)
47-7/8 in.
(1216 mm)
RAIN SHIELD
44 in.
(1117 mm)
30-7/8 in.
(785 mm)
GAS
(on both sides)
ELECTRIC
(on both sides)
4-1/8 in. 3-5/8 in.
(106 mm) (92 mm)
1-7/8 in.
(46 mm)
6-1/4 in.
(158 mm)
42-1/4 in.
(1074 mm)
2 in
(52 mm)
18-5/8 in.
(474 mm)
Figure 3.2 ODCOUG-42 Appliance Dimensions
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
9
B. Clearances to Combustibles
When selecting a location for the appliance it is important
to consider the required clearances to walls (see Figure
3.3, 3.4, 3.5 & 3.6).
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
WARNING! Risk of Fire or Burns! The appliance is hot
and wind may cause flames to reach out in front.
•
Keep furniture, draperies and other combustibles
away.
•
Locate the appliance away from traffic areas.
•
Clean up fallen leaves, branches and other combustible materials before using the appliance.
•
See Figure 3.3, 3.4 & 3.5 for required clearances.
•
Only install on wood or solid noncombustible surfaces
extending full width and depth to prevent damage.
WARNING! Risk of Fire! Maintain specified air space
clearances to appliance:
• Insulation and other materials must be secured to prevent
accidental contact.
• The chase/enclosure must be properly blocked to prevent
blown insulation or other combustibles from entering and
making contact with the appliance.
• Failure to maintain airspace may cause overheating and
a fire.
10
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
ODCOUG-36
NOTICE: Illustrations reflect typical installations and are FOR DESIGN PURPOSES ONLY. Illustrations/diagrams are not
drawn to scale. Actual installation may vary due to individual design preference.
Note: If this surface is
inside the building’s
warm air envelope...
N o t e: Fo r a c t u a l a p p l i a n c e
dimensions refer to Section 3.A.
...then this surface
must be an exterior
wall system.
0 in. min.
(0 mm)
3/4 in.
(19 mm)
47-3/4 in.
(1212 mm)
18-3/8 in.
(467 mm)
3/4 in.
(19 mm)
3/4 in. min.
(19 mm)
3/4 in. min.
(19 mm)
43-3/8 in.
(1102 mm)
36 in min.
(914 mm)
to combustible
object
43-3/8 in.
(1102 mm)
68-5/8 in.
(1742 mm)
9 in min
(229 mm)
NOTICE: Flash the perimeter of the appliance,
corners and the appliance face in a manner
consistent with regional practices as required to
prevent water penetration around the appliance or
manage water that may penetrate the appliance.
See Section 3.F. for more information regarding
wall and enclosure construction.
*36 in. min.
(914 mm)
to ceiling
NOTICE: Vinyl siding must
not be placed between the
appliance opening and the
ceiling/overhang.
Figure 3.3
Combustible Object
*Measured from top
of firebox opening
36 in.
(914 mm)
***44-1/8 in. min.
(1121 mm)
Minimum Header
Height
***Measured from base of the appliance
Appliance Locations and Framing Dimensions
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
11
ODCOUG-42
NOTICE: Illustrations reflect typical installations and are FOR DESIGN PURPOSES ONLY. Illustrations/diagrams are not
drawn to scale. Actual installation may vary due to individual design preference.
Note: If this surface is
inside the building’s
warm air envelope...
N o t e: Fo r a c t u a l a p p l i a n c e
dimensions refer to Section 3.A.
...then this surface
must be an exterior
wall system.
0 in. min.
(0 mm)
3/4 in.
(19 mm)
18-3/8 in.
(467 mm)
52 in.
(1320 mm)
3/4 in.
(19 mm)
3/4 in. min.
(19 mm)
3/4 in. min.
(19 mm)
49-3/8in.
(1254 mm)
36 in. minimum
(914 mm)
to combustible
object
9 in. min
(229 mm)
49-3/8 in
(1254 mm)
74-1/2 in.
(1893 mm)
NOTICE: Flash the perimeter of the appliance,
corners and the appliance face in a manner
consistent with regional practices as required to
prevent water penetration around the appliance or
manage water that may penetrate the appliance.
See Section 3.F. for more information regarding
wall and enclosure construction.
*36 in. min.
(914 mm)
to ceiling
NOTICE: Vinyl siding must
not be placed between the
appliance opening and the
ceiling/overhang.
Figure 3.4
12
Combustible Object
*Measured from top
of firebox opening
36 in.
(914 mm)
***44-1/8 in. min.
(1121 mm)
Minimum Header
Height
***Measured from base of the appliance
Appliance Locations and Framing Dimensions
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
C. Vent Terminal Clearances
= AREA WHERE TERMINAL IS NOT PERMITTED
X = AIR SUPPLY INLET
F
C
FP
FP = FIREPLACE OPENING
FP
B
J
B
FP
D
B
FP
G
FP
L
H or i
FP
X
M
A
FP
E
FP
FP
H
FP
H
FP
K
FP
Electrical
Service
A
FP
U.S.A.
Clearance above grade,veranda, porch, deck, or balcony
Clearance to window or door that may
be opened, or to permanently closed
window
B
0 in. (0 cm)
D
E
CANADA
0 in. (0 cm)
Non-vinyl 12 in. (305 mm)
12 in. (305 mm)
Vinyl 24 in. (610 mm)
24 in. (610 mm)
clearance below unventilated soffit
C
FP
C
U.S.A. Installations: In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code.
Canadian Installations: In accordance with the current CSA B149.1, Natural Gas and Propane Installation Code.
A
K
36 in. (914 mm)
36 in. (914 mm)
clearance below ventilated soffit
36 in. (914 mm)
36 in. (914 mm)
clearance below any vinyl soffits and electrical service
60 in. (1524 mm)
60 in. (1524 mm)
9 in. (229 mm)
9 in. (229 mm)
Non-vinyl siding (1 side)
12 in. (305 mm)
12 in. (305 mm)
Non-Vinyl siding (Alcove)
14 in. (356 mm)
14 in. (356 mm)
Vinyl siding & windows
48 in. (1219 mm)
48 in. (1219 mm)
clearance to outside corner
clearance to inside corner
F
not to be installed above a gas meter/regulator assembly within 3 feet horizontally from
the center-line of the regulator
3 ft (914 mm)
3 ft (914 mm)
G
clearance to gas service regulator vent outlet
3 ft (914 mm)
3 ft (914 mm)
H
clearance to non-mechanical air supply inlet to building or the combustion air inlet to
12 in. (305 mm)
any other appliance termination (mechanical or non-mechanical)
12 in. (305 mm)
I
clearance to a mechanical (powered) air supply inlet
***(All mechanical air intakes within 10 feet of a horizontal termination cap must be
a minimum of 3 feet below termination.)
3 ft (914 mm)***
6 ft (1.7 mm)
J
For appliances installed facing or opening onto public property or property servicing more than one single family dwelling, such as driveways, sidewalks, etc. refer to
local building codes/regulations for proper clearances.
Refer to local
codes
Refer to local
codes
24 in. (610 mm)
24 in. (610 mm)
12 in. (305 mm)
12 in. (305 mm)
K
L
M
clearance from sides of electrical service
Location of the vent termination must not interfere with access to the electrical service.
clearance above electrical service
Location of the vent termination must not interfere with access to the electrical service.
clearance under veranda, porch, deck, balcony or overhang
(Permitted only if the area meets the requirements of an outdoor space as defined in section 36 in. (914 mm)
2.A “Design and Installation Considerations”)
vinyl or composite overhang
Figure 3.5
36 in. (914 mm)
72 in. (1829 mm)
72 in. (1829 mm)
Minimum Clearances
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
13
E. Wall Switch Control Assembly
The Courtyard series outdoor gas appliance is supplied
with a pre-wired Wall Switch Control Assembly. See
Figure 3.7.
Ceiling or
Overhang
► Note:
al
ion r
dit re o
Ad ctu all
ru w
St ide
S
Wall switch can be replaced with (RC-BATTFHH) remote control.
Box
N
on
co
m
bu
st
ib
le
m
at
’l
36 in.
(914mm)
min.
Switch Plate
Wires
Measured from each side of
the firebox opening:
12 in.(305 mm) One side only
14 in. (356 mm) Alcove
Cover
Switch
Figure 3.6
Clearances to Combustibles
Figure 3.7
•
WARNING! Risk of Fire! Comply with all minimum
clearances to combustibles as specified. Framing or
finishing material closer than the minimums listed must
be constructed entirely of non-combustible materials
(i.e., steel studs, concrete board, etc)
Wall Switch Control Assembly
Using the nailing tabs, mount control in the desired
location, within 14 feet of the appliance. See Figure
3.8.
Note: Wall Switch Control Assembly can be located on
either the left or right side of the appliance.
Note: if needed, an additional 14 foot length can be added.
D. Hearth Extension/Floor Protection
This application does not require a hearth extension.
This appliance may be installed as a stand-alone unit.
•
•
•
•
•
Construct a stand-alone framing of combustible or
non-combustible materials.
Cement board or other non-combustible material
can be applied directly to the face of the appliance.
Air space clearances are not required for standalone construction with noncombustible materials.
Tape and seal all joints and corners.
Provide proper flashing and moisture management
if installed on surfaces that may rot or otherwise be
damaged by water. (See also Section 3H.)
Wall Switch
Wires
Wall Switch
Control Assembly
Electrical Wiring
Hole (located on
left and right
sides)
Figure 3.8
Wall Switch Mounting
• Route wires from Wall Control to the side of the
appliance and into the firebox through electrical wiring
hole provided on either the left or right side of the
appliance.
14
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
Note: It is recommended that the wall switch wires be run
on the opposite side as the Junction Box wiring.
F. Built-in Installation
To make the wall switch wire connection at the appliance,
access to the controls must be gained.
When this appliance is installed into a wall, it is recommended that the wall be an exterior wall system.
• See framing measurements in Figure 3.13 and 3.4.
• Minimum air clearance at side and back of the appliance
must be maintained. See Figures 3.3 and 3.4.
• The header must not be placed below the top of the
top standoffs.
• Non-combustible wall sheathing material is required
if covering the face of the appliance and/or top rain
shield of this appliance. See Figure 3.4.
• Remove (6) screws securing top access cover. See
Figure 3.9.
Screws
Flash the perimeter of the appliance, corners and the appliance face in a manner consistent with regional practices as required to prevent water penetration around the
appliance.
•
Figure 3.9
Remove Access Cover
This appliance has a drain pan incorporated into its
base. Across the bottom front a shield is installed to
allow a moisture barrier to be taped in a manner to
shed moisture out of the appliance. See Figure 3.8.
See Section 3B and Figure 3.3 and 3.4 for more information regarding wall and enclosure construction.
• Connect Wall Control wires to the (2) brown wires from
the appliance control module. See Figure 3.10.
Note: Reference Wiring Diagram in Section 5, Figure 5.2.
Wires
Figure 3.10 Connect Wall Control Wires
• Replace top access cover and reinstall (6) screws previously
removed.
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
15
G. Moisture Resistance
Side
View
This outdoor appliance will shed moderate amounts of
water, but is not waterproof. This appliance must be enclosed or covered with combustible and non-combustible
finish material per framing dimension requirements and
all joints sealed to prevent water infiltration.
A moisture membrane material may overlap and be taped
onto the face of the appliance a maximum of 2 inches on
the sides and top. See Figure 3.11.
The entire bottom of the unit can be used to tie in a water
membrane material, however the bottom does have an
incorporated drain pan into its base, with the front lower
edge being the point where moisture exits the appliance.
This must be taken into consideration when sealing the
appliance. The lower edge should not be covered over,
allowing any moisture that has accumulated to drain from
the appliance. See Figure 3.12 and 3.13.
Water
Membrane
Water Membrane
below drain
Figure 3.12 Side View of Drainage
Acceptable method for application of moisture membrane
material shown. See Figure 3.13.
Water
Membrane
The firebox will not perform as an exterior wall. Moisture
penetration must be considered for construction that places the appliance in structure walls or on moisture sensitive surfaces.
When installed on exterior walls: Hearth & Home Technologies recommends that the chase be constructed
outside the structure’s weather envelope. Where the platform meets the wall, use a flashing detail similar to that
required for attached decks. Chase platforms, including
hearths should slope away from the structure at 1/8 in.
to 1/4 in. per foot. The appliance can be shimmed level.
Figure 3.13 Angle View Water Membrane
Combustible sheathing
House wrap/water
membrane
Rain Shield
2 in.
(51 mm)
maximum
overlap
Top view
2 in.
Lathe
No cement board with lathe
Top view
Combustible
Sheathing
2 in.
Figure 3.11 Membrane Overlap
Non-combustible board
House wrap/
Water membrane
Cement board no lathe
Figure 3.14 Moisture Membrane
16
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
4
Appliance Preparation
A. Securing and Leveling Appliance
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during installation. Sheet metal edges are sharp.
Position, level, and secure the appliance.
•
•
•
•
•
Place the appliance into position on either a wood or
noncombustible continuous flat surface.
Level the appliance from side to side and front to back.
Shim the appliance with noncombustible material, such
as sheet metal, as necessary.
Chase platforms, including hearths should slope away
from the structure at 1/8 in. to 1/4 in. per foot.
Nailing tabs must be moved from shipping position to
installation position and secured to framing. Bend the
two nailing tabs out on each side. See Figure 4.1.
Note: Nailing tabs are positioned so that when the
appliance is installed the face of the appliance
will extend approximately 1/2 inch beyond framing
materials, allowing for the isntallation of combustible
or non-combustible sheathing up to the sides of the
appliance. Nailing tabs may be reversed to allow
the face of the appliance to be installed flush with
framing and be covered with non-combustible finishing
materials. See Figure 4.2.
Nailing Tabs
Figure 4.1 Positioning and Securing Nailing Tab
B. Flashing
•
•
•
Flash the appliance in a manner consistent with regional
practices to prevent water penetration around the
appliance. Due to elevated temperatures across the top
of the appliance, metal flashing and high temperature
sealant must be used. Adhesive polymeric flashing
materials may melt.
For brick, stone, stucco and similar construction, weep
screeds should be installed per regional codes, with
consideration taken for integrated drain pan position.
See Section 3.H and Figures 3.1 and 3.2 for more
information regarding wall and enclosure construction
required to prevent moisture penetration into the
structure. The appliance will shed moderate amounts
of water but is not waterproof. See Figures 3.11,3.12,
3.13 and 3.14.
Appliance Extended
Appliance Flush
Figure 4.2 Nailing Tab Orientation
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
17
5
Electrical Information
A. Wiring Requirements
Note: The Courtyard appliance MUST be connected to
a GFCI (Ground Fault Circuit Interrupt) protected circuit
breaker.
WARNING! Risk of Shock or Explosion! DO NOT wire
110-120 VAC to the valve or to the appliance wall switch.
Incorrect wiring will damage controls.
NOTICE: This appliance must be electrically wired
and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.
C. Installing the Electrical
The Courtyard is supplied with an internal pre-wired
junction box, and a 6 foot electrical cable to allow for field
electrical connection.
The electrical cable comes factory installed on the right
of the appliance. However, can be routed to the left side
of the appliance if necessary.
To modify electrical cable routing, access to
the appliance controls must be gained:
• Remove (6) screws securing top access cover. See
Figure 5.1.
Screws
Total Electrial Requirements: 110-120Vac, 60Hz., less
than 3 Amperes
• Wire the appliance junction box to unswitched 110120 VAC. This is required for proper operation of the
appliance.
• The junction box comes wired with a 6 foot section
of electrical cable that can be wired to an external
unswitched 110-120 VAC junction box. This is required
for proper operation of the appliance.
• A 110-120 VAC circuit for this appliance must be
protected with ground-fault circuit-interrupter protection
in compliance with the applicable electrical codes.
• Low voltage and 110-120 VAC voltage cannot be shared
within the same wall box.
Electrical Service and Repair
WARNING! Risk of Shock! Label all wires prior to disconnection when servicing controls. Wiring errors could
cause improper and dangerous operation. Verify proper
operation after servicing.
Figure 5.1 Top Access Cover
•
Remove (4) screws that secure burner assembly to
firebox bottom. See Figure 5.2.
Screws
WARNING! Risk of Shock! Replace damaged wire with
type 105º C rated wire. Wire must have high temperature
insulation.
B. IntelliFire Pilot Ignition System Wiring
• Wire the 6 foot section of electrical cable from the
appliance junction box to 110-120 VAC for proper
operation of the appliance.
WARNING! Risk of Shock or Explosion! DO NOT wire
IPI controlled appliance junction box to a switched circuit.
Incorrect wiring will override IPI safety lockout.
THIS APPLIANCE SUPPLIED STANDARD WITH:
• IntelliFire control valve (3V)
• Wall Switch Control - Operates unit On/Off
Figure 5.2 Firebox Bottom
• Wall switch wire
• Pre-wired internal junction box with 6 foot cable
18
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
•
•
•
To remove burner assembly from appliance, electrical
cable must be pulled into the firebox through the hole
in right side of appliance.
Unplug 3V transformer from junction box.
Using 1/4 inch socket, remove (2) screws securing
junction box to the rear of the burner assembly. See
Figure 5.3.
Screws
Figure 5.3 Burner Assembly
•
•
•
Remove junction box and electrical cable from burner
assembly.
Reverse and reinstall junction box, (2) screws, and
route electrical cable through hole in the left side of
the appliance.
Reattach burner assembly to firebox bottom, (4)
screws. See Figure 5.4.
Figure 5.4 Reattach Burner Assembly
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
19
Wiring Diagram
JUNCTION BOX
ORANGE
GREEN
WHITE
RED & BLACK WIRES (NOT USED)
BROWN WIRES
Wall
Switch or
Remote Control
Connection
PILOT ASSEMBLY
GAS VALVE
ORANGE
WIRE HARNESS
CONTROL MODULE
3V AC POWER SUPPLY
Figure 5.5
20
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
6
Gas Information
A. Valve Access
The valve and controls are located inside the burner assembly. See Figure 6.1.
The control box and controls can be accessed by removing the top cover plate secured with six (6) screws shown
in Figure 6.1
• Make sure unit is off and cool.
• Remove media, logs and/or deflection glass panel.
• Remove screws securing control cover panel revealing valve and control board.
Valve
Control
Module
Junction
Box
WARNING
Fire Risk.
Explosion Hazard.
High pressure will damage valve. Low
pressure could cause explosion.
• Disconnect gas supply piping BEFORE
pressure testing gas line at test pressures
above 1/2 psig.
• Close the manual shutoff valve BEFORE
pressure testing gas line at test pressures
equal to or less than 1/2 psig.
• Verify inlet pressures. Verify minimum pressures when
other household gas appliances are operating.
• Install regulator upstream of valve if line pressure is greater
than 1/2 psig.
Injector
Burner
Tube
Note: Have the gas supply line installed in accordance
with local codes, if any. If not, follow ANSI 223.1 Installation should be done by a qualified installer approved and/
or licensed as required by the locality. (In the commonwealth of Massachusetts, installation must be performed
by a licensed plumber or gas fitter.)
Cover Screws
Figure 6.1 Burner Assembly
B. Gas Pressure
• Optimum appliance performance requires proper input
pressures.
• Gas line sizing requirements will be determined in ANSI
Z223.1 National Fuel Gas Code in the USA and CAN/
CGA B149 in Canada.
• Pressure requirements are:
Gas Pressure
Natural Gas
Propane
Minimum inlet pressure
5.0 in. w.c.
11.0 in. w.c.
Maximum inlet pressure
10.0 in. w.c.
13.0 in. w.c.
Manifold pressure
3.5 in. w.c.
10.0 in. w.c.
Note: A listed (and Commonwealth of Massachusetts approved) 1/2 in. (13 mm) T-handle manual shut-off valve
and flexible gas connector are connected to the 1/2 in. (13
mm) control valve inlet.
• If substituting for these components, please consult
local codes for compliance.
Note: An individual manual shutoff valve (not supplied) is
required when installing this appliance. The manual shutoff
valve must be located in an easily accessible area, no more
than 6 feet from the appliance.
These pressures can be verified through the access
panel as shown in Section 6.A Valve Access.
When an appliance is connected to a fixed piping system, the installation must conform with local codes, or in
the absence of local codes with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, or International Fuel Gas
Code.
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
21
C. Gas Connection
D. Fuel Conversion
•
•
Refer to Section 3.A for location of gas line access in
appliance.
• The gap between supply piping and gas access hole
may be caulked with caulk with a minimum of 300ºF
continuous exposure rating or stuffed with noncombustible, unfaced insulation to help prevent rodents
and insects from getting into the control area of the
appliance.
• Ensure that gas line does not come in contact with outer
wrap of the appliance. Follow local codes.
• Pipe incoming gas line into appliance firebox area.
• Connect incoming gas line to the 1/2 in. (13 mm)
connection on manual shutoff valve.
WARNING! Risk of Fire or Explosion! Support control
when attaching pipe to prevent bending gas line.
• A small amount of air will be in the gas supply lines.
Light the appliance. It will take a short time for air to purge
from lines. When purging is complete the appliance will
light and operate normally.
WARNING! Risk of Fire! DO NOT change valve settings.
This valve has been preset at the factory.
•
•
Make sure the appliance is compatible with available
gas types.
The Courtyard series gas appliance is supplied from
the factory for use with natural gas. If a Propane(LP)
conversion is required, kit LPK-ODCOUG must be
purchased in order to convert the unit for use with
propane.
Conversions must be made by a qualified service
technician using Hearth & Home Technologies specified and approved parts.
E. High Altitude Installations
Notice: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 feet elevation:
• In the USA: Reduce input rate 4% for each 1000 feet
above 2000 feet.
• In Canada: Input ratings are certified without a reduction of input rate for elevations up to 4500 feet
(1370m) above sea level. Please consult provincial
and/or local authorities having jurisdiction for installations at elevations above 4500 feet (1370m.)
Check with your local gas utility to determine proper orifice size. See conversion kit (LPK-ODCOUG) for instructions on how to change main burner orifice.
WARNING! Risk of Fire, Explosion or Asphyxiation!
Check all fittings and connections with a non-corrosive
commercially available leak-check solution. DO NOT use
open flame. Fittings and connections could have loosened during shipping and handling.
WARNING! Risk of Fire or Explosion! Gas build-up during line purge could ignite.
• Purge should be performed by qualified service
technician.
• Ensure adequate ventilation.
• Ensure there are no ignition sources such as sparks or
open flames.
22
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
7
Finishing
A. Facing Material
The fireplace structure can be covered with any noncombustible material. Refer to Section 1.D.
Top View of
Appliance
It is possible for the face of the appliance above the appliance opening to show signs of soot. It is recommended that a noncombustible ledge (shelf) approximately 3
inches above the opening and a minimum of 3 inches out
from the face of the appliance incorporated into the facing
material will help prevent soot from going up the wall.
WARNING! Risk of Fire! DO NOT apply combustible materials beyond the minimum clearances. Comply with all
minimum clearances to combustibles as specified in this
manual. Overlapping materials could ignite. Any installation outside the scope as stated in this manual please
contact your authorized HHT dealer prior to installation.
WARNING! Risk of Fire!
•
You must seal around the finishing material to
appliance.
Cement Board
A
B
Mantel Leg or Perpendicular Wall
A
9 in. (229mm) min. from edge of appliance to
perpendicular wall (one side only). Alcove installations
require 11 in. (279mm) from edge of appliance.
B
12 in. (305 mm) min. from fireplace opening to
perpendicular wall (one side only). Alcove installations
require 14 in. (356mm) from edge of appliance.
Figure 7.1 Mantel Leg or Wall Projections
B. Mantel and Wall Projections
WARNING! Risk of Fire! Comply with all minimum clearances to combustibles as specified. Framing or finishing
material closer than the minimums listed must be constructed entirely of noncombustible materials (i.e., steel
studs, concrete board, etc.). Figures 7.1 And 7.2 Show
the dimensions for mantels or other combustible projections above the appliance opening.
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
23
Mantel Projections
*A maximum 12 in. (305 mm) mantle allowed
12in. (305mm)*
8in. (203mm)
6in. (152mm)
36 in.
(914mm)
D minimum to
ceiling
2½ in
(64mm)
C
B
A
Seal joint with non-combustible
sealant to prevent heat from being
drawn into the wall cavity.
A
B
C
Firebox Opening
D
Combustible
18
20
22
24
mm 457
508
559
610
in.
Non-combustible
in.
0
0
2
4
mm
0
0
51
102
Figure 7.2 Minimum Vertical and Maximum Horizontal Mantel Dimensions For Combustible and Non-combustible Materials
24
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
Good Faith Guidelines for TV Installations Above a Typical Gas Fireplace
TV on the wall
TV recessed into the wall
TV
TV
Non-combustible
Mantel (required)
6” Min.
4” Min.
12”
Measured from
top of firebox
opening.
4” Min.
See Note 4
12”
Min.
12”
See Note 4
12”
Min.
Notes:
1. TV installation as shown requires the mantel be constructed entirely of non-combustible
material as it is below the allowable height for a combustle mantel.
2. These are good faith recommended clearances only and not a guarantee of compliance with all
TV manufacturers’ maximum allowable operating temperatures.
3. Since every home has unique air flow characteristics and maximum allowable operating temperatures can vary from manufacturer to manufacturer and from model to model, actual TV temperatures should be validated at the time of each installation. TVs should not be used in situations
where the actual TV temperature exceeds the manufacturers’ maximum allowable operating
temperatures identified in the TV’s technical specifications. Contact the TV’s manufacturer directly
if you cannot locate this information or have questions regarding the information.
4. Combustible mantel height and depth must conform to mantel requirements specified in the
fireplace installation manual. See Figure 7.2.
Figure 7.4 Good Faith TV Guidelines
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
25
8
Appliance Setup
A. Remove the Shipping Materials
Remove the plastic coating and shipping materials from
the firebox.
WARNING! Risk of Fire! Close the ball valve before installing the media template to prevent accidental lighting.
Remove the media template before lighting the appliance.
Pilot Shield
B. Clean the Appliance
Clean/vacuum any sawdust that may have accumulated
inside the firebox.
Figure 8.1 Pilot Shield Placement
C. Optional Accessories
Install only approved accessories per instructions included with accessories. Contact your dealer for a list of approved accessories.
WARNING! Risk of Fire and Electric Shock! Use ONLY
Hearth & Home Technologies-approved optional accessories with this appliance. Using non-listed accessories
could result in a safety hazard and will void the warranty.
NO MEDIA ON PILOT SHIELD
D. Verify Pilot Shield
Ensure proper placement of the pilot shield. See Figure 8.1. Shipping could cause it to become displaced.
Figure 8.2 Install Media
► E. Install Lava Rock Media/Glass Media
Pour media into the burner area, evenly covering the
burner tube and the entire Burner Assembly. After the
media has been placed, remove any media from the top
of the pilot shield. Media left covering this area will result in delayed ignition and reduced function of the Burner
Assembly. Spread Lava Rock evenly over hearth area
including hearth pan. Do not cover burner tube or pilot.
See Figure 8.2.
F. Install Gas/Electrical Covers
The provided covers are designed to conceal the gas
and electrical lines that can be visible on the Courtyard.
These covers are to be placed over the lines on the left
and right side on the valve assembly and may be completely covered with media.
26
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
9
Reference Materials
A. Accessories
LP Conversion Kit:
•
LPK-ODCOUG
LP Conversion Kit for Courtyard Fireplace
Media Kits: (for use with Modern Hearth kits)
•
•
•
•
•
Media-Ebony-48
Media-Cobalt-48
Media-Red-48
Media-Amber-48
Media-Clear-48
Glass media, ebony (black)
Glass media, cobalt (blue)
Glass media, scarlet (red)
Glass media, amber
Glass media, crystal (translucent white)
Wired Wall Timer
•
WWT
Wired Wall Timer Kit
Optional Door Screen
•
•
SCN-ODCOUG36
SCN-ODCOUG42
Framed mesh screen with canopy 36 in.
Framed mesh screen with canopy 42 in.
Log Sets: (for use with GR-ODCOUG)
•
•
SDLOGS-ODCOUG
HDLOGS-ODCOUG
Standard definition log set 36 in. & 42 in.
High definition log set 36 in. & 42 in.
Modern Hearth Kit: (requires use of a media kit to complete)
•
•
MOD-ODCOUG 36 Modern hearth kit for use with glass media 36 in.
MOD-ODCOUG42 Modern hearth kit for use with glass media 42 in.
Grate: (for use with Log Sets)
•
►•
GR-ODCOUG
RC-BATT-FHH
Stainless steel grate with lava rock 36 in./42 in.
Battery Remote Control
Optional Liner Kits:
•
•
•
•
•
FBPREMT36
FBPREMT42
FBPREMH36
FBPREM42
RBK
Premium Firebrick Traditional 36 in.
Premium Firebrick Traditional 42 in.
Premium Firebrick Herringbone 36 in.
Premium Firebrick Herringbone 42 in.
Retainer Bracket Kit (for all liner panels)
Outdoor Lifestyles, a brand of Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 55044
www.hearthnhome.com
Please contact your Outdoor Lifestyles dealer with any questions or concerns.
For the location of your nearest Outdoor Lifestyles dealer,
please visit www.hearthnhome.com.
Printed in U.S.A. - Copyright 2014
Outdoor Lifestyles by Hearth & Home Technologies • Courtyard Installation Manual • 4608-901 Rev. F • 05/19
27
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
