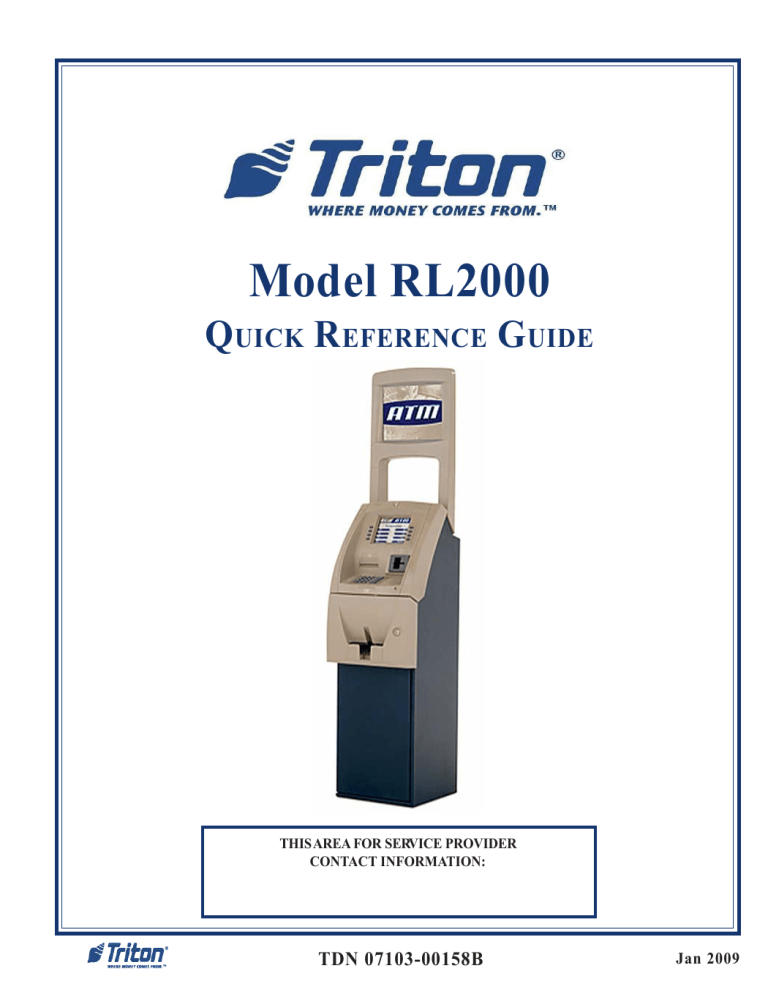

Model RL2000
QUICK REFERENCE GUIDE
THIS AREA FOR SERVICE PROVIDER
CONTACT INFORMATION:
TDN 07103-00158B
Jan 2009
MANAGEMENT FUNCTIONS
- ACCESS INSTRUCTIONS 1.
2.
AT ATM WELCOME SCREEN, PRESS AND HOLD DOWN THE <CTRL>
KEY (LOWER - RIGHT CORNER OF KEYPAD ), PRESS <1> KEY , THEN RE LEASE BOTH KEYS. THE TOP MENU WILL BE DISPLAYED .
AT THE TOP MENU, SELECT MANAGEMENT FUNCTIONS OPTION. ENTER
<E NTER>. THE MANAGEMENT FUNCTIONS
MAIN MENU IS DISPLAYED.
PASSWORD AND SELECT
RESTART / SHUTDOWN TERMINAL
FOLLOW ACCESS INSTRUCTIONS TO ENTER MANAGEMENT FUNCTIONS. SE-
LECT SYSTEM
PARAMETERS.
RESTART TERMINAL: THIS FUNCTION REBOOTS THE TERMINAL.
SHUTDOWN TERMINAL: THIS FUNCTION POWERS-DOWN THE TERMI NALS OPERATING SYSTEM.
TURN
WHEN PROMPTED THAT SHUTDOWN IS COMPLETE,
ON/OFF SWITCH ON POWER SUPPLY TO <OFF> POSITION.
DIAGNOSTICS
FOLLOW ACCESS INSTRUCTIONS TO ENTER MANAGEMENT FUNCTIONS. SELECT
DIAGNOSTICS > DISPENSER.
PURGE: THIS INSTRUCTS THE DISPENSER TO REMOVE ANY NOTES (JAMS) IN
FEED PATH.
TEST DISPENSE: THIS INSTRUCTS THE DISPENSER TO DISPENSE MINIMUM
ONE NOTE FROM EACH INSTALLED CASSETTE INTO THE REJECT CASSETTE /
AREA .
SELECT DIAGNOSTICS > PRINTER.
RESET / TEST RECEIPT PRINTER: THIS INSTRUCTS THE PRINTER TO REINITIALIZE AND PERFORM A TEST PRINTOUT .
2
CLOSE FUNCTIONS
FOLLOW ACCESS INSTRUCTIONS TO ENTER MANAGEMENT FUNCTIONS. S ELECT TERMINAL CLOSE FUNCTIONS.
DAY CLOSE: THIS OPTION IS USED TO COMPLETE DAILY BALANCING OF THE
ATM WITH THE PROCESSOR. TOTALS ARE CLEARED AND SWITCHED TO THE
NEXT BUSINESS DAY.
TRIAL CLOSE: THIS OPTION FUNCTIONS LIKE A DAY CLOSE EXCEPT THE
TOTALS ARE NOT CLEARED.
JOURNAL FUNCTIONS
FOLLOW ACCESS INSTRUCTIONS TO ENTER MANAGEMENT FUNCTIONS. S ELECT JOURNAL.
PRINT LAST X:
TO
VIEW/PRINT PREVIOUSLY AUDITED OR UNAUDITED
RECORDS, USE THE PRINT LAST
X OPTION.
EXAMPLE: E NTERING THE NUMBER ‘50’ WILL LET YOU VIEW
CURRED. YOU MAY PRINT TO THE RECEIPT PRINTER.
THE LAST
50
TRANSACTIONS/EVENTS THAT HAVE OC-
TERMINAL CONFIGURATION REPORT
FOLLOW ACCESS INSTRUCTIONS TO ENTER MANAGEMENT FUNCTIONS. SELECT
DIAGNOSTICS > TERMINAL STATUS.
CONFIGURATION SUMMARY: THIS SUMMARY IS A COMPREHENSIVE
REPORT OF CURRENT TERMINAL CONFIGURATION AND HARDWARE STATUS INFORMATION.
NOTE: IT IS HIGHLY RECOMMENDED THAT THIS REPORT BE PRINTED AND SAVED AFTER INITIAL SETUP AND WHENEVER
CHANGES ARE MADE TO THE TERMINALS CONFIGURATION.
3
CASSETTE CLOSE FUNCTIONS
FOLLOW ACCESS INSTRUCTIONS TO ENTER MANAGEMENT FUNCTIONS. SELECT TERMINAL CLOSE FUNCTIONS.
SELECT CASSETTE CLOSE.
SELECT CASSETTE(S) TO CLOSE. A CHECK MARK (√
√ ) IDENPRESS <ENTER>.
TIFIES WHICH CASSETTE(S) ARE SELECTED.
AFTER CASSETTE(S) HAVE BEEN REINSERTED IN THE DISPENSER,
<ENTER>.
PRESS
NOTE: IF AN NMD-50 DISPENSER IS INSTALLED, WAIT FOR THE
CASSETTES TO LOCK ( THIS IS DONE AUTOMATICALLY ). PRESS
<ENTER> IF APPLICABLE.
THIS
PLACE SELECTED CASSETTE(S) IN SERVICE. PRESS <ENNOTE: THE NMD-50 CASSETTES MUST BE LOCKED AND
A C LOSE REPORT IS DISPLAYED TO BE PRINTED OR SAVED.
IN SERVICE FOR NORMAL OPERATION.
TER>.
OPERATION WILL RESET THE NUMBER OF BILLS IN THE
CASSETTE (S ) TO
ZERO (0). PRESS <ENTER>.
ENTER CASSETTE QUANTITY (NUMBER OF NOTES, NOT
PRESS <ENTER> TO ACCEPT ENTRY. REPEAT FOR EACH SELECTED CASSETTE.
VALUE) FOR THE SELECTED CASSETTE(S).
REMOVE AND REPLENISH THE SELECTED CASSETTE(S).
PROCEDURES FOR SPECIFIC DISPENSING MECHANISMS CASSETTE REPLENISHMENT ARE ON THE FOLLOWING PAGES.
NOTE: IF AN NMD-50 DISPENSER IS INSTALLED, WAIT FOR THE
CASSETTES TO UNLOCK ( THIS IS DONE AUTOMATICALLY).
A TRIAL CASSETTE CLOSE REPORT AUTOMATICALLY
P RINT AND RETAIN A
COPY FOR STARTING POINT REFERENCE. PRESS <ENTER> TO RETURN TO CLOSE FUNCTIONS.
IS DISPLAYED TO BE PRINTED OR SAVED .
4
REPLENISH TDM CASSETTE(S)
(TDM-250)
STEP
1
ACTION
UNLOCK/OPEN DISPENSER
SECURITY DOOR. RELEASE
THE SLIDE LOCKING LEVER
AND EXTEND THE DISPENSER
ACTION
STEP
MOUNTING TRAY FULLY.
4
R EMOVE THE N O T E
CASSETTE(S). UNLOCK AND
MOVE PACKER PLATE TO
REAR OF THE CASSETTE .
LATCH IN PLACE WITH THE
HOLD-BACK LATCH.
2
L OCATE
THE S P R I N G -
LOADED LOCKING PIN ON
UNDERSIDE OF TRAY.
PULL
PIN DOWN AND ROTATE
180°
RELEASE PIN
TO LOCK IN PLACE.
SWIVEL PLATFORM
Note cassettes
CLOCKWISE.
5
COUNT THE NUMBER OF BILLS THAT REMAIN IN THE CASSETTE, IF ANY.
COUNT THE NUMBER OF BILLS THAT ARE BEING ADDED TO
THE REMAINING NOTES.
THE TOTAL OF THESE AMOUNTS WILL BE ENTERED IN
“ENTER CASSETTE QUANTITY” PROMPT FOR CASSETTE CLOSE PROCEDURE.
THE
3
REMOVE REJECT CASSETTE.
UNLOCK AND REMOVE ANY
NOTES . DO NOT RE CYCLE REJECTED NOTES!
CLOSE AND LOCK REJECT
Reject cassette
6
PLACE CURRENCY IN THE CASSETTE AND SLOWLY RELEASE
THE HOLD -BACK LATCH AL-
LOWING THE PACKER PLATE TO
CLOSE AND REINSTALL IN
MOVE FORWARD AGAINST THE
DISPENSER.
NOTES.
SLIDE THE
CASSETTE BACK
INTO THE DISPENSER.
PULL THE LOCKING PIN DOWN
AND ROTATE SWIVEL PLATFORM
180° COUNTERCLOCKWISE. RELEASE PIN TO LOCK IN PLACE.
5
REPLENISH SDD CASSETTE
STEP
1
ACTION
UNLOCK/OPEN DISPENSER
SECURITY DOOR. G RASP
THE CASSETTE HANDLE AND
REMOVE THE CASSETTE.
ACTION
STEP
4
LIFT THE REJECT TRAY.
PUSH THE PACKER PLATE
TO REAR OF CASSETTE AND
LATCH IN PLACE.
CASSETTE MUST BE PRIMEDWITH THE CASSETTE
2
KEY BEFORE INSERTING ON O THE LOADING TRAY. INSERT KEY AND TURN CLOCKWISE TO SHOW
INDICATOR IN WINDOW.
GREEN
5
Green window
COUNT THE NUMBER OF BILLS THAT REMAIN IN THE CASSETTE, IF ANY.
COUNT THE NUMBER OF BILLS THAT ARE BEING ADDED TO
THE REMAINING NOTES.
THE TOTAL OF THESE AMOUNTS WILL BE ENTERED IN THE
“ENTER CASSETTE QUANTITY” PROMPT FOR CASSETTE
CLOSE PROCEDURE.
Cassette “primed”
6
***WARNING***
IF RED IS INDICATED IN THE WINDOW ON THE SIDE
OF THE CURRENCY CASSETTE , NEVER ATTEMPT
LATCH ALLOWING THE
PACKER PLATE TO MOVE
TO INSERT THE CASSETTE INTO THE DISPENSER OR
FORWARD AGAINST THE
THE LOADING TRAY!
3
PLACE CURRENCY IN THE
CASSETTE AND SLOWLY RELEASE THE HOLD -BACK
NOTES.
CLOSE THE CAS-
SETTE LID.
SLIDE CASSETTE ON TO THE LOADING TRAY. LIFT LID TO
EXPOSE THE REJECT TRAY. REMOVE ANY REJECT NOTES.
DO NOT RECYCLE REJECTED NOTES!
7
REMOVE CASSETTE FROM
LOADING TRAY. INSERT THE
CASSE T T E
KEY
AND
“PRIME” THE CASSETTE
(“GREEN” INDICATOR).
INSTALL THE CASSETTE INTO
THE DISPENSER.
6
REPLENISH MINIMECH CASSETTE
STEP
ACTION
1
UNLOCK/OPEN DISPENSER SECURITY DOOR. G RASP
TRAY HANDLE AND REMOVE NOTE CASSETTE
2
3
4
STEP
ACTION
5
PLACE CURRENCY IN THE CASSETTE. SLOWLY PUSH PACKER
FORWARDS AGAINST THE NOTES.
6
GRASP THE HANDLE AND SLIDE THE NOTE CASSETTE FULLY
INTO THE DISPENSER.
REMOVE ANY REJECTED NOTES FROM THE REJECT COMPARTMENT. DO NOTRECYCLE REJECTED NOTES!
MOVE THE PUSHER PLATE TO THE REAR OF THE TRAY
(TOWARDS THE HANDLE).
COUNT
THE NUMBER OF BILLS THAT REMAIN IN THE
CASSETTE, IF ANY.
COUNT THE NUMBER OF BILLS THAT ARE BEING ADDED
TO THE REMAINING NOTES.
THE TOTAL OF THESE AMOUNTS WILL BE ENTERED IN
THE “ENTER CASSETTE QUANTITY” PROMPT FOR CASSETTE CLOSE PROCEDURE.
7
REPLENISH NMD-50 CASSETTE(S)
STEP
ACTION
1
UNLOCK/OPEN DISPENSER SECURITY DOOR. GRASP CASSETTE HANDLE WITH ONE HAND WHILE HOLDING MECHANISM WITH THE OTHER.
PULL
CASSETTE OUT
SLIGHTLY, THEN PLACE
ONE HAND UNDER -
NEATH.
SETTE.
REMOVE CAS-
ACTION
STEP
5
PLACE CURRENCY IN THE
CASSE T T E
AND
MOVE
PACKER PLATE AGAINST THE
2
3
NOTES.
PRESS THE GREEN RELEASE BUTTON AND LIFT THE LID.
FLIP THE LID BACK FULLY LETTING IT REST ON A FLAT
SURFACE.
6
EXTEND THE “PAWLS” ON
PACKER PLATE FULLY .
CLOSE LID AND INSTALL IN
DISPENSER.
7
REMOVE REJECT VAULT.
MOVE THE PACKER PLATE TOWARDS THE REAR.
OPEN VAULT BY ROTATING
GREEN RELEASE LEVER
“ COUNTERCLOCKWISE ”.
GRASP LID AND OPEN. REMOVE A N Y R E J E C T E D
NOTES .
4
DO NOT
RE -
CYCLE REJECTED NOTES!
COUNT THE NUMBER OF BILLS THAT REMAIN IN THE CAS-
SETTE, IF ANY.
ROTATE GREEN RELEASE
COUNT THE NUMBER OF BILLS THAT ARE BEING ADDED
TO THE REMAINING NOTES.
LEVER AGAIN AND CLOSE
LID. INSTALL REJECT VAULT
IN DISPENSER.
THE TOTAL OF THESE AMOUNTS WILL BE ENTERED IN
“ENTER CASSETTE QUANTITY” PROMPT FOR CASSETTE CLOSE PROCEDURE.
THE
8
REPLENISH RECEIPT PAPER
NOTE: THIS PROCEDURE REQUIRES TERMINAL IS POWERED UP.
STEP
1
ACTION
STEP
OPEN CONTROL PANEL. IF PAPER REMAINS ON
4
INSTALL NEW PAPER ROLL ONTO SPINDLE.
ROLL , CUT OR TEAR PAPER BETWEEN ROLL AND
ACTION
PRINTER .
2
PRESS
THE MANUAL FEED BUTTON TO CLEAR
5
INSERT PAPER/SPINDLE INTO PAPER BRACKET.
PAPER FEEDS FROM TOP OF ROLL!
3
REMOVE SPENT PAPER ROLL AND SPINDLE FROM
PAPER BRACKET.
6
FEED END OF PAPER INTO PRINTER TAKE-UP SLOT.
PAPER WILL FEED AUTOMATICALLY THROUGH
THE PRINTER AND SLIGHTLY OUT FRONT OF UNIT.
REMAINING PAPER FROM FEED PATH.
9
COMBINATION LOCKS
INTRODUCTION
THE SECURITY CABINET CAN BE SECURED USING EITHER A MECHANICAL OR ELECTRONIC COMBINATION LOCK. THIS PAGE COVERS HOW
TO OPERATE THE COMBINATION OF EITHER LOCK.
OPERATING THE MECHANICAL LOCK
UNLOCKING THE LOCK
THERE ARE TWO MARKS ON THE DIAL RING. THE INDEX AT THE TOP IS USED FOR OPENING THE LOCK, THE INDEX 30 DEGREES TO THE LEFT
IS USED ONLY WHEN CHANGING THE COMBINATION.
THE DIAL SHOULD ALWAYS BE TURNED SLOWLY AND EVENLY. A REVOLUTION IS COUNTED EACH TIME THE SELECTED NUMBER IS ALIGNED
DO NOT TURN THE DIAL BACK TO COMPENSATE FOR OVER-DIALING A NUMBER. IF, WHEN DIALING THE
COMBINATION, ANY NUMBER IS TURNED BEYOND THE INDEX, THE ENTIRE SEQUENCE MUST BE REPEATED.
WITH THE OPENING INDEX.
UNLOCKING 3-NUMBER COMBINATIONS (FOR EXAMPLE, “50-25-50”)
1.
TURN THE DIAL TO THE LEFT AT LEAST FOUR (4) COMPLETE TURNS TO CLEAR THE COMBINATION LOCK TO ACCEPT THE
COMBINATION.
2.
USING THE ‘OPENING INDEX’, TURN THE DIAL TO THE LEFT, STOPPING WHEN ‘50’ IS ALIGNED WITH THE OPENING INDEX, THE
FOURTH TIME.
3.
TURN THE DIAL TO THE RIGHT, STOPPING WHEN ‘25’ IS ALIGNED WITH THE OPENING INDEX, THE THIRD TIME.
4.
TURN THE DIAL TO THE LEFT, STOPPING WHEN ‘50’IS ALIGNED WITH THE OPENING INDEX, THE SECOND TIME.
5.
TURN THE DIAL SLOWLY TO THE RIGHT UNTIL THE BOLT RETRACTS.
OPERATING THE E LECTRONIC LOCK
THE ELECTRONIC LOCK COMBINATION CONSISTS OF SIX DIGITS. UPON ARRIVAL, THE COMBINATION OF THE LOCK SHOULD ALREADY BE
PRESET TO 1-2-3-4-5-6. NOTE: CHANGE THIS COMBINATION! SEE USER MANUAL FOR COMBINATION CHANGE PROCEDURES.
ENTERING THE COMBINATION
1.
ENTER THE CURRENT COMBINATION AND CHECK FOR PROPER OPERATION. AFTER EACH KEYPRESS, THE LOCK WILL BEEP. AFTER THE
FINAL DIGIT HAS BEEN ENTERED, THE LOCK WILL BEEP TWICE, AND THE OPEN PERIOD WILL BEGIN.
2.
WHEN A VALID COMBINATION HAS BEEN ENTERED, THE OPERATOR WILL HAVE APPROXIMATELY 4 SECONDS TO OPEN THE LOCK.
3.
TO OPEN THE LOCK, TURN THE OUTER DIAL CLOCKWISE.
4.
AFTER THE LOCK IS OPENED, THE CABINET DOOR MAY BE OPENED.
LOCKOUT FEATURE
THE LOCK INCLUDES A ‘WRONG TRY PENALTY’ LOCKOUT FEATURE THAT PREVENTS ENTRY FROM UNAUTHORIZED PERSONNEL. THIS
FEATURE PERFORMS AS FOLLOWS:
•
ENTRY OF FOUR (4) CONSECUTIVE INVALID COMBINATIONS STARTS A 5-MINUTE DELAY PERIOD.
LED FLASHES RED AT TEN (10) SECOND INTERVALS.
•
AT THE END OF THE DELAY PERIOD, TWO (2) MORE CONSECUTIVE INVALID COMBINATIONS WILL RESTART AN ADDITIONAL 5-MINUTE
DELAY.
10
