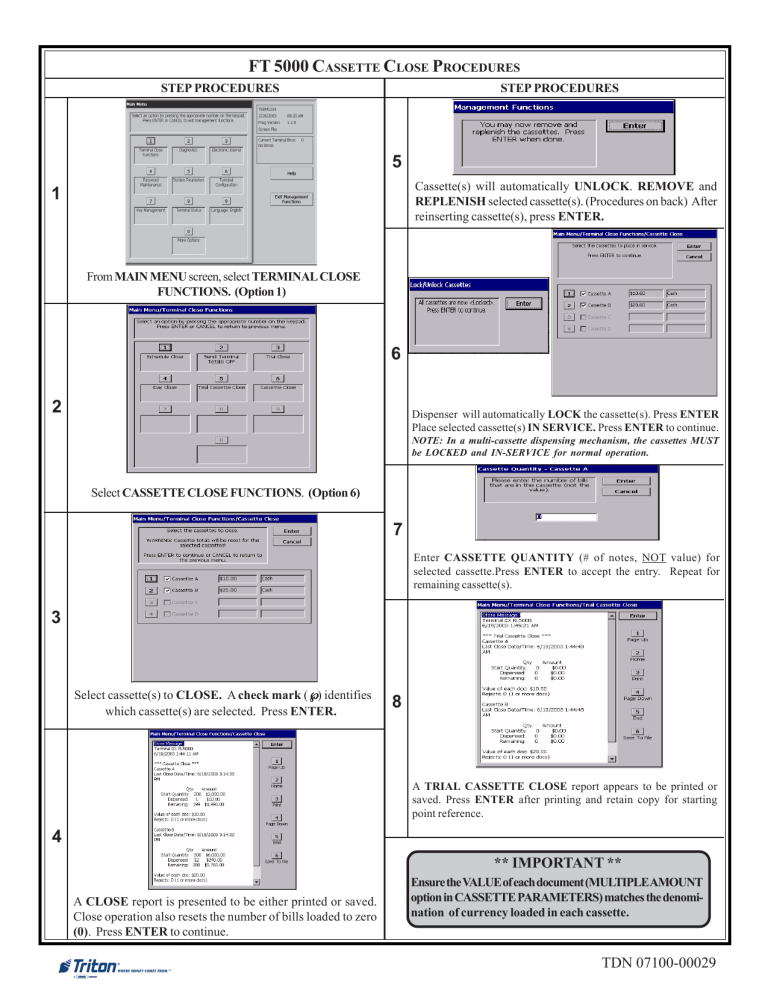

FT 5000 CASSETTE CLOSE PROCEDURES
STEP PROCEDURES
STEP PROCEDURES
5
Cassette(s) will automatically UNLOCK. REMOVE and
REPLENISH selected cassette(s). (Procedures on back) After
reinserting cassette(s), press ENTER.
1
From MAIN MENU screen, select TERMINAL CLOSE
FUNCTIONS. (Option 1)
6
2
Dispenser will automatically LOCK the cassette(s). Press ENTER
Place selected cassette(s) IN SERVICE. Press ENTER to continue.
NOTE: In a multi-cassette dispensing mechanism, the cassettes MUST
be LOCKED and IN-SERVICE for normal operation.
Select CASSETTE CLOSE FUNCTIONS. (Option 6)
7
Enter CASSETTE QUANTITY (# of notes, NOT value) for
selected cassette.Press ENTER to accept the entry. Repeat for
remaining cassette(s).
3
√ ) identifies
Select cassette(s) to CLOSE. A check mark (√
which cassette(s) are selected. Press ENTER.
8
A TRIAL CASSETTE CLOSE report appears to be printed or
saved. Press ENTER after printing and retain copy for starting
point reference.
4
** IMPORTANT **
A CLOSE report is presented to be either printed or saved.
Close operation also resets the number of bills loaded to zero
(0). Press ENTER to continue.
Ensure the VALUE of each document (MULTIPLEAMOUNT
option in CASSETTE PARAMETERS) matches the denomination of currency loaded in each cassette.
TDN 07100-00029
LOADING CASSETTES / REJECTED NOTES PROCEDURES (NMD-100)
STEP PROCEDURES
STEP PROCEDURES
Pawls
5
1
EXTEND
PLACE CASSETTE ON LEVEL SURFACE.
PLASTIC TABS
“PAWLS”
ON PUSHER PLATE FULLY.
6
2
CLOSE
UNLOCK CASSETTE AND PRESS GREEN RELEASE BUTTON
TO RAISE LID.
3
LID.
RELEASE
BUTTON “POPS” OUT.
LOCK
CASSETTE.
7
PLACE
REJECT VAULT ON LEVEL SURFACE.
UNLOCK
VAULT AND PRESS GREEN RELEASE BUTTON TO RAISE
LID.
MOVE PUSHER PLATE BACK
4
8
Single Note Reject Area
RETRIEVE
LOAD CURRENCY. LEVEL NOTE PILE. MOVE PUSHER PLATE
BACK AGAINST THE NOTES.
Bundled Note Reject Area
REJECTED NOTES.
CLOSE
LID.
RELEASE
BUTTON “POPS” OUT. LOCK REJECT VAULT.
NOTE: WHEN THE REJECT VAULT IS REMOVED WITH POWER APPLIED,
THE
TERMINAL WILL SENSE THIS AND AUTOMATICALLY RESET THE REJECT NOTE COUNT TO
ZERO (0).
TDN 07100-00029
