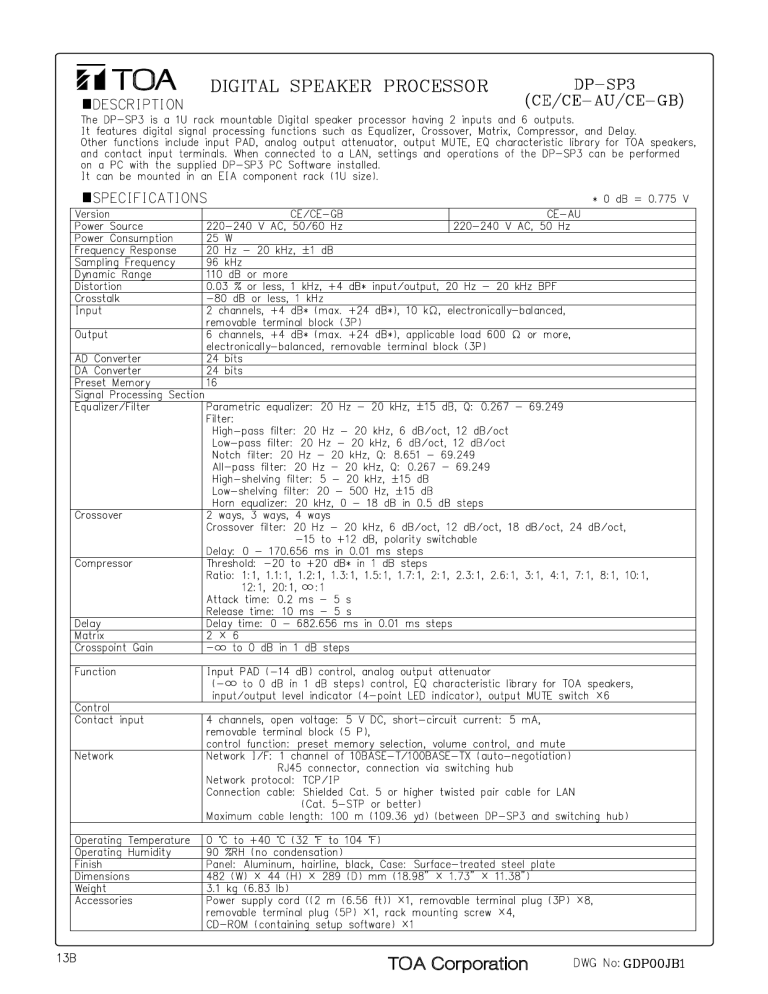

 zl TOA DIGITAL SPEAKER PROCESSOR DP—5P3
MOESCRIPTION (CE/CE-AU/CE-GB)
The DP-SP3 is a 1U rack mountable Digital speaker processor having 2 inputs and 6 outputs.
It features digital signal processing functions such as Equalizer, Crossover, Matrix, Compressor, and Delay.
Other functions include input PAD, analog output attenuator, output MUTE, EQ characteristic library for TOA speakers,
and contact input terminals. When connected to a LAN, settings and operations of the DP-SP3 can be performed
on a PC with the supplied DP-SP3 PC Software installed.
[t can be mounted in an ETA component rack (1U size).
ESPECIFICATIONS x 0 dB = 0.775 V
Version СЕ/СЕ-СВ CE— AU
Power Source 220-240 V AC, 50/60 Hz 220-240 V AC, 50 Hz
Power Consumption 25 W
Frequency Response 20 Hz — 20 kHz, +1 dB
Sampling Frequency 96 kHz
Dynamic Range 110 dB or more
Distortion 0.03 % or less, 1 kHz, +4 dBx input/output, 20 Hz — 20 kHz BPF
Crosstalk —80 dB or less, 1 kHz
Input 2 channels, +4 dB* (max. +24 dBx), 10 kQ, electronically—balanced,
removable terminal block (3P)
Output 6 channels, +4 dB* (max. +24 dBx), applicable load 600 Q or more,
electronically—balanced, removable terminal block (3P)
AD Converter 24 bits
DA Converter 24 bits
Preset Memory 16
Signal Processing Section
Equalizer /Filter Parametric equalizer: 20 Hz — 20 kHz, £15 dB, Q: 0.267 — 69.249
Filter:
High—pass filter: 20 Hz — 20 kHz, 6 dB/oct, 12 dB/oct
Low—pass filter: 20 Hz — 20 kHz, 6 dB/oct, 12 dB/oct
Notch filter: 20 Hz — 20 kHz, Q: 8.651 — 69.249
All-pass filter: 20 Hz — 20 kHz, Q: 0.267 — 69.249
High—shelving filter: 5 — 20 kHz, +15 dB
Low-shelving filter: 20 — 500 Hz, +15 dB
Horn equalizer: 20 kHz, 0 — 18 dB in 0.5 dB steps
Crossover 2 ways, 3 ways, 4 ways
Crossover filter: 20 Hz — 20 kHz, 6 dB/oct, 12 dB/oct, 18 dB/oct, 24 dB/oct,
—15 to +12 dB, polarity switchable
Delay: 0 — 170.656 ms in 0.01 ms steps
Compressor Threshold: —20 to +20 dB* in 1 dB steps
Ratio: 1:1, 1.1:1, 1.2:1, 1.3:1, 1.5:1, 1.7:1, 2:1, 2.3:1, 2.6:1, 3:1, 4:1, 7:1, 8:1, 10:1,
12:1, 20:1, 00:1
Attack time: 0.2 ms — 5 s
Release time: 10 ms — 5 s
Delay Delay time: 0 — 682.056 ms in 0.01 ms steps
Matrix 2 X 6
Crosspoint Gain —Co to 0 dB in 1 dB steps
Function Input PAD (-14 dB) control, analog output attenuator
(- to 0 dB in 1 dB steps) control, EQ characteristic library for TOA speakers,
input/output level indicator (4—point LED indicator), output MUTE switch X6
Control
Contact input 4 channels, open voltage: 5 V DC, short-circuit current: 5 mA,
removable terminal block (5 P),
control function: preset memory selection, volume control, and mute
Network Network 1/E: 1 channel of T0BASE-T/100BASE-TX (auto—negotiation)
RJ45 connector, connection via switching hub
Network protocol: TCP/IP
Connection cable: Shielded Cat. 5 or higher twisted pair cable for LAN
(Cat. 5-SIP or better)
Maximum cable length: 100 т (109.36 yd) (between DP—SPJ and switching hub)
Operating Temperature 0 °С to +40 °C (32 F to 104 +)
Operating Humidity 90 ZRH (no condensation)
Finish Panel: Aluminum, hairline, black, Case: Surface—treated steel plate
Dimensions 482 (W) X 44 (H) X 289 (D) mm (18.98" X 1.73" X 11.38")
Weight 3.1 kg (6.83 16)
Accessories Power supply cord ((2 m (6.56 ft)) X1, removable terminal plug (3P) X8,
removable terminal plug (5P) X1, rack mounting screw X4,
CD-ROM (containing setup software) XÍ
TOA Corporation DWG No: GDPOOJB1
A TOA DIGITAL SPEAKER PROCESSOR DP—SP3
SPECIFICATIONS (CE/CE- AU/CE-GB)
Personal Computer Requirements
Requirements CPU: Pentium 4, 1.0 GHz or faster
Memory: 1.0 GB or more
Display: 1024 X 708 resolution or higher
Free Hard Disk Space: 16 MB or more,
however 600 MB or more is required for the 32-bit version or
1.5 GB or more for the 64-bit version when
"NET Framework” is not yet installed
Optical Drive: CD-ROM drive
Network Adapter: 10BASE—T or faster connection
05 Windows 7 (32/64-bit edition)
Windows 10 (32/64-bit edition)
Required Component | NET Framework 4 Client Profile
X Windows is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
X Pentium is a trademark of Intel Corporation.
X Other company names and products are also trademarks of individual companies.
BAPPEARANCE
Rear View ,
- 422 [16.617]
le >
fo L | N
O 220-240V —— 50/6047 25% 23004 SE O
OUTPUTS [+4dBu]
LAN CE®
Y ==
ee» ==
SIGNAL GND SO-O
С
7
CE version
1
MADE IN JAPAN |
SIGNAL G
у N
O 220-240Y —_ 50Hz 25W 230mA Es CA O
O gg e— OUTPUTS [+4dBu] LAN С € O
> CD 4 3 2 CONTACT INPUTS
® ЕСН E C H ЕСН ЕСН ЕСН ЕСН ЕСН E C H L 1 © N29
== == Je Bo Bo ol Jos
0
— Г]
LINK FULL |
CE—AU version
A pi с OUTPUTS [+4dBu] INPUTS [+4dBu] LAN
© a= | EEE ENE O
el: 9 ==: — Je:
O ОО == | en | [o O
CE—GB version
г
y” -~
<
482 [18.98] =
==
465 [18.31] =
e >| —
| | ND
D Z4 TOA DIGITAL SPEAKER PROCESSOR DP-SP3 O YU" yo eres. eens. > o... - rn > = rene 5 5 cover D — 1
O O O O O OQ 00 fr=STATSe0 9.» 9 9 оке ° ° =
0009000000 rs о о © о e oo «wo o © 0 In
OO O О О O O О O О MPRESE 00000000 —————— Eeeccnno INPUTS sesssess 0 © © O 0000000000000 o 5 on... er OO EN
Front View —
= +
г ” CN
= 289 [11.38] S
— Led
a
+ 280.3 [11.04”] с
- -
|.
e ® |
Side View | ® |
1
CE— AU CE—GB
CE
AC plug EEE) ==) FE
TOA Corporation DWG No: GDPOOJC1—2
Version
UNIT: mm SCALE:1/3
