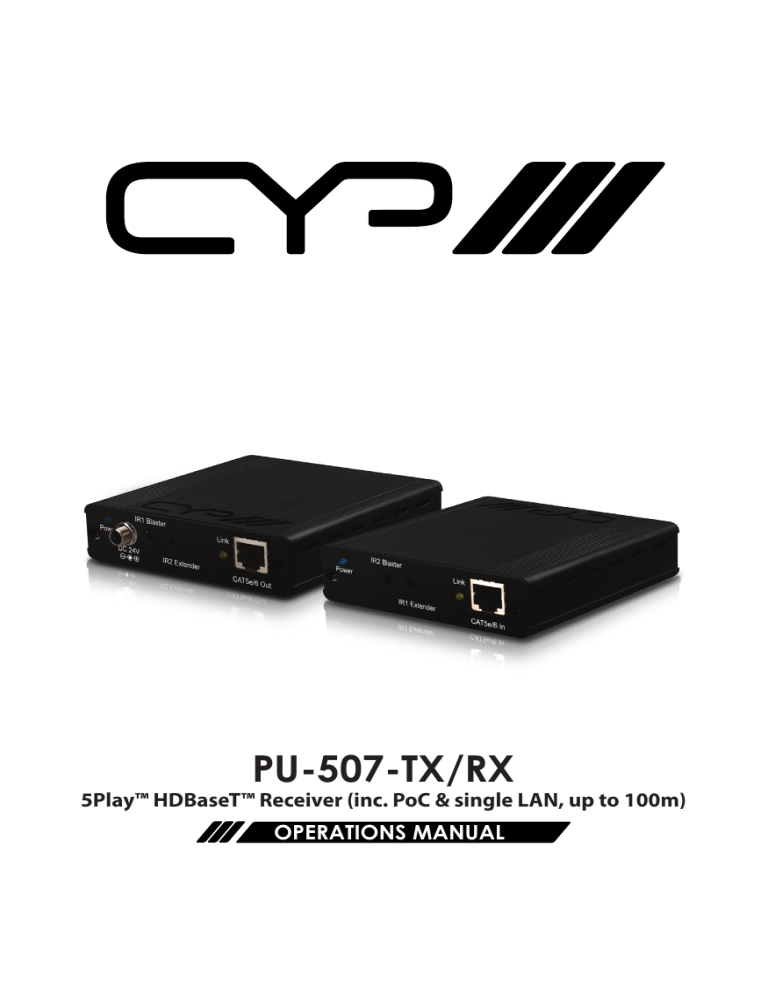

PU-507-TX/RX
5Play™ HDBaseT™ Receiver (inc. PoC & single LAN, up to 100m)
OPERATIONS MANUAL
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2019 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
•
Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
•
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
•
Never spill liquid of any kind on or into this product.
•
Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
•
Do not attach the power supply cabling to building surfaces.
•
Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
•
Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
•
To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE
SUMMARY OF CHANGE
VS1
29/02/12
First Release
VR2
02/03/12
PoC Support (Brand only)
VS3
23/03/12
Amended PoC function
Updated the connection diagram and
the specifications table
v1.01
20/09/13
Amended Link LED description
v1.02
08/10/13
Amended product description
v1.03
12/08/19
Update to Specifications
CONTENTS
1. Introduction�������������������������������������������6
2. Applications�������������������������������������������6
3. Package Contents����������������������������������6
4. System Requirements���������������������������6
5. Features��������������������������������������������������7
6. Operation Controls and Functions�������8
6.1 Transmitter Front and Rear Panels������� 8
6.2 Receiver Front and Rear Panels������������ 9
6.3 IR Cable Pin Assignment�����������������������10
6.4 RS-232 Cable Pin Definitions���������������10
7. Connection Diagram�������������������������� 11
8. Specifications�������������������������������������� 12
8.1 Technical Specifications������������������������12
8.2 Cable Specifications�������������������������������13
9. Acronyms��������������������������������������������� 14
1. INTRODUCTION
The HDMI over CAT5e/6/7 Transmitter and Receiver set can send uncompressed video/audio and IP data over an single run of CAT5e/6/7 cable
up to 100m at 1080p and 70m at 4K. It has the added benefit of control
through the built-in RS-232 pass-through and 2-way IR control and a LAN
serving connection. Additionally, it has Power over Cable (PoC) functionality that allows for greater flexibility in installations
2. APPLICATIONS
Household entertainment sharing and control
Lecture room display and control
Showroom display and control
Meeting room presentation and control
Classroom display and control
3. PACKAGE CONTENTS
Transmitter Package
1×HDMI to CAT5e/6 (with LAN/IR/RS-232) Transmitter
1×IR Blaster
1×IR Receiver
1×24 V/1.25 A DC Power Adaptor
Operation Manual
Receiver Package
1×CAT5e/6 to HDMI (with LAN/IR/RS-232) Receiver
1×IR Blaster
1×IR Receiver
Operation Manual
4. SYSTEM REQUIREMENTS
Input HDMI source equipment such as DVD/Blu-ray player and HDMI
equipped output display (TV or monitor).
6
5. FEATURES
HDMI 1.x and DVI 1.0 compliant
HDCP compliant
Supports HDMI 3D and 4K2K features
Supports HDCP repeater and CEC bypass
Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K
through CAT5e/6/7 cable
HDMI input resolutions up to [email protected] (YUV 4:2:0, 8-bit) or [email protected](
YUV 4:4:4, 8-bit)
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1,
and Bitstream over HDMI
HDBaseT™ convergence: uncompressed high-definition Video and Audio, LAN serving, Power over Cable (PoC) and IR/RS-232 Control passthrough
Installation friendly
Note:
1. This system was tested with CAT6/23AWG cables, results may vary with
cables of a different specification.
2. The PoC function is designed for powering compatible receiver units
only—non-PoC receivers will need their own power supply. Receivers of
another brand may not be compatible.
3. For playback of 4K2K HDMI source signals, a 4K2K capable display and
High Speed HDMI cables are required.
7
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter Front and Rear Panels
Front
Rear
RS-232 In
HDMI In
IR1 Blaster
Transmitter
DC 24V
LAN
1
Link
Power
2
3
4
5
IR2 Extender
6
7
CAT5e/6 Out
8
9
1 HDMI In: Connect to HDMI source equipment such as a DVD or Bluray player.
2 LAN: Connect to an internet or network connection.
3 RS-232 In: Connect to a PC or laptop with D-sub 9-pin male cable for
the transmission of RS-232 commands.
4 Power LED: This blue LED will illuminate when the transmitter is connected to a power supply.
5 DC 24V: Plug the 24 V DC power supply into the unit and connect the
adaptor to an AC outlet.
Note: Only the Transmitter unit needs to be powered and can power the
Receiver unit via PoC.
6 IR1 Blaster: Connect to the IR Blaster cable for IR signal transmission.
Place the IR blaster in direct line-of-sight of the equipment to be controlled.
7 IR2 Extender: Connect to the IR Extender cable for IR signal reception.
Ensure that remote being used is within the direct line-of-sight of the
IR extender.
8 Link LED: The yellow LED will illuminate when both the input and
output signals are connected.
9 CAT5e/6 Out: Connect to the receiver unit with an single CAT5e/6/7
cable for transmission of all data signals.
8
6.2 Receiver Front and Rear Panels
Front
RS-232 Out
HDMI Out
Rear
IR2 Blaster
Receiver
IR1 Extender
LAN
1
Link
Power
2
3
5
4
6
CAT5e/6 In
7
8
1 HDMI Out: Connect to a HDMI equipped TV/monitor for display of the
HDMI input source signal.
2 LAN: Connect to a PC or Laptop to the Internet or network connection.
3 RS-232 Out: Connect to the device that is to be controlled (via D-sub
9-pin female cable) by RS-232 commands.
4 Power LED: This blue LED will illuminate when the receiver is receiving a power supply via PoC from a compatible transmitter unit.
5 IR2 Blaster: Connect to the IR Blaster cable for IR signal transmission.
Place the IR blaster in direct line-of-sight of the equipment to be controlled.
6 IR1 Extender: Connect to the IR Extender cable for IR signal reception.
Ensure that remote being used is within the direct line-of-sight of the
IR extender.
7 Link LED: The yellow LED will illuminate when both the input and
output signals are connected.
8 CAT5e/6 In: Connect to the transmitter unit with an single CAT5e/6/7
cable for transmission of all data signals.
9
6.3 IR Cable Pin Assignment
IR Blaster
1
2
3
IR Extender
1
2
3
Power
IR Signal
NC
IR Signal
Power
Ground
6.4 RS-232 Cable Pin Definitions
10
PIN
ASSIGNMENT (TX/RX)
1
N/C
2
TxD / RxD
3
RxD / TxD
4
N/C
5
GND
6
N/C
7
N/C
8
N/C
9
N/C
7. CONNECTION DIAGRAM
Internet
Modem or
Router
DVD or Blu-ray Player
1.5m
HDMI
Input
RS-232 Equipped
PC or Notebook
LAN
Serving
1.5m
60°
RS-232
IR
Blaster
Power
Supply
RS-232 In
HDMI In
LAN
3m
7m
3m
IR1 Blaster
TX
Link
Power
DC 24V
Transmitter
HDMI to CAT5e/6 with LAN/IR/RS232
IR2 Extender
CAT5e/6 Out
60°
IR
Extender
Single
CAT5e/6/7
Cable
IR
Extender
60°
3m
7m
IR2 Blaster
3m
Link
Power
IR1 Extender
IR
Blaster
CAT5e/6 In
RS-232 Out
HDMI Out
LAN
Receiver
RX
CAT5e/6 to HDMI with LAN/IR/RS232
60°
1.5m
1.5m
HDMI
Output
RS-232
RS-232 Equipped
HDMI Switcher
LAN
Serving
TV or Monitor
Notebook
Note: Only the Transmitter unit needs to be powered
and can power the Receiver unit via PoC.
11
8. SPECIFICATIONS
8.1 Technical Specifications
Video Bandwidth
340 MHz/10.2 Gbps
Ethernet Speed
100 Mbps
Transmitter
Input Ports
1×HDMI, 1×LAN, 1×IR Extender,1×RS-232
Output Ports
1×CAT5e/6/7, 1×IR Blaster
Receiver
Input Ports
1×CAT5e/6/7, 1×IR Extender
Output Ports
1×HDMI, 1×LAN, 1× IR Blaster, 1×RS-232
IR Frequency
30 – 50kHz
(30 – 60kHz under ideal conditions)
Baud Rat
Up to 115200/sec
Power Supply
24 V/1.25 A DC (US/EU Standards, CE/FCC/UL
certified)
ESD Protection
Human Body Model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Dimensions
102 mm (W)×113 mm (D)×25 mm (H)/TX
102 mm (W)×107 mm (D)×25 mm (H)/RX
Weight
252 g/TX, 256 g/RX
Chassis Material
Aluminum
Silkscreen Colour
Silver
Operating Temperature 0 °C~40 °C / 32 °F~104 °F
Storage Temperature
−20 °C~60 °C / −4 °F~140 °F
Relative Humidity
20~90 % RH (non-condensing)
Power Consumption
13 W
12
8.2 Cable Specifications
1080p
4K30
4K60
8-bit
12-bit
(4:4:4)
8-bit
(4:2:0)
8-bit
HDMI Input
15m
10m
5m
5m
HDMI Output
15m
10m
5m
5m
Cable Length
High Speed HDMI Cable
Ethernet Cable
Cat.5e/6/7
100m
70m
1080p (FHD Video)
-- Up to [email protected], 12-bit colour
-- Data rates lower than 5.3Gbps or below 225MHz TMDS clock
4K30 (UHD Video)
-- [email protected]/25/30Hz & [email protected]/60Hz (4:2:0), 8-bit colour
-- Data rates higher than 5.3Gbps or above 225MHz TMDS clock but
below 10.2Gbps
13
9. ACRONYMS
ACRONYM
COMPLETE TERM
CAT5e
Category 5 Cable
CAT6
Category 6 Cable
CEC
Consumer Electronics Control
DVI
Digital Visual Interface
HDCP
High-bandwidth Digital Content Protection
HDMI
High Definition Multimedia Interface
IR
Infrared
CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton,
Middlesex, TW17 8BA
Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279
Email: [email protected]
www.cypeurope.com
v1.03
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
