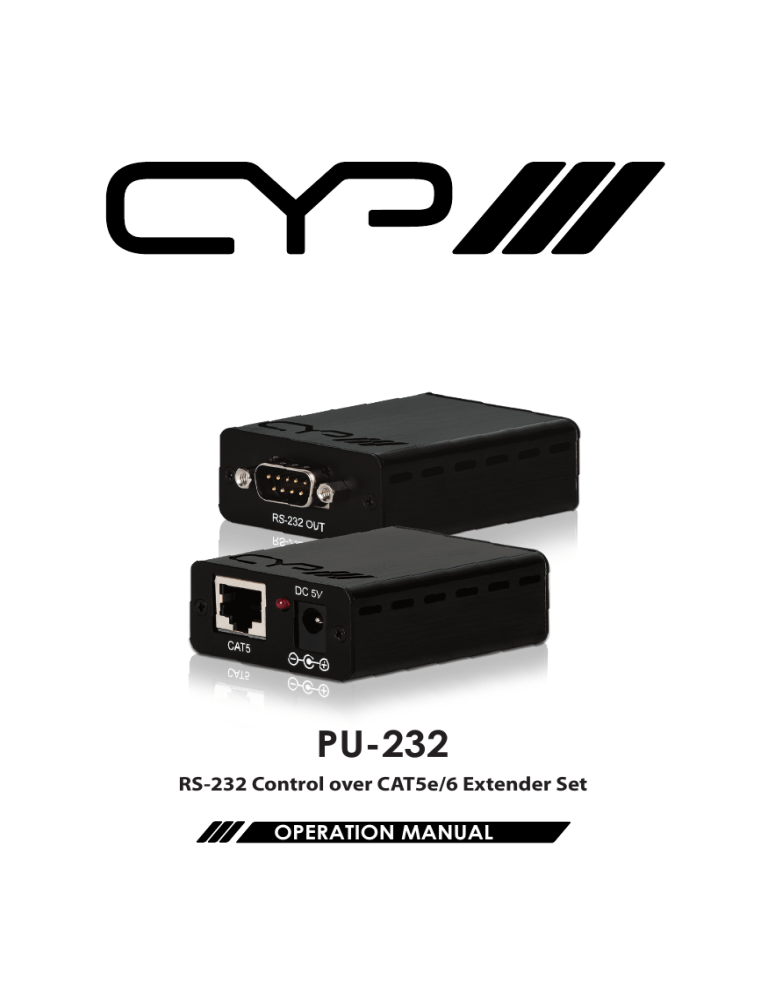

PU-232
RS-232 Control over CAT5e/6 Extender Set
OPERATION MANUAL
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2019 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
3
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
•
Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
•
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
•
Never spill liquid of any kind on or into this product.
•
Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
•
Do not attach the power supply cabling to building surfaces.
•
Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
•
Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
•
To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE
SUMMARY OF CHANGE
V2.00
Updated format/diagrams
4
11/07/2019
CONTENTS
1. Introduction�������������������������������������������6
2. Applications�������������������������������������������6
3. Package Contents����������������������������������6
4. System Requirements���������������������������6
5. Features��������������������������������������������������6
6.1 Transmitter Front and Rear Panels������� 7
6.2 Receiver Front and Rear Panels������������ 7
7. Connection Diagram�����������������������������8
8. Specifications�����������������������������������������9
8.1 Technical Specification���������������������������� 9
5
1. INTRODUCTION
T​ he CAT5/6 RS-232 extender is a hardware-based solution providing
control of any RS-232 protocol device. This transmitter and receiver set
will extend the control of RS-232 for over 250 metres. The RS-232 extender
also provides full duplex transmission and hardware handshake signals,
with no need for any set up or configuration.
2. APPLICATIONS
System installation.
Control RS-232 devices in a remote location.
System upgrading.
3. PACKAGE CONTENTS
PU-232 Transmitter.
PU-232 Receiver.
5V DC power adaptor.
Operation Manual.
4. SYSTEM REQUIREMENTS
Input PC/laptop equipment, DB 9 female to male cable x 2, CAT 5 cable
and output source device.
5. FEATURES
Extends any RS-232 compliant device up to 250 metres from the
source to display
Requires only one CAT5/6 cable
Perfect for digital signage applications
Baud Rate: 110~921600. Data bit: 8bit
Simple installation and operation
6
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter Front and Rear Panels
DC 5V
RS-232 IN
CAT5
1
2
3
1 RS-232 IN: Connect a PC/laptop‘s main control system with a DB 9
female to male cable in order to send protocol to the source device.
2 CAT5: Connect a CAT 5 cable (up to 250m) and link it to the Receiver
unit .
3 DC 5V: Connect the 5V DC power adaptor into the unit and plug the
adaptor into an AC outlet.
Note: Only one adaptor is needed for both the Transmitter and Receiver.
6.2 Receiver Front and Rear Panels
DC 5V
RS-232 OUT
CAT5
1
2
3
1 RS-232 OUT: Connect to the source device with a DB 9 male to female
cable for receiving and communicating with a PC/Laptop or RS-232
control system.
2 CAT5: Connect a CAT 5 cable (up to 250m) and link it to the
Transmitter unit.
3 DC 5V: Connect the 5V DC power adaptor into the unit and plug the
adaptor into an AC outlet.
Note: Only one power supply is needed for both Transmitter and Receiver
however, if operating at extreme distances then two power supplies may
be required.
7
7. CONNECTION DIAGRAM
Laptop or RS-232
Control System
RS-232
TX
RS-232 IN
DC 5V
CAT5
CAT5e Cable
DC 5V
CAT5
RX
RS-232 OUT
RS-232
RS-232 Device to be
controlled
8
PSU
8. SPECIFICATIONS
8.1 Technical Specification
Input Port
RS232 D-Sub-9 female
CAT 5
Output Port
RS232 D-Sub-9 male
CAT 5
Power Supply
5V/1A DC (US/EU standards, CE/FCC/UL
certified)
Dimensions (mm)
50(W) x 67(H) x 23(D) / each
Weight (g)
80 / each
Chassis Material
Aluminum
Silkscreen Colour
Silver
Operating Temperature 0˚C~40˚C
Power Consumption
0.5W(Max)
9
