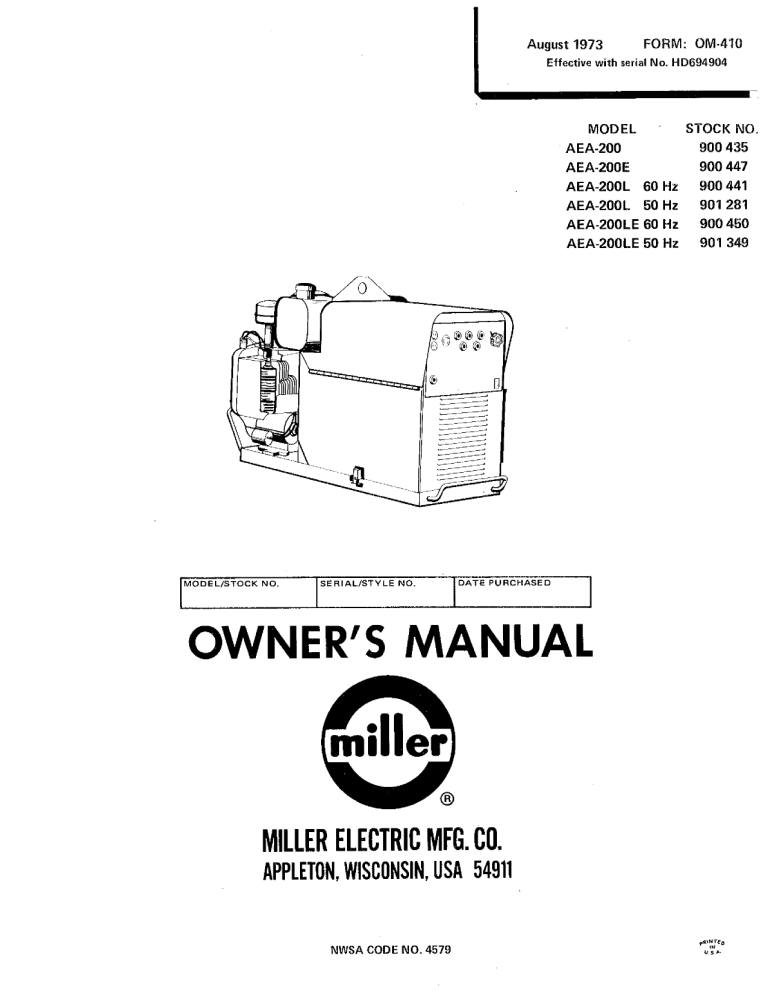

 August 1973 FORM: OM-410
Effective with serial No. HD694904
MODEL ~~ STOCK NO,
AEA-200 900 435
AEA-200E 900 447
AEA-200L 60 Hz 900441
AEA-200L 50 Hz 901281
AEA-200LE 60 Hz 900 450
AEA-200LE 50 Hz 901 349
MODEL/STOCK NO, SERIAL/STYLE NO. DATE PURCHASED
OWNER'S MANUAL
®
MILLER ELECTRIC MFG. CO.
APPLETON, WISCONSIN, USA 54911
NWSA CODE NO. 4579 CIN
ERRATA SHEET
After this manual was printed, refinements in equipment design occurred, This sheet lists exceptions to data appearing later in
this manual.
Effective with serial No. HD724125
item Dia. Part No. Listed Replaced With
No, Mkgs. In Parts List Part No, Description | Quantity
1 020018 032 239 WRAPPER ................. herr tasers eae 1
4 014 951 032 216 STRAP, mtg - tank ......... ee. 0. e. ss0arua:. asador. 1
D4 026 202 027 369 DIODE, Tamp 400 volt ........e_..ereovorenvorereoir: 1
41 7 036 485 036 451 REACTOR ......eennmecucorareranedrernarerranareno 1
BE SURE TO PROVIDE STOCK, MODEL, AND SERIAL NUMBERS WHEN ORDERING REPLACEMENT PARTS.
OM-410 Page À
CE TABLE OF CONTENTS TT Ан?
Paragraph No. Е Раде Мо.
SECTION 1 — SAFETY RULES FOR OPERATION OF ARC WELDING MACHINE
General .... воавиненевеененцуненунтатавевазайвье ena
Welding Cables .........oec0reencarrreeren ea RAA AAA |
Electrode Holder... ...... EN eee ans PE :
1.
2,
3.
4,
5.
6. Power DisconnectSwitch ............ ccc... eee eae |
7. Polarity Switch .............. . . ..ereradienxzarerarverconaracana
8. Range Switch. 1.120200 044 444 eee eee
9, Exhaust Gases Le A A 4 8 VA 4e dadraaaoadodeo€eaaaroaaarerarareraoa :
0.
1.
2,
3.
4.
Hollow Castings (Welding of) ............e ee eee enn
Explosion Hazards.. 11200444 44 28 4 44 4 4 4 4 ea 8 A 4 aa 4 4 a a a aan»
Ventilation .... 1220424 2 24 0 84 4e 0 da 4 4 4 a 4 4 ea a 4 a 4 4 Ra Ra A LL La aa na 5
5. Solvents. 112200000441 A a aa A LA Ra a aa a aa aa ana es
6. Fire Hazards ......r.eoeereacairearadrvea:reasaroonraorrrenacouan
7. Electrical Shock-Voltaye ......... e... 000000 0 e aa enónarco
8. Electrical Shock-Dampness .. 1212200444 04 ae aa ae ea ee a a a 4 a a a a a ea 00
9. Starting Under Load o.oo iit tees sees ere ea
1-20. Face Protection o.oo ote i ie eee RR ere ee
1-21. Eye Protection ..... oti ities teeta,
1-22. Clothing ......... e ie te te ee ee ea
1-23. Hot Metal Burns ... ttre A 444 4 ee a 4 ee a ae 4 8 aa eue 0
1-24, Grinding and Chipping 1.221200 2 2 044 24 a 4e a ee ed a a ae 0 a a 4 enna
1-25. Compressed Gas Cylinder 1.212000 4 441444 La i iii iit,
1-
1 -
1-
1-
1-
1 -
1 -
1 -
1 -
1
1-
1-
1-
1-
1-
1-
1-
1-
1-
1
1
1
1
1
1
1
1
1
1
ев ое А 0) 60 0 60 ©0 © 6) В ВО ВО В № = wd 5m wow
SECTION 2 — INTRODUCTION
2-1. General ,......._..reorecrrererveverecasrerera dad a eae
2-72. Recelving-Handling .......o_._e.eeseesesrorareenrerreasrererr donan
2-3, Description .......e er y aanerererearadvieresradeaoa
2-4
Safety 112244 122 44 4 4 2 4 donar ia, ena icanadroadordrraarearearce ros
‹л сло сл сл
SECTION 3 — INSTALLATION
3-1. Location RRR 6 6
3-2. Generator Chassis Ground ..........e e. 0 0 u00ndunovanodedrrrecorecoo 6
3-3. Welding Cables and Jack Plug Installations L...0120 0100 a a 0 a eu a a aa 0 a + 6
SECTION 4 — ENGINE PREPARATION
‚ Lubrication ... 11220000 44 4 4 6 a 4 0 4 4 8 aa 4 4 6 04 6 4 4 0 ee a 4 a a ea da Aa 00
ME 1 rnveraravaro0daoorearaverosarersvareon
. Readying New Battery For Service ................... aaa aaa
. Air Cleaner ..... es. n0neciarr radar riarererdaverarer0rodarar ea
E > >.
=> 60 К =
C0 го =
. Current Control... 1212444 4 44 4 4 6 84 4 4 4 4 4 6 KERN
. 115 Volts DC Receptacle o.oo. iii i ir iret errata arenes
115/230 Volt AC Controls ooo vv vt eee et eee eee
. 115 Volts AC Duplex Receptacle ................... eee eee
‚ 230 Volts AC Power Receptacle ....222 2040400000 0 6 4 a a 0 0 4 a 14 ea ae m0
. Voit-Ampere Curves .... 120244044648 88 4 48 8 4 4 4 4 ee ee
OT O1 O1 Qt O1 A
CN SS COA —
O 9 0 CO CO
Paragraph No.
SECTION 6 — FUNCTION OF ENGINE CONTROLS
6-1. Choke Contral........... da A A Ra 4 a 8 4 8 8 8 84 6e au 8 aa sa 0 aa 100 610 4
6 - 2. Throttle Control ..............e... a da da ee La ee La Ra da da»
6-3. Oil Pressure Gauge ........eeeon2ercareorsreaa rec ED
6 - 4. Starter Switch .......e.e.oro-o0raxcareveadrerearevadareraorr on .
SECTION 7 — SEQUENCE OF OPERATION
Starting the Engine .........e._evrerreoerarecarrererrrcac e AAA
Stopping the Engine .......coeeseereraorerar evo dador rervoo --
Shielded Metal-Arc Welding......202000 0000060 04 ee aa 4 1 ic ...
zi a]
’ I »
но ю
SECTION 8 — GENERATOR MAINTENANCE
8-1. General ...... ii se ca eee
8-2. Collector Ring Brushes ......_.._e_eaermevrsrairrarerra rans nas
8-3. Welding Cables ......._eeococandariarareaaareamarereearecr ea
SECTION 9 — ENGINE MAINTENANCE
. Lubrication ............... ea eee eee ae
. Cleaning the Engine ......._—.eoresarver»erecr rear. aucune
Spark Plugs LL er tre cra be aa aaa
Fuel Filter oo reer 1 a 1 a 1 aan 6
, Air Cleaner 2220000644 ea ne a 0 44 0 0 ee a a a ea aa aa 1 rarane vor wee
. Periodic Service ,... 212020100440 0e 50 0 4 a ea a a a 4 a ea ea 11 4 00 1 1 0000
{© © © © © ©
© ло фо 60 № —
SECTION 10 — GENERATOR TROUBLESHOOTING
SECTION 11 — ENGINE TROUBLESHOOTING
PARTS LIST
115 & 230 Voit AC Power Receptacle Operation .................... |
D {DO OO
10
10
10
10
10
10
10
11
11
11
11
11
11
== SECTION 1- SAFETY RULES FOR OPERATION OF ARC WELDING MA CHINE mate
1-1. GENERAL
These rules apply to ac and dc welding generators, ac trans-
former and ac/dc welding machines, and dc transformer racti-
fier welding machines,
In arc-welding operations, where electricatly energized parts
are exposed, observe the following safety rules to insure max-
imum personal safety and protect nearby persons.
Failure to observe these safety precautions may expose not
only you, but fellow workers as well, to serious injuries, Once
these rules are learned and kept in mind, proceed with maxi-
mum assurance,
1-2. WELDING CABLES
DON'T overload cables, (Figure 1-1)
Figure 1-1. Don’t overload cables
NEVER use welding cables at currents in excess of their rated
capacity. It will cause overheating and rapid deterioration of
the insulation. It is also uneconomical, |
DON'T use worn or poorly connected cables. (Figure 1-2}
Figure 1-2. Don’t use worn or poorly connected cables
Inspect the cables frequently. Immediately repair all breaks
in the insulation with rubber and friction tapes. Tighten all
cable connections and adequately insulate any joints where a
connector may have an exposed conductive part. In addition
to the potential hazard to life, a hazard occurs when exposed
sections of cable come in contact with grounded metailic
objects, causing an arc, Unprotected eyes may be injured and
fire may result if combustible materials such as ail or grease
are in the vicinity, The efficiency and quality of welding will
be improved by elimination of these dangerous grounds, and
by keeping connections tight,
1-3. ELECTRODE HOLDER
DON'T use electrode holders with defective jaws. {Figure
1-3)
Keep the jaws of the electrode holder tight and the gripping
surfaces in good condition to provide close contact with the
electrodes, Defective jaws will permit the electrode to wob-
ble, making control of the welding operations difficult.
Figure 1-3. Don’t use Electrode Holder with defective jaws
DON'T use electrode holder with loose cablé connections.
Keep the connections of the electrode lead to the holder
tight at all times,
Use only fully insulated electrode holders (and without pro-
truding screwheads.)
Never touch two electrode holders from two separate welding
machines at the same time.
. CODE CONFORMANCE
The machine and its equipment must be installed and main-
tained in accordance with the National Electrical Code and
local requirements.
. PARALLEL CONNECTIONS
See diagrams in the instruction manual applying to the weld-
ing machine used.
. POWER DISCONNECT SWITCH
If the welding machine does not include a power disconnect
switch, install one at or near the machine.
. POLARITY SWITCH
DON'T operate the polarity switch under load.
The polarity switch (when supplied) is provided far changing
the electrode lead from positive (reverse polarity) to negative
{straight polarity). Never move it while under the load of a
welding current, Operate this switch only while the machine
is idling and the welding circuit is open. The potential dan-
gers of opening the circuit while carrying high current are:
1. An arc will form between the contact surfaces of the
switch and severely burn them,
2. The person throwing the switch may receive a severe burn
from this arcing.
. RANGE SWITCH
DON'T operate the range switch under load.
The range switch {when supplied} is provided for obtaining
required current settings, It must never be operated while the
machine is under the load of welding current. Operate the
range switch only while the machine is idling and the welding
circuit is open. The potential danger of switching the circuit
while carrying high current is the formation of an arc be-
tween the contact surface which will severely burn them,
Repeated occurrences of this arcing will eventually prevent
operation of the contacts,
. EXHAUST GASES
DON'T use gas engine units in confined spaces without vent-
ing the exhaust gases, (Figure 1-4)
H gasoline or other fuel driven welding machines are operated
indoors, provide means to pipe the exhaust gases to the out-
side air to avoid carbon monoxide poisoning.
OM-410 Page 1
Figure 1-4, Vent exhaust gases
1-10. POWER CIRCUIT GROUND
DON'F use welding machine without grounding frame or
case, (Figure 1-5)
1-11.
Page 2
Figure 1-5. Ground frame or case
Ground the ground cable of every power circuit to prevent
accidental shock by stray current. The potential danger is
that development of a stray current may give a fatal shock
should a person, for example, place one hand on the welding
machine and the other on the switch box, or other grounded
equipment. Do not ground to pipelines carrying gases or
flammable liquids and conduits carrying electrical conduc-
tors. Be sure conductors can safely carry the ground current.
When connecting the welding machine, properly ground the
machine frame or case.
CONTAINERS WHICH HELD COMBUSTIBLES
DON'T weld on containers which have held combustible or
flammable materials or materials which, when heated, give
off flammable or toxic vapors without proper cleaning, purg-
ing, or inerting.
Welding containers which have held flammable or combust-
ible materials may be extremely dangerous. To prevent a fire
or explosion of the container, follow the recommendations
of the American Welding Society Pamphlet A6.0 "Welding or
Cutting Containers Which Have Held Combustibles”,
DON'T depend on your eyes or nose to decide if it is safe to
weld on a closed container,
Find out what was in the container or use an explosimeter. A
very small amount of residual flammable gas or liquid can
cause a serious explosion.
NEVER use oxygen to ventilate a container.
When you know the container held a gas or нача which will
readily dissolve in water:
t. Flush out with water several times and then fill with
water as far as work permits, positioning container to
permit introduction of as much water as possible.
2. Before welding be sure there is a vent or opening to pro-
vide for release of air pressure,
1-12.
- When you know the: container held a gas or liquid which will
not readily dissolve in water:
1. Clean out thouroughly vith steam or a cleansing agent
and purge all air or inert with a gas such as carbon dioxide
Or nitrogen before repairing, Carbon dioxide is heavier
than air and will tend to remain in the container if the
opening is at the top,
2, Use steam to clean out light material,
3, Use a strong caustic soda solution to clean out heavy oils
or grease,
4. Be sure to purge all air or inert with a gas, such as nitro-
gen or carbon dioxide, no matter how well you have
cleaned, There may still be traces of oil, grease, or other
readily oxidizable material under the seams.
Be careful when cleaning witn steam or caustic soda wear
goggles and gloves.
DON'T clean where there is poor ventilation,
Ventilation is necessary to carry away harmful or explosive
vapors,
DON’T clean where there are open flames,
When scraping or hammering to remove heavy sludge or scale,
use a spark resistive tool and keep it wet to avoid sparks.
Keep your head and arms as far away from your work as
possible,
HOLLOW CASTINGS
DON'T weld on hollow {cored} castings that have not been
properly vented. The casting may explode, {Figure 1-6}
Figure 1-6. Don't weld on hollow (cored) castings
1-13. EXPLOSION HAZARDS
1-14
NEVER weld in or near explosive atmospheres. Such atmos-
pheres can be created by flammable gas leaks or by vapors
from fiammable liquids (gasoline, alcohol, etc.) or by com-
bustible dusts,
. VENTILATION
DON'T weld in confined spaces without adequate ventilation.
When welding in confined spaces, provide ventilation in
accordance with United States of American Standard 249.1,
1967. Always provide adequate ventilation by blowers, air
lines, or other acceptable means. Never use compressed ox-
yvgen. The depletion of the oxygen supply, the heat of weld-
ing, and the fumes given off may cause severe discomfort or a
serious illness,
When toxic fumes from lead or cadmium bearing materials or
any other substances are present in harmful concentrations,
always use an air supplied respirator.
1-15.
1-16.
1-17.
1-18.
SOLVENTS
Do not weld where chiorinated hydrocarbon vapors from de-
greasing, cleaning, or spraying may reach or ba drawn into air
surrounding the walding operation. The heat of the arc can
decompose solvent vapors to form phosgene, a highly toxic
gas and other irritating decomposition products,
Do not weld where ultraviolet light from the electric arc can
penetrate air containing even minute amounts of vapors from
solvents such as trichloroethylene or perchloroethytene, Ul-
traviolet light can decompose the vapors to form phosgene, a
highly toxic gas and other irritating products.
FIRE HAZARDS
DON'T weld near flammable or combustible materials.
Fires can be caused by the arc, by contact with the heated
metal, by slag, or sparks. Keep combustibles at least 35 feet
from the arc or suitably protected, If welding must be done
in a particular area, move the combustibles away. If they
cannot be moved, cover them completely with fire resistive
screens. Cover cracks or openings in floors or walls; sweep
floor free of combustibles and wet down, if wood, being sure
welder wears insulation shoe coverings. Avoid welding on par-
tition walls in contact with combustibles. Heated metal on
the other side of partition wall baing welded upon can ignite
combustibles in contact with the partition. Where other than
a minor fire might develop, have a fire watcher stand-by with
suitable fire extinguishing equipment for at least one-half
hour after the welding is completed.
ELECTRICAL SHOCK-VOL TAGE
OPEN power circuits before checking machines,
Before working on the wiring, switches, controls, étc., open
the power line disconnect switch. In most welding shops the
power supply used for arc welding machines is 230 or 460
volts, Open circuit voltages are usually tess than 100 volts and
welding or arc voltage drops are still tower. However, alt of
these voltages are capable of developing a harmful or fatal
current to the body.
DON'T touch electrically “hot” parts,
NEVER touch any exposed or non-insulated part of the
cables, cable connectors, clamps, electrode holders, elac-
trodes, or the power supply equipment to prevent harmful or
fatal electric shock or burns.
ELECTRICAL SHOCK-DAMPNESS
NEVER work in a damp area without suitable insulation a-
gainst shock. Keep hands, feet, and clothing dry at all times.
To prevent harmful body shocks, keep hands, feet and cloth-
ing dry. Never stand or lie in puddles of water, damp ground,
or against grounded metal when welding without suitable in-
sulation against shock. Always find a dry board or rubber
mat to stand on when water, moisture, or perspiration cannot
be avoided, Dampness between the body and an energized or
grounded metallic part lowers the resistance to the passage of
current to the body which may produce a harmful or fatal
shock, Salt in perspiration or sea water dangerously lowers
contact resistances,
Figure 1-7. Don't leave electrode in contact with grounded
metallic surface.
1-19. STARTING UNDER LOAD
DON'T leave an uninsulated electrode holder, or a “live”
1-20.
1-21.
ve
electrode on the table top or in contact with a grounded
metallic surface, {Figure 1-7}
When it is not in use, never place an electrode holder in
contact with the tabletop or other metallic surface in contact
with welding ground, Provide an insulated hook or holder for
the electrode holder. A potential danger is that a holder in
contact with the ground circuit provides a dead short circuit
on the welding machine. 1f the machine should be started up,
this short circuit would cause an excessive load on the ma-
chine and may damage the insulation.
FACE PROTECTION
DON'T use cracked or defective helmets or shields,
Keep the helmet, hand shields, or face shield in good condi-
tion. If cracks occur in the fibre material, replace the shield,
since the leakage of arc rays may cause serious burns.
EYE PROTECTION
NEVER under any circumstances, look at an electric arc
without eye protection.
-- |
Lo
Figure 1-8. Use eye protection at all times
Make sure that flash goggles are used under the weld-
ing helmet at all times, particularly while gas shielded-
arc welding.
in some type of arc welding, such as gas shielded-arc welding,
ultra-violet and infra-red radiation from the arc is particularly
intense and requires constant attention to avoid arc flashes to
the welder when striking an arc and to avoid exposure to
other welders, | |
NEVER strike an arc without ascertaining that nearby per-
sons either have the necessary protective equipment or are
looking in the opposite direction,
For welding operations in open areas, provide portable 7non-
reflecting screens to shield persons nearby from the rays of
the arc. Eye burns from the arc, through not generally per-
manent injuries, are exceedingly painful. Such burns fre-
quently referred to as flashes’, feel like hot sand in the eye.
If the eye is focused on the arc without filter-glass protec-
tion, infra-red radiation can cause retinal scarring and im-
paired vision. For eye burns consult your first aid station or
doctor.
NEVER use cracked, ill-fitting, or defective plates.
The filter glass plate provided in the helmets and shields must
be of reputable manufacture conforming to the latest Ameri-
can National Standards Institute, Standard 22.1. Replace
cracked or ill-hiting filter plates promptly.
NEVER use filter plates without a protecting cover glass,
OM-410 Page 3
1-22.
Keep a clean cover glass in front of the filter plate for the
protection thereof. Frequent renewal of these cover glasses is
necessary, since they become covered with spatter, reducing
vision.
CLOTHING
NEVER use poor, inadequate, or worn-out clothing. Wear
heavy shoes, tightly laced, Keep clothing dry.
. Proper and dry, oil-free clothing is essential for the weider's
1-23.
protection. Clothing must not only keep off the spatter and
molten particles, but must also cbstruct the rays of the arc
and, when necessary, insulate the body from harmful electri-
cal currents.
Wear [eather or asbestos gloves at all times to protect the
hands and wrists, Dark colored shirts are preferred to light
ones because light ones reflect arc rays to exposad parts of
the body. In the case of gas shielded-arc welding, light colors
are more reflective and may cause eve burns due to the in-
tense ultra-violet rays given off by the process, Avoid cotton
fabrics when gas shielded -arc welding, |
An arc burn on the skin resembles a sunburn, except that it is
usually more severe. Clothing can be made flame resistant by
treatment with a solution of 3/4 pound of sodium stannate in
1 gallon of water, then wrung out and dipped in a solution of
1/4 pound ammonium sulphate per gallon of water. Don’t
wash clothing so prepared in water, but dry clean.
When welding operations are to be performed in vertical and
overhead positions, leather sleevelets, aprons, and in some
cases leggings and ear plugs should be usad to prevent severe
burns from spatter and molten metal.
HOT METAL BURNS
NEVER pick up hot objects. (Figure 1-9)
Figure 1-9. Never pick up hot objects
NEVER pick up pieces of metal which have just been welded
or heated, or the stub ends of electrodes which have heen
discarded.
1-24. GRINDING AND CHIPPING
NEVER do any chipping or grinding without protective
goggles. (Figure 1-10)
Figure 1-10. Never do any chipping or grinding without
protective goggles.
Page 4
Whenever it is necessary 10 grind or chip metal, wear protec
tive goggles specifically designed for this purpose. Serious eye
Injuries may result from failure to wear protective goggles.
1-25. COMPRESSED GAS CYLINDERS
NEVER strike an arc on a compressed gas cylinder. Always
observe the following precautions in regards to compressed
gas cylinders:
~~ 1. Avoid accidental contact of the electrodes, electrode
- holder, or other electrically energized parts with a
compressed gas cylinder or any other pressure vessel.
Serious accidents or fires may result,
2. Use I.C.C, or D.O.T. cylinders. They are manufactured
and maintained in accordance with D.O.T, require-
ments and are safe so long as they are properly
handied. Don’t drop cylinders.
3, - identify gas content by the name marked on the cylin-
der, If the cylinder is unmarked, do not use it. Return
it to the supplier, Do not rely on a color code.
4. Never use a cylinder or its contents for other than
intended purposes.
5. Keep oil and grease away from oxygen cylinders and
cylinder valves, |
6. Keep cylinders away from exposure to sparks, hot
slag, open flame and all possible sources of ignition or
excessive heat,
7. - Be careful that cylinders are not placed so as to be-
come a part of an electrical circuit. Avoid third rails,
wires and electric welding circuits,
8. When transporting cylinders by crane, use cradle plat-
form or other suitable support,
9. Never lift the cylinders by slings, by the caps or by
electric magnets,
10. Never use cylinders as supports or rollers.
11. Never try to mix any gasas in a cylinder.
12. Never try to refill a cylinder,
13, Mark or tag empty cylinders “Empty” or “MT”.
14, Send “Emptys” back to the supplier promptiy. 15,
15. Keep "Emptys” and “Fulils” separate.
16. Never tampar with or alter cylinder numbers or other
markings. This is not only foolish but may be illegal.
17. Do not tamper with or change fittings on cylinders.
18. If valves cannot be opened by hand, do not use ham-
mer or wrench, Notify supplier.
19. Protect cylinder valves from bumps, falls, falling ob-
jects, and from weather, Keep them covered with
cylinder caps when moving cylinders,
20. Keep valves closed on empty cylinders,
21. See that your cylinders are clear of passageways and
active work areas and that they are secured against
falling,
22. If adapter is required between cylinder and regulator,
always use a standard adapter. These may be obtained
from your supplier. Where right and left hand threads
are used on adapter, use two wrenches to insure leak
proof connections.
23. Do not store cylinders in unventilated areas,
SECTION 2 - INTRODUCTION mm
"ELECTRIC START MODELS ONLY
**POWER PLANT MODELS ONLY
2-1.
2-3.
115 VOLT DC
RECEPTACLE |
CURRENT
CONTROL
EXCITER
REVOLVING |
FIELDS
BATTERY*
4 sTATOR |
CHARGE
WINDING* Y
Rated Amperes | Welding | Open Weight
— 9 100% Rating | Circuit Current Dimensions (Pounds
Model Duty Cycle | Amperes| Voltage | Adjustment Power | (Inches) Net { Ship
Welding Generator Only 1 kva 115 Height - 26-1/2" | 470 | 520
Welding Generator With , Volt DC Width - 20-1/2"
Electric Start NN anges Power While Welding | Depth - 39" 515 | 565
im =
| : 1 kva 115
Welding Generator With Adjustments In |
225 AC 30 - 250 | 80 Each R Volt DC : | 475 | 525
Power Plant ach Mange Power While Welding Height - 26-1/2"
7 —_——— Width - 20-1/2
Welding Generator 5 kva* Depth - 39”
With Power Plant & 115/230 Volt - 530 | 570
Electric Start 60 Hz AC Power
*4 kva on 50 Hz Models , ‚ I
Figure 2-1. Specifications TA-900 468-1
115/230 VOLT
AC RECEPTACLES **
AC WELDING
CONNECTIONS
POWER-WELE E
SWITCH**
— TAPPED
REACTOR
Figure 2-2. Black Diagram
GENERAL
This manual has been prepared especially for use in familiar:
izing personnel with the design, installation, operation, main-
tenance, and troubleshooting of this equipment. All informa-
tion presented herein should be given careful consideration to
assure optimum performance of this equipment,
RECEIVING-HANDLING
Prior to installing this equipment, clean all packing material
fromm around the unit and carefully inspect for any damage
that may have occurred during shipment. Any claims for loss
or damage that may have occurred in transit must be filed by
the purchaser with the carrier. A copy of the bill of lading
and freight hill will be furnished by the carrier on request if
occasion to file claim arises.
When requesting information concerning this equipment, it is
essential that Model Designation and/or Stock Number and
Serial lor Style) Number of the equipment be supplied,
DESCRIPTION
This engine driven welding generator is designed to be used as
the power source for the ac Shielded Metal-Arc Welding pro-
cess. From 30 to 250 amperes of ac weld current may be
obtained by means of the five coarse range receptacles and
the Fine Current Control,
In addition to welding capability, all models are equipped
with a two prong receptacle through which up to 1 kva of
115 volts de electrical power can be obtained while welding,
Power plant models are equipped to provide 5 kva of
115/230 volt ac electrical power when operating at power
r.p.m.
24.
SAFETY
Before the equipment is put into operation, the safety sec-
tion at the front of this manual should be read completely,
This will help avoid possible injury due ta misuse or improper
welding applications.
The following definitions apply to CAUTION, IMPORTANT,
and NOTE blocks found throughout this manual:
Installation, operating, and maintenance procedures,
practices, etc., which will result in personnel injury or
loss of life if not carefully followed.
IMPORTANT
Installation, operating, and maintenance procedures,
practices, etc., which will result in damage to equip-
i ment. I
NOTE
Installation, operating, and maintenance procedures,
practices, etc., which it is essential to emphasize.
OM-410 Page 5
3-1.
3-2.
EQUIPMENT
GROUNDING
LOCATION
A good installation is essential if this welding generator is to
provide satisfactory and dependable service. Tilting not to
exceed 15 degrees in any direction is considered standard
industrial specification.
‘Mounting holes are provided in the welding generator base
for installations which require fixed mountings. Figure 3-1
gives base mounting hole and overall unit dimensions.
A lifting eye is provided on top of the unit for moving pur-
poses.
CAUTION -
If this unit is to be operated indoors, it should be
located in a place where the engine exhaust fumes can
be vented out of the building. Failure to comply with
this recommendation may result in serious bodily in-
jury or loss of life,
31-5/87 = ай
ms —
1 7-1/2"
39 23-172"
—
TB-900 435-2
Figure 3-1. Dimensional Drawing
GENERATOR CHASSIS GROUND (Figure 3-2)
Normally engine driven welding generators are not required
to be grounded, However, this machine has auxiliary power
plant capability, therefore, grounding of the frame and case is
recommended. For this reason a convenient grounding ter
minal is provided on all welder/power plant units. For de-
tailed grounding instructions consult your local or state codes
or the latest issue of the National Electrical Code,
TERMINAL
Page 6
TB-200 435-3
Figure 3-2, Chassis Ground
3-3. WELDING CABLES AND JACK PLUG INSTAL-
LATIONS В |
Use Table 3-1 as a guide for selecting correct cable size for
the anticipated maximum weld current which will be used.
Table 3-1 takes into account total cable length, which means
the length given in the table includes the electrode and work
cable. Example: If the electrode holder cable is 75 feet (23
meters) long and work cable 25 feet (8 meters) long, you
would select the size cable thatis recommended for 100 feet
(31 meters) at the maximum weld current y ou will be using.
Table 3-1. Welding Cable Sizes
WELDING | “TOTAL LENGTH OF CABLE (COPPER) IN WELD CIRCUIT
AMPERES | "50 [100 (150 |} 200 | 250 | 300 | 350 | 400
100 | 4 4 | 2 2 2 1 10 | 10
150 7 i 2 | 2 0 1/6 2/0 3/09. 3/0
200 1 la | 1 | w0 | 2% | 30 : 40 lam
250 to |! 1/0 10 | 2/0 | 3/0 : 4/0. ! 4/0! 2.2/0
AA-S01 181.10
NOTE: "A, 50 FEET OR LESS
*8. CABLE SIZE |S BASED ON DIRECT CURRENT (DC), 100% DUTY
CYCLE AND EITHER A 4 VOLTS OR LESS DROP OR A CURRENT
DENSITY OF NOT OVER 300 CIRCULAR MILS PER AMP.
AFC, WELD CABLE INSULATION WITH A VOLTAGE RATING TO
WITHSTAND THE OPEN CIRCUIT VOLTAGE (OCY) OF THE
. WELDING POWER GENERATOR MUST BE USED. WHILE MOST
WELDING POWER GENERATORS HAVE AN OPEN CIRCUIT
VOLTAGE OR LESS THAN 100 VOLTS, SOME WELDING POWER
GENERATORS OF SPECIAL DESIGN MAY HAVE HIGHER OPEN
CIRCUIT VOLTAGE. ; -
Two jack plugs are furnished with this unit. Follow instruc-
tions carefully for proper installation of the jack plugs to the
welding cables. See Table 3-1 for proper welding cable size.
Standard jack plugs furnished with the unit will accom-
madate cable ranging from Size 6 to Size 1.
tT. Clamp the welding cable in a vise with the uninsulated
end protruding upward out of the vise approximately
1-3/4 inches {45 mm}.
2. Place the steel tie wire {See A Figure 3-3) approxi-
mately 1/4 inch (6.4 mm) from the end of the insula-
tion,
3. Make a half turn around the cable bringing the looped
ends of the tie wire togethe г.
4. Insert a rod of approximately 3/8 inch {10 mm) dia-
meter through the two looped ends of the tie wire,
5, Twist the tie wire (B} until the entire tie wire is
twisted and is tight around the insulation of the weld-
ing cable,
—
TA-901 024-4
Figure 3-3. Jack Plug Installation
——————— SECTION 4 - ENGINE PREPARATION
6. Clip off the looped ends of the tie wire.
7. Bend the twisted tie wire over along the side (C) of the
uninsulated partion of the welding cable,
8. Wrap the strip of copper foil tightly around the unin-
culated end of the welding cable and the twisted tie
wire (D
‚9. Place the jack plug on the end of the welding cable
and push it onto the welding cable over the copper
со! {Е},
10. Insert the 1/4-20 set screws into the center and upper
holes in the jack plug and tighten.
11. Remove the welding cable from the vise and insert the
jack plug into the fiber sleave. Slide the fiber sleeve
over the jack plug and welding cable until the hole in
the fiber sleeve lines up with the 1/4 inch (6.6 mm)
hole in the jack plug.
12. Insert the 1/4 inch {6.4 mm) self tapping screw
through the hole in the fiber sleeve into the jack plug.
Tighten the screw with a screw driver.
ETI
See the Engine Manufacturer's manual for complete
| engine care. 5
LUBRICATION
This engine was shipped from the factory with its crankcase
filled with the correct amount and type of break-in oil unless
otherwise ordered. Check the cil level before attempting to
operate the engine. it should be up to the full mark on the
bayonet type indicator. Add a quality brand of detergent oil
if the oil level is low. See the oil selection chart, Table 9-1 in
Section 9,
IMPORTANT
New engines have very close clearance between their
moving parts. Thus, itis recommended that loading of
the engine be kept to a minimum during the first 10
hours of operation. Be sure to check the oil level
several times each day during the engine break-in per-
jod. This engine requires about 10 hours of running
time before it will be fully broken in.
After about 10 hours of running time, drain the break-in oil.
See the oil selection chart, Table 8-1, in Section 9 for correct
oil type and grade to use after the break-in cil is drained.
KEEP QL =
AT THIS LEVEL
NEVER OPERATE
ENGINE WITH OIL
BELOW THIS LEVEL —---- ч
_ TA-900 435-8
Figure 4-1, Oil Level Indicator
4-2. FUEL
IMPORTANT
Do not mix oil with the gasoline,
Pa — rl
Use a good grade of “regular” gasoline, rated at least at Bb
octane, for this engine. Fuels of lower octane ratings may
cause detonations (knocking) which could result in damage
to the engine bearings and head gasket, The fuel capacity of
the fuel tank is 3.8 gallons (U.S, Measurel,
4-3.
Never allow the fuel to drain on the engine, the gener-
ator, or other components. Arrange provisions for
catching the fue! when being drained and if the tank
must be drained frequently, install a valve and drain
line in the tank, When filling the fuel tank, do not fill
completely full. The reason being that the cold fuel
will expand due to engine heat and the outside air
when operating in a warm climate. If the tank is too
full, it will overflow causing a potential fire hazard,
Also, do not attempt to fill the fuel tank with the
engine running, always shut: the > engine down first,
READYING NEW BATTERY FOR SERVICE (Elec-
tric Start Models Only)
This battery is shipped from the factory in a dry state. À
sufficient amount of electrolyte is shipped along in separate
containers to activate the dry charge battery, To prepare the
new battery for operation, proceed | as follows:
Put on protective eye cover and clothing prior to
pouring the electrolyte solution.
1, Remove the battery from the unit and place it on a level
‘work table or other suitable area,
2. Fill the battery cells to the required level with electrolyte,
Do not dilute this electroly te : as it is pre- -mixed - to the
y required strength,
3. Place a battery thermometer in one of the center cells and
check the specific gravity of each cell with a battery
hydrometer.
4. The battery temperature must be above 8C9F and the
specific gravity reading above 1.240 prior to installation.
If both conditions are not met, charge the battery follow-
ing the below instructions:
a. Use an automotive type battery charger. This battery
should be charged at about a 3.5 ampere rate until
correct electrolyte conditions are met, Lower charging
rates can be used, however, the time to obtain the
correct electrolyte conditions will be longer.
b. When the battery is charged, remove it from the
charger and re-check the electrolyte level. Add if
necessary.
c. Rinse out the empty electrolyte containers with water
before discarding. Sincer battery acid is corrosive to
metals, do not pour into a metal sink ‘or drain. Rinse
and mutilaté the empty electrolyte container before
discarding. If acid has accidentally spilled on the bat-
tery or work. area during filling or charging, flúsh and
OM-410 Page 7
44. AIR CLEANER
“115 VOLT AC
mutilate the empty electrolyte container before dis-
carding. If acid has accidentally spilled on the battery
or work area during filling or charging, flush off with
clear water and neutralize with soda or ammonia solu-
tion, Use the same procedure if acid is spilled on cloth-
ing.
factory dry. The air cleaner must be filled to the oil level line
with the same type of oil which is used in the crankcase,
| FILL WITH OIL TO
5. Re-install the battery in the unit making sure that the THIS LEVEL
negative (—) terminal of the battery is connected to the
ground cable,
IMPORTANT
Do not attempt to operate the engine without the
battery connected. Also, do not attempt to remove
the battery while the engine is running.
x rer tre
TA-900 435-9
The oil bath air cleaner on this engine is shipped from the Figure 4-2. Air Cleaner Oil Level
SECTION 5 - FUNCTION OF GENERATOR CONTROLS
*115/230 VOLTS AC ELECTRODE
RECEPTACLE COARSE
CURRENT
RANGE
RECEPTACLES
RECEPTACLES | FINÉ
CURRENT CONTROL
© .
o 115 VOLTS DC
RECEPTACLE
WORK
RECEPTACLE
*POWER PLANT MODELS ONLY
Page 8
TA-900 435-4
Figure 5-1. Generator Control Panel
CURRENT CONTROL (Figure 5-1)
Electrode And Work Receptacles
This welding generator is equipped with five Electrode recep-
tacles and one Work receptacle. The five Electrode recep-
tacles provide five ac welding coarse amperage ranges. To
select the amperage range desired, insert the electrode cable
jack plug into the desired Electrode receptacle, The work
cable jack plug must be inserted into the Work receptacle and
the opposite end connected to the workpiece,
Fine Current Control
The Fine Current Control permits selection of the exact
5-2.
The scale which surrounds the Fine Current Control is cali-
brated in increments of ten from 0 to 100 percent. Due to
this percentage calibration, it should be noted that if the
operator is using this scale to select a fine amperage setting,
the operator is selecting a percentage of the coarse range in
use and not an actual amperage value,
115 VOLTS DC RECEPTACLE (Figure 5-1)
A straight 2 wire receptacle, located on the upper front
panel, is provided as a junction point for connecting acces-
sory equipment that requires 116 volts de for operation. The
115 VOLTS DC Receptacle rated output is 1 kva,
amount of weld current desired within the range being used, 5-3. 115/230 VOLT AC CONTROLS (Power Plant Models
As the Fine Current Control is rotated in a clockwise direc- Only} |
tion, weld current will increase. .
A. Weld/Power Changeover Switch
When utilizing the 115/230 volt ac receptacies on
power plant models, the Fine Current Control must be
I set at the 100 (maximum) position. I
A Weid/Power Changeover Switch, located behind the left
access panel, is provided for selecting either weld amperage or
power plant operation,
When welding is to be performed the switch must be in the
WELD position. When the 115 or 230 volt a receptacles are
to be used, the switch must be in the POWER position.
54.
5-6.
sq VOLTS. AC DUPLEX RECEPTACLE {Figure
The Duplex 1156 VOLTS AC POWER Receptacle, located on
the lower front control panel, will provide 15 amperes of 115
volt 60 Hertz power. Whenever this receptacle is to be used,
the engine must be operating at power rpm. Do not attempt
to use the 115 VOLT AC Receptacle while operating at weld
rpm.
“230 VOLTS AC POWER RECEPTACLE (Figure 5-1)
Located on the front control panel is a three prong recep-
tacie, labeled 230 VOLTS AC POWER, which will supply up
to 10 kw of 230 volts 60 Hertz electrical power. Whenever
this recaptacle is to be used, the engine must be operating at
power rpm. Do not attempt to utilize this receptacle while
operating at weld rpm,
VOLT-AMPERE CURVES (Figure 5-2}
These volt-ampere curves show the ac output voltage avail-
able at any given output current within the limits of the
minimum and maximum Fine Current Control setting. Load
voltage is predetermined to a large degree by arc character-
istics, With the use of the volt-ampere curves, it is possible to
determine the amperage required for a particular load volt-
age.
CHOKE CONTROL
THROTTLE CONTROL.
{Shown {п Мей Position}
OIL PRESSURE GAUGE
*ELECTRIC START MODELS ONLY
6-1.
6-2.
CHOKE CONTROL (Figure 6-1)
A Choke Control is provided for varying the fuael-air mixture
to the engine, When the Choke Control is pulled fully out,
very little air will be admitted to the engine thru the car-
buretor tharoby supplying a richer mixture of fuel, This posi-
tion is required if the engine is cold when started. As the
engine warms up it will be necessary to push the Choke Con-
trol inward slowly until it is pushed in as far as it will go.
When the Choke Control is fully in, the engine should be
ready for operation,
THROTTLE CONTROL (Figure 6-1)
The selection of either weld power, or idle mm is made by
adjustment of the THROTTLE Control.
To operate the engine at weld rpm, push the Throttle fully
over to the left. Placing the Throttle in the notch in the
center of the throttle bracket will provide power mpm. Idle
pm is obtained by moving the Throtte into the notch on the
extreme right.
OIL PRESSURE GAUGE (Figure 6-1)
À OÙ to 50 psig Oil Pressure Gauge is provided on the engine,
The Oil Pressure Gauge registers the lubricating system pres-
sure in pounds per square inch. Normally, the pressure regi-
stered by the gauge should remain constant for a given engine
speed, Should the pressure fluctuate or drop, stop the engine
and do not operate the engine again until the trouble has
been remedied.
100
A-C VOLTS
a +
o
SECTION 6 - FUNCTION OF ENGINE CONTROLS
Figure 6-1, Engine Controls
0-4.
With reference to the volt-ampere curves, the curves show the
maximum and minimum settings of the Fine Current Control
only. Curves for other settings will fall between the maxi-
mum and minimum curves shown,
СО
X
Vy NON N
Va NN `
МА `
X AY
\ \ \ 1 \
| VAY \ E
PA Ne — AL D
\ Yh \ \
- | с
\ A 1
Г par 1 |
| | | La | |, i L 1 | ] | | 1 1
50 100 150 200 -250 300 350 400
CAC AMPERES
‘EB-200 453-1
Figure 5-2. Volt-Ampere Curves
STARTER
SWITCH* TB-900 468-6
Normal engine oil pressure at weld mm is approxi-
mately 40 psig.
STARTER SWITCH (Electric Start Models Only)
The Starter Switch, located on the engine blower housing,
provides the following three functions:
Off Position
—
The OFF position removes voltage from the engine electrical
system. The Starter Switch is to be in this position when the
engine is not running or for stopping the engine.
Run Position
Whenever the engine has started and is operating, the Starter
Switch must be in the RUN position. The Starter Switch is
spring loaded to return to the RUN position automatically
from the START position. o
Start Position
The START position will actuate the engine starter and
thereby start the engine.
OM-410 Page 9
7-1.
7-2.
Never operate the unit with the hinged side doors
open or removed, If the sides are left open or re-
moved, a safety hazard exists to personnel from
moving and electrical components. Also, weather pro-
tection to the internal components of the unit will be
| greatly reduced. I
STARTING THE ENGINE
IMPORTANT
Make sure all electrical equipment connected to the
115 or 230 volt receptacles are turned off before start-
ing the engine, The engine when starting has low speed
which causes low voltage at the output receptacie of
the generator. This could result in damage to electrical
| equipment. ]
1. Fill the fuel tank and check to ensure that oil level is
adequate.
2. Pull the Choke Control fully out. Lessor degrees of
choking may be required if the engine is warm.
о
Place the Throttle Control in the IDLE position.
La
. On models without electric start, give a quick steady pull
on the starter rope. For models with electric start, place
the Starter Switch in the START position,
5, Once the engine has started, slowly push the Choke Con-
trol inward.
©
Allow the engine to run for a few minutes before applying
a load. This is necessary to enable the engine to properly
warm up and ensure proper lubrication.
7. Place the Throttle Control in the desired position.
STOPPING THE ENGINE
1. Remove the load from the welding generator,
2. Place the Throttle Control in the IDLE position. Operate
the engine at this speed for 2 minutes; this will allow
internal engine temperature to equalize.
3. To stop the rope - started engine, depress the Stop Button
on the blower housing. On electric start models, place the
Starter Switch in the OFF position,
7-3. SHIELDED METAL-ARC WELDING
8-1.
Page 10
t. Prepare the engine for operation as instructed in the en-
gine preparation section.
H any work is to be done on the rotor of the
generator, remove the spark plugs from the engine.
This will prevent engine compressión from turning the
rotor and catching the repairman’s hand between the
| rotor fan casting and the stationary adapter casting. |
GENERAL
Economical operation and trouble-free service of this welding
generator are based upon regular inspections and reasonable
attention.
Occastonal blowing out of the unit with clean dry compres-
sed air is recommended. This should be performed period-
ically, depending upon the lacation of the unit and the
amount af dust and dirt in the atmosphere.
8-3.
SECTION 7 - SEQUENCE OF OPERATION ——=resemremmmmmenenennnennenn
2. Make weld connections from the electrode holder jack
plug to the desired range receptacle -and from the work
clamp fack plug to the work receptacle.
3. Rotate the Fine Current Controf to the desired setting,
4, On models with a power plant, place the Weld/Power
Changeover Switch in the weld position.
5. Start the engine as instructed in paragraph 7-1,
Prior to welding, it is imperative that proper protective
clothing (welding coat and gloves} and eye protection
(glasses and/or welding helmet) be put on, Failure to
comply may result in serious and even permanent
| bodily damage. 1
6. Connect the work clamp to the object to be welded, place
the desired electrode into the electrode holder, and com-
mence welding.
TB-200 435-54
Figure 7-1. AC Welding Connections
115 & 230 VOLT AC POWER RECEPTACLE OPER-
ATION.
1. .Prepare the engine for operation as instructed in the En-
gine Preparation Section,
2. Rotate the FINE CURRENT Control fully clockwise to
the 100% setting.
3. Place the Throttle Control on the Engine in the POWER
position.
4. Start the engine as instructed in paragraph 7-1.
5. Connect the auxiliary equipment or desired load to the
receptacle and commence operation,
SECTION 8 - GENERATOR MAINTENANCE =—
8-2.
COLLECTOR RING BRUSHES
The brushes should be inspected periodically to ensure their
proper function, The brush life is very good under normal
conditions. If the generator has been operating tn an ex-
tremely dusty or dirty location, a close check of the brushes
for freedom of movement and cleaniiness should be made
weekly, Under normal use the commutator and slip rings will
discolor to a dark brown, If it should become necessary to
clean the slip rings or commutator, use a 3/0 or finer sand-
paper followed by a crocus cloth. Never use emery cloth as
part of the emery will embed itself into the exciter or col-
lector rings and in turn destroy the carbon brushes.
WELDING CABLES
Check connections periodically for tightness. The cables
should be inspected frequently and all breaks in the insula-
tion should be repaired with electrical insulating tape or the
cables replaced.
——— SECTION 9 - ENGINE MAINTENANCE *
9-1,
LUBRICATION
This engine will require at least 10 hours of running time to
become fully broken in, During this period, the load on the
engine should be kept as tight as possible. The oil level should
be checked a number of times during an operating day, as
some engines will use oil during the break-in period. After
"about 10 hours of running time on the break-in oil, drain the
The area around the base of the spark plugs should be
cleaned prior to removal of the spark plugs to help avoid dirt
getting into the engine, -
Remove the plugs periodically and clean the electrode with a
wire brush or knife blade. Take care so as not to crack the
porcelain insulator on the spark plugs.
oil. Premium heavy duty oil, manufactured by any one of the 9.4. FUEL FILTER
major oil companies, should be used as a replacement oil, _ |
Table 9-1 gives a list of recommended grades and types of oil The fuel filter is located below the fuel tank. Check the
to use to keep oil level up during break-in and to use after the sediment bowl periodically for water and dirt deposits. How
break-in oil is drained. The oil capacity of the engine is 3-1/2 often the filter. has to be checkad will depend on the grade of
quarts. Check the dip stick to make sure oil level is up to the gasoline used ‘and how dusty and dirty the location in which
required operating level. the engine is being used,
in normal operation, oil should be changed after about 25 9.5. AIR CLEANER
hours of operation. The oil should be drained after the engine o]
has been warmed up to normal operating temperature, thus Under certain weather conditions, frost may form in the air
promoting foreign particle suspension in the oil and thereby cleaner or oil may congeal, restricting the flow of air to the
removal when the oil is drained. Foreign particles tend to carburetor. Should either of these conditions exist, remove
settle at the bottom of the crankcase when the oil is allowed the air cleaner cup and body and clean them thoroughly in
to cool, thereby avoiding removal and thus contaminating the gasoline or other suitable solvent. Reassemble the air cleaner
new oil added. and use it without oil until temperature conditions permit
the use of cil in the normal manner,
Table 9-1. Recommended Engine Oil 9-6. PERIODIC SERVICE
The efficiency of the engine depends a great deal on the care
HOT Ee al SAE NO. and attention given it. By following a definite schedule of
inspection and service, engine failure caused by neglect can
he avoided. Service periods are based on hours of running
Above 30°F (320C) for Continuous Duty No. 50 time and are for norma! operating conditions. For extreme
300F {- 1°C) to 909F (32°C) No. 30 conditions of load, dust, dirt, etc., service more often.
OOF (~189C} to 30°F (- 19C) No. 10W
Below 09F {180C) No. 5W , |
Table 9-2. Periodic Engine Maintenance Chart
9-2. CLEANING THE ENGINE | °
OPERATIONAL HOUR
50 100 | 200
This air cooled engine operates most efficientiy when kept
MAINTENANCE ITEMS a
clean, Maintain cleanliness at all times. Wipe oil spills from
engine immediately to avoid accumulation of dust. qu Plant X
X
9-3. SPARK PLUGS | Level X
r Cleane
IMPORTANT Clean Governar Lin
Do not attempt to clean the spark plug electrode by ran
sandblasting. Particles of abrasive may stick to the ran
spark plug and thereby enter the engine and cause ue
damage to the internal engine components. Also, the . k
spark plug gap should be kept at .025”.
x1 - Perform more often in extremely dusty conditions.
—:.——e SECTION 10 -GENERATOR TROUBLESHOOTING seve
| INTRODUCTION
This data collected here, discusses some of the common problems
which may occur in this welding generator. A little thought will
prabably solve the problem involved through the information pro-
vided,
should be strictly adhered to and followed.
If after performing the following procedures the trouble is still not
remedied, it is recommended that a serviceman be called.
The assumption of this data is that a proper welding condition has
been achieved and has been used until trouble developed. In all cases
of equipment manfunction, the manufacturers recommendations
TROUBLE PROBABLE CAUSE
Defective diodels) in rectifier SR4.
lt is recommended that the circuit diagram be used for reference
during the troubleshooting.
REMEDY
Check diodes for continulty. Should conduct in one
direction and not in other, Replace if defective,
No 115 volts dc output.
Loose lead in 115 vdc circuitry. Ensure all leads are secure.
Low weld output, Engine speed is low. Adjust engine speed to 3000 rpm (no load speed). If
engine rpm drops below 2600, engine servicing is
indicated.
Erratic weld current, Damp or defective electrodes, Use new electrodes.
Work or electrode connections loose, Secure connections,
Jack plugs loose in receptacles. Secure jack plugs.
OM-410 Page 11
—zM— SECTION n - ENGINE TROUBLES HOOT! NG =——q
| FaiLuRe 10 5TART |
]
IGNITION
CARBURETION]| [compression]
Mechanical
Poor grade Restricted air cleaner Plugs wet Breaker points pilted Cylinders dry.
of fuel Fuel pump diaphragm er dirty. or fused. Sticking valve.
Water Choke Condensation Spark plug insulation bad. Loose or broken spark plugs.
in fuel Floscer on électrodes, | | Breaker arm sticking. Cylinder head gasker leaking.
Gum Dirt or gum holding Weak hate y Improper timing. Piston rings stuck.
in fuel float needle valve Broken ignition cables. Warped or broken valves,
Dirt Damaged HS needle valve. Ignition cables
in fuel Fuel line clogged. disconnected,
Improper Air vent, Tiller cap plugged. Wires te wrong plugs.
volatility Manifold gasket leak.
No fuel Muttler clogged,
| KNOCKING |
CARBURETION | MECHANICAL | IGNITION
Poor grade of fuel: Heavy load at slow speed. Breaker points
| Cctane rating 19 a Carbon or lead deposits in too iar advanced
cylinder head.
Loose connecting rod,
Loose man bearings.
Burned cut connecting rod.
Warn or loose pision pin.
Worn os loose timing gears,
Improper piston fit.
Valve lash too great.
Valves sticking.
| MISSING |
CARBURETION COMPRESSION
Water in fuel Scored cylinders, Improper heat range in plug.
Gum in fuel Improper valve lash Loose plug.
Improper needle valve. Sticking valves. Poor insulation on plug.
Improper carbureto: Loose or hroken spark plugs. Spark plug gap incorrect.
Duly fuel system. Cylinder head gasket leaking. Worn and teaking ignition cables.
Improper fuel mixture. Piston rings stuck. Weak spark.
Inoperative fuel pump Warped or broken valves Loose electrical connections.
(Dirt or mechanical). Sand hale in casting. Breaker points pitted ar worn,
Air leaks in system. Valve springs weak or broken. | | Breaker points sticking.
Delective float mechanism improper 1ensian of breaker point
Inoperative choke control spring.
Vapor tock. Improper breaker paint gap,
Had condenser,
Weak coil.
Warn oul plugs.
Defertive ignition switch.
Grounding of ignition adcessaries,
Moisture
Defective distribator cap.
| OVERHEATING |
1
X L L - 1
CARGURETION| — [LUBRICATION! [MECHANICAL ] [LIGNITION |
т |
Law grade of fuel Ohl supply low. Engine overloaded. Timing
Engine operated while Dirty or incoreat Carbon deposits in incorrect. -
detonating, due 10 grace ot ail, Engine.
law octane fuel or Plugged lutiricating Restricted exhaust.
heavy load. syslem, Choke control pari:alby
Improper carburetor Bad oil pump. .pulted out.
Setting. Worn pacts in Valves leak mg.
Ptugyed air filter, lubricating system. Restricted air cleaner,
Lesk in intake system. Recirculation of hot air.
Impreper break in,
| SURGING |
—
CARBURETION GOVE RNOR
Cartwiretor flaoding. Sticky controls
Impropar adjustment. Improper lubrication. ,
Intake leaks. т
Page 12
eo By] RFC1
_ 22
ГУ 79 (9000 22970 IGNITION BREAKER BOX
TERMINAL
ef a
— + —
COLLECTOR
| RINGS
22
| a °°
EXCITER REVOLVING FIELD | REVOLVING FIELD
i 2 11
RC 1
H5VYD.C.
CASE GROUND
14
WORK
RECEPTACLES Circuit Diagram No. CB-900 435-2C
Figure 11-1. Circuit Diagram For Manual Start Welding Generator
TO IGNITION SWITCH
SIDE OP IGNITION COIL
e
TO “BATTERY” TERMINAL
ON STARTER SOLENOID
—_— y
TOTAL TIME METER
ST (OPTIONAL)
CW.
_ jy .
22 В DA -
25
г! ‚ CHET
— no 12V BAT.
.. > COLLECTOR
RINGS
22
EXCITER REVOLVING FIEL.D
EXCITER
STATOR
REVOLVING FIELD
ow 22
RC 1
115VD.C. 67
Yo, оз
+ > 27 + $
6.3
Ir
CASE GROUND
75
RECEPTACLES
Circuit Diagram No. CB-900 447-1A
Figure 11-2. Circuit Diagram For Welding Generator With Electric Start
OM-410 Page 13
a
” CW
Ср ВЕС! ВЕ
a! Е 24 ONU Vem TC IGN. BREAKER BOX
ra TERMINAL |
25 ПЕ 20 E
COLLECTOR
RINGS
25
REVOLVING FIELD +
EXCITER REVOLVING FIELD
—— + + +—
CASE POWER 4 WELO WINDING
GROUND CONNECTIONS TO
| CHANGEOVER SWITCH
EXCITER
~ 22 STATOR
MSVDC. 57 63 оо 5
р O; 7 9 5 O7 =,
3 4 <>
Ou 9 a | y À
/ Y o po
RC 3 > | 12 TS 28 =
LS POWER em WELD EXACT
115/230 о ПБУАС CHANGEOVER SWITCH >La
ac. > + Sif = :
PAYQUT 4 REMOVE Let
BRASS JUMPE
WORK ELECTRODE
RECEPTACLES
Circuit Diagram No. CB-900 441-2C
Figure 11-3. Circuit Diagram For Manual Start Welding Generator With 60 Hz Power Plant
TO IGNITION SWITCH TO BATTERY” TERMINAL
SIDE OF IGNITION COIL —e Jd 333 |. ON STARTER SOLENOID
TOTAL TIME С
METER -
(OPTIONAL)
33] LEW
22 R 1 Da
4 +
: 23 36
27 , | fl 5
12 Y. BAT.
COLLECTOR
RINGS
es
REVOLVING FIELD
EXCITER REVQLYI!NG FIELD
— rr + —— + + -—— -
CASE POWER & WELD WINDING
GROUND CONNECTIONS TO
| CHANGEOVER SWITCH
EXCITER 1 2 34 5 67 8 9 70 no E
_ 22 STATOR
RC
H5V.D.GC. Ш 83 | 7
о! | O, 707 9 309 O7 =
RC 2 0, © >
. 13 9 6 51 ar el
; \ >! =
O O
12 4 2 8 № м >
пез {J 115 МАС POWER <4-————» WELD | olllac-z 7
15/230 CHANGEOVER SWITCH >
VAC > 0 |
AS — + =
8)
> >
PRYOUT 4 REMOVE 29
BRASS JUMPER
= . RECEPTACLES
Circuit Diagram No. CB-900 450-1A
Figure 11-4. Circuit Diagram For Welding Generator With Electric Start and 60 Hz Power Plant
Page 14
22
RFC
2! р 19 AU o TO IGN. BREAKER BOX
г TERMINAL
COLLECTOR
RINGS ——|—— . -
22 |
2 OOSTER
EXCITER REVOLVING FIELD A CIN REVOLVING FIELD
40, 0000
— + + — — >t + —
POWER 8 WELD WINDING
CONNECTIONS TO
CHANGEOVER SWITCH
EXCITER
_ — 22 STATOR
“ “д
HEV.DC, 6. | DN о 4 |
hb O, 7 sO От ol
27 a |
+ > Ra I =
e 0, O, 8 51 +1 À
ооо | o o e
CASE 12 4 27 8” o м >
GROUND RC3 / POWER 4—e WELD Al AC-2Z
1I5YAC | 7%
115/230 CHANGEOVER SWITCH >
VAC, > | al
го À
PAYOUT & REMOVE :
BRASS JUMPER 2
WORK ELECTRODE
RECEPTACLES
Circuit Diagram No. CB-900 281-2C
Figure 11-5. Circuit Diagram For Manual Start Welding Generator With 50 Hz Power Plant
+ TO IGNITION SWITCH
33 cw SIDE OF IGNITION COIL
22 TO"BAT TERY" TERMINAL
© 3415 33 ON STARTER SOLENOID
+ TOTAL TIME
e METER
4 < ‘ > (OPTIONAL)
Yas 30 Da fev BATTERY
‘ JJ
21 . «III
=~] +] ~ FRAME
COLLEC TOR GROUNDED sa
RINGS | —— : 3
22
27
| OOSTER
EXCITER REVOLVING FIELD WINDING REVOLVING FIELD
— + + “—— — + + +=
POWER & WELD WINDING
CONNECTIONS TO
x 1 , CHANGEOVER SWITCH
EXCITER - 7 2 3 4 5 67 8 * © 1 12
OO STATOR `
—REC4 63 N as
HSV.DC. т _
о, 076 ‚о 21-07 -
ва ©)
;
+ > “> д, © | ©
9 8 39 7 >
o——p o o >a
CASE AC 12 4 2° 87 № . té —û6 =
GROUND 3 р _
115 VAC FOYER #+————P WELD X AC-Z
15/230 CHANGEOVER SWITCH >
VAC. > | ll -
>
|
ER be E en
BRASS JU
WORK ELECTRODE
RECEPTACLES
Circuit Diagram No. CB-901 349-1A
Figure 11-6. Circuit Diagram For Welding Generator With Electric Start and 50 Hz Power Plant
OM-410 Page 15
August 1973
FORM: OM-410
Effective with serial No. HD694904
MODEL
AEA-200
AEA-200E —
AEA-200L 60 Hz
AEA-200L 50 Hz
AEA-200LE 60 Hz
AEA-200LE 50 Hz
MODEL/STOCK NO,
SERIAL/STYLE NO,
DATE PURCHASED
PARTS LIST
®
MILLER ELECTRIC MFG. CO.
APPLETON, WISCONSIN, USA 5491
NWSA CODE NO. 4579
STOCK NO
900 435
900 447
900 441
901 281
900 450
901 349
NT
F IN
Ajquassy ue — y sinBi
Y-0St? DDÉ-OL
OM-410 Page 1
Quantity
Model
Wel d Wel d/Power
60 Hz 50 Hz
; | 200 200E | 200L | 200LE | 200L | 200LE
Item Dia, Manual | Electric |Manual |Electric [Manual | Electric
No. MKkgs. Description Start | Start | Start | Start | Start | Start
Figure A Main Assembly
1 020 018 WRAPPER ............. eee 1 1 1 1 1 1
2 015 670 TANK, fuel (consisting of). ..........eneve. 1 1 1 1 1 1
3 015 603 CAP eee a + 1 1 1 1 1 1
4 014951 STRAP, mounting-tank .................. 1 1 1 - 1 1 1
5 602 898 NIPPLE, close 1/8” Drass 1.112121 4 4444 404 + 1 1 1 1 1 1
6 015602 FILTER, fuel ,,........e e... eeeearareaos 1 1 1 1 1 1
7 010 731 NIPPLE, 1/8 MIT 1/4 hese shank ,.......... 1 1 1 1 1 1
8 010957 TUBING, steel 1/20D x 17 Ga Wall x 1-3/4” 4 4 4 4
9 602 253 CATCH, suitcase with strike ,,............. 1 1 1 1 1 1
10 CB +¥012 612 CIRCUIT BREAKER, 10 amp (Spencer)or.....
10 CB +*027 889 CIRCUIT BREAKER, 10 amp (ETA) ........ 1 1 1 1 1 1
11 014 950 BAFFLE, air 112014440444 4484 44 4 4 0 ea a 00 1 1 1 1 1 1
12 603 124 SEAL, firewall (order by foot)..........—.... 2it. Bft, 2ft, 2ft. 2ft. 2 ft
13 026 437 ENGINE (consistingof} ................... 1 1
13 026 438 ENGINE (consistingof) ................... 1 1
13 027 087 ENGINE (consisting of) ................... 1
13 027 086 ENGINE (consistingof) .......... cu... 1
14 015620 , HOSE, 1/4 braid ...............esrer.. 1 1 1 1 1 1
010 731 .NIPPLE, 1/8 MPT 1/4 hose shank ......... ‚ 1 1 1 1 1 1
010 865 .CLAMP, hose - self tightening ,............ à 2 2 2 2 2
019603 KNOB, ball ...... .... ci iii... 1 1 1 1 1 1
027 494 NIPPLE, pipe 1/2x 3... .... ii... 1 1 1 1 1 1
027 495 .COUPLING, pipe 1/27 ,..... 2... 1 1 1 1 1 1
15 605 802 .MUFFLER.........rrseecie rr ere ere. 2 2 2 2 2 2
16 602 945. NIPPLE, pipe 1x 4” inne. 2 2 2 2 2 2
026 551 . BRACKET, control-throttle . . .. ........... 1 1
17 Figure B GENERATOR & REACTOR (See Page 3) ..... 1 1 1 1 1 1
18 R3 030641 RESISTOR, WW adj 75 watt 4 ohm......e... 1 1 1
19 SR3 037 633 RECTIFIER ......... ccc... 1 1 i
20 51 011 729 SWITCH, changeover-weld/power (See Fig, C
EC ee ea 1 1
20 Sil 011372 SWITCH, changeover-weld/power (See Fig, C
Page 4) 1111121024 6616 a 4 a a 4 a aa ea De 1 1
21 014179 BASE ie eee eee 1 1 1 1 1 1
22 Figure D PANEL, front with components (See Page 5) .. 1 1 1 1 1 1
23 600 806 CABLE, battery-positive .................. 1 1 1
24 *405 427 BATTERY, 1Z2volt40ampere.............. 1 1 1
25 023 641 CABLE, battery-negative , ................. 1 1 1
26 027 247 SHELF, battery ....... 0 cian, 1 1 1
27 025083 CLIP, holddown-battery .................. 1 1 1
28 027 246 COVER, battery 102020444048 004 0 0 1 0000 1 1 1
29 603 124 SEAL, firewall (oxderby foot). ............. aft oft, 2ft. 2ft. 2£ 2 ft
039608 PLUG ASSEMBLY, jack (consisting of) . .,.... 2 à 2 2 2 2
019833 .STRIP,copper ....24 4424440 40 a ea 1 0 ea 040 1 1 1 1 1 1
101 219 .PLUG,jack ................ eee 1 1 1 1 1 1
602 814 INSULATOR, molded-red ................ 1 1 1 1 1 1
602160 SCREW, self-tapping filh 8-32 x 1/4 ........ 1 1 1 1 1 1
602178 SCREW setsch1/4-20x3/8.............. 2 2 2 2 2 2
— 027303 CAP, twistlock 3P3W 20 amp 125 volt ....... 1 1 1 1
028 105 KIT, label (includes all labels) .............. 1 1 1 1 1 ~1
° ра 026 202 DIODE, lamp d400volt................... 1 1 1 1 1 1
RFC 036 011 CHOKE, 30 millihenry .........rremeasao 1 1 1
032184 BRACKET, mounting-choke ............... 1 1 1
*Recommended Spare Parts.
+Be sure to order correct circuit breaker, as the mounting holes are different,
BE SURE TO PROVIDE STOCK, MODEL, AND SERIAL NUMBERS WHEN ORDERING REPLACEMENT PARTS,
OM-410 Page 2
Quantity
*Recommended Spare Parts,
Model
Weld Weld/Power
60 Hz 50 Hz
200 200E | 2091 | 200LE | 200L, | 200LE
Item Dia, Factory Manual |Electric |Manual [Electric [Manual | Electric
No, Mkgs. Part No. Description Start | Start | Start | Start | Start | Start
Figure B Generator 8: Reactor (See Fig. A Page 2 Item No, 17)
41 Z 036 485 REACTOR ..,..........000m0r0esrer evi. 1 1
41 Zz 036 451 REACTOR... .urerereoacarera en arnoca 1 1 1 1
42 014376 GUARD, fan 1.222040 0 04e ea a 44e aa ee a #00 1 1 1 I 1 1
48 **020 780 ROTOR (consisting Of)... коки. 1 1 1 1 1 1
44. 024617 . RING, retaining-hearing .................. 1 1 1 1 1 1
45 024616 BEARING ........ 0. inna 1 „1 1 1 1 1
46 604 680 .SCREW, cap-hex hd 5/16-18 x 7/8 ......... 4 4 4 4 4 4
47 602 211 |, WASHER, lock split 5/16 ................ 4 4 4 4 4 4
48 017624 .FAÁN.....ererreceverarrearmcarerereara 1 1 1 1 1 1
49 010681 KEY, woodruf......_ereeesreserecoamoeraea 1 1 1 1 1 1
50 017702 ADAPTER, engine ..,.. _e.0o_roreadotreerern. 1 1 1 1 1 1
51 017618 ADAPTER, fanrotor........ coven. 1 1 1 1 1 1
52 010 601 SCREW ASSEMBLY, adapter-fan (consisting of) 1 1 1 1 1 1
53 602 226 WASHER, flat 7/16 ID x 2-1/4 OD x 3/16 1 i 1 1 1 1
54 602 216 . WASHER, lock split 7/16 ................ 1 1 1 1 1 1
55 602 018 _ SCREW, cap sch 7/16-14x 1-1/2, ......... 1 1 1 1 1 1
56 018 614 BRUSH SET, electrical (consistingof) ........ 3 3 3 3 3 3
57 018 665 ,CAP rie ee ie ie aaa 1 1 1 1 1 1
58 600270 . HOLDER 022404004000 04 0 400 40e 00000 1 1 1 1 1 1
59 #020034 , BRUSH 1.122420 04444 im 4 a ee a ee sa ео 1 1 1 1 1 1
60 020 779 BRACKET, mounting-holder brush .......... 1 1 1 1 1 1
61 *+*020 848 STATOR 110044444444 0 0 4 4 4 0 a 0 ea 40 00000 1
61 *+020 849 STATOR 114244444040 0e 0 0 04 0 aa 104000 1
61 **020 850 STATOR 112444444424 4 0 4 1 11 41 4 4 1 4 426 1
61 #4020 851 STATOR 122024141406 0 04 8 4 4e a 44 8 4 040400 1
61 **020 852 STATOR ... ii ii iii ie isi tes aaa 1
61 **020 853 STATOR L....1412 44044 84 44 es a a a sa 20e 00 i
62 020908 ENDBELL .....reoronscaradergnererere. 1 1 1 1 1 1
63 1$8R4 027 732 RECTIFIER (consistingof) ................ 1 1 1 I
64 010 291 .WASHER, nylon 0220200000 04 aa 0 aa 0004» 2 2 2 2
65 020 326 . BUSHING, nylon .. 1220240 46 44 40 0 02 14 40 0 2 2 2 2
66 D1-3 037572 .DIODE, 50 amp 400 volt ,,........e ..ee—.—. 3 3 3 3
63 SR4 027 781 RECTIFIER (consistingof) ................ 1 1
64 010291 .WASHER, nylon ...... 0. 0recearorerea. 2 2
65 020326 .BUSHING, nylon .......erre=reoaearerea 2 2
66 D1-3 037572 DIODE, 50 amp 400 volt ,.......e.eces... 3 3
SR2 037 346 .RECTIFIER, integrated 6.5 amp 400 volt ,... 1 1
Figure B — Generator & Reactor
**Rotor and Stator replacement are available on exchange basis. Contact Factory Service Department for details.
BE SURE TO PROVIDE STOCK, MODEL, AND SERIAL NUMBERS WHEN ORDERING REPLACEMENT PARTS,
Page 3
TD-020 7972
Item Dia, Factory
No. Mkgs., PartNo. Description Quantity
Figure C | Switch, Changeover Weld/Power (See Fig. A Page 2 Нет Мо. 20) " o
© o
76 019752 HANDLE .........r.oceeoerercogeeerr0reanvanrnaraeorraco ra rernarecooxre na 1 1
Fi 010 844 BLADE 12414 24 44 44 44 44 4 A2 44 24 44 24 14 0 4 4 8 6 4 84 0 0 a a 0 8 ae 1 1
78 602144 SCREW, self tapping round head 8-32 x 3/8 eier к ква вк к уве канннввое 4 4
79 010845 BLADE. LL... ie i ir a ia aaa . 2 2
80 602 034 SCREW, machine-brass round head 8-32x 7/8......... eh etree aan 13 13
81 010185 CLIP, pivot-blade .. 220440844440 i ie ie a ee 3 3
82 604 923 RIVET, brass-tubular ,182/.188 x 9/16 1.121040 0 4 4 48 4 eee 46 ea re da nee ee eee 0 6 3 3
83 601113 CLIP ..... iii 0 0 8 a a ue ae» PT aa 10 10
84 038156 RISER BOARD 1222020044 i itt te titer asain ba meas 1 |
85 038 157 MOUNTING BOARD, components 114244444464 4 44 4 4 4 4 0 0 48 6884 0 0 4 0 04 8400 1 1
86 601831 NUT, hex brass 8-32 .........ce-esc0srecrerecvrare e rieron tenen e. 13 13
87 602 201 WASHER, lock external tooth No. 8 ......... eee ee ae 13 13
88 602287 WASHER, flat NO. 8 11.141444 4 44 84 4 4 4 4 4 a 4 4e 4100 1 4 4 40 4 4 a 8 4 8 1 8 a 0 1 a 11 806 13 13
89 601 838 NUT, hex brass 3/8-16 füll 2 ...000000000000 000000 i i ies a aaa 2 2
90 038067 STUD, brass 3/8-16 x 1-1/2 2. 1244240 4 4 114 Va 4 4 8 4 4 6 4 4 8 44 4 4 8 4 8 0 4 81 81 00006 . 2 2
91 602 221 WASHER, lockinternal tooth 3/8 .. 1.122041 4 4404 48 4 444 4 4 a 8 8 4 re an a ee aa 1 00 2 2
92 010 910 WASHER, flat 3/8 SAE 1.121444 44 0 4 4 8 4 4 4 8 44 0 0 1 8 0 0 00 6 4 a ddr enredar rare 2 2
93 012647 CLIP ,..........0emeernvereciarervanerranreoarerrere er eae ae 2 2
94 601 837 NUT, hex brass 3/8-16 jam... iin 4 8 4 ianraenans Ce eee 2 2
Sa 011 647 SWITCH, limit en 1
=
oo
ST
E
1
`
{ООВ A
©
TC-011 779
Figure C — Switch, Changeover Weld/Power
BE SURE TO PROVIDE STOCK, MODEL, AND SERIAL NUMBERS WHEN ORDERING REPLACEMENT PARTS.
| OM-410 Page 4
Quantity
Model
Weld Weld/Power
60 Hz 50 Hz
200 | 200E 200L {| 700LE | 200L | 200LE
Item Dia, Factory Manual [Electric [Manual [Electric |Manual (Electric
No. Mkgs. PartNo. Description Start | Start | Start | Start | Start | Start
Figure D Panel, Front With Components (See Fig. A Page 2 Item No, 22)
106 039800 RECEPTACLE ASSEMBLY, jack (consisting of).... 1 1 1 1 1 1
107 039 768 NUT, molded-red .......... ccna 1 1 1 1 1 1
108 010291 .WASHER, nylon .................... cco... 1 1. 1 1 1 1
109 604 668 . NUT, self locking 1/2-20 ..................... 1 1. I 1 1 1
110 020015 . RECEPTACLE LL 120444444444 44 44e кк, 1 1 1 1 1 1
111 601881 NUT, hex 1/2-203am ........................ 1 1 1 1 1 1
112 RCZ 089864 RECEPTACLE, duplex grd 2P3W 10 amp 250 volt . . 1 1 1 1
113 RC3 039607 RECEPTACLE, twistlock 3P3W................. 1 1 1 1
114 039801 RECEPTACLE ASSEMBLY, jack (consisting of).... 5 5 D 5 5 5
115 601 881 .NUT, hex 1/2-20 jam 2.121444 04004 0 0 0 1 1 a au 0 0 1 1 1 1 1 1
116 038198 .RECEPTACLE..... ee ea tee eae 1 1 1 1 1 1
117 604 668 | NUT, self locking 1/2-20 ,.................... 1 1 1 1 1 1
118 010291 .WASHER, nylon 1/2” 112241441440 4 4 aa a 0440 1 1 1 1 1 1
119 039796 .NUT, molded-black .................— eme. 1 1. 1 1 1 1
120 030 664 RHEOSTAT, WW 150 watt 50 ohm .............. 1 1. 1 1 1 1
121 019951 PANEL, front ........ iii. 1 1 1 1 1 1
122 NAMEPLATE (order by stock, model & serial No,),, 1 1 1 1 1 1
123 RC1 039617 RECEPTACLE, straight 2P2W 15 amp 125 volt .... 1 1 1 1 1 1
019609 KNOB ....... ieee 2 a 0 1 1 1 1 1 1
124
Figure D — Panel, Front With Com ponents
BE SURE TO PROVIDE STOCK, MODEL, AND SERIAL NUMBERS WHEN ORDERING REPLACEMENT PARTS.
Page 5
TD-319 269
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
