Uniden | UDR744 | Quick Reference | Uniden UDR744 Quick Reference

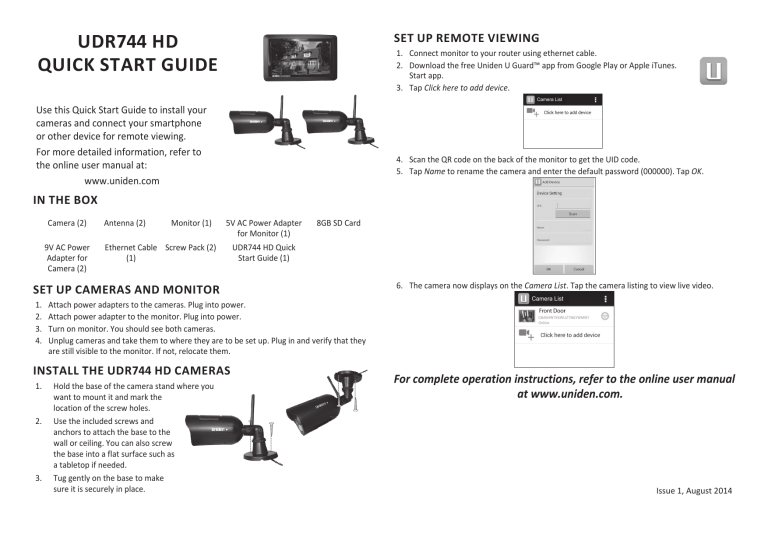

Uniden UDR744 Quick Reference
UDR744 HD
QUICK START GUIDE
SET UP REMOTE VIEWING
1. Connect monitor to your router using ethernet cable.
2. Download the free Uniden U Guard™ app from Google Play or Apple iTunes.
Start app.
3. Tap Click here to add device.
Use this Quick Start Guide to install your
cameras and connect your smartphone
or other device for remote viewing.
For more detailed information, refer to
the online user manual at:
www.uniden.com
4. Scan the QR code on the back of the monitor to get the UID code.
5. Tap Name to rename the camera and enter the default password (000000). Tap OK.
IN THE BOX
Camera (2)
9V AC Power
Adapter for
Camera (2)
Antenna (2)
Monitor (1)
5V AC Power Adapter
for Monitor (1)
Ethernet Cable Screw Pack (2)
(1)
8GB SD Card
UDR744 HD Quick
Start Guide (1)
SET UP CAMERAS AND MONITOR
1.
2.
3.
4.
Attach power adapters to the cameras. Plug into power.
Attach power adapter to the monitor. Plug into power.
Turn on monitor. You should see both cameras.
Unplug cameras and take them to where they are to be set up. Plug in and verify that they
are still visible to the monitor. If not, relocate them.
INSTALL THE UDR744 HD CAMERAS
1.
2.
3.
6. The camera now displays on the Camera List. Tap the camera listing to view live video.
Hold the base of the camera stand where you
want to mount it and mark the
location of the screw holes.
Use the included screws and
anchors to attach the base to the
wall or ceiling. You can also screw
the base into a flat surface such as
a tabletop if needed.
Tug gently on the base to make
sure it is securely in place.
For complete operation instructions, refer to the online user manual
at www.uniden.com.
Issue 1, August 2014
