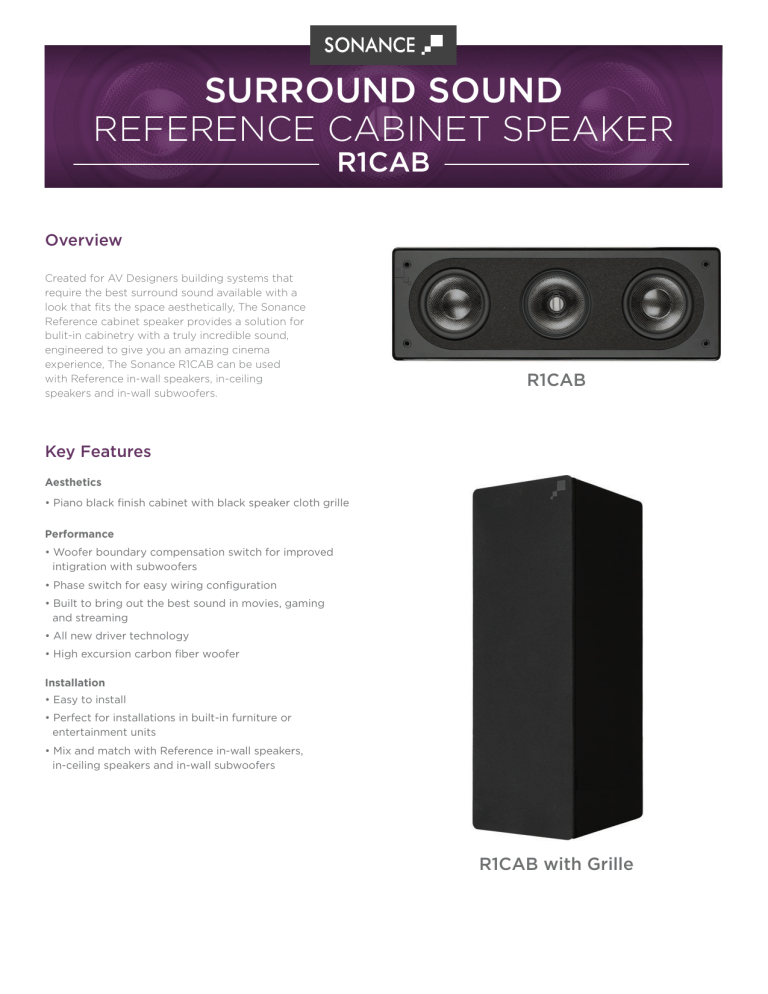

Sonance R1CAB Data Sheet
SURROUND SOUND
REFERENCE CABINET SPEAKER
R1CAB
Overview
Created for AV Designers building systems that
require the best surround sound available with a
look that fits the space aesthetically, The Sonance
Reference cabinet speaker provides a solution for
bulit-in cabinetry with a truly incredible sound,
engineered to give you an amazing cinema
experience, The Sonance R1CAB can be used
with Reference in-wall speakers, in-ceiling
speakers and in-wall subwoofers.
R1CAB
Key Features
Aesthetics
• Piano black finish cabinet with black speaker cloth grille
Performance
• Woofer boundary compensation switch for improved
intigration with subwoofers
• Phase switch for easy wiring configuration
• Built to bring out the best sound in movies, gaming
and streaming
• All new driver technology
• High excursion carbon fiber woofer
Installation
• Easy to install
• Perfect for installations in built-in furniture or
entertainment units
• Mix and match with Reference in-wall speakers,
in-ceiling speakers and in-wall subwoofers
R1CAB with Grille
R1CAB
Width
Depth
Dimensions
Width:
7 1/2” (190mm)
Height:
22” (559mm)
Depth:
9 1/16” (230mm)
Height
Specifications
Model:
R1CAB
SKU:
93339
Unit of Measure:
Each
Tweeter:
1” (25mm) Ceramic dome, Ferrofluid-cooled
in an acoustic back chamber
Midrange:
5 1/4” (133mm) Carbon fiber/Rohacell
laminated cone with a rubber surround
Woofer:
5 1/4” (133mm) Carbon fiber/Rohacell
laminated cone with a rubber surround
Frequency Response:
70Hz - 30kHz +/-3dB
Impedance:
8 Ohms nominal; 6 Ohms minimum
Power Handling:
5 Watts minimum; 150 Watts maximum
Sensitivity:
90dB SPL (2.83V/1 meter)
Grille Material:
Black cloth
Shipping Weight:
25 lbs (11.4kg)
LIMITED LIFETIME WARRANTY
Sonance warrants to the first end-user purchaser that this Sonance-brand product (“Product”), when purchased from an authorized Sonance
Dealer/Distributor, will be free from defective workmanship and materials for the life of the Product, except for the grille, which is warranted for
five (5) years. Sonance will, at its option and expense, either repair the defect or replace the Product with a new or remanufactured Product or a
reasonable equivalent. Please visit our website and owner’s e-Manual for complete warranty and exclusion information.
©2017 Sonance. All rights reserved.
Sonance and Visual Performance are registered trademarks of Dana Innovations.
Due to continuous product improvement, all features and specifications are subject to change without notice.
For the latest Sonance product specification information visit our website: www.sonance.com
SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA
(949) 492-7777 • FAX: (949) 361-5151 • Technical Support: (949) 492-7777
www.sonance.com
11.07.17
