NEDERLANDS

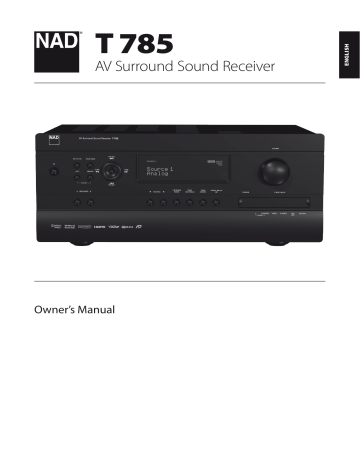

Owner’s Manual
SVENSKA
DEUTSCH
ITALIANO
ESPAÑOL
FRANÇAIS
AV Surround Sound Receiver
ENGLISH
T 785
РУССКИЙ
®
IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
FRANÇAIS
ESPAÑOL
ITALIANO
DEUTSCH
NEDERLANDS
SVENSKA
1. Read instructions - All the safety and operating instructions should be
read before the product is operated.
2. Retain instructions - The safety and operating instructions should be
retained for future reference.
3. Heed Warnings - All warnings on the product and in the operating
instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be
followed.
5. Cleaning - Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
6. Attachments - Do not use attachments not recommended by the
product manufacturer as they may cause hazards.
7. Water and Moisture - Do not use this product near water-for example,
near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet
basement; or near a swimming pool; and the like.
8. Accessories - Do not place this product on an unstable cart, stand,
tripod, bracket, or table. The product may fall, causing serious injury
to a child or adult and serious damage to the product. Use only with a
cart, stand, tripod, bracket, or table recommended by the manufacturer,
or sold with the product. Any mounting of the product should follow
the manufacturer’s instructions, and should use a mounting accessory
recommended by the manufacturer.
9.
Cart - A product and cart combination should be moved
with care. Quick stops, excessive force, and uneven surfaces
may cause the product and cart combination to overturn.
10. Ventilation - Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the product and to protect it
from overheating. These openings must not be blocked or covered. The
openings should never be blocked by placing the product on a bed,
sofa, rug, or other similar surface. This product should not be placed in a
built-in installation such as a bookcase or rack unless proper ventilation
is provided or the manufacturer’s instructions have been adhered to.
11. Power Sources - This product should be operated only from the type
of power source indicated on the marking label and connected to
a MAINS socket outlet with a protective earthing connection. If you
are not sure of the type of power supply to your home, consult your
product dealer or local power company.
12. Power-Cord Protection - Power-supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the product.
13. Mains Plug - Where the mains plug or an appliance coupler is used
as the disconnect device, the disconnect device shall remain readily
operable.
14. Outdoor Antenna Grounding - If an outside antenna or cable system
is connected to the product, be sure the antenna or cable system is
grounded so as to provide some protection against voltage surges
and built-up static charges. Article 810 of the National Electrical Code,
ANSI/NFPA 70, provides information with regard to proper grounding
of the mast and supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding conductors, location
of antenna discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
РУССКИЙ
2
NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installer’s attention to Section 820-40 of
the NEC which provides guidelines for proper grounding and, in particular, specifies that
the cable ground shall be connected to the grounding system of the building, as close
to the point of cable entry as practical.
15. Lightning - For added protection for this product during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna or
cable system. This will prevent damage to the product due to lightning
and power-line surges.
16. Power Lines - An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or power circuits,
or where it can fall into such power lines or circuits. When installing an
outside antenna system, extreme care should be taken to keep from
touching such power lines or circuits as contact with them might be
fatal.
17. Overloading - Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can result in a risk of fire or
electric shock.
18. Flame Sources - No naked flame sources, such as lighted candles,
should be placed on the product.
19. Object and Liquid Entry - Never push objects of any kind into this
product through openings as they may touch dangerous voltage points
or short-out parts that could result in a fire or electric shock. Never spill
liquid of any kind on the product.
20. Headphones - Excessive sound pressure form earphones and
headphones can cause hearing loss.
21. Damage Requiring Service - Unplug this product from the wall outlet
and refer servicing to qualified service personnel under the following
conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operating instructions as an improper adjustment of other controls
may result in damage and will often require extensive work by a
qualified technician to restore the product to its normal operation.
e. If the product has been dropped or damaged in any way.
f. When the product exhibits a distinct change in performance-this
indicates a need for service.
22. Replacement Parts - When replacement parts are required, be sure
the service technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other
hazards.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.
FRANÇAIS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the presence
of uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons
As these colors may not correspond with the colored markings identifying
the terminals in your plug, proceed as follows:
• The BLUE wire must be connected to the terminal marked with the
letter ‘N’ or colored BLACK.
• The BROWN wire must be connected to the terminal marked with the
letter ‘L’ or colored RED
• When replacing the fuse, only a correctly rated and approved type
should be used, and be sure to re-fit the fuse cover.
ESPAÑOL
WARNING
IMPORTANT
DO NOT make any connection to the larger terminal which is marked
with the letter ‘E’ or by the safety earth symbol or colored GREEN or GREEN
AND YELLOW. The wires in the mains lead on this product are colored in
accordance with the following code:
BLUE - NEUTRAL
BROWN - LIVE
IF IN DOUBT CONSULT A COMPETENT ELECTRICIAN.
This product is manufactured to comply with the radio
interference requirements of EEC DIRECTIVE 2004/108/EC.
THE EQUIPMENT MUST BE CONNECTED TO AN EARTHED MAINS SOCKETOUTLET.
CAUTION REGARDING PLACEMENT
To maintain proper ventilation, be sure to leave a space around the unit
(from the largest outer dimensions including projections) than is equal to,
or greater than shown below.
Left and Right Panels: 10 cm
Rear Panel: 10 cm
Top Panel: 50 cm
The materials can be reused in accordance with their markings. Through
re-use, recycling of raw materials, or other forms of recycling of old
products, you are making an important contribution to the protection of
our environment.
DEUTSCH
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE AND
OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE
PLACED ON THIS APPARATUS.
ITALIANO
NOTES ON ENVIRONMENTAL PROTECTION
At the end of its useful life, this product must not be disposed
of with regular household waste but must be returned to a
collection point for the recycling of electrical and electronic
equipment. The symbol on the product, user’s manual and
packaging point this out.
Your local administrative office can advise you of the responsible waste
disposal point.
RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT)
The model and serial number of your new T 785 are located on the back of
the cabinet. For your future convenience, we suggest that you record these
numbers here:
Model number : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serial number :. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . РУССКИЙ
SVENSKA
IMPORTANT INFORMATION TO UK CUSTOMERS
DO NOT cut off the mains plug from this equipment. If the plug fitted is not
suitable for the power points in your home or the cable is too short to reach
a power point, then obtain an appropriate safety approved extension lead
or consult your dealer. If nonetheless, the mains plug is cut off, REMOVE
THE FUSE and dispose of the PLUG immediately, to avoid possible shock
hazard by inadvertent connection to the mains supply. If this product is
not provided with a mains plug, or one has to be fitted, then follow the
instructions given below:
NEDERLANDS
23. Battery Disposal - When disposing of used batteries, please comply
with governmental regulations or environmental public instruction’s
rules that apply in your country or area.
24. Safety Check - Upon completion of any service or repairs to this
product, ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
25. Wall or Ceiling Mounting - The product should be mounted to a wall
or ceiling only as recommended by the manufacturer.
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited
Copyright 2009, NAD Electronics International, a division of Lenbrook Industries Limited
3
INTRODUCTION
TABLE OF CONTENTS
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . 2
INTRODUCTION
FRANÇAIS
ABOUT THE T 785 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
E.A.R.S. AND DIGITAL SURROUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
EASE OF USE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
INTEGRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ZONE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
RS 232. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
UPGRADABILITY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ABOUT THE HTRC 1 SYSTEM REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . 5
GETTING STARTED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
WHAT’S IN THE BOX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
INITIAL SETUP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
CHOOSING A LOCATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
QUICK START. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
DEALING WITH HUM AND NOISE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ESPAÑOL
IDENTIFICATION OF CONTROLS
FRONT PANEL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
REAR PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
OPERATION
ITALIANO
DEUTSCH
NEDERLANDS
USING THE T 785 – MAIN MENU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
ABOUT THE ON-SCREEN DISPLAY (OSD). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
MAIN MENU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
LISTENING MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
ADJUSTING LISTENING MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
DSP OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
TONE CONTROLS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
PICTURE CONTROLS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
ZONE CONTROLS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
USING THE T 785 – SETUP MENU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
SETUP MENU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
VIDEO SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
SOURCE SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
SOURCE SETUP (NORMAL VIEW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
SOURCE SETUP (TABLE VIEW). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
iPod SETUP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
SPEAKER SETUP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
AUDYSSEY AUTO CALIBRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
SPEAKER CONFIGURATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
SPEAKER LEVELS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
SPEAKER DISTANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
ADJUSTING THE VOLUME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
ADJUSTING CHANNEL LEVELS ‘ON THE FLY’. . . . . . . . . . . . . . . . . . . . . . . . . 26
ZONE SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
AMPLIFIER SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
SVENSKA
РУССКИЙ
THANK YOU FOR CHOOSING NAD.
The T 785 A/V Receiver is a technologically advanced and highly capable
product — yet we have invested great effort in making it simple and easy
to use. The T 785 delivers a range of genuinely useful options for surround
sound and stereo listening alike, using powerful digital signal processing
and superbly accurate digital-audio circuitry. However, we have also been
careful to ensure that the T 785 is as musically transparent, faithful to every
video detail and spatially accurate as possible, incorporating much of what
we’ve learned from a quarter-century’s experience designing audio, video
and home-theater components. As with all our products, NAD’s “Music First”
design philosophy guided the T 785’s design, such that it can confidently
promise you both state-of-the-art surround home-theater and audiophilequality music listening for years to come.
4
TRIGGER SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
LISTENING MODE SETUP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
DOLBY SETUP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
DTS SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
DTS SURROUND MODES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
ENHANCED STEREO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
DISPLAY SETUP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
A/V PRESETS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
USING THE T 785 – AM/FM/DB/iPod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
LISTENING TO AM/FM RADIO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
ABOUT USER NAMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
ABOUT RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
LISTENING TO XM RADIO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
LISTENING TO DAB RADIO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
CONNECTING THE DAB MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
DAB OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
SERVICE LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
DAB TUNER MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
STATION ORDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
DRC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
MANUAL SCAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
PRUNE LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
INFORMATION SETTINGS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
LISTENING TO YOUR iPod PLAYER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
NAD IPD 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
USING THE HTRC 1 REMOTE CONTROL. . . . . . . . . . . . . . . . . . . . . . . . . . . 41
IDENTIFICATION OF CONTROLS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
GETTING FAMILIAR WITH THE HTRC 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
NAVIGATION OF THE HTRC 1 CONTROLS. . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
HTRC 1 SETUP MENU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
BATTERY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
BACK LIGHT SENSITIVITY (B LIGHT). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
LIBRARY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
LEARN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
PUNCH-THROUGH (Pun Thr). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
COPY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
DELETE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
RENAME. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
MACRO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
USING THE ZR 4 REMOTE CONTROL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
REFERENCE
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
We encourage you to take a few minutes now to read right through this
manual. Investing a little time here at the outset might save you a good
deal of time later, and is by far the best way to ensure that you make the
most of your investment in the T 785, and get the most from this powerful
and flexible home-theater component.
One more thing: We urge you to register your T 785 ownership on the NAD
Worldwide Web site:
http://NADelectronics.com/warranty
For warranty information contact your local distributor.
INTRODUCTION
•
E.A.R.S. AND DIGITAL SURROUND
A key element of the T 785’s unique musical aptitude is NAD’s proprietary
Enhanced Ambience Recovery System (EARS). In sharp contrast to many
“ambience-synthesis” music-surround modes, EARS exploits the T 785’s
substantial DSP power to route the ambient content that is “encrypted” in
virtually all natural-acoustic recordings to the appropriate main, center and
surround speakers, without resorting to artificially generated reflections
or regeneration. EARS’ natural ambience yields a subtle but exceptionally
effective surround mode that naturally enhances the spatial presentation in
a fashion suitable for serious music listening.
Dolby Pro Logic IIx Music and DTS Neo: 6 Music modes can also create
enjoyable experience from 2-channel sources.
On the digital side, the T 785 combines extraordinarily high-speed DSP
processing employing one of the most advanced high-speed DSP “engines”
available, with fully 24-bit, 192 kHz-sampling-capable D/A converters for
all channels. A single, high-precision master clock synchronizes all digital
circuits to eliminate the timing errors (“jitter”) that otherwise compromise
sonics. The result is legitimately state-of-the-art surround decoding from
Dolby Digital and DTS sources, and 6.1/7.1-channel reproduction, with
genuinely superior sound quality in all modes.
FRANÇAIS
This interface allows complete remote control of the T 785 from any remote
location via the PC. Complete remote control functionality is available to
the user by interface software. See your NAD audio specialist for further
information.
UPGRADABILITY
The T 785 A/V Receiver permits flexible system growth via individually
accessible pre-out and main-in jacks for all channels. We have made the
more likely scenario of software upgrades easy to accomplish via the high
speed RS-232 port on the rear panel of the T 785. Owners who register
their T 785 on our international web site www.NADelectronics.com will be
advised of updates. Some of these may be free of charge, and some may
require royalty payments depending on the type of upgrade. The advanced
user will be able to perform these upgrades by downloading files from our
web site, via e-mail and installing them by connecting the T 785 to a PC.
Alternatively the dealer from whom you purchased your T 785 should be
able to assist in performing these upgrades.
ESPAÑOL
•
•
•
•
RS 232
Flexible system configuration is possible with the RS-232 interface and
NAD’s proprietary Windows® compatible software. We are also certified
partners with AMX and Crestron and fully support these external devices.
ITALIANO
•
The T 785 uses NAD’s proprietary Power Drive™ amplifier technology
for all channels to preserve accurate, linear reproduction regardless
of the loudspeaker. This uniquely efficient power-supply topology
provides the real-world benefits of high dynamic power that remains
uncompromised by low-impedance speakers. The result is dynamic,
detailed, “un-receiver-like” sound in stereo and multi-channel modes
alike. NAD’s exclusive Soft Clipping™ circuitry further enhances sound
quality and dynamic potential.
High-performance components used throughout the A/V Receiver’s
analog audio circuits maximize quality from all sources, including multichannel analog sources such as DVD-Audio and SACD.
Audio pre-out jacks make potential expansion as flexible as possible..
A second set of speaker terminals (Speakers B) for remote listening.
Zone pre-amp and video feed with assignable 12 V DC trigger control.
An RS-232 port for advanced zone control and software update through
a Windows® compatible PC.
Gold-surfaced connectors are employed throughout to ensure
maximum signal integrity.
ABOUT THE HTRC 1 SYSTEM REMOTE CONTROL
Packed with your T 785 is the NAD HTRC 1 remote control, a full-system
remote especially designed for easy use and understanding. Be sure to read
the section “Using the HTRC 1 Remote Control”, to familiarize yourself with
the remote’s layout and operations before proceeding to setup your A/V
Receiver. You may opt to use your HTRC 1 as your primary way to command
your entire A-V system. The HTRC 1 can be employed to operate additional
NAD or other-brand components such as a DVD/CD player, television,
satellite/HDTV tuner, VCR, or virtually anything else that operates via
standard infrared remote.
DEUTSCH
•
ZONE
The T 785 A/V Receiver is equipped with three configurable Zones that
make full use of video and pre-amp level audio outputs. The ZR 4 remote
control will allow you complete access to Zone 2 applications including
access to volume On/Off and all sources inputs. Zone 3 and Zone 4 could
be configured and managed at the appropriate Zone OSD menu using
the front panel navigations keys as well as the corresponding keys on the
HTRC 1 remote control.
NEDERLANDS
Though the T 785 is among the most technically sophisticated A/V Receiver,
we worked hard to make it one of the most musically transparent hometheater components available as well; this is what we mean by NAD’s “Music
First” design philosophy. Here are just few examples:
ENGLISH
ABOUT THE T 785
EASE OF USE
SVENSKA
Despite the effort NAD has invested in the T 785 A/V Receiver’s sonic
performance, we expended no less in making it powerfully easy to use.
Its design is uniquely simple for so sophisticated a component, and the
HTRC 1 universal remote control is equally understandable, as are the
T 785’s own front-panel and on-screen displays. Its simple yet powerful
system of “presets” permits you to fine-tune your listening setup for different
conditions, sources, or listeners, and to recall these multiple parameters
with a single key press.
INTEGRATION
РУССКИЙ
The T 785 A/V Receiver offers extensive, flexible system-integration options
through its configurable DC trigger outputs and input, and its standardprotocol IR communications links. The DC trigger outputs can be assigned
to either Local and/or Zone locations.
5
INTRODUCTION
GETTING STARTED
ENGLISH
WHAT’S IN THE BOX
FRANÇAIS
Packed with your T 785 A/V Receiver you will find
• An AM loop antenna
• A FM ribbon-wire antenna with balun
• A removable AC cable (if you wish, any IEC-standard AC cable of suitable wattage may be substituted)
• The HTRC 1 remote control with 4 (four) AA batteries
• The ZR 4 zone remote control with 3V CR2025 battery
• This owner’s manual
SAVE THE PACKAGING
Please save the box and all of the packaging in which your T 785 arrived. Should you move or
otherwise need to transport your T 785, this is by far the safest container in which to do so. We’ve seen
too many otherwise perfect components damaged in transit for lack of a proper shipping carton, so
please: Save that box!
INITIAL SETUP
ESPAÑOL
Before you make the first connection to your T 785, you should have the arrangement of your listening
room/home theater components and furniture mapped out, at least initially. Unfortunately, a discussion of
the vital questions of loudspeaker placement and listening/viewing positions is beyond our scope here.
Suffice it to say that these two questions will influence your system’s ultimate performance every bit
as powerfully as your selection of electronics and speakers. Your NAD audio specialist dealer will be
happy to advise you and to recommend reference materials.
ITALIANO
CHOOSING A LOCATION
Choose a location that is well ventilated (with at least several inches to both sides and behind), and
that will provide a clear line of sight, within 25 feet/8 meters, between the T 785’s front panel and your
primary listening/viewing position—this will ensure reliable infrared remote control communications.
The T 785 generates a modest amount of heat, but nothing that should trouble adjacent components.
DEUTSCH
It is perfectly possible to stack the T 785 on top of other components, but the reverse usually should
be avoided. Nonetheless, it is generally preferable that the T 785 stand alone. It is especially important
that sufficient ventilation be provided. If you are contemplating on locating the T 785 within a cabinet
or other furniture, consult your NAD audio/video specialist for advice on providing adequate airflow.
QUICK START
Packed with your T 785 is a Quick Start Guide that will guide you through typical setup configurations
in combination with your ancillary devices. The Quick Start Guide also features the contents of your
T 785 package as well as start up procedures.
The T 785 is defaulted to the following settings:
NEDERLANDS
SVENSKA
Source
Audio Input
Video Input
Source 1
HDMI 1 IN/ Audio 1 IN
HDMI 1 IN
Source 2
Optical 2 IN/ Audio 2 IN
Component Video 2 IN
Source 3
Coaxial 3 IN/ Audio 3 IN
S Video 3 IN
Source 4
Audio 4 IN
Video 4 IN
iPod
Audio 5 IN
S-Video 5 IN
Source 7
7.1 Input
Component Video 3 IN
Front Input
Optical Front Input/ Audio Front Input
S-Video Front IN
Media Player
Audio MP input
Tuner
For Video output, select the highest video quality format available on your TV/Monitor and utilize this
for your Monitor OUT connection from the T 785 to the TV/Monitor. In most cases, this would be HDMI
but for other TV/Monitor without HDMI input, the best connection in order of best video quality would
be Component Video, S-Video and Composite video input.
РУССКИЙ
To modify the above default settings and for a better understanding of source setting and
combinations, please refer to the section on ‘Source Setup’ of the Setup Menu discussion.
NOTE
Digital input will always take precedence over analog audio input even if both are present.
6
INTRODUCTION
ENGLISH
GETTING STARTED
DEALING WITH HUM AND NOISE
Power all your system's audio component from AC outlets originating from the same circuit of your
house wiring. As far as possible, power all audio components from the same outlet, or adjacent
outlets on the same circuit. It may be useful to power video displays (and computers!) from outlets
on another circuit, especially if that circuit is supplied from the other "leg" of the house wiring.
•
Do not bundle analog audio cables with AC power cables, or with coaxial digital-audio cables. It is
best if they cross at right angles if they must be in close proximity.
•
Employ high-quality, well-shielded audio cable throughout, and ensure that all connections are
secure.
•
A pencil-eraser can be used to burnish copper- and gold-plated contacts to ensure good, lowresistance contact; specialized contact-cleaners can also be useful. Avoid unnecessary unplugging
and re-plugging since the gold (or copper) contact plating of typical cable connectors, even very
high-quality ones, is very thin and easily worn.
ESPAÑOL
•
FRANÇAIS
Hum and noise may sometimes prove a challenge in complex, multi-channel audio systems. Note
these considerations to help prevent hum and noise problems:
ITALIANO
Track down hum/noise problems one component at a time, working backwards from the A/V Receiver.
That is
a. Connect the speakers to the A/V Receiver only, and check for hum.
b. Then connect one component only (a CD player, for example) alone, with no other components
connected and check for hum.
c. Connect additional components, one at a time, to the A/V Receiver and check for hum.
РУССКИЙ
SVENSKA
NEDERLANDS
DEUTSCH
At each stage, if hum/noise appears, examine the audio cabling and AC-power routing of the new
component. In some cases, moving the new component's AC cord to a different outlet, or installing a
ground-lift (3-to-2-prong adapter) on its power cord, will eliminate the hum.
7
IDENTIFICATION OF CONTROLS
FRONT PANEL
ENGLISH
1
2
3
4
5
6
7
8
10
9
FRANÇAIS
ESPAÑOL
11
12
ITALIANO
1 STANDBY BUTTON : Press this button or the HTRC 1 remote’s [ON]
button to switch ON the T 785. The Standby LED indicator will turn from
amber to blue and illuminate the VFD. Pressing the standby button
again turns the unit back to standby mode.
DEUTSCH
The T 785 can also be switched ON from standby mode by pressing
any of the front panel buttons. When both Main and Zones are ON,
press and hold this button for more than five seconds to place them at
standby mode.
NEDERLANDS
NOTES
• The rear panel POWER switch must be in the ON position for the Standby
button to activate.
• If Auto Trigger IN at Trigger Setup menu is assigned to ‘Main’ or ‘All’ and
the TRIGGER switch is set to ‘AUTO’ mode, the standby button in the front
panel as well as the corresponding ON/OFF function keys in the HTRC 1
remote control will be disabled effectively handing this function to an
external controller. Switch TRIGGER to ‘OFF’ to maintain normal power
ON/OFF function procedures. (See section also about “Trigger Setup”
under the “Setup Menu” discussions.
SVENSKA
2 STANDBY LED : This indicator will light up amber when the T 785 is
in standby state. When the T 785 main or zones are in the ON state,
this indicator will illuminate blue. In the unlikely event that the T 785
switches to protection state, then this indicator will illuminate red.
When infrared command from the HTRC 1 is received, this indicator will
also flash momentarily.
РУССКИЙ
3 INFO : Repeatedly toggle this button (press/hold first if in Tuner mode
and then toggle) to display both at the Vacuum Fluorescent Display
(VFD) and On-Screen Display (OSD) the following – Current Source,
Volume level, Listening mode, Audio Source Format, Audio Codec,
Video Mode and active Zones with their corresponding Source Inputs.
While at Tuner mode, toggle this button to cycle through Preset Name,
RDS name and RDS text.
8
13
14
15
16
17
18
19
4 AM/FM/DB : Toggle this button to select either AM, FM, DAB (230V
version only) or XM (120V version only) tuner functions.
5 TUNER MODE : In FM mode, this button will toggle between FM
Stereo and FM mono. Select FM Mono (FM stereo and FM Mute icons
at VFD are extinguished) for stations that have too much interference
or are too weak. In DAB (230V version only) or XM (120V version only)
radio, this button enables the digital radio menu in conjunction with
the Navigation button and Enter buttons.
6 MEMORY : Press this button to store tuned AM, FM and digital radio
stations to the T 785’s 40 preset-memory locations. One can store a mix
of any AM, FM and digital radio stations to the 40 available presets.
7. NAVIGATION and ENTER buttons : These buttons are used to
navigate the T 785 OSD, Tune Scan Forward
and Tune Scan Reverse
, Preset Skip Forward
and Preset Skip Reverse
as well as
navigation of DAB (230V version only), XM (120V version only) tuner
functions and iPod.
8 VACUUM FLUORESCENT DISPLAY (VFD): Displays visual information
about the current settings like the active Source, volume level, listening
mode, audio format, applicable RDS/XM/DAB as well as iPod-related
display information and other related indicators. Refer also to the item
about DISPLAY SETUP under the USING THE T 785 – SETUP MENU
segment of the OPERATION section.
9 REMOTE SENSOR: Point the HTRC 1 remote control at the remote sensor
and press the buttons. Do not expose the remote sensor of the T 785 to a
strong light source such as direct sunlight or illumination. If you do so, you
may not be able to operate the T 785 with the remote control.
Distance: About 23ft (7m) from the front of the remote sensor.
Angle: About 30° in each direction of the front of the remote sensor.
IDENTIFICATION OF CONTROLS
Speaker A is the main set of 7 multichannel and surround speakers.
Speaker B is an auxiliary set for remote locations such as other rooms
of your home. For Speaker B selection, all surround sound sources are
downmixed to stereo. Combining Speaker A and Speaker B (SPEAKERS
A + B) will also result to the source being downmixed to stereo.
12
SOURCE : Press these buttons to toggle through the input
selections – Source 1, Source 2, Source 3, Source 4, iPod, Source 7,
Front Input, Media Player and Tuner (AM, FM, XM, DAB as applicable).
More Sources could be directly recalled through these buttons upon
enabling them at the Setup Menu (See the section ‘Source Setup’ at
Setup Menu discussion).
13 LISTENING MODE: Toggle to select through the various Listening
mode options. Depending on the format of the currently selected input
(digital or analog, stereo or multichannel), various listening modes are
available. Refer also to the item about LISTENING MODE under the
USING THE T 785 – MAIN MENU segment of the OPERATION section.
FRANÇAIS
NOTE
When you connect your headphone to PHONES jack, audio can be
heard simultaneously via your headphone and T 785’s SPEAKERS A and/
or SPEAKERS B. If you prefer to listen through your headphone only
and exclude both speakers, toggle SPEAKERS A and/or B button to set
and reflect at the VFD “Speaker A Off” and/or “Speaker B Off” thereby
disabling SPEAKERS A and/or SPEAKERS B. To enable back or restore
audio at SPEAKERS A and/or SPEAKERS B, toggle SPEAKERS A and/or B
button to set them to “Speaker A On” and/or “Speaker B On”.
ESPAÑOL
11 A SPEAKERS B: SPEAKERS A and B buttons engage or disengage the
speakers connected respectively to the SPEAKERS A and SPEAKERS B
terminals on the rear panel. Toggle “A” to switch ON or OFF the speakers
connected to the SPEAKERS A terminals (“Speaker A On” or “Speaker B
Off” is reflected in the VFD). Toggle “B” to switch ON or OFF the speakers
connected to the SPEAKERS B terminals. Press both “A” and “B” to
engage at the same time both SPEAKERS A and SPEAKERS B (SPEAKERS
A+B is illuminated in the VFD).
17 PHONES : Accepts stereo headphone using a standard 1/4-inch stereo
phone plug (use a suitable adapter for headphones equipped with a
smaller plug). For headphone listening, the Front speakers must be set
to “Large” at the ‘Speaker Configuration’ of the Speaker Setup item at
the Setup Menu, otherwise headphone bass response will be restricted.
Plugging in headphones will automatically switch the T 785 to Stereo,
Stereo Downmix or Analog Bypass modes.
18 FRONT INPUT jacks : Use these convenience jacks for occasional
sources such as a camcorder, tape player, video game console, any
analog audio or optical digital audio and composite or S-Video video
sources. If your source has a single audio out jack only or is marked
‘mono output’ , plug this into the T 785’s Front ‘R (Mono)’ input. On the
other hand, if your source has two output jacks indicative of stereo
output, insert both jacks into the T 785’s corresponding Front ‘L’ and ‘R
(Mono)’ input to achieve stereo output as well.
ITALIANO
10 VOLUME : Use this control to adjust the volume level of the main
speakers. The default volume level is -20dB. The VOLUME knob is also
used to increment / decrement other adjustable parameters like Tone
Controls.
ENGLISH
FRONT PANEL
19 MP/MIC input : Connect your MP3’s standard stereo phone jack to
this input. This is the same input where Audyssey microphone jack is
connected (See also discussion about ‘Audyssey Auto Calibration’).
DEUTSCH
14 TONE CONTROLS : Press to adjust TREBLE control using the VOLUME
knob over a ± 10dB range. Press again to adjust BASS control and a third
time for DIALOG control. See also section about ‘Tone Controls’ under
‘Main Menu’ discussions.
NEDERLANDS
15 TONE DEFEAT : Tone Controls are enabled or disabled by pressing
this button. Tone controls are bypassed at ‘Tone Defeat’ while at ‘Tone
Active,’ the tone controls are enabled again. See also section about ‘Tone
Controls’ under ‘Main Menu’ discussions.
РУССКИЙ
SVENSKA
16 FRONT INPUT/MP : Use this button to directly select Front Input and
Media Player. Toggle button to switch between Front Input and Media
Player input.
9
IDENTIFICATION OF CONTROLS
REAR PANEL
ENGLISH
1
2
3
4
5
6
7
8
9
10
11 12
13
FRANÇAIS
ESPAÑOL
14
16
17
18
19
20
ITALIANO
15
DEUTSCH
ATTENTION!
Please make sure that the T 785 is powered off or unplugged before making any connections. It is also advisable to power-down or unplug all associated
components while making or breaking any signal or AC power connections.
NEDERLANDS
1 DIGITAL AUDIO IN (OPTICAL 1-3, COAXIAL 1-3) : Connect to the
optical or coaxial S/PDIF-format digital output of sources such as CD
or DVD/BD players, HDTV or satellite tuners and other components.
Coaxial and Optical digital input association is configurable via the
Setup Menu.
DIGITAL AUDIO OUT (OPTICAL, COAXIAL) : Connect the optical or
coaxial digital OUT ports to the corresponding S/PDIF digital input of
a recording component such as a CD recorder, DAT deck, computer
soundcard or other digital processors.
SVENSKA
2 FM, AM ANTENNA INPUT : The supplied wire “dipole” FM antenna will
connect to the FM connector using the supplied “balun” adapter. It will
usually work best when mounted on a vertical surface such as a wall,
with arms fully outstretched forming a horizontal “T” perpendicular to
the origin point of the signal.
РУССКИЙ
Connect the supplied AM loop antenna to these terminals. If an external
AM antenna is used, make connections to the AM and GND terminals in
accordance with the instructions supplied with the antenna.
10
3 COMPONENT VIDEO 1-3 IN, COMPONENT VIDEO OUT : Connect
the Component Video IN 1-3 inputs to Component Video outputs
from compatible source components, typically a DVD/BD player and
terrestrial or satellite HDTV tuner. Connect Component Video OUT to
the Component Video input of a compatible video monitor/TV. Be
sure to observe consistency in connecting the Y/Pb/Pr jacks to the
corresponding sources/inputs. The routing of the component video
inputs is fully configurable via the Setup Menu. The T 785’s component
video inputs and outputs are fully wideband and compatible with
allowable HDTV formats.
4 MP DOCK: The T 785 is equipped with a data port in the rear panel
where an optional NAD IPD (NAD IPD Dock for iPod), NAD IPD 2 and
later variants can be plugged in. Connect the “MP DOCK (DATA PORT)”
jack of the T 785 to the corresponding “DATA PORT” socket of the
optional NAD IPD model. Refer also to the item about “LISTENING TO
YOUR iPod PLAYER” under the “USING THE T 785 - AM/FM/DB/iPod”
segment of the “OPERATION” section.
NOTE
The external “NAD IPD Dock for iPod” (NAD IPD) model is not supplied
with your T 785.
IDENTIFICATION OF CONTROLS
AUDIO 3-4 IN/VIDEO 3-4 IN/S-VIDEO 3-4 IN may be used with
recording components such as videocassette or DVD-recorders by
connecting these components’ record-output to the corresponding
T 785 AUDIO 3 IN/VIDEO 3 IN/S-VIDEO 3 IN or AUDIO 4 IN/VIDEO
4 IN/S-VIDEO 4 IN jacks. AUDIO 3 IN/VIDEO 3 IN/S-VIDEO 3 IN or
AUDIO 4 IN/VIDEO 4 IN/S-VIDEO 4 IN may freely be used for play-only
components, in which case their corresponding OUT jacks would
remain unconnected. Refer also to AUDIO 3 OUT/ VIDEO 3 OUT/S-VIDEO
3 OUT, AUDIO 4 OUT/VIDEO 4 OUT/S-VIDEO 4 OUT discussion above.
AUDIO 6 is ideal for the connection of the analog output of line-level
audio sources like a CD player or Stereo tuner.
8 7.1 CH INPUT : Connect to the corresponding analog audio outputs
of a multichannel source component such as a DVD-Audio or
multichannel-SACD player or external multichannel decoder (disc copy
protected formats only allow analog signal transfer). Typically, these
sources will produce 5.1-channel output, in which case the Surround
Back jacks are left unconnected. The signals present at these jacks may
be heard by selecting Source 7 (External 7.1 audio input is defaulted to
this Source).
There is no bass-management or other processing (other than mastervolume control) available to this 7.1 CH. Input. While the multi-channel
audio outputs of a DVD-Video player can be connected to these jacks,
using the T 785’s own Dolby Digital and DTS decoding and digital-analog
converters via a digital connection will usually produce superior results.
11 SOFT CLIPPING : Enables NAD’s proprietary Soft Clipping circuitry on
all channels. At ON position, Soft Clipping gently limits the output of
the T 785 to minimize audible distortion should the A/V Receiver be
over-driven. Soft Clipping may simply be left ON at all times to reduce
the likelihood of audible distortion from excessive volume settings.
However, for critical listening and to preserve optimum dynamics, you
may wish to defeat it by setting this switch OFF.
12 +12 V TRIGGER OUT : There are three configurable +12V TRIGGER
OUTPUT. Use a 3.5mm mini-jack connector to pass +12 volts at a
maximum current of 50 milliamps to auxiliary equipment such as a
multichannel amplifier or subwoofer. The center conductor (hot) of the
3.5mm jack is the control signal. The outside conductor (shield) is the
ground return-path.
TRIGGER IN accepts 12V Trigger output of compatible components
such as power controllers and home automation devices.
TRIGGER OFF/AUTO. When at AUTO position, the T 785 selects the
12V Trigger Input to turn ON (if so assigned at the ‘Trigger Setup’ menu)
and at the same time disables the HTRC 1 and front panel’s ON/OFF
function. When at OFF position, the trigger input is disabled.
WARNING
If Auto Trigger IN at Trigger Setup menu is assigned to ‘Main’ or ‘All’ and
the TRIGGER switch is set to ‘AUTO’ mode, the standby button in the front
panel as well as the corresponding ON/OFF function keys in the HTRC 1
remote control will be disabled effectively handing this function to an
external controller. Switch TRIGGER to ‘OFF’ to maintain normal power
ON/OFF function procedures.
FRANÇAIS
ESPAÑOL
10 RS-232 : Connect this interface via RS-232 serial cable (not supplied)
to any Windows® compatible PC to allow remote control of the T 785
through NAD’s proprietary PC software or other compatible external
controllers. Please log on to www.nadelectronics.com/software for the
latest PC interface control software. NAD is a certified partner of AMX
and Crestron and fully supports these external devices. See your NAD
audio specialist for more information
ITALIANO
7 AUDIO 1-5 IN/VIDEO 1-5 IN/S-VIDEO 1-5 IN, AUDIO 6 IN : These
comprise the T 785’s principal input. Connect S-Video, composite video,
and analog stereo audio from source components such as DVD players
and HDTV/satellite tuners.
NOTE
The external “NAD DAB Adaptor DB 1 module” is not supplied with your T 785.
DEUTSCH
6 MONITOR (S-VIDEO, VIDEO) : Connect to video input of the monitor/
television using quality dual-RCA and/or S-Video cables designed for
video signals. In general, the S-Video connection is superior and should
be used if your TV/monitor provides the corresponding input.
DAB MODULE INPUT (230V version only): Plug-in the other end
of the Mini-Din connector from the NAD DAB Adaptor DB 1 module
output port into this socket. The T 785 is compatible only with NAD
DAB Adaptor DB 1 so check with your NAD dealer for this module’s
availability. With DAB, you can receive CD-like quality programs without
any annoying interference and signal distortion.
NEDERLANDS
When configured, AUDIO 3 OUT/VIDEO 3 OUT/S-VIDEO 3 OUT and
AUDIO 4 OUT/VIDEO 4 OUT/S-VIDEO 4 OUT are the same assigned ports
for Zone 3 and Zone 4 respectively. See also Zone output description
below.
NOTE
The external XM radio is not supplied with your T 785.
SVENSKA
The signal present at these T 785 AUDIO/VIDEO OUT jacks is determined
by the source last selected via the front panel Source keys or the HTRC 1’s
input select keys with the exception of Source 3 or Source 4. There will be
no output at AUDIO 3 OUT/VIDEO 3 OUT/S-VIDEO 3 OUT when Source 3
(AUDIO 3 IN/VIDEO 3 IN/S VIDEO 3 IN) is selected. Likewise, there will be
no output at AUDIO 4 OUT/ VIDEO 4 OUT/S-VIDEO 4 OUT when Source
4 (AUDIO 4 IN/VIDEO 4 IN/S VIDEO 4 IN) is the active source input.. This
prevents feedback through the recording component thereby preventing
possible damage to your speakers.
9 XM MODULE INPUT (120V version only): Connect XM radio cable
to this socket. Follow the instructions that came with your XM radio.
With XM radio, there are more than 100 channels of music, news, sports,
comedy, talk and entertainment. You will find that the coverage is
continent wide. The music quality is digital with many commercial-free
music channels.
РУССКИЙ
5 AUDIO 3-4 OUT/VIDEO 3-4 OUT/S-VIDEO 3-4 OUT: Connect the T 785’s
AUDIO 3 OUT/VIDEO 3 OUT/S-VIDEO 3 OUT or AUDIO 4 OUT/VIDEO 4
OUT/S-VIDEO 4 OUT jacks to the analog audio/video input of a recording
component such as a cassette deck, DVD recorder or to an outboard audio/
video processor. Connect the T 785’s AUDIO 3 IN/VIDEO 3 IN/S-VIDEO 3
IN or AUDIO 4 IN/VIDEO 4 IN/S-VIDEO 4 IN jacks to the component’s
corresponding output.
ENGLISH
REAR PANEL
See discussion on ‘Trigger Setup’ at the ‘Setup Menu’ literature for
guidelines on how to configure TRIGGER IN/OUT.
11
IDENTIFICATION OF CONTROLS
REAR PANEL
ENGLISH
13 IR IN/OUT : These mini-jacks accept and output remote-controlled
codes in electrical format, using industry-standard protocols, for use
with “IR-repeater” and multi-room systems and related technologies.
IR IN. This input is connected to the output of an IR (infrared) repeater
(Xantech or similar) or the IR output of another component to allow
control of the T 785 from a remote location.
FRANÇAIS
ESPAÑOL
IR OUT 2. When connected to the IR IN of an ancillary equipment,
direct the ancillary equipment’s own remote control to the T 785’s
infrared receiver to command or control the linked unit.
Connect left and right channels of Speakers B to the corresponding
remote loudspeakers. When Speakers B is activated, the output is
converted to ‘Stereo Downmix’ as indicated in the VFD. Combining
Speaker A and Speaker B (SPEAKERS A + B) will also result to the source
being downmixed to stereo.
IR IN and IR OUT 3. Connect the T 785’s IR IN to the IR OUT of an
ancillary equipment. Connect also the T 785’s IR OUT 3 to another
equipment with IR IN feature. With this setup, the T 785 acts as an “IRrepeater” allowing the equipment connected to the T 785’ s IR IN control
or command of the other equipment linked to the T 785’s IR OUT 3.
The T 785 is designed to produce optimum sound quality when
connected to speakers with impedances within its operating range.
Please make sure that all the speakers are rated 4Ω minimum per speaker.
IR OUT 1. In conjunction with IR IN, IR OUT 1 can be used as an “IRrepeater” just like the IR OUT 3 as described above. It can also stand
alone as an IR OUT similar to that of IR OUT 2 function.
ITALIANO
All NAD products with IR IN/IR OUT features are fully compatible with
the T 785. For non-NAD models, please check with your other product’s
service specialists as to their compatibility to the T 785’s IR features.
14 HDMI (HDMI 1-4, HDMI MONITOR OUT) : Connect HDMI inputs
to the HDMI OUT connectors of source components such as DVD/BD
player or HDTV satellite/cable box. Connect the HDMI Monitor OUT to a
HDTV or projector with HDMI input.
DEUTSCH
WARNING
Before connecting and disconnecting any HDMI cables, both the T 785
and the ancillary source must be powered OFF and unplugged from the
AC outlet. Failure to observe this practice may cause permanent damage
to all equipment connected via HDMI sockets.
NEDERLANDS
15 ZONE 2, ZONE 3, ZONE 4 : Sends zone selected audio and video
output sources to the corresponding audio and video input of another
separate zone. Use high quality patch cables to reduce noise pickup
over long distance runs. For a better understanding of zone settings,
study below the section on ‘Zone Controls’ of the ‘Main Menu’ discussion
as well as the item on ‘Zone Setup’ under the ‘Setup Menu’ literatures.
NOTE
The ZR 4 remote control will only control Zone 2 applications. Zone 3
and Zone 4 could be configured and managed at the appropriate Zone
OSD menu using the front panel navigations buttons as well as the
corresponding keys on the HTRC 1 remote control.
SVENSKA
16 AUDIO PRE-OUT : The Audio PRE- OUT makes it possible to use the
T 785 as a pre-amplifier to external power amplifiers for some or all
channels. Connect FRONT L, FRONT R, CENTER, SURR R, SURR L, SURR-BL
and SURR-BR to the respective channel input of a power amplifier or
amplifiers driving the corresponding applicable speakers.
РУССКИЙ
Unlike the full range channels, there is no power amplifier built-into the
T 785 for a subwoofer. Connect the SUBW 1 or SUBW 2 output or both
to powered (“active”) subwoofers or to power amplifier channels driving
a passive system.
NOTE
Never connect both the external amplifier and T 785’s speaker outputs to
the same set of speakers.
12
17 SPEAKERS A, SPEAKERS B : Connect the respective SPEAKER A’s
FRONT L, FRONT R, CENTER, SURR R, SURR L, SURR-BL and SURR-BR
channels to their corresponding loudspeakers. Make sure the “+” (red)
terminal and “-“(black) terminal are connected to the corresponding
“+” and “-“terminals of the loudspeaker. Use extra care to ensure that no
stray wires or strands cross between posts or terminals at either end.
NOTE
Use stranded wire of at least 16 gauge (AWG). Connections to the T 785
can be made with banana plugs (120V version only) or by using bare
wire or pins. Use the transverse hole through the post for bare-wire or
pin connections. By loosening the terminal’s plastic nut, make a clean,
neat connection and re-tighten carefully. To minimize the danger
of short-circuit, ensure that only 1/2-inch of exposed wire or pin is
employed when connecting.
18 AC MAINS INPUT: The T 785 comes supplied with a separate AC Mains
cable. Before connecting the cable to a live wall socket, ensure that it is
firmly connected to the T 785’s AC Mains input socket first. Connect only
to the prescribed AC Outlet, i.e., 120V 60 Hz (for 120V version models of
T 785 only) or 230V 50 Hz (for 230V version models T 785 only). Always
disconnect the AC Mains cable plug from the live wall socket first, before
disconnecting the cable from the T 785 Mains input socket.
19 SWITCHED AC OUTLET : This convenience outlet can supply switched
power to another component or accessory. With the POWER switch at
the rear panel set to ON position, this outlet is powered ON or OFF by
the front panel STANDBY switch or by the HTRC 1’s ON/OFF buttons.
The total draw of all devices connected to this jack must not exceed
120 watts.
20 POWER : The POWER switch supplies the master AC mains power for
the T 785. When this switch is at ON position, the T 785 is in standby
mode as shown by the amber status condition of the standby LED. If
you intend not to use the T 785 for long periods of time (such as when
on vacation), switch the POWER switch to the OFF position. When
the POWER switch is at OFF position, the front panel standby button,
HTRC 1 remote control or ZR 4 cannot activate the T 785.
OPERATION
LISTENING MODE
The T 785 receiver employs a simple, self-explanatory system of on-screen
display “menus” that will appear on the connected video monitor/TV. These are
required during the setup process (and are useful in day-to-day operation), so
be sure to connect the monitor/TV before proceeding with setup.
MAIN MENU
STEREO
All output is directed to the front left/right channels. Low frequencies are
directed to the subwoofer if one is present in the Speaker settings. Select
‘Stereo’ when you wish to listen to a stereo (or monaural) production, such
as music CD or FM broadcast, without surround enhancement. Stereo
recordings whether in PCM/digital or analog form and whether surroundencoded or not encoded, are reproduced as recorded. Multi-channel digital
recordings (Dolby Digital and DTS) are reproduced in “Stereo Downmix”
mode via the front left/right channels only as Lt/Rt (left/right-total) signals.
DIRECT
The analog or digital sources are automatically played in their native
formats. All the source’s audio channels are reproduced directly. This
mode recreates the original sound most faithfully thereby producing
outstandingly high quality audio.
The Main Menu contains the menu options for ‘Listening Mode’, ‘DSP
Options’, ‘Tone Controls’, ‘Picture Controls’, ‘Zone Controls’ and access to
‘Setup Menu.’
PRO LOGIC
Two-channel recordings, whether stereo or surround-encoded, are
reproduced with Dolby Pro Logic surround processing, yielding output to
front left/right, center and discrete left/right surround channels (assuming
these are present in the current ‘Speaker Configuration’). The surround
channel is monophonic, but it is reproduced in both surround speakers.
NEDERLANDS
To navigate through these Main Menu options and their sub-menu
selections, please refer to and follow the directions stated in the sections
‘Display the OSD’ and ‘Navigating the OSD and Making Changes.’
ESPAÑOL
The T 785 offers distinct listening modes, tailored for different types of
recording or program material. With a two-channel (Stereo) source, the
following listening modes can be selected:
ITALIANO
NAVIGATING THE OSD AND MAKING CHANGES
To navigate through the OSD menu options, please do the following using
the HTRC 1 or corresponding front panel buttons:
1 Press to select a menu item. Use
keys or in some cases, ENTER,
to move up or down the Menu selections. Repeatedly press to
advance or go further into sub-menus of a desired menu item.
2 Use
keys to set or change the parameter value (setting) of a menu
item.
3 Press to save the settings or changes done on the current menu or
sub-menu. Pressing will also return the user to the previous menu or
exit from a particular menu.
FRANÇAIS
DISPLAY THE OSD
Press either or ENTER buttons of the HTRC 1 remote control or front panel
to display the T 785’s Main Menu on your video monitor/TV. If the OSD does
not appear, check your MONITOR OUT connections.
DEUTSCH
ABOUT THE ON-SCREEN DISPLAY (OSD)
ENGLISH
USING THE T 785 – MAIN MENU
РУССКИЙ
SVENSKA
NOTE
The individual configurations set forth at ‘Listening Mode’, ‘DSP Options’,
‘Tone Controls’ and ‘Picture Controls’ are carried over whenever they are
enabled during A/V Preset setting. Please see the section ‘AV Presets’ for
reference.
13
OPERATION
USING THE T 785 – MAIN MENU
ENGLISH
FRANÇAIS
DOLBY PRO LOGIC IIx
Dolby Pro Logic IIx processes both stereo and 5.1 signals into a 6.1 or 7.1
channel output. At Dolby Pro Logic IIx, you can choose PLIIx Movie or PLIIx
Music modes to tailor your listening experience to the source material.
Dolby Pro Logic IIx surround processing yields more stable imaging and full
bandwidth sound to the rear channels in Movie mode offering sound that
is more similar to Dolby Digital decoding. For two channel signals, Pro Logic
IIx Music mode also features three additional user controls - Dimension,
Center Width, and Panorama. See also section about ‘Adjusting Listening
Modes’ below.
The following chart shows the channels available assuming they are
enabled in the ‘Speaker Configuration’ menu:
Listening Mode
Two-Channel Sources
ESPAÑOL
Dolby Pro Logic IIx Music
Dolby Pro Logic IIx Movie
Active Decoded Output Channels
6.1 Speaker System
7.1 Speaker System
Front (left & right),
Center, Surround (left &
right), Back Surround,
Subwoofer
Front (left & right),
Center, Surround (left &
right) and Back Surround
(left and right) and
subwoofer
ITALIANO
DTS NEO: 6
Two-channel recordings, whether stereo or surround-encoded, are
reproduced with Neo: 6 surround with output to front left/right, center and
discrete left/right surround channels plus subwoofer (assuming these are
present in the current ‘Speaker Configuration’). The T 785 provides two DTS
Neo: 6 variations - NEO:6 Cinema and NEO:6 Music. See also section about
‘Adjusting Listening Modes’ below.
DEUTSCH
EARS
Two-channel recordings, whether stereo or surround-encoded, are
reproduced with proprietary NAD surround processing with signals output
to the front left/right, center and discrete left/right surround channels,
plus subwoofer (assuming these are present in the current ‘Speaker
Configuration.’). EARS does not employ the surround back speakers (if any).
NEDERLANDS
EARS extracts the natural ambience present in nearly all well-produced
stereo recordings. It does not synthesize any ambience or other sonic
elements and thus remains truer to the sound of the original musical
performance than most other music-surround options.
SVENSKA
Select EARS for listening to stereo music recordings and broadcasts.
EARS produces a subtle but highly natural and believable ambience from
nearly all “natural-acoustic” stereo recordings. Typically, these include
classical, jazz, and folk genres as well as numerous examples from others.
Its virtues include realistic, stable “front-stage” sonic imaging and spacious
but unexaggerated ambient “virtual acoustics” that remain faithful to the
original recording.
ENHANCED STEREO
All recordings are reproduced in stereo via the maximum speaker
complement configured in the current ‘Speaker Configuration.’ Enhanced
stereo can be useful for maximum volume from all channels or for multispeaker background music (cocktail party) listening. For this mode, Front,
Center, Surround and Back speakers can be turned ON/OFF as desired.
РУССКИЙ
ANALOG BYPASS
All analog signals remain in the analog domain without analog-to-digital
conversions. At Analog Bypass, the DSP circuitry is bypassed but full tone
control functions remain. ‘Bass management’ or Speaker settings are also
not in effect as these are DSP functions.
14
ADJUSTING LISTENING MODES
Several of the T 785’s listening modes have one or more selectable
variations and adjustable parameters that you can modify to suit
you system or personal preferences. At Listening Mode menu, use a
combination of ENTER and
keys to navigate and effect desired
settings.
NOTE
Listening Mode parameter changes are maintained when you change
listening modes. You may also save a modified Listening Mode for easy
recall by saving it to a Preset (See ‘A/V Presets’ below under Setup Menu
discussions).
PRO LOGIC IIx
PLIIx MOVIE is optimized for film soundtracks.
PLIIx MUSIC for music recordings
Center Width (0 to 7): Modifies the “hard-centeredness” of the center
image, by gradually mixing mono center content to the Front left/right
speakers as well. A setting of 0 retains the center-channel-only default
while a setting of 7 yields a fully phantom center channel.
Dimension (-7 to +7): Adjusts front-rear emphasis of the surround
effect independently from the relative channel levels.
Panorama (On/Off): Adds a “wraparound” effect by extending some
stereo content into the surround channels.
NOTE
Pro Logic IIx mode will decode as Pro Logic II mode when the BACK
surround speakers are set to “OFF” from “Speaker Configurations” menu.
See also section about “Speaker Configurations” under “Speaker Setup”
of the Setup Menu.
DTS NEO: 6
NEO: 6 Cinema is optimized for film soundtracks.
NEO: 6 Music for music recordings
Center Gain (0 to 0.5): Adjust for better center image in relation to the
surround sound channels.
OPERATION
AUDYSSEY MultEQ
Audyssey MultEQ becomes available among the DSP options only after
successfully completing Audyssey Auto Calibration (accessible through
the Setup Menu). Refer also to Audyssey Auto Calibration segment of the
Speaker Setup under Operation – Using the T 785 – Setup Menu.
Audyssey MultEQ can be set to the following levels
Audyssey: Audyssey developed target curve.
Flat: This setting is appropriate for very small or highly treated rooms
in which the listener is seated quite close to the loudspeakers. MultEQ
filters are used in the same way as the Audyssey curve, but it does not
apply a high frequency roll-off.
NAD: Ideal “in room” response developed by NAD engineers along with
Audyssey Engineers.
Off: MultEQ filters are not used or no measurement process at all.
NOTES
• “AUDYSSEY” and a lit green box icon are illuminated at the VFD if NAD,
Audyssey or Flat is selected. If “Off” is selected, “AUDYSSEY” and the
green box icon will not be illuminated.
• If NAD, Audyssey or Flat is selected and changes are done at the “Tone
Controls”, “Speaker Configuration”, “Speaker Levels” and “Speaker
Distance” settings, “AUDYSSEY” and a lit red box icon are illuminated
at the VFD. Restore the parameter to its previously calibrated Audyssey
setting by adjusting back the altered configuration.
• Audyssey MultEQ options can also be directly selected or changed using
HTRC 1’s AUDYSSEY button with DEVICE SELECTOR set to AMP mode.
Toggle AUDYSSEY button to select “Audyssey MultEQ” and then use the
[
] to select through the Audyssey MultEQ options. Press AUDYSSEY
again to save the selected option and at the same time move on to the
next menu setting or exit the menu setting altogether.
AUDYSSEY DYN EQ (AUDYSSEY DYNAMIC EQ)
Audyssey Dynamic EQ solves the problem of deteriorating sound quality as
volume is decreased by taking into account human perception and room
acoustics. By carefully combining information from incoming source levels
with actual output sound levels in the room, Audyssey Dynamic EQ delivers
unprecedented sound reproduction at all volume levels.
AUDYSSEY DYNAMIC VOLUME
Audyssey Dynamic Volume delivers consistent volume playback levels,
anticipating sudden spikes and dips in volume and compensating for them
in real time. Audyssey Dynamic Volume monitors the volume of program
material moment-by-moment, maintaining the desired listening level for all
content while optimizing the dynamic range to preserve the impact.
Audyssey Dynamic Volume includes Audyssey Dynamic EQ, which
compensates for deteriorating sound quality as volume is decreased
by taking into account human perception and room acoustics. These
two technologies enable the full frequency response of the source at its
original level to be reproduced at any listening level. Even at lower listening
volumes, Dynamic Volume ensures that the richness and dynamics of the
response are maintained.
Audyssey Dynamic Volume can be set to the following levels
Light: Provide the least adjustment to the loudest or softest sound
level.
Medium: Setting that prevents loud and soft sound from being much
louder than their respective average sound levels.
Heavy: Affect volume the most by causing all sound to be of equal
loudness.
NOTE
Audyssey Dynamic EQ must be set to “On” to activate Audyssey Dynamic
Volume. If Audyssey Dynamic EQ is set “Off”, Audyssey Dynamic Volume
will also remain “Off”.
IMPORTANT NOTICE
If Audyssey Auto Calibration is not set up, the relative balance of your
system’s loudspeakers has to be manually adjusted (with the aid of a SPL
meter) for Audyssey Dynamic Volume and Audyssey Dynamic EQ to be
effective. If the speakers are not properly calibrated, the corresponding
Audyssey Dynamic Volume and Audyssey Dynamic EQ responses could
be distorted. Refer also to the item about “USING SPL METER” in the
SPEAKER LEVELS section below.
FRANÇAIS
ESPAÑOL
By varying ‘Lip Sync Delay’ from 0ms to 120ms, one can delay the audio
output in order to synchronize it with the video image.
ITALIANO
LIP SYNC DELAY
DSP Options has the feature ‘Lip Sync Delay’ whose function is to match any
delay that may occur in the picture relative to the audio.
NOTE
Audyssey Dynamic EQ and Audyssey Dynamic Volume (see below)
can be directly selected or changed using HTRC 1’s AUDYSSEY button
with DEVICE SELECTOR set to AMP mode. Toggle AUDYSSEY button to
select “Dyn EQ” or “Dyn Vol” and then use the [
] to select through
their respective options. Press AUDYSSEY again to save the setting and
at the same time move on to the next option or exit the menu setting
altogether.
РУССКИЙ
The following signal processing parameters can be setup under the DSP
(Digital Signal Processing) Options menu.
DEUTSCH
Audyssey Dynamic EQ is designed to work in conjunction with Audyssey
MultEQ. Dynamic EQ determines the proper loudness compensation based
on the sound pressure level measurements MultEQ provides. Audyssey
Dynamic EQ working in tandem with Audyssey MultEQ provides the right
listening conditions for every listener at any volume level.
On: Activate Audyssey Dynamic EQ function.
Off: Defeat Audyssey Dynamic EQ function.
NEDERLANDS
Audyssey Dynamic EQ selects the correct frequency response and surround
volume levels moment-by-moment. The resulting bass response, octaveto-octave balance and surround impression remained the same despite
changes in volume.
SVENSKA
DSP OPTIONS
ENGLISH
USING THE T 785 – MAIN MENU
15
OPERATION
USING THE T 785 – MAIN MENU
ENGLISH
FRANÇAIS
ESPAÑOL
TONE CONTROLS
PICTURE CONTROLS
The T 785 has three Tone Control levels – Treble, Bass and Center Dialog.
Bass and Treble controls only affect the low bass and high treble leaving the
critical midrange frequencies free of coloration. The Center Dialog (‘Dialog’
in the VFD) control boosts the ‘presence’ of the midrange region improving
intelligibility of speech.
Picture Controls allow video adjustments of the source material or source
components to suit one’s preference. Set the following levels or settings
according to desired level of preference.
These controls allow one to tweak on-the-fly, the frequency response
of the source during playback. The control setting could be adjusted by
navigating through the Tone Controls’ OSD menu via a combination of
ENTER and
keys. The same can be managed directly by pressing the
front panel’s ‘TONE CONTROLS’ button and then rotating the Volume knob
to select desired setting.
ITALIANO
Maximum and minimum values for all three Tone Control levels are +/- 10 dB.
‘Tone Defeat’ gives one the choice of varying or completely bypassing the
tone control section of the T 785. If ‘Off’ (‘Tone Active’ in the VFD) is selected,
the Tone Control circuits are active.
Select ‘On’ (‘Tone Defeat’ in the VFD) to bypass the Tone Controls effectively
defeating the effect of the tone control circuits.
DEUTSCH
NEDERLANDS
NOTE
Tone Control options can be directly selected or changed using HTRC 1’s
TONE button with DEVICE SELECTOR set to AMP mode. Toggle TONE
button to select “Treble”, “Bass” or “Dialog” and then use the [
] to
adjust their respective levels. Press TONE again to save the settings and
at the same time move on to the next parameter or exit the parameter
setting altogether.
ASPECT MODE
The Aspect Mode allows one the choice of adjusting the video output
configuration of the T 785.
Letterbox: Original aspect ratio is maintained, preserving the original
image’s proportions. The unused areas of the screen are left blank.
Zoom: Video display zooms in to the image or scene, cutting off
portions that do not fit. Any unused areas of the screen are left blank
(i.e., black band).
Stretch: Image or scene is stretched sideways. Any unused areas of the
screen are left blank (i.e., black band).
IMPORTANT NOTICE
There is no visible or discernable change in the video display for any of
the above three aspect modes if the “Aspect Ratio” of both the source
component and the T 785’s Video Setup settings (see discussion about
“Aspect Ratio” under “Video Setup” menu at “Setup Menu”) are exactly
the same.
EDGE ENHANCEMENT
Fine details of an image’s hard edges are enhanced without adding ringing
or halos. Select the level upon which the detected area will be enhanced.
Threshold: Adjusts the sensitivity of the edge detection mechanism.
A lower threshold results in more subtle boundaries of color being
identified as edges. A threshold that is too low may result in some small
parts of surface textures, film grain or noise being incorrectly identified
as being an edge.
NOISE REDUCTION
This setting addresses video distortion like video noise and blocking
artifacts.
CONTRAST
Adjust bright areas (white level) of the video display.
SVENSKA
BRIGHTNESS
Adjust overall brightness of the video display.
NOTE
Picture controls options can also be directly recalled and adjusted by
pressing the numerical “0” key of the HTRC 1 with DEVICE SELECTOR set
to AMP. Use the [
] keys to select through the settings of a particular
option or adjust the levels.
РУССКИЙ
16
OPERATION
ENGLISH
USING THE T 785 – MAIN MENU
FRANÇAIS
ZONE CONTROLS
ITALIANO
ESPAÑOL
Depending on the settings made at the separate ‘Zone Setup’ menu under
the ‘Setup Menu’ section discussion, the applicable Zone can be configured
and managed via this ‘Zone Controls’ window.
Select ‘On’ to activate the applicable Zone. When activated, the Source input
for the particular Zone can be allocated by selecting through the following
inputs – All enabled Sources, Front Input, Media Player, Tuner and Local.
DEUTSCH
Select ‘Local’ as your selected Zone’s Source input if you wish to enjoy the
same source as the main Zone and allow simultaneous listening, but with
full separate volume levels.
If a Zone is set to ‘Off,’ it is deactivated or powered off.
NEDERLANDS
‘Volume’ refers to the adjustable secondary Zone 2 Volume level that can
be increased or decreased using the
buttons of the HTRC 1 or front
panel’s corresponding navigation buttons.
When a Zone is activated, a corresponding Zone number is illuminated
at the VFD. Zone 2 is always available to be configured at ‘Zone Controls’
menu. For Zone 3 and Zone 4 to become available at the ‘Zone Controls’
window, their corresponding ‘Mode’ in the ‘Zone Setup’ menu under the
‘Setup Menu’ section should be set to ‘Zone (Audio Only).’
РУССКИЙ
SVENSKA
NOTE
The ZR 4 remote control will only control Zone 2 applications. Zone 3
and Zone 4 could be configured and managed at the appropriate Zone
OSD menu using the front panel navigations buttons as well as the
corresponding keys on the HTRC 1 remote control.
17
OPERATION
USING THE T 785 – SETUP MENU
ENGLISH
SETUP MENU
Aspect Ratio: Select a picture size matching the aspect ratio of your
TV/Monitor.
4:3: Select “4:3” when a standard 4:3 TV is connected. “4:3” is not selectable
when the resolution is set to higher that 480i, 480p, 576i or 576p.
16:9: Select “16:9” when a 16:9 wide TV is connected. “16:9” is the only
available option when the resolution is set to 720p, 1080i or 1080p.
FRANÇAIS
After making changes in “Resolution”, “Frame Rate” or “Aspect Ratio”, scroll
down to “Apply Changes” and press [ ] to implement the settings. A new
OSD prompt will appear as below
The Setup Menu allows one to customize the operation of the T 785 to the ancillary
equipment used in one’s specific AV system. Unless your system exactly matches
the factory defaults as shown in the accompanying Quick Start Guide, you will need
to use the setup menu to configure the inputs of the T 785.
ESPAÑOL
At Setup Menu, the following are configurable – Video Setup, Source Setup,
Speaker Setup, Zone Setup, Amplifier Setup, Trigger Setup, Listening Mode
Setup, Display Setup and A/V Presets.
To access and navigate through Setup Menu and its sub-menu selections,
please refer to and follow the directions stated in the sections ‘Display the
OSD’ and ‘Navigating the OSD and Making Changes.’
ITALIANO
VIDEO SETUP
Press the [ ] to apply the new resolution or [ ] to return to the current
resolution. If [ ] is selected, you will be prompted again to another OSD
prompt as below
Press [ ] to save the new resolution or [ ] to cancel the change in
resolution. If you do not press either [ ] or [ ] and let the timer elapse,
the new resolution will not be implemented and the current resolution
setting remains.
IMPORTANT NOTE
If you inadvertently selected a resolution setting (like 1080p) that your
TV/Monitor does not support, the video display will go blank. To restore
video display, press and hold both front panel buttons LISTENING MODE
and TONE DEFEAT and then release both buttons - the VFD and OSD will
both show “Video Reset”. Both the “Picture Controls” and “Video Setup”
settings will be restored to their factory defaults after Video Reset.
NOTES
· When using component video output, a standard definition video can
be upscaled only up to 1080i.
· When the “Resolution” is set to “Auto”, “Frame Rate” and “Aspect Ratio”
will not be available as options.
DEUTSCH
This menu allows you to set the display resolution of the T 785 along with
corresponding frame rate and aspect ratio.
NEDERLANDS
Resolution: The T 785 has the excellent ability to upconvert standard
definition video contents to high definition video signal. Depending upon
your TV/Monitor’s resolution capabilities, select the applicable resolution
settings - Auto, 480i, 480p, 576i, 576p, 720p, 1080i and 1080p.When “Auto”
is selected, the T 785 automatically selects the connected TV/Monitor’s
highest compatible resolution.
Note that if the display is connected to Composite or S-Video Monitor OUT,
the video output resolution must be set to 480i or 576i to view content.
SVENSKA
РУССКИЙ
Frame Rate: The frame rate is the number of times per second that a
screen image is refreshed. Depending upon your area and video resolution
capability of your TV/Monitor, the following “Frame Rate” options are
available (Note that frame rate is output resolution dependent; not all frame
rate settings are selectable for the various resolution levels).
50Hz: Setting normally for Europe and most of Asia. For resolution
settings 576i and 576p, 50Hz is the only available option.
60Hz: Setting normally for North America. For resolution settings 480i
and 480p, 60Hz is the only available option.
24Hz: Select to deliver film-like motion characteristics. “24Hz” is
selectable only at 1080p resolution setting.
18
OPERATION
NAME
A new Name maybe assigned to a Source label. For example, if your DVD player
is attached to ‘Source 1’, it is possible to rename ‘Source 1’ to ‘DVD Player.’
FRANÇAIS
SOURCE SETUP
ENGLISH
USING THE T 785 – SETUP MENU
From Setup Menu, pressing will direct you to the Source Setup menu
wherein you could adjust allocate or change the settings of the following
– Source Setup (Normal View), Source Setup (Table View) and iPod Setup.
SOURCE SETUP (NORMAL VIEW)
Press
to move to the next character and at the same time save the
changes done on the current character. The name can be as long as twelve
characters.
ESPAÑOL
In order to rename the Source label, scroll to ‘Name’ and press to go the
character. Then, press
to pick through the alphanumeric selections.
The new Name will be shown in the VFD as well as on the OSD.
ITALIANO
ANALOG AUDIO
The T 785 has nine analog audio inputs including 7.1 input. These analog
inputs - Audio 1, Audio 2, Audio 3, Audio 4, Audio 5, Audio 6, Audio Front,
Audio MP and 7.1 Input can be variably assigned to each Source.
SOURCE
The T 785 is equipped with ten configurable Sources. The settings for each
Source are dependent on the configurations set forth in the parameters for
that particular Source window.
ENABLED
One can enable/disable a Source via this option. This is particularly useful
if only few Sources are used and one directly selects the Source from the
front panel, bypassing unused sources.
Scroll to ‘Analog Audio’ and then press and then
to select and assign
an analog audio input to the particular Source. There are three choices
– Audio, 7.1 Input or Off.
When ‘Audio’ is chosen, press and then
desired audio input – 1 to 6, Front and MP.
keys to select and assign the
Select ‘7.1 Input’ to choose the audio signal fed to ‘7.1 Channel Input.’ If ‘Off’
is selected, no incoming analog audio signal is selected by the particular
Source.
NOTE
An incoming digital signal present at the assigned digital input will
always take precedence over the assigned analog audio input, even if
both are present. To maintain the analog audio input for the particular
Source, select ‘Off’ at the ‘Digital Audio’ setting of the same ‘Source’
menu.
NEDERLANDS
NOTE
Source 5 is defaulted to iPod. For Source 5 to be changed and allocated
for other inputs, go to ‘iPod Setup’ menu under the ‘Source Setup’ menu. At iPod Setup menu, set ‘Enabled’ to ‘No’ – you can now assign Source 5
to other inputs or settings as desired.
DEUTSCH
To change or toggle through the Sources, scroll to ‘Source’, press button
and then ENTER or
to move up or down the Source selections.
SVENSKA
The Source Setup (Normal View) menu makes it possible to set, allocate or
change the following settings.
РУССКИЙ
To enable or disable a particular Source, scroll to ‘Enabled’ and press
keys to select ‘Yes’ or ‘No’.
19
OPERATION
USING THE T 785 – SETUP MENU
ENGLISH
VIDEO
There are four types of video input a particular Source could be assigned.
These are HDMI, Component, S-Video and Video inputs. A fifth option is ‘Off’
wherein the particular Source is prompted not to select any Video input.
Scroll to ‘Gain’, press
-12dB to 12dB.
Navigate through the Video input selections by pressing and then
to
step through the selections. The following are the assignable Video inputs
FRANÇAIS
GAIN
Gain adjustment allows all sources to play back at the same volume so you
don’t need to adjust the volume every time a new source is selected. It is
generally preferable to reduce the level of the loudest source rather than
making louder the softer sources.
ESPAÑOL
and then
to step through the desired level from
DIGITAL AUDIO
To take advantage of the T 785’s high performance surround and digital
audio circuitry, it is advisable that its Digital Audio inputs are selected.
HDMI ➜ HDMI 1, HDMI 2, HDMI 3, HDMI 4
Component Video ➜ Component 1, Component 2, Component 3
S-Video ➜ S-Video 1, S-Video 2, S-Video 3, S-Video 4, S-Video 5, S-Video
Front
Video ➜ Video 1, Video 2, Video 3, Video 4, Video 5, Video Front
ITALIANO
VIDEO FORMAT CONVERSION
The T 785 is equipped with a Video Format Converter. This allows for a
simplified video connection between the T 785 and your TV Monitor when
using multiple video formats such as Composite (CVBS), S-Video, and
Component (YUV). This format change is accomplished by encoding the
analog video signal into a digital signal using a very high quality digital
encoder to maintain the best possible picture quality.
DEUTSCH
There are three types of Digital Audio input for the T 785. These are HDMI,
Optical and Coaxial digital inputs. A fourth option is ‘Off’ whereby no
incoming digital audio signal is selected by the particular Source.
NEDERLANDS
The desired digital audio input for a particular Source can be selected
by scrolling to ‘Digital Audio’, press and then
to step through the
desired digital input source. After finalizing the desired type of Digital Audio
input, press and then
again to select the specific Digital Audio input.
There are eleven Digital Audio inputs selectable for the T 785. They are the
following
HDMI ➜ HDMI 1, HDMI 2, HDMI 3, HDMI 4
Optical ➜ Optical 1, Optical 2, Optical 3, Optical Front
Coaxial ➜ Coaxial 1, Coaxial 2, Coaxial 3
Once in digital format, the video input signal could also be available at
the other Monitor output jacks including HDMI MONITOR OUT. Thus, you
do not have to necessarily assign the video output of a composite video
input signal to MONITOR OUT (Composite video). The composite video
input signal can be viewed also at HDMI MONITOR OUT at a resolution
setting dependent upon your TV/Monitor’s resolution capability. Some
TV/Monitors will automatically display the video signal at 480p/576p if they
are not capable of displaying 480i/576i.
If your TV/Monitor does not have HDMI input, select the highest quality
video format available on your TV/Monitor and utilize this as T 785’s
preferred Monitor OUT. In most cases, this will be Component Video, but on
some older TVs, S-Video maybe the best quality connection.
Refer also to the item above about “VIDEO SETUP”.
SVENSKA
NOTE
An incoming digital signal present at the assigned digital input will
always take precedence over the assigned analog audio input, even if
both are present. To maintain the analog audio input for the particular
Source, select ‘Off’ at the ‘Digital Audio’ setting of the same ‘Source’
menu.
РУССКИЙ
20
OPERATION
SOURCE SETUP (TABLE VIEW)
FRANÇAIS
A/V PRESET
A particular Source can be assigned a stored Preset. The parameters set up
in the selected Preset number will be adopted into the particular Source it
is assigned (Please refer to the separate section on ‘A/V Presets’ for further
understanding of Preset settings).
ENGLISH
USING THE T 785 – SETUP MENU
The Source Setup (Table View) reflects the settings made in the Source
Setup (Normal View) menu. All the Source settings are summarized and
displayed in tabulated form in the Source Setup (Table View).
Trigger Out ➜ 1 ➜ 2 ➜ 1 + 2 ➜ 3 ➜ 1 + 3 ➜ 2 + 3 ➜ 1+2+ 3
These combinations are dependent on the assignment of ‘Source Setup’ for
‘Trigger 1 Out, Trigger 2 Out or Trigger 3 Out’ at the Trigger Setup menu.
Another option is ‘None’ whereby the particular Source is not assigned any
Trigger Out.
For ‘Trigger Out’ to become enabled and assignable at ‘Source Setup
(Normal View)’ menu, make sure to carry out or note the following
beforehand
• In the separate ‘Trigger Setup’ menu, assign ‘Trigger 1 Out, Trigger 2 Out
or Trigger 3 Out’ to ‘Source Setup.’
• ‘Trigger Out’ will not appear as an option at the Source Setup (Normal
View) menu if at the separate ‘Trigger Setup’ menu, ‘Trigger 1 Out,
Trigger 2 Out or Trigger 3 Out’ are all assigned to ‘Main, Zone 2, Zone 3,
Zone 4, or Zone 2+3+4’; with not even one ‘Trigger Out’ port allocated
to ‘Source Setup.’
ESPAÑOL
SPEAKER SETUP
After connecting all ancillary sources and other combinations, the Speaker
Setup menu will guide you on how to manage and setup your speakers in
order to achieve optimum sound acoustics in your listening environment.
ITALIANO
DEUTSCH
The iPod Setup menu allows you to preset the following associated settings
when iPod is the selected source:
Enabled : Select ‘Yes’ to enable iPod as a Source or ‘No’ to disable it.
Auto Connect : Select ‘Yes’ to automatically enable and connect the
iPod player docked in the linked NAD iPod docking station when Source
5 (the default iPod source allocation in the T 785) is selected. Select ‘No’
if you do not want for the iPod connection automatically connected.
Menu Timeout : Set the time for the OSD to revert to the ‘Now
Playing’ display when the iPod menu has been left idle (no scrolling or
navigation being done) for the specified time out time. For the ‘Now
Playing’ OSD to be shown, there should be a song paused or being
played before going to the iPod menu. You can set the ‘Menu Timeout’
between the range 5s to 60s at 5s increments. If you do not want for
the menu to timeout, select ‘Off.’
NEDERLANDS
TRIGGER OUT
The Trigger Out for a particular Source is dependent on the configurations
done in a separate menu on Trigger Setup (See ‘Trigger Setup’ below). If all
three available Trigger outputs are assigned to ‘Source Setup’ in the separate
‘Trigger Setup’ window, a particular Source can have the following Trigger Out
combinations
iPod SETUP
SVENSKA
If it is desired not to assign the particular Source a Preset setting, select
‘None’.
Navigating through the Source Setup (Table View) via a combination of
and then
keys, one will have the benefit of directly changing the
settings for ‘Audio, Video, Preset, Trigger and Source Name’ without going
back to the Source Setup (Normal View) menu.
The following are the Speaker Setup Menu sections.
РУССКИЙ
Scrolling to ‘A/V Preset’ and by pressing and then
keys, a Source
could be assigned a Preset number ranging from Preset 1 to 5.
21
OPERATION
USING THE T 785 – SETUP MENU
ENGLISH
AUDYSSEY AUTO CALIBRATION
FRANÇAIS
It has been shown that many, if not most, surround sound systems are not
accurately setup and calibrated. To be done properly, calibration requires
special knowledge and instrumentation that the average person probably
doesn’t possess.
ESPAÑOL
The Audyssey Auto Setup and Calibration featured in T 785 uses a
microphone, along with sophisticated digital electronics built into your
T 785, to automatically setup and calibrate the T 785 to the exact speakers
and speaker placement of your own unique Home Theatre.
AUDYSSEY MultEQ XT ROOM ACOUSTICS CORRECTION
Sound reflecting from room boundaries can disturb the spatial illusion
of surround sound, and can also distort the tonal balance of the system.
Professional Acoustical Engineers often add wall treatments and even move
walls and relocate speakers to improve system performance, but for the
average Home Theatre, this is either too expensive or just not a practical
solution.
Audyssey MultEQ XT, using multiple measurements from the actual
listening positions, and processing this information using very sophisticated
digital signal processing, is able to “precondition” the signal to effectively
make the walls disappear. This creates a ‘family size’ sweet spot where the
sound and spatial cues are very accurately reproduced.
MultEQ XT is designed to tame room acoustics without changing the sonic
character of your loudspeakers. While it will make the most of whatever
loudspeakers you have, it will not make poor speakers sound like good
ones!
Connect the Audyssey microphone jack into the front panel’s MP/MIC input
and the Audyssey Auto Calibration wizard will guide you through a simple
step-by-step configuration. Once setup and calibrated, the next greatest
improvement in performance is obtained by eliminating the acoustic
interference caused by room boundaries interacting with your speakers.
ITALIANO
MEASUREMENT IS THE FIRST STEP
The sound at each listening position (up to 8 positions) is calibrated using
the same microphone used during the setup phase.
A special test tone is sent to each speaker and the data is memorized by
the T 785. The duration of calibration may take some time depending on
the number of speakers as well as the number of measuring points. After
all positions are measured, the DSP calculates the ideal system response for
your particular room and speaker setup.
DEUTSCH
NEDERLANDS
The following measurements are performed:
• Detection : Speaker configuration is detected including number of
surround speakers and whether a subwoofer and center channel is
connected.
• Size : T 785 crossover is set based on each channel’s signal handling
capability and the subwoofer crossover is automatically set.
• Level : SPL of each speaker is matched within 1dB at the microphone
position.
• Distance : is accurately set to within 1 foot (30 centimeters) of the
microphone for each speaker position.
• Polarity : the setup program will detect and notify the user if any
speakers are connected improperly. Incorrect polarity can ruin the
illusion of realism offered by surround sound.
This is a one-time set up, unless speakers are moved or changed, in which
case the calibration should be performed again.
SVENSKA
РУССКИЙ
22
If some inconsistencies or discrepancies are detected during the Audyssey
calibration, the process maybe interrupted or the problem is shown in the
particular setup window. A notice screen is correspondingly displayed.
After following and undertaking the displayed instructions, re-start the
Audyssey calibration again. When the measurements are finalized, Audyssey
calculates the ideal system response for your particular room and speaker
setup.
NOTE
The test tone emitted during measurement is loud. This maybe
bothersome for you and may affect your other household members as
well, and even your neighbor.
OPERATION
Room Response measured by Audyssey microphone
FRANÇAIS
Select the Target Curve you find to be most satisfactory by pressing the
Audyssey key of the remote. The MultEQ XT corrected response can also be
bypassed if you wish.
It is recommended that you take full advantage of the T 785’s Audyssey
Auto Calibration feature for your speaker setup. However, if you desire to
setup your speakers manually or if you already had run Audyssey Auto
Calibration but would like to make adjustments, the following sections on
Speaker Configuration, Speaker Levels and Speaker Distance can also be
followed and implemented.
ITALIANO
NOTE
During manual setting of your speakers, previously calibrated
Audyssey settings could be retrieved by re-adjusting back the altered
configurations as highlighted by an asterisk.
ESPAÑOL
NEXT A TARGET CURVE MUST BE CHOSEN
Because loudspeaker designers assume that their products will be used in
typical domestic rooms, they are ‘voiced’ to work in this environment. It is
assumed that the room will add some bass reinforcement and will absorb
some treble energy. Thus if we effectively ‘remove the walls with room
correction, and set the speakers for flat response, you may find this sounds
too bright in the treble and too weak in the bass region.
NAD engineers have done extensive research in this area of room acoustics,
and along with Audyssey engineers developed what we believe is the ideal
‘in room’ response curve. We include this NAD EQ, along with an Audyssey
developed EQ as the two best choices. The response curves shown below
typify NAD EQ room correction process.
ENGLISH
USING THE T 785 – SETUP MENU
DEUTSCH
Inverse Correction Filter calculated by NAD T 785
Corrected Room Response
РУССКИЙ
SVENSKA
NEDERLANDS
Flat EQ is a third option, but not one that we recommend for listening
(it is useful for verifying system performance when using external
instrumentation).
23
OPERATION
USING THE T 785 – SETUP MENU
ENGLISH
SPEAKER CONFIGURATION
Speaker Configuration can be managed and adjusted by pressing a
combination of and then
keys. Set ‘Front,’ ‘Center,’ and ‘Surround’ to
“Large,” “Small” or “Off” as your subsystem’s speakers require.
FRANÇAIS
The ‘Back’ speakers can either be one or two speakers. Set ‘Back’ to either 1
or 2 speakers as per availability. Set ‘Subwoofer’ to “On” or “Off,” selecting “On”
only if you have a subwoofer connected to the T 785’s SUBW1 or SUBW2
output jack.
ESPAÑOL
ITALIANO
Every surround-sound system requires “bass-management” to direct lowfrequency content from any or all channels to the speakers best able to
reproduce it. For this function to operate correctly, it is important that you
correctly identify your speakers’ capabilities. We use the terms “Small” and
“Large” (and “Off”) but note that physical size may be irrelevant.
• A "Small" speaker is any model, regardless of physical size, that lacks
significant deep-bass response, that is, below about 200 Hz.
• A "Large" speaker is any full-range model; that is, one with deep-bass
response
• An "Off" speaker is one that is not present in your system. For example,
you might not have any surround-back speakers installed; in that case,
you would set the ‘Surround’ setup item to "Off".
Depending on the relationship between speakers, the possible selections for
each speaker are as follows:
Front L/R
Center
Surround L/R
LARGE
DEUTSCH
LARGE
SMALL
OFF
LARGE
NEDERLANDS
LARGE
SMALL
SMALL
OFF
LARGE
OFF
SMALL
SVENSKA
OFF
SMALL
SMALL
OFF
SMALL
OFF
SMALL
OFF
Back
LARGE
SMALL
OFF
LARGE
SMALL
OFF
OFF
LARGE
SMALL
OFF
LARGE
SMALL
OFF
OFF
LARGE
SMALL
OFF
LARGE
SMALL
OFF
OFF
SMALL
OFF
OFF
SMALL
OFF
OFF
Subwoofer
1/2
You can set Subwoofer to “On” even with “Large” front speakers, in which
case bass content from any channels set to “Small” will be routed to both
the subwoofer and to the front speakers; LFE-channel signal will pass only
to the sub. In most subwoofer-equipped systems, setting front speakers to
“Small” is usually the better option.
All the speakers’ low frequency content can be directly adjusted within the
range 40Hz to 200Hz.
NOTE
The configurations set forth at ‘Speaker Setup’ are carried over whenever
it is enabled during A/V Preset setting. Please see also the section ‘AV
Presets’ for reference.
SPEAKER LEVELS
ON or OFF
Adjusting the relative balance of your system’s loudspeakers ensures that
surround-sound recordings, whether music or film, will present the balance of
effects, music, and dialog that the artists intended. Additionally, if your system
incorporates a subwoofer it establishes a correct relationship between the
volume of the subwoofer and the other speakers, and thus of low-frequencies
(bass) to other sonic elements.
ON
РУССКИЙ
The Speaker Configuration is “global”; that is, it remains in force with all inputs
and in all listening modes. However, speaker settings are part of the T 785’s
Preset system. Consequently, multiple speaker settings can be stored for easy
recall as different types of recordings or listening modes require.
24
ENHANCED BASS
When the subwoofer is set to ON and “Front” is set to “Large”, Enhanced
Bass is also available. Normally, with speakers set to “Large” the subwoofer
is not active. The Enhanced Bass option allows full range operation of
the speakers with the additional bass contribution of the subwoofer. This
feature is particularly useful when one wants to experience maximum
bass output. Please note that due to acoustic cancellation effects, the bass
response may be uneven when using this setting
USING AN SPL METER
It is quite practical to perform the T 785 level setup routines “by ear,” and
careful work will produce acceptably accurate results. However, the use
of an inexpensive sound-pressure level (SPL) meter, such as Radio Shack
part number 33-2050, makes this task easier, more accurate and more
repeatable. Ownership of such a meter could prove a valuable audio tool.
OPERATION
Use the remote’s
keys to adjust the loudness of the noise output from
the currently playing channel to the required level (it’s usually simplest to
begin with the Front Left). As you cycle the test signal around the speakers,
the OSD will highlight the currently playing channel. The “level offset”
reading on the right will change by 1 dB increments; ±12 dB adjustment is
available. Press ‘ENTER’ to adjust the next speaker.
FRANÇAIS
SETTING SPEAKER DISTANCE
While at ‘Speaker Distance’ menu, use the
keys to individually set Front
Left, Center, Front Right, Surround Right, Back Right, Back Left, Surround
Left and Subwoofer to the distance measuring from your principal listening
position to the front surface of their corresponding loudspeakers. Distance
can be set up to 30 feet or 9.1 meters Distance can be displayed as feet or
meters selectable at the ‘Unit of Measure’ item.
ADJUSTING THE VOLUME
DEUTSCH
NOTE
If you are balancing levels “by ear”, choose one speaker—usually the
center—as a reference and adjust each of the others in turn to “sound as
loud” as the reference. Be sure that you remain in the primary listening
position while balancing all channels.
To produce the same SPL meter reading (or subjective loudness), use the remote’s
keys to adjust each speaker.
The T 785 will power-up from Standby mode at whatever master volume
setting was last used; however, if the prior setting was greater than –20 dB,
the T 785 will power up at –20 dB. This prevents inadvertently beginning a
session at excessive volume.
SVENSKA
You can exit ‘Test’ mode at any time by pressing key, bringing you back to
‘Speaker Setup’ menu. You can also press the ‘TEST’ key to discontinue the
‘Test’ mode.
In addition to the Volume knob, use the HTRC 1’s VOL
to adjust the “master
volume” of the T 785 raising or lowering the channels altogether. A momentary
keypress will change the master volume by 1 dB increments. If you hold down
VOL
, the master-volume change will “run-on” until the key is released.
Since recordings vary considerably in overall average level, there is no
imperative to listen at any particular master-volume setting. A setting of -20 dB
may sound “as loud” from one CD or DVD as -10 dB does from another.
MUTING THE SOUND
Use the HTRC 1’s ‘Mute’ key to silence all channels completely. Muting is
always available regardless of the source or listening mode selections.
NOTES
• Changing input or listening-mode selections does not release muting.
• Adjusting the volume level via the HTRC 1 or the front panel volume
knob will automatically release the mute function.
РУССКИЙ
NOTES
• All speakers must be in their final locations before level-setting.
• Your subwoofer (if any) should be set with its integral crossover defeated,
or if undefeatable, set to its highest-possible frequency if you are using
the T 785's Subwoofer output. Final subwoofer-level adjustment “by-ear,”
using music and film sound material, is frequently useful.
• Due to the effects of room acoustics, matched-pair speakers (front;
surround; back) will not always calibrate to exactly the same level offset
readings.
ESPAÑOL
SETTING SPEAKER LEVELS AT TEST MODE
While at ‘Speaker Levels’ menu, press the HTRC 1 remote’s ‘Test’ key
activating the T 785’s Speaker Levels balancing test signal . You will hear a
“surf” sound as you step through your speakers (‘test’ appears to the right
side of the current speaker), beginning with the Front Left. If you do not
hear the test signal, check your speaker connections or your ‘Speaker Setup’
OSD menu settings.
Your system’s speaker distance settings are a subtle but important
refinement of your setup. Informing the T 785 of the loudspeaker-to-listener
dimensions of each speaker automatically imposes the correct delays,
optimizing imaging, intelligibility and surround-sound ambience. Enter your
dimensions with precision within about 1 foot (30 cm).
ITALIANO
Orient the meter with its microphone (usually at one end) pointing straight
up toward the ceiling (not toward the speakers) and ensure that “C”
weighting scale is selected. Set the meter to display 75 dB SPL. On Radio
Shack meters, this necessitates either setting the meter to its 80 dB range
and taking your readings at the -5 point or selecting the 70 dB range and
reading at the +5 point.
SPEAKER DISTANCE
NEDERLANDS
The SPL meter should be placed at the primary listening position, at
approximately the height of the seated listener’s head. A tripod is helpful
but with a little duct tape almost anything — a pole lamp, music-stand,
or ladder-backed chair, for example — can do as well. Just be sure that no
large acoustically reflective surfaces obstruct or are near the microphone
element.
ENGLISH
USING THE T 785 – SETUP MENU
25
OPERATION
USING THE T 785 – SETUP MENU
ENGLISH
ADJUSTING CHANNEL LEVELS ‘ON THE FLY’
FRANÇAIS
You can make changes to the relative levels of center, surround and
subwoofer outputs without having to go into the ‘Speaker Levels’ menu.
This is very convenient in circumstances like increasing (or tone down)
a film’s dialog level by raising (lowering) the center channel or reducing
excessive deep bass (or enhance deep bass) by lowering (raising) the
subwoofer level.
Use the HTRC 1’s ’SURR,’ ‘CENT’ and ‘SUB’ keys for direct-access level
adjustment of these channels over a range of ±6 dB.
ESPAÑOL
The surround back channels (if any) adjust in lockstep with the surround
channels.
ITALIANO
NOTE
Level settings adjusted ‘On the Fly’ are added or subtracted to the setup
levels established at the T 785 level-calibration routine as invoked by the
HTRC 1 ‘Test’ key. However, selecting any Preset will revert the channel
levels to those stored in the preset. It will also take T 785 off the levels set
via Audyssey Auto Calibration.
ZONE SETUP
VOLUME
Zone 2 have Fixed and Variable volume control. When set to ‘Variable’
and while at the ‘Zone Controls’ menu OSD, the Zone 2 Volume level can
be adjusted using the HTRC 1’s
or the corresponding front panel
navigation buttons or directly via ZR 4’s VOL
.
On the other hand, if Volume is set to ‘Fixed,’ the Zone 2 Volume is set to
a preset dB level and thereafter the Zone’s volume can be varied via the
volume control of the separate amplifier it is fed into.
MODE
Zone 3 and Zone 4 can be configured into two modes – Record Out and
Zone (Audio Only). If the selected mode is Record Out, the audio and
applicable video signal of the assigned Source are directly sent out to the
applicable Audio/Video Output (See Item 5. AUDIO 3 OUT/VIDEO 3 OUT/SVIDEO 3 OUT, AUDIO 4 OUT/VIDEO 4 OUT/SVIDEO 4 OUT of REAR PANEL
discussion.) When Zone 3 or Zone 4 is set to ‘Record Out’ mode, they will not
be available at the ‘Zone Controls’ section of the Main Menu window.
‘Record Out’ setting is ideal for making recordings with a VCR or other
similar devices. This setting is also used for multi-zone installations using
passive ‘impedance matching’ volume controls. See your NAD dealer for
specific information about integrating your NAD Receiver into a multi-room
audio distribution system.
Zone 2 and Zone 3 ‘Volume’ will function the same way as that of Zone 2
when ‘Mode’ is set to ‘Zone (Audio Only).’
See discussion also on ‘Zone Controls’ at the Main Menu.
NOTE
The ZR 4 remote control will only control Zone 2 applications.
DEUTSCH
AMPLIFIER SETUP
NEDERLANDS
The Zone feature allows one to simultaneously experience in different
zones of the house multiple sound and applicable video sources from all
enabled Sources as well as from Front Input, Media Player and Tuner.
The T 785 has three configurable Zones – Zone 2, Zone 3 and Zone 4. Use
a combination of or ENTER and
keys to navigate through the Zone
Setup menu parameters.
If the surround back speakers are not used in the main zone, their surround
back amplifier channels could be assigned for Main back, Main Front (BiAmp) and multi-zone use.
SVENSKA
РУССКИЙ
The Surround Back amplifier is configurable through the following settings
• Main Back: Assign as surround back speakers.
• Main Front (Bi-Amp): Provide a bi-amp mode for the Main Front
speakers (Left and Right) speakers thus reproducing the Front Left and
Front Right amplifier channel outputs.
• Zone 2: Assign the surround back amplifier channels to supply Zone 2
speaker level outputs from the surround back speaker terminals.
• Zone 3: Assign the surround back amplifier channels to supply Zone 3
speaker level outputs from the surround back speaker terminals.
• Zone 4: Assign the surround back amplifier channels to supply Zone 4
speaker level outputs from the surround back speaker terminals.
26
OPERATION
LISTENING MODE SETUP
The T 785 features three configurable +12V DC Trigger Output that can be
used to activate a component or system it is fed into. A Trigger Input is also
available to turn on the applicable link it is associated to. Use a combination
of or ENTER and
keys to navigate through the Trigger Setup menu
parameters.
The T 785 has various listening mode options and is mostly configurable.
These are provided to reproduce a variety of sound effects depending
upon the content of the source to be played. Use a combination of or
ENTER and
keys to configure the following settings.
DOLBY
Dolby Digital is the multi-channel digital signal format developed in the
Dolby laboratories. Discs bearing the Dolby Digital (double-D symbol) logo
were recorded with up to 5.1 channels of digital signals, reproducing a
much better sound quality, with dynamic and spatial sound sensations that
are much better than in the previous Dolby Surround.
A Dolby Digital audio input can be configured relative to its format as
follows
Stereo: If the detected audio is of Dolby stereo format, you can default
it to one of the following settings – Pro Logic, PLIIx Movie, PLIIx Music or
None.
Surround: If the detected audio is of Dolby Surround format, you can
default it to one of the following settings –Surround EX, PLIIx Movie,
and PLIIx Music, Stereo Downmix or None.
None: If ‘None’ is selected, the Dolby Digital signal will be defaulted
to the ‘Stereo’ or ‘Surround’ settings set forth at the ‘PCM’ option. See
discussion below about ‘PCM’.
РУССКИЙ
WARNING
If Auto Trigger IN at Trigger Setup menu is assigned to ‘Main’ or ‘All’ and
the TRIGGER switch is set to ‘AUTO’ mode, the Standby button in the
front panel as well as the corresponding ON/OFF function keys in the
HTRC 1 remote control will be disabled effectively handing this function
to an external controller. Switch TRIGGER to ‘OFF’ to maintain normal
power ON/OFF function procedures.
NEDERLANDS
AUTO TRIGGER IN
Auto Trigger IN allows external system controllers to toggle the associated
section of the T 785 from ‘Standby’ to ‘On’ and vice versa. When the TRIGGER
switch at the rear panel is set to AUTO, a +12V DC input at Trigger IN will
power ON the section where Trigger IN is assigned,
Main : From standby mode, the T 785 is powered ON when +12V DC is
applied at Trigger IN.
Zone 2, Zone 3, Zone 4 : Applicable Zone is turned ON whenever +12V
DC is present at Trigger IN.
All : Main, Zone 2, Zone 3 and Zone 4 as described above will all be
activated given a +12V DC input at Trigger IN.
DEUTSCH
DELAY
The availability of +12V DC at Trigger Out can be regulated. If it is desired
that +12V DC is available without delay the moment Trigger Out is linked
to its assigned setting, set Delay to 0s. Otherwise, one can select through a
delay time of 1s to 15s.
ITALIANO
LISTENING MODES
The audio format as detected by the selected Source can be automatically
configured and processed through the following options:
SVENSKA
TRIGGER OUT
Triggers are low voltage signals used to turn on/off other compliant
devices. The T 785’s three +12V DC Trigger Outputs (Trigger 1 Out, Trigger 2
Out and Trigger 3 Out) are dependent on which mode they are associated
with. There are six choices where +12V DC output can be assigned and
these are – Main, Zone 2, Zone 3, Zone 4, Zone 2+3+4 and Source Setup.
Main : +12V DC is available at the assigned Trigger Out when the T 785
is at powered state.
Zone 2, Zone 3, Zone 4, Zone 2+3+4 : When the applicable Zone is
at powered state, +12V DC is available at the assigned Trigger Out.
Source Setup : If Trigger Output is linked to ‘Source Setup,’ +12V DC
is available at Trigger Out whenever the particularly assigned Source is
selected. Please see also separate discussion about ‘Trigger Out’ under
the Source Setup (Normal) section.
ESPAÑOL
FRANÇAIS
TRIGGER SETUP
ENGLISH
USING THE T 785 – SETUP MENU
See also ‘Item12. +12 V TRIGGER OUT, TRIGGER IN, TRIGGER AUTO/OFF’ of
REAR PANEL discussion as well as the ‘Trigger Out’ discussion under ‘Source
Setup (Normal View).’
27
OPERATION
USING THE T 785 – SETUP MENU
ENGLISH
FRANÇAIS
DOLBY DIGITAL PLUS
Dolby Digital Plus is the next-generation audio technology for all highdefinition programming and media. It combines the efficiency to meet
future broadcast demands with the power and flexibility to realize the full
audio potential expected in the upcoming high-definition era. Built on
Dolby Digital, the multi-channel audio standard for DVD and HD broadcasts
worldwide, Dolby Digital Plus was designed for the next-generation A/V
receivers but remains fully compatible with all current A/V receivers.
Dolby Digital Plus delivers multi-channel audio programs of up to 7.1
channels and supports multiple programs in a single encoded bitstream
with the maximum bit rate potential of up to 6 Mbps and the maximum bit
rate performance of up to 3 Mbps on HD DVD and 1.7 Mbps on Blu-ray Disc.
It outputs Dolby Digital bitstreams for playback on existing Dolby Digital
systems. Dolby Digital Plus can accurately reproduce the sound originally
intended by directors and producers.
ESPAÑOL
It also features multi-channel sound with discrete channel output,
interactive mixing and streaming capability in advanced systems.
Supported by High-Definition Media Interface (HDMI), a single-cable digital
connection is possible for high-definition audio and video.
ITALIANO
DOLBY TrueHD
Dolby TrueHD is a lossless encoding technology developed for highdefinition optical discs in the upcoming era. Dolby TrueHD delivers
tantalizing sound that is bit-for-bit identical to the studio master, unlocking
the true high-definition entertainment experience on high-definition
optical discs in the next generation. When coupled with high-definition
video, Dolby TrueHD offers an unprecedented home theater experience
with stunning sound and high-definition picture.
DEUTSCH
It supports bit rates of up to 18 Mbps and records up to 8 full-range
channels individually with 24-bit/96 kHz audio. It also features extensive
metadata including dialogue normalization and dynamic range control.
Supported by High-Definition Media Interface (HDMI), a single-cable digital
connection is possible for high-definition audio and video. HD DVD and
Blu-ray Disc standards currently limit their maximum number of audio
channels to eight, whereas Dolby Digital Plus and Dolby TrueHD support
more than eight audio channels. Note that the T 785 only supports 7.1
channel.
NEDERLANDS
DOLBY DIGITAL EX
Using a Matrix decoder, this method creates the back channel (sometimes
also called the “surround center”) by means of signals on the left and
right surround channels recorded in Dolby Digital 5.1, reproduction being
provided in Surround 6.1. This method should be selected with sources
bearing the “Dolby Digital (double-D symbol)-EX” symbol, recorded in Dolby
Digital Surround EX.
SVENSKA
With this additional channel you will experience improved dynamics and
a better sensation of movement within the sound field. If media sources
recorded in Dolby Digital EX are decoded with a Digital EX decoder,
the format is detected automatically, and the Dolby Digital EX mode is
selected. However, some media sources recorded in Dolby Digital EX can be
detected as simple Dolby Digital media sources. In this case Dolby Digital
EX should be selected manually.
РУССКИЙ
NOTE
Please refer to the section ‘Listening Mode’ at the Main Menu discussions
for a description of Pro Logic, PLIIx Movie, PLIIx Music and Stereo
Downmix modes.
28
DTS
The Digital Theater System Digital Surround (simply called DTS) is a multichannel digital signal format that can process higher data rates than with Dolby
Digital. Although both Dolby Digital and DTS are 5.1 channel media formats,
discs bearing the “DTS” symbol are thought to provide better sound quality
due to the lower audio compression required. It also offers a broader dynamic,
producing magnificent sound quality.
A DTS audio input can be configured relative to its format as follows
Stereo: If the detected audio is of DTS format, you can default it to one
of the following settings – NEO:6 Cinema, NEO:6 Music or None.
Surround: If the detected audio is of DTS Surround format, you can
default it to one of the following settings – NEO:6 Cinema, NEO:6 Music,
Stereo Downmix or None.
None: If ‘None’ is selected, the DTS signal will be defaulted to the ‘Stereo’
or ‘Surround’ settings set forth at the ‘PCM’ option. See discussion below
about ‘PCM’.
NOTE
Please refer to the section ‘Listening Mode’ at the Main Menu discussions
for a description of Stereo Downmix and DTS Neo:6 surround modes.
PCM
PCM (Pulse Code Modulation) is the digital representation of a standard
audio signal converted with little or no compression. If ‘None’ is selected
for any of the Dolby or DTS settings, this ‘PCM’ section will default the audio
signal as follows
Stereo: The detected stereo audio format will be configured into one
of the following options – Pro Logic, PLIIx Movie, PLIIx Music, NEO:6
Cinema, NEO:6 Music EARS, Enhanced Stereo or None.
Surround: The detected surround audio format will be configured into
one of the following options –PLIIx Movie, PLIIx Music, NEO:6 Music,
NEO:6 Cinema, Stereo Downmix or None.
ANALOG
If the audio input is an analog signal, the following are the surround modes
the input can be defaulted – Pro Logic, PLIIx Movie, PLIIx Music, NEO: 6
Cinema, NEO: 6 Music, EARS, Enhanced Stereo, Analog Bypass and None.
NOTE
All these Listening Modes for ‘Dolby Digital,’ DTS’ ‘PCM and ‘Analog’ can
be directly changed by pressing the ‘Listening Mode’ button on the front
panel or through the ‘Listening Mode’ option at the Main Menu window.
The chosen audio format will be reflected back to the appropriate
setting at the ‘Listening Mode Setup.’
OPERATION
Under this menu, the Dolby Digital’s Dynamic Range Control can be
adjusted as well as the settings for Dolby Digital Pro Logic IIx Music.
Dyn Range Ctrl :You can select the effective dynamic range
(subjective range from soft to loud) for playback of Dolby Digital
soundtracks. For fully cinematic effect, always select 100%, the default.
Settings of 75%, 50%, and 25% progressively reduce dynamic range,
making soft sounds comparatively louder while limiting the peak
loudness of loud ones.
The 25% setting will yield the least dynamic range and is best for latenight sessions or other times when you wish to retain maximum dialog
intelligibility while minimizing overall volume levels.
Dolby Pro Logic IIx Music : Please refer to the same description of
‘PLIIx Music’ under the ‘ADJUSTING LISTENING MODES’ segment of the
‘OPERATION - USING THE T 785 - MAIN MENU’.
DTS SETUP
DTS - ES EXTENDED SURROUND ™ (DTS ES)
This is a new multi-channel digital format which greatly improves the 360°
spatial sensation of the Surround impression thanks to the greater space
expansion of the surround signals, providing high compatibility with the
conventional DTS format.
In addition to the 5.1 channels, the expanded DTS-ES Surround also
offers the back surround (also sometimes called the “surround centre”)
in reproduction, providing a total of 6.1 channels. The expanded DTS-ES
Surround includes two formats, with two different methods of surround
signal recording, as follows:
DTS-ES™ DISCRETE 6.1
Since the signals of the 6.1 Surround channels (including the back channel)
are completely independent, it is possible to achieve the sensation that the
acoustic image is moving about freely among the background sounds, 360
degrees surrounding the listener.
NEDERLANDS
DEUTSCH
Although maximum quality is achieved with sound tracks recorded using
this system and reproduced using the DTS-ES decoder, when played with
a conventional DTS decoder, the back surround channel is automatically
downmixed in the surround right and surround left channels of the
surround system, in such a way that none of the signal components are
lost.
FRANÇAIS
DTS-HD MASTER AUDIO
DTS-HD Master Audio is a technology that delivers master audio sources
recorded in a professional studio to listeners without any loss of data,
preserving audio quality. DTS-HD Master Audio adopts variable data
transfer rates, facilitating data transfer to the maximum rate of 24.5 Mbps
in the Blu-ray disc format, 18.0 Mbps in the HD-DVD format, which by
far exceeds that of a standard DVD. These high data transfer rates enable
lossless transmission of 96 kHz/24-bit 7.1-channel audio sources without
deteriorating the quality of the original sound. DTS-HD Master Audio is an
irreplaceable technology that can reproduce sound faithfully as intended
by the creator of music or movies.
ESPAÑOL
DTS SURROUND MODES
The following are further descriptions about the DTS surround modes.
ITALIANO
DOLBY SETUP
ENGLISH
USING THE T 785 – SETUP MENU
РУССКИЙ
SVENSKA
Under this menu, the Dynamic Range Control of DTS Digital Surround can
be adjusted as well as the settings for DTS Neo: 6 Music.
Dyn Range Ctrl : This is the same configurable Dynamic Range Control
feature as described above at Dolby Setup, the only difference being
the soundtrack is now in DTS format.
DTS Neo: 6 Music : Please refer to the same description of ‘NEO
6: Music’ under the ‘ADJUSTING LISTENING MODES’ segment of the
‘OPERATION - USING THE T 785 - MAIN MENU’.
29
OPERATION
USING THE T 785 – SETUP MENU
ENGLISH
DTS - ES™ MATRIX 6.1
In this format, the additional signals of the back channel receive a matrix
encoding and are inputted into the right and left surround channels.
During reproduction they are decoded to the right, left and back surround
channels.
DISPLAY SETUP
FRANÇAIS
Since this bit-stream format is 100% compatible with conventional DTS
signals, the DTS-ES Matrix 6.1 format effect can also be achieved from
sources with DTS-ES 5.1 signals.
Naturally, it is also possible to reproduce from a DTS 5.1 channel decoder,
signals recorded in DTS-ES 6.1.
ESPAÑOL
When a DTS-ES decoder processes a discrete DTS-ES 6.1 or in Matrix 6.1,
these formats are automatically detected and the Optimum Surround
mode is selected. However, some DTS-ES Matrix 6.1 sources may be
detected as DTS. In this case the DTS-ES Matrix mode should be selected
manually in order to reproduce them.
ITALIANO
DEUTSCH
DTS NEO: 6™ SURROUND
This mode applies the conventional 2-channel signals such as digital PCM
or analog stereo signals to the high precision digital matrix decoder used
for DTS-ES Matrix 6.1 to achieve 6.1-channel surround playback. DTS Neo: 6
surround includes two modes for selecting the optimum decoding of the
signal sources:
DTS NEO: 6 CINEMA : This method is ideal for the reproduction of
movies. The decoding takes place by emphasizing the separation in
order to achieve the same atmosphere with 2-channel, as with 6.1channel sources.
DTS NEO: 6 MUSIC : Mainly recommended for music reproduction.
The right and left front channels do not pass through the decoder and
are reproduced directly so there is no loss in sound quality, and the
effects of the right surround, left surround, central and back surround
channels add a natural sensation of expansion of the sound field.
ENHANCED STEREO
Please refer to the same description of ‘ENHANCED STEREO’ under the
‘LISTENING MODES’ segment of the ‘OPERATION - USING THE T 785 - MAIN
MENU’.
The Vacuum Fluorescent Display (VFD) and On-Screen Display (OSD) can be
shown in various ways by navigating through the parameters at the ‘Display
Setup’ menu. Use a combination of or ENTER and
keys to step
through the ‘Display Setup’ menu items.
NOTE
The configurations set forth at ‘Display Setup’ are carried over whenever
it is enabled during A/V Preset setting. Please see also the section below
about ‘AV Presets.’
NEDERLANDS
SVENSKA
VACUUM FLUORESCENT DISPLAY (VFD)
Display : Select ‘On’ to display all applicable data or characters at the
VFD. Nothing will be shown at VFD if ‘Temp’ is selected. At ‘Temp’ setting
however, whenever any of the front panel controls or their corresponding
keys in the remote control is activated, the appropriate VFD characters will
be shown temporarily and then fade away. Note that if any of the Zones
are at powered state, they will be continually shown at VFD even at ‘Temp’
setting.
Dimmer : If it is desired to reduce the brightness of the VFD, set Dimmer to
‘Dim’. Otherwise, select ‘Bright’ to return to normal VFD brightness.
Line 1, Line 2 : The VFD shows two main lines of data or characters. Line
2 is the line of data or characters located at the lower bottom of the VFD
while directly above it is Line 1. For both lines, one can select which display
could be shown by choosing through the following
Main Source : Shows the active Source.
Volume : Current Volume level is shown.
Listening Mode : Selected Listening Mode is shown.
Audio Src Format : Shows the active Source’s detected audio format.
Audio Codec: Displays the detected audio stream format like Analog,
PCM Surround, Dolby TrueHD, DTS-HD Master Audio and other formats.
Video Mode: Show the video resolution of the active input source.
Details shown include the video resolution with frame rate. For a better
understanding of these video details, consult with your NAD Audio
Specialist or your distributor’s technical department.
Zone 2-Zone 3-Zone 4 Source : The assigned Source for the
applicable Zone is shown.
Off : Select ‘Off’ if it is desired not to show any data at the applicable Line.
Temp Line : Choose between Line 1 and Line 2 as the desired line where
VFD will be temporarily shown if ‘Temp’ is selected at ‘Display’ option as
described above.
ON-SCREEN DISPLAY (OSD)
Temp Disp: This applies to the OSD that is temporarily shown at video out
whenever any of the front panel controls or their corresponding keys in the
remote control is activated. Set to ‘On’ if it is desired to show the applicable
OSD at the monitor/TV; otherwise, select ‘Off’.
РУССКИЙ
30
OPERATION
A/V PRESETS
ENGLISH
USING THE T 785 – SETUP MENU
SAMPLE PROCEDURE FOR SETTING UP A/V PRESETS
1 Setup first your preferred settings for the following options (access
them through their respective menu page).
The T 785’s simple but powerfully flexible system of ‘Presets’ allows you to
customize virtually every aspect of your audio-video playback, and recall
them with a single key-press. The parameters ‘Listening Mode’, ‘DSP Options’,
‘Tone Controls’ and ‘Picture Controls’ accessible via the ‘Main Menu’ together
with ‘Speaker Setup and ‘Display Setup’ configurable through ‘Setup Menu’
are stored together as a Single Preset.
ESPAÑOL
FRANÇAIS
Listening Mode: Stereo
DSP Options: 5ms
Tone Controls: Tone Defeat: On
DEUTSCH
CREATING PRESETS
Creating a Preset consists simply of storing a complete set of the
parameters set forth in the ‘Listening Mode,’ ‘DSP Options’, ‘Tone Controls’
and ‘Picture Controls’ accessible via the ‘Main Menu’ together with ‘Speaker
Setup and ‘Display Setup’ configurable through ‘Setup Menu.’
Scroll to ‘A/V Presets’ using the
keys to save a collection of said
parameter settings to a Preset. Select a Preset number and by a
combination of pressing the
keys, you can selectively include in
the particular Preset any of the above-mentioned parameter settings by
choosing ‘Yes’. If you decide not to include in the particular Preset a certain
parameter setting, select ‘No’.
ITALIANO
You might create one Preset optimized for pop music and another for classical.
One more Preset can be set up to recall each family member’s favorite setting
or one for fully cinematic home-theater playback and yet another one for latenight movies, with each Preset fine-tuned to a particular scenario or preference.
NEDERLANDS
Now in order to save the settings chosen for the particular Preset number,
scroll down to ‘Save Current Setup to Preset’ and press the key. If you
chose to load instead the default settings, scroll down to ‘Load Defaults to
Preset’ and press the key to restore the default settings.
In addition to the parameter settings, the Preset label itself can be assigned a
new name. This new Name will be shown in the VFD as well as on the OSD.
Display Setup: Set “Line 2” to “Listening Mode”
To rename the Preset label, scroll to ‘Name’ and press to go the character.
Then, press
to pick and select through the alphanumeric selections.
Press
to move to the next character or back to the previous character
and at the same time save the changes done on the current character.
РУССКИЙ
SVENSKA
NOTE
The selected Preset remains in force until you select a different Preset.
31
OPERATION
USING THE T 785 – SETUP MENU
ENGLISH
Picture Controls: Aspect Mode – Letterbox
3 At “A/V Presets” page, set “Preset: 1” to the following conditions - use [
]
to select “Yes” or “No” and press [ENTER] to confirm selection and move on to
the next setting
FRANÇAIS
Speaker Setup: from the Speaker Setup menu, go to “Speaker
Configuration” sub-menu and change “Subwoofer” from “On” to “Off”:
“Front” becomes “Large”
ESPAÑOL
While at “Save Current Setup to Preset” menu line, use [ ] to save the
above settings to Preset 1. Below OSD will be shown, affirming that the
above settings are now saved to “Preset 1”.
ITALIANO
When you recall “Preset 1” using the remote control (for HTRC 1, “A/V
PSET” + “1”), the above preset values allocated at “Preset 1” (preset
settings as shown in the OSD captures at Step 1) will be recalled and
effected at the current source.
DEUTSCH
4 Now, repeat again Step 1 above but this time with the following
settings
Listening Mode: PLIIx Music
2 With the above settings, scroll to “A/V Presets” from the SETUP MENU
page. Use [ ] to access “A/V Presets” menu.
NEDERLANDS
SVENSKA
DSP Options: 0ms
РУССКИЙ
32
OPERATION
6 At “A/V Presets” page, set “Preset: 2” to the following conditions - use [
]
to select “Yes” or “No” and press [ENTER] to confirm selection and move to the
next setting
FRANÇAIS
Tone Controls: Tone Defeat: Off
ENGLISH
USING THE T 785 – SETUP MENU
Note that “Speaker Setup” is set to “No”. At this condition, there will be
no “Speaker Setup” values that will be effected at “Preset 2”. The “Speaker
Setup” settings that will be applied at “Preset 2” will be the last or current
“Speaker Setup” settings which in this sample are the same “Speaker
Setup” settings shown above in Step 1.
Picture Controls: Aspect Mode – Stretch
In the above example, “Preset 1” settings are allocated for Source 1.
Whenever Source 1 is accessed, the “Preset 1” settings will be applied to
Source 1. You can still manually override the assigned Preset allocation in a
specific Source with another Preset setting/number by way of pressing the
appropriate remote control buttons.
РУССКИЙ
RECALLING PRESETS
You may recall a Preset at any time using the HTRC 1 remote control.
Press the HTRC 1’s A/V PSET key and then the numeric key 1-5
corresponding to the desired preset number. The newly recalled Preset will
then manifest or replace the previous Preset (if any).
SVENSKA
5 With the above settings, scroll to “A/V Presets” from the SETUP MENU
page. Use [ ] to access “A/V Presets” menu.
NEDERLANDS
DEUTSCH
7 You can setup up to 5 Presets. These same Presets can also be
associated/defaulted to each Source in the “Source Setup (Normal
View)” window as below
ITALIANO
While at “Save Current Setup to Preset” menu line, use [ ] to save the
settings above to “Preset 2”. When you recall “Preset 2” using the remote
control (for HTRC 1, “A/V PSET” + “2”), the above preset values allocated
at “Preset 2” (preset settings as shown in the OSD captures at Step 4) will
be recalled and effected at the current source.
ESPAÑOL
Display Setup: Set “Line 2” to “Volume”
33
OPERATION
USING THE T 785 – AM/FM/DB/iPod
ENGLISH
LISTENING TO AM/FM RADIO
The T 785’s internal AM/FM tuner offers very high quality sound from radio
broadcasts. The reception and sound quality will always be dependent to a
degree however on the type of antenna(s) used as well as proximity to the
broadcast origin, geography and weather conditions.
FRANÇAIS
ABOUT ANTENNAS
The supplied ribbon-wire FM antenna can be connected to the rear-panel
FM-antenna input using the included ‘balun’ adapter and should be fully
extended to form a “T”. This folded-dipole antenna will usually work best
when oriented vertically, with the arms of its “T” fully outstretched and
arranged perpendicular to the origin of the desired broadcast. There are
no ‘rules’ however, and experimenting freely with antenna placement and
orientation may yield the clearest sound and lowest background noise.
ESPAÑOL
In areas of poor FM reception, an exterior FM antenna can improve performance
dramatically. If radio listening is important to you, consider consulting an antenna
installation professional to optimize your system.
The supplied AM ‘loop’ antenna will usually provide adequate reception.
However, an exterior AM antenna can be used to improve reception.
Consult an antenna professional for more information.
ITALIANO
IMPORTANT NOTICE
Unless otherwise specifically stated, navigating or accessing AM/FM
functions can be undertaken by using either the HTRC 1 remote control
or the front panel buttons. If the control button or icon button being
referred to is available on the HTRC 1 remote control and front panel,
then the reference to said button is applicable to both the HTRC 1 remote
control and front panel. The same condition applies to their equivalent
buttons.
DEUTSCH
NOTE
When using the HTRC 1 to carry out AM/FM commands, ensure that the
DEVICE SELECTOR is set to “TUNER”.
ASSEMBLING THE LOOP ANTENNA
TUNING STATIONS
1 Press TUNE
/
on the front panel momentarily to step up or down
between AM or FM frequencies.
2 Press and hold TUNE
or TUNE
for more than 2 seconds to search
up or down - the T 785’s tuner will stop at the next sufficiently strong
signal it encounters. Pressing the TUNE
/
during the search
process will stop the search.
3 After first pressing ‘TUNER’ (yellow lettering) at the Device Selector page
of HTRC 1 to set the remote to control Tuner functions, press TUNE
or TUNE
(yellow lettering) on the HTRC 1 – toggle in to perform
slow manual search, press and hold to automatically search.
DIRECT TUNING
If you know your desired station’s frequency allocation, you can tune
directly to the station.
1 Toggle [ENTER] button to switch between “Preset” and “Tune” mode (see
the lower line of the VFD). Select “Tune” mode.
2 Using the numeric keys of the remote control, key-in the frequency
allocation of the station. For example, to enter 104.50MHz, press 1, 0, 4,
5 and 0 or press 1,0,4,5 and then [ENTER].
SETTING RADIO PRESETS
The T 785 can store a mix of your 40 favorite AM, FM and XM (or DAB) radio
stations for immediate recall.
1 To store a radio preset, first tune the desired frequency (see above), then
press the front panel ‘MEMORY’ key.
2 The VFD will show the next available preset number (Preset _ _ Free).
If there are no more vacant Preset number, you can overwrite an
existing Preset number by pressing the
buttons on the HTRC 1
(or corresponding front panel navigation buttons) to select the Preset
number you want to overwrite.
3 Then, press the ‘MEMORY’ key once again to save the station to the
particular Preset number and displaying ‘P_ _’ (the two blank spaces
will correspond to the preset number that could be from ’01’ to the
maximum of ’40’) on the VFD.
4 Press PRESET
/
on the front panel to step up or down between
presets. Press and hold PRESET
/
to “scroll” continuously up or
down. The HTRC 1 remote’s PRESET
keys work similarly.
NEDERLANDS
NOTE
The T 785’s Radio Presets are distinct from its ‘global’ Presets that can be
used to manage listening and setup modes and levels. See ‘A/V Presets’
above.
1 Rotate the outer frame of the antenna.
2 Insert the bottom edge of the outer frame into the groove on the stand.
3 Extend the antenna cord.
SVENSKA
SELECTING A TUNER BAND
Press the [AM/FM/DB] button on the front panel or the numeric ‘+10’
button of the HTRC 1 while at AMP or TUNER device selector page. Each
subsequent press of either button will toggle you through AM, FM and XM
(or DAB) band. Stop (release button) at your desired tuner band.
РУССКИЙ
34
DIRECT RECALL OF A PRESET
You can directly recall a desired Preset number.
1 Toggle [ENTER] button to switch between “Preset” and “Tune” mode (see
the lower line of the VFD). Select “Preset” mode.
2 Using the numeric keys of the remote control, key-in directly your
desired Preset number.
DELETE A PRESET
1 Select the Preset number to be deleted.
2 Press and hold [MEMORY] button and then press and release [INFO]
button – current stored preset setting will be erased. The Radio Preset
can only be deleted using the front panel buttons.
OPERATION
ABOUT RDS
The Radio Data System (RDS) permits compatible FM A/V Receivers to
display text determined by the broadcaster. The T 785 supports two RDS
modes, station-name (PS mode) and radio-text (RT mode). However, not
every FM station incorporates RDS in its broadcast signal. In most areas you
will find from one to several RDS-enabled stations, but it is by no means
impossible that your favorite stations will not be broadcasting RDS data.
VIEW RDS TEXT
When an RDS-enabled FM broadcast is tuned, after a brief delay the “RDS”
symbol will illuminate in the T 785’s front-panel readout and the readout’s
character section will show its station-name (PS) text: “ROCK101,”for
example.
Press the front-panel INFO key to toggle the readout between this and the
station’s radio-text (RT) readout, if any, which might scroll song- or artistname, or any other text of the station’s choosing.
FRANÇAIS
ESPAÑOL
ITALIANO
CONNECTING THE XM ANTENNA
1 Plug the end of the XM antenna into the corresponding XM antenna
port on the rear panel of the T 785.
2 Press and hold “TUNER MODE” button on the front panel to check the
current XM channel’s signal strength as shown in the VFD and OSD.
Press “TUNER MODE” again to exit signal strength check.
Refer also to your XM radio’s guide on how to install the XM antenna for
optimum signal reception.
TUNING STATIONS
There are three ways to tune to the XM channel you wish to listen. Make
sure to set your HTRC 1’s Device Selector to “TUNER” prior to undertaking
the following tuning options. The
buttons refer to the
corresponding keys on the HTRC 1. The same keys correspond to the front
panel navigation buttons “PRESET
/ PRESET
/ TUNE
/ TUNE
.”
1 Manual Tuning : Toggle the
buttons to step up or down each
available XM channel. Press and hold
for faster scanning of XM
channels. The HTRC 1 keys “TUNE
/ TUNE
” will likewise execute
these same functions.
2 Direct Channel Call : Using the numeric keypads of the HTRC 1,
key-in directly the desired available channel number and it will be
automatically tuned.
3 Category : Toggle “TUNER MODE” until “CATXM” and a corresponding
category is displayed on the VFD. “CATXM” stands for the categories
channels are grouped into – i.e., Country, Rock, Jazz & Blues, etc. Toggle
buttons to step up or down the available categories.
After selecting the desired category, use the same steps as that of
XM Manual Tuning. Tuning will only be limited to within the selected
category. Toggle the
buttons to choose another category and
then tune again.
DEUTSCH
ENTERING USER NAMES
To name a radio preset “NEWS,” follow the procedure as below (The buttons
mentioned apply to the front panel’s buttons. The applicable HTRC 1 keys
also execute the same functions as described).
1 Recall the desired radio preset.
2 Then, press the ‘MEMORY’ button once and then within five (5) seconds,
press the ‘INFO’ button - the readout shows a blinking box.
3 Use the ‘PRESET
/
‘ buttons to select the first character of the
name (“N” from the alphabetical list).
4 Press ‘TUNE
’ button to select the character and correspondingly
move forward to the next position. (Press TUNE
to go back to the
previous character). Repeat this process for each character in sequence.
5 Press the MEMORY key again to store the User Name and exit the textentry mode.
IMPORTANT NOTICE
Unless otherwise specifically stated, navigating or accessing XM functions
can be undertaken by using either the HTRC 1 remote control or the front
panel buttons. If the control button or icon button being referred to is
available on the HTRC 1 remote control and front panel, then the reference
to said button is applicable to both the HTRC 1 remote control and front
panel. The same condition applies to their equivalent buttons.
NEDERLANDS
ABOUT USER NAMES
You can assign an eight character “User Name” to each radio preset, which
will show in the front-panel readout whenever that preset is recalled.
NOTES
• When using the HTRC 1 to carry out XM commands, ensure that the
DEVICE SELECTOR is set to “TUNER”.
• In XM mode and with DEVICE SELECTOR set to “TUNER”, HTRC 1’s [FM
MUTE] button has the same function as that of the front panel’s [TUNER
MODE] button.
• Check with your NAD audio specialist for other versions of XM MiniTuner compatible with T 785.
SVENSKA
NOTE
One can store the same channel in two preset locations - one with
TUNER MODE On and another with TUNER MODE Off.
LISTENING TO XM RADIO
The T 785 is “XM Ready” which means that with the addition of separately sold
XM Mini-Tuner CPC-9000 and XM Mini-Tuner Home Dock, it has everything you
need to listen to live XM. Everything else is built right in. Just subscribe to the
XM service and your T 785 will be ready to receive XM content.
РУССКИЙ
CHOOSING THE TUNER MODE
The front-panel ‘TUNER MODE’ key is a dual-purpose control. In the normal
position, FM Mute FM Stereo icons on the VFD are illuminated, only the
stations with a strong signal can be listened to, and the noise between
stations is muted.
Pressing the ‘TUNER MODE’ button again (FM Mute FM Stereo icons on the
VFD are extinguished) allows distant and potentially noisy stations to be
received. Noise is reduced if the FM station signal level is less than the FM
Stereo threshold (since mono FM is inherently less noise-prone) though at
the sacrifice of the stereo effect.
ENGLISH
USING THE T 785 – AM/FM/DB/iPod
35
OPERATION
USING THE T 785 – AM/FM/DB/iPod
ENGLISH
VIEW XM INFORMATION
Toggle ‘INFO’ button to display the XM information of the selected channel
such as the artist name, song title, category or any other text as supplied for
the channel.
FRANÇAIS
PRESETS
The procedure for storing XM channels is the same method as stated in the
section “Setting Radio Presets” under “Listening to Radio.”
For immediate recall of stored XM presets, toggle “TUNER MODE” button
until “P__” (the two blank spaces corresponding to the preset number) is
shown in VFD. Press the front panel’s “PRESET
/ PRESET
” button or
HTRC 1’s
keys to step up or down the stored presets that can be a
combination of AM, FM and XM channels.
LISTENING TO DAB RADIO
ESPAÑOL
ITALIANO
Until now, analogue radio signals such as FM or AM have been subject to
numerous kinds of interference on their way from the transmitter to your
radio. These problems were caused by mountains, high-rise buildings
and weather conditions. With Digital Audio Broadcast (DAB), you can now
receive CD-like quality radio programs without any annoying interference
and signal distortion. DAB broadcasts use digital signals rather than
traditional analogue transmissions, thus providing clear high quality
reception. You get far more robust reception and virtually hiss or crackle
free sound with DAB as long as you are within a good coverage area.
With DAB, the listener can scroll through a list of available stations - then
instantly tune to the station of his choice. There is no need either to
remember channel frequencies. All broadcasts are selected by simply
selecting the service name.
DEUTSCH
The T 785 makes it possible for you to enjoy listening to DAB broadcasts.
The T 785 has a Digital Audio Broadcast (DAB) module socket on the rear
panel for adding a separately sold and NAD-specified outboard DAB
module – the NAD DAB Adaptor DB 1. All the control software for this
format is included; just plug-in the module and start enjoying the CD-like
quality sound and expansive content selection available with DAB.
NEDERLANDS
IMPORTANT NOTICE
Unless otherwise specifically stated, navigating or accessing DAB
functions can be undertaken by using either the HTRC 1 remote control or
the front panel buttons. If the control button or icon button being referred
to is available on the HTRC 1 remote control and front panel, then the
reference to said button is applicable to both the HTRC 1 remote control
and front panel. The same condition applies to their equivalent buttons.
SVENSKA
NOTES
· When using the HTRC 1 remote control to carry out DAB commands,
ensure that the DEVICE SELECTOR is set to “TUNER”.
· HTRC 1’S [FM MUTE], [ENTER] and
are the equivalent remote
control keys for the front panel buttons [TUNER MODE], [ENTER] and
[TUNE
].
РУССКИЙ
36
CONNECTING THE DAB MODULE
Plug-in the other end of the DIN connector (supplied with your NAD DAB
Adaptor DB 1) from the DAB module’s output port into the corresponding
DAB module input socket on the rear panel of the T 785. Select DAB mode
on the T 785 by toggling the [AM/FM/DB] button in the front panel.
NOTES
• The NAD DAB Adaptor DB 1 is not supplied with your T 785.
• Please refer to NAD DAB Adaptor DB 1 installation guide for proper setup
connection of the DB1 with respect to the T 785.
• If there is no NAD DAB Adaptor DB 1 connected, the VFD will show
“Check DAB Tuner”.
DAB OPERATION
With the separately sold NAD DAB Adaptor DB1 already connected to the
T 785, you can now carry out the T 785 to receive DAB broadcasts.
1 Toggle [AM/FM/DB] button until DAB mode. The VFD will show “No
Service List” indicating that there are no scanned DAB broadcast
services yet. This is the default mode of the DB1.
2 To tune to DAB broadcast services, press [TUNER MODE] and then
toggle the front panel’s [TUNE
/
] to select either “Full Scan” or
“Local Scan”.
FULL SCAN will enable the scanning of the full range of digital
frequencies (Band III and L-Band).
LOCAL SCAN performs local scanning of available DAB services in your
area. Check with your dealer or visit www.WorldDAB.org to check the
applicable digital transmission frequencies in your area.
3 Upon selecting either “Full Scan” or “Local Scan”, automatic scanning
will be performed. This sequence cannot be interrupted. During the
sequence, the following message will be visible in the VFD.
The bars show the progress of the sequence. When scanning is
completed, the last number shown on the right side of the VFD
corresponds to the total number of DAB broadcast stations found. Then,
the first station is tuned in (See “ALPHANUMERIC” section below to
understand the order or arrangement of stations).
OPERATION
2 Press [ENTER] to select the desired station.
STATION ORDER
Use “Station Order” to sort the sequence of the listed stations. There are
three orders – Alphanumeric, Ensemble and Active.
1 While listening to a DAB broadcast, press front panel’s [TUNER MODE]
button and then [TUNE
/
] to select “Station Order”. Press [ENTER].
2 Toggle [TUNE
/
] to select through “Alphanumeric”, “Ensemble”
and “Active”.
3 Press [ENTER] to select desired station order.
ALPHANUMERIC
This is the default setting. Stations are arranged by numbers first and then
alphabetically by letters.
ENSEMBLE
Digital radio is broadcast as groups of data called ensemble. Each ensemble
contains a number of stations, transmitted at a set frequency. When
“Ensemble” is selected as the mode of station order, the radio stations are
arranged in the order of their ensemble names.
2 To select other channels, toggle [TUNE
/
] to step through the
channel list. Release [TUNE
/
] when you have arrived at your
desired channel. Channel and frequency are shown in the upper line
of the VFD. The “bars” at the lower line of the VFD indicate the signal
strength level of the current channel. To improve the reception of the
selected channel, adjust or reposition the DAB antenna until the best
reception is indicated.
3 Press [ENTER] to tune the selected channel.
NOTE
The number of ensembles and stations that could be scanned will vary
depending on your location.
PRUNE LIST
There maybe situations wherein certain stations become inactive. The
“Prune List” option enables the deletion of these inactive stations in the
service list.
1 While listening to a DAB broadcast, press front panel’s [TUNER MODE]
button and then [TUNE
/
] to select “Prune List”.
2 Press [ENTER]. Any inactive stations are automatically deleted.
FRANÇAIS
SVENSKA
DAB TUNER MODE
Aside from “Full Scan” and “Local Scan” as already described above, pressing
the [TUNER MODE] button will also present you with other options namely
– Station Order, DRC, Manual Scan, Prune List and Reset
ESPAÑOL
ITALIANO
SERVICE LIST
Follow the steps below to select through the DAB service stations found.
1 At DAB mode, press [TUNE
/
] to step through the list of
available stations as shown in the lower display line of the VFD.
MANUAL SCAN
This option allows you to directly tune to a desired channel and include it
in the service list (if not yet available at the time). You can also use manual
scan to assist you in positioning the DAB antenna for best reception of the
desired channel.
1 While listening to a DAB broadcast, press front panel’s [TUNER MODE]
button and then [TUNE
/
] to select “Manual Scan”. Press
[ENTER]. The current channel and frequency are shown in the upper line
of the VFD. The “bars” at the lower line of the VFD indicate the signal
strength level of the current channel.
DEUTSCH
NOTE
“No Service List” will also be shown in the VFD when no stations are
found after the scanning process. If this occurs, check the connection
and position of the DAB antenna or call your local DAB broadcast
providers for coverage information.
DRC
The level of compression of stations can be set to eliminate the differences
in dynamic range or sound level between radio stations. Popular music
would normally be more compressed than classical music, resulting in
possible different audio levels when changing from one station to the
other. Setting the DRC to “0” means no compression, “1/2” indicates medium
compression and “1” shows maximum compression. No compression is
recommended, especially for classical music.
1 While listening to a DAB broadcast, press front panel’s [TUNER MODE]
button and then [TUNE
/
] to select “DRC”. Press [ENTER].
2 Toggle [TUNE
/
] to select through “DRC 0”, “DRC ½”and “DRC 1”.
3 Press [ENTER] to select desired DRC level.
NEDERLANDS
4 The strength of the incoming signal can be shown on the VFD by
pressing the [ENTER] button. The more segments visible in the lower
display line, the stronger the signal. By changing the position of the
antenna, you can increase the signal strength. You can also opt for an
external antenna. Consult an antenna professional for more information.
ENGLISH
USING THE T 785 – AM/FM/DB/iPod
NOTE
Ensemble is also interchangeably termed as “multiplex” by other
broadcast providers.
РУССКИЙ
ACTIVE
Active stations are listed at the top of the channel list. Those channels
that are in list but have no service in the area will be displayed last in the
channel list.
37
OPERATION
USING THE T 785 – AM/FM/DB/iPod
ENGLISH
RESET
INFORMATION SETTINGS
The “Reset” option allows the connected (and separately sold) NAD DAB
Adaptor DB1 to be reset to its factory default settings.
1 While listening to a DAB broadcast, press front panel’s [TUNER MODE]
button and then [TUNE
/
] to select “Reset”.
2 Press [ENTER]. “Reset? No” will be shown in the lower line of the VFD.
Press [TUNE
/
] to switch to “Reset? Yes” option.
While listening to a DAB broadcast, the type of information displayed in the
lower line of the VFD can be varied. Toggle front panel’s [INFO] button to
step through the following display options:
Station Name
FRANÇAIS
DLS
Channel and Frequency
Ensemble Name
3 To select “Reset? No” or “Reset? Yes”, press [ENTER] while at the desired
option. Selecting “Reset? Yes” will cause the DB1 to be reset to its factory
default settings.
Program Type
Time and Date
ESPAÑOL
Audio Signal information
Error Rate
STATION NAME
The name or identification of the DAB broadcast station is shown. This is
the default display.
ITALIANO
DLS
Dynamic Label Segment (DLS) is the scrolling text supplied by the
broadcasting station. It may contain information on music titles or details
regarding the program or station.
CHANNEL AND FREQUENCY
The channel and frequency of the currently tuned DAB broadcast are
displayed.
DEUTSCH
ENSEMBLE NAME
The name of the ensemble that is broadcasting the program is displayed.
PROGRAM TYPE
This is a description of the type of broadcast supplied by the station, such
as Pop, Rock, Drama and the likes.
NEDERLANDS
TIME AND DATE
The current time and date as supplied by the DAB station are displayed.
AUDIO SIGNAL INFORMATION
Displays the bit rate and audio type (stereo, mono or joint stereo)
as transmitted by the DAB broadcast provider. These are set by the
broadcaster to suit the type and quality of material being transmitted.
SVENSKA
ERROR RATE
This displays the digital error rate (0 to 99) of the currently tuned channel
- the lower the figure, the better the quality of the received broadcast.
РУССКИЙ
38
OPERATION
CONNECTING THE OPTIONAL NAD IPD AND iPod PLAYER TO THE T 785
Make sure that all the devices are unplugged before making the
connections.
1 Connect the NAD IPD’s DATA PORT to the corresponding “MP DOCK”
data port of the T 785.
2 Connect also the NAD IPD’s S-video out and audio out to the T 785
Audio 5/Video 5 input (the default iPod source allocation in the T 785).
You can also connect both audio and video out connectors to any
available assignable input of the T 785.
3 Dock your iPod player into the NAD IPD.
NAVIGATING THE iPod PLAYER’S FUNCTIONS AND FEATURES
After linking together your iPod player, NAD IPD and the T 785, you can now
plug them IN to their applicable power sources.
1 With your T 785, iPod player and NAD IPD all at power ON state, select
SOURCE 5 of your T 785. Your iPod player will show in its display the
NAD logo and below it “OK to disconnect.” On the other hand, the T 785
VFD will show in the upper line “iPod Menu” and the lower line “Playlists”.
The lower line will vary depending on the current menu selected.
At the same time, the T 785 OSD will display the whole iPod Menu
selections like Playlists, Artists, Albums, Songs, Podcasts, Genres,
Composers and Audiobooks.
2 Navigate through the iPod menu selections using a combination of the
[
] buttons.
NAVIGATION BUTTONS
During playback mode, press [ ] to skip forward to the next song or [ ]
to skip back to the previous song. For quicker scrolling up or down the list,
press and hold [
].
While at menu options or selection lists, toggle [
options or lists.
The equivalent front panel keys for [
] to go up or down the
] are [PRESET
, PRESET
].
SKIP/CH/PRESET
Press HTRC 1’s [
SKIP/CH/PRESET] to scroll up and down the Songs list
one page or at least 8 titles at a time. Press and hold [
SKIP/CH/PRESET]
to quickly scroll through the song titles. During fast scrolling, the first letter
of the song is displayed on the bottom right corner of the OSD as the title
changes.
FRANÇAIS
ESPAÑOL
The equivalent front panel key for [DISP] is [INFO].
ITALIANO
NOTES
• “NAD IPD Dock for iPod” (NAD IPD) currently has two versions – the NAD
IPD 1 and NAD IPD 2. These two NAD IPD models and later variants are
compatible with the T 785.
• NAD IPD and iPod player are not supplied with your T 785.
• iPod player functions, features and playback capabilities accessible
through T 785 may vary depending on your iPod player model.
• When using the HTRC 1 to control the iPod functions, make sure that the
Device Selector is set to “AMP.”
DISP
During playback, toggle [DISP] key of HTRC 1 to show in the T 785 VFD
upper line the Song title, Artist Name and Album title. If there are no
information available, the display will show “No Song,” “No Artist” or “No
Album” as applicable. Aside from these information, the lower line will
display the current title’s track number allocation and time elapsed.
DEUTSCH
You can control your iPod player using the assigned buttons in the T 785
front panel. And with the corresponding HTRC 1 remote control function
keys, you can select the materials stored in your iPod for playback as well
as access many of its functions even from across the room. The optional
NAD IPD also charges your iPod player while it is connected to the T 785.
ENTER
Press [ENTER] to go “iPod Settings’ menu where you can setup the following
options:
Shuffle : Select [Shuffle] to enable random playback of either [Songs]
or [Albums] lists. To turn off shuffle mode, select [Off ].
Repeat : Select [One] for repeated playback of the current song. Select
[All] for repeated playback of your entire list under [Songs] selection.
Audiobook Speed : The playback speed of your audiobook can be
varied according to your preference. During audiobook playback,
adjust the reading speed to [Normal], [Fast] or [Slow].
SCAN [
/
] / PAUSE [ ] / PLAY [ ]
Press PAUSE [ ] during playback to stop playback temporarily. Resume play
by pressing PAUSE [ ] again or PLAY [ ].
During playback or PAUSE mode, press [SCAN
backward scanning of current song.
/
] for fast forward or
SVENSKA
NOTES
• The iPod player’s click wheel and controls will not operate when it is
properly connected to the T 785 via the NAD docking station.
• To exit from the iPod Menu at Source 5, press [ ] bringing you to ‘Menu
Select’ OSD. Follow the instructions as shown.
NEDERLANDS
LISTENING TO YOUR iPod PLAYER
The T 785 is equipped with a data port in the rear panel where an optional
“NAD IPD Dock for iPod” (NAD IPD) can be plugged in. With the NAD IPD
linking the T 785 with your own iPod player, you can enjoy listening to your
favorite tracks and playlists as well as view applicable still image and video
playback.
ENGLISH
USING THE T 785 – AM/FM/DB/iPod
РУССКИЙ
CONTROL FEATURES AND SETTINGS
The following control functions and settings are selectable or enabled
using the front panel and HTRC 1 remote control buttons. Since the HTRC 1
will be the primary controller in most cases, we will focus on remotecontrolled operations.
Note that other NAD IPD models, like the NAD IPD 2, have their own remote
controls. The controls below also apply to the corresponding buttons of the
remote controls of such applicable NAD IPD models.
39
OPERATION
USING THE T 785 – AM/FM/DB/iPod
ENGLISH
NAD IPD 2
FRANÇAIS
The NAD IPD 2 has its own remote control - the DR 1. For you to control the
NAD IPD 2 using the DR 1, you have to go to “iPod Setup” menu (please refer
to the item about “iPod Setup” under the “USING THE T 785 – SETUP MENU”
segment of OPERATION section) and then set “Auto Connect” to “No”. With
this setting, you can then use the DR 1 to control your iPod player docked
in the NAD IPD 2. Note that if you set “Auto Connect” to “No” while at Source
5, you have to change source and then return to Source 5 for the changed
setting to take effect.
ESPAÑOL
When using the DR 1 to command your iPod player docked in the NAD IPD
2, you have to refer to your iPod player’s own display screen to make full use
of its feature; there is no OSD at this condition. However, any time you press
HTRC 1’s [ ] or front panel’s [TUNE
], the “Menu Select” OSD comes
up. If you select “iPod Menu” at this “Menu Select” option, the NAD IPD 2
gets manually connected. The control of the NAD IPD 2 will then again be
done through the T 785 using the applicable front panel control buttons or
HTRC 1 buttons while referring to the OSD; the NAD IPD 2 will not respond
to any DR 1 commands at this stage.
In addition to the above commands common to the DR 1, below are the
descriptions of the other DR 1 control buttons.
TO VIEW VIDEOS OR PHOTOS LOADED IN YOUR iPod
Videos or photos uploaded in your iPod can be viewed directly via the
T 785. The following are the steps
1 Make sure that the [TV Out] setting of your iPod’s Video Settings menu
is at [On] mode and appropriate [TV Signal] is chosen.
2 Video or photo file selections and playback procedures are managed
directly from your iPod player and not through the T 785. You must exit
completely from the T 785’s Setup Menu or Menu Select OSD for you
to be able to navigate through your iPod player’s video or photo menu
options. A more direct way is by going to the ‘iPod Setup’ menu and set
‘Enabled’ to [No].
3 With the NAD IPD’s S-VIDEO OUT and AUDIO OUT ports connected to
the T 785’s AUDIO/VIDEO 5 input or to any other assignable input, you
can now directly enjoy via T 785 your video or photo file selections as
uploaded in your iPod. Make sure that you select the correct ‘Source
Number’ of the T 785.
NOTE
For other navigation functions, please refer to your iPod player’s owner’s
manual. Depending on the iPod player model, some other functions
maybe controlled using the applicable T 785 navigation controls.
iPod is a trademark of Apple, Inc., registered in the U.S. and other countries.
ITALIANO
LIGHT
Press [LIGHT] to turn ON the backlight of your iPod player if it is at idle
mode.
MENU
Press [MENU] to return to previous option or menu selection
ENTER
Press [ENTER] to select an option or start playback.
DEUTSCH
� (REPEAT)
Toggle to initiate repeat mode as follows - repeat one song, repeat all songs
or cancel repeat mode
� (RANDOM)
Toggle to initiate playback in random order. There are three random modes
– Shuffle Song, Shuffle Album or Shuffle Off.
NEDERLANDS
SVENSKA
РУССКИЙ
40
OPERATION
ENGLISH
USING THE HTRC 1 REMOTE CONTROL
IDENTIFICATION OF CONTROLS
•
•
•
•
•
Top section features ON/OFF buttons and back-light LCD display.
Upper section has eight DEVICE SELECTOR keys including one programmable CUSTOM DEVICE
SELECTOR key and an additional MACRO button function key.
The upper middle section with channel, volume, MUTE, and surround mode buttons.
Middle section has DVD, BD, CD, TUNER and OSD navigation buttons.
Lower middle section has number buttons 0 to 9, A/V PSET, SPEAKER and CD functions, DVD/BD
SETUP, and receiver’s TEST and DELAY buttons.
Lower section has DVD, BD and CD transport buttons, receiver audio function keys as well as DVD
resolution button.
Bottom section with CHANNEL VOLUME trimming buttons.
FRANÇAIS
•
•
INTRODUCTION
The HTRC 1 is like having eight virtual remote controls in one. The eight DEVICE SELECTOR keys can be
used to switch between the different virtual remote controls or devices.
ESPAÑOL
When the HTRC 1 is idle, the name of the currently selected device will be shown on the first line of the
LCD display. Whenever a function key is pressed, the name of that function will be shown on the second
line of the LCD display. The second line will be cleared again shortly after releasing the function key.
DEUTSCH
ITALIANO
HIGHLIGHTS
• Controls up to 8 Devices.
• 2-line LCD display indicates selected Device (DVD) and sent Command (“PLAY”, for example).
• Preprogrammed with all NAD remote commands including Zone 2.
• Learning function - learns up to 360 commands from other remotes.
• Macro operations - program up to 52 Macros with as many as 64 commands each to automate
commonly used command sequences.
• Punch Though Operations permit easy access to commonly used functions without reselecting a
device.
• Full illumination with light sensor and adjustable time out for easy operation in low light
conditions.
• Can generate IR signals with a carrier frequency up to 500 kHz (B&O® compatible).
• Mini USB PC Interface allows programming from a Personal Computer.
The HTRC 1 is already preprogrammed with a full complement of NAD commands on its AMP DEVICE
SELECTOR page, and with library commands to operate most NAD DVD, CD and TUNER components
on the corresponding DEVICE SELECTOR keys. These default commands are permanent: Even if you
teach the HTRC 1 new commands to take their place, the underlying library commands remain in
place and can easily be recalled should you add an NAD component to your system later.
NEDERLANDS
GETTING FAMILIAR WITH THE HTRC 1
The HTRC 1 is divided into three main sections. The LCD display section at the top of the handset, the
DEVICE SELECTOR, and the remaining 44 Control keys.
SVENSKA
Eight DEVICE SELECTOR keys at the top; AMP, TV, CUSTOM, CD, DVD, BD, TUNER, and CABLE/SAT
determine which component the remaining 44 control keys will operate. A DEVICE SELECTOR key
determines what component the HTRC 1 will command; with factory defaults, it does not perform any
function on the T 785. The DEVICE SELECTOR keys are organized into three vertical rows of 3 buttons
each; the row on the left are all Audio devices, the row in the center are all Video devices.
Both the DEVICE SELECTOR and function keys can “learn” control codes from virtually any infrared
remote controller, allowing you to teach the codes of your equipment, regardless of brand, to the
HTRC 1. All of the function keys on the AMP DEVICE SELECTOR are preprogrammed to control NAD
amplifiers, preamplifiers, and receivers. (The HTRC 1 can also command many other NAD components,
from its DVD, BD, CD, TUNER and TV pages.)
РУССКИЙ
Since HTRC 1 Control keys can perform different functions, depending on the selected DEVICE
SELECTOR key, the HTRC 1 uses color coding to indicate the function of the function keys when
different device keys are chosen. Thus, the colour of the DEVICE SELECTOR key-labeling corresponds to
the labeling of the function keys (similar to a calculator).
41
OPERATION
USING THE HTRC 1 REMOTE CONTROL
ENGLISH
For example, the grey AMP DEVICE SELECTOR key label corresponds to the
grey input-select labeling adjacent to the numeric keys: When the HTRC
1’s AMP DEVICE SELECTOR page is active, these keys select the amplifier
or receiver inputs. Similarly, the red DVD DEVICE SELECTOR key label
corresponds to several red labels, the green TV DEVICE SELECTOR key to
green labels, and so on.
FRANÇAIS
DEVICE SELECTOR KEYS
Simply pressing a DEVICE SELECTOR key will change the active device on
the HTRC 1. At this time, no IR commands will be transmitted. The name of
the selected device will be shown on the first line of the LCD display.
NAVIGATION OF THE HTRC 1 CONTROLS
ESPAÑOL
NOTE
Any IR command can be associated with a DEVICE SELECTOR key during
“Copy” and “Learn” modes. Once the associated function is assigned to
the DEVICE SELECTOR key, pressing and holding the DEVICE SELECTOR
key for more than two seconds will send the associated command in
addition to the HTRC 1 switching its active device.
ITALIANO
MACRO KEYS
A macro can be associated with every key on the HTRC 1 except for the
MACRO button itself. A total of 52 macros can be stored. To execute a macro:
• Press the MACRO key. The first line of the LCD display will show “MACRO.”
Within five seconds, press the key the macro is associated with.
• While the macro is executing a small "M" will be shown in the top right
of the LCD display.
Refer also to the “MACRO” item below of the “HTRC 1 SETUP MENU” section
for information on how to setup macros.
DEUTSCH
FUNCTION KEYS
There are 44 dedicated function keys on the HTRC 1. When you press a
function key, the name of the function will be shown on the second line of
the LCD display while the command is being transmitted.
NEDERLANDS
A/V PSET KEY
In the default configuration of the HTRC 1, the A/V PSET key acts as a shift
function when the AMP device is selected. Pressing the A/V PSET key
once will cause “Preset” to be displayed on the first line of the LCD display.
If within five seconds you then press a digit (0 – 9), the function for the
corresponding A/V Preset will be transmitted.
NOTE
The HTRC 1 is a universal-type remote control; some NAD receivers may
not have more than 5 AV presets.
SVENSKA
SOFTWARE VERSION NUMBER
Press simultaneously the ON + TEST buttons for five seconds to display
version numbers.
SETUP MENU
Press and hold the SETUP and ENTER keys for five seconds to enter the
Setup Menu. You cannot enter the setup menu if the remote is currently
displaying “Low Batt.” This feature prevents the setup from becoming
corrupted under low battery conditions. Please refer to “HTRC 1 SETUP
MENU” section below for the overall structure and basic operation of the
Setup Menu.
РУССКИЙ
42
HTRC 1 SETUP MENU
GENERAL MENU OPERATION
• Press and hold SETUP + ENTER for 5 seconds to enter setup menu.
• The MACRO key is a cancel function in all setup modes unless otherwise
noted.
• You can exit menus by selecting “Exit” or pressing the MACRO key.
• Use [
] cursor keys to select different menu
• For options which can be changed, the Right and Left keys are used to
cycle through the available options. Left and Right arrows will be shown
on the display to indicate when an option can be changed.
• Press ENTER to select a menu option or confirm a value.
• While a setup menu page is being executed, the corresponding first
letter of the selected setup feature (i.e. “L” when “Library” is the selected
SETUP) is shown in the upper right corner of the display.
The following are the SETUP menu parameters.
BATTERY
Instead of waiting until the “Low Batt” warning is displayed, you can check
the current battery level using this option. This option will show a bar graph
representing the current battery level. When the batteries are new, the bar
graph will show 8 bars. Once the bar graph reaches close to zero, the “Low
Batt” warning will start to show.
LOW BATTERY WARNING
If the HTRC 1 senses the batteries are low, it will show “Low Batt” on the
second line of the LCD display whenever the remote is idle. When this
occurs the batteries should be replaced with new ones immediately.
BACK LIGHT SENSITIVITY (B LIGHT)
The HTRC 1 is equipped with a backlight to increase visibility of the HTRC 1
in low light conditions. The HTRC 1 also includes a light sensor. By default, if
you press any key on the remote and it senses a low light condition, the back
light will turn on. It will then turn off again five seconds after no key has been
pressed. The behavior and timeout for the backlight can be adjusted.
TIMEOUT: The backlight timeout can be set from 0 - 20 seconds. This is the
length of time the backlight stays ON after releasing the last key.
OPERATION
MODE: The following backlight modes are available:
] to toggle to “600”. Press
5 Use [
] to select between “No” (desired library code is not
uploaded) and “Yes” (desired library code is uploaded and saved to the
applicable device page.
NOTE
Instead of scrolling through the library list, you can also key-in directly
the library code based on the list of Library Codes below.
NAD PRODUCT
DESCRIPTION
Receiver/Processor (Discrete
ON/OFF)
Receiver/Processor (Toggle
ON/OFF)
LIBRARY
CODE
NAD PRODUCT
DESCRIPTION
300
Tuner
301
L75, L76 Tuner
102
S170
302
L70 Tuner
103
L75
303
L53 Tuner
104
Second Zone Commands
(Zone 2)
304
L73 Tuner
3112
Zone 3
305
C425
4112
Zone 4
306
C445
105
L70
307
Txx5 Series Tuner
106
L76
400
Tape Deck B
107
118
401
TAPE Deck A
108
L53
500
TV 280
109
L73
501
MR13
110
Stereo Receiver / Amplifier
502
MR20
111
Stereo Second Zone
503
PMR45
112
Txx5 Series
600
T535, T562, T585, M55
200
CD Player
601
T550, L55
201
CD Player (old)
602
T512, T531, T532, T571, T572
202
5170, 5240, 5340
603
L70, L73 DVD
203
5325
604
L56
100
SENSE LEVEL (Sen Lvl): The point where the backlight comes ON in a
darkened room. To set this level, go to a dim area where you think the
backlight should be activated given such a dark environment condition.
Then, press [ENTER] at “B Light – Sen Lvl” menu. The display will show the
current sensitivity level. An example is below
If such sensitivity level is alright with you, press [ENTER].
Select “YES” to complete the setting of the sensitivity level.
LIBRARY
The HTRC 1 can store a different library of default NAD codes for each of
its DEVICE SELECTOR “pages.” If the original default library does not control
your NAD CD player, DVD player, or other component, follow the procedure
below to change the library code. Please refer as well to the table below for
a list of uploaded NAD Library Codes.
Example: Load NAD DVD Player T 585 library codes to HTRC 1’s “DVD”
device.
1 Press [DVD] in the DEVICE SELECTOR page.
2 Press and hold [TUNER (10+/SETUP)] and [ENTER] buttons. Use [ ] to
scroll to “Library”.
101
204
5060
605
T513, T514, T515, T517, T524,
T533, T534
205
M5
606
L53 DVD
LEARN
This function allows you to learn IR commands from another remote.
Example: Learning “MENU” function from a TV remote control into the
MENU button of HTRC 1’s TV device.
Begin by positioning the HTRC 1 “nose-to-nose” with the source remote so
that the two devices’ infrared windows are about 2 inches apart.
SVENSKA
On: The backlight will come ON any time a key is pressed.
1 Press [TV] in the DEVICE SELECTOR page.
2 Press and hold [TUNER (10+/SETUP)] and [ENTER] buttons. Use [
scroll to “Learn”.
РУССКИЙ
•
ESPAÑOL
LIBRARY
CODE
ITALIANO
Sense: The backlight will only come ON if the light sensor detects low
light conditions. See also“SENSE LEVEL” discussion below.
DEUTSCH
•
FRANÇAIS
Off: The backlight will never come ON.
NEDERLANDS
•
4 The library code for NAD T585 is “600”. Use [
[ENTER].
ENGLISH
USING THE HTRC 1 REMOTE CONTROL
3 Press [ENTER].
] to
43
OPERATION
USING THE HTRC 1 REMOTE CONTROL
ENGLISH
3 Press [ENTER].
At “2 Pass” mode, step 5 and onwards of the above example would be as
follows (the same Steps 1 – 4 of the above example applies)
5 Press and hold the corresponding [MENU] button of the TV remote
control.
FRANÇAIS
4 Press [MENU] button of HTRC 1 – [MENU] button of the HTRC 1 is where
the corresponding [MENU] function key of the TV remote control will be
learned.
6 Release [MENU] button.
ESPAÑOL
ITALIANO
5 Press and hold the corresponding [MENU] button of the TV remote
control until “Success” is shown in the display. (Refer also to “MODE”
discussion below).
7 “Pass 2” means that you have to press [MENU] button again. Press until
“Success” is shown in the display.
6 “Success” will be shown in the display if the [MENU] function key is
successfully “learned.” You can now release the [MENU] button of the TV
remote control.
7 Wait until “Success” is extinguished from the display to complete the
process.
8 “Success” will be shown in the display if the [MENU] function key is
successfully “learned.” You can now release the [MENU] button of the TV
remote control.
9 Wait until “Success” is extinguished from the display to complete the
process.
NOTE
“Failed” will be shown in the lower line display if the “learning” of the
desired function key is unsuccessful. Repeat Step 3 – 7 again until
“learning” of the desired key is successful.
Narrow: Some remote controls use very narrow pulses of IR. If you cannot
get your remote to work using the normal or 2 Pass modes, you may want
to try this mode. The same example above for “Normal” mode applies to
“Narrow” mode.
DEUTSCH
MODE
There are three modes on how a function key can be learned. Press and hold
[TUNER (10+/SETUP)] and [ENTER] buttons. Use [ ] to scroll to “Learn”. Press
[ENTER] and then [ ] to scroll to “Mode”. The following are the three modes:
PUNCH-THROUGH (Pun Thr)
The HTRC 1’s “Punch through” function allows you to retain a function key
from one DEVICE SELECTOR “page” to another.
NEDERLANDS
SVENSKA
Normal: This is the regular learning mode. A function key is learned until
“Success” is shown in the display. The example above is at “Normal” learn mode.
Example: Punch-through “SURR MODE” key to the “DVD” page.
1 Press [DVD] in the DEVICE SELECTOR page.
2 Press and hold [TUNER (10+/SETUP)] and [ENTER] buttons. Use [
scroll to “Pun Thr”.
2 Pass: Some remote controls use an IR (infrared) “toggle bit”. This means
that if you press the same key twice in a row, the IR signal toggles between
two different variations of the same command.
3 Press [ENTER].
4 Press [SURR MODE] button – this is the function key that will be
punched through.
РУССКИЙ
44
] to
OPERATION
COPY
This function allows you to copy functions from one key to another.
PUNCH-THROUGH MACRO
A stored macro command can also be “punched-through.” This provides a
way to execute a macro with a single keys press.
Example: Punch-through macro command stored at [0] to the [RTN] key
of [BD] page.
1 Press [BD] in the DEVICE SELECTOR page.
2 Press and hold [TUNER (10+/SETUP)] and [ENTER] buttons. Use [ ] to
scroll to “Pun Thr”.
3 Press [ENTER].
3 Press [ENTER].
ESPAÑOL
NOTE
The HTRC 1’s [VOL] keys are pre-programmed as “punched-through”
for all Device Select pages: [VOL] will operate the NAD’s master-volume
regardless of the currently selected device. The [SURR], [CENT] and [SUB]
CHANNEL VOLUME controls similarly are pre-programmed as punchedthrough.
4 Press [DVD] from DEVICE SELECTOR page.
ITALIANO
6 Use [
] to select between “No” (desired punch-through key will
not be saved) and “Yes” (desired punch-through key will be saved and
process is completed).
Example: Copy “PAUSE” [ ] command from DVD page to the AMP [ ]
button.
1 Press [AMP] in the DEVICE SELECTOR page.
2 Press and hold [TUNER (10+/SETUP)] and [ENTER] buttons. Use [ ] to
scroll to “Copy”.
FRANÇAIS
5 Press the [AMP] button in the DEVICE SELECTOR page.
ENGLISH
USING THE HTRC 1 REMOTE CONTROL
5 Press [ ] button - this is the function key that will be copied.
6 Press [AMP] from DEVICE SELECTOR page.
DEUTSCH
4 Press [RTN] button.
7 Press [ ] button - this is the button where the function will be copied.
7 “Save” and “No?” are shown in the display. Use [
] to select between
“No” (desired punch-through macro command will not be saved) and
“Yes” (desired punch-through macro command will be saved and
process is completed).
8 Use [
] to select between “No” (desired function key will not be
copied) and “Yes” (desired function key will not be copied and process is
completed).
NOTE
The copy and punch-through functions are similar. However, if you copy a
command and then subsequently delete, or over-write the original (sourcekey) command, the copied-to key’s command remains unchanged. If you
punch-through to a command and then delete or over-write the original
key, the punched-through functions also change accordingly.
РУССКИЙ
EXECUTE PUNCHED-THROUGH MACRO
To recall the punched-through macro command as above example, press
[BD] in the DEVICE SELECTOR page and then press [RTN] – the macro
command will then be executed.
SVENSKA
6 Press [0] button – this is the key where the macro command is
associated.
NEDERLANDS
5 Press the [MACRO] button in the DEVICE SELECTOR page.
Refer also to the “MACRO” section below for information on how to setup
macros.
45
OPERATION
USING THE HTRC 1 REMOTE CONTROL
ENGLISH
DELETE
FRANÇAIS
Each key can have several functions types stored. However, only the highest
priority type will be active. When you delete a function, a lower priority
function type may become active. To completely erase the functionality
of a key, you may need to execute the Delete function multiple times. For
example; if you delete a learned command, a lower priority command may
become active. The order of priority for each function type is:
1 Punch Through
2 Learned
3 Copied Library Command
4 Default Library Command
ESPAÑOL
Example: Delete punch-through “SURR MODE” function key from DVD
page (refer to PUNCH-THROUGH example above).
1 Press [DVD] in the DEVICE SELECTOR page.
2 Press and hold [TUNER (10+/SETUP)] and [ENTER] buttons. Use [ ] to
scroll to “Delete”.
5 Use [
] buttons to select the first character of the name (“D” from
the alphabetical list).
6 Press [ ] button to select the character and correspondingly move
forward to the next position. (Press [ ] to go back to the previous
character). Repeat this process for each character in sequence.
7 Since “DVD” is only three characters and “Input 1” is six character spaces,
overlap the remaining characters with a space. Space or blank can also
be selected using [
] buttons – scroll up to the blank character.
8 Press [ENTER] when you have finished the renaming sequence.
9 Display shows “Save” and “No” - use [
] to select between “No” (new name
will not saved) and “Yes” (new name will be saved and process is completed).
MACRO
3 Press [ENTER].
ITALIANO
A “macro” command is a series of two or more remote codes issued
automatically from a single keypress. You might use a macro to automate
a simple command sequence, such as, “Turn on the DVD player and then
press “play.’” Or you might compose an elaborate macro to power up
an entire system, select a source, choose a Listening Mode, and begin
playback—again, all from a single keypress. The HTRC 1 can store one
macro to all its function keys except MACRO.
4 Press [SURR MODE] button.
DEUTSCH
Macros will be executed with the same timing as they were recorded. The
length of time each command is sent will also correspond to the same
length of time the key will be held down while recording.
5 Use [
] to select between “No” (desired function key will not be
deleted) and “Yes” (desired function key is deleted and process is
completed).
RENAME
All keys can be renamed except MACRO key.
NEDERLANDS
Example: Rename “Input 1” key of “AMP” page to “DVD”.
1 Press [AMP] in the DEVICE SELECTOR page.
2 Press and hold [TUNER (10+/SETUP)] and [ENTER] buttons. Use [
scroll to “Rename”.
Example: Record a Macro to the [0] key to turn ON the NAD T 785, Select
[Input 1], turn ON the NAD T515 DVD Player, and commence disc playback
of the connected Input 1 device (as in the NAD T515 DVD player):
1 Press [AMP] in the DEVICE SELECTOR page.
2 Press and hold [TUNER (10+/SETUP)] and [ENTER] buttons. Use [ ] to
scroll to “Macro”.
] to
3 Press [ENTER].
4 Display shows “Macro” and “Key?”- press [0].
SVENSKA
3 Press [ENTER].
4 Press [1] button.
5 Press [AMP], [ON], [1], [DVD], [ON] and [ ](Play). The length of time
each command is entered will also correspond to the same time
sequence the macro command is executed.
6 Press [MACRO] to end the sequence.
РУССКИЙ
7 Use [
] to select between “No” (macro command will not be saved)
and “Yes” (macro command will be saved and process is completed).
46
OPERATION
USB INTERFACE
The HTRC 1 allows one to upload and download the configuration through
a Windows® PC and NAD’s Proprietary HTRC 1 programming software. Use
a USB A male to mini USB B male 5-pin cable (not supplied) between your
Windows® PC and the HTRC 1. See illustration below on how to connect a
USB A male to mini USB B male 5-pin cable to the HTRC 1.
ESPAÑOL
NOTE
Please log onto www.nadelectronics.com for the latest HTRC 1 interface
control software. Your custom installer or dealer can assist you in the
proper setup and configuration of the mini USB interface and software.
FRANÇAIS
EXECUTING MACRO
To execute the above macro example, press [MACRO] and then [0].
ENGLISH
USING THE HTRC 1 REMOTE CONTROL
The corresponding macro will run; the display will show each step/
command as the macro is executed. Pressing any other HTRC 1 key while a
macro is executing will abort the macro.
ITALIANO
By default, when a macro is executed, the currently selected device will be
returned to what it was before the macro was executed. However, if the
very last button pressed while recording a macro is a DEVICE SELECTOR key,
the device will be changed at the end of executing the macro.
RESET
DEUTSCH
Selecting this option and answering “Yes” to both confirmations will reset all
HTRC 1 options to the factory default. All user configurations, macros, and
custom device programming will be erased.
1 Press [AMP] in the DEVICE SELECTOR page.
2 Press and hold [TUNER (10+/SETUP)] and [ENTER] buttons. Use [ ] to
scroll to “Reset”.
NEDERLANDS
3 Press [ENTER].
SVENSKA
4 Use [
] to select between “No” (HTRC 1 will not be reset) and “Yes”
(HTRC 1 will be reset to its factory defaults). When you select “Yes”,
another prompt display will be shown.
РУССКИЙ
5 Select “Yes” to reset the HTRC 1 and complete the process.
47
OPERATION
USING THE HTRC 1 REMOTE CONTROL
ENGLISH
BATTERY INSTALLATION
FRANÇAIS
Press in and lift tab to remove battery cover out from recess
SLEEP MODE
The Sleep Mode timer will switch the T 785 to Standby mode automatically
after a preset number of minutes. Pressing the HTRC 1’s SLEEP button once
will display the setting of the sleep time increment. Pressing the HTRC 1’s
SLEEP button a second time within a 3-second period will change the
sleep time increment in 15-minute intervals, after which time the T 785 will
automatically switch into Standby mode.
ESPAÑOL
To adjust the sleep delay, press the HTRC 1’s SLEEP button twice; first
to display the sleep time increment, and a second time to change the
sleep time increment. The sleep time increment and a “SLEEP” icon will
continuously display on the T 785’s front panel Vacuum Fluorescent Display
(VFD). Each consecutive press increases the sleep time in 15-minute
increments from 15 to 90 minutes. To cancel the sleep mode, continue
pressing the HTRC 1’s SLEEP button until “SLEEP OFF” displays on the VFD.
Switching the T 785 to standby from either the HTRC 1’s OFF or the T 785’s
STANDBY button will also cancel the sleep mode
USING THE ZR 4 REMOTE CONTROL
ITALIANO
Place batteries into opening. Ensure the correct polarity is observed
The ZR 4 remote control is a discrete compact remote for controlling the
T 785 from various rooms other than the main room. The ZR 4 remote
allows full separate control of the source selection irrespective to the main
room. This means the zone input may be completely different, audio and
video, from the main input and thus corresponding volume levels as well.
If one wishes to enjoy the same source, as the main room the ZR 4 remote
has a [LOCAL] button to allow simultaneous listening, but with full separate
volume levels.
To mute the Zone Volume level, press [MUTE] on the ZR 4. If the “Zone
Controls” OSD menu is ON, the Zone “Volume” level section will display “Mute”.
DEUTSCH
The T 785’s front florescent display will show activity of the zone control
so that main room occupants are aware of the zone remote activity.
Furthermore if there is no main room activity, only the zone indicator will
be active in the T 785’s fluorescent display.
Press battery cover into place until it ‘clicks’ closed
NEDERLANDS
SVENSKA
РУССКИЙ
48
NOTE
The ZR 4 remote control will only control Zone 2 applications. Zone
3 and Zone 4 could be configured and managed at the appropriate
Zone OSD menu using the front panel navigations keys as well as
the corresponding keys on the HTRC 1 remote control. The HTRC 1’s
“CUSTOM” device is also defaulted to Zone 2 remote control codes.
REFERENCE
CONDITION
No sound from all channels.
POSSIBLE CAUSES
• AC power unplugged.
ENGLISH
TROUBLESHOOTING
POSSIBLE SOLUTIONS
• Check AC cable connection and outlet.
• Power not switched on.
No sound from surround channels.
• Activate Speaker A (or Speaker B) by pressing
the corresponding front panel or HTRC 1
button.
• Faulty/missing cables.
• Check cables.
• ’Speaker Configuration’ channel (s) set to
“OFF”.
• Check ‘Speaker Configuration’ menu.
• Power-amp or speaker-connections faulty.
• Check power amp, cabling, and speakers.
• No surround listening mode is engaged.
• Select appropriate listening mode.
• Surround-channels set to “OFF” on ‘Speaker
Configuration’ menu.
• Correct ‘Speaker Configuration’ or ‘Speaker
Levels’ settings.
ESPAÑOL
No sound from some channels.
• Speaker A (or Speaker B) is not activated.
FRANÇAIS
• Outlet has no power.
• Surround-channels level set too low on
‘Speaker Levels’ menu.
No sound from Subwoofer.
• Subwoofer is off, not powered or improperly
connected.
• Power-up subwoofer, check Sub’s AC outlet
or check connections.
• Subwoofer set to “OFF” on ‘Speaker
Configuration’ menu.
• Correct ‘Speaker Configuration’ or ’Speaker
Levels’ settings.
No sound from Center channel.
• Source is a 2/0 (etc.). Dolby Digital or DTS
recording without center channel.
• Play a known 5.1-channel recording or select
Dolby Pro Logic IIx Music mode.
• Center set to “OFF” on ‘Speaker Configuration’
menu.
• Correct ‘Speaker Configuration’ or ‘Speaker
Levels’ settings.
ITALIANO
• Sub level set too low on ‘Speaker Levels’
menu.
• Check connections.
• Source component not configured for
multichannel digital output.
• Check source component setup.
No video display.
• Resolution setting is not supported by the
TV/Monitor.
• To restore video display, press and hold both
front panel buttons LISTENING MODE and
TONE DEFEAT and then release both buttons.
T 785 does not respond to HTRC 1 remote.
• Batteries are flat or incorrectly inserted.
• Check batteries.
• IR transmitter window on remote or IR A/V
Receiver window on T 785 is obstructed.
• Check IR windows and ensure clear line-of-sight
from remote to T 785.
• T 785 front panel is in very bright sunlight or
ambient light.
• Reduce sunlight/room lighting.
• Microprocessor error.
• Power-down the T 785 via the rear panel Power
switch and unplug it from the AC outlet.
• T 785 may have over heated.
• Wait five minutes, re-connect and power up.
• 12V TRIGGER IN/OUT is set to AUTO position.
• Switch 12V TRIGGER IN/OUT to OFF position.
T 785 does not respond to front panel
commands or remote control.
NEDERLANDS
• Source’s digital output is not connected to a
T 785 digital input.
РУССКИЙ
Factory defaults for 120V version only : Press simultaneously Source + Front Input/MP
Factory defaults for 230V version only : Press simultaneously Source + Front Input/MP
Audyssey Auto Calibration settings along with other stored presets and settings will all be deleted upon restoring your T 785 to its factory defaults.
SVENSKA
No Dolby Digital/DTS.
DEUTSCH
• Center level set too low on ‘Speaker Levels’
menu.
49
REFERENCE
SPECIFICATIONS
ENGLISH
AMPLIFIER SECTION
FRANÇAIS
Power output Stereo Mode
145W (21.6dBW) (8Ω within rated distortion)
IHF dynamic power; 8 Ω
230W (23.6dBW)
IHF dynamic power; 4 Ω
320W (25.05dBW)
Power output Surround Mode
7 x 120W (20.8dBW)
Total harmonic distortion at rated power
<0.08%
IM distortion at rated power
<0.08%
Damping factor, 8 Ω
>60
Input sensitivity and impedance
330mV/50KΩ
Frequency response
± 0.8dB (ref. 1kHz, 20Hz – 20kHz)
Signal/noise ratio
>93dB (ref. rated power at 8 Ω, A-WTD)
Signal/noise ratio
>83dB (ref. 1W at 8 Ω, A-WTD)
PREAMPLIFIER SECTION
ESPAÑOL
Input sensitivity and impedance
Frequency response
Signal/noise ratio
Input sensitivity
Maximum output level
350mV/50KΩ
± 0.5 dB (20Hz – 20kHz)
>88dB (ref. 2V, A-WTD)
330mV (ref. 2V)
>3V
TUNER SECTION
ITALIANO
AM SECTION
Tuning range
Usable sensitivity
S/N ratio
Total Harmonic Distortion
Loop sensitivity 20dB S/N
530kHz -1710kHz (120V version, 10kHz steps)
531kHz -1602kHz (230V version, 9kHz steps)
30dBu
38dB
<3%
66dBu
DEUTSCH
FM SECTION
Tuning range
Usable sensitivity, MONO
IHF (3% THD)
S/N Ratio MONO
S/N Ratio STEREO
Total Harmonic Distortion, MONO
Total Harmonic Distortion, STEREO
Channel Separation
RDS decode sensitivity
87.50MHz -108.50MHz
< 16.1dBf
18dBu
60dB
55dB
0.25%
0.5%
40dB
28dBu
NEDERLANDS
PHYSICAL SPECIFICATIONS
Unit Dimensions (W x H x D)
Net Weight
Shipping Weight
430 x 180 x 382mm (Gross)*
25.5kg
30.7kg
* - Gross dimensions include feet, volume knob and extended speaker terminals.
Specifications are subject to change without notice. For updated documentation and features, please log onto www.NADelectronics.com for the latest
information about T 785.
