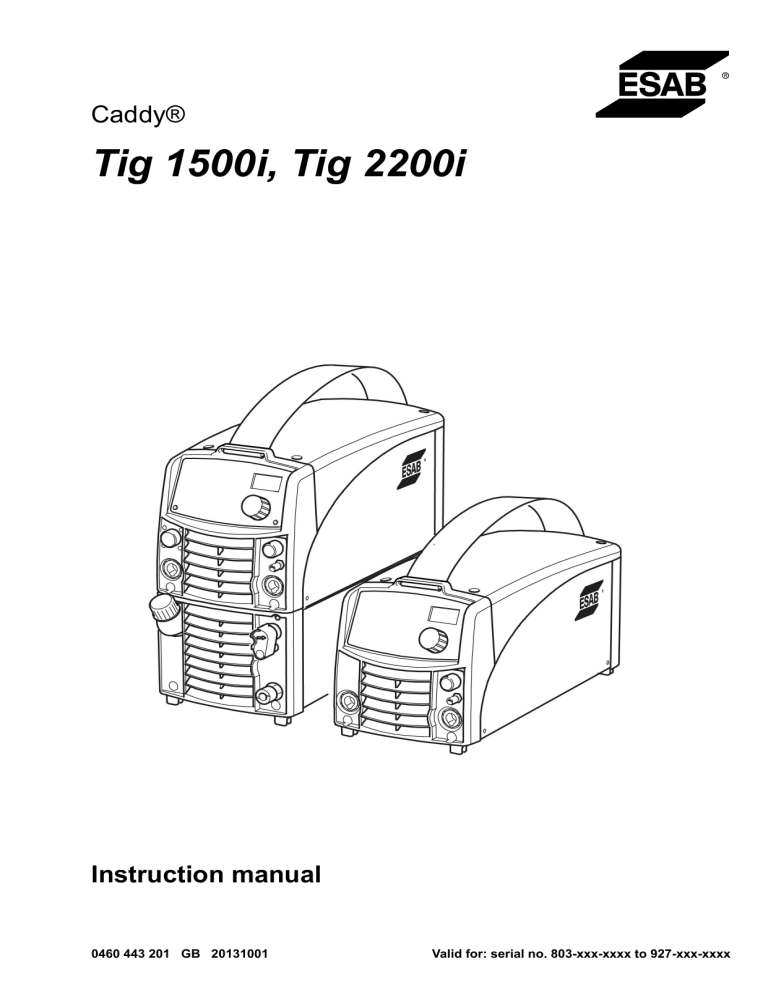

Caddy®

Tig 1500i, Tig 2200i

Instruction manual

0460 443 201 GB 20131001 Valid for: serial no. 803-xxx-xxxx to 927-xxx-xxxx

TABLE OF CONTENTS

1 2 3 4 5

SAFETY

................................................................................................................

4

INTRODUCTION

...................................................................................................

7

2.1

Equipment

.............................................................................................................

7

2.2

Control panels

......................................................................................................

7

TECHNICAL DATA

...............................................................................................

8

INSTALLATION

...................................................................................................

10

4.1

4.2

Location

..............................................................................................................

10 Mains power supply

...........................................................................................

10

OPERATION

.......................................................................................................

12

5.1

Connections and control devices

.....................................................................

12

5.2

5.3

5.4

5.5

5.6

5.7

5.8

Key to symbols

...................................................................................................

13 Water connection

...............................................................................................

13 TIG-welding

.........................................................................................................

13 MMA-welding

......................................................................................................

13 Overheating protection

......................................................................................

13 Connection to cooling unit

................................................................................

13

Turning on the power source

............................................................................

14

6 7 8 9

MAINTENANCE

..................................................................................................

15

6.1

Inspection and cleaning

....................................................................................

15

FAULT-TRACING

................................................................................................

16

ORDERING SPARE PARTS

...............................................................................

17

DISMANTLING AND SCRAPPING

....................................................................

18

DIAGRAM

..................................................................................................................

19

ORDER NUMBER

......................................................................................................

25

ACCESSORIES

.........................................................................................................

26

Rights reserved to alter specifications without notice.

0460 443 201 © ESAB AB 2013

1 SAFETY

1 SAFETY

Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be observed in addition to the standard regulations that apply to the workplace.

All work must be carried out by trained personnel well-acquainted with the operation of the equipment. Incorrect operation of the equipment may lead to hazardous situations which can result in injury to the operator and damage to the equipment.

1. Anyone who uses the equipment must be familiar with: ○ its operation ○ location of emergency stops ○ its function ○ relevant safety precautions ○ welding and cutting or other applicable operation of the equipment 2. The operator must ensure that: ○ no unauthorised person is stationed within the working area of the equipment when it is started up ○ no-one is unprotected when the arc is struck or work is started with the equpment 3. The workplace must: ○ be suitable for the purpose ○ be free from drafts 4. Personal safety equipment: ○ Always wear recommended personal safety equipment, such as safety glasses, flame-proof clothing, safety gloves ○ Do not wear loose-fitting items, such as scarves, bracelets, rings, etc., which could become trapped or cause burns 5. General precautions: ○ Make sure the return cable is connected securely ○ Work on high voltage equipment

may only be carried out by a qualified electrician

○ Appropriate fire extinquishing equipment must be clearly marked and close at hand ○ Lubrication and maintenance must operation

not

be carried out on the equipment during 0460 443 201

- 4 -

© ESAB AB 2013

1 SAFETY

WARNING!

Arc welding and cutting can be injurious to yourself and others. Take precautions when welding and cutting. Ask for your employer's safety practices which should be based on manufacturers' hazard data.

ELECTRIC SHOCK - Can kill • • • • Install and earth the unit in accordance with applicable standards Do not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing Insulate yourself from earth and the workpiece Ensure your working stance is safe FUMES AND GASES - Can be dangerous to health • • Keep your head out of the fumes Use ventilation, extraction at the arc, or both, to take fumes and gases away from your breathing zone and the general area ARC RAYS - Can injure eyes and burn skin • • Protect your eyes and body. Use the correct welding screen and filter lens and wear protective clothing Protect bystanders with suitable screens or curtains FIRE HAZARD • Sparks (spatter) can cause fire. Make sure therefore that there are no inflammable materials nearby NOISE - Excessive noise can damage hearing • • Protect your ears. Use earmuffs or other hearing protection. Protect your ears.

Use earmuffs or other hearing protection Warn bystanders of the risk MALFUNCTION - Call for expert assistance in the event of malfunction.

Read and understand the instruction manual before installing or operating.

PROTECT YOURSELF AND OTHERS!

ESAB can provide you with all necessary welding protection and accessories.

WARNING!

Do not use the power source for thawing frozen pipes.

CAUTION!

Read and understand the instruction manual before installing or operating.

CAUTION!

This product is solely intended for arc welding.

0460 443 201

- 5 -

© ESAB AB 2013

1 SAFETY

CAUTION!

Class A equipment is not intended for use in residential locations where the electrical power is provided by the public low-voltage supply system. There may be potential difficulties in ensuring electromagnetic compatibility of class A equipment in those locations, due to conducted as well as radiated disturbances.

0460 443 201

- 6 -

© ESAB AB 2013

2 INTRODUCTION

2 INTRODUCTION

The Tig 1500i / 2200i is a TIG welding power source, which can also be used for MMA welding. It supplies direct current (DC).

ESAB's accessories for the product can be found in the "ACCESSORIES" chapter of this manual.

2.1

Equipment

The power source is supplied with a 3 m welding cable complete with a TIG-torch, 3 m return cable, 3 m mains cable, instruction manual for power source and control panel, see chapter "ORDERING INFORMATION".

Instruction manuals in other languages can be downloaded from the Internet: www.esab.com

2.2

TA33

Control panels

TA34 See the separate instruction manual for a detailed description of the control panels.

0460 443 201

- 7 -

© ESAB AB 2013

3 TECHNICAL DATA

3 TECHNICAL DATA

Mains voltage Mains supply Tig 1500i

230V, 10%, 1~ 50/60 Hz Z max 0.35 ohm

Primary current

I max  TIG I max  MMA

No-load power

demand when in the energy-saving mode, 6.5 min. after welding

Setting range

TIG MMA 14 A 22 A 30 W

Ignition voltage

(Upk)

Permissible load at TIG

20% duty cycle 25% duty cycle 60% duty cycle 100% duty cycle 3 A - 150 A 4 A - 150 A 11.5 kV  150 A / 16.0 V 120 A / 14.8 V 110 A / 14.4 V

Permissible load at MMA

  25% duty cycle   60% duty cycle   100% duty cycle 150 A / 26.0 V 100 A / 24.0 V 90 A / 23.6 V

Power factor at maximum current

TIG 0.98

MMA 0.99

Efficiency at maximum current

TIG MMA

Open-circuit voltage

77 % 80 % without VRD with VRD from serial number 843 & 927

Open-circuit voltage

from serial number 803 55-60 V < 35 V 72 V

Operating temperature Transportation temperature

-10 to + 40°C -20 to + 55°C

Constant sound pressure in open-circuit

< 70 dB (A)

Dimensions, l × b × h

without the cooling unit 0460 443 201

- 8 Tig 2200i/2200iw

230V, 10%, 1~ 50/60 Hz Z max 0.31 ohm 24 A 25 A 30 W 3 A - 220 A 4 A - 170 A 11.5 kV  220 A / 18.8 V 150 A / 16.0 V 110 A / 14.4 V 170 A / 26.8 V 130 A / 25.2 V 110 A / 24.4 V 0.99

0.99

75 % 81 % 55-60 V < 35 V 72 V -10 to + 40°C -20 to + 55°C < 70 dB (A) 418 × 188 × 208 mm © ESAB AB 2013

3 TECHNICAL DATA including the cooling unit

Weight Shielding gas

max pressure

Tig 1500i

418 × 188 × 208 mm 9.2 kg

Tig 2200i/2200iw

418 × 188 × 345 mm 9.4 kg

Insulation class transformer Enclosure class Application class

All types intended for TIG welding 5 bar H IP 23 All types intended for TIG welding 5 bar H IP 23

Duty cycle

The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or cut at a certain load without overloading. The duty cycle is valid for 40°C.

Enclosure class

The

IP

code indicates the enclosure class, i. e. the degree of protection against penetration by solid objects or water.

Equipment marked

IP23

is intended for indoor and outdoor use.

Application class

The symbol indicates that the power source is designed for use in areas with increased electrical hazard.

Mains supply, Z max

Maximum permissible line impedance of the network in accordance with IEC 61000-3-11.

0460 443 201

- 9 -

© ESAB AB 2013

4 INSTALLATION

4 INSTALLATION

The installation must be carried out by a professional.

NOTE!

Mains supply requirements

High power equipment may, due to the primary current drawn from the mains supply, influence the power quality of the grid. Therefore connection restrictions or requirements regarding the maximum permissible mains impedance or the required minimum supply capacity at the interface point to the public grid may apply for some types of equipment (see technical data). In this case it is the responsibility of the installer or user of the equipment to ensure, by consultation with the distribution network operator if necessary, that the equipment may be connected.

4.1

Location

Position the welding power source such that its cooling air inlets and outlets are not obstructed.

4.2

Mains power supply

Check that the welding power source is connected to the correct mains power supply voltage, and that it is protected by the correct fuse size. A protective earth connection must be made in accordance with regulations.

Rating plate with supply connection data

Mains voltage Mains frequency Mains cable area Phase current I 1eff Fuse

anti-surge type C MCB

Tig 1500i Tig 2200i/2200iw

TIG MMA TIG MMA 230 V ± 10%, 1~ 230 V ± 10%, 1~ 230 V ± 10%, 1~ 230 V ± 10%, 1~ 50/60 Hz 3G2.5 mm 2 9 A 50/60 Hz 3G2.5 mm 11 A 2 50/60 Hz 3G2.5 mm 11 A 2 50/60 Hz 3G2.5 mm 14 A 2 16 A 13 A 16 A 13 A 16 A 16 A 16 A 16 A 0460 443 201

- 10 -

© ESAB AB 2013

4 INSTALLATION

NOTE!

The mains cable areas and fuse sizes as shown above are in accordance with Swedish regulations. Use the power source in accordance with the relevant national regulations.

0460 443 201

- 11 -

© ESAB AB 2013

5 OPERATION

5 OPERATION

General safety regulations for handling the equipment can be found in the "SAFETY" chapter of this manual. Read it through before you start using the equipment!

5.1

Connections and control devices

1.

2.

3.

4.

5.

6.

Connection (+) for the return cable for TIG.

MMA: for the return cable or the welding cable.

7.

Connection for the remote control unit, only for TA34 8.

Control panel (see separate instruction manual) Connection for the TIG-torch 9.

Connection for gas to the TIG-torch Mains switch Mains cable Connection for shiedling gas 10.

Connection BLUE, with ELP* for cooling water from the cooling unit 11.

Connection RED for cooling water to the cooling unit.

Connection (-) for the TIG-torch MMA: return cable or welding cable 12.

Refilling of cooling water * ESAB Logic Pump, see section "Water connection".

0460 443 201

- 12 -

© ESAB AB 2013

5 OPERATION

5.2

Key to symbols

MMA TIG

5.3

Water connection

The cooling unit is equipped with a detection system ELP (ESAB Logic Pump) which checks that the water hoses are connected. When connecting a water-cooled TIG torch cooling starts.

• • • • •

5.4

TIG-welding

Before using the Tig 1500i/2200i for TIG welding it must be equipped with: a TIG torch a cylinder of suitable welding gas a welding gas regulator (suitable gas regulator) tungsten electrodes suitable filler metal, if necessary

5.5

MMA-welding

Connection of welding and return cable The welding power source has two terminals, one plus and one minus pole, for the connection of the welding and the return cable. Connect the welding cable to the pole indicated on the package of the electrode to be used.

Connect the return cable to the other terminal. Fit the earth clamp of the return cable to the work-piece and make sure there is good contact between the work-piece and the return cable terminal on the welding power source.

5.6

Overheating protection

The power source has two thermal overload trips which operate if the internal temperature becomes too high. A fault code is shown in the panel. They reset automatically when the temperature has fallen.

5.7

Connection to cooling unit

(only valid for Caddy Tig 2200i) Only those persons who have appropriate electrical knowledge (authorized personnel) may remove the safety plates to connect or carry out service, maintenance or repair work on welding equipment.

See the installation instructions in the instruction manual for the cooling unit.

0460 443 201

- 13 -

© ESAB AB 2013

5 OPERATION

5.8

Turning on the power source

Turn on the mains power by turning the mains switch to the ”1” position.

Turn the unit off by turning the switch to the ”0” position.

Whether the mains power supply is interrupted or the power unit is switched off in the normal manner, welding data will be stored and is available next time the unit is started.

0460 443 201

- 14 -

© ESAB AB 2013

6 MAINTENANCE

6 MAINTENANCE

NOTE!

Regular maintenance is important for safe, reliable operation.

Only those persons who have appropriate electrical knowledge (authorised personnel) may remove the safety plates to connect or carry out service, maintenance or repair work on welding equipment.

CAUTION!

All warranty undertakings from the supplier cease to apply if the customer attempts any work to rectify any faults in the product during the warranty period.

6.1

Inspection and cleaning

Power source

Check regularly that the welding power source is not clogged with dirt.

How often and which cleaning methods apply depend on: the welding process, arc times, placement, and the surrounding environment. It is normally sufficient to blow down the power source with dry compressed air (reduced pressure) once a year.

Clogged or blocked air inlets and outlets otherwise result in overheating.

Welding torch

The welding torch's wear parts should be cleaned and replaced at regular intervals in order to achieve trouble-free welding.

0460 443 201

- 15 -

© ESAB AB 2013

7 FAULT-TRACING

7 FAULT-TRACING

Try these recommended checks and inspections before sending for an authorised service technician.

Type of fault No arc.

The welding current is interrupted during welding.

The thermal cut-out trips frequently.

Poor welding performance.

• • • • • • • • • • • • Corrective action Check that the mains power supply switch is turned on.

Check that the welding current supply and return cables are correctly connected.

Check that the correct current value is set.

Check the mains power supply.

Check to see whether the thermal cut-outs have tripped.

Check the mains power supply fuses.

Make sure that you are not exceeding the rated data for the welding power source (i.e. that the unit is not being overloaded).

Make sure that the power source is clean.

Check that the welding current supply and return cables are correctly connected.

Check that the correct current value is set.

Check that the correct electrodes are being used.

Check the gas flow.

0460 443 201

- 16 -

© ESAB AB 2013

8 ORDERING SPARE PARTS

8 ORDERING SPARE PARTS

CAUTION!

Repair and electrical work should be performed by an authorised ESAB service technician. Use only ESAB original spare and wear parts.

Tig 1500i, Tig 2200i is designed and tested in accordance with the international and European standards IEC/EN 60974-1, IEC/EN 60974-3 and IEC/EN 60974-10. It is the obligation of the service unit which has carried out the service or repair work to make sure that the product still conforms to the said standard.

Spare parts may be ordered through your nearest ESAB dealer, see the back cover of this document. When ordering, please state product type, serial number, designation and spare part number in accordance with the spare parts list. This facilitates dispatch and ensures correct delivery.

0460 443 201

- 17 -

© ESAB AB 2013

9 DISMANTLING AND SCRAPPING

9 DISMANTLING AND SCRAPPING

Welding equipment primarily consists of steel, plastic and non-ferrous metals, and must be handled according to local environmental regulations. Coolant must also be handled according to local environmental regulations.

NOTE!

Dispose of electronic equipment at the recycling facility!

In observance of European Directive 2002/96/EC on Waste Electrical and Electronic Equipment and its implementation in accordance with national law, electrical and/or electronic equipment that has reached the end of its life must be disposed of at a recycling facility.

As the person responsible for the equipment, it is your responsibility to obtain information on approved collection stations.

For further information contact the nearest ESAB dealer.

0460 443 201

- 18 -

© ESAB AB 2013

DIAGRAM

DIAGRAM

0460 443 201

- 19 -

© ESAB AB 2013

DIAGRAM 0460 443 201

- 20 -

© ESAB AB 2013

DIAGRAM 0460 443 201

- 21 -

© ESAB AB 2013

DIAGRAM 0460 443 201

- 22 -

© ESAB AB 2013

DIAGRAM 0460 443 201

- 23 -

© ESAB AB 2013

DIAGRAM 0460 443 201

- 24 -

© ESAB AB 2013

ORDER NUMBER

ORDER NUMBER

Ordering no.

0460 450 880 0460 450 881 0460 450 882 0460 450 883 0460 450 884 0460 450 885 0460 450 890 0460 450 891 0460 450 892 0460 450 893 0460 450 894 0460 450 895

Product

Caddy® Tig 1500i, TA33 incl. MMA cable kit complete (3 m) and Tig torch TXH 151 (4 m) Caddy® Tig 2200i, TA33 incl. MMA cable kit complete (3 m) and Tig torch TXH 201 (4 m) Caddy® Tig 1500i, TA34 incl. MMA cable kit complete (3 m) and Tig torch TXH 151 (4 m) Caddy® Tig 2200i, TA34 incl. MMA cable kit complete (3 m) and Tig torch TXH 201 (4 m) Caddy® Tig 2200iw, TA33 incl. water cooler CoolMini, MMA cable kit complete (3 m) and Tig torch TXH 250w (4 m) Caddy® Tig 2200iw, TA34 incl. water cooler CoolMini, MMA cable kit complete (3 m) and Tig torch TXH 250w (4 m) Caddy® Tig 1500i, TA33 incl. 3 return cable with clamp Caddy® Tig 2200i, TA33 incl. 3 return cable with clamp Caddy® Tig 1500i, TA34 incl. 3 return cable with clamp Caddy® Tig 2200i, TA34 incl. 3 return cable with clamp Caddy® Tig 2200iw, TA33 incl. 3 return cable with clamp Caddy® Tig 2200iw, TA34 incl. 3 return cable with clamp

Filename

0460 447 074 0459 839 025 0459 839 026

Type

Instruction manual Spare parts list Spare parts list

Product

Control panel, Caddy® TA33, TA34 Welding power source, Tig 1500i Welding power source, Tig 2200i, Tig 2200iw Instruction manuals in other languages can be downloaded from the Internet: www.esab.com

0460 443 201

- 25 -

© ESAB AB 2013

ACCESSORIES

ACCESSORIES

0460 265 001 Strap 0460 265 002 Cable holder 0460 265 003 Shoulder strap 0459 366 885 Trolley for 5-10 litre gas bottle 0459 366 887 Trolley for 20-50 litre gas bottle 0460 330 880 Trolley for 20-50 litre gas bottle 0459 491 910 Remote control adapter RA12, 12 pole For analogue remote controls to CAN based equipment.

Only with panel TA34 0460 443 201

- 26 -

© ESAB AB 2013

ACCESSORIES 0459 491 880 0459 491 882 0459 491 883 Remote control unit MTA1 CAN MIG/MAG: wire feed speed and voltage MMA: current and arc force TIG: current, pulse and background current Only with panel TA34 Remote control unit M1 10Prog CAN 10 program selections MIG/MAG: voltage deviation TIG and MMA: current deviation Only with panel TA34 Remote control unit AT1 CAN MMA and TIG: current Only with panel TA34 0459 491 884 0460 315 880 Remote control unit AT1 CF CAN MMA and TIG: rough and fine setting of current.

Only with panel TA34 Foot pedal TI Foot CAN Only with panel TA34

Cooling unit

0460 144 880 0460 509 880 Cooling unit CoolMini Assembly kit Only for Tig 2200i

Cable kit

0700 006 884 0700 006 885 Welding cable kit Return cable kit 0460 443 201

- 27 -

© ESAB AB 2013

ACCESSORIES

Tig torches

0700 300 538 0700 300 544 0700 300 552 0700 300 555 0700 300 561 0700 300 563

Tig torches

0700 300 624 0700 300 626 0700 300 628 0700 300 630 0700 300 632 TXH 151, 4 m TXH 151, 8 m TXH 201, 4 m TXH 201, 8 m TXH 251w, 4 m TXH 251w, 8 m TXH 151r, 4 m TXH 151r, 8 m TXH 201r, 4 m TXH 201r, 8 m TXH 251wr, 4 m 0700 300 634 TXH 251wr, 8 m

Remote cable CAN 4 pole - 12 pole

0459 544 880 5 m 0459 554 881 0459 554 882 0459 554 883 0459 554 884 10 m 15 m 25 m 0.25 m Only with panel TA34 0460 443 201

- 28 -

© ESAB AB 2013

ACCESSORIES 0460 443 201

- 29 -

© ESAB AB 2013

ESAB subsidiaries and representative offices

Europe AUSTRIA

ESAB Ges.m.b.H

Vienna-Liesing Tel: +43 1 888 25 11 Fax: +43 1 888 25 11 85

BELGIUM

S.A. ESAB N.V.

Brussels Tel: +32 2 745 11 00 Fax: +32 2 745 11 28

BULGARIA

ESAB Kft Representative Office Sofia Tel: +359 2 974 42 88 Fax: +359 2 974 42 88

THE CZECH REPUBLIC

ESAB VAMBERK s.r.o.

Vamberk Tel: +420 2 819 40 885 Fax: +420 2 819 40 120

DENMARK

Aktieselskabet ESAB Herlev Tel: +45 36 30 01 11 Fax: +45 36 30 40 03

FINLAND

ESAB Oy Helsinki Tel: +358 9 547 761 Fax: +358 9 547 77 71

GREAT BRITAIN

ESAB Group (UK) Ltd Waltham Cross Tel: +44 1992 76 85 15 Fax: +44 1992 71 58 03 ESAB Automation Ltd Andover Tel: +44 1264 33 22 33 Fax: +44 1264 33 20 74

FRANCE

ESAB France S.A.

Cergy Pontoise Tel: +33 1 30 75 55 00 Fax: +33 1 30 75 55 24

GERMANY

ESAB GmbH Solingen Tel: +49 212 298 0 Fax: +49 212 298 218

HUNGARY

ESAB Kft Budapest Tel: +36 1 20 44 182 Fax: +36 1 20 44 186

ITALY

ESAB Saldatura S.p.A.

Bareggio (Mi) Tel: +39 02 97 96 8.1

Fax: +39 02 97 96 87 01

THE NETHERLANDS

ESAB Nederland B.V.

Amersfoort Tel: +31 33 422 35 55 Fax: +31 33 422 35 44

NORWAY

AS ESAB Larvik Tel: +47 33 12 10 00 Fax: +47 33 11 52 03

POLAND

ESAB Sp.zo.o.

Katowice Tel: +48 32 351 11 00 Fax: +48 32 351 11 20

PORTUGAL

ESAB Lda Lisbon Tel: +351 8 310 960 Fax: +351 1 859 1277

ROMANIA

ESAB Romania Trading SRL Bucharest Tel: +40 316 900 600 Fax: +40 316 900 601

RUSSIA

LLC ESAB Moscow Tel: +7 (495) 663 20 08 Fax: +7 (495) 663 20 09

SLOVAKIA

ESAB Slovakia s.r.o.

Bratislava Tel: +421 7 44 88 24 26 Fax: +421 7 44 88 87 41

SPAIN

ESAB Ibérica S.A.

Alcalá de Henares (MADRID) Tel: +34 91 878 3600 Fax: +34 91 802 3461

SWEDEN

ESAB Sverige AB Gothenburg Tel: +46 31 50 95 00 Fax: +46 31 50 92 22 ESAB International AB Gothenburg Tel: +46 31 50 90 00 Fax: +46 31 50 93 60

SWITZERLAND

ESAB AG Dietikon Tel: +41 1 741 25 25 Fax: +41 1 740 30 55

UKRAINE

ESAB Ukraine LLC Kiev Tel: +38 (044) 501 23 24 Fax: +38 (044) 575 21 88

North and South America ARGENTINA

CONARCO Buenos Aires Tel: +54 11 4 753 4039 Fax: +54 11 4 753 6313

BRAZIL

ESAB S.A.

Contagem-MG Tel: +55 31 2191 4333 Fax: +55 31 2191 4440

CANADA

ESAB Group Canada Inc.

Missisauga, Ontario Tel: +1 905 670 02 20 Fax: +1 905 670 48 79

MEXICO

ESAB Mexico S.A.

Monterrey Tel: +52 8 350 5959 Fax: +52 8 350 7554

USA

ESAB Welding & Cutting Products Florence, SC Tel: +1 843 669 44 11 Fax: +1 843 664 57 48

Asia/Pacific AUSTRALIA

ESAB South Pacific Archerfield BC QLD 4108 Tel: +61 1300 372 228 Fax: +61 7 3711 2328

CHINA

Shanghai ESAB A/P Shanghai Tel: +86 21 2326 3000 Fax: +86 21 6566 6622

INDIA

ESAB India Ltd Calcutta Tel: +91 33 478 45 17 Fax: +91 33 468 18 80

INDONESIA

P.T. ESABindo Pratama Jakarta Tel: +62 21 460 0188 Fax: +62 21 461 2929

JAPAN

ESAB Japan Tokyo Tel: +81 45 670 7073 Fax: +81 45 670 7001

MALAYSIA

ESAB (Malaysia) Snd Bhd USJ Tel: +603 8023 7835 Fax: +603 8023 0225

SINGAPORE

ESAB Asia/Pacific Pte Ltd Singapore Tel: +65 6861 43 22 Fax: +65 6861 31 95

SOUTH KOREA

ESAB SeAH Corporation Kyungnam Tel: +82 55 269 8170 Fax: +82 55 289 8864

UNITED ARAB EMIRATES

ESAB Middle East FZE Dubai Tel: +971 4 887 21 11 Fax: +971 4 887 22 63

Africa EGYPT

ESAB Egypt Dokki-Cairo Tel: +20 2 390 96 69 Fax: +20 2 393 32 13

SOUTH AFRICA

ESAB Africa Welding & Cutting Ltd Durbanvill 7570 - Cape Town Tel: +27 (0)21 975 8924

Distributors

For addresses and phone numbers to our distributors in other countries, please visit our home page

www.esab.com

www.esab.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
