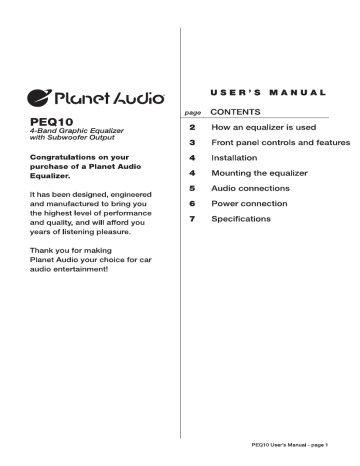

E Plunet Audio
PEQ10
4-Band Graphic Equalizer
with Subwoofer Output
Congratulations on your
purchase of a Planet Audio
Equalizer.
It has been designed, engineered
and manufactured to bring you
the highest level of performance
and quality, and will afford you
years of listening pleasure.
Thank you for making
Planet Audio your choice for car
audio entertainment!
page
USER'S MANUAL
CONTENTS
~~ © A BAD
How an equalizer is used
Front panel controls and features
Installation
Mounting the equalizer
Audio connections
Power connection
Specifications
PEQ10 User's Manual - page 1
How an equalizer is used
The PEQ10 graphic equalizer is a high-
fidelity signal processor/preamplifier
that allows you to graphically view and
individually control a number of different
frequency bands in a stereophonic
system.
It is intended for use in a car audio
system which includes amplifiers in
the signal path AFTER the equalizer,
and provides Front, Rear and
Subwoofer LOW LEVEL outputs via
RCA connectors.
PEQ10 User's Manual - page 2
This graphic equalizer consists of
several audio filters, each centered
at a specific frequency in the audio
range. The PEQ10 enables you to cut
or boost the output level by up to
12dB as desired at the following fre-
quencies:
75Hz * 200Hz e 2kHz e 20kHz
The PEQ10 also features a subwoofer
channel with an independent cross-
over control. The crossover can be
set from 45Hz to 180Hz. Any signal
below the frequency setting will be
sent to the subwoofer outputs, allow-
ing you to optimize the sound to suit
your particular subwoofer setup. Use
of the subwoofer channel is optional.
Front panel controls and features
VOLUME FADER NPUT SUB FREQ SUB GAIN SUB/LOW HIGH
OO OOOO
min a5Hz 180 180Hz min in
arta
e Planet Abie Abdio “PEQ10
MASTER VOLUME CONTROL (5) SUBWOOFER GAIN
Use this control to adjust the overall This control permits you to increase
output volume level. or decrease the output level of the
subwoofer channel.
(2) FADER
Use this control to balance the sound (6) BOOST/CUT CONTROLS
level between front and rear speakers Each of these controls represents a
as desired. range of frequencies surrounding a
center frequency to cover the audio
(3) AUXILIARY INPUT SELECTOR spectrum from subwoofer frequencies
This button permits you to select the to treble frequencies.
equalizer input source. The unit
features separate rear panel RCA Adjust these controls to suit your taste
inputs for CD/DVD players and your and listening environment. Each center
choice of an auxiliary input. frequency can be adjusted +/- 12 dB.
(4) SUBWOOFER FREQUENCY
Use this knob to set the crossover
frequency for the subwoofer output
channel (i.e., it is a lowpass filter)
PEQ10 User's Manual - page 3
Installation
Before installing your new Planet Audio
equalizer, please become familiar with
all the information contained in this
manual.
Choose a mounting location where the
unit will not distract or otherwise
interfere with the driver’s ability to
control the vehicle.
Use only the installation parts and
hardware provided with the unit to
ensure proper installation. Using other
parts can cause malfunction and
possible damage to your Planet Audio
equalizer.
Avoid installing the unit in a location
which is subject to high temperatures,
direct sunlight, hot air from such
sources as heaters or exhaust lines,
or where it will be subject to contact
with dust, dirt, moisture or excessive
vibration.
PEQ10 User’s Manual - page 4
Mounting the equalizer
The PEQ10 is designed to be installed
to the underside of your vehicle
dashboard or other similar surface
using the screws and brackets
provided. Install the unit securely,
according to the diagram below.
Angle brackets
Figure 1 Mounting the equalizer
Turning on the power
The PEQ10 has internal ON/OFF
circuitry which responds to turning ON
or OFF the head unit of your car audio
system. This requires that your head
unit have a remote turn-on lead
available on the rear panel (which most
head units have).
With this convenient remote turn-on/off
feature, you never have to worry about
turning off the power to the equalizer
when you shut off the audio system.
Audio connections
Review the diagrams on the next two pages and connect the unit as shown.
SUBWOOFER INPUTS
OUTPUTS
Fo
|
| |
DvD | | AUX |
L R R L R'L R L R!
3959259558
"° CHANNEL SON nS ‘
‘of amplifier M >
p=
>
To OUTPUTS ou” ALU N—— 10 To OUTPUTS |
of CD or DVD
f AUX INPUT SOURCE
RECEIVER/PLAYER <{| IM I Do AUX INPUT SOURC
Figure 2 Audio input and output wiring
PEQ10 User's Manual - page 5
Power connections
Please note that this equalizer contains an internal ON/OFF switch, which is activated
when the head unit is turned on. For this reason, in order to use this equalizer, your
head unit must have a remote-turn on lead.
REMOTE +12V GROUND
FJ ©000000000 |
Chassis
ground
point ©
NT 2 a
FUSE Battery
— to REMOTE TURN-ON
terminal of head unit
Figure 3 Power connections
PEQ10 User’s Manual - page 6
Specifications © Plunet Audio
PEQ10
4-Band Graphic Equalizer with Subwoofer Output
EQ center frequencies
Equalization range
Frequency response
Subwoofer crossover freq.
Signal-to-Noise Ratio
EQ THD
Subwoofer channel THD
Channel separation
Low level input voltage
Defeat/equalizer
Power supply
Output voltage
All specifications subject to change without notice.
PEQ10 User's Manual - page 7
