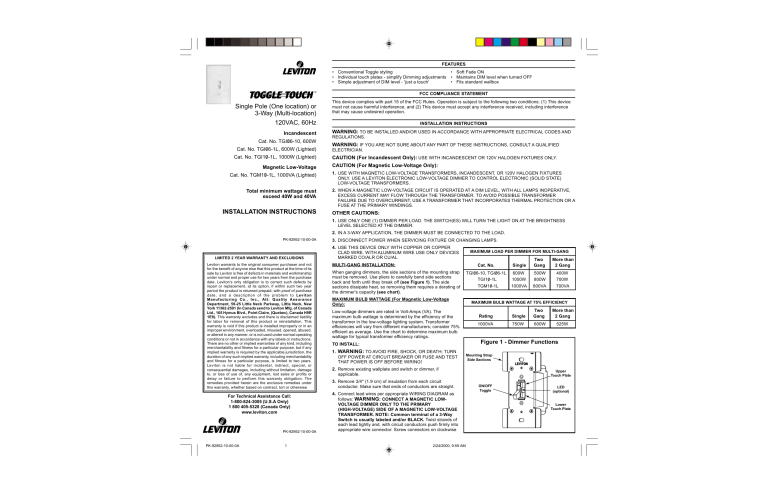

Leviton TGI10-1LT, TGI10-1LW, TGM10-1LT User manual

Leviton TGI10-1LT, TGI10-1LW, TGM10-1LT User manual
FEATURES
®
• Conventional Toggle styling
• Individual touch plates - simplify Dimming adjustments
• Simple adjustment of DIM level - 'just a touch'
• Soft Fade ON
• Maintains DIM level when turned OFF
• Fits standard wallbox
FCC COMPLIANCE STATEMENT
Single Pole (One location) or
3-Way (Multi-location)
120VAC, 60Hz
Incandescent
Cat. No. TGI06-10,
/
600W
Cat. No. TGI06-1L,
/
600W (Lighted)
Cat. No. TGI10-1L,
1000W (Lighted)
/
Magnetic Low-Voltage
/
Cat. No. TGM10-1L,
1000VA (Lighted)
Total minimum wattage must
exceed 40W and 40VA
INSTALLATION INSTRUCTIONS
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
must not cause harmful interference, and (2) This device must accept any interference received, including interference
that may cause undesired operation.
INSTALLATION INSTRUCTIONS
WARNING: TO BE INSTALLED AND/OR USED IN ACCORDANCE WITH APPROPRIATE ELECTRICAL CODES AND
REGULATIONS.
WARNING: IF YOU ARE NOT SURE ABOUT ANY PART OF THESE INSTRUCTIONS, CONSULT A QUALIFIED
ELECTRICIAN.
CAUTION (For Incandescent Only): USE WITH INCANDESCENT OR 120V HALOGEN FIXTURES ONLY.
CAUTION (For Magnetic Low-Voltage Only):
1. USE WITH MAGNETIC LOW-VOLTAGE TRANSFORMERS, INCANDESCENT, OR 120V HALOGEN FIXTURES
ONLY. USE A LEVITON ELECTRONIC LOW-VOLTAGE DIMMER TO CONTROL ELECTRONIC (SOLID STATE)
LOW-VOLTAGE TRANSFORMERS.
2. WHEN A MAGNETIC LOW-VOLTAGE CIRCUIT IS OPERATED AT A DIM LEVEL, WITH ALL LAMPS INOPERATIVE,
EXCESS CURRENT MAY FLOW THROUGH THE TRANSFORMER. TO AVOID POSSIBLE TRANSFORMER
FAILURE DUE TO OVERCURRENT, USE A TRANSFORMER THAT INCORPORATES THERMAL PROTECTION OR A
FUSE AT THE PRIMARY WINDINGS.
OTHER CAUTIONS:
1. USE ONLY ONE (1) DIMMER PER LOAD. THE SWITCH(ES) WILL TURN THE LIGHT ON AT THE BRIGHTNESS
LEVEL SELECTED AT THE DIMMER.
2. IN A 3-WAY APPLICATION, THE DIMMER MUST BE CONNECTED TO THE LOAD.
PK-92952-10-00-0A
LIMITED 2 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not
for the benefit of anyone else that this product at the time of its
sale by Leviton is free of defects in materials and workmanship
under normal and proper use for two years from the purchase
date. Leviton’s only obligation is to correct such defects by
repair or replacement, at its option, if within such two year
period the product is returned prepaid, with proof of purchase
date, and a description of the problem to Leviton
Manufacturing Co., Inc., Att: Quality Assurance
Department, 59-25 Little Neck Parkway, Little Neck, New
York 11362-2591 (In Canada send to Leviton Mfg. of Canada
Ltd., 165 Hymus Blvd., Point Claire, (Quebec), Canada H9R
1E9). This warranty excludes and there is disclaimed liability
for labor for removal of this product or reinstallation. This
warranty is void if this product is installed improperly or in an
improper environment, overloaded, misused, opened, abused,
or altered in any manner, or is not used under normal operating
conditions or not in accordance with any labels or instructions.
There are no other or implied warranties of any kind, including
merchantability and fitness for a particular purpose, but if any
implied warranty is required by the applicable jurisdiction, the
duration of any such implied warranty, including merchantability
and fitness for a particular purpose, is limited to two years.
Leviton is not liable for incidental, indirect, special, or
consequential damages, including without limitation, damage
to, or loss of use of, any equipment, lost sales or profits or
delay or failure to perform this warranty obligation. The
remedies provided herein are the exclusive remedies under
this warranty, whether based on contract, tort or otherwise.
For Technical Assistance Call:
1-800-824-3005 (U.S.A Only)
1 800 405-5320 (Canada Only)
www.leviton.com
®
PK-92952-10-00-0A
PK-92952-10-00-0A
1
3. DISCONNECT POWER WHEN SERVICING FIXTURE OR CHANGING LAMPS.
4. USE THIS DEVICE ONLY WITH COPPER OR COPPER
CLAD WIRE. WITH ALUMINUM WIRE USE ONLY DEVICES
MARKED CO/ALR OR CU/AL.
MULTI-GANG INSTALLATION:
When ganging dimmers, the side sections of the mounting strap
must be removed. Use pliers to carefully bend side sections
back and forth until they break off (see Figure 1). The side
sections dissipate heat, so removing them requires a derating of
the dimmer's capacity (see chart).
MAXIMUM BULB WATTAGE (For Magnetic Low-Voltage
Only):
Low-voltage dimmers are rated in Volt-Amps (VA). The
maximum bulb wattage is determined by the efficiency of the
transformer in the low-voltage lighting system. Transformer
efficiencies will vary from different manufacturers; consider 75%
efficient as average. Use the chart to determine maximum bulb
wattage for typical transformer efficiency ratings.
MAXIMUM LOAD PER DIMMER FOR MULTI-GANG
Cat. No.
Single
Two
Gang
More than
2 Gang
TGI06-10,
TGI06-1L
/
/
TGI10-1L
/
TGM10-1L
/
600W
1000W
1000VA
500W
800W
800VA
400W
700W
700VA
MAXIMUM BULB WATTAGE AT 75% EFFICIENCY
Rating
Single
Two
Gang
More than
2 Gang
1000VA
750W
600W
525W
Figure 1 - Dimmer Functions
TO INSTALL:
1. WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN
OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST
THAT POWER IS OFF BEFORE WIRING!
Mounting Strap
Side Sections
2. Remove existing wallplate and switch or dimmer, if
applicable.
3. Remove 3/4" (1.9 cm) of insulation from each circuit
conductor. Make sure that ends of conductors are straight.
4. Connect lead wires per appropriate WIRING DIAGRAM as
follows: WARNING: CONNECT A MAGNETIC LOWVOLTAGE DIMMER ONLY TO THE PRIMARY
(HIGH-VOLTAGE) SIDE OF A MAGNETIC LOW-VOLTAGE
TRANSFORMER. NOTE: Common terminal of a 3-Way
Switch is usually labeled and/or BLACK. Twist strands of
each lead tightly and, with circuit conductors push firmly into
appropriate wire connector. Screw connectors on clockwise
2/24/2000, 9:59 AM
Upper
Touch Plate
ON/OFF
Toggle
LED
(optional)
Lower
Touch Plate
making sure that no bare conductor shows below the
wire connectors. Secure each connector with electrical
tape.
Wiring Diagram 1 - Single Control Application
NOTE: For single pole applications, cap RED lead
with an appropriate size wire connector. Secure
connector with electrical tape.
6. Restore power at circuit breaker or fuse. Check for
proper operation by turning ON the toggle switch and
pressing the upper touch plate. Verify that the lights
turn ON. If lights do not turn ON, go to the
Troubleshooting section. If lights turn ON and function
properly (see To Operate section), TURN OFF
POWER and replace wallplate.
Dimmer
Cap with
Wire Connector
5. Carefully position all wires to provide room in outlet
box for dimmer. Mount dimmer into box with mounting
screws supplied.
(OR PRIMARY SIDE OF
MAGNETIC LOW-VOLTAGE
TRANSFORMER)
Blue
Red
Hot (Black)
Black
Black
Load
Line
120VAC, 60Hz
7. Restore power at circuit breaker or fuse.
INSTALLATION IS COMPLETE.
Green
Ground
}
White
Neutral (White)
TO OPERATE:
ON: Single Pole - Operate toggle UP.
3-Way - Operate toggle UP or DOWN until LED
turns OFF.
OFF: Single Pole - Operate toggle DOWN.
3-Way - Operate toggle UP or DOWN until LED
turns ON.
BRIGHTEN: Touch and hold the UPPER touch plate of
the dimmer until light intensity reaches the
desired BRIGHTNESS level.
DIM:
Touch and hold the LOWER touch plate of
the dimmer until light intensity reaches the
desired DIM level.
ON/OFF LED (Lighted Version): When Lights are ON,
LED is OFF.
When Lights are OFF,
LED is ON.
CLEANING:
To clean touch plate, wipe it with a
clean damp cloth using clean water
only, dry thoroughly.
Wiring Diagram 2 - Two Location Control Application
Common
Terminal
(Black Screw)
Dimmer
3-Way Switch
Hot (Black)
Red
(OR PRIMARY SIDE OF
MAGNETIC LOW-VOLTAGE
TRANSFORMER)
Blue
Black
Black
Line
120VAC, 60Hz
Load
Green
Ground
Green
Ground
}
White
Neutral (White)
TROUBLESHOOTING
• Light does not turn ON and ON/OFF LED does not
turn ON
- Circuit breaker or fuse has tripped.
- Lamp is burned out.
- Lamp is not connected to line Neutral.
•
Dimmer does not operate (lights do not dim or
brighten)
- Dimmer BLACK wire miswired to lamp and
Dimmer BLUE wire miswired to LINE Hot.
•
Lights Flickering
- Lamp has a bad connection.
- Lamp power is less than 40W or 40VA.
Wiring Diagram 3 - Three Location Control Application
Common
Terminal
(Black Screw)
3-Way Switch
Hot (Black)
4-Way Switch
1
1
Dimmer
2
Red
2
Black
Blue
Black
Line
120VAC, 60Hz
Load
Green
Ground
Green
Ground
Neutral (White)
1 Travelers between switches "IN"
2 Travelers between switches "OUT"
PK-92952-10-00-0A
2
(OR PRIMARY SIDE OF
MAGNETIC LOW-VOLTAGE
TRANSFORMER)
2/24/2000, 9:59 AM
Green
Ground
}
White
