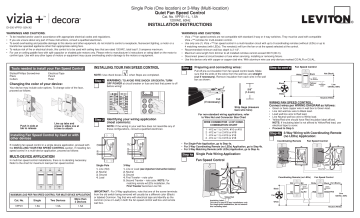

Single Pole (One location) or 3-Way (Multi-location)
Quiet Fan Speed Control
Cat. No. VPFØ1-1L, 1.5A
120VAC, 60Hz
Installation Instructions
DI-000-VPF01-02A-X2
WARNINGS AND CAUTIONS:
WARNINGS AND CAUTIONS:
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• To avoid overheating and possible damage to this device and other equipment, do not install to control a receptacle, fluorescent lighting, a motor or a
transformer-operated appliance other than appropriate ceiling fans.
• To reduce risk of fire or electrical shock, this control is to be used with ceiling fans that are rated 120VAC, total load 1.5 amperes maximum.
• For use on ceiling paddle fans with split-capacitor or shaded pole motors only. Please refer to manufacturer’s instructions or rating label on the motor to
confirm type. Use with any other types of motors or equipment may cause overheating and/or damage to the motors or equipment.
• Vizia +™ fan speed controls are not compatible with standard 3-way or 4-way switches. They must be used with compatible
Vizia +™ remotes for multi-location control.
• Use only one (1) Vizia +™ fan speed control in a multi-location circuit with up to 9 coordinating remotes (without LEDs) or up to
4 matching remotes (with LEDs). The remote(s) will turn the fan on at the speed selected at the control.
• Recommended minimum wall box depth is 2-1/2".
• Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft (90 m).
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
Tools needed to install your Fan Speed Control
Slotted/Phillips Screwdriver
Pliers
Cutters
Electrical Tape
Pencil
Ruler
INSTALLING YOUR FAN SPEED CONTROL
NOTE: Use check boxes
Step 1 WARNING: TO AVOID FIRE SHOCK OR DEATH; TURN
Changing the color of your device:
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
Installing Fan Speed Control by itself or with
other devices
If installing fan speed control in a single device application, proceed with
the INSTALLING YOUR FAN SPEED CONTROL section. If installing fan
speed control in a multi-device application, proceed as follows:
MULTI-DEVICE APPLICATION
In multi-fan speed control installations, there is no derating necessary.
Refer to the chart for maximum load per fan speed control.
1
3
4
2
1
2
3
4
5
3-Way
1. Line or Load (see important instruction below)
2. Neutral
3. Ground
4. First Traveler – note color
5. Second Traveler – note color. NOTE: For
matching remote w/LEDs installation, the
First Traveler becomes Line Hot.
Red
Cat. No.
Single
Two Devices
More than
2 Devices
VPFØ1
1.5A
1.5A
1.5A
IMPORTANT : For 3-Way applications, note that one of the screw terminals
from the old switch being removed will usually be a different color (Black)
or labeled Common. Tag that wire with electrical tape and identify as the
common (Line or Load) in both the fan speed control wall box and remote
wall box.
Insulating
Label
Line
120VAC, 60Hz
White
For non-standard wiring applications, refer
to Wire Nut and Connector Size Chart
WIRE CONNECTOR / # OF COND.
COMBINATION CHART
1 - #12 w/ 1 to 3 #14, #16 or #18
2 - #12 w/ 1 or 2 #16 or #18
1 - #14 w/ 1 to 4 #16 or #18
2 - #14 w/ 1 to 3 #16 or #18
WIRING FAN SPEED CONTROL:
Connect wires per WIRING DIAGRAM as follows:
•
•
•
•
•
Green or bare copper wire in wall box to Green lead.
Line Hot wall box wire to Black lead.
Load wall box wire to Red lead.
Line Neutral wall box wire to White lead.
Yellow/Red wire should have Red insulation label affixed.
NOTE: If insulating label is not affixed to Yellow/Red lead, use
electrical tape to cover.
• Proceed to Step 5.
Step 4b 3-Way Wiring with Coordinating Remote
(no LEDs) Application:
Fan Speed Control
Coordinating Remote
• For Single-Pole Application, go to Step 4a.
• For 3-Way Coordinating Remote (no LEDs) Application, go to Step 4b.
• For 3-Way Matching Remote (with LEDs) Application, go to Step 4c.
Black
1
Red
4
BK
Step 4a Single Pole Wiring Application:
1
2
3
YL/RD
RD
5
Green
4
2
3
White
Black
1
red
4
Green
5
Yellow/Red
Coordinating Remote (no LEDs)
2
WH
3
White
Yellow/red
Insulating label:
this wire is used in 3-way installations only.
For single pole installations, do not remove
this insulating label.
RD
Fan
BK
(unused)
Fan Speed Control
White
Green
Ground
Black
MAXIMUM LOAD PER FAN SPEED CONTROL FOR MULTI-DEVICE APPLICATION
Yellow/
Red
Fan
Fan Speed Control
Single Pole
1. Line (Hot)
2. Neutral
3. Ground
4. Load
Hot (Black)
Neutral (White)
Strip Gage (measure
bare wire here)
NOTE: If the wiring in your wall box does not resemble any of
these configurations, consult a qualified electrician.
Black
Green
Ground
Black
Cut
(if necessary)
Step 2 Identifying your wiring application
(most common):
Fan Speed Control
White
5/8"
(1.6 cm)
/&&
Line up tabs and
press in sides one at
a time to attach
Step 4a cont'd
Pull off pre-cut insulation from fan speed control leads. Make
sure that the ends of the wires from the wall box are straight
(cut if necessary). Remove insulation from each wire in the wall
box as shown:
OFF POWER at circuit breaker or fuse and test that power is off
before wiring!
Your device may include color options. To change color of the face,
proceed as follows:
Push in side at
tab to release
when Steps are completed.
Step 3 Preparing and connecting wires:
(unused)
YL/RD
Black Hot (Black)
Green
Ground
Red
Yellow/Red
Line
120VAC, 60Hz
White
Neutral (White)
WIRING FAN SPEED CONTROL:
Connect wires per WIRING DIAGRAM as follows:
NOTE: When using the coordinating remote without LEDs, the fan speed
control can be installed on either the Line or Load side of the 3-way
circuit.
NOTE: Maximum wire length from fan speed control to all installed
remotes cannot exceed 300 ft (90 m).
• Green or bare copper wire in wall box to Green lead.
• Line Hot (common) wall box wire identified (tagged) when removing
old switch to Black lead.
• First Traveler wall box wire to Red lead (note wire color).
• Remove Red insulating label from Yellow/Red lead.
• Second Traveler wall box wire to Yellow/Red lead (note wire color).
This traveler from the fan speed control must go to the terminal screw
on the remote marked "YL/RD".
• Line Neutral wall box wire to White lead.
WIRING coordinating remote:
Connect wires per WIRING DIAGRAM as follows:
NOTE: "BK" and "RD" terminals on coordinating remote are unused.
Tighten both screws.
NOTE: Maximum wire length from fan speed control to last remote is
300 ft (90 m).
• Green or bare copper wire in wall box to Green terminal screw.
• Load wall box wire identified (tagged) when removing old switch to
First Traveler (note color as above).
• Second Traveler wall box wire (note color as above) to terminal
screw marked "YL/RD". This traveler from the remote must go to the
Yellow/Red fan speed control lead.
• Remove White insulating label from terminal screw marked "WH".
• Line Neutral wall box wire to terminal screw marked "WH".
• Proceed to Step 5.
4
BK
1
red
2
4
Green
3
Yl/rD
rD
1
2
3
White
Matching Remote (with LEDs)
Hot (Black)
WH
Green
Ground
Line
120VAC, 60Hz
YL/RD
5
Black
Green
Ground
Red
Yellow/Red
Black
Fan
White
Neutral (White)
Wiring Matching Remote
(wall box with Line Hot connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot (common) wall box wire identified (tagged) when removing old
switch and First Traveler to remote terminal screw marked "BK".
• Second Traveler wall box wire from fan speed control to remote
terminal screw marked "YL/RD" (note wire color). This traveler from the
remote must go to the fan speed control Yellow/Red lead.
• Line Neutral wall box to remote terminal screw marked "WH".
Wiring Fan speed control
(wall box with Load connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green lead.
• Load wall box wire identified (tagged) when removing old switch to Red
lead.
• First Traveler Line Hot to Black lead.
• Remove Red insulating label from Yellow/Red lead.
• Second Traveler wall box wire (note color as above) to Yellow/Red lead.
This traveler from the fan speed control must go to the terminal screw on
the remote marked "YL/RD".
• Line neutral wall box wire to White lead.
• Proceed to Step 5.
Fan Speed control
White
BK
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE.
NOTE: The fan speed control must be installed in a wall box that has a
Load connection. The matching remote must be installed in a wall box
with a Line Hot connection and a Neutral connection. A Neutral wire to the
matching remote needs to be added as shown.
If you are unsure about any part of these instructions, consult a qualified
electrician.
NOTE: Maximum wire length from fan speed control to all installed remotes
cannot exceed 300 ft (90 m).
NOTE: Dress wires with a
bend as shown in diagram
in order to relieve stress
when mounting device.
5
Yellow/red
Fan Speed Control Mounting:
• Restore power at circuit breaker or
fuse.
• Press Push Pad and fan should turn
ON. If fan does not turn ON, press the
right half of the Fan Speed Bar until
the fan turns ON.
If fan still does not turn ON, refer to
the TROUBLESHOOTING section.
ADVANCED PROGRAMMING FEATURES
Definition of A Modes
A) Preset ON Level: Sets the turn on fan speed regardless of the
previous level set (Formerly Speed Lock).
Definition of B Modes
B) LED Options: Sets the time period in seconds the Locator LED and
Brightness display will stay on before extinguishing.
Definition of C Modes
Installation may now be completed by
tightening mounting screws into wall box.
Attach wallplate.
Step 7 Restore Power:
Restore power at circuit breaker or fuse.
Installation is complete.
OPERATION
NOTE: The locator light will illuminate when the load is in the OFF position
to facilitate access in the dark.
NOTE: If using the fan speed control in a 3-way application, the fan will turn
ON at speed set on fan’s Fan Speed bar. The fan speed can be controlled
from either the fan speed control or the remote location.
LED Fan
Speed
Display
Fan
Speed
Bar
• Position all wires to
provide room in outlet
wall box for device.
• Ensure that the word
“TOP” is facing up on
device strap.
• Partially screw in
mounting screws in wall
box mounting holes.
Fan Speed Control
Black
Step 6
Step 5 Testing your Fan Speed Control prior to
mounting in wall box:
Step 4c 3-Way Wiring with Matching Remote
(w/LEDs) Application:
Matching remote
Step 4c cont'd 3-Way Wiring with Matching Remote
(w/LEDs) Application:
Push
Pad
Locator
Light
Push Pad (Default settings)
Turn ON from OFF position:
Tap – Fan turns ON to preset speed.
Turn OFF from ON position:
Tap – Fan turns OFF.
Fan Speed Bar
Press Fan Speed Bar left or right to increase or
decrease fan speed respectively.
There are 3 speeds - High, Medium or Low.
INCREASE:
Press the right half of the Fan Speed Bar to
increase fan speed.
DECREASE:
Press the left half of the Fan Speed Bar to
decrease fan speed.
If you continue to hold, the fan will reduce
speed to minimum level and then turn OFF.
NOTE: The fan speed can be changed when
the fan is off using the Fan Speed Bar. In the
event of power outage or interruption the fan
will reset to the last fan speed when power is
restored.
Gently press top
of Push Pad
Air-Gap Switch:
On the Fan Speed Control only, engage the
air-gap switch by gently pressing the top of the
Push Pad until the bottom lifts completely out of
the frame and a click is heard (refer to Figure).
This will cut power to the fixture. After servicing
is complete, press the Push Pad back into place
for normal operation.
Cleaning: Clean with a damp cloth.
DO NOT use chemical cleaners.
C) Restore Defaults: Restores the factory default settings (including
device load ON at maximum level).
NOTES:
• The device will exit programming mode after 3 minutes of inactivity
• Pressing the Push Pad at any time during programming will advance
the device to the next programming mode.
Program Mode A
To enter Program Mode A:
1
4
7
Press and hold the Push Pad and then the right
half of the FAN SPEED Bar (^) for 5 seconds until
the Locator LED and leftmost LED (LED 1) begins
LED Fan Speed
to blink.
Display
• The Locator LED will blink once per second to
indicate Program Mode A, Preset ON Level.
To change the current Preset ON Level from HIGH (LED 7), MEDIUM
(LED 4), LOW (LED 1), use the FAN SPEED Bar. If this feature is not
desired, press and hold the left half of the FAN SPEED Bar (v) until
no LED is lit (default setting). By tapping the Push Pad this setting will
automatically be saved and the device will exit Programming Mode A.
Program Mode B
To enter Program Mode B:
Press and hold the Push Pad and then the left half of the FAN SPEED Bar
(v) for 5 seconds until the Locator LED and rightmost LED (LED 7) begins
to blink.
• The Locator LED will blink 2 times per second to indicate Program
Mode B, LED Options Mode. To change the LED Options settings,
use the FAN SPEED Bar to move the LED to the desired preset setting
according to the chart below. By tapping the Push Pad this setting will
automatically be saved and the device will exit Programming Mode B.
LED
LED 1 (Default)
LED 4
LED 7
LED LOCATOR TIMEOUT
Active
Active
Turns off 5 seconds after use
LED BRIGHTNESS DISPLAY TIMEOUT
Active
Turns off 5 seconds after use
Turns off 5 seconds after use
Program Mode C
To enter Program Mode C:
Engage the air-gap switch by gently pressing the top of the Push Pad until
the bottom lifts completely out of the frame and a click is heard. All LEDs
will extinguish.
• Press Push Pad back into the frame and hold for 7 seconds until the
LED Brightness Display starts bidirectional strobing to indicate Program
Mode C, Restore Default. To Restore Default settings, release the
Push Pad. This will exit programming mode.
TROUBLESHOOTING
• Fan does not turn ON and ON/OFF LED does not turn ON
- Circuit breaker or fuse has tripped.
- Fan has burned out.
- Fan Neutral connection is not wired.
For additional information, contact Leviton’s Techline at
1-800-824-3005 or visit Leviton’s website at www.leviton.com
Covered by one or more US & Foreign Patents and patents pending
Copyright© 2007 Leviton Manufacturing Co., Inc.
All Rights Including Trade Dress Rights Reserved
DI-000-VPF01-02A-X2
Step 4b cont'd 3-Way Wiring with Coordinating Remote
(no LEDs) Application:
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement,
at its option, if within such five year period the product is returned prepaid, with proof of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 59-25 Little Neck Parkway, Little Neck, New York 11362-2591. This warranty excludes and there is disclaimed
liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are
no other or implied warranties of any kind, including merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a particular purpose, is limited to five years. Leviton is not liable for incidental,
indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
