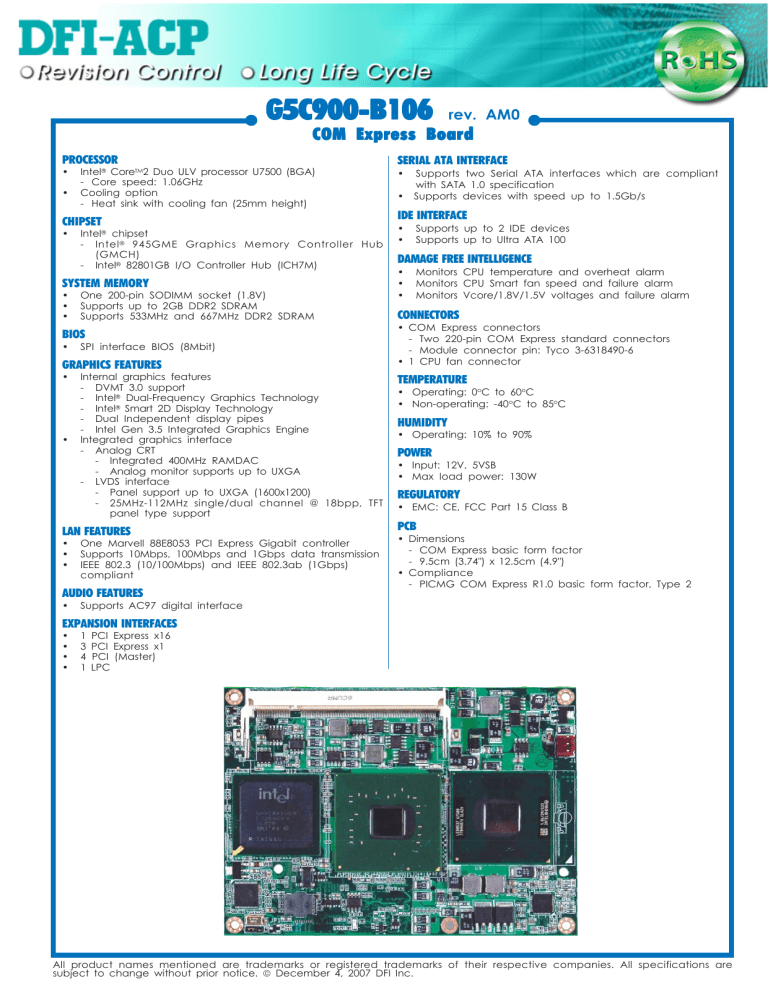

Dfi G5C900-B106 Datasheet
G5C900-B106
rev. AM0
COM Express Board
PROCESSOR
•
•
Intel® CoreTM2 Duo ULV processor U7500 (BGA)
- Core speed: 1.06GHz
Cooling option
- Heat sink with cooling fan (25mm height)
CHIPSET
•
Intel chipset
- Intel ® 945GME Graphics Memory Controller Hub
(GMCH)
- Intel® 82801GB I/O Controller Hub (ICH7M)
®
SYSTEM MEMORY
•
•
•
One 200-pin SODIMM socket (1.8V)
Supports up to 2GB DDR2 SDRAM
Supports 533MHz and 667MHz DDR2 SDRAM
BIOS
•
SPI interface BIOS (8Mbit)
GRAPHICS FEATURES
•
•
Internal graphics features
- DVMT 3.0 support
- Intel® Dual-Frequency Graphics Technology
- Intel® Smart 2D Display Technology
- Dual Independent display pipes
- Intel Gen 3.5 Integrated Graphics Engine
Integrated graphics interface
- Analog CRT
- Integrated 400MHz RAMDAC
- Analog monitor supports up to UXGA
- LVDS interface
- Panel support up to UXGA (1600x1200)
- 25MHz-112MHz single/dual channel @ 18bpp, TFT
panel type support
LAN FEATURES
•
•
•
One Marvell 88E8053 PCI Express Gigabit controller
Supports 10Mbps, 100Mbps and 1Gbps data transmission
IEEE 802.3 (10/100Mbps) and IEEE 802.3ab (1Gbps)
compliant
AUDIO FEATURES
•
SERIAL ATA INTERFACE
•
Supports two Serial ATA interfaces which are compliant
with SATA 1.0 specification
• Supports devices with speed up to 1.5Gb/s
IDE INTERFACE
•
•
Supports up to 2 IDE devices
Supports up to Ultra ATA 100
DAMAGE FREE INTELLIGENCE
•
•
•
Monitors CPU temperature and overheat alarm
Monitors CPU Smart fan speed and failure alarm
Monitors Vcore/1.8V/1.5V voltages and failure alarm
CONNECTORS
• COM Express connectors
- Two 220-pin COM Express standard connectors
- Module connector pin: Tyco 3-6318490-6
• 1 CPU fan connector
TEMPERATURE
• Operating: 0oC to 60oC
• Non-operating: -40oC to 85oC
HUMIDITY
• Operating: 10% to 90%
POWER
• Input: 12V, 5VSB
• Max load power: 130W
REGULATORY
• EMC: CE, FCC Part 15 Class B
PCB
• Dimensions
- COM Express basic form factor
- 9.5cm (3.74") x 12.5cm (4.9")
• Compliance
- PICMG COM Express R1.0 basic form factor, Type 2
Supports AC97 digital interface
EXPANSION INTERFACES
•
•
•
•
1
3
4
1
PCI Express x16
PCI Express x1
PCI (Master)
LPC
All product names mentioned are trademarks or registered trademarks of their respective companies. All specifications are
subject to change without prior notice. © December 4, 2007 DFI Inc.
