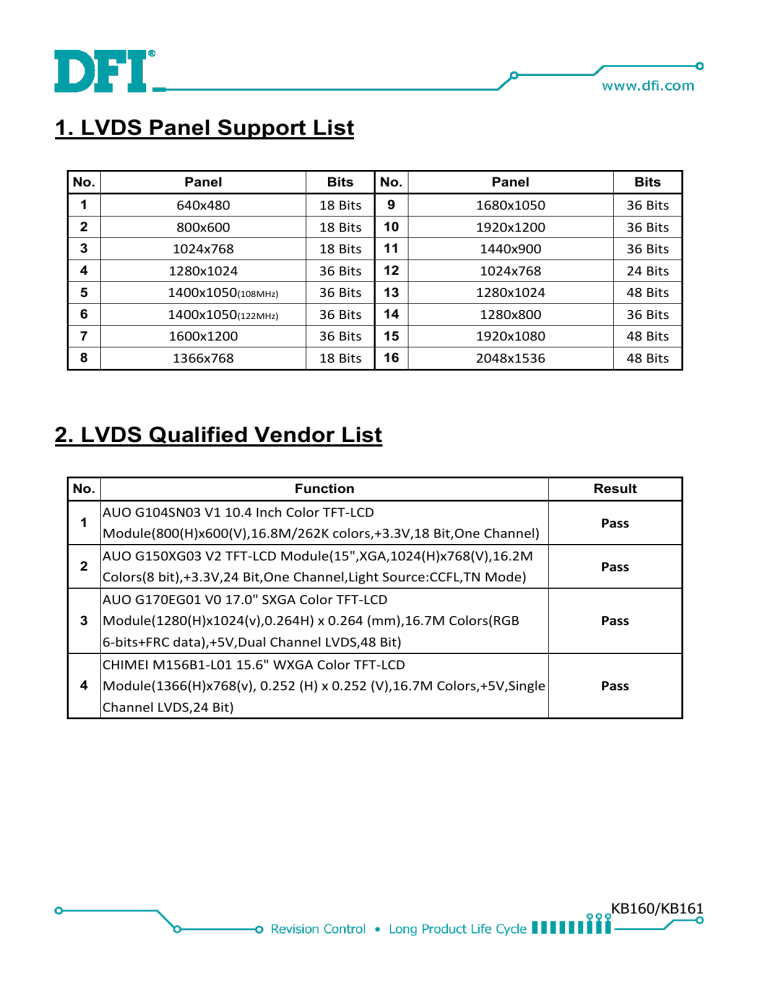

1. LVDS Panel Support List
No.
Panel
Bits
No.
Panel
Bits
1
640x480
18 Bits
9
1680x1050
36 Bits
2
800x600
18 Bits
10
1920x1200
36 Bits
3
1024x768
18 Bits
11
1440x900
36 Bits
4
1280x1024
36 Bits
12
1024x768
24 Bits
5
1400x1050(108MHz)
36 Bits
13
1280x1024
48 Bits
6
1400x1050(122MHz)
36 Bits
14
1280x800
36 Bits
7
1600x1200
36 Bits
15
1920x1080
48 Bits
8
1366x768
18 Bits
16
2048x1536
48 Bits
2. LVDS Qualified Vendor List
No.
Function
Result
1
AUO G104SN03 V1 10.4 Inch Color TFT-LCD
Module(800(H)x600(V),16.8M/262K colors,+3.3V,18 Bit,One Channel)
Pass
2
AUO G150XG03 V2 TFT-LCD Module(15",XGA,1024(H)x768(V),16.2M
Colors(8 bit),+3.3V,24 Bit,One Channel,Light Source:CCFL,TN Mode)
Pass
AUO G170EG01 V0 17.0" SXGA Color TFT-LCD
3 Module(1280(H)x1024(v),0.264H) x 0.264 (mm),16.7M Colors(RGB
6-bits+FRC data),+5V,Dual Channel LVDS,48 Bit)
Pass
CHIMEI M156B1-L01 15.6" WXGA Color TFT-LCD
4 Module(1366(H)x768(v), 0.252 (H) x 0.252 (V),16.7M Colors,+5V,Single
Channel LVDS,24 Bit)
Pass
KB160/KB161
