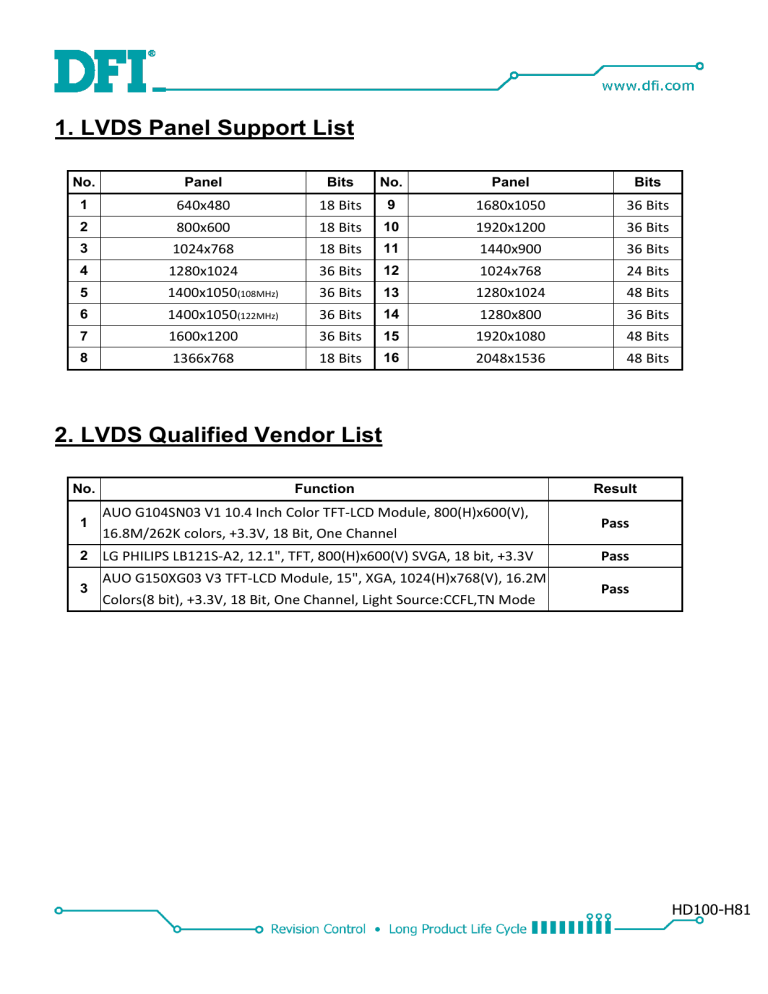

1. LVDS Panel Support List
No.
Panel
Bits
No.
Panel
Bits
1
640x480
18 Bits
9
1680x1050
36 Bits
2
800x600
18 Bits
10
1920x1200
36 Bits
3
1024x768
18 Bits
11
1440x900
36 Bits
4
1280x1024
36 Bits
12
1024x768
24 Bits
5
1400x1050(108MHz)
36 Bits
13
1280x1024
48 Bits
6
1400x1050(122MHz)
36 Bits
14
1280x800
36 Bits
7
1600x1200
36 Bits
15
1920x1080
48 Bits
8
1366x768
18 Bits
16
2048x1536
48 Bits
2. LVDS Qualified Vendor List
No.
Function
Result
1
AUO G104SN03 V1 10.4 Inch Color TFT-LCD Module, 800(H)x600(V),
16.8M/262K colors, +3.3V, 18 Bit, One Channel
Pass
2
LG PHILIPS LB121S-A2, 12.1", TFT, 800(H)x600(V) SVGA, 18 bit, +3.3V
Pass
3
AUO G150XG03 V3 TFT-LCD Module, 15", XGA, 1024(H)x768(V), 16.2M
Colors(8 bit), +3.3V, 18 Bit, One Channel, Light Source:CCFL,TN Mode
Pass
HD100-H81
