Dfi QB700 LVDS Panel Support List Manual

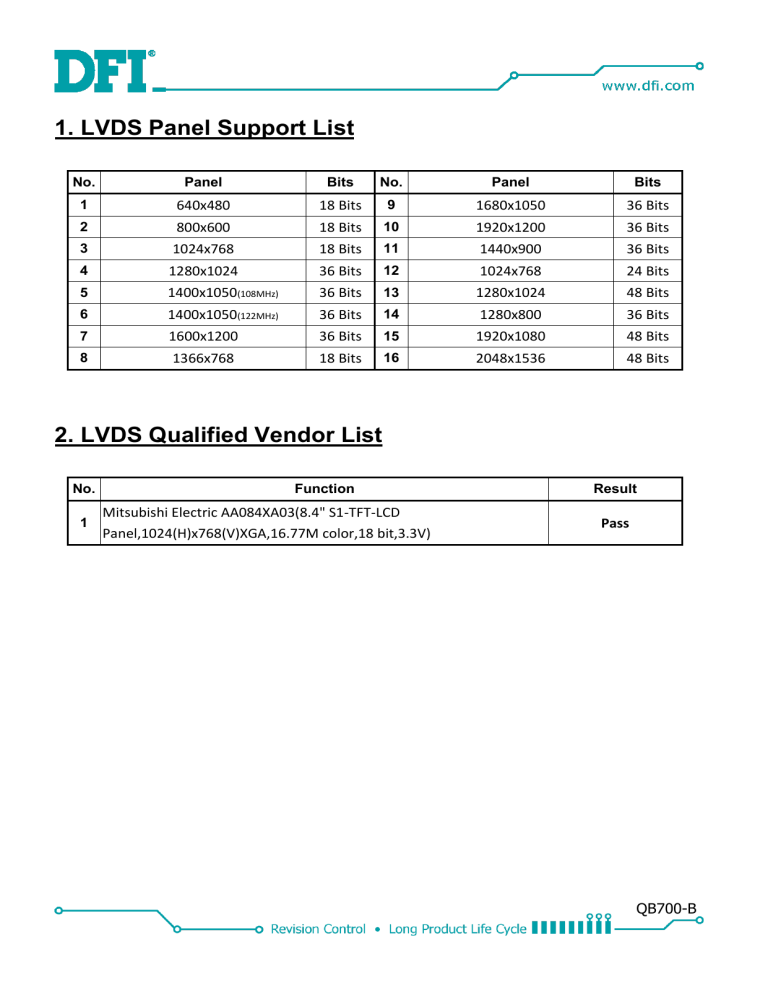

1. LVDS Panel Support List
No.
Panel
Bits
No.
Panel
Bits
1
640x480
18 Bits
9
1680x1050
36 Bits
2
800x600
18 Bits
10
1920x1200
36 Bits
3
1024x768
18 Bits
11
1440x900
36 Bits
4
1280x1024
36 Bits
12
1024x768
24 Bits
5
1400x1050(108MHz)
36 Bits
13
1280x1024
48 Bits
6
1400x1050(122MHz)
36 Bits
14
1280x800
36 Bits
7
1600x1200
36 Bits
15
1920x1080
48 Bits
8
1366x768
18 Bits
16
2048x1536
48 Bits
2. LVDS Qualified Vendor List
No.
1
Function
Mitsubishi Electric AA084XA03(8.4" S1-TFT-LCD
Panel,1024(H)x768(V)XGA,16.77M color,18 bit,3.3V)
Result
Pass
QB700-B
