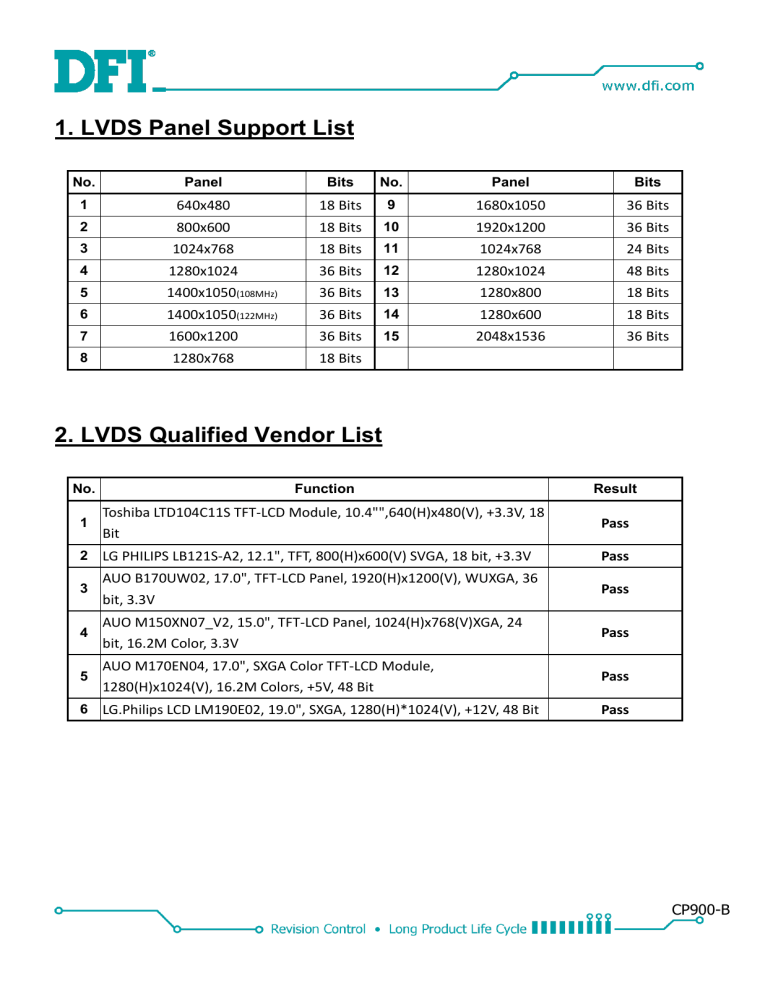

1. LVDS Panel Support List
No.
Panel
Bits
No.
Panel
Bits
1
640x480
18 Bits
9
1680x1050
36 Bits
2
800x600
18 Bits
10
1920x1200
36 Bits
3
1024x768
18 Bits
11
1024x768
24 Bits
4
1280x1024
36 Bits
12
1280x1024
48 Bits
5
1400x1050(108MHz)
36 Bits
13
1280x800
18 Bits
6
1400x1050(122MHz)
36 Bits
14
1280x600
18 Bits
7
1600x1200
36 Bits
15
2048x1536
36 Bits
8
1280x768
18 Bits
2. LVDS Qualified Vendor List
No.
Function
Result
1
Toshiba LTD104C11S TFT-LCD Module, 10.4"",640(H)x480(V), +3.3V, 18
Bit
Pass
2
LG PHILIPS LB121S-A2, 12.1", TFT, 800(H)x600(V) SVGA, 18 bit, +3.3V
Pass
3
AUO B170UW02, 17.0", TFT-LCD Panel, 1920(H)x1200(V), WUXGA, 36
bit, 3.3V
Pass
4
AUO M150XN07_V2, 15.0", TFT-LCD Panel, 1024(H)x768(V)XGA, 24
bit, 16.2M Color, 3.3V
Pass
5
AUO M170EN04, 17.0", SXGA Color TFT-LCD Module,
1280(H)x1024(V), 16.2M Colors, +5V, 48 Bit
Pass
6
LG.Philips LCD LM190E02, 19.0", SXGA, 1280(H)*1024(V), +12V, 48 Bit
Pass
CP900-B
