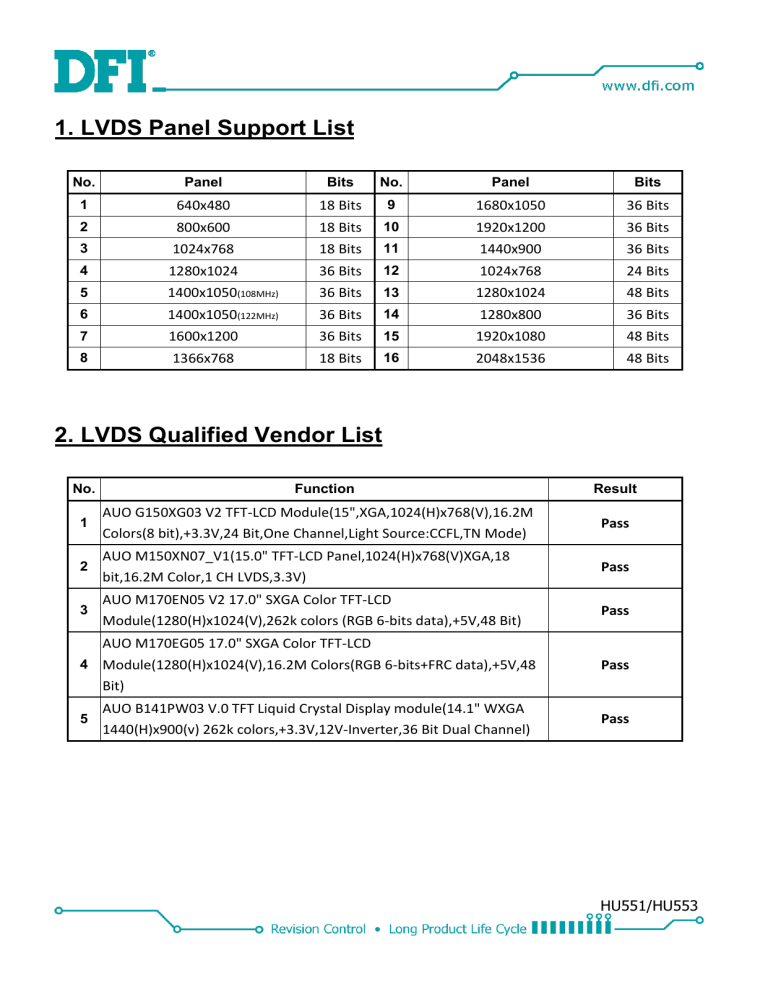

1. LVDS Panel Support List
No.
Panel
Bits
No.
Panel
Bits
1
640x480
18 Bits
9
1680x1050
36 Bits
2
800x600
18 Bits
10
1920x1200
36 Bits
3
1024x768
18 Bits
11
1440x900
36 Bits
4
1280x1024
36 Bits
12
1024x768
24 Bits
5
1400x1050(108MHz)
36 Bits
13
1280x1024
48 Bits
6
1400x1050(122MHz)
36 Bits
14
1280x800
36 Bits
7
1600x1200
36 Bits
15
1920x1080
48 Bits
8
1366x768
18 Bits
16
2048x1536
48 Bits
2. LVDS Qualified Vendor List
No.
Function
Result
1
AUO G150XG03 V2 TFT-LCD Module(15",XGA,1024(H)x768(V),16.2M
Colors(8 bit),+3.3V,24 Bit,One Channel,Light Source:CCFL,TN Mode)
Pass
2
AUO M150XN07_V1(15.0" TFT-LCD Panel,1024(H)x768(V)XGA,18
bit,16.2M Color,1 CH LVDS,3.3V)
Pass
3
AUO M170EN05 V2 17.0" SXGA Color TFT-LCD
Module(1280(H)x1024(V),262k colors (RGB 6-bits data),+5V,48 Bit)
Pass
AUO M170EG05 17.0" SXGA Color TFT-LCD
4 Module(1280(H)x1024(V),16.2M Colors(RGB 6-bits+FRC data),+5V,48
Bit)
Pass
5
AUO B141PW03 V.0 TFT Liquid Crystal Display module(14.1" WXGA
1440(H)x900(v) 262k colors,+3.3V,12V-Inverter,36 Bit Dual Channel)
Pass
HU551/HU553
