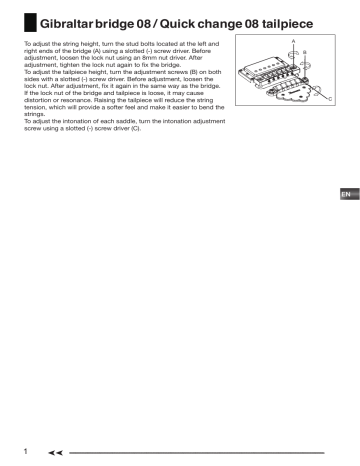

Gibraltar bridge 08 / Quick change 08 tailpiece
To adjust the string height, turn the stud bolts located at the left and
right ends of the bridge (A) using a slotted (-) screw driver. Before
adjustment, loosen the lock nut using an 8mm nut driver. After
adjustment, tighten the lock nut again to fix the bridge.
To adjust the tailpiece height, turn the adjustment screws (B) on both
sides with a slotted (-) screw driver. Before adjustment, loosen the
lock nut. After adjustment, fix it again in the same way as the bridge.
If the lock nut of the bridge and tailpiece is loose, it may cause
distortion or resonance. Raising the tailpiece will reduce the string
tension, which will provide a softer feel and make it easier to bend the
strings.
To adjust the intonation of each saddle, turn the intonation adjustment
screw using a slotted (-) screw driver (C).
A
B
C
