Ibanez Tight-End bridge Electric Guitar Owner Manual

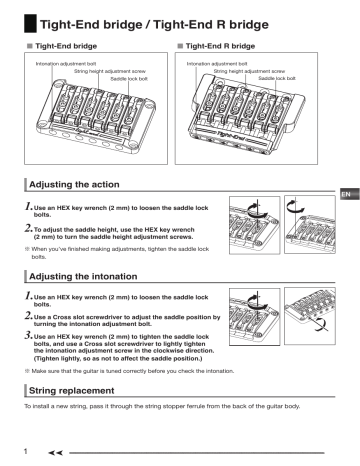

Tight-End bridge / Tight-End R bridge
■ Tight-End bridge
■ Tight-End R bridge
Intonation adjustment bolt
Intonation adjustment bolt
String height adjustment screw
Saddle lock bolt
String height adjustment screw
Saddle lock bolt
Adjusting the action
1.Use an HEX key wrench (2 mm) to loosen the saddle lock
bolts.
2.To adjust the saddle height, use the HEX key wrench
(2 mm) to turn the saddle height adjustment screws.
※ When you’ve finished making adjustments, tighten the saddle lock
bolts.
Adjusting the intonation
1.Use an HEX key wrench (2 mm) to loosen the saddle lock
bolts.
2.Use a Cross slot screwdriver to adjust the saddle position by
turning the intonation adjustment bolt.
3.Use an HEX key wrench (2 mm) to tighten the saddle lock
bolts, and use a Cross slot screwdriver to lightly tighten
the intonation adjustment screw in the clockwise direction.
(Tighten lightly, so as not to affect the saddle position.)
※ Make sure that the guitar is tuned correctly before you check the intonation.
String replacement
To install a new string, pass it through the string stopper ferrule from the back of the guitar body.
➤➤
1
EN
