Ibanez EHB Owner's manual

Ibanez EHB Owner's manual

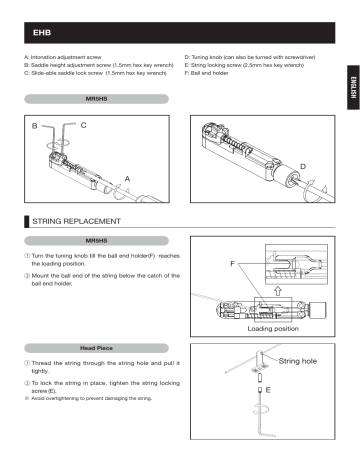

EHB
A: Intonation adjustment screw
D: Tuning knob (can also be turned with screwdriver)
B: Saddle height adjustment screw (1.5mm hex key wrench)
E: String locking screw (2.5mm hex key wrench)
C: Slide-able saddle lock screw (1.5mm hex key wrench)
F: Ball end holder
ENGLISH
MR5HS
B
C
D
A
STRING REPLACEMENT
MR5HS
① Turn the tuning knob till the ball end holder(F) reaches
the loading position.
F
② Mount the ball end of the string below the catch of the
ball end holder.
Loading position
Head Piece
String hole
① Thread the string through the string hole and pull it
tightly.
② To lock the string in place, tighten the string locking
screw (E).
※ Avoid overtightening to prevent damaging the string.
E
