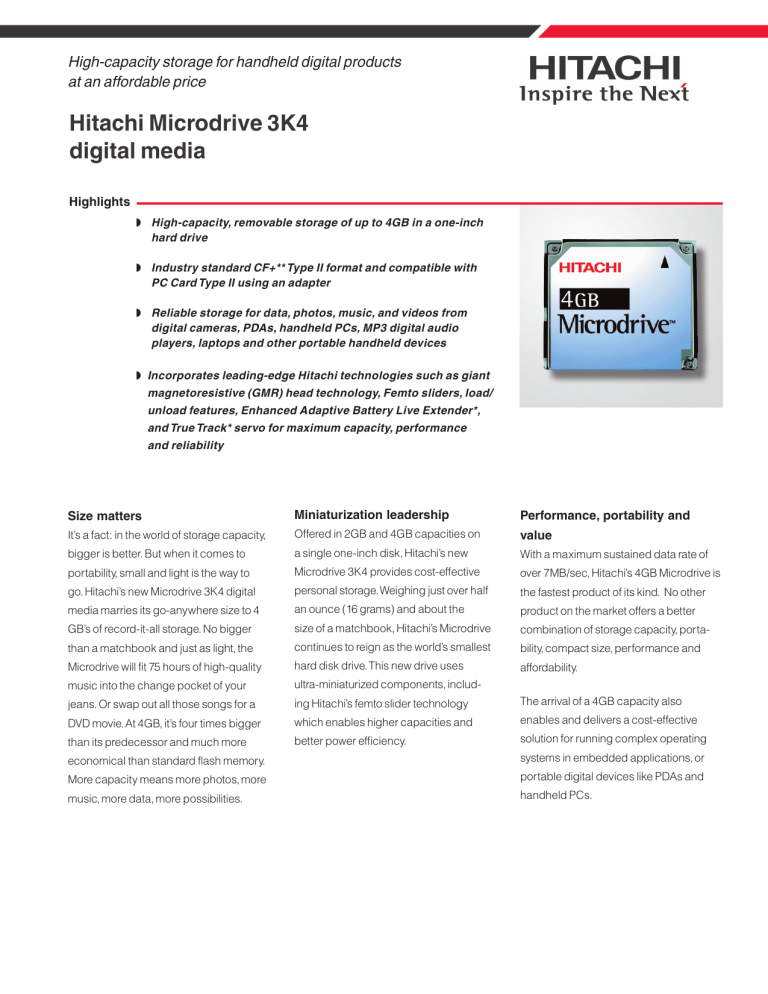

High-capacity storage for handheld digital products
at an affordable price
Hitachi Microdrive 3K4
digital media
Highlights
High-capacity, removable storage of up to 4GB in a one-inch
hard drive
Industry standard CF+** Type II format and compatible with
PC Card Type II using an adapter
Reliable storage for data, photos, music, and videos from
digital cameras, PDAs, handheld PCs, MP3 digital audio
players, laptops and other portable handheld devices
Incorporates leading-edge Hitachi technologies such as giant
magnetoresistive (GMR) head technology, Femto sliders, load/
unload features, Enhanced Adaptive Battery Live Extender*,
and True Track* servo for maximum capacity, performance
and reliability
Size matters
Miniaturization leadership
Performance, portability and
It’s a fact: in the world of storage capacity,
Offered in 2GB and 4GB capacities on
value
bigger is better. But when it comes to
a single one-inch disk, Hitachi’s new
With a maximum sustained data rate of
portability, small and light is the way to
Microdrive 3K4 provides cost-effective
over 7MB/sec, Hitachi’s 4GB Microdrive is
go. Hitachi’s new Microdrive 3K4 digital
personal storage. Weighing just over half
the fastest product of its kind. No other
media marries its go-anywhere size to 4
an ounce (16 grams) and about the
product on the market offers a better
GB’s of record-it-all storage. No bigger
size of a matchbook, Hitachi’s Microdrive
combination of storage capacity, porta-
than a matchbook and just as light, the
continues to reign as the world’s smallest
bility, compact size, performance and
Microdrive will fit 75 hours of high-quality
hard disk drive. This new drive uses
affordability.
music into the change pocket of your
ultra-miniaturized components, includ-
jeans. Or swap out all those songs for a
ing Hitachi’s femto slider technology
The arrival of a 4GB capacity also
DVD movie. At 4GB, it’s four times bigger
which enables higher capacities and
enables and delivers a cost-effective
than its predecessor and much more
better power efficiency.
solution for running complex operating
economical than standard flash memory.
systems in embedded applications, or
More capacity means more photos, more
portable digital devices like PDAs and
music, more data, more possibilities.
handheld PCs.
Hitachi Family of Microdrives specifications
Product name
Microdrive 3K4-4
Microdrive 3K4-2
Model names
HMS360404D5CF00
HMS360402D5CF00
Hitachi Global Storage Technologies
Configuration
Interface
Capacity (GB)1
Sector size (bytes)
Disks
Areal density (max. Gbits/inch2)
Recording density (max. KBPI)
Track density (KTPI)
Factory format (default)
CF+ (ATA and PCMCIA compatible)
4/2
512
1
56.5
628
90
FAT32 / FAT16
For more information
Internet and e-mail:
• www.hgst.com
Performance
Data buffer (KB)
Rotational speed (rpm)
Latency average (ms)
Media transfer rate (max. Mbits/sec)
Interface transfer rate (max. MB/sec)2
Sustained data rate (MB/sec)
128
3600
8.33
57.1 - 97.9
33
4.3 - 7.2
• N. America: s[email protected]
Seek time (read, typical)
Average (ms)
Track to track (ms)
Full track (ms)
12
1
22
• US: 1 888 426-5214
• EMEA: [email protected]
• Asia Pacific: [email protected]
Hitachi hard drive product information:
• For a complete list of worldwide phone
numbers, visit www.hgst.com/support
Reliability
Error rate (non-recoverable)
Start/stops (at 40° C)
< 1 per 1.0 E 13 bits transferred
300K
Power
+3.3V power supply
+5V power supply
Requirement
Current (write)
Current (standby)
Power consumption efficiency
+3.3VDC, ±5%
or
305 mA
16 mA
0.055 (watts/GB at idle)
+5VDC, ±5%
314mA
18 mA
0.090 (watts/GB at idle)
Dimensions
Height (mm)
Width (mm)
Depth (mm)
Weight (avg. g)
5 +0 / -0.10
42.80/±0.10
36.40/±0.15
16
Operating
Ambient temperature
Relative humidity (non-condensing)
Max. wet bulb (non-condensing)
Shock (half sine wave)
Random Vibration (RMS)
Vibration (swept sine)
0° to 70° C (70 deg. C top cover temperature)
8% to 90%
29.4° C
200 G/2ms
0.67 G (5 - 500Hz)
1.0 G 0 - Peak
Non-operating
Ambient temperature
Relative humidity (non-condensing)
Max. wet bulb (non-condensing)
Shock (half sine wave)
Random Vibration (RMS)
Vibration (swept sine)
-40° to 70° C
5% to 95%
40° C
2000 G/1ms
3.01 G (5 - 500Hz)
5.0 G 0-Peak
2
Hitachi Global Storage Technologies
5600 Cottle Road
San Jose, CA 95193
Produced in the United States
8/03
All rights reserved
MicrodriveTM is a trademark of
Hitachi Global Storage Technologies.
Environmental characteristics
1
© Copyright Hitachi Global Storage Technologies 2003
GB equals one billion bytes when referring to hard drive capacity; accessible capacity may be less.
Ultra DMA mode 2 in IDE mode
Other product names are trademarks or registered
trademarks of their respective companies.
* Enhanced Adaptive Battery Life Extender, and TrueTrack
are trademarks of Hitachi Global Storage Technologies.
** Hitachi is an authorized licensee of the CF+ trademark.
References in this publication to Hitachi Global Storage
Technologies products, programs or services do not
imply that Hitachi Global Storage Technologies intends
to make these available in all countries in which Hitachi
Global Storage Technologies operates.
Product information is provided for information purposes only and does not constitute a warranty.
Information is true as of the date of publication and is
subject to change. Actual results may vary.
This publication is for general guidance only.
Photographs may show design models.
