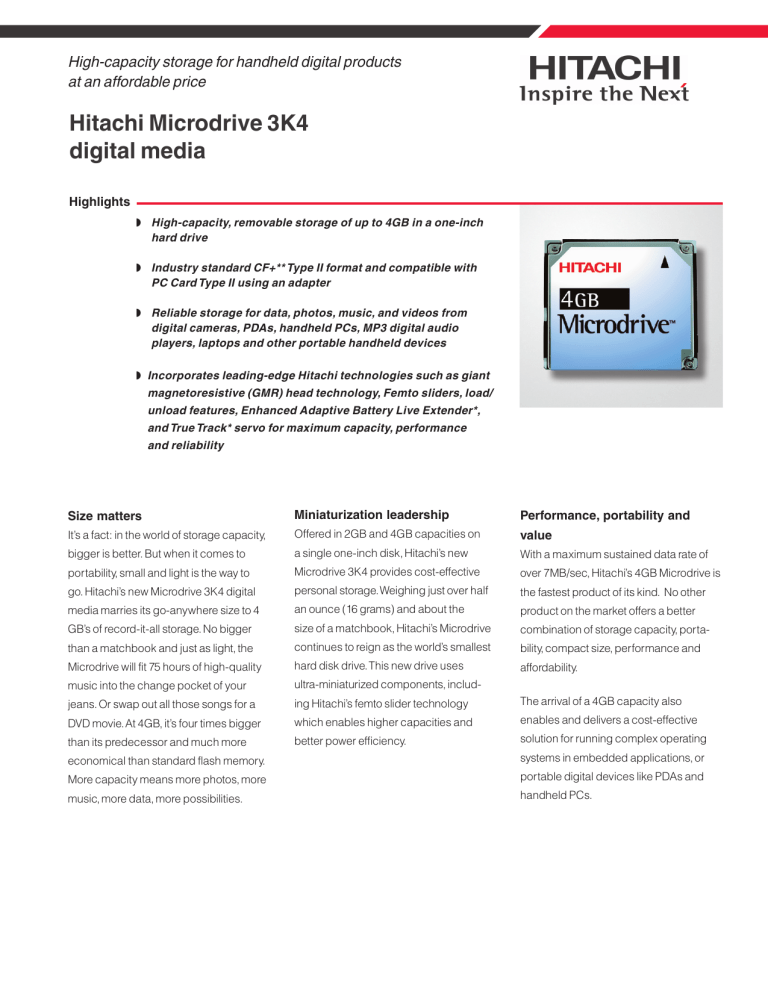

High-capacity storage for handheld digital products at an affordable price Hitachi Microdrive 3K4 digital media Highlights High-capacity, removable storage of up to 4GB in a one-inch hard drive Industry standard CF+** Type II format and compatible with PC Card Type II using an adapter Reliable storage for data, photos, music, and videos from digital cameras, PDAs, handheld PCs, MP3 digital audio players, laptops and other portable handheld devices Incorporates leading-edge Hitachi technologies such as giant magnetoresistive (GMR) head technology, Femto sliders, load/ unload features, Enhanced Adaptive Battery Live Extender*, and True Track* servo for maximum capacity, performance and reliability Size matters Miniaturization leadership Performance, portability and It’s a fact: in the world of storage capacity, Offered in 2GB and 4GB capacities on value bigger is better. But when it comes to a single one-inch disk, Hitachi’s new With a maximum sustained data rate of portability, small and light is the way to Microdrive 3K4 provides cost-effective over 7MB/sec, Hitachi’s 4GB Microdrive is go. Hitachi’s new Microdrive 3K4 digital personal storage. Weighing just over half the fastest product of its kind. No other media marries its go-anywhere size to 4 an ounce (16 grams) and about the product on the market offers a better GB’s of record-it-all storage. No bigger size of a matchbook, Hitachi’s Microdrive combination of storage capacity, porta- than a matchbook and just as light, the continues to reign as the world’s smallest bility, compact size, performance and Microdrive will fit 75 hours of high-quality hard disk drive. This new drive uses affordability. music into the change pocket of your ultra-miniaturized components, includ- jeans. Or swap out all those songs for a ing Hitachi’s femto slider technology The arrival of a 4GB capacity also DVD movie. At 4GB, it’s four times bigger which enables higher capacities and enables and delivers a cost-effective than its predecessor and much more better power efficiency. solution for running complex operating economical than standard flash memory. systems in embedded applications, or More capacity means more photos, more portable digital devices like PDAs and music, more data, more possibilities. handheld PCs. Hitachi Family of Microdrives specifications Product name Microdrive 3K4-4 Microdrive 3K4-2 Model names HMS360404D5CF00 HMS360402D5CF00 Hitachi Global Storage Technologies Configuration Interface Capacity (GB)1 Sector size (bytes) Disks Areal density (max. Gbits/inch2) Recording density (max. KBPI) Track density (KTPI) Factory format (default) CF+ (ATA and PCMCIA compatible) 4/2 512 1 56.5 628 90 FAT32 / FAT16 For more information Internet and e-mail: • www.hgst.com Performance Data buffer (KB) Rotational speed (rpm) Latency average (ms) Media transfer rate (max. Mbits/sec) Interface transfer rate (max. MB/sec)2 Sustained data rate (MB/sec) 128 3600 8.33 57.1 - 97.9 33 4.3 - 7.2 • N. America: [email protected] Seek time (read, typical) Average (ms) Track to track (ms) Full track (ms) 12 1 22 • US: 1 888 426-5214 • EMEA: [email protected] • Asia Pacific: [email protected] Hitachi hard drive product information: • For a complete list of worldwide phone numbers, visit www.hgst.com/support Reliability Error rate (non-recoverable) Start/stops (at 40° C) < 1 per 1.0 E 13 bits transferred 300K Power +3.3V power supply +5V power supply Requirement Current (write) Current (standby) Power consumption efficiency +3.3VDC, ±5% or 305 mA 16 mA 0.055 (watts/GB at idle) +5VDC, ±5% 314mA 18 mA 0.090 (watts/GB at idle) Dimensions Height (mm) Width (mm) Depth (mm) Weight (avg. g) 5 +0 / -0.10 42.80/±0.10 36.40/±0.15 16 Operating Ambient temperature Relative humidity (non-condensing) Max. wet bulb (non-condensing) Shock (half sine wave) Random Vibration (RMS) Vibration (swept sine) 0° to 70° C (70 deg. C top cover temperature) 8% to 90% 29.4° C 200 G/2ms 0.67 G (5 - 500Hz) 1.0 G 0 - Peak Non-operating Ambient temperature Relative humidity (non-condensing) Max. wet bulb (non-condensing) Shock (half sine wave) Random Vibration (RMS) Vibration (swept sine) -40° to 70° C 5% to 95% 40° C 2000 G/1ms 3.01 G (5 - 500Hz) 5.0 G 0-Peak 2 Hitachi Global Storage Technologies 5600 Cottle Road San Jose, CA 95193 Produced in the United States 8/03 All rights reserved MicrodriveTM is a trademark of Hitachi Global Storage Technologies. Environmental characteristics 1 © Copyright Hitachi Global Storage Technologies 2003 GB equals one billion bytes when referring to hard drive capacity; accessible capacity may be less. Ultra DMA mode 2 in IDE mode Other product names are trademarks or registered trademarks of their respective companies. * Enhanced Adaptive Battery Life Extender, and TrueTrack are trademarks of Hitachi Global Storage Technologies. ** Hitachi is an authorized licensee of the CF+ trademark. References in this publication to Hitachi Global Storage Technologies products, programs or services do not imply that Hitachi Global Storage Technologies intends to make these available in all countries in which Hitachi Global Storage Technologies operates. Product information is provided for information purposes only and does not constitute a warranty. Information is true as of the date of publication and is subject to change. Actual results may vary. This publication is for general guidance only. Photographs may show design models.
