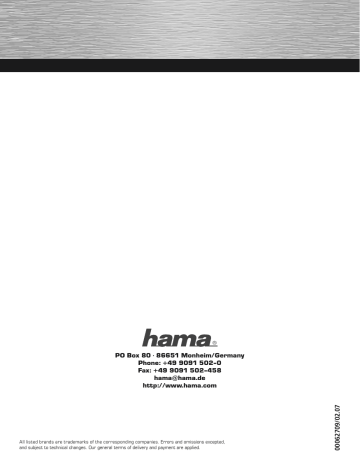

PO Box 80 · 86651 Monheim/Germany Phone: +49 9091 502-0 Fax: +49 9091 502-458 [email protected]


All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.


Festplattengehäuse extern 3.5“ »Express Storage«

Hard Disk Enclosure, external 3,5" Boîtier de disques durs, externe 3,5"



Operating Instruction


1. Installation instructions 2. Installing the hard drive 3. Installing the drivers 4. Backup software 4.1 Installation 4.2 Configuration 4.3 Creating backups 5. Contact and support information

Package contents

• 3.5“ eSATA/USB 2.0 hard drive enclosure • Power supply unit (12V; 2A; ( - + • Vertical bracket for enclosure • eSATA slot plate adapter • eSATA connection cable • USB 2.0 connection cable • Software CD • Installation instructions • Note on environmental protection

Safety instructions:

• Do not operate the device in damp or dusty environments • Do not operate this device on radiators or near heat sources • This device is designed for indoor use only • Protect the device from pressure and impact during operation • Do not open or move the device during operation

1. Installation instructions

The hard drive enclosure should never be disconnected from the computer as long as data is being transferred.

Your data could be lost.

Under no circumstance does Hama GmbH & Co KG accept liability for loss of data stored on data storage media.

2. Installing the hard drive Note:

Be aware that static electricity can damage both the hard drive and the enclosure. Discharge yourself by touching a metal object.

Slide the locking mechanism marked „Release“ on the back of the enclosure in the direction of the arrow and slide the hard drive carrier from the aluminium enclosure.

Turn the two green brackets up and insert the hard drive into the hard drive carrier. Carefully slide the hard drive in the direction of the connections for power and data transfer.

Press both hard drive brackets back down to lock the hard drive in the enclosure.

Slide the hard drive carrier carefully back into the aluminium enclosure. Ensure that the hard drive carrier locks in position properly. You will clearly hear a „click“ when it locks.


3. Installing the drivers:

The drivers for the devices are already included in Windows 2000, XP and Vista and are installed automatically by the system. The hard drive enclosure can be used without any further driver installation after connecting and restarting.

4. Backup software 4.1 Installation

Insert the enclosed driver/installation CD into the CD-ROM drive of your PC.

Accept the licence agreement.

After the autorun menu starts, select your language.

Select the folder in which the Backup Tool is to be installed. You can change the folder by clicking „Browse“.

Now select „Install Backup Tool“. Installation starts automatically.

The Backup Tool is being installed.

The Backup Tool has been successfully installed and automatically started.

Click “Install” to start the installation.


4.2 Configuration

Double-click the purple EX icon to start the Backup Tool.

This symbol is located in the notification area (system tray) at the bottom right of the screen.

4.3 Start backup

Press the backup button on the hard drive housing to start the backup.

Press the backup button on the housing again or click „Start“.

Navigate to the second tab from the left to select the data to be backed up.

The backup is copied to the hard drive.

Now select the hard drives and folders in the „File Backup“ window that you wish to backup.

When this window appears, the backup has successfully completed.

5. Support and Contact Information If products are defective:

Please contact your dealer or Hama Product Consulting if you have any product claims.

Internet / World Wide Web:

Product support, new drivers or product information can be found at www.hama.com

Support Hotline – Hama Product Consulting:

Tel. +49 (0) 9091 / 502-115 Fax +49 (0) 9091 / 502-272 E-mail: [email protected]

Click the „Minimize“ button to let the backup software run in the background.
