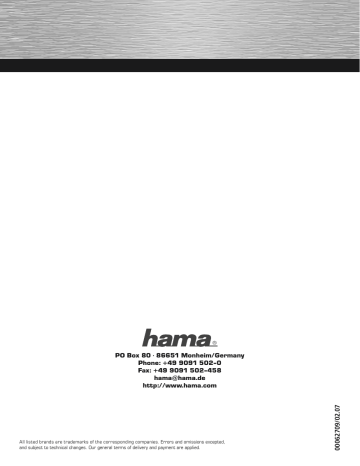

All listed brands are trademarks of the corresponding companies. Errors and omissions excepted,
and subject to technical changes. Our general terms of delivery and payment are applied.
00062709/02.07
PO Box 80 · 86651 Monheim/Germany
Phone: +49 9091 502-0
Fax: +49 9091 502-458
[email protected]
http://www.hama.com
C
O
M
P
U
T
E
R
Festplattengehäuse extern 3.5“
»Express Storage«
Hard Disk Enclosure, external 3,5"
Boîtier de disques durs, externe 3,5"
00062709
g Operating Instruction
Overview:
1. Installation instructions
2. Installing the hard drive
3. Installing the drivers
4. Backup software
4.1 Installation
4.2 Configuration
4.3 Creating backups
5. Contact and support information
Package contents
• 3.5“ eSATA/USB 2.0 hard drive enclosure
• Power supply unit (12V; 2A; ( - +
• Vertical bracket for enclosure
• eSATA slot plate adapter
• eSATA connection cable
• USB 2.0 connection cable
• Software CD
• Installation instructions
• Note on environmental protection
Slide the locking mechanism marked „Release“ on
the back of the enclosure in the direction of the arrow
and slide the hard drive carrier from the aluminium
enclosure.
Turn the two green brackets up and insert the hard drive
into the hard drive carrier. Carefully slide the hard drive
in the direction of the connections for power and data
transfer.
Safety instructions:
• Do not operate the device in damp or dusty
environments
• Do not operate this device on radiators or near
heat sources
• This device is designed for indoor use only
• Protect the device from pressure and impact
during operation
• Do not open or move the device during operation
1. Installation instructions
The hard drive enclosure should never be disconnected
from the computer as long as data is being transferred.
Your data could be lost.
Press both hard drive brackets back down to lock the
hard drive in the enclosure.
Under no circumstance does Hama GmbH & Co KG
accept liability for loss of data stored on data storage
media.
2. Installing the hard drive
Note: Be aware that static electricity can damage both
the hard drive and the enclosure. Discharge yourself by
touching a metal object.
Slide the hard drive carrier carefully back into the
aluminium enclosure. Ensure that the hard drive carrier
locks in position properly. You will clearly hear a „click“
when it locks.
5
3. Installing the drivers:
The drivers for the devices are already included in
Windows 2000, XP and Vista and are installed
automatically by the system. The hard drive enclosure
can be used without any further driver installation after
connecting and restarting.
4. Backup software
4.1 Installation
Insert the enclosed driver/installation CD into the
CD-ROM drive of your PC.
Accept the licence agreement.
After the autorun menu starts, select your language.
Select the folder in which the Backup Tool is to be
installed. You can change the folder by clicking
„Browse“.
Now select „Install Backup Tool“. Installation starts
automatically.
The Backup Tool is being installed.
The Backup Tool has been successfully installed and
automatically started.
Click “Install” to start the installation.
6
4.2 Configuration
4.3 Start backup
Press the backup button on the hard drive housing to
start the backup.
Double-click the purple EX icon to start the Backup Tool.
This symbol is located in the notification area (system
tray) at the bottom right of the screen.
Press the backup button on the housing again or click
„Start“.
Navigate to the second tab from the left to select the
data to be backed up.
The backup is copied to the hard drive.
When this window appears, the backup has
successfully completed.
Now select the hard drives and folders in the „File
Backup“ window that you wish to backup.
5. Support and Contact Information
If products are defective:
Please contact your dealer or Hama Product Consulting
if you have any product claims.
Internet / World Wide Web:
Product support, new drivers or product information can
be found at www.hama.com
Support Hotline – Hama Product Consulting:
Tel. +49 (0) 9091 / 502-115
Fax +49 (0) 9091 / 502-272
E-mail: [email protected]
Click the „Minimize“ button to let the backup software
run in the background.
7
