Hama 00054831 Owner's manual

Hama 00054831 Owner's manual

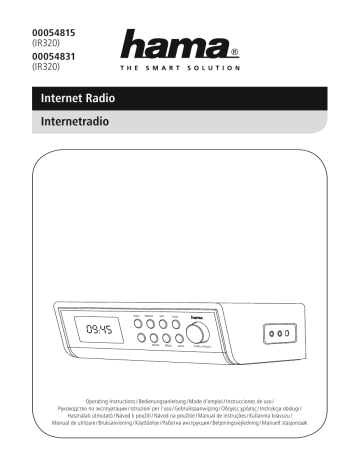

00054815
(IR320)
00054831
(IR320)
Internet Radio
Internetradio
INFO
PRESET
MODE
VOL.
TUNE
MENU
BACK
SCRELL/SELECT
Operating Instructions / Bedienungsanleitung / Mode d‘emploi / Instrucciones de uso /
Руководство по эксплуатации / Istruzioni per l‘uso / Gebruiksaanwijzing / Οδηγίες χρήσης / Instrukcja obsługi /
Használati útmutató / Návod k použití / Návod na použitie / Manual de instruções / Kullanma kılavuzu /
Manual de utilizare / Bruksanvisning / Käyttöohje / Работна инструкция / Betjeningsvejledning / Manuelt stasjonssøk
A
B
D
C
E
G Operating instructions
Technical Data
Radio Receiver/
Radio Empfänger
DAB
-
DAB+
-
FM
-
Internet
ü
Standby/
Bereitschaft
<1W
Spotify
ü
Connectivity/
Verbindungsfähigkeit
WIFI(b/g/n)
Display/
Bildschirm
2.6“ Full Dot LCD
Encryption/
Verschlüsselung
WEP, WPA, WPA2, WPS
Speaker/
Lautsprecher
4 W RMS (2 x 2 W)
Impedance/
Impedanz
4 Ohm
3“ Speaker
Power input/
Stromeingang
9V
Power Consumption/
Stromaufnahme
Operation/
Betrieb
Input & Output/
Anschlüsse
Aux in, 3.5 mm Earphone Jack
Presets/
Favoriten
Internet:
30
Codec/
Formate
IR:
MP3, WMA, ADTS
UI Languages/
UI Sprachen
English, Danish, Dutch, Finnish, French, German, Italian, Norwegian, Polish, Portuguese,
Spanish, Swedish, Turkish
Package Content/
Verpackungsinhalt
Mounting plate, 4 wood screws/4 screws Quick guide, Spotify sheet, AC/DC adapter/
Montageplatte, 4 Holzschrauben/4 Schrauben, Kurzanleitung, Spotify flyer, Netzteil
Dimension (WxHxD)/
Größe (BxHxT)
208 x 140 x 75 mm
Weight/
Gewicht
900g
1000 mA
12 W
UPNP:
MP3, WMA v9/ASF, M4A, ADTS, WAV, LPCM, FLAC, ALAC
Controls and Displays
A: Front
1
Display
On/off switch
2
[
3
[INFO]
Display additional information
4
[MODE]
Changing operating mode
(Internet radio, Spotify
Connect, Music player, Aux in)
5
[PRESET]
List/save favourites
6
[MENU]
Direct access to the menu
7
[VOL.]
Activating volume control via
[SCROLL/SELECT]
8
[BACK]
Back one menu level
9
[TIMER]
Activate egg timer (set using
[SCROLL/SELECT])
10
[SCROLL/
SELECT]
Rotate: Select
Press: Confirm
]
11
Mounting plate
12
Headphone socket
13
AUX IN socket
14
Mains power supply
1
Content
1. Explanation of Warning Symbols and Notes . . . . . . . . . . . 5
11. Auxiliary Input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2. Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
12. Sleep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3. Safety Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
13. Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
13.1 Alarm settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
13.2 Activating/ deactivating the alarm . . . . . . . . . . . . . . . . . . . . 19
13.3 Stopping the alarm/ Snooze function . . . . . . . . . . . . . . . . . . 19
4. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5. Informations and notes before getting started . . . . . . . . 6
6. Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
6.1 Radio – Connecting and starting up . . . . . . . . . . . . . . . . . . . . 6
6.2. General notes on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6.3 Initial setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
14. Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
15. System settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
15.1 Equaliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
15.2 Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
15.2.1 Network wizard –
Configuration of internet connection / Automatic search . . . . . 20
15.2.2 Wireless network connection (WLAN) . . . . . . . . . . . . . . 21
15.2.3 Manual configuration of network
connection – wireless (WLAN) and wired (LAN) . . . . . . . . . . . . 22
15.2.4 View settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
15.2.5 Network profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
15.2.6 Keep network connected . . . . . . . . . . . . . . . . . . . . . . . . 23
15.3 Time/ Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
15.4 Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
15.5 Factory Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
15.6 Software update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
15.7 Setup wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
15.8 Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
15.9 Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
15.10 AUX: Auto-Standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7. Main menu / modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
8. Internet radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
8.1 Station search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
8.1.1 Search by country or region . . . . . . . . . . . . . . . . . . . . . . . 10
8.1.2 Search by genre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8.1.3 Search by name. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
8.1.4 Popular stations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8.1.5 New stations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
8.1.6 Local stations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
8.2 Podcasts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
8.2.1 Search by country or region . . . . . . . . . . . . . . . . . . . . . . . 11
8.2.2 Search by format (subjects or categories) . . . . . . . . . . . . 11
8.2.3 Search by name. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
8.3 Last listened . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.4 Favourites (local) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.4.1 Save favourites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.4.2 Access favourites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.5 Favourites (vTuner - http://www.wifiradio-frontier.com) . . . . . 13
8.5.1 First use – Registering your radio. . . . . . . . . . . . . . . . . . . 13
8.5.2 Managing favourites online
(vTuner - http://www.wifiradio-frontier.com) . . . . . . . . . . . . . . . 13
8.5.3 Opening the favourites list. . . . . . . . . . . . . . . . . . . . . . . . 13
8.5.4 My Added Stations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
16. Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 26
17. Warranty Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
18. Service and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
19. Recycling Information
Note on environmental protection: . . . . . . . . . . . . . . . . . . . 26
9. Spotify . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
20. Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . 26
10. Music player (UPNP, USB) . . . . . . . . . . . . . . . . . . . . . . . . 15
10.1 Playback from a computer (streaming) . . . . . . . . . . . . . . . . . 15
10.2 Playback from the network – Accessing files using the radio 16
10.3 Playback of playlist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
10.4 General playback options . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2
Menu structure
MAIN MENU
INTERNET RADIO
Last listened
Station list
My Favourites
Local
Stations
Location
Genre
Search stations
Popular stations
New stations
Podcasts
Location
Genre
search podcasts
My Added Stations
Help
Get access code
FAQ
System settings
Main menu
SPOTIFY
System settings
Main menu
MUSIC PLAYER
Shared media
My playlist
Repeat play
Shuffle play
Clear My playlist
Prune servers
System settings
Main menu
AUXILIARY INPUT
System settings
Main menu
SLEEP
ALARMS
EGG TIMER
SYSTEM SETTINGS
Equaliser
Normal
Flat
Jazz
Rock
3
Movie
Classic
Pop
News
My EQ
My EQ profile setup
Bass
Treble
Loudness
Save
Network
Network wizard
PBC Wlan setup
View settings
Manual settings
Network profile
Keep network connection
Time/Date
Set Time/Date
Auto update
Update from
Network
No update
Set format
Set timezone
Daylight savings
Language
Factory Reset
Software update
Auto-check setting
Check now
Setup wizard
Info
Backlight
Slumber Mode
Operation Mode
Standby Mode
Timeout
Standby Level
AUX: Auto-Standby
4
Thank you for choosing a Hama product.
Take your time and read the following instructions and
information completely. Please keep these instructions in a
safe place for future reference. If you sell the device, please
pass these operating instructions on to the new owner.
3. Safety Notes
• The product is intended for private, non-commercial use
only.
• Protect the product from dirt, moisture and overheating
and us it in dry rooms only.
• As with all electrical devices, this device should be kept
out of the reach of children.
• Do not drop the product and do not expose it to any
major shocks.
• Do not operate the product outside the power limits
given in the specifications.
• Keep the packaging material out of the reach of children
due to the risk of suffocation.
• Dispose of packaging material immediately according to
locally applicable regulations.
• Do not modify the device in any way. Doing so voids the
warranty.
1. Explanation of Warning Symbols and Notes
Risk of electric shock
This symbol indicates product parts energized with a
dangerous voltage of sufficient magnitude to constitute
a risk of electric shock.
Warning
This symbol is used to indicate safety instructions or to
draw your attention to specific hazards and risks.
Risk of electric shock
Note
• Do not open the device or continue to operate it if it
becomes damaged.
• Do not use the product if the AC adapter, adapter
cable or power cable is damaged.
• Do not attempt to service or repair the product
yourself. Leave any and all service work to qualified
experts.
This symbol is used to indicate additional information or
important notes.
2. Package Contents
• Internet Radio IR230
• Power supply
• Mounting plate
• 8 screws
• Quick guide
• Spotify Connect brochure"
4. Installation
• Attach the included mounting plate to the bottom of
your wall cupboards using all 4 wood screws. (B)
• Choose a suitable position for this purpose because the
radio must not be exposed to heat sources or moisture
(not above or near a stove/ dishwasher/ sink).
• Screw the four M6 X 13 screws into the appropriate
holes on the top of the radio (C).
• The screws must protrude about 3.5 mm and may not be
screwed in all the way.
• Mount the radio on the mounting plate so that the 4
screws click fi rmly into place in all 4 mounting rails (D
and E)
5
5. Informations and notes before getting started
Network connection/
Preparing the internet connection
You can integrate this radio into a local network and
even access home servers or other authorised resources.
To receive internet radio or access non-local media
(streaming, such as Spotify Connect), the network must be
connected to the internet.
6. Getting started
6.1 Radio – Connecting and starting up
Connect the network cable to a properly installed and
easily accessible network socket.
The power supply unit is suitable for mains voltages
between 100 and 240 V, and is thus operable on almost
any AC power grid. Please note that a country-specific
adapter may be necessary.
You can find an appropriate selection of Hama products at
www.hama.com.
WLAN connection (wireless network)
• Ensure that the router is switched on, is functioning
correctly and that there is a connection to the internet.
• Activate the WLAN function of your router.
• Follow your router´s operating instructions as regards the
correct functioning of the WLAN connection.
• A detailed description of how to configure the
LAN connection is given in the Wireless network
connection (LAN) section.
Note
• Only connect the product to a socket that has been
approved for the device.
• The electrical socket must always be easily accessible.
• When using a mult-socket power strip, make sure
that the sum power draw of all the connected devices
does not exceed its maximum throughput rating.
• If you will not be using the product for a long period
of time, disconnect it from mains power.
Once the product has been connected to mains power,
initialisation takes place.
The radio starts up, and a list of available languages for
the menu is displayed.
To assist you in first-time setup of the radio, a Setup
Wizard is provided.
6
6.2. General notes on use
Entering passwords, search terms, and so on
• Select each successive letter and digit by turning [enter/
navigate] and confirm each selection by pressing
[enter/navigate].
• To make corrections, select BKSP and confirm. The last
input made is deleted.
• To cancel input, select CANCEL and confirm.
• Once your input is complete, select OK and confirm to
finish.
• Press [info] to jump directly to the BKSP/ OK/ CANCEL
fields.
Notes on use
• When a selection among menu items is to be made
(such as YES or NO), the one currently selected has a
light-coloured background fill.
• In menus offering a variety of different options
(such as Equalizer, Update, and so on), the currently
selected option is marked with #.
Navigation and controls
• Select among menu items by turning [SCROLL/SELECT].
• Confirm the selection by pressing [SCROLL/SELECT].
Additional information
Press [info] to display context-dependent additional
information. The information shown depends on the
operating mode as well as the current selection of radio
station, music file, etc.
This procedure is indicated in these operating instructions
by the following symbols:
selection (navigate)
confirmation (enter)
[INFO]
• Description
Indicates the radio station, the current program,
contents, subjects, etc.
• Program genre/country
Indicates the genre (music style) and the country or
region of the station.
• Reliability
• Bit-Rate
The currently received digital bit rate of the received
station is displayed.
• Codec
Specifies the encoding scheme used to digitise the data
or signal (such as MP3 or WMA).
• Sampling rate
Specifies the sampling rate, or the frequency with which
the audio signal is polled (Sampling-/ Samplerate), in a
certain period of time.
• Signal strength
The signal strength of the received station is displayed
via a bar and its length.
• Today’s date
• Artist
• Album
• Folder
• Path
Specifies the directory path at which the file currently
being played back is saved.
Some features can be
accessed by means
of shortcut buttons.
Pressing shortcut buttons
is indicated here by this
symbol.
After pressing a shortcut button, navigate amongst the
menu items using [SCROLL/SELECT].
Volume adjustment
[VOL.]
• Press [VOL.] to adjust the volume. A bar and the current
volume level appear.
• You can turn the volume up (right) or down (left) by
turning [SCROLL/SELECT] accordingly.
•
7
Switching on/off / Standby
• Press [ ], to switch the radio on or off (Standby).
• To completely switch off the device, disconnect it from
the power supply.
Date/ Time
• 12/24 hours format
• Auto update
• Update from Network
Choose this option to set the time and date
automatically from the internet. Set the timezone
of your current location and, if desired, turn (ON)
automatic adjustment between summer time and
winter time.
• No update
The time and date (DD-MM-YYYY) must be set
manually; no automatic calibration takes place.
6.3 Initial setup
When it is first connected to the power supply, a list of
available languages for the menu is displayed. Proceed as
follows to set your preferred language.
Keep network connected
This setting is a radio energy-saving function. If this feature
is disabled (NO#), the network module will be switched
off whenever the radio is not actively using the network
connection (such as in standby mode). This means the
radio will not be accessible via the network from your PC,
smartphone or tablet.
You should enable (YES #) this menu item if you want
to use streaming or control functions via the app. This
function is disabled by default.
Desired language,
for example German
Setup wizard
Once a language has been set, the setup wizard offers to
assist you with first-time setup. Choose YES to start it or
NO to skip.
Network wizard – Configuration of network
connection
YES / NO
Note – Reference to a different part of these
operating instructions.
• Because this chapter is extensive, please follow the
directions in section 13.2.1. Network wizard –
Configuration of internet connection.
Note – Starting up with or without
the setup wizard?
Once the network wizard has finished, the setup wizard
is finished as well. The display shows a message to this
effect.
Press [enter/navigate] to enter the main menu.
• We recommend using the setup wizard (YES) to
quickly and easily configure the time, date, internet
connection, etc.
• If you wish to skip setup with the setup wizard
anyway, choose NO. All of the settings configured
by the setup wizard can be configured or changed
individually in the System settings menu. Alternatively,
you may restart the setup wizard at any time.
• Next, choose YES or NO to define whether the setup
wizard should start automatically next time the radio
is started up. You are in the main menu.
8
8. Internet radio
The radio uses the station list on the vTuner* portal.
You can use stations without direct registration on the
following portal: http://www.wifiradio-froniter.com.
You will find detailed operating instructions under Section
8.5 Favourites
7. Main menu / modes
Access the main menu as follows:
[MENU]
Note
* If necessary, it is possible to switch providers in order
to make all features and functions of the product
available.
Main menu
From the main menu or after pressing [MODE] repeatedly,
activate Internet radio mode.
The main menu contains the various operating modes as
well as other options that are explained separately in the
following chapters.
[MENU]
8. Internet radio
9. Spotify
10. Music player
11. Auxiliary Input
12. Sleep
13. Alarms
14. Egg timer
15. System settings
Select amongst the available operating modes by
repeatedly pressing [MODE].
Main menu

Internet radio
8.1 Station search
This radio offers various ways to search for stations.
• Use [SCROLL/SELECT] to navigate through each search
function and its options.
• Once you have found a station you like, confirm by
pressing [SCROLL/SELECT]. The radio starts playing the
selected station.
[MODE]
9
8.1.1 Search by country or region
To search for a station by continent, country and region,
proceed as follows:
8.1.3 Search by name
If you know the name of the desired station, you can
search for it directly.
[MENU]
[MENU]
Station list

stations

Location
Station list

stations

Search stations
Once you have restricted the results to a certain country or
region, select a station from the complete list or from a list
sorted by genre.
Enter the complete name, or a part thereof, in the input
screen and select OK to start the search. You receive a list
of all available stations whose names contain the search
key.
8.1.2 Search by genre
To search for a station of a certain genre or subject focus,
proceed as follows:
8.1.4 Popular stations
You can find a selection of the most popular stations as
follows:
[MENU]
[MENU]
Station list

stations

Genre
Station list

stations

Popular stations
Once you have restricted the results to a certain genre,
select a station from a list of all stations available, or from
a pre-selected list, or from a list sorted by country.
10
8.1.5 New stations
Stations that have recently been added to the database
can be found as follows:
8.2 Podcasts
Podcasts are programs on various topics and include,
for example, talk shows, news and much more. Podcasts
can be downloaded from the Internet. There are normally
approximately 10,000 programs available. Similarly to
radio stations, the radio makes it possible to filter a large
number of Podcasts, or to search the entire database for a
matching result.
[MENU]
Station list

stations

New stations
8.2.1 Search by country or region
To search for a podcast by continent, country and region,
proceed as follows:
[MENU]
8.1.6 Local stations
To search for stations from your own country (the country
in which the radio is currently located), proceed as follows:
Station list

Podcasts

Location
[MENU]
Once you have restricted the results to a certain country or
region, select a station from the complete list or from a list
sorted by genre.
Station list

Local <Country>
8.2.2 Search by format (subjects or categories)
To search for a podcast by continent, country and region,
proceed as follows:
Note
[MENU]
Replace the <Country> placeholder with the country you
are currently located in.
You can filter this local list by genre, or select a station
from the complete list, or select from a pre-selected list.
Station list

Podcasts

Genre
11
8.2.3 Search by name
If you know the name of the desired Podcasts, you can
search for it directly.
8.4.1 Save favourites
• Set the station that you would like to save as a favourite
station preset.
• If the station is received, press and hold [PRESET] on
front of the radio.
[MENU]
[PRESET]
Station list

Podcasts

Search podcasts
An overview window with the station presets should open
after approx. 2 seconds.
• You can switch between the station presets (1 to 30) by
turning [SCROLL/SELECT].
• Press [SCROLL/SELECT] to save the station on the
desired station preset.
Enter the complete name, or a part thereof, in the input
screen and select OK to start the search. You receive a list
of all available Podcasts whose names contain the search
key.
8.4.2 Access favourites
Press [PRESET] to open the overview window with the list
of saved stations.
8.3 Last listened
The radio saves the last stations and podcasts listened to in
their own list. To access the list, proceed as follows:
[PRESET]
Use [SCROLL/SELECT] to select one of your favourites.
[MENU]
Note
Favourites cannot be deleted.
If all 30 station memory slots are filled and you wish to
save a new station, choose one of the occupied slots.
The station in this slot will be overwritten with the new
station.
Last listened
8.4 Favourites (local)
You can save up to 30 of your favourite stations for quick
and direct access.
12
8.5 Favourites
(vTuner - http://www.wifiradio-frontier.com)
In addition to the local station memory slots, you can
create additional lists of favourites using the vTuner
database.
Lists of favourites created using the vTuner database can
be synchronised across multiple radios.
• During registration, the radio’s ID is associated with your
e-mail address and saved in the web interface.
• If multiple radios are registered to you and you wish to
delete one of those registrations or just compare them,
you can find the radio’s ID as follows.
[MENU]
8.5.1 First use – Registering your radio
In order to be able to use this function you have to register
at www.wifiradio-frontier.com. You need a valid email
address and an access code which will be generated by
your radio.
System settings

Info

Radio ID
Note
• No personal information is collected during the
registration process.
• Registering does not cost you anything extra. The offer
is completely free.
• Following registration you can choose from around
20,000 radio stations and 10,000 podcasts.
8.5.2 Managing favourites online
(vTuner - http://www.wifiradio-frontier.com)
After registering on the portal, you can search through
the station archive using various filters, try out stations,
and create your own favourites list from the stations listed
there. The favourites list is then synchronised with your
radio in a matter of seconds.
Get access code:
8.5.3 Opening the favourites list
To open the favourites list you created on the portal using
the radio, proceed as follows:
[MENU]
Station list

Help

Get access code
[MENU]
Station list

My Favorites
Note
Please note that each access code can only be used
once. Please contact customer service if you should
experience problems while registering the radio.
13
8.5.4 My Added Stations
If a station you desire is not yet available, you can add it
manually to the portal, or suggest a station be added to
the database (Recommend station).
Use:
• In the Spotify app, start playback of a playlist or title as
usual.
• The usual playback information is displayed, such as the
album cover, title, etc.
• At the bottom edge of the screen, the Spotify Connect
is shown next to Available devices.
logo
• You need the web address of the stream, which can often
be found on the station’s website.
• You can access the added radio stations as follows:
[MENU]
Station list

My Added Stations
The database is constantly expanded and maintained.
Nevertheless, we hope you’ll understand that sometimes
there can be delays in integrating new stations and some
stations are even rejected.
9. Spotify
Spotify Connect gives you access to millions of songs. You
can listen to them on your radio, on the go using your
smartphone, or at your PC.
Requirements:
• You must have the Spotify app installed on your Android
or iOS device.
• It can be downloaded from the Play Store or the Apple
App Store. Once the app is installed, start it and log into
your account (or, if you do not have an account, register
a new one).
• You will require a Spotify Premium account
(see www.spotify.de for more information).
• The radio must be on the same network as the Android
or iOS device with the Spotify app installed.
Playback display
14
10. Music player (UPNP, USB)
This operating mode enables the playback of MP3, WMA
or FlAC files that are saved on a PC, data storage medium
or the local network.
• Choose Available devices to access an overview of
all devices available on the network.
• Select the radio. The audio is now played back on the
radio.
From the main menu or after pressing [MODE] repeatedly,
activate Music player mode.
[MENU]
Once the connection has been established, the Spotify
Connect logo and the device designation are displayed
in green.
Main menu

Music player
After successful initial connection:
From the main menu or after pressing [MODE] repeatedly,
activate Spotify (Spotify Connect) mode.
10.1 Playback from a computer (streaming)
You can manage the radio and stream music to it from your
computer.
[MENU]
The following explanation assumes your computer’s
operating system is Windows 8. If you use a different
operating system and require assistance, or if you have
any other questions, please contact our customer support
team.
Main menu

Spotify
Requirements:
• The radio and the computer must be on the same
network.
• The radio must be authorised as a playback device on the
computer.
• Press [SCROLL/SELECT] to begin playback.
• Alternatively, you can control the radio (skip to a different
title, adjust the volume, etc.) using the remote control,
the Smart Radio app, or the Spotify app.
Proceed as follows:
 Control Panel  Network and Internet  View
network computers and devices
The radio should be shown here.
• Right-click on the icon or designation of the radio and
choose Allow streaming to this device
• Right-click again on the icon or designation of the radio
and choose Show device website to change the
friendly name of the device.
• A new browser window opens. You can make the desired
changes here.
15
Use:
• The radio can now access shared directories on the
computer, and you can stream audio files to the device
for playback.
• The music directory of your music library is enabled as
standard.
• Create and manage shared folders using Explorer or
Windows Media Player.
• Right-click on the desired music file, choose Play To,
and then select the designation of the radio.
• The radio begins playback of the music file.
Prune servers:
To reset the list of servers connected to so far, press
[SCROLL/SELECT].
If you confirm by choosing YES, then all Common Media
will be deleted.
10.2 Playback from the network – Accessing files
using the radio
To access one of the existing network shared files directly
from the radio, proceed as follows:
From the main menu or after pressing [MODE] repeatedly,
activate Music player mode.
• Under Shared media/ USB playback, choose the file
to be added to the playlist.
• Press and hold [SCROLL/SELECT] for approx. 3 seconds
until the display shows the message Added to playlist.
10.3 Playback of playlist
You can create a local playlist on the radio, in which you
save files shared on the network or from connected data
storage devices.
Note
You can also use playlists that were created on your
Windows PC. (WPL = Windows Playlist) For example,
Windows Media Player is suited for this purpose.
[MENU]
• To go directly to the playlist, do as follows:
Main menu

Music player

Shared Media
[MENU]
Main menu

Music player

My playlist
• Choose the correct device (home server, PC, etc.) and
press [SCROLL/SELECT] to open the list of shared
folders on that device.
You can now search for files, open a playlist, or search
through the entire shared music folders. If you want to
search through the entire selection of music, there are
other sorting functions available (Album, Artist, Genre,
Folder, etc.) that can help you find the desired file more
quickly.
• To remove individual files from the playlist, choose the
file and then press and hold [SCROLL/SELECT] for
approx. 3 seconds.
• Confirm Delete from My playlist by choosing YES to
delete the file from the playlist.
Note
These functions are only available if the ID3 tag and
other file information have been maintained on the
source device.
16
• To delete the entire playlist, proceed as follows:
11. Auxiliary Input
Via the analogue audio input (AUX IN socket) you can
connect mobile devices (for example smartphone, tablet
PC, M3 player etc.) to the radio and play the audio files
using the radio´s speakers.
[MENU]
• From the main menu or after pressing [MODE]
repeatedly, activate Auxiliary Input (Aux in) mode.
Main menu

Music player

Clear my playlist
[MENU]
10.4 General playback options
These playback options, which are valid for all playback
under Music player, can be found here:
Main menu

Auxiliary Input
[MENU]
• Connect your mobile terminal device to the audio in (the
AUX IN socket) of the radio using a 3.5-mm TRS stereo
cable.
• Start and control audio playback using the controls of the
connected terminal device.
Main menu

Music player

Repeat play /
Shuffle play
Repeat play: On / Repeat play: Off :
To turn the function On and Off, press [SCROLL/SELECT]
repeatedly.
If this function is activated (Repeat play: On) the current
track is repeated.
Shuffle play: On / Shuffle play: Off
To turn the function On and Off, press [SCROLL/SELECT]
repeatedly.
If this function is activated (Shuffle play: On) the radio
plays all tracks in random order.
17
12. Sleep
The radio has a timer function, which switches the radio to
standby mode after a pre-defined length of time.
• Set the desired length of time (options are
off/15/30/45/60/90/120 minutes) using
[SCROLL/SELECT] as follows:
13. Alarms
The Radio has two individually adjustable alarm times.
13.1 Alarm settings
You can access the alarm settings as follows:
[MENU]
[MENU]
Main menu

Alarms
Main menu

Sleep
• Alarm 1 and alarm 2 are configured identically. So you
can save two different alarm times. Select alarm 1 or
2 and then make the following settings by means of
[SCROLL/SELECT]:
• After the defined time the radio switches to standby
mode.
• Press [ ], to turn the radio back on.
• If a time interval is already activated, you can change or
disable it at any time
Enable:
Choose when the alarm is to activate:
Off – Daily – Once – Weekdays – Weekends
Note
Date and time:
If you selected Once, enter the date and time for the
one-off alarm.
The symbol in the display indicates that the snooze
function is activated. The number is the selected time
(e.g. 30 = timer active; automatically switches off
after 30 minutes).
Time:
First choose the hour, then the minute at which the alarm
is to activate.
Note - Backlight
There is a separate setting for the backlight when the
timer (snooze) is activated. For example, it can be set to
be dimmer than in normal operation. 15.9. Backlight
Mode:
Set whether you wish to be woken by an alarm tone (Buzz)
or by the Internet radio.
Preset:
If you selected Internet radio, choose which station or
podcast you wish to be woken with. You can choose any of
the 30 favourite station slots or the Last listened.
18
Volume:
You can set the volume at which the alarm sound should
be played. This setting makes it irrelevant how loud you
last listened to the radio.
14. Timer
The radio is equipped with an egg timer, which emits an
alarm tone after a pre-defined length of time has elapsed.
• Press [TIMER] to set the desired length of time (0 to 99
minutes).
Save:
Confirm this menu item to complete your alarm settings.
[TIMER]
Note
• When using Internet radio for the alarm sound take
care that the internet connection will be available at
the time of the alarm.
If no internet connection is available the radio instead
uses the wake-up buzzer (Buzz).
• It is recommended to allow the radio to update the
time automatically. This ensures that the time is
always correct even if there is a separation of power
supply – for example a power cut.
Alternatively, set the time interval (0 to 99 minutes) from
the main menu using [SCROLL/SELECT]:
[MENU]
Main menu

Egg timer
13.2 Activating/ deactivating the alarm
• Confirm the menu item Save in alarm settings to activate
the alarm.
• Disable the alarm by setting the Mode: to Off
• Press [TIMER] to display the time remaining.
• Once the time interval has elapsed, press [TIMER] to
stop the alarm tone. Otherwise, the alarm will stop
automatically after 30 minutes.
• Set the time interval to 0 minutes to turn off the egg
timer.
13.3 Stopping the alarm/ Snooze function
• When the alarm activates, press [ ] to stop the alarm.
• Repeatedly press [SCROLL/SELECT] to activate snooze
mode.
• The alarm turns off for the selected time interval
(5/10/15/30/60 minutes) before activating once again.
• Repeatedly press [SCROLL/SELECT] to activate ON
instead of snooze mode. The radio now stays switched
on.
• If the alarm is not stopped, the radio automatically
switches into standby mode after one hour.
Note
• The volume of the alarm tone cannot be set manually.
It increases automatically up to volume level 16.
19
15. System settings
You can modify all settings and access important
information about the radio in the System settings.
15.2 Network
15.2.1 Network wizard – Configuration of internet
connection / Automatic search
The network wizard supports you to set up a
connection between the radio and internet. Hereby you
can choose between a wired LAN connection and a
wireless connection using WLAN/Wi-Fi. More methods
of configuration and detailed information are amplified
subsequently.
15.1 Equaliser
The equaliser allows you to adjust the sound of the radio
to suit your preferences by amplifying or reducing the
amount of bass or treble in the audio .
You can choose from preconfigured profiles, adjusted to
suit a variety of music genres, or create your own custom
profile.
• You can start the Network wizard as follows:
• To set the Equaliser, proceed as follows:
[MENU]
[MENU]
System settings

Network

Network wizard
System settings

Equaliser
• When the wizard is started, the radio searches for WLAN
(WiFi) connections and then shows a list of the available
networks.
• Turn [SCROLL/SELECT] to switch amongst the networks
discovered. At the bottom of the list are options to
restart the search ([Rescan]), select a cable connection
([Wired]) or configure the connection yourself ([Manual
config]).
• If your network is not found or the SSID (Service Set
Identification, that is, the name of your network) is not
shown, the network may be hidden or out of range. In
this case, try manual configuration or connecting by LAN
cable.
• Use [SCROLL/SELECT] to choose one of the
preconfigured profiles.
• To create your own equaliser profile, choose the option
My EQ profile setup.
• This takes you to the settings for Bass, Treble and
Loudness (volume amplification).
• To adjust a particular value, press [enter/navigate] at the
corresponding menu item and then change the value
by turning [SCROLL/SELECT]. If playback is already
started when you modify these settings, you can hear the
changes in the audio immediately.
• Confirm your settings by pressing [SCROLL/SELECT]
once more.
• Complete the configuration process by choosing Save.
• To use the new profile, choose the item My EQ.
20
15.2.2 Wireless network connection (WLAN)
Depending on the network, there are a number of ways to
connect to it.
Networks that support connection via WPS (Wi-Fi Protected
Setup) are identified in the list as [WPS].
Other connections are either open networks or connections
protected with a PSK, or Pre-Shared-Key.
• Alternatively, PBC setup can be initiated from the internet
settings of the radio:
[MENU]
System settings

Network

PBC Wlan setup
Desired Network
PIN setup
• Select your desired network. (Indicated by the prefix
[WPS])
• In the WPS menu, choose the Pin option and confirm
your selection by pressing [SCROLL/SELECT].
• The radio generates an 8-digit code, which must be
entered into the web or user interface of your router or
access point.
• Consult the corresponding handbook for details on
configuring the router or access point.
WPS-/PSK-/ open network connection
WPS allows simple and nevertheless protected connection
of the radio to the network. Two options are available
for this purpose: The connection can be set up by means
of PBC, or Push-Button Configuration, or by the PIN
procedure, in which the web interface of your router
prompts you to enter a randomly generated sequence of
numbers.
PBC setup
• Select your desired network. (Indicated by the prefix
[WPS])
• In the WPS menu, choose the Push Button option and
confirm your selection by pressing [SCROLL/SELECT].
• Press the WPS button on your router or current access
point. This can often be done using the web interface,
as well.
• Consult the operating instructions of your router or
access point for details.
• Once the process has been started on the router or
access point, the radio should be able to find and
connect to the network.
Skip WPS / Pre-Shared Key (PSK) setup
• Choose the item Skip WPS to proceed to key entry.
• In networks that do not support WPS, you will go directly
to key entry.
• In the input screen, enter the whole key and then confirm
with OK.
• If the key was entered correctly, the radio connects to
the access point and establishes the internet/network
connection..
Note
• Often the Pre-Shared Key is printed on the back or
bottom of the router or access point.
• When entering the key, take notice of capitalisation.
21
Open network
Manual configuration wireless (WLAN) –
DHCP disable
The method described here assumes the DHCP server is
active (manual wireless configuration(WLAN) – DHCP
enable). However, the network information such as IP
address, subnet mask, gateway address, and DNS (primary
and secondary) must still be entered.
Find this information in the web interface of your router
or access point, or ask your network administrator. Once
all the information has been entered correctly, confirm
to proceed. The radio now attempts to establish the
connection.
Note
• We recommend against establishing unsecured
connections and advise you to always protect your
network against unauthorised access.
• If you plan to use an open network, you just have
to select the network ID from the list of available
networks and confirm.
• The radio then connects immediately to the network.
15.2.3 Manual configuration of network
connection – wireless (WLAN) and wired (LAN)
• To manually configure the network connection, proceed
as follows:
15.2.4 View settings
Here you can find all the most important information about
all network connections currently used or configured on
the radio, such as: MAC address, WLAN region, DHCP
active/disabled, SSID, IP address, subnet mask, gateway
address, DNS (primary and secondary), etc.
[MENU]
[MENU]
System settings

Network

Manual settings
System settings

Network

View settings
Manual configuration wireless (WLAN) –
DHCP enable
• Select the option Wireless.
• Select the option DHCP enable.
• In the input screen, enter the whole SSID (network name)
and then confirm with OK.
• Now choose the security standard used by the network.
This can be found in the configuration options of your
router or access point.
• Depending on the encryption used, you may need
to enter the network key before the connection is
established..
22
15.2.5 Network profile
The radio automatically saves all successfully connected
network profiles. This means that re-establishing these
connections (for example, after the radio was disconnected
from the power supply) does not require you to re-enter the
network access information.
15.2.6 Keep network connected
This setting is a radio energy-saving function.
[MENU]
• To remove network profiles individually, proceed as
follows:
System settings

Network

Keep network connected
[MENU]
System settings

Network

Network profile
If this feature is disabled (NO#), the network module will
be switched off whenever the radio is not actively using the
network connection (such as in standby mode). This means
the radio will not be accessible via the network from your
PC, smartphone or tablet. You should enable (YES #)
this menu item if you want to use streaming or control
functions via the app. This function is disabled by default.
• Select a network profile and press [SCROLL/SELECT] to
delete it.
• Confirm the prompt querying if you want to delete the
profile with YES.
• A profile that is currently active, or that is in use, cannot
be deleted.
15.3 Time/ Date
To access the time settings, proceed as follows:
[MENU]
Note - Data security
• Before giving or selling the radio to someone else, we
recommend performing a Factory Reset.
• This will completely and permanently delete all
network information and connections stored on the
device.
System settings

Time/Date
Auto update
Update from Network
Choose this option to set the time and date automatically
from the internet. Set the timezone of your current location
(Set timezone) and, if desired, turn on automatic
adjustment between summer time and winter time
(Daylight savings  ON).
23
No update
The time and date (DD-MM-YYYY) must be set manually;
no automatic calibration takes place.
Note
• Resetting to the factory default settings can solve
some problems and malfunctions.
• However, all settings made previously, such as custom
equaliser presets, favorites, and network profiles, are
permanently deleted.
Set Time/ Date
Set the date (DD-MM-YYYY) and time (hh:mm) manually
using [enter/navigate].
Set format
Choose between 12 and 24 hours format.
15.6 Software update
We are constantly developing new software features
and improvements for our radios to fix problems, add
functionality, etc.
We recommend that you keep your radio’s software up to
date.
15.4 Language
To change the menu language from that selected at firsttime startup, proceed as follows:
• Proceed as follows:
[MENU]
[MENU]
System settings

Language

Desired language,
for example German
System settings

Software update
15.5 Factory Reset
To reset the radio to the factory default settings, proceed
as follows:
• Set Auto-check setting to YES to have the radio
automatically check for new software updates at regular
intervals. (Recommendation)
• Choose Check now to manually start a check for
software updates.
[MENU]
Warning
System settings

Factory Reset
• Make sure that the radio has a stable power supply
before you start a software update.
• Power supply failure during a software update can
cause irreparable damage to the radio.
Confirm the following prompt with YES to reset the radio
to the factory default settings.
All settings made previously are deleted.
24
15.7 Setup wizard
You can restart the setup wizard (6.3.1. Setup wizard) at
any time by proceeding as follows:
15.9 Backlight
The backlight can be configured for each operating
mode (Operation Mode, Standby Mode, Slumber Mode)
separately.
[MENU]
• Proceed as follows:
[MENU]
System settings

Setup wizard
System settings

Backlight
15.8 Info
• To have the radio display current information about
its hardware and software (version numbers, device
designation, radio ID, etc.), proceed as follows:
• For the operation modes Operation Mode and
Slumber mode, select between various brightness levels.
• For Standby Mode, you may also choose a brightness
level for the backlight when the radio is in standby
(Standby Level). Alternatively, you can set the backlight
to turn off completely in standby (Standby Level 
Off).
• Choose a time interval for Timeout. When the radio is in
standby, press any button other than [ ] to illuminate
the display at the brightness level set for that operating
mode for the selected interval of time.
• Alternatively, you can disable this feature (Timeout 
Off).
[MENU]
System settings

Info
15.10 AUX: Auto-Standby
In Aux in (Auxiliary Input) operating mode, the radio
switches to standby mode after 15 minutes, by default.
To disable (NO) or activate (YES) this feature, proceed as
follows:
• If you have already registered your radio on the online
portal of Frontier Silicon (http://www.wifiradiofrontier.com), then you can find out the radio ID there,
as well.
[MENU]
System settings

AUX: Auto-Standby
25
16. Care and Maintenance
• Only clean this product with a slightly damp, lint-free
cloth and do not use aggressive cleaning agents.
• If you do not use the product for a long time, turn off the
device and disconnect it from the power supply. Store it
in a clean, dry place out of direct sunlight.
19. Recycling Information
Note on environmental protection:
After the implementation of the European Directive
2012/96/EU and 2006/66/EU in the national legal
system, the following applies: Electric and
electronic devices as well as batteries must not be
disposed of with household waste. Consumers are obliged
by law to return electrical and electronic devices as well as
batteries at the end of their service lives to the public
collecting points set up for this purpose or point of sale.
Details to this are defined by the national law of the
respective country. This symbol on the product, the
instruction manual or the package indicates that a product
is subject to these regulations. By recycling, reusing the
matierals or orther forms of utilizing old devices/ batteries,
you are making an important contribution to protecting our
environment.
17. Warranty Disclaimer
Hama GmbH & Co KG assumes no liability and provides no
warranty for damage resulting from improper installation/
mounting, improper use of the product or from failure to
observe the operating instructions and/ or safety notes.
18. Service and Support
Please contact Hama Product Consulting if you have any
questions about this product
Hotline: +49 9091 502-115 (German/English)
20. Declaration of Conformity
Hereby, Hama GmbH & Co KG declares that the
radio equipment type [00054815, 00054831] is in
compliance with Directive 2014/53/EU. The full
text of the EU declaration of conformity is available at the
following internet address:
www.hama.com -> 00054815 -> Downloads
www.hama.com -> 00054831 -> Downloads
Further support information can be found here:
www.hama.com
26
The Spotify software is subject to third party licenses found here:
www.spotify.com/connect/third-party-licenses
All listed brands are trademarks of the corresponding companies. Errors and omissions excepted,
and subject to technical changes. Our general terms of delivery and payment are applied.
00054815_31/05.18
Hama GmbH & Co KG
86652 Monheim / Germany
www.hama.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
